This will be the “official” 10R80 thread. It contains Facts and links to other important 10R80 posts on this site.
10R80 “newbies” - if you just bought a new or used S550 w/10R80, scroll down to all of the “facts” and review the attached PDFs. This thread contains a TON of info for you newbies and helps you to understand the characteristics, inner workings of the 10R80, how to use the Trans Modes vs. Drive Modes, and paddle shifting info.
It will also serve as a repository for those who have had issues with their 10R80, were able to get resolution and so those owners can post what they or their Service Center did for resolution. Hopefully it will also help others possibly get resolution who may have inexperienced Service Centers.
__________________________
EDIT May 2020:
Attached PDFs; users will find the information pertaining to the 10R80 dipstick variations and trans fluid documents.
__________________________
The known S550 10R80 issues (does NOT affect all S550’s equipped with 10R80’s):
1) Harsh, clunky or jerky downshifts - usually most present during the 4-3, 3-2 or 2-1 downshift in Normal trans mode and can be more harsh when in Sport trans mode.
2) Harsh, clunky or jerky upshifts - usually most present during the 3-4, 5-6 upshift in Normal trans mode and can be more harsh when in Sport trans mode.
3) Stuttering of shift points when coming to a stop or accelerating. It feels like the trans is unable to determine which gear to go into as the RPMs are increasing.
4) Lack of initial engagement into from Park into Reverse if exterior temps are below 50*.
5) Lack of engagement from Park into Reverse when car is totally in normal temp range (190*-210*), regardless of exterior temps.
6) Extremely harsh engagement from Park into Reverse OR from Reverse to Drive (1st gear). Exterior temps do not matter. The engagement can be so harsh that it feels as if the car has been hit by another vehicle or like the driveline will rip the rear from the car.
7) Erratic shifts - seems like the trans is hunting or prematurely auto shifts gears when it should not be doing so.
8) Trans seems to remain in a higher gear when slowing down as vehicle MPH is decreasing when trans should actually be going into an obvious lower gear.
FACT 1 (Ford Trans Fluid notes):
Per Ford:
Use only Motorcraft MERCON® ULV Automatic Transmission Fluid XT-12-QULV (WSS-M2C949-A) or equivalent when servicing a 10R80 automatic transmission.
FACT 2 (10R80 SSM/TSB's):
The early 2018 S550’s w/10R80’s did have some operational issues with software and hardware. These issues (some minor and some major) were addressed by Ford through TSB’s or SSM’s. The link below contains ALL such info and docs as of today’s date. That thread gets updated when there is any new release of such info.
https://www.mustang6g.com/forums/th...ost-recent-tsb’s-in-here.102918/#post-2336328
FACT 3 (Adaptive Learning Info):
The 10R80 is an adaptive learning transmission. The below thread contains the information about how to reset the adaptive learning of the 10R80 based on M6G Members and Ford’s recommendations (Post # 15 has the Ford Shop Manual info - thanks goes to @DickR):
https://www.mustang6g.com/forums/threads/question-on-10-speed.105430/#post-2702026
Adaptive learning can also be reset via Forscan for those who use the tool (thanks goes to @Blown86GT):
https://www.mustang6g.com/forums/threads/changing-valve-body-startegy-in-forscan.170382/
FACT 4 (LOW FLUID & DIPSTICK info):
M6G Members with 10R80’s have found that their 10R80 was low on fluid from the factory. If you suspect your shifting issues may be due to low fluid level, have your Ford Service Center check the fluid (or you can DIY at home with car safely jacked up or on a lift). Here’s 2 low trans fluid threads:
https://www.mustang6g.com/forums/threads/2018-10r80-low-on-transmission-fluid.132066/#post-2733064
https://www.mustang6g.com/forums/threads/a10-owners-check-your-oil-level.116410/
2 threads on checking 10R80 fluid levels:
https://www.mustang6g.com/forums/threads/10r80-fluid-check.137537/#post-2827033
This thread discusses the (2) very different 10R80 dipsticks - thanks to @leonrudi and @speedup for their findings!):
https://www.mustang6g.com/forums/threads/a10-fill-plug-impossible-to-remove-help-plz.141548/
The B&M 10R80 B&M dipstick for the F150 will NOT work with the S550 10R80:
https://www.mustang6g.com/forums/threads/2018-10r80-dipstick.136868/
FACT 5 (Powertrain Warranty):
The Ford Powertrain/Drivetrain Warranty is 5/60. The transmission is covered under this warranty even if the new car 3/36 is expired.
__________________________

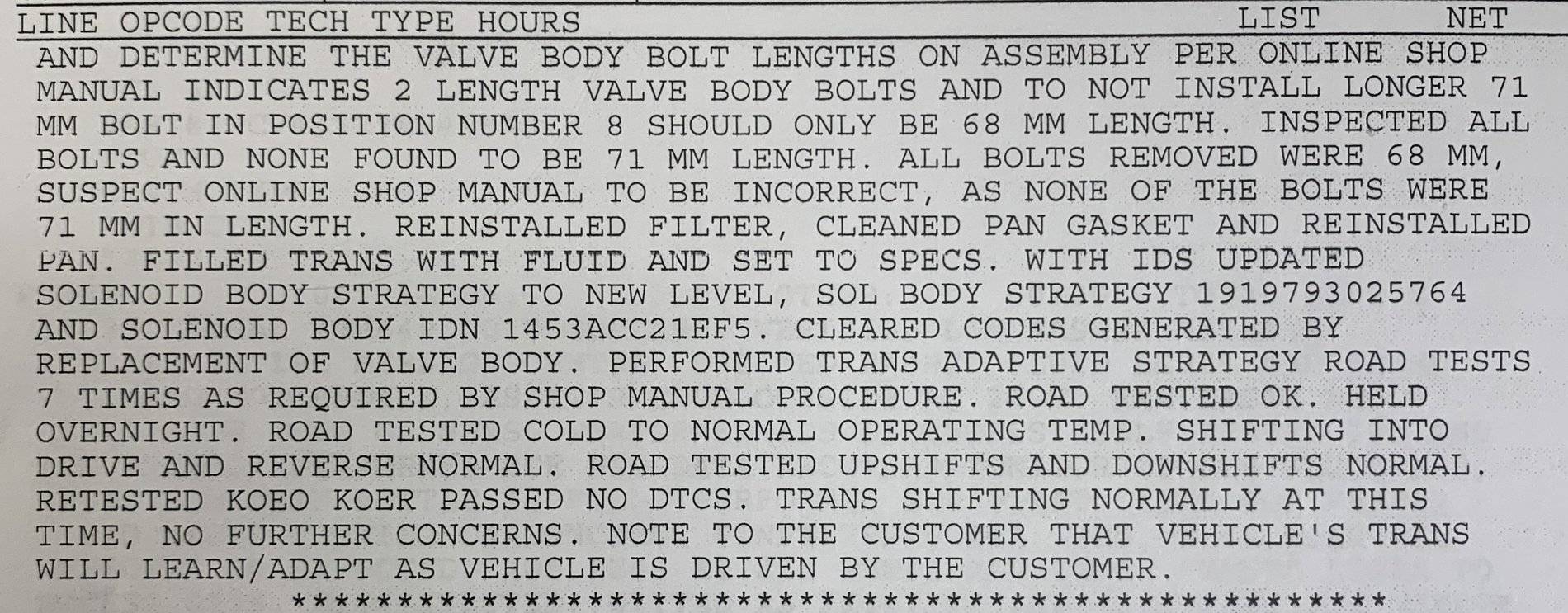

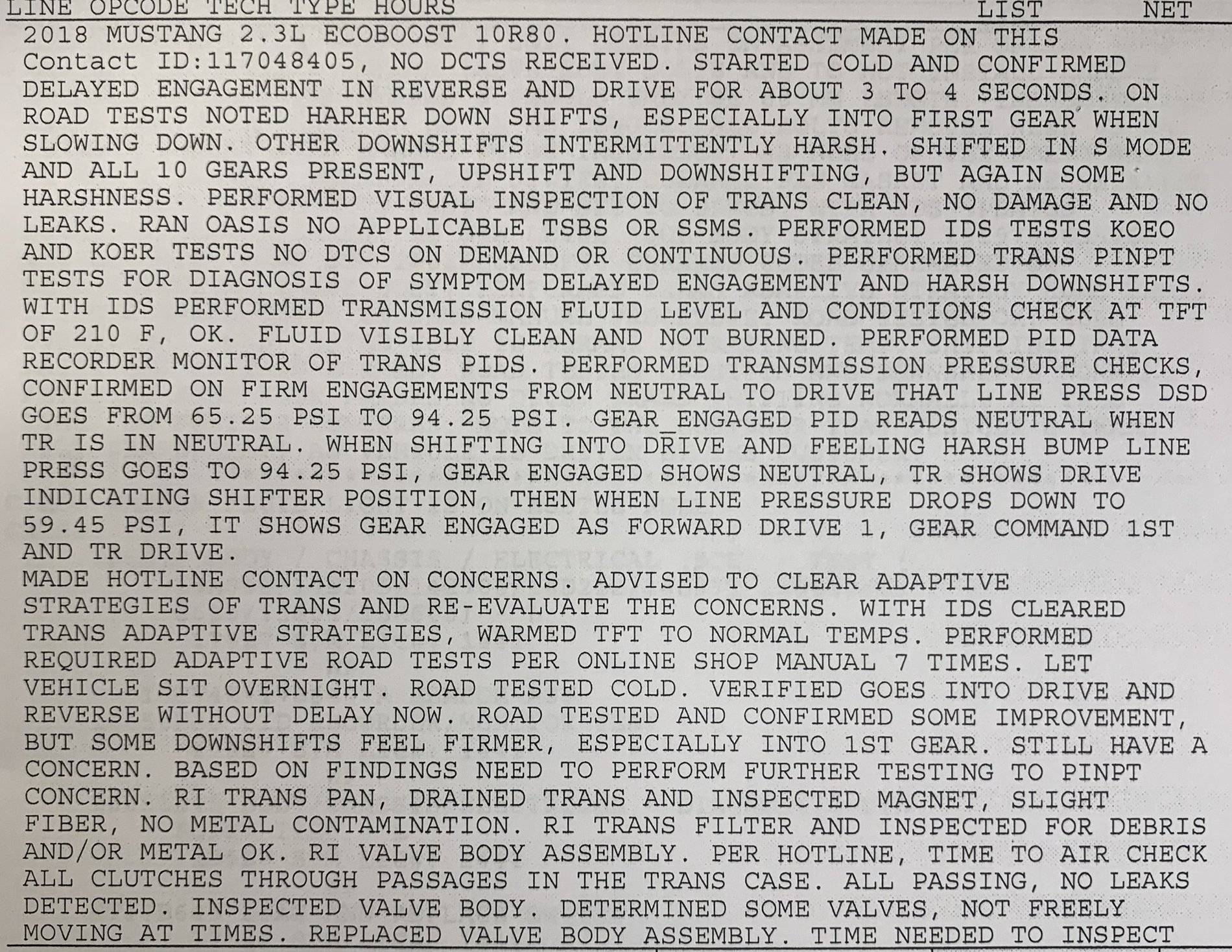

My 2018 was at the Ford Service Center in January 2020 for 10R80 shifting issues. Up until 2 weeks ago and since the car was purchased new, I didn’t have any shift issues up until 35k. The issues were resolved and here’s the complete Tech diagnosis and resolution. The trans no longer has any harshness, clunkiness or shift issues in any Trans Mode, Drive Mode or when shifting from Park to Reverse or from Reverse to Drive (1st gear). Even when slowing down and coming to a stop, the 10R80 shifts are flawless and it’s almost hard to tell the trans is even downshifting.
IMPORTANT NOTES:
1) Disconnecting the battery and/or resetting vehicle KAM will not update the trans software. It will not fix any issues IF the abnormal shifting is due to internal mechanical malfunctions (ie: valve body, torque converter, clutches, etc.)
2) If the 10R80 is “reflashed” with the most current software strategies by a Ford Service Center using IDS AND the abnormal shifting conditions remain AFTER a genuine trans reflash - the issue is NOT software related, it’s mechanical. Even with the trans being an adaptive learning trans, after an IDS software update and if the Tech has already performed the “relearn strategy”, when the Customer receives the car back - the trans should NOT have any harsh or abnormal shift conditions at all. If your 10R80 still has shift issues after a software reflash, it’s definitely a mechanical issue; print the above Tech notes and tell your Service Center they must do a similar diagnosis BEYOND just a test drive or software reflash.
__________________________
For those NOT getting resolution from their Service Centers for ANY Warranty repair efforts, this thread contains all of the Ford 800# info to getting a Regional CSR to assist with your concerns:
https://www.mustang6g.com/forums/threads/the-ford-800-info-for-those-needing-it.111571/
__________________________
For 10R80 Newbies, all you need to know:
The design and workings of a 10R80:
https://www.motor.com/magazine-summary/need-10-speeds/
SAE International Automotive Engineering article; go to page 10 about the 10R80:
https://www.mustang6g.com/forums/attachments/sae_16autd07-pdf.349718/
10R80 Internal Tech:
https://www.mustang6g.com/forums/threads/10r80-internal-technical-info.141611/
10R80 Trans Modes vs Drive Modes + Paddle Shift facts:
https://www.mustang6g.com/forums/threads/drive-modes-the-a10.141350/#post-2896682
__________________________
EDIT May 2020:
10R80 Cooling upgrades:
For those seeking to improve 10R80 cooling, see this excellent tech thread:
https://trackmustangsonline.com/threads/10r80-automatic-trans-cooling-questions.14765/
See M6G Member @Flyhalf tech and upgrades for improving 10R80 cooling:
https://www.mustang6g.com/forums/threads/10r80-hesitation-at-230f.120806/
https://www.mustang6g.com/forums/threads/10r80-modest-cooling-upgrades-aftermarket-metal-pan.171215/
MISHIMOTO Trans Cooler threads:
Thanks to @thornclaw for his info about the positioning of the trans cooler:
https://www.mustang6g.com/forums/threads/mishimoto-trans-cooler-install.178601/
https://www.mustang6g.com/forums/th...himoto-auto-trans-cooler.175998/#post-3558973
__________________________
EDIT 12/23/20:
10R80 alternative Trans Pans:
Looking for a 10R80 Deep pan? There’s currently one in the works as of Feb. 21, 2020:
https://www.mustang6g.com/forums/th...ep-pan-in-development-pml-your-covers.141605/
PML Deep Pan Link (Note: Deep pan design works on F150/SUV; may work on S550 Mustang but beware of ground clearance):
https://yourcovers.com/pml-ford-10r80-deep-transmission-pan.html
PML stock metal pan replacement:
https://yourcovers.com/pml-ford-10r80-stock-capacity-transmission-pan.html
@Firsttexan for providing the PML Aluminum 10R80 pan upgrade info (and testing for PML):
https://www.mustang6g.com/forums/th...ng-for-prototype-testers.172843/#post-3502723
PPE 10R80 deep metal pan discussion:
https://www.mustang6g.com/forums/th...sh-or-no-shift-conditions.135463/post-3104879
PPE 10R80 Aluminum Pan (stock depth replacement):
https://www.ppepower.com/shop/heavy-duty-cast-aluminum-transmission-pan-ford-10r80-trans.html
TMO.com 10R80 pan discussions:
https://trackmustangsonline.com/threads/aluminum-pan-for-10-speed-transmission.16778/
More PML aftermarket 10R80 trans pan discussion:
https://www.mustang6g.com/forums/threads/10r80-modest-cooling-upgrades-aftermarket-metal-pan.171215/
__________________________
Tracking your 10R80?
This thread has great info provided by @sdiver68 and @Flyhalf:
https://www.mustang6g.com/forums/threads/10r80-on-the-curvy-road-race-track.109576/
__________________________
EDIT June 2021 (10R80 internals info):
Great Gears Magazine article about the internals and shifting characteristics of the 10R80 is attached in PDF format. It's called "The More You Know About the 10R80, the Better Off You Are!".
EDIT August 2021 (10R80 gear ratios):
10R80 gear ratios from 2018-2021:
https://www.mustang6g.com/forums/th...1st-time-10r80-gear-ratios-are-listed.159312/
10R80 Drum clutch upgrades (thanks to @beefcake for this valuable information):
https://www.mustang6g.com/forums/th...ter-and-whats-available-for-the-10r80.164143/
__________________________
EDIT Feb 2022:
10R80 shifter clip under trans tunnel breaks:
Thanks to @Nightmare5.0 for this new thread regarding the deterioration of the 10R80 shifter clip that will prevent the shifter from going into P or S:
https://www.mustang6g.com/forums/threads/10r80-broken-shifter-clip.171702/#post-3483628
__________________________
EDIT March 2022:
Shout out to @19VelocityBlueGt for the fluid change/PPE pan install and @CORNYOTE for the Richardson cooling upgrade info.
https://www.mustang6g.com/forums/th...-darker-then-expected-at-14-000-miles.173245/
Shout out to @gpierce for providing the link to the YT video for 10R80 fluid change:
https://www.mustang6g.com/forums/threads/10r80-trans-fluid-change.173574/#post-3515403
__________________________
EDIT June 2022:
Sonnax spring clip fix
Shout out goes to @TX-Ripper for his very beneficial “Sonnax spring clip” revelation regarding the weak factory spring clips that secure the solenoids on the 10R80 valve body. This is a MUST DO for anyone replacing their valve body:
https://www.mustang6g.com/forums/threads/beefing-up-a-10r80.175664/page-3#post-3573460
10R80 “Beefy Rebuild” w/tech and pics, courtesy of @schmeky:
https://www.mustang6g.com/forums/threads/beefing-up-a-10r80.175664/
__________________________
EDIT SEPTEMBER 2022:
Shout out to @Jhonda and @Cory S for 10R80 trans swap info (ie: replacing an existing 10R80 with another 10R80 - no IDS or Forscan programming needed):
https://www.mustang6g.com/forums/threads/transmission-swap-year-to-different-year-update.179302/
__________________________
EDIT DECEMBER 2023:
Shout out to @Frizbey87 for his tech DIY mod on how to “shift at the stick” by relocating the steering wheel paddle features to the trans shift lever:
https://www.mustang6g.com/forums/th...-manual-shift-buttons-on-shifter-knob.194705/
__________________________
10R80 Tear Down/Rebuild video Courtesy, original content and compilation by Trans Tec:
__________________________
Ford 10R80 SPECIFIC DIAGNOSTIC TROUBLE CODES (DTC's)
10R80 Owners: feel free to contribute anything that will help others.
View attachment 10R80 Fluid Level & Disptick info.pdf
View attachment MERCON_ULV_Automatic_Transmission_Fluid.pdf
View attachment Motorcraft Trans Fluid Chart Color.pdf
View attachment Motorcraft Trans Fluid Chart B&W.pdf
View attachment Gears Magazine | The More You Know About The 10R80... The Better Off You Are!(2).pdf
View attachment Raybestos 10R80 Clutch Clearances.pdf
