From the 2020 Mustang Service Manual.

Engine Off Load Shed
When the engine is off, and the BCM determines the battery state of charge is below 40% or 10% of the charge has been drained or 45 minutes have elapsed, a load shed message is sent over the CAN. This message turns off the audio/navigation system to save the remaining battery charge. Under this condition, the FDIM displays SYS OFF TO SAVE BATT (without navigation) or BATTERY SAVER — SYSTEM OFF PLEASE START THE ENGINE (with navigation) to notify the driver that battery protection actions are active.

Engine off load shed occurs when the engine is not running, and the ignition is in the ACC or RUN position. To clear the load shed state, restart the engine.

NOTE: To maintain correct operation of the load shed system, any electrical devices or equipment must be grounded to the engine or chassis ground and not the negative battery terminal. A connection to the negative battery terminal may cause an inaccurate measurement of the battery state of charge and may cause incorrect load shed system operation.





Advertisement



kilobravo

Well-Known Member
Joined
Aug 10, 2019
Posts
5,967
Reaction score
4,185
Location
Corpus Christi Texas
Website
www.kilobravo.com
First Name
KB
Vehicle(s)
'16 CT6, '18 SD, '20 GT 500
Vehicle Showcase
1
Thanks, Earl. I knew I read it somewhere in that dang manual.

Ron et al: I've never seen that message but I don't think she's gone two weeks without a start, either. And, like you, I just love the CTEK rig. I just ran my supply cabling to the passenger front. I also grabbed a couple extensions and just let it dangle from below the sharp front point of the fender. I do however, leave the hood resting on the pins/latch to prevent the possibility of crushing the CTEK connector. Don't have any photos of that but here's my latest screen shot.




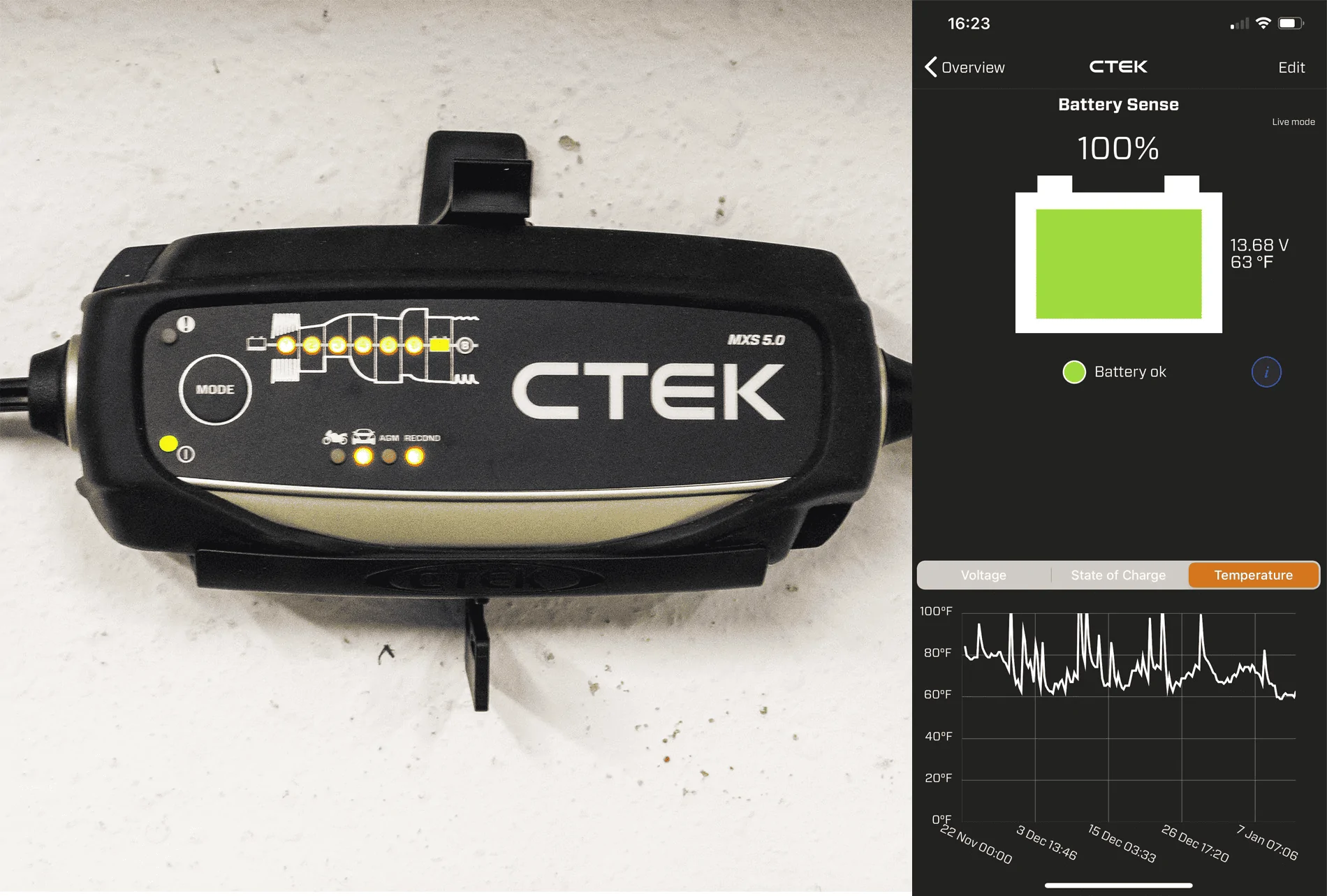

OP
AngelDeath

AngelDeath

Well-Known Member
Joined
May 5, 2016
Posts
819
Reaction score
551
Location
CH, New Jersey
First Name
Mike
Vehicle(s)
'20 Shelby GT500 Rapid Red / '01 Metallic Red C5 / '17 White Overland
  • Thread starter
  • Thread Starter
  • #18
Thanks all, currently I have it on the two nuts in my main picture, and if I run into any issues as messages, then I will switch it to the recessed nut and the strut negative nut.

Hey KB that girl is giving my effen nightmares, its not halloween yet.

OP
AngelDeath

AngelDeath

Well-Known Member
Joined
May 5, 2016
Posts
819
Reaction score
551
Location
CH, New Jersey
First Name
Mike
Vehicle(s)
'20 Shelby GT500 Rapid Red / '01 Metallic Red C5 / '17 White Overland
  • Thread starter
  • Thread Starter
  • #22
Picky, picky, picky... :-)

And isn't it Woodchucks that chuck wood? <grin>
Look, I see road rash occuring when looking at that picture, I dont care if its woodchucks, beavers, or a black & decker pecker wrecker, I see war wounds :cwl:


Dr. Norts

Well-Known Member
Joined
Nov 3, 2016
Posts
968
Reaction score
524
Location
Ontario, Canada
Vehicle(s)
2015 Race Red Mustang GT
Ignoring all the discussions on where to actually connect the charger, yes, you can get a good electrical connection from that position :like:

It can be a bit tricky to get that nut off, just use your finger on the underside and keep the stud in its uppermost position whilst the nut is unscrewed / removed :like:

WD :like:
If you use these points though the charging current wont be going through the current transformers on the + and - cables.

The points in post #11 are the best / most correct way IMO for a few reasons. One being that the charging current will be going through the CT's on its way to the battery and it makes for a neater installation.

It's also the same path the alternator current will take on it's way to the battery and when the battery discharges current.

I'm not sure how high the resistance is going through that threaded stud which is attached to another black metal piece which is attached to the clamp that attaches to the battery.

Also its tricky to get that nut off because the top of the stud is peened / flattened to keep people from removing the nut completely off the stud. The negative side isn't like this for what ever reason.


Rapid Red

Well-Known Member
Joined
Nov 4, 2019
Posts
1,417
Reaction score
802
Location
Woodstock GA
First Name
Greg
Vehicle(s)
RaceRed>GT PP2 >RXCAIL2 > 34 Ford 5 window 350 Stroker motor > 32 Ford pick up 327
Vehicle Showcase
2
Well found the battery thread and it seems both warpath and gtccobra use the nuts I was planning to use so it seems they do conduct electricity. And away we go :)

Of course, was there ANY b
Ignoring all the discussions on where to actually connect the charger, yes, you can get a good electrical connection from that position :like:

It can be a bit tricky to get that nut off, just use your finger on the underside and keep the stud in its uppermost position whilst the nut is unscrewed / removed :like:

WD :like:

Not necessary to remove the nut, just use another nut, sandwich the terminal between the 2. Should be obvious that this will also work on the pos side.

That said, at first I disregarded the ground to body mount idea. However the more I read the more I learned.

And having not used the charger, decieded that the engineer that designed the circuit. Was smarter than the user, changed things up.

Found a well hidden place to run the charger ground to the body. When not in use the pink-tail is well hidden under the battery box top. Nice clean install.

BTW just came from flying a kite ...... LAMO


Dr. Norts

Well-Known Member
Joined
Nov 3, 2016
Posts
968
Reaction score
524
Location
Ontario, Canada
Vehicle(s)
2015 Race Red Mustang GT
Last edited:

Big John

Well-Known Member
Joined
Aug 27, 2019
Posts
280
Reaction score
373
Location
Tulsa Oklahoma
First Name
John
Vehicle(s)
2020 GT500 CFTP
Mr. Death,

Allow me to share my experience. First, I have had several Battery Tenders over the years but they typically are not smart and are designed with minimal amperage which could take a week or more to charge a drained battery. This may trickle-charge my off-road truck or boat battery, but in no way manages or conditions the battery keeping it fresh.

With the Shelby, I went with the CTEK MXS 5.0 which is a super smart 4.3a that also works with my other Absorbed Glass-Mat (AGM) batteries batteries and features advances features such as a float/pulse maintenance system and reconditioning settings. (Hey, my Ford Bronco battery is a Odyssey AGM!).





What I really liked, including the cool wall mount, was the fact that I can directly attach the supplied ring terminals before the battery which have no possibility of detaching, as opposed tot he Spring Clamps which are used for stand alone batteries and dumb battery management systems.

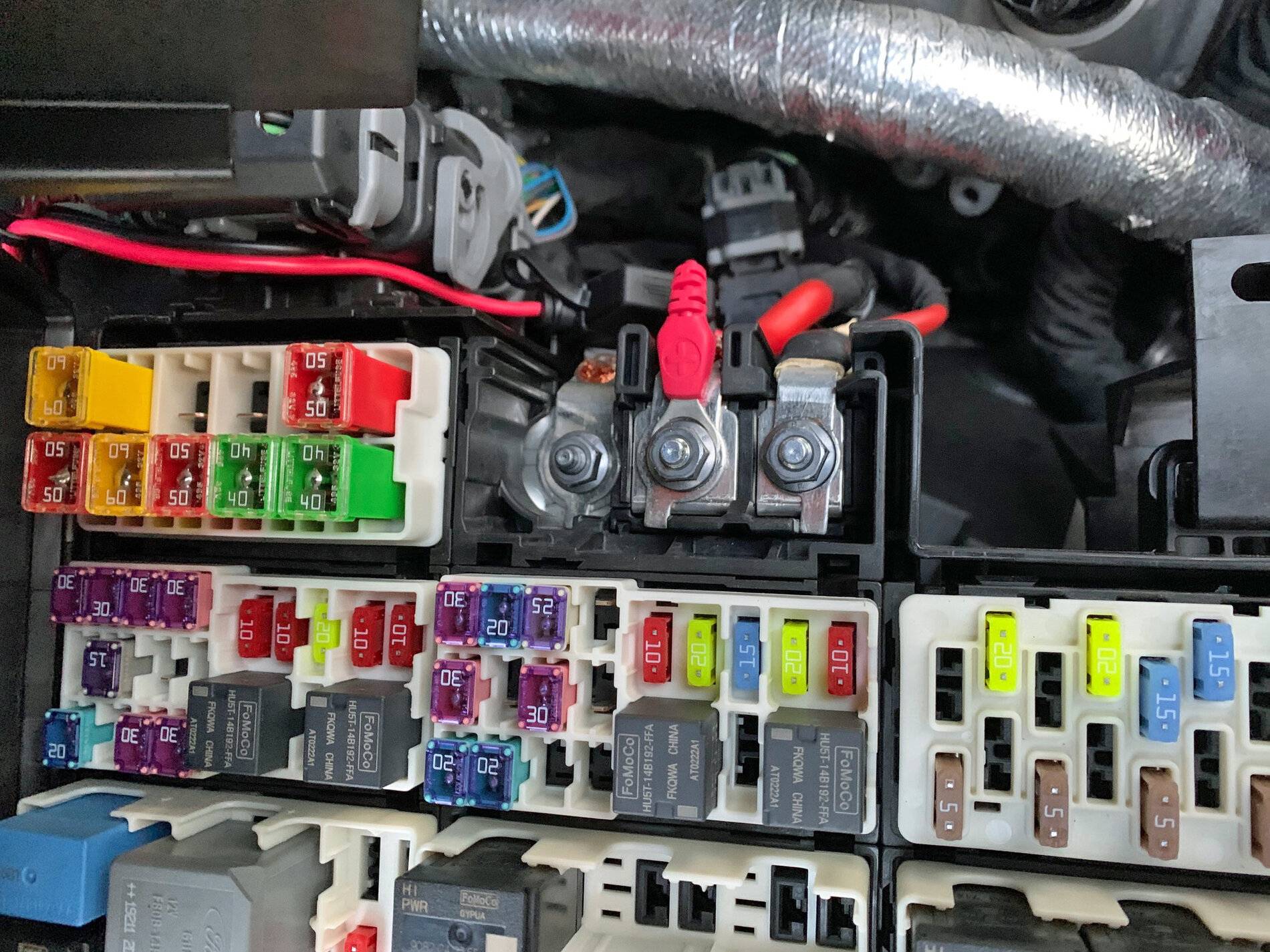

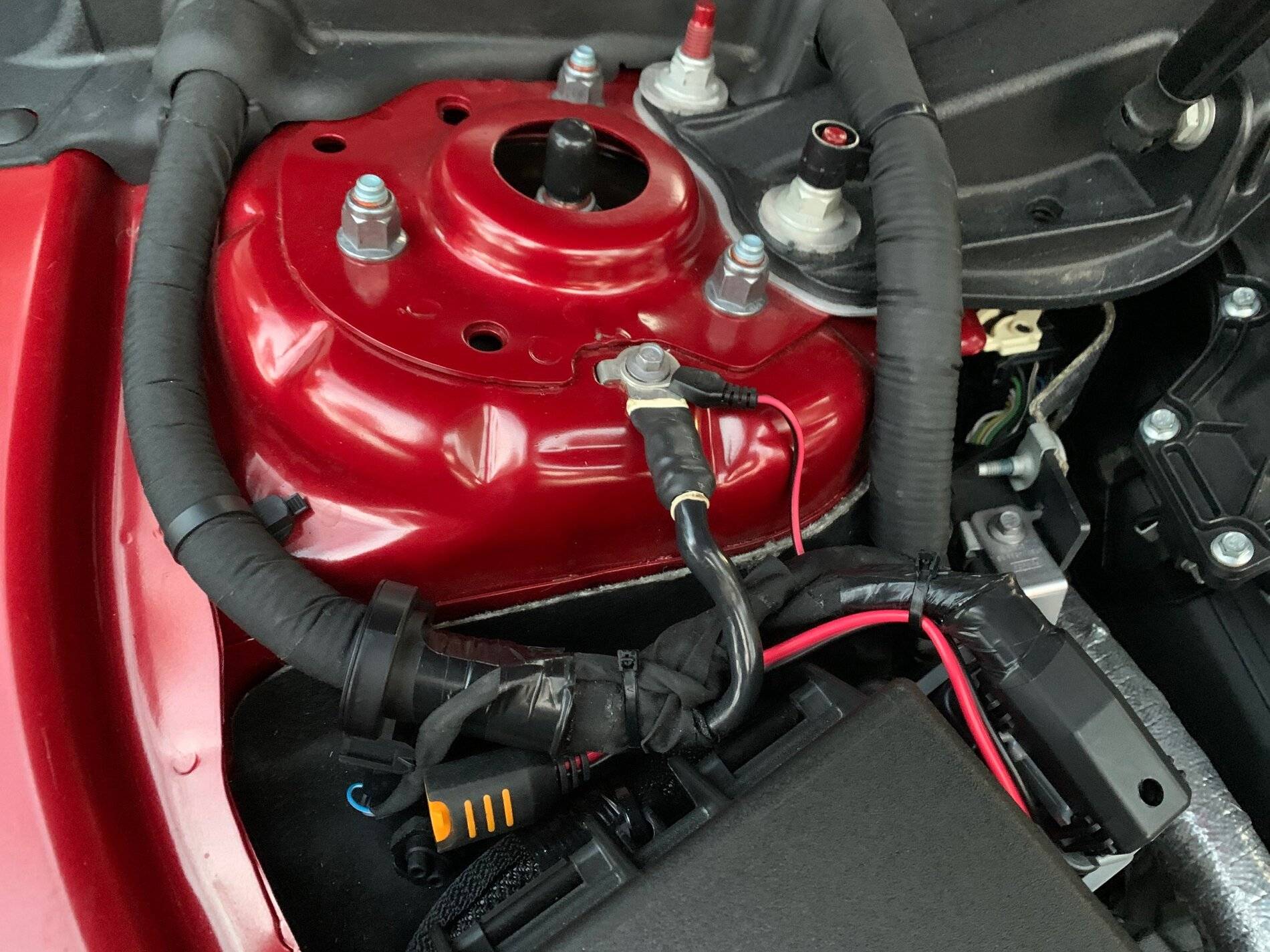

I placed the Positive Ring Terminal directly on a hot post under the fuse panel cover. You can see the hot wire running forward (or to the left) and securely held with the terminal nut.

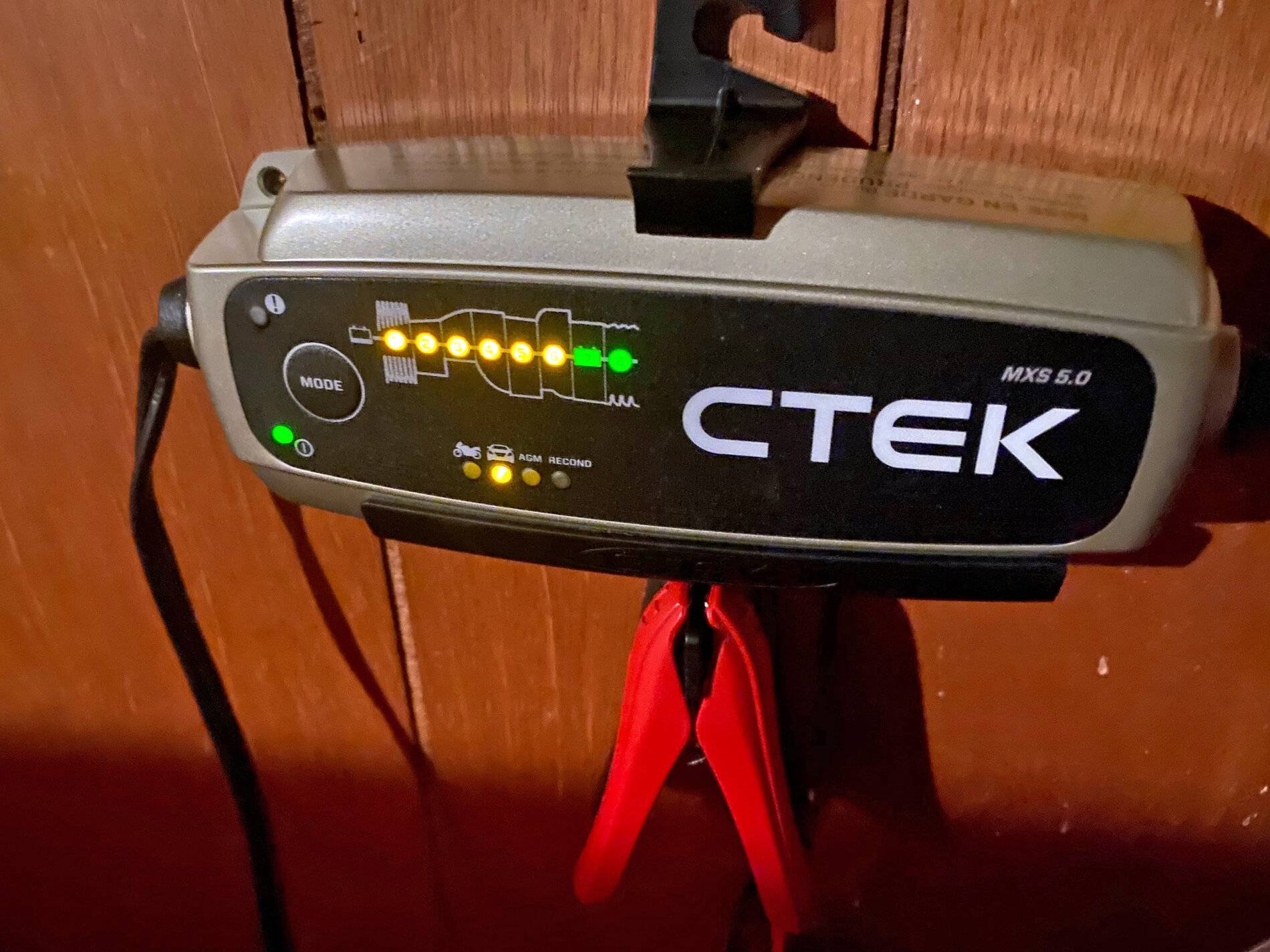

I then connected the Ground Wire to an existing Ground Post located the Passenger's Side Shock Tower. Any chassis, body or block ground will do as long as it keep the Battery Management System in the loop. My Ring Connectors included a pigtail connector which is easily disconnected from the CTEK whenever I car to drive. Look for the orange connector at the lower left of the photo.

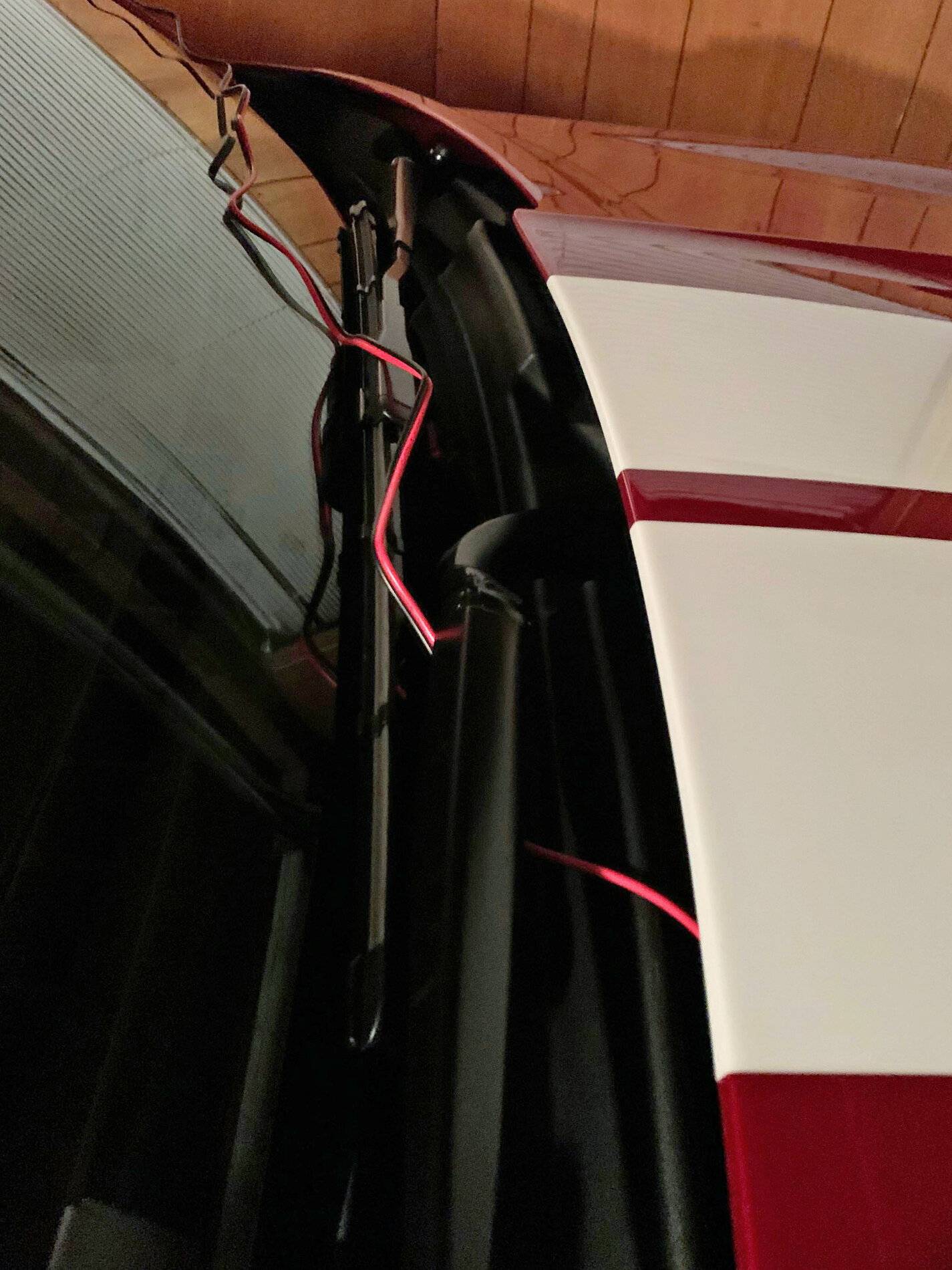

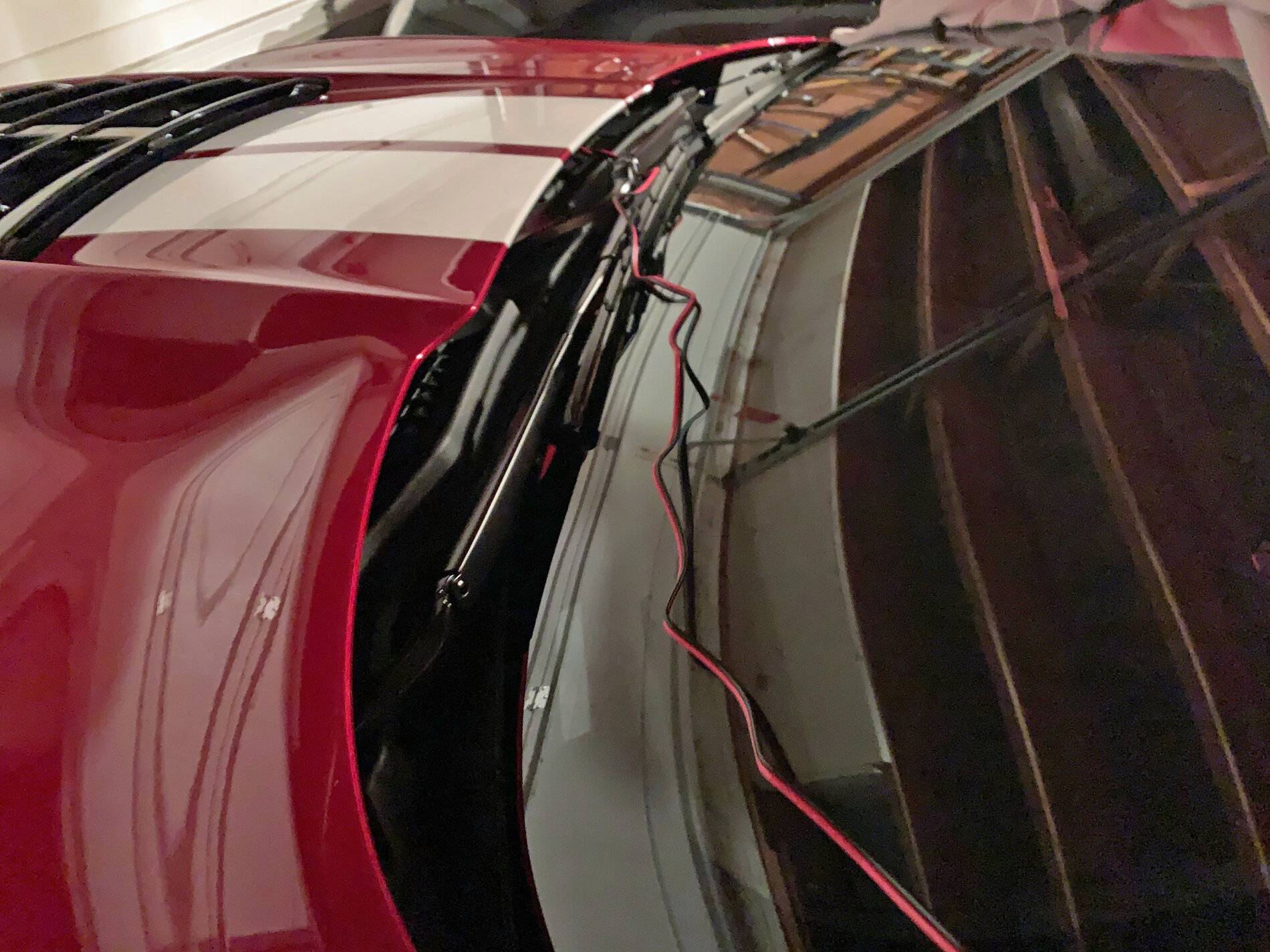

So, I then wanted to connect the CTEK, close the hood and cover the car. I noted that there is a hood gasket that runs at the windshield across the center and Driver's Side, but was open at the Passenger Side where my permanent charger/maintainer connections were made. I bought a couple of CTEK extensions and simply run the wires between the hood and windshield, across and under both wiper blades, over the Driver's Side Mirror and then down under a carpet to the the CTEK Charger.

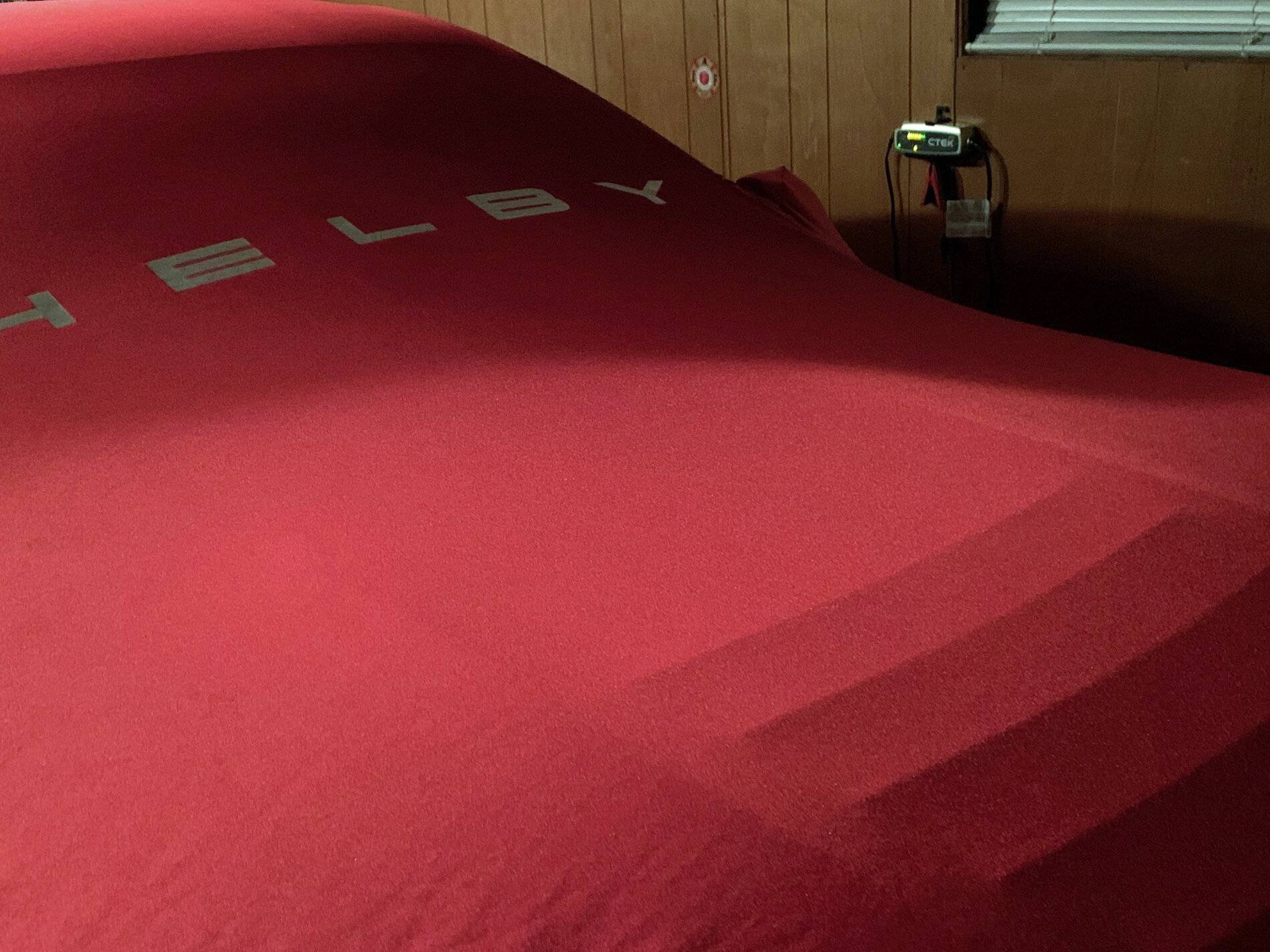

My hood is now closed, the car is locked, the cover is on and the CTEK is connected.

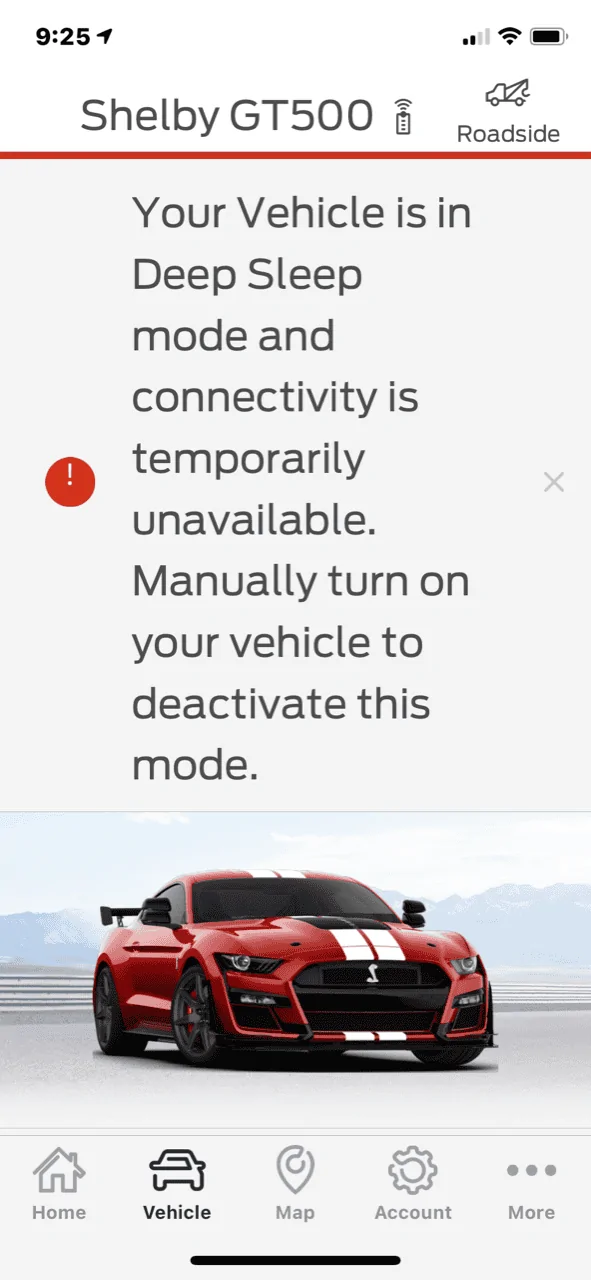

All was good until two weeks later my Ford Pass gave me the following message while I was out of State:





Yes, this was concerning. I pondered my CTEK Installation and researched for afar. I determined that the car the Battery Management System (BMS) will place the car into a battery preservation mode (Deep Sleep) when either the car has not been started for two weeks or the battery drops to less than 9.5v. What is Deep Sleep? My Ford Pass Application Message simply states that "Connectivetivity Is Temporarily Unavailable". This meaning my Ford Pass Application.

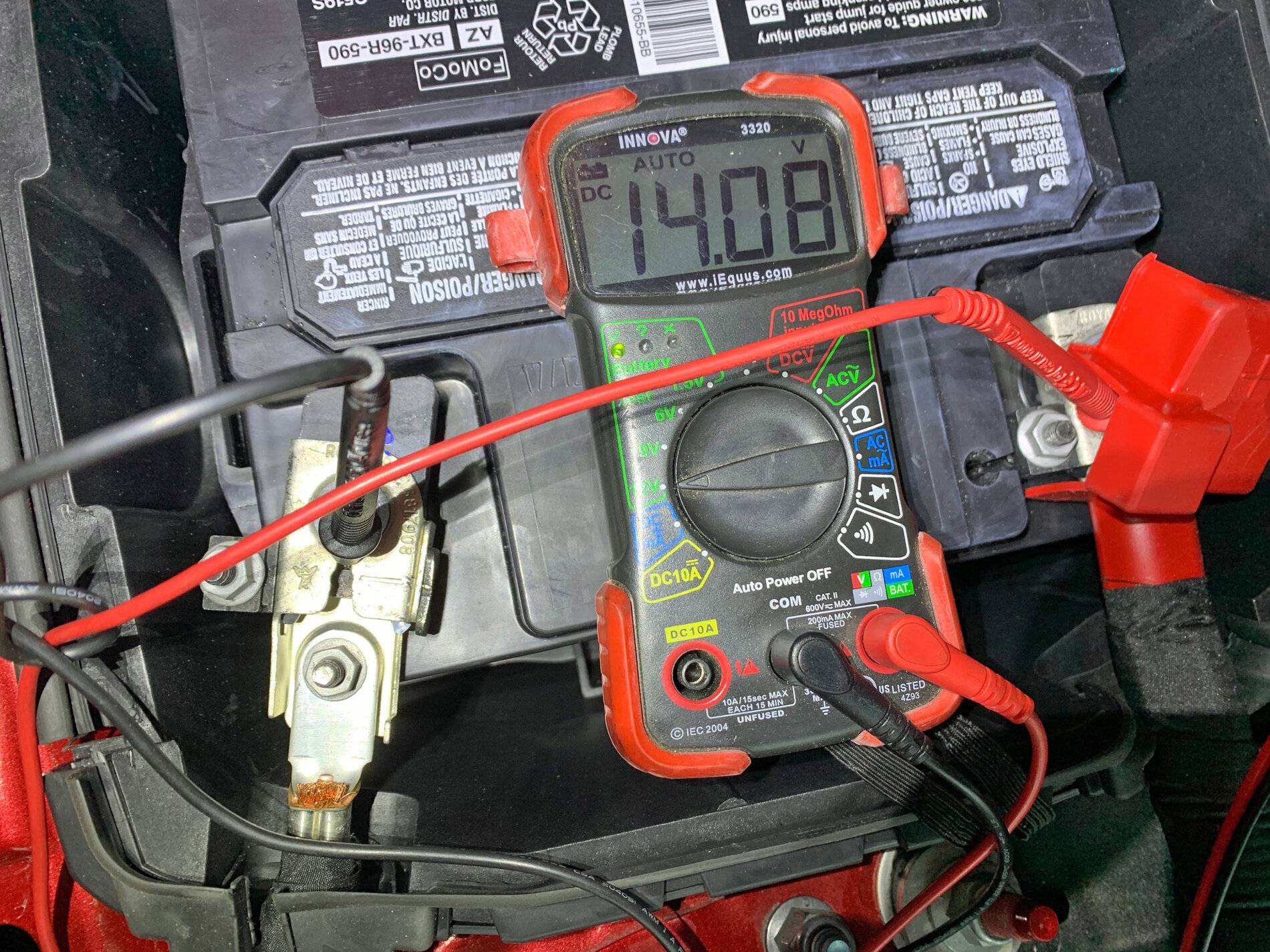

Now here is the good part... Five weeks later, I needed to confirm what was happening. I disconnected the CTEK (which was in full Pulse Mode at the time) and tested the battery with a DVOM to find a full 14.8v! I hopped inside and went to ACC mode to find NO MESSAGES and ALL FUNCTIONS and MEMORY INTACT.
