    Hi all!

    The time has come to tear down the race motor. For the lucky few who didn't read through the 35+ pages of the original thread, last winter I opened up my original motor to find out that I had some valve springs chip and send pieces of metal through the oil pump. After much discussion and lost sleep, I decided to build the motor for race use.

    The heads went to Rich at RGR for port/polish and valvetrain upgrades while the Shortblock went to the wizard called Tim at MPR Racing Engines. The motor was assembled to race specifications with many beefed up parts to minimize rotating mass, friction, and handle high heat. As such, the life of an engine like that is ~40 hours (per Ford's service recommendations).

    We're at 42.5 hours on the clock of heavy race-environment use, so time to tear into it and see how things are looking and what needs to be freshed. I'll for sure be putting in fresh timing chains, guides, tensioners and valve seals (it's burning some oil on startup). Other than that, hopefully it'll be in good shape and we won't need to worry.

    UPDATE: Added teardown video. Keep reading on if you prefer pics.

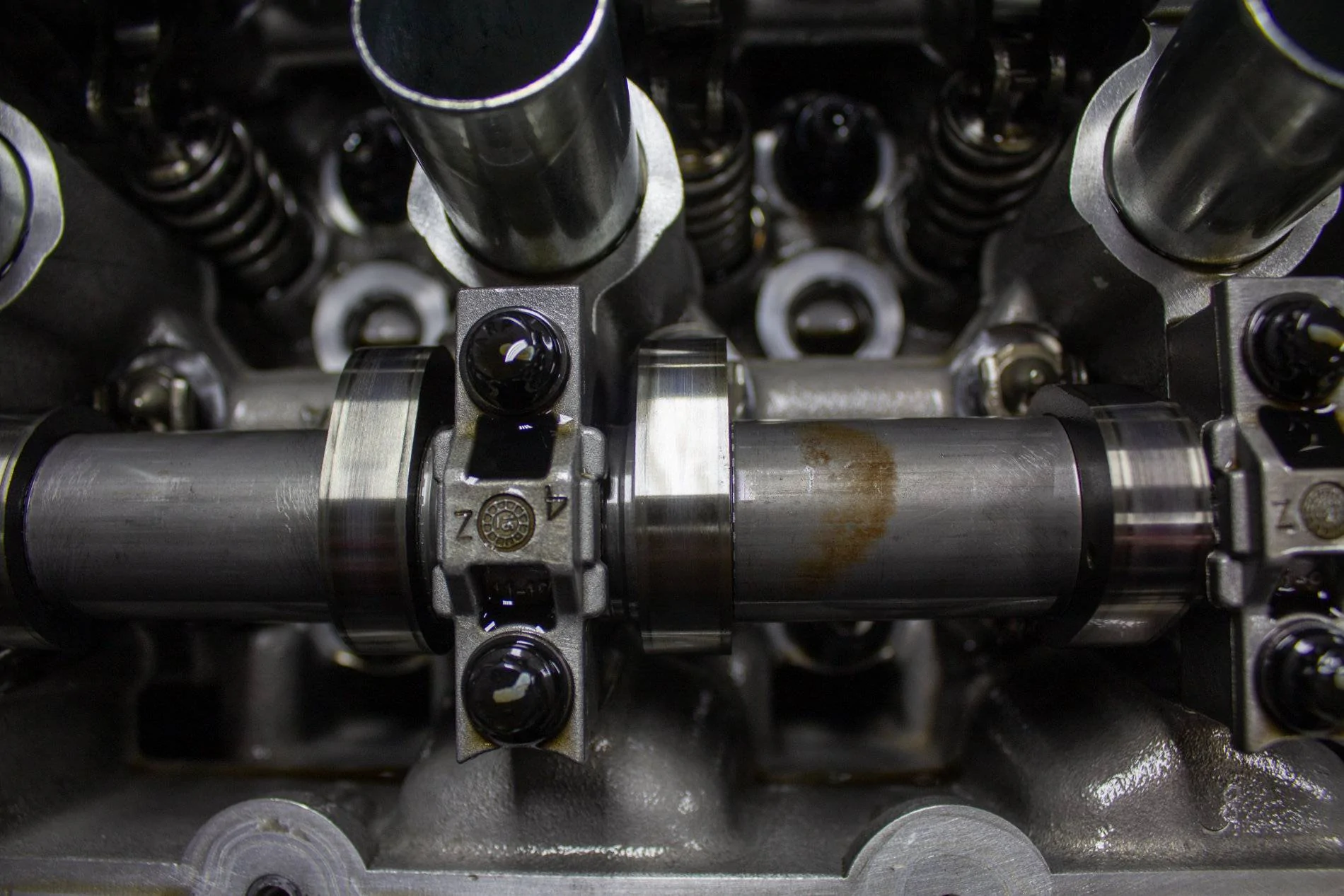

    So valve covers off - the cams look like they did when I put it back together. No new wear that I'm able to see on the lobes.

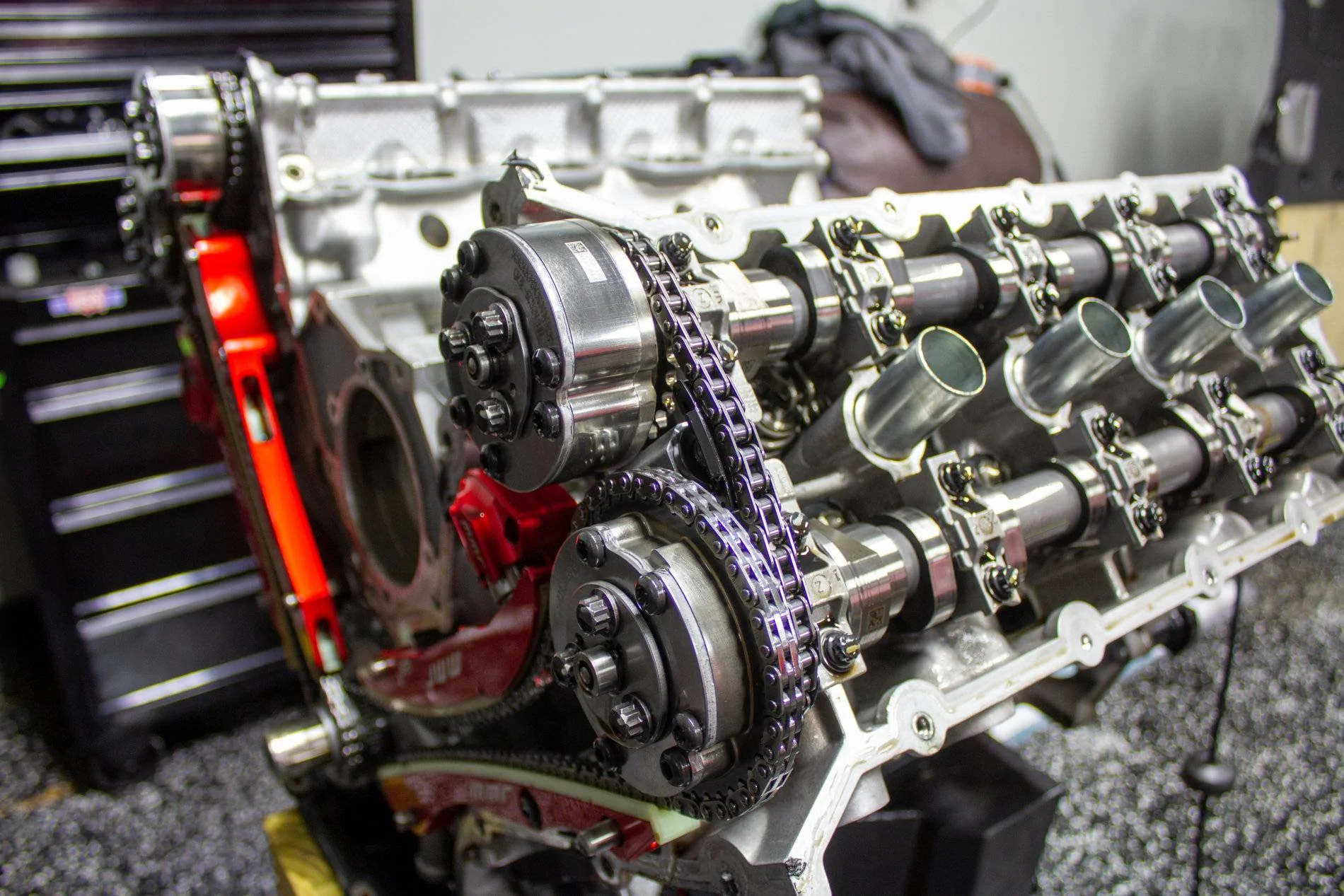

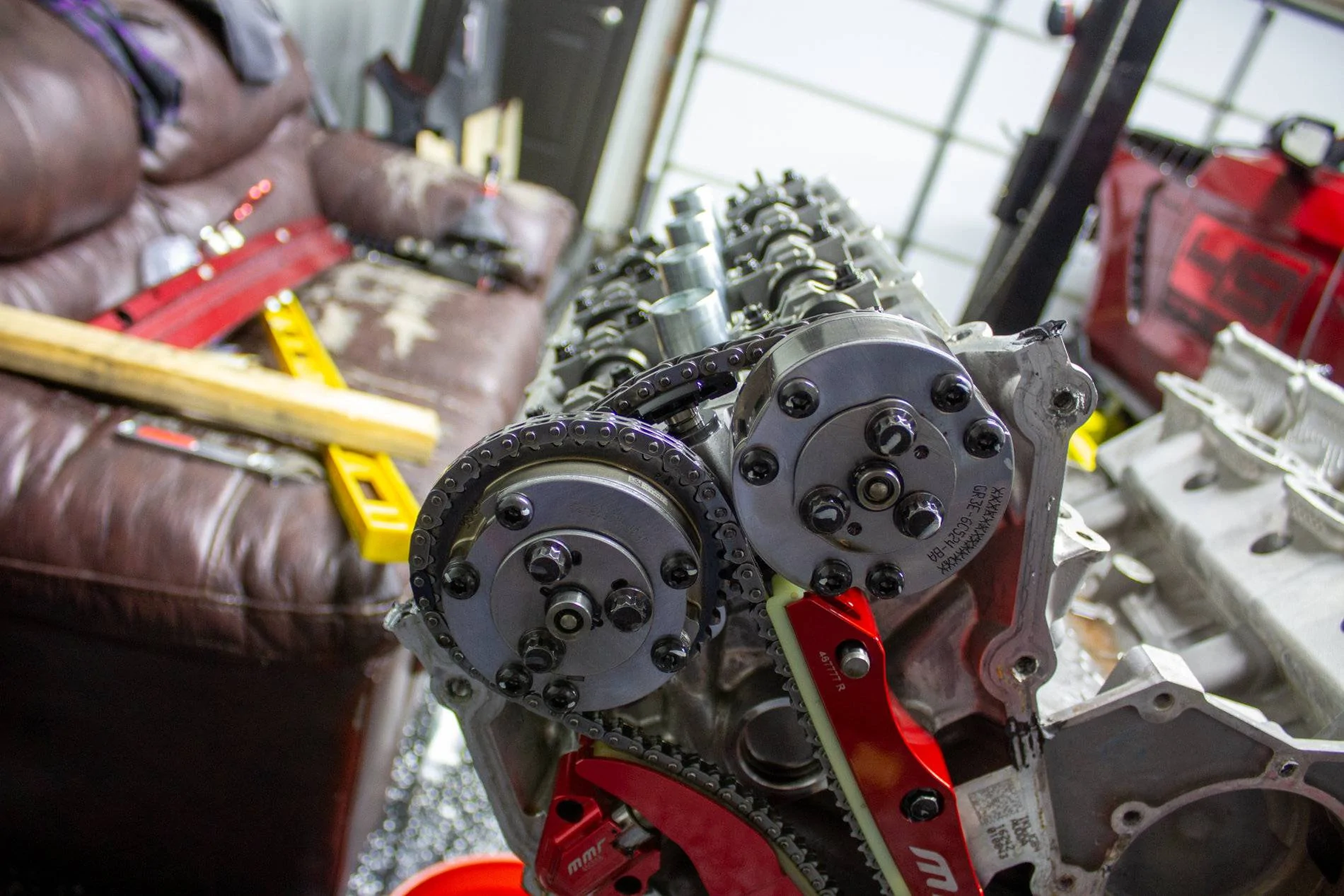

    Front engine cover off. Nothing out of the ordinary at first sight. Chains look good. Tensioners are holding tight, etc.

    Cam phasers look great

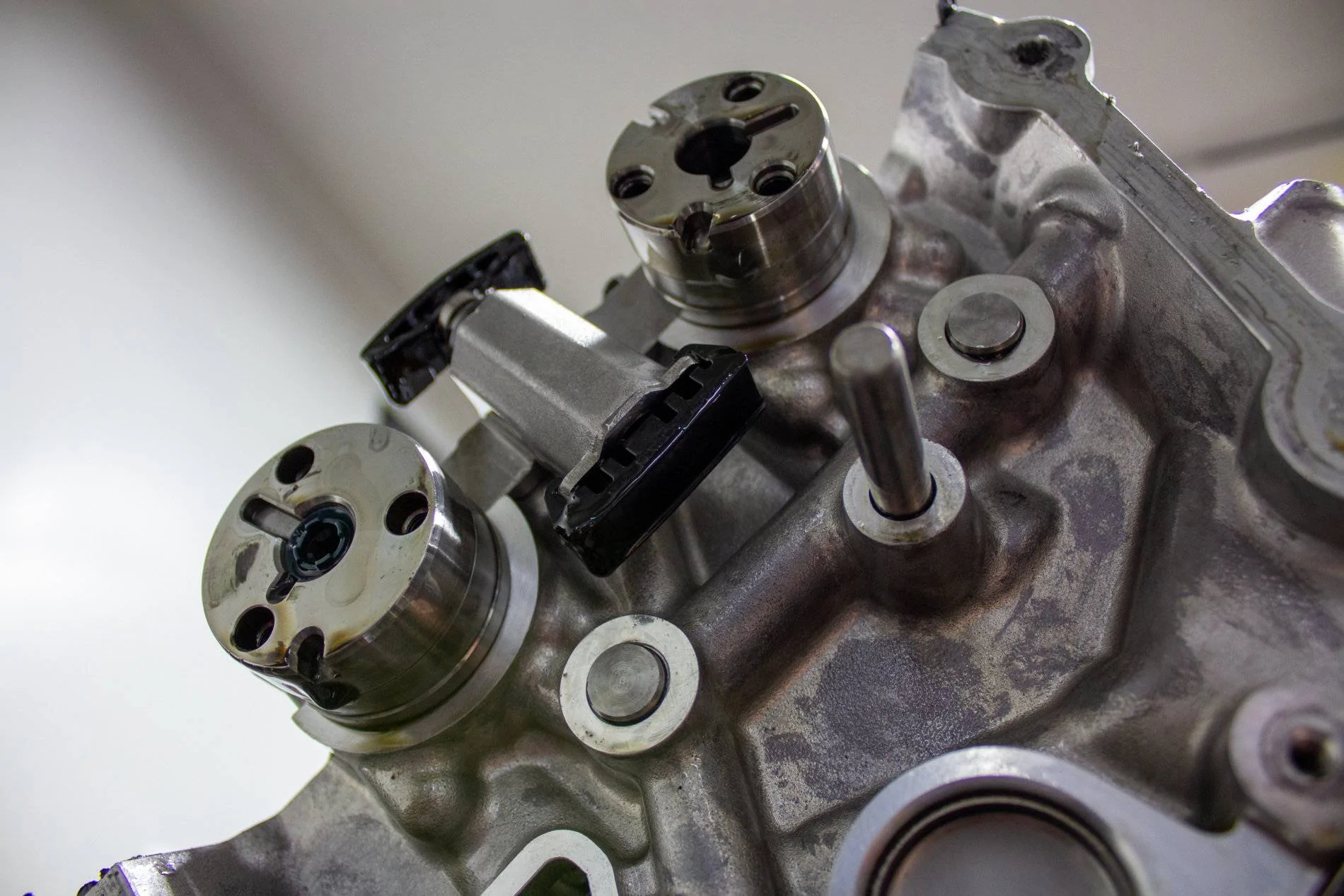

    Chains off. The ends of the cams look good. This bottom black bracket/guide of the secondary tensioner has been a worry for me. Replacing with the upgraded GT4-spec guide upon reassembly
    .

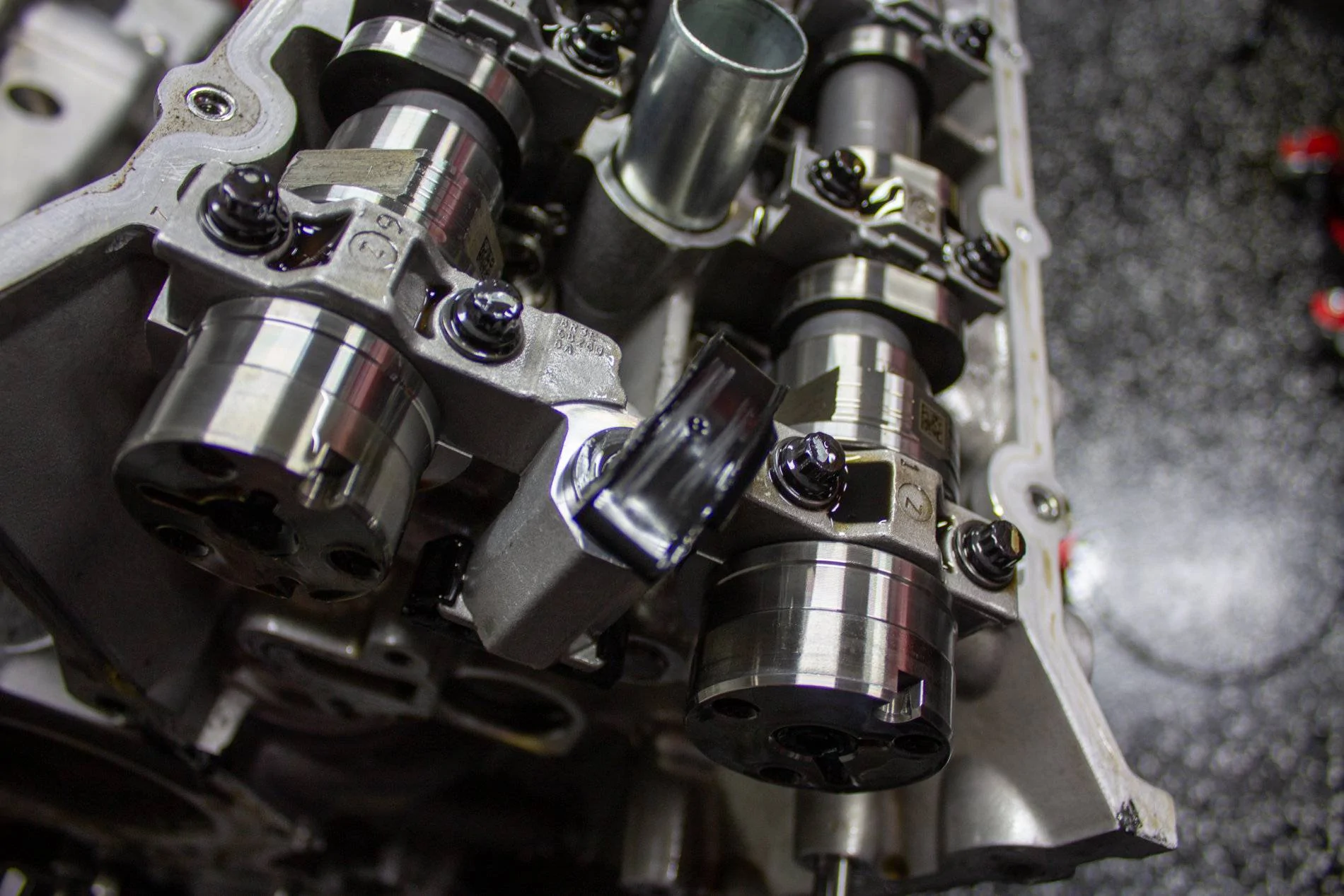

    Secondary chain tensioner showing some wear. Definitely time for replacement

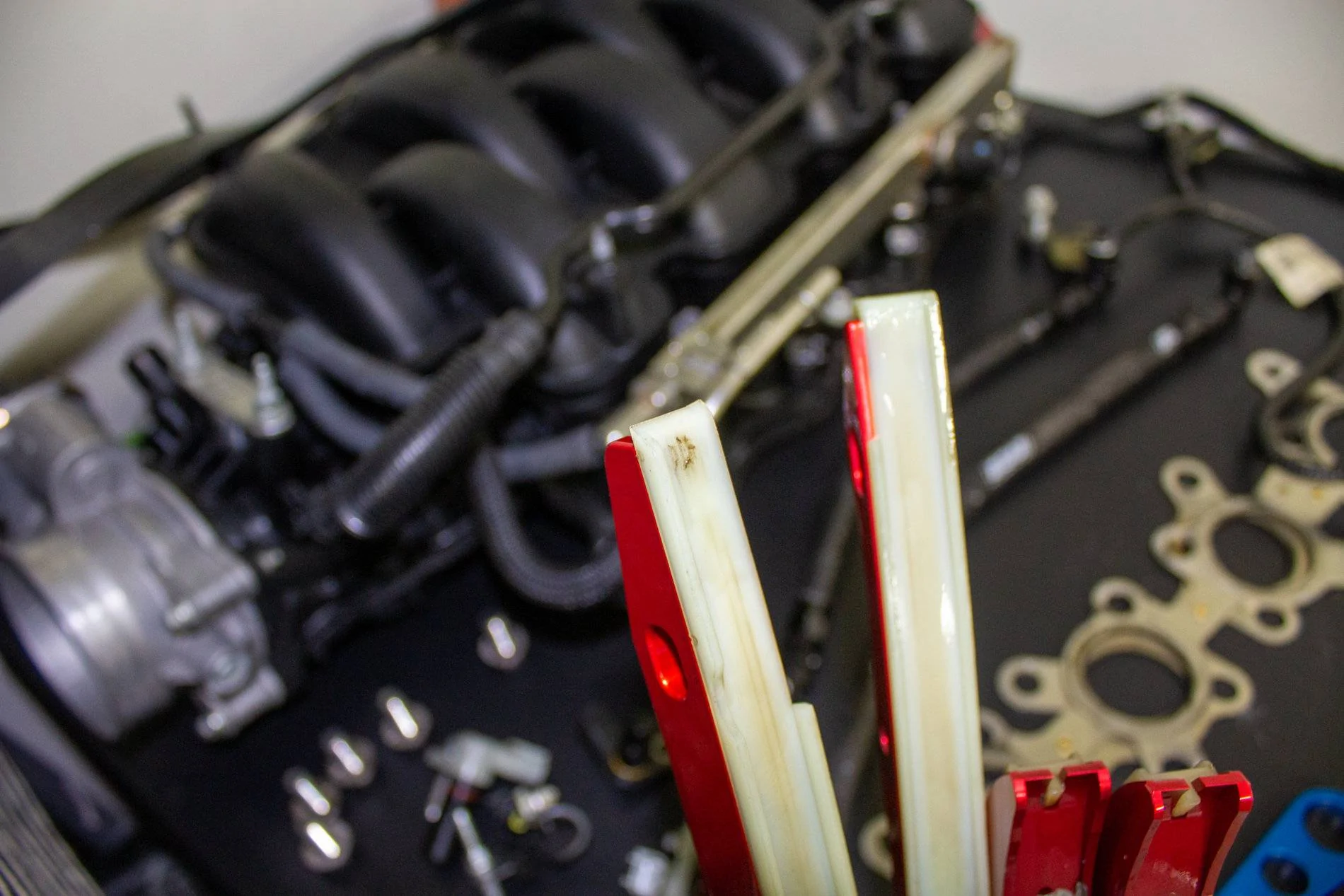

    MMR Guides showing some indentation from the billet tensioners push on the guides

    . Looks like I'm going to pass on these. Don't need these bits of AL floating around in the oil

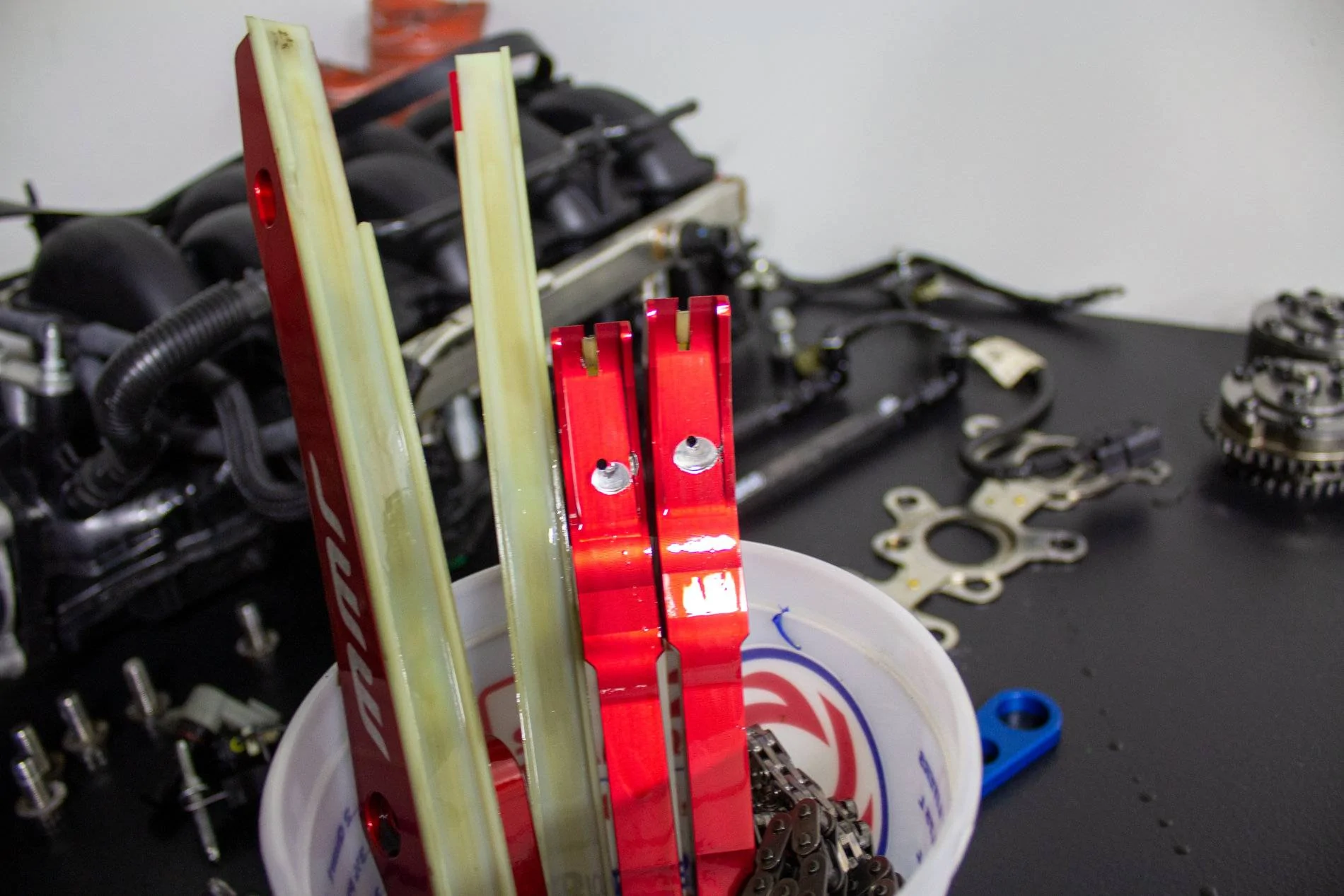

    The guides are showing some extraneous wear on the ends. Evidence of some play in the chains.

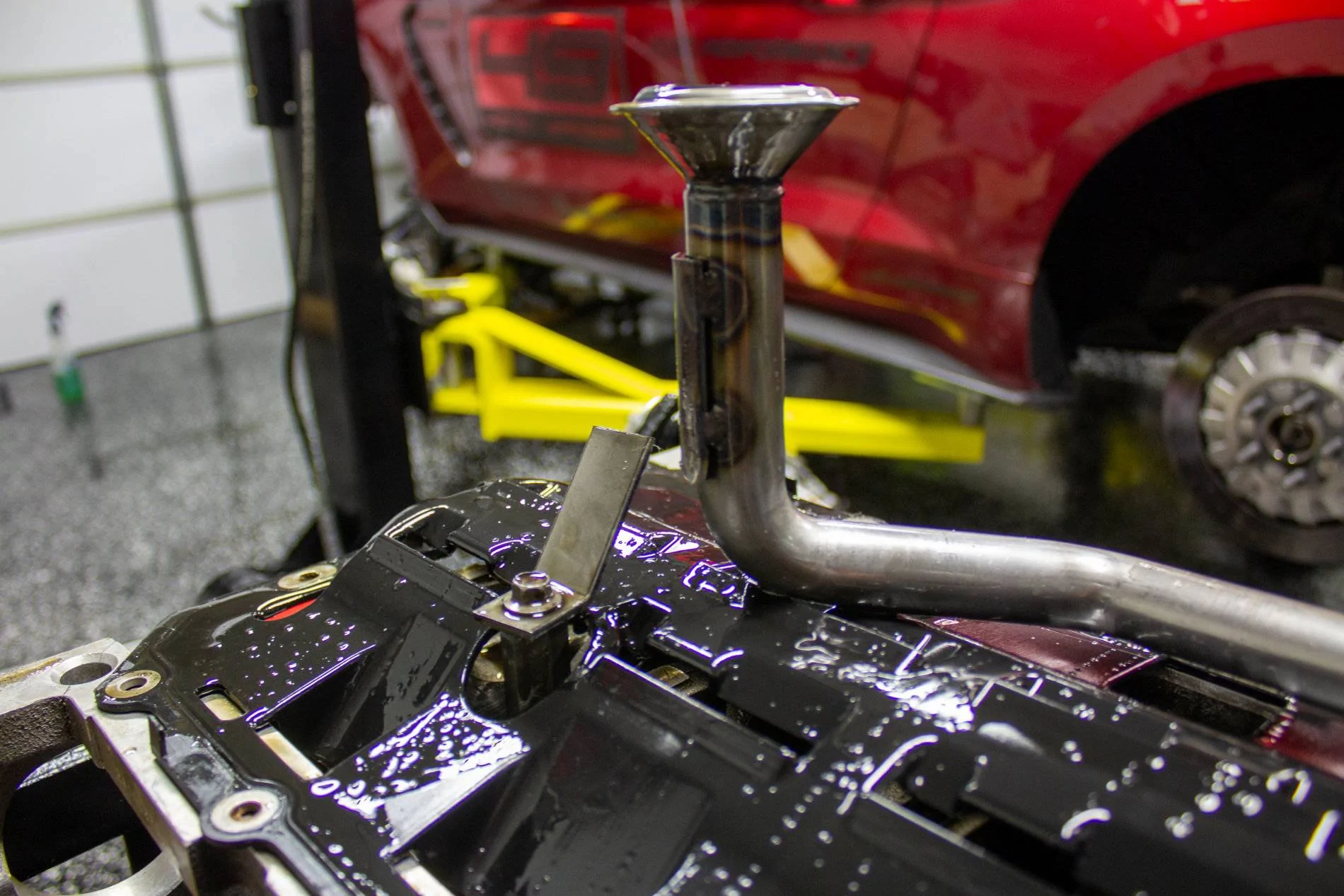

    Pulled off the oil pan to find that my FP350S Oil pickup tube had a broken mount. That's not good. That was a ticking time bomb. Mount half was freely spinning - pickup tube only held in by 1 bolt. Seal to pump was ripping. Ooof. Going to have to reach out to Watson/Ford Performance about this one. This easily could have been a $15,000 accident.

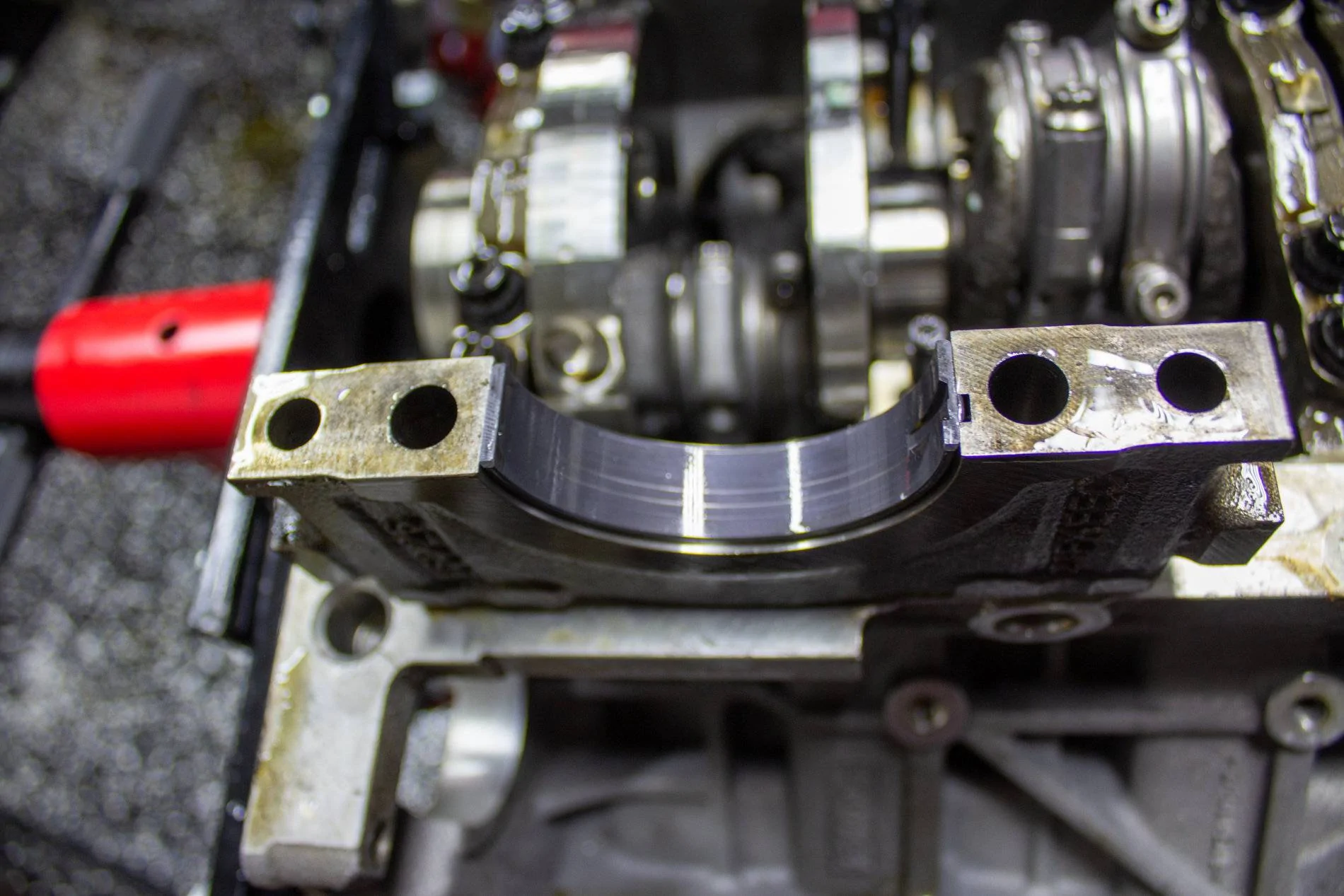

    On the bright side, I popped the main caps. Bearings looked good. Will measure later this week

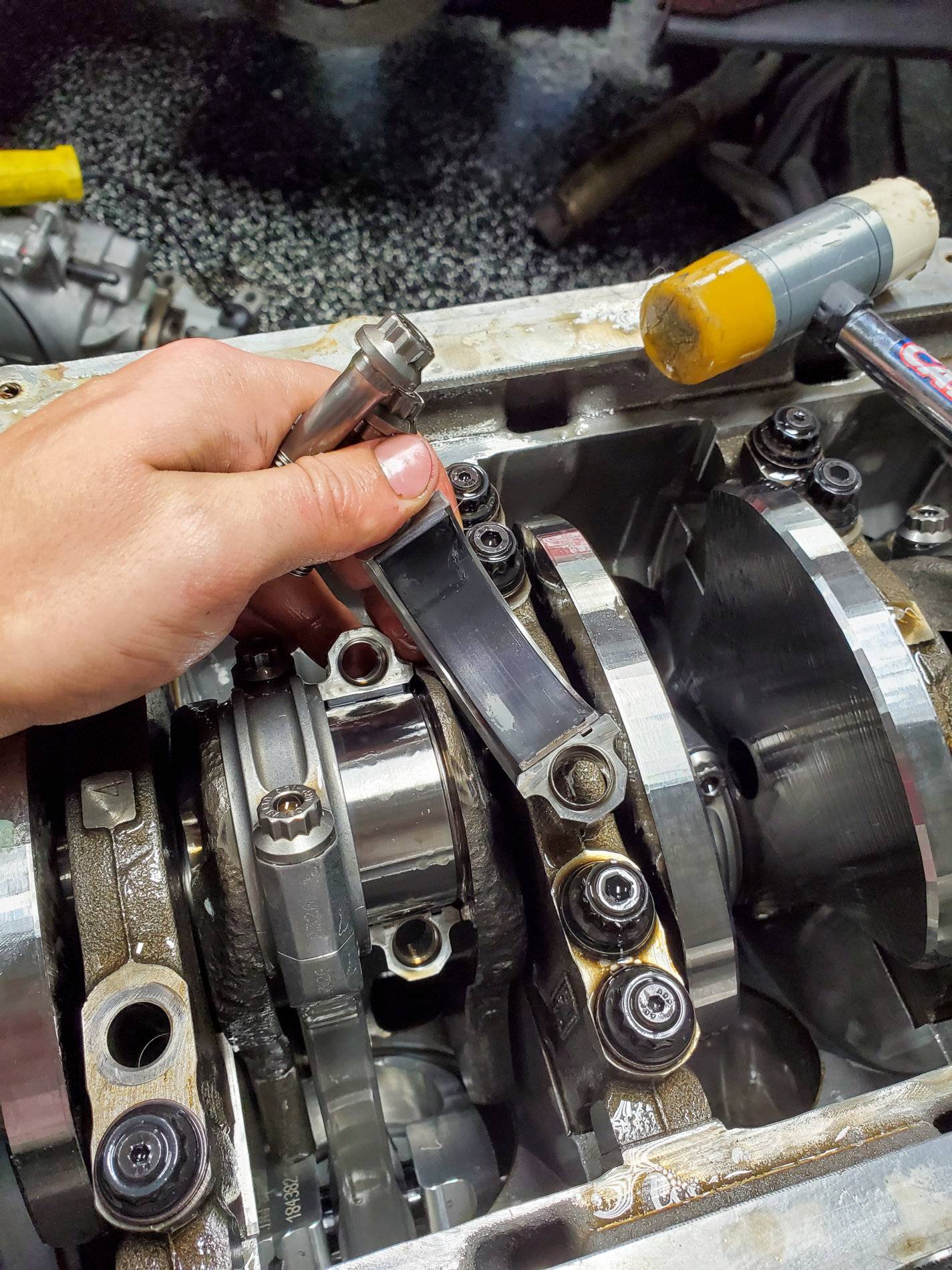

    Popped a couple of rod caps. Bearings look great here too.

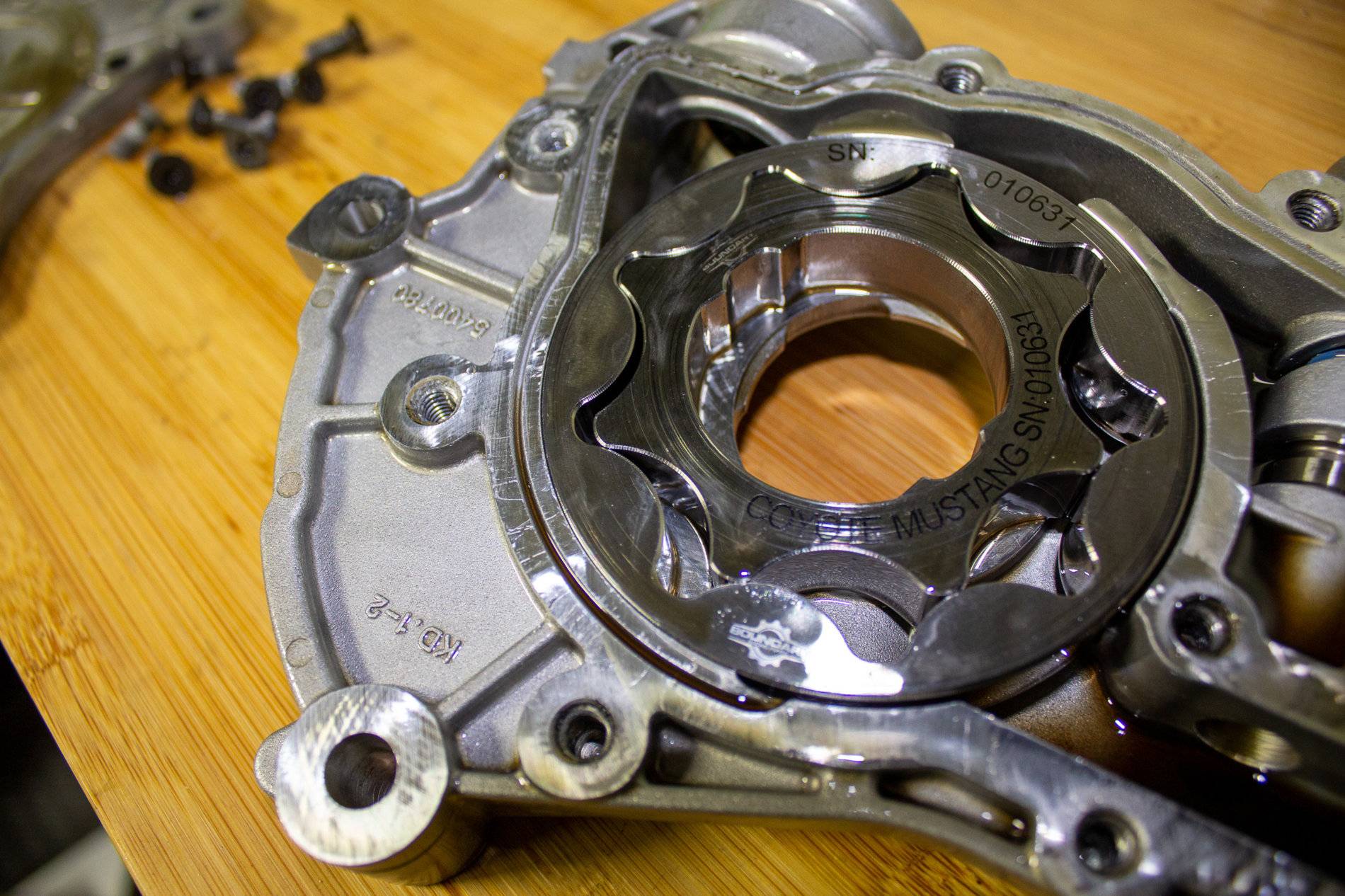

    Opened the oil pump and looks pretty normal from other pumps I've seen. Finger nail doesn't catch

    cantdrive55, Darkane, Hack and 10 others like this.
  2. OP
    OP
    honeybadger

    honeybadger Just don't care

    First Name:
    Kevin
    Vehicle(s):
    '17 GT350, '17 Raptor
    Joined:
    Apr 20, 2016
    Location:
    College Station, Texas
    Posts:
    2,292
    Likes Received:
    3,200
    Rating:
    100%
    3   0   0
    I'll grab some detailed photos of the heads, valves, and cylinders tomorrow. Cylinders look great. Some wear, but nothing I'm worried about given the abuse. Stay tuned.

    Hack, Tomster, Tank and 1 other person like this.
  3. Shift

    Shift Well-Known Member

    Vehicle(s):
    a Ford
    Joined:
    Oct 28, 2015
    Location:
    CA
    Posts:
    2,582
    Likes Received:
    1,199
    0   0   0
    These threads are a dream man. Awesome work, and I love seeing stuff like this, especially on a consistent basis. Your videos need more views!

  4. TDC

    TDC Well-Known Member

    Vehicle(s):
    2016 GT350, 2019 Challenger Scat Pack Widebody, 2019 Corvette Grand Sport
    Joined:
    Jan 27, 2015
    Location:
    Long Island
    Posts:
    2,220
    Likes Received:
    1,304
    Rating:
    100%
    1   0   0
    Great thread; a holiday gift from the Badger to Mustang6G :thumbsup:

    Regarding the black bracket guide for the secondary tensioner you are worried about, is it the original?

    Tomster, Tank and honeybadger like this.
  5. OP
    OP
    honeybadger

    honeybadger Just don't care

    First Name:
    Kevin
    Vehicle(s):
    '17 GT350, '17 Raptor
    Joined:
    Apr 20, 2016
    Location:
    College Station, Texas
    Posts:
    2,292
    Likes Received:
    3,200
    Rating:
    100%
    3   0   0
    Yeah. They're prone to breaking in high stress situations. Bought a new tensioner and replacing the guides with the new part https://performanceparts.ford.com/part/M-6207-M52

    TDC likes this.
  6. loco_GT350

    loco_GT350 Well-Known Member

    Vehicle(s):
    2017 Race Red GT350
    Joined:
    Aug 9, 2017
    Location:
    Tempe, AZ
    Posts:
    153
    Likes Received:
    59
    Garage Profiles:
    1
    0   0   0
    Love your engine posts, these are awesome. Any chance when you do the reassembly you can do a step by step video showing how to do the timing chain install? I have seen step by step timing chain installation videos for the coyote but none on the voodoo.

  7. sublime1996525

    sublime1996525 Well-Known Member

    Vehicle(s):
    2017 Race Red GT350
    Joined:
    Sep 17, 2016
    Location:
    Ricers make baby Jesus cry, Utah
    Posts:
    867
    Likes Received:
    408
    0   0   0
  8. MNGT350

    MNGT350 Well-Known Member

    Vehicle(s):
    16 GT350 base comp orange
    Joined:
    Nov 26, 2017
    Location:
    Minnesota
    Posts:
    100
    Likes Received:
    60
    0   0   0
    So educational, these posts are.

    Thank you for doing this

    honeybadger likes this.
  9. JAJ

    JAJ Well-Known Member

    Vehicle(s):
    2016 GT350 Track Pack
    Joined:
    Apr 9, 2016
    Location:
    Vancouver BC
    Posts:
    1,106
    Likes Received:
    745
    0   0   0
    You have to wonder if having the oil pickup molded into the factory Voodoo oil pan wasn't actually a sensible and well-engineered response to the Voodoo vibration. From the looks of it, the vibration killed the race pickup bracket, which was designed for a CPC engine. After all, what else is there down there to damage it?

    It's possible that vibration could be a problem if someone puts a new GT500 oil pan kit on a Voodoo without converting it to a CPC at the same time.

  10. OP
    OP
    honeybadger

    honeybadger Just don't care

    First Name:
    Kevin
    Vehicle(s):
    '17 GT350, '17 Raptor
    Joined:
    Apr 20, 2016
    Location:
    College Station, Texas
    Posts:
    2,292
    Likes Received:
    3,200
    Rating:
    100%
    3   0   0
    Sure thing. It'll be a bit different than the usual one since the sequence is a bit different when taking the chains off, but leaving the heads on vs. complete reassembly. But I'll point out that I can.

    You echo my thoughts exactly. Ford Performance claims this is safe for the FPC, but it might be introducing harmonics/vibrations that stress the part enough to justify some design changes. Not entirely sure what path going forward yet, but will know more when I talk to Ford on Monday. Will either work with a local machinist to modify this one or have Ford replace it (second choice is preferred).

    Tank likes this.
  11. Droopy1592

    Droopy1592 Well-Known Member

    First Name:
    Damien
    Vehicle(s):
    2017 GT350
    Joined:
    Apr 11, 2019
    Location:
    Atlanta
    Posts:
    391
    Likes Received:
    173
    0   0   0
    Catching this one from the start

    honeybadger likes this.
  12. GT_Dave

    GT_Dave Well-Known Member

    Vehicle(s):
    1970 Mach 1 408EFI , 2016 GT350
    Joined:
    Dec 13, 2015
    Location:
    NE Illinois
    Posts:
    1,058
    Likes Received:
    658
    0   0   0

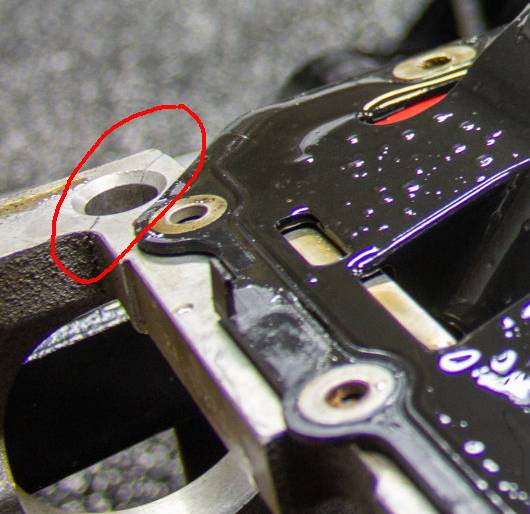

    Is that a crack in your block ? IMG_6413a.jpg

    Tank likes this.
  13. OP
    OP
    honeybadger

    honeybadger Just don't care

    First Name:
    Kevin
    Vehicle(s):
    '17 GT350, '17 Raptor
    Joined:
    Apr 20, 2016
    Location:
    College Station, Texas
    Posts:
    2,292
    Likes Received:
    3,200
    Rating:
    100%
    3   0   0
    Yeah. It’s been there since I took the engine out the first time last year. It’s non-structural and regarded a nice to fix, but not critical.

    Next time the block is stripped, I’ll have it welded. Until then, send it

    sublime1996525 and ixfe like this.
  14. OP
    OP
    honeybadger

    honeybadger Just don't care

    First Name:
    Kevin
    Vehicle(s):
    '17 GT350, '17 Raptor
    Joined:
    Apr 20, 2016
    Location:
    College Station, Texas
    Posts:
    2,292
    Likes Received:
    3,200
    Rating:
    100%
    3   0   0
    Adding the video of the tear down!


    Alain, O-H-5-0, RNDT38 and 3 others like this.
  15. Austinj427

    Austinj427 Well-Known Member

    Vehicle(s):
    2017 GT350
    Joined:
    Aug 31, 2017
    Location:
    CO
    Posts:
    807
    Likes Received:
    444
    Garage Profiles:
    1
    0   0   0
    Nice videos man. I just watched them in the other thread.

    Those MMR tensioners are concerning too. Glad you are ditching them.

    Do you think there is a way to bush the pick up tube support bolt with a grommet to aid in vibration? Or is it pointless?
