2016 GT P1X HO KIT

Discussion in 'Forced Induction - 5.0L V8 Engine' started by S550_LGND, May 7, 2019.

  1. S550_LGND

    S550_LGND Active Member

    Vehicle(s):
    2016 Mustang GT
    Joined:
    May 1, 2017
    Location:
    Fresno, CA
    Posts:
    34
    Likes Received:
    4
    0   0   0

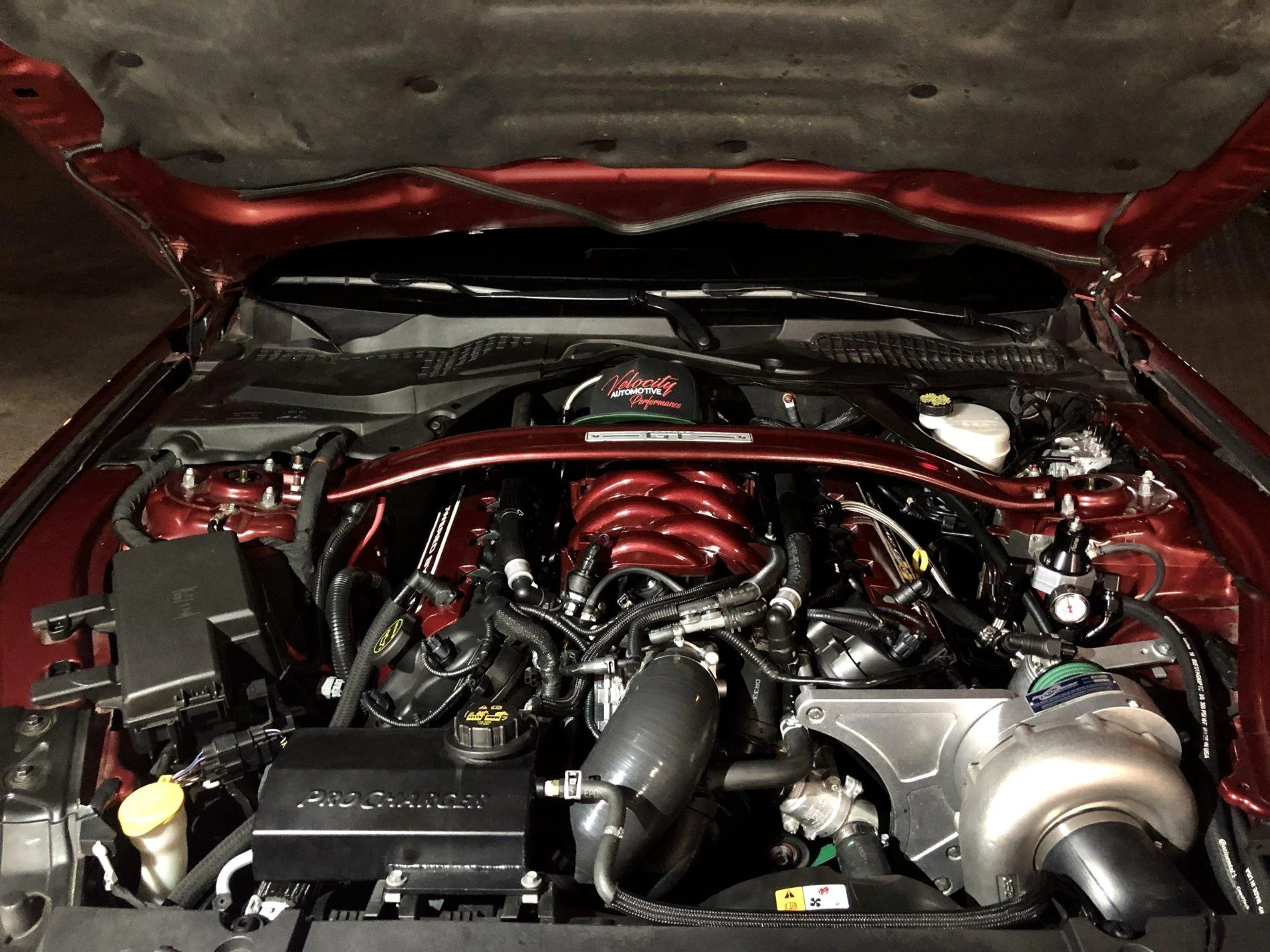

    I’m running a Procharger P1X H.O. Kit With a 3.40” pulley Getting About 9-10psi Of Boost & I’m wondering what’s the smallest pulley I can use on it to Up the Boost. Anyone know? Thanks. 29E51121-264B-4ED3-B31C-3B0D709637D1.jpeg

  2. SpaceCityS550

    SpaceCityS550 Member

    First Name:
    Perry
    Vehicle(s):
    2015 Mustang GT PP
    Joined:
    Feb 11, 2019
    Location:
    Houston, Texas
    Posts:
    18
    Likes Received:
    3
    Rating:
    100%
    1   0   0
    You'll need to let us know if you're on 93/e85. You will be octane-limited if not on e85.

  3. OP
    OP
    S550_LGND

    S550_LGND Active Member

    Vehicle(s):
    2016 Mustang GT
    Joined:
    May 1, 2017
    Location:
    Fresno, CA
    Posts:
    34
    Likes Received:
    4
    0   0   0
    Oh Yea Forgot To mention I Have A Fore Fuel System & On E85

  4. SolarFlare

    SolarFlare Well-Known Member

    Vehicle(s):
    2015 CO GT
    Joined:
    Aug 24, 2015
    Location:
    S. Fla
    Posts:
    2,404
    Likes Received:
    709
    Rating:
    100%
    2   0   0
    I THINK....you should be seeing more than 9-10psi with a 3.4 pulley on an HO. so you likely have belt-slip

  5. OP
    OP
    S550_LGND

    S550_LGND Active Member

    Vehicle(s):
    2016 Mustang GT
    Joined:
    May 1, 2017
    Location:
    Fresno, CA
    Posts:
    34
    Likes Received:
    4
    0   0   0
    No belt Slip I Was Seeing 11-12psi But i Built My Motor With 9:1 Compression Pistons So I’m Seeing A Little Less Boost Which is Why I Want To Up The Boost A Bit If Possible With a Smaller Pulley.

  6. turnswrench

    turnswrench turnswrench

    First Name:
    Bowman
    Vehicle(s):
    18 Royal Crimson Mustang GT A10
    Joined:
    Apr 2, 2018
    Location:
    MN
    Posts:
    712
    Likes Received:
    293
    Rating:
    100%
    2   0   0
    You can only spin the head unit out to a max of 65,000 rpm. You're probably close using the factory harmonic damper.

  7. Boduke0220

    Boduke0220 Well-Known Member

    Vehicle(s):
    2015 GT PP
    Joined:
    Sep 14, 2015
    Location:
    NC
    Posts:
    615
    Likes Received:
    191
    0   0   0
    Should’ve kept it 11:1

    Platinum_5.0 likes this.
  8. OP
    OP
    S550_LGND

    S550_LGND Active Member

    Vehicle(s):
    2016 Mustang GT
    Joined:
    May 1, 2017
    Location:
    Fresno, CA
    Posts:
    34
    Likes Received:
    4
    0   0   0
    Yea But Soon I’ll Be Getting An F1-A94 Procharger Head Unit But Just Wanted To Max this One Out Before I Make the Switch Lol

    Notagain and 80FoxCoupe like this.
  9. SheepDog

    SheepDog Well-Known Member

    Vehicle(s):
    2017 Mustang GT
    Joined:
    Nov 3, 2018
    Location:
    Colorado
    Posts:
    212
    Likes Received:
    74
    0   0   0
    With the 3.4 pulley, you are at the maximum recommended RPM (65,000 rpm) of that blower at 7500 RPM engine speed and the OEM diameter Harmonic balancer. You might check for boost leaks though, Even at 5,000 feet above sea level I see 11PSI with the same pulley. My motor is still 11:1. I would expect more like 13-14 PSI with the 3.4 pulley at sea level and stock compression, exhaust, etc. The volume difference inside the cylinder between 9:1 and 11:1 shouldn't make a dramatic change in measured boost pressure. The volume of air coming out of the blower is many times that of the difference in actual space in the cylinder between the compression ratios.

  10. Jay-rod427

    Jay-rod427 Well-Known Member

    Vehicle(s):
    2016 GT C/S
    Joined:
    Jun 8, 2016
    Location:
    Kansas
    Posts:
    2,136
    Likes Received:
    761
    Rating:
    100%
    3   0   0
    I see 14 psi at 54,000 blower rpm. yes built motor, and whoever is tuning, but seems quite low. You should be seeing more imo

  11. ahl395

    ahl395 Well-Known Member

    First Name:
    Allan
    Vehicle(s):
    2017 Mustang GT, 2006 Infiniti G35X
    Joined:
    Dec 30, 2015
    Location:
    NJ
    Posts:
    2,490
    Likes Received:
    987
    Rating:
    100%
    1   0   0
    It's low because of the low compression motor. If you're revving to 8k then your already at the blower's RPM limit. You will need a stage 2 setup to get any more out of it. HO is much more limited with pulley sizes.

  12. yote41

    yote41 Well-Known Member

    Vehicle(s):
    16 gt
    Joined:
    Aug 16, 2017
    Location:
    pa
    Posts:
    840
    Likes Received:
    155
    Rating:
    100%
    2   0   0
    I have a 3.50 pulley on my p1sc ho kit and i see like 10 psi

  13. SolarFlare

    SolarFlare Well-Known Member

    Vehicle(s):
    2015 CO GT
    Joined:
    Aug 24, 2015
    Location:
    S. Fla
    Posts:
    2,404
    Likes Received:
    709
    Rating:
    100%
    2   0   0
    No way in hell does 2 points lower compression drops psi from a pulley setup capable of 17psi down to 9psi

    Jay-rod427 and SheepDog like this.
  14. yote41

    yote41 Well-Known Member

    Vehicle(s):
    16 gt
    Joined:
    Aug 16, 2017
    Location:
    pa
    Posts:
    840
    Likes Received:
    155
    Rating:
    100%
    2   0   0
    Idk how they are for p1x but for p1sc 3.5 pulley is good for 10 psi and 3.4 is 12 psi. Thats from procharger.

  15. SheepDog

    SheepDog Well-Known Member

    Vehicle(s):
    2017 Mustang GT
    Joined:
    Nov 3, 2018
    Location:
    Colorado
    Posts:
    212
    Likes Received:
    74
    0   0   0
    They do make a 3.2" and 3.0" pulley. Of course you would be over-spinning the blower at high RPM's but if you don't spend much time above 7,000 RPM you would get more boost down low.
