Technical Reference Document: 2011-2019 5.0L Coyote V8 Engine Improvements & Changes

[Cobra Jet]

Here ya go, in case anyone is wondering what has been changed on the 5.0 Coyote between 2011-2019 (PDF Coyote Tech Ref 2), courtesy of Ford Performance.

EDIT 10/05/20:
2nd pdf (2015-2016 Gen 2) shows only variances between the 2015 and 2016 Coyote.

Sponsored



[W.O.T. Stang]

Very cool. Love tech documents and this is a must read for anyone that is interested in the coyote engine.



[Vlad Soare]

Cool!
Thanks.



[Wylie C]

Thanks Cobra Jet, outstanding info



[Silver Bullitt]

So does this confirm that redline on Gen 3 is in fact 7500 rpm?



[ihc95]

Fantastic document. Thanks @Cobra Jet



[boos550t]

So does this confirm that redline on Gen 3 is in fact 7500 rpm?

Hasn't it always been?



[WildHorse]

Here ya go, in case anyone is wondering what has been changed on the 5.0 Coyote between 2011-2019, courtesy of Ford Performance.

Yeah I have that document. Can't beat the gen2/3!



[Idaho2018GTPremium]

Hasn't it always been?

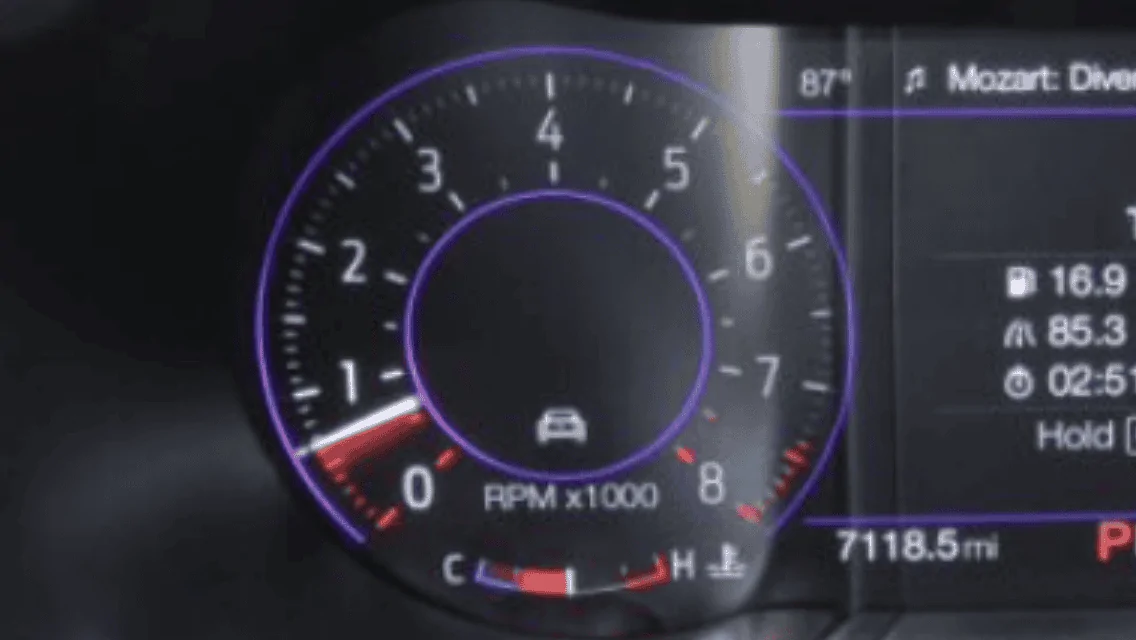

Yes, but with some questions. Ford has claimed 7500 rpm, but the tachometer shows what could be seen as a yellow area before redline at around 7300 rpm, and then full on redline at 7500 rpm. For both conditions, there's a smaller diameter arc in red that starts at 7300 rpm. However, there's a clear difference in the white markings between 7300 rpm and at 7500 rpm. I think the magazines claim 7400 rpm. But I just went out and checked and the full blown white lines start at what appears to be half way between 7000 and 8000 rpm, at 7500 rpm.



[Idaho2018GTPremium]

I like this document, I've had it on my computer for a while now, and have referenced it several times. Quite a few differences between each generation, esp. from Gen 2 to 3.



[Tony Alonso]

Thanks for posting this! The Ford illustrations are great in how the major improvement areas are highlighted on the engines.



[Silver Bullitt]

Yes, but with some questions. Ford has claimed 7500 rpm, but the tachometer shows what could be seen as a yellow area before redline at around 7300 rpm, and then full on redline at 7500 rpm. For both conditions, there's a smaller diameter arc in red that starts at 7300 rpm. However, there's a clear difference in the white markings between 7300 rpm and at 7500 rpm. I think the magazines claim 7400 rpm. But I just went out and checked and the full blown white lines start at what appears to be half way between 7000 and 8000 rpm, at 7500 rpm.

This ^^^

There's been a lot of discussion, but I've always been a proponent of it being 7500.

I think the digital dash is pretty clear though showing redline at 7400 if I remember (cant verify since I have analog gauges).



[Silver Bullitt]

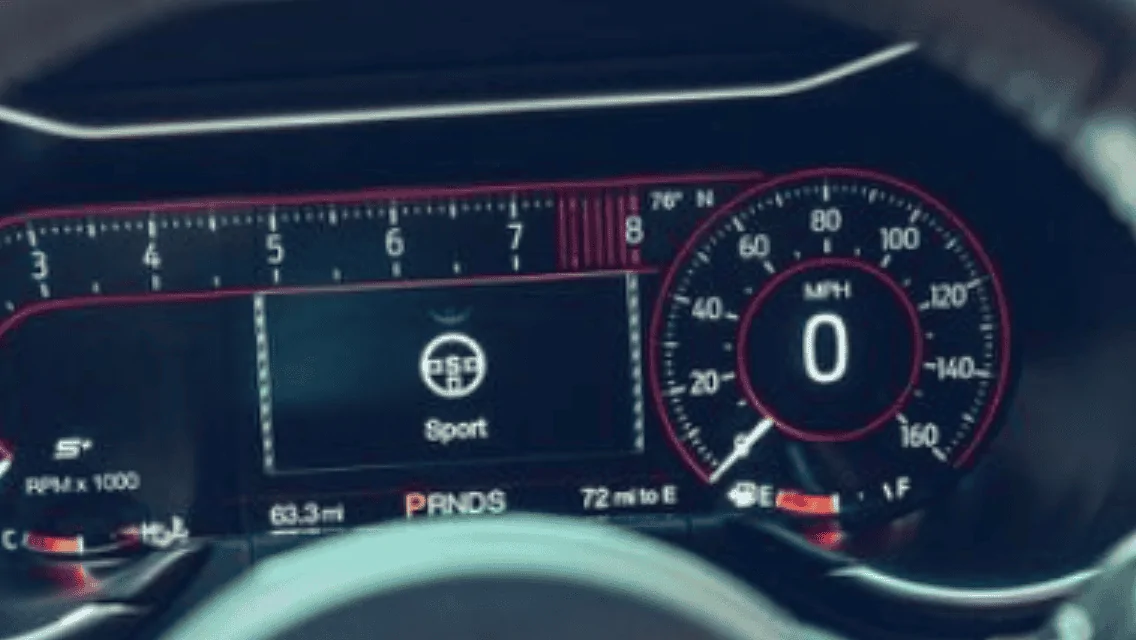

Digital dash - sure looks like 7400 redline to me.



[F1scamp]

Anything like this showing the differences between the engines found in the trucks and the mustangs?



[Zinc03svt]

The 7300 yellow is telling you to keep it off the rev limiter.
