Schroth QuickFit 4 Point Harness Install

Knockdown

Well-Known Member
Joined
Oct 23, 2021
Threads
11
Messages
84
Reaction score
150
Location
FL
First Name
Greg
Vehicle(s)
2021 Mustang Mach 1
Just installed these harnesses, they work nice! I got the Mustang 2018-2020 pro sets.

  • Remove rocker panel plastic - lift upwards
  • Remove back seat - 2 release latches under center of seats, push reward
  • Remove quarter panel plastic - start from rear and work forward
  • Remove two 50 torx bolts from bottom belt sensor
  • Fit hip belt male adapter to front bolt under sensor
  • Put two thick washers underneath sensor for back bolt - not sure this necessary but I wanted to keep similar alignment
  • Install shoulder belt male adapter using factory shoulder belt 13mm bolt - I positioned belt pointing to outside of car, 90 degree bend, on top of factory bracket to get max height
  • Mark area of plastic and remove plastic on rear quarter panel for lap belt male adapter - I went up from the tether cut out to just below rocker panel bend, 2.1 inches forward down the bend, and then down
  • Install rear quarter plastic panel
  • Install rocker panel plastic panel
  • Repeat for passenger side if required
  • Install rear seat
Activity area

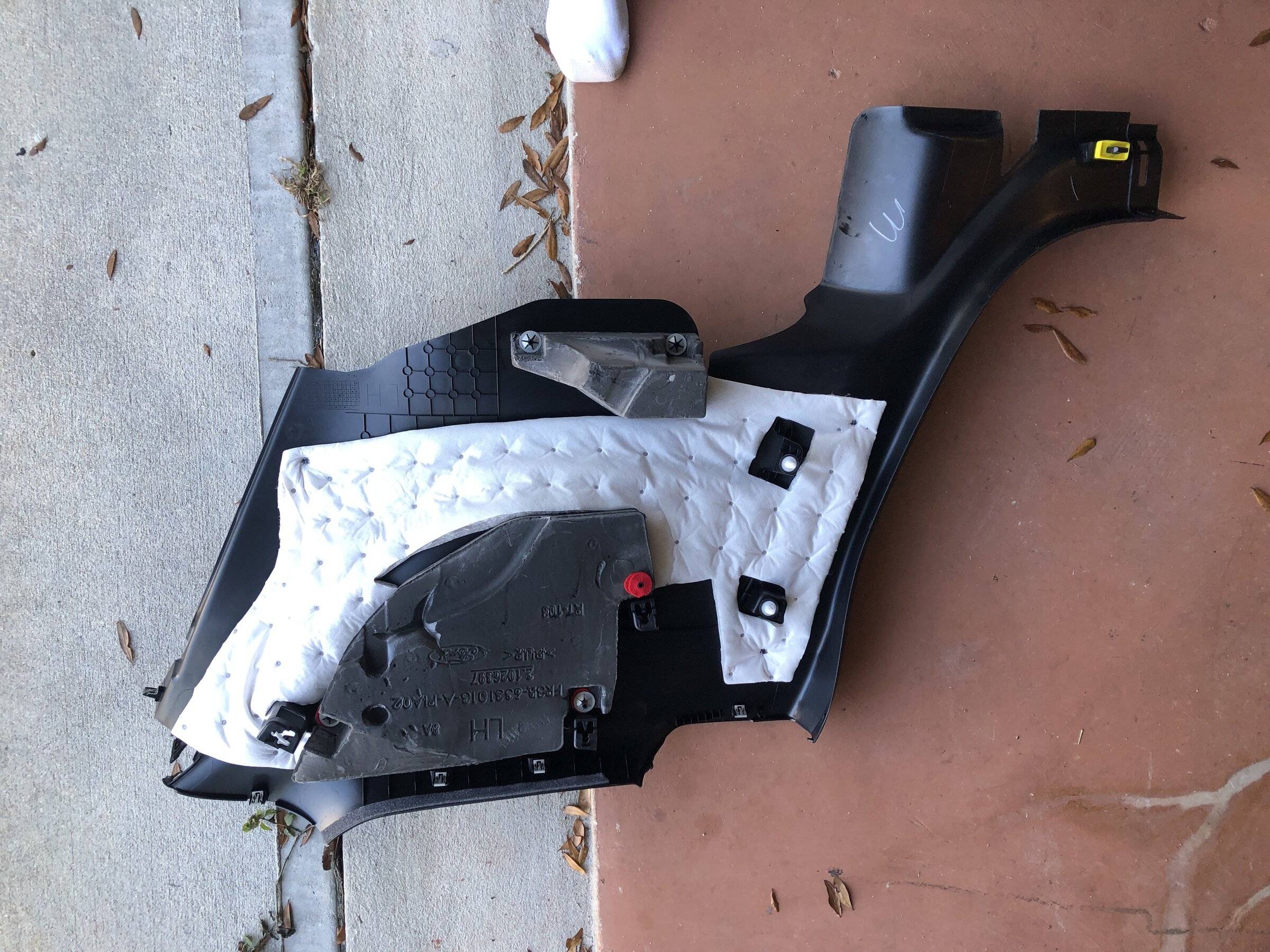

Rear quarter plastic panel push pin locations

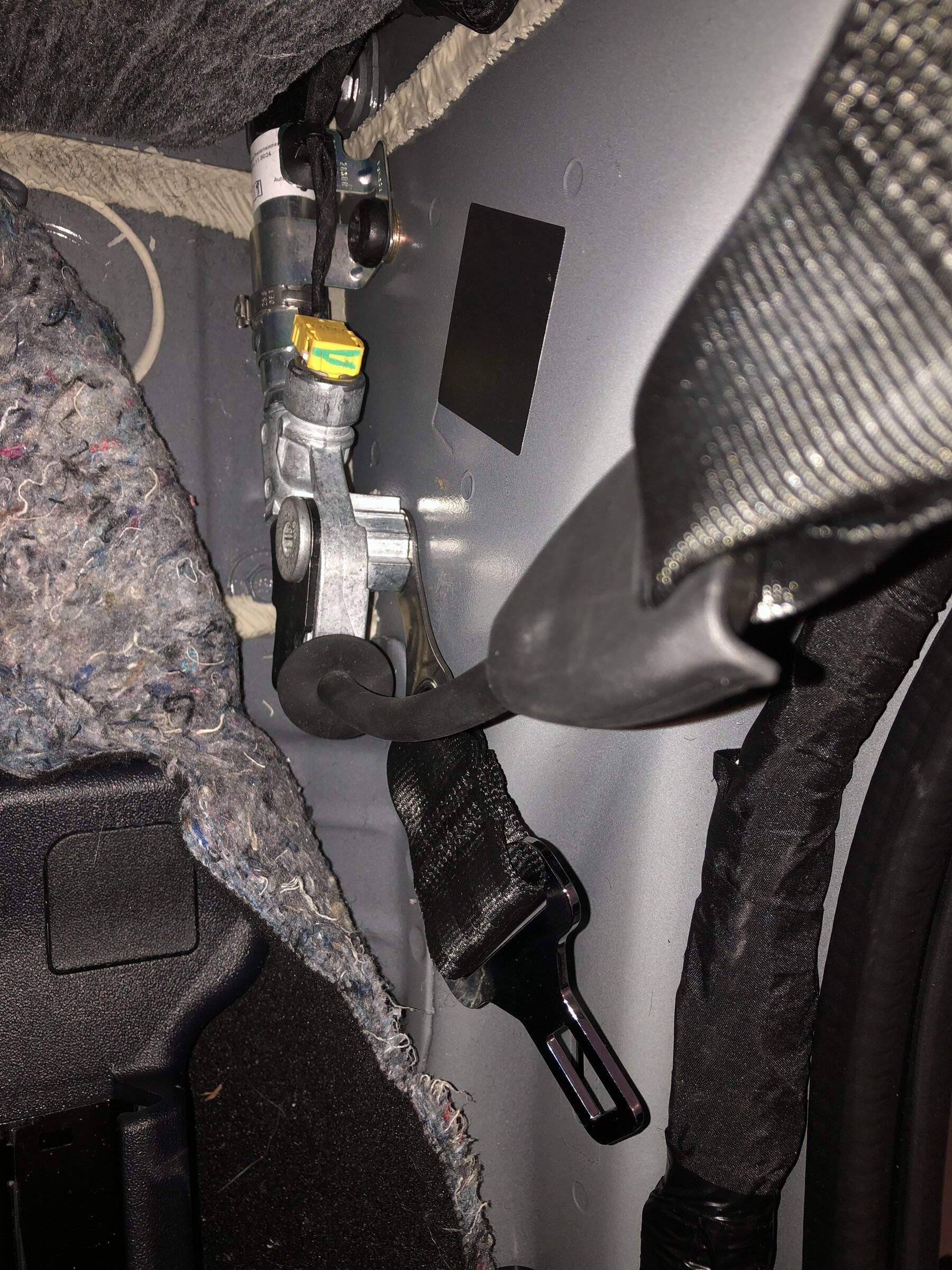

Lap belt male adapter

Disclaimer: I’m not sure if this is the correct way to install these, but they’ll hold us in place on track days and we didn’t get any dash warnings.



Last edited:

Atlas1

Well-Known Member
Joined
Aug 11, 2018
Threads
20
Messages
2,896
Reaction score
4,800
Location
Everett, WA
Vehicle(s)
2017 Audi S6, 2021 Mach 1 'M1985'
How nerve wracking was removing all of that interior plastic? I would worry about breaking things that seem designed to only go together once


Cobra Jet

Well-Known Member
Joined
Feb 12, 2015
Threads
621
Messages
12,035
Reaction score
15,342
Location
NJ
Vehicle(s)
2018 EB Prem. w/PP and 94 Mustang Cobra
Great Tech/DIY thread for the harness install!

Thank you for taking the time to post the DIY and the accompanying pictures, visuals always help!!



luc

Well-Known Member
Joined
Mar 25, 2018
Threads
13
Messages
1,156
Reaction score
1,118
Location
CA
Vehicle(s)
2017 GT with PP
If you intend to take your car on a road course, you need to add an anti submarine belt
Without it, the lap portion of the harness will move up as you tighten the shoulders straps… no bueno


luc

Well-Known Member
Joined
Mar 25, 2018
Threads
13
Messages
1,156
Reaction score
1,118
Location
CA
Vehicle(s)
2017 GT with PP
Here’s a couple of links to videos, these belts incorporate a Schroth Anti-submarine technology, I hope I never have test it! I’m not affiliated with Schroth or HMS Motorsports

Schroth QuickFit Overview
QuickFit Pro Crash Test
You misunderstood my post. I’m well aware of the Schroth design since I use one, albeit with a crotch belt, I was talking about the fact that without a crotch belt, you are pulling up the lap belt as you tighten the shoulder belts and the buckle end up way to high on your stomach


Dana Pants

Well-Known Member
Joined
Oct 11, 2018
Threads
7
Messages
615
Reaction score
494
Location
Burlington MA
First Name
Dana
Vehicle(s)
2018 GT PP1
The quick fit is an autocross belt. The road course nearest my house (Canaan) doesn’t even allow 4 point belts. 3 or 6 are the real options. 5 if you hate your manhood.

OP
OP
Knockdown

Knockdown

Well-Known Member
Joined
Oct 23, 2021
Threads
11
Messages
84
Reaction score
150
Location
FL
First Name
Greg
Vehicle(s)
2021 Mustang Mach 1
You misunderstood my post. I’m well aware of the Schroth design since I use one, albeit with a crotch belt, I was talking about the fact that without a crotch belt, you are pulling up the lap belt as you tighten the shoulder belts and the buckle end up way to high on your stomach
You are correct, one can’t tighten the shoulder belts up too much as to move the lap belt higher off the hip/upper thigh. We have only test fitted these and done a few brake tests, snugging up the belts and then moving the seat forward to tighten up seemed to work the best to keep the lap belt located correctly.

  • Like
Reactions: luc

theruleslawyer

Well-Known Member
Joined
Dec 3, 2021
Threads
11
Messages
738
Reaction score
800
Location
Des Plaines, IL
First Name
Brian
Vehicle(s)
MB C350
Personally I'd be really cautious of any of these kits that mount to the rear seats for track use. Improperly mounted harnesses can injure you in a crash. If you are at the point of wanting harnesses I'd look into a harness bar at least. Go and look up some articles on belt angles and make sure they are safe.

OP
OP
Knockdown

Knockdown

Well-Known Member
Joined
Oct 23, 2021
Threads
11
Messages
84
Reaction score
150
Location
FL
First Name
Greg
Vehicle(s)
2021 Mustang Mach 1
C’mon guys, if I wanted a permanent harness installation, I would of put one in. Schroth and I feel this is a step up from a factory 3 point seat belt and it’s easy to remove when I’m using the car on the street 95%+ of the time.


luc

Well-Known Member
Joined
Mar 25, 2018
Threads
13
Messages
1,156
Reaction score
1,118
Location
CA
Vehicle(s)
2017 GT with PP
Personally I'd be really cautious of any of these kits that mount to the rear seats for track use. Improperly mounted harnesses can injure you in a crash. If you are at the point of wanting harnesses I'd look into a harness bar at least. Go and look up some articles on belt angles and make sure they are safe.
Are roll bar mounted better than the Schroth? Yes
Are a Schroth better than 3 pts belt? Yes
Furthermore a racing harness, as well than a racing seat, serve a dual purpose, safety of course but also better feel and control for the car
No way you can drive well if you’re bracing yourself in turns



200 - Redline360 - 2
