2018 Active Exhaust Install Guide

[Mach VII]

Sorry this is what I was trying to confirm. If I can just get the device from HP Tuners and turn it on, while leaving the car stock that is awesome.

This Post covers what it takes programming-wise to complete the install. You have to buy the HP Tuners device plus appropriate amount of credits for your vehicle.

Sponsored



[El_Centenario]

Back in 2018, I installed the 2018 active mufflers on my 2015 GT and replaced the electric actuator valves with vacuum powered actuators from eBay. I cut off the section of the valve with a saw-zall and welded the new ones. I hooked up a push button into the cigarette lighter by the shifter to power a vacuum solenoid under the hood. 5 years later, everything still works.



[Bangenstang]

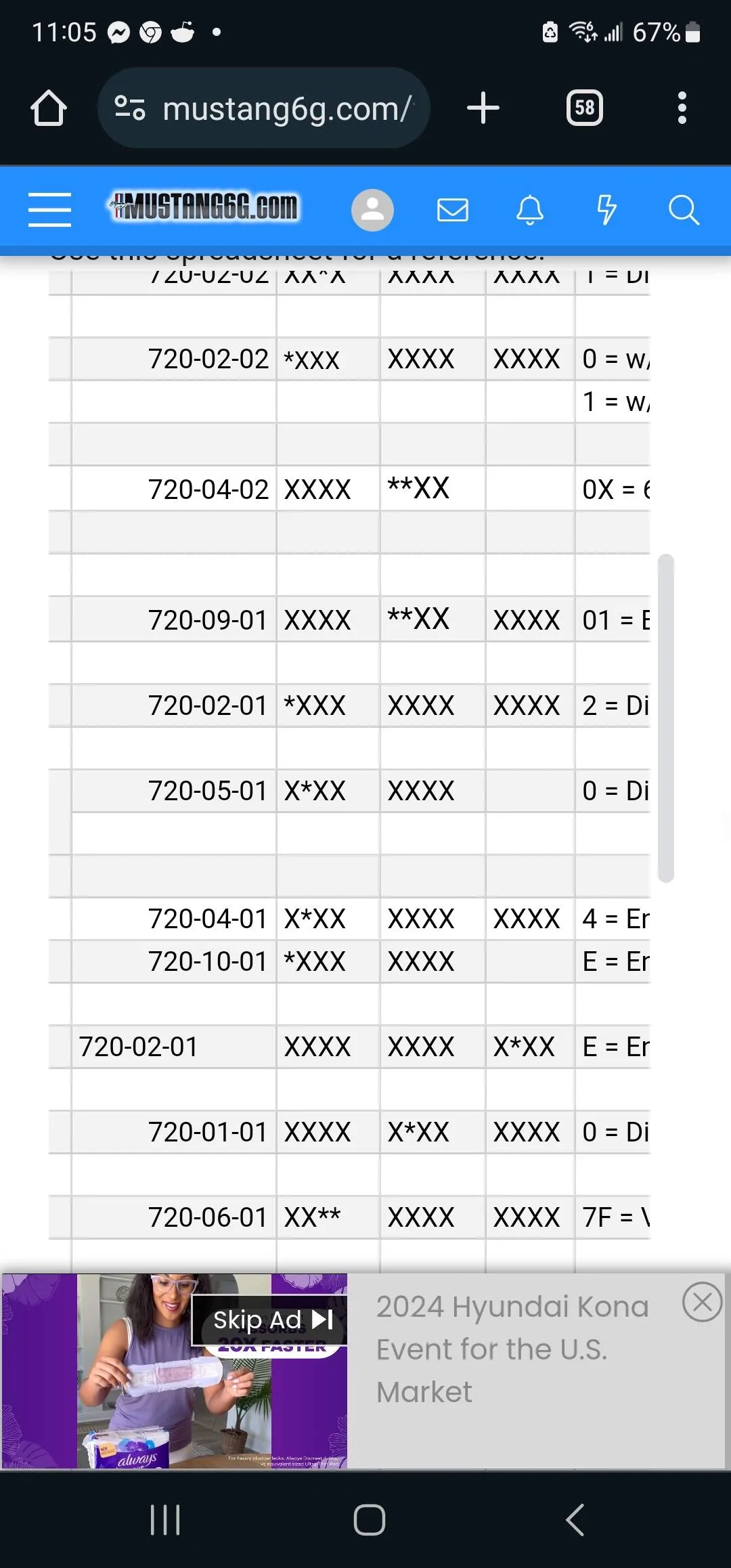

I Have all the needed oem parts fuse and relay were there I added valves and harness but the forscan changes don't work on my 21 anyone have an updated module code for the 21s? 720-04-1 works but not 720-10-1



[goldeneagle6747]

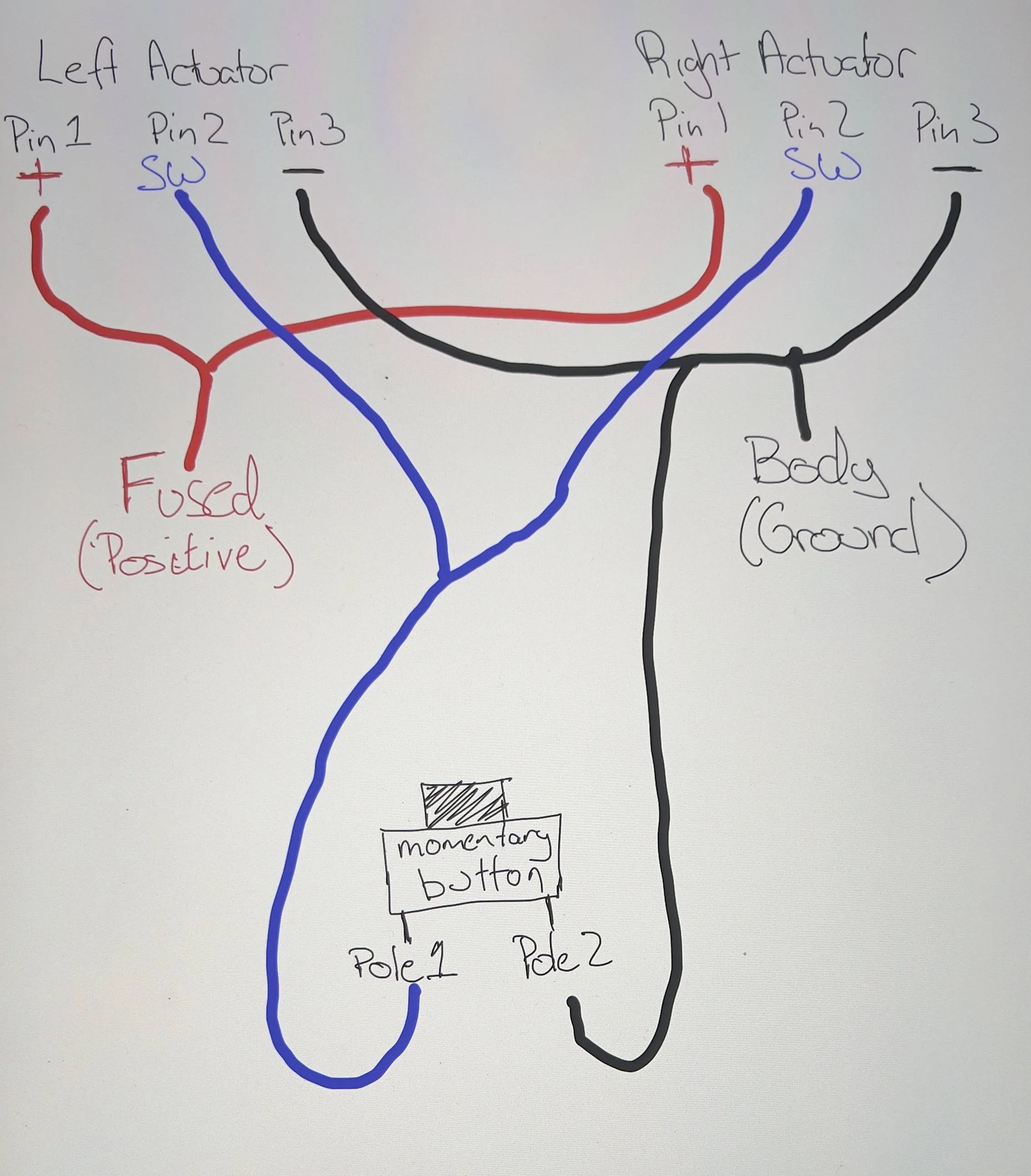

Forgive the basic drawing here, it’s 2am so I just wanted to get this done quick. This is what would work for both actuators on a single momentary, fused so as not to draw when the car is off.

I don't suppose you have a similar diagram for how to do this with the 2018-2023 GT actuator cables? As I believe it has 4 pins not 3



[Torque123]

Anyone know the situation on the 24 gt, or is there a similar thread? Are the wires there?



[HitmanDon1]

Those mufflers are now going for $800 per muffler at my local Ford dealership



[jmeiers]

Anyone know the situation on the 24 gt, or is there a similar thread? Are the wires there?

Look up under the car, near the area under the center/rear behind where the spare well is and see for yourself. It very likely is a similar harness connection and if you have it, you will see it.



[Rooz]

Hello!
I read many pages of this discussion but I’m still lost as to what I need.
I have a 2018 GT, from what I see it comes with the harness under the trunk (picture below)
I have already purchased the AE mufflers with the actuators on them. What other parts do I need?
Also how do I check if I already have the “relay”? Where/what is that?



[illtal]

Hello!
I read many pages of this discussion but I’m still lost as to what I need.
I have a 2018 GT, from what I see it comes with the harness under the trunk (picture below)
I have already purchased the AE mufflers with the actuators on them. What other parts do I need?
Also how do I check if I already have the “relay”? Where/what is that?

all you need to do is purchase the harnesses to connect he two sides. go back to the beginning and look for those harnesses



[Synergy720]

Hello!
I read many pages of this discussion but I’m still lost as to what I need.
I have a 2018 GT, from what I see it comes with the harness under the trunk (picture below)
I have already purchased the AE mufflers with the actuators on them. What other parts do I need?
Also how do I check if I already have the “relay”? Where/what is that?

You need the 2 jumper harnesses and the primary splitter harness. I think total from Levittown Parts is like $170ish.
You should already have the relay as there are 3 fuses connected to that relay. But a 15 amp fuse for one of the slots is needed *SOMETIMES*. Your car might already be outfitted with it. It’s the fuse box under hood in the engine bay. Fuse port 34.

1x JR3Z-14A411-J (Y harness that splits)
2x JR3Z-14A411-H (Harness to actuator and wire)

don’t forget to enable the active exhaust functions in Forscan



[Rooz]

You need the 2 jumper harnesses and the primary splitter harness. I think total from Levittown Parts is like $170ish.
You should already have the relay as there are 3 fuses connected to that relay. But a 15 amp fuse for one of the slots is needed *SOMETIMES*. Your car might already be outfitted with it. It’s the fuse box under hood in the engine bay. Fuse port 34.

1x JR3Z-14A411-J (Y harness that splits)
2x JR3Z-14A411-H (Harness to actuator and wire)

don’t forget to enable the active exhaust functions in Forscan

Fantastic, thank you!

all you need to do is purchase the harnesses to connect he two sides. go back to the beginning and look for those harnesses

Going to do that right now!
Should I call my local dealerships first?



[illtal]

Fantastic, thank you!



Going to do that right now!
Should I call my local dealerships first?

you can order them online, It's super easy to do



[RParmar]

Need help! 2018 Mustang, I ran wiring from the front footwells using taps, installed the y-connector and cables to the actuators. Did updates with forscan. I now have the different Exhaust options "Quiet, Normal, Sport, Track"
however I'm not able to select any of them?

I'm not sure if the taps are making a good connection or not, does anyone know what should be measured at the 4pins at rear of car?



[Need4SpeedMotors]

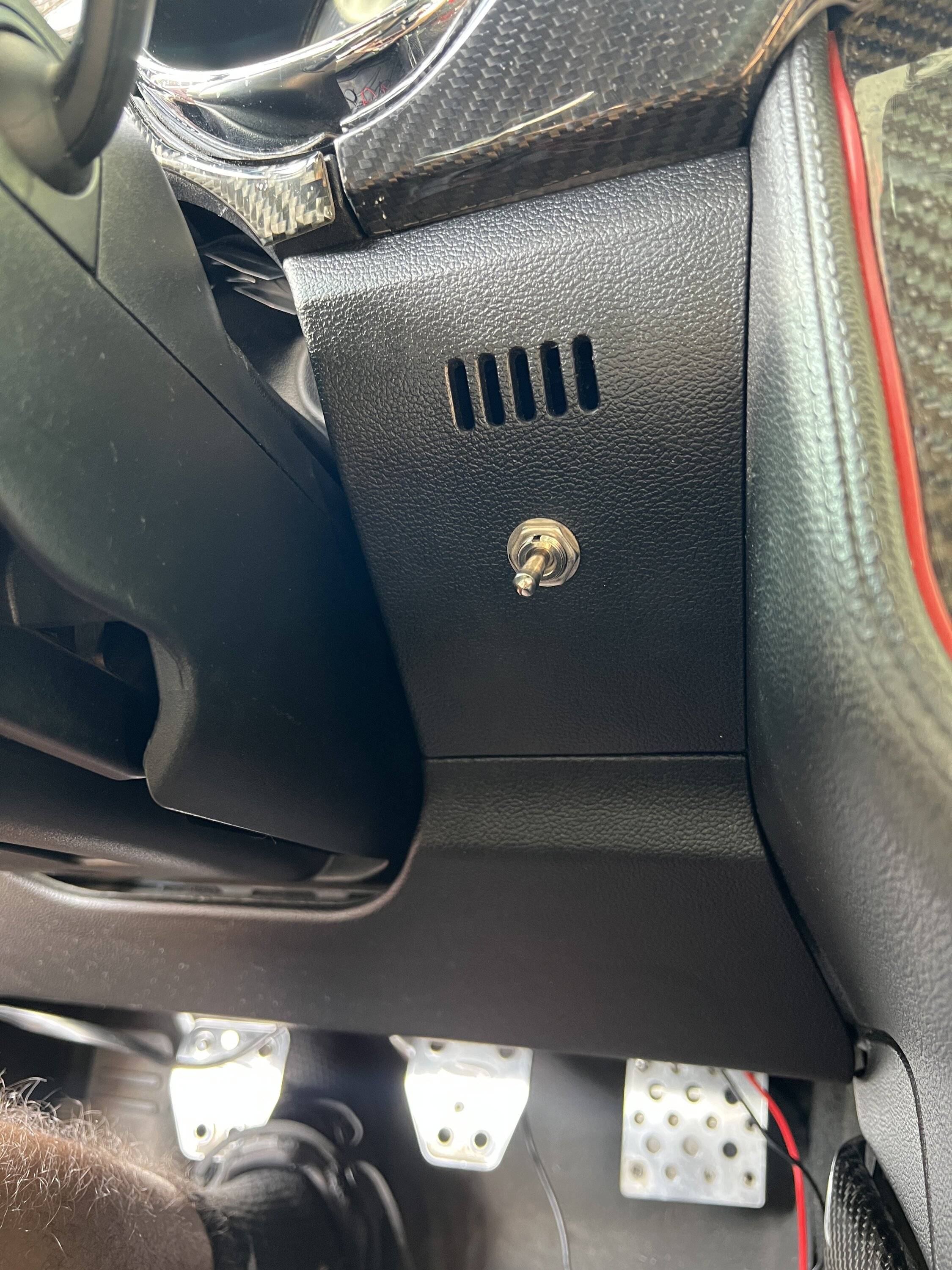

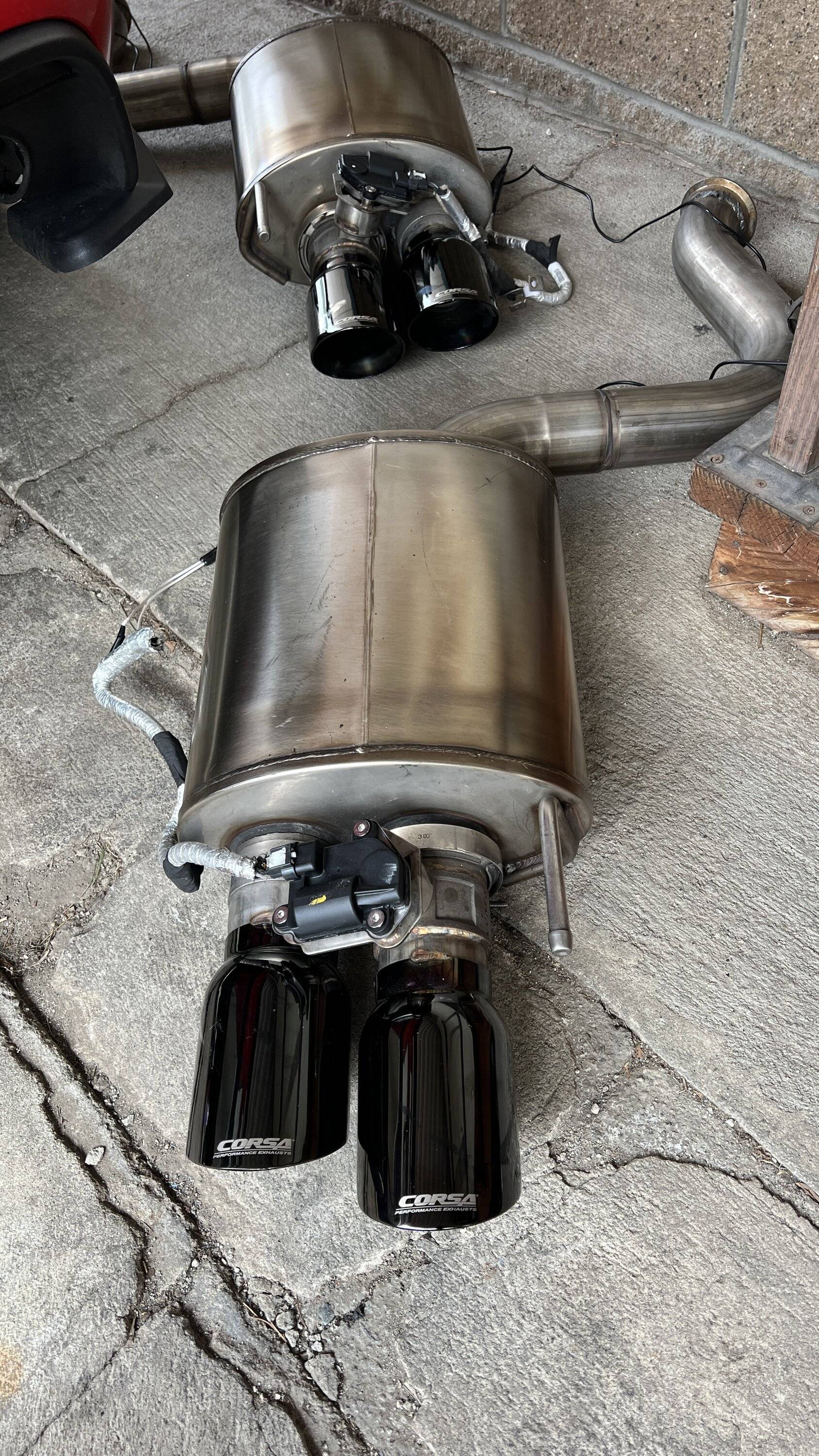

Just came across this thread. A while back I was able to figure out how to get the oem actuators and plugs to work with a simple toggle switch that's powered by the cigarette lighter. You pretty much open up the housing, completely remove the motherboard from the actuator and send direct power to the motor. A reverse polarity toggle switch is what lets it open and close. I have the corsa extreme active system on my 2016 GT, absolutely love it.



[thirdoptik]

You need the 2 jumper harnesses and the primary splitter harness. I think total from Levittown Parts is like $170ish.
You should already have the relay as there are 3 fuses connected to that relay. But a 15 amp fuse for one of the slots is needed *SOMETIMES*. Your car might already be outfitted with it. It’s the fuse box under hood in the engine bay. Fuse port 34.

1x JR3Z-14A411-J (Y harness that splits)
2x JR3Z-14A411-H (Harness to actuator and wire)

don’t forget to enable the active exhaust functions in Forscan

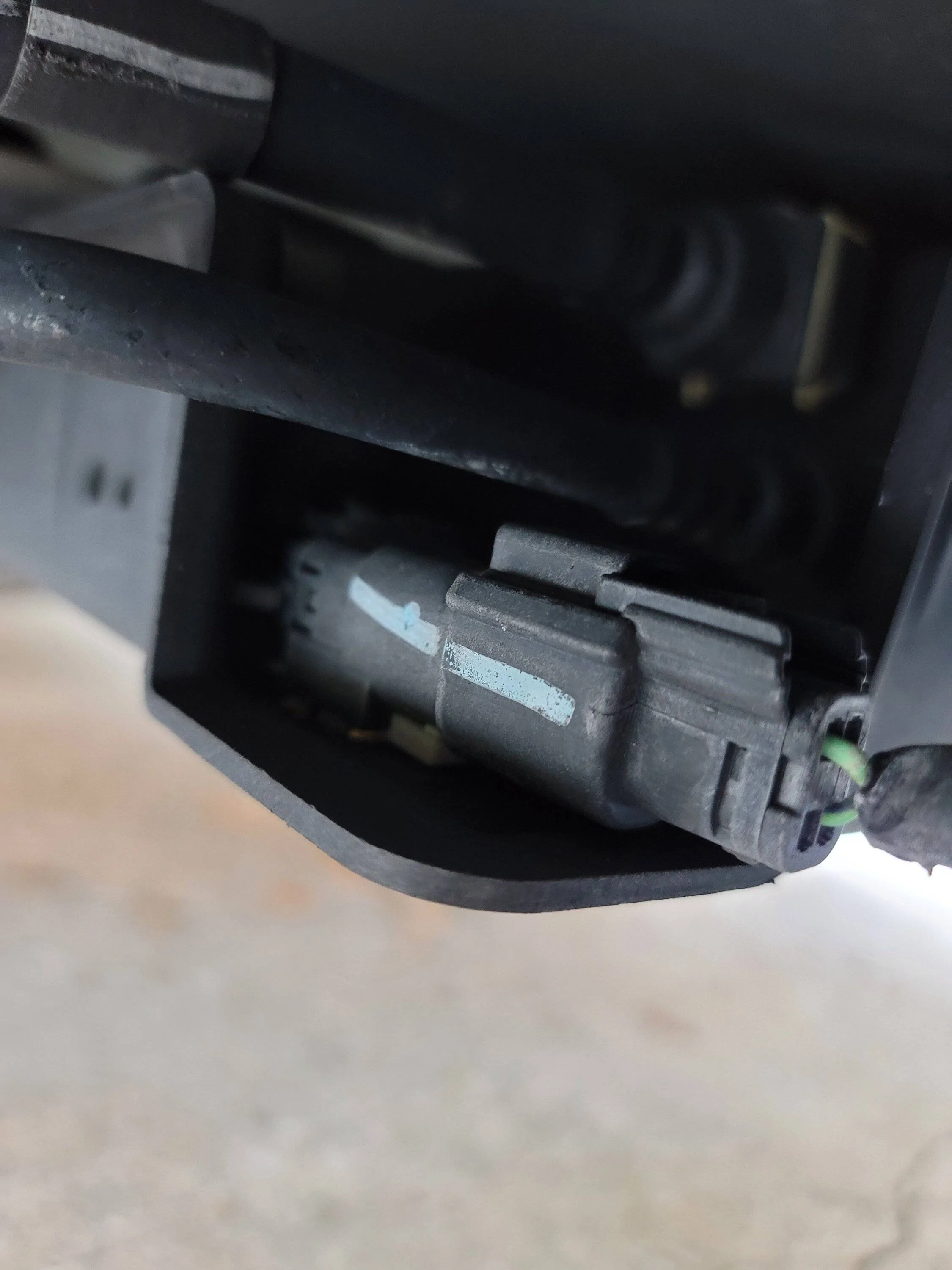

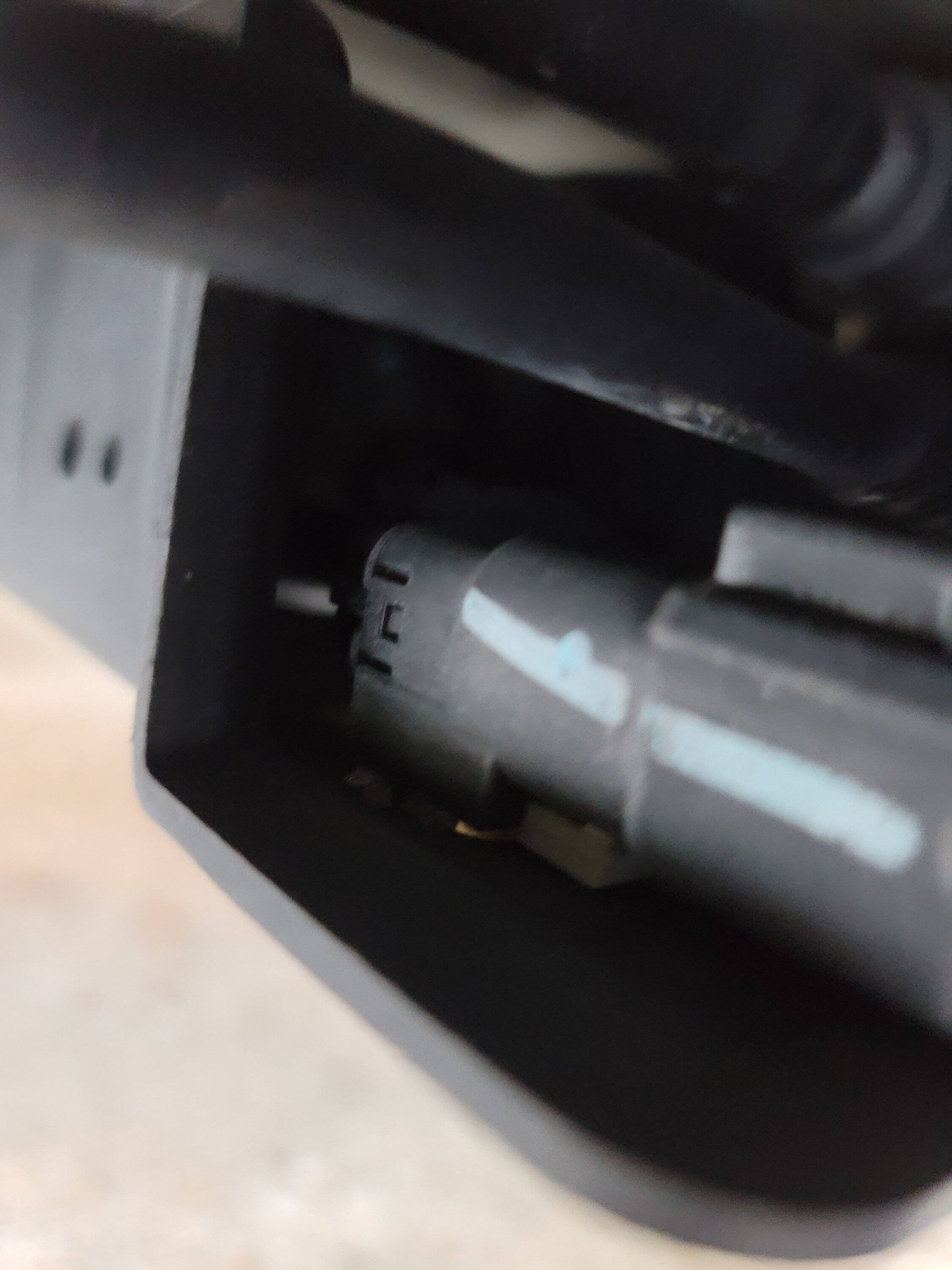

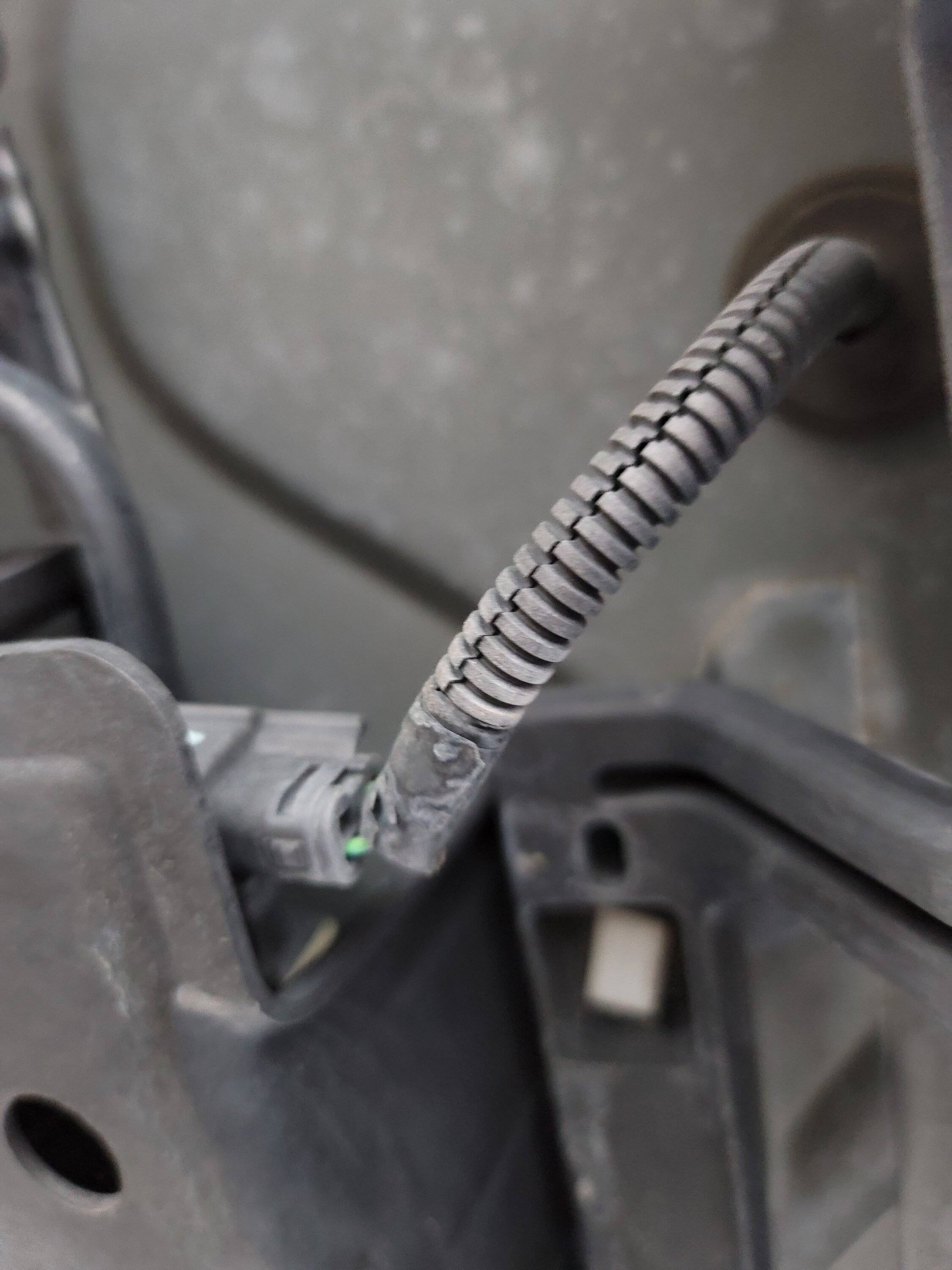

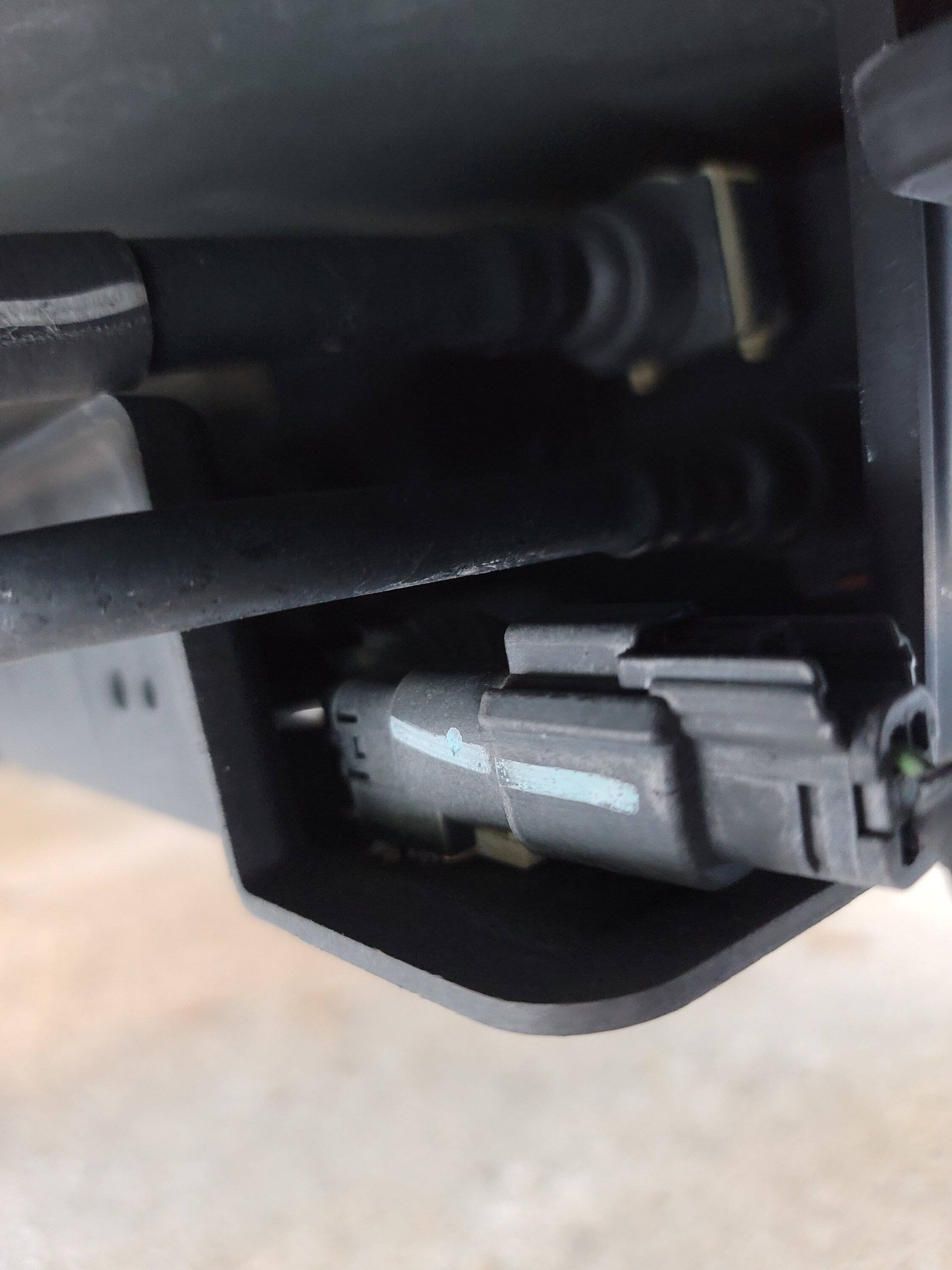

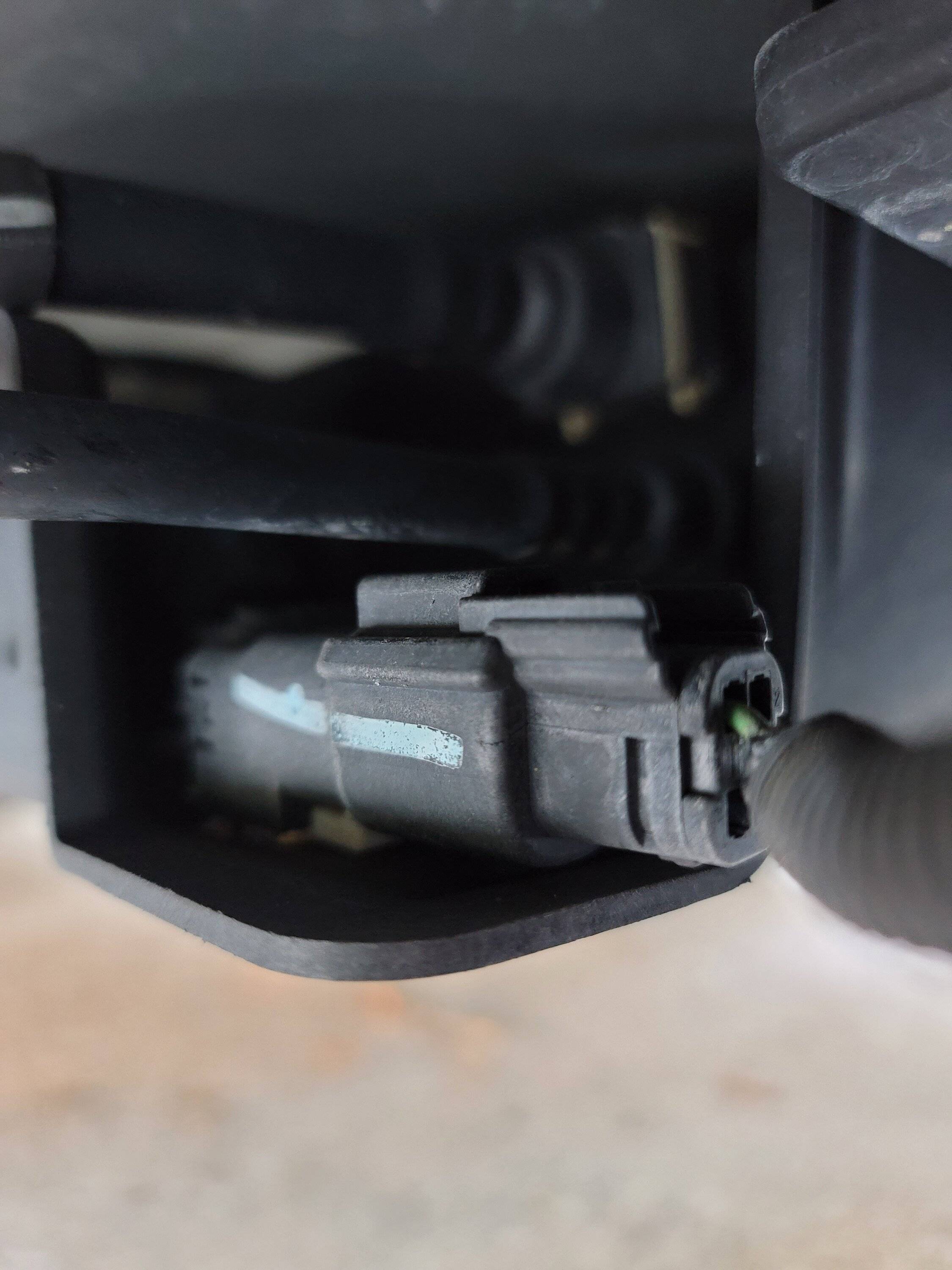

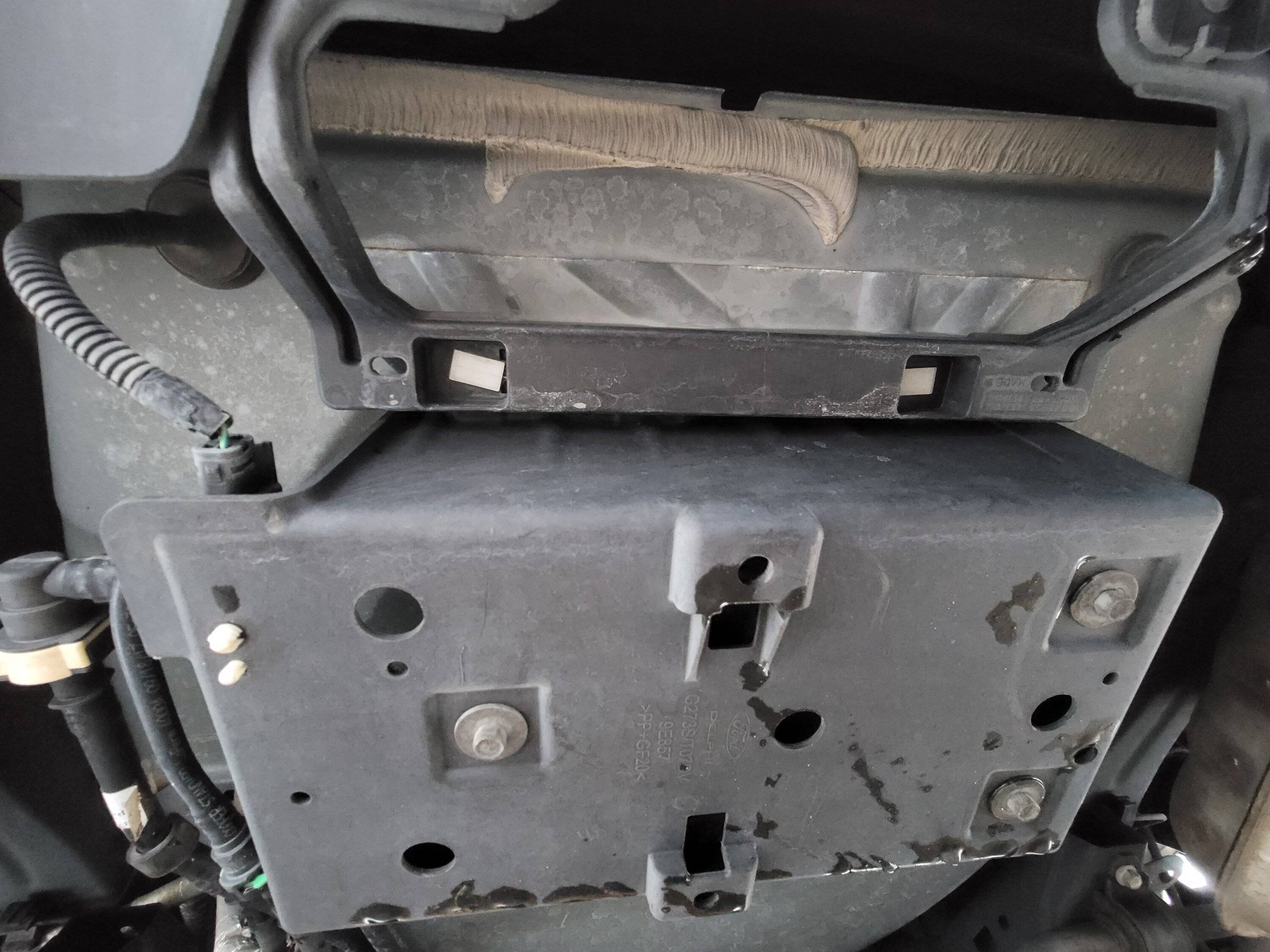

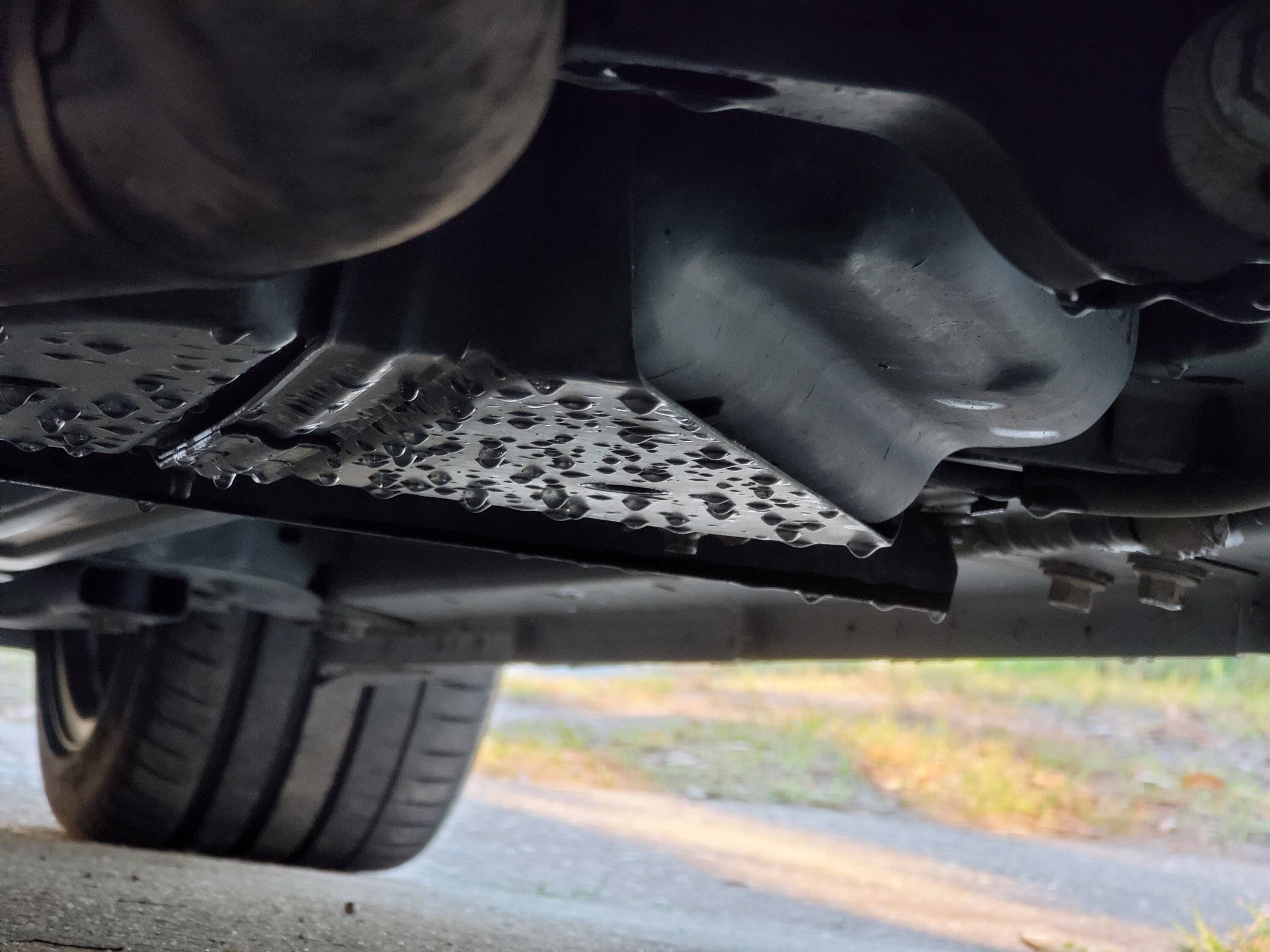

What if I dont have that plug? Can I still manage a plug and play install for my car? 2018 GT PP1. See pics
