2018 Active Exhaust Install Guide

Discussion in 'V8 5.0L Engine / Mods: Bolt-ons, Exhaust, Tuning' started by breeves002, Apr 18, 2018.

  1. breeves002

    breeves002 Well-Known Member
    Gold Sponsor


    First Name:
    Sam
    Vehicle(s):
    2016 GT Premium PP
    Joined:
    Mar 15, 2017
    Location:
    St. Louis, MO
    Posts:
    526
    Likes Received:
    183
    0   0   0
    This is a work in progress. I will add more pictures in weeks after posting this guide.


This guide overviews how to install the Active Exhaust from the 2018 Mustang to your 2015-2017 Mustang GT. You CAN in theory install these on your V6 or EcoBoost but different and extra modification must be done and it may not be a cut and clamp install like it is for the GT. If someone decided to install on an EcoBoost or V6 I will happily update this guide with your instructions if you chose to provide them.

    This is by FAR the least expensive active exhaust possible. Total cost for me was under $450 doing all the work myself.

    This DOES NOT FUNCTION like the factory 2018 active exhaust. It is not actuated in the instrument cluster or with driving modes. You manually control these with a switch. If you have a 2018 mustang you may be able to add the factory control but it has not been tried. If you want to try this please PM me and we can work out how to do it.

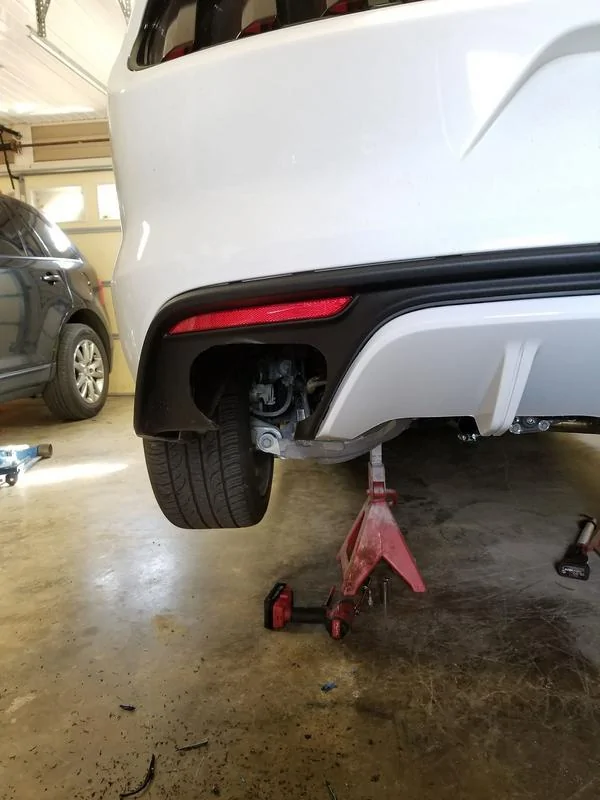

    Note: This mod requires cutting of the stock rear valance which looks really bad. You either need to install a new valance or the 2018 Mustang rear bumper for a factory like finish. I’m waiting to see if these fit correctly under the Roush valance. They will not fit with the GT350 valance unless you modify it.

    Big shout out to @Bsmith181992 AKA Ben Smith if you have seen him on one of the many Mustang Facebook pages. He helped me a ton in this and pioneered this swap. I just perfected it :p Just a note – this is how I installed everything. Ben may have done it slightly differently. There are many minor things you could do differently.

    To preface this, you need minor electrical skills. It requires some soldering. You can also send me the valves and I can outfit them for you. PM me if you want to take advantage of this service.

    Required tools:
    -Dremel and plastic cutting bit
    -Soldering iron and solder (unless getting valves from me)
    -Assorted sockets
    -Sawzall if installing mufflers yourself
    -Fish tape (optional but makes it much easier)
    -Interior removal tools (optional)

    Required supplies:
    -22 gauge minimum 16 gauge maximum high temp silicone wire. You’ll need at least 25’ maybe more. You only need a short run of the high temp wire but one 25’ roll * may * be enough.
    -High temp silicone sealant
    -Heat tape wrap – I used Tesa brand
    -DPDT polarity reversing switch ON-OFF-ON
    -Micro (ATC) Add-A-Fuse and 2A or 3A fuse.
    -Small self tapping screw (optional but easy way to ground)
    -Assorted electrical connectors (unless you want to solder everything)
    -DC-DC Converter (100% optional to slow down motor speed)

    Step 1: Order the Mufflers (and other parts)

    Go to your local dealer and order:
    JR3Z-5230-FA
    JR3Z-5230-FB

    I was able to get them for $185 each plus tax. You can order them online but shipping will be very expensive. The mufflers include part of the piping to the resonator and the valves. It is an all in one piece.

    It took about a week for mine to come in but your results may vary depending how many orders there are for them.


    Step 2: Mod the Motors

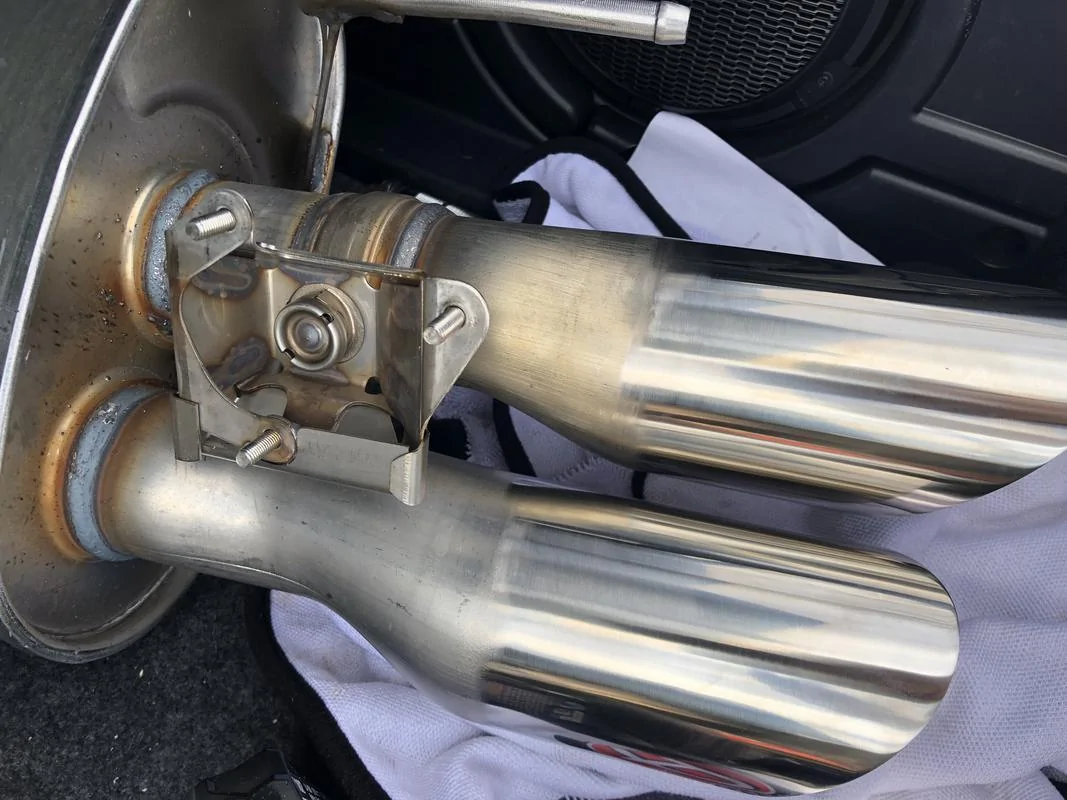

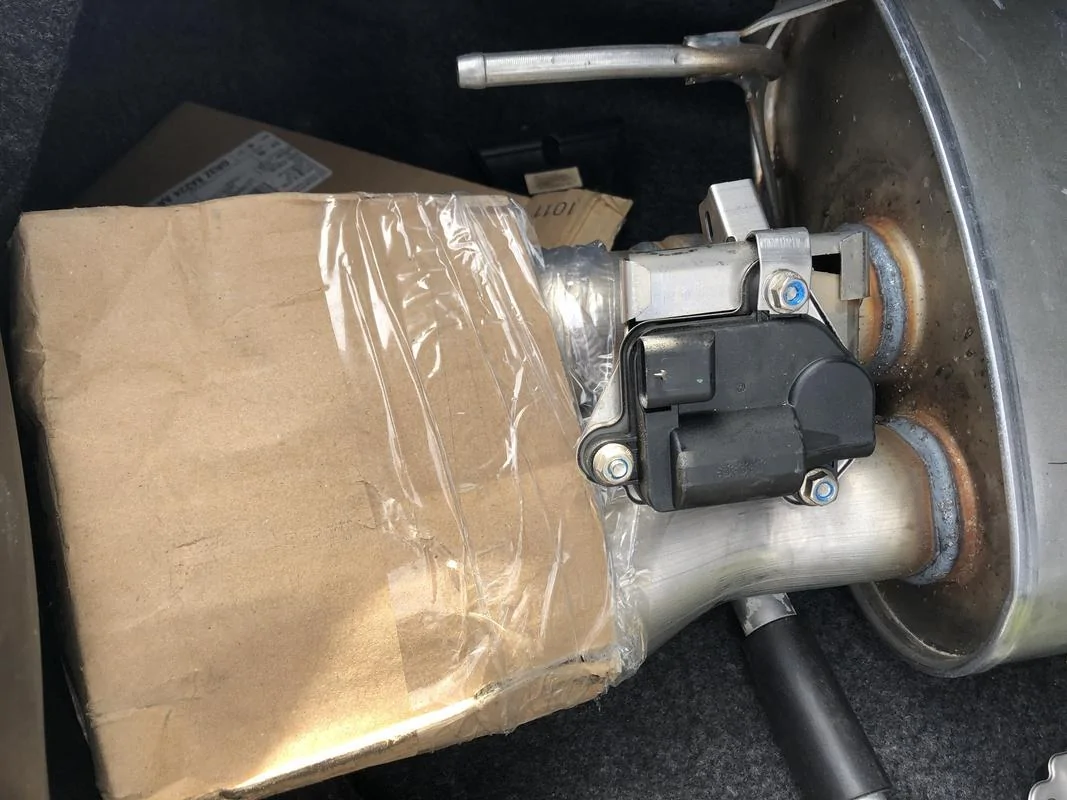

    Once you get your new mufflers its time to mod the motors! Remove the motors by removing the 3 nuts on each motor. You can discard the wire hanging bracket or keep it if you want to zip tie your wires to it. I personally did not use it.

    Remove the clip and heat shield on each motor. Remove the 3 metal inserts from the mounting holes on the motors.

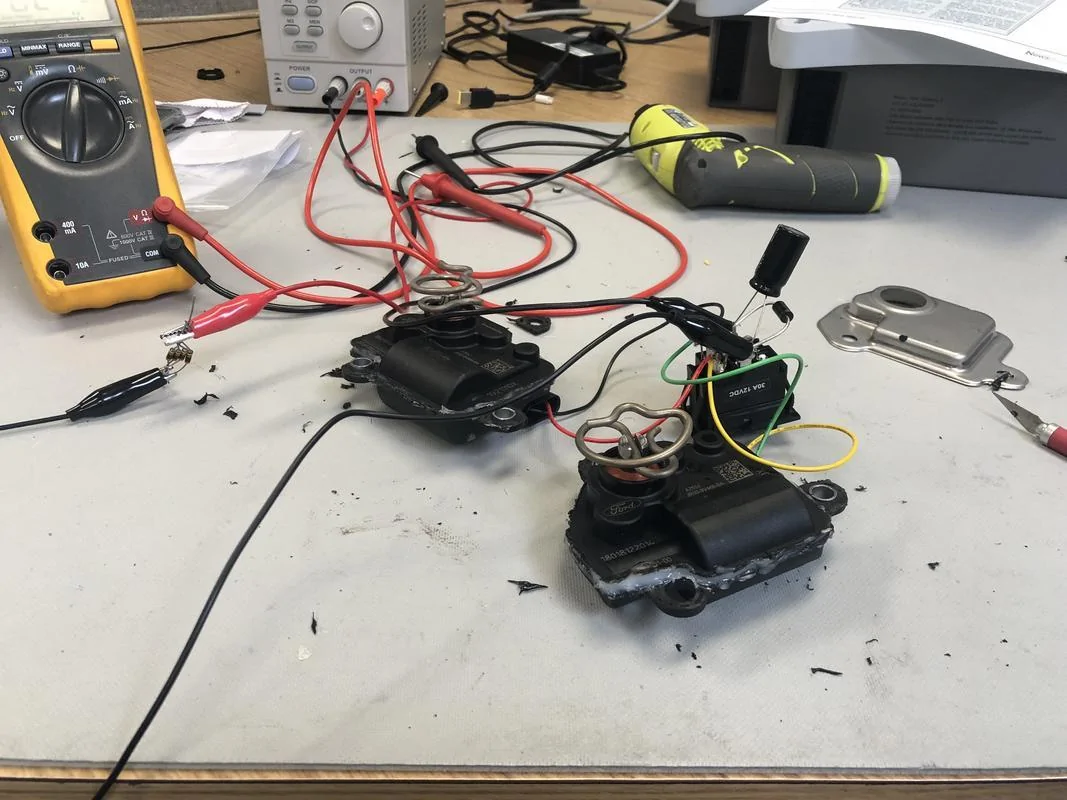

    The scary part is cutting open the motors. You now need to carefully dremel the motors open. Be super cautious about cutting too deep. You must cut through the mounting holes and one side of the mount will break off. This is OK.

    Once they are opened remove the circuit board by carefully prying up carefully. Try not to bed the pins too badly.

    Solder one wire onto each one of the left pins going to the motor. I then soldered the other end of the wire to pins 1 and 4 on the motor. The polarity is not important. However, you need to make sure you wire both motors the same. If you don’t one motor will open while the other one closes.


    Once that is finished make sure the gears line up correctly and close both sides of the case. I recommend clipping wires onto the two pins and testing the motor function with a battery while holding the case closed. Reverse the polarity and try again to make sure it goes both ways. If it works seal it up with silicone and let it sit overnight.

    Next solder wires to the pins in the connector. Make sure they are long enough to make it into the trunk. The left muffler should be about 3-5’ right 2-3’. This step is kind of difficult. You’ll need a soldering iron with a smaller tip then most soldering guns. Once you solder the wire I recommend filling it up with silicone. It is important this wire is silicone due to the high temps from the exhaust. You really don’t want the insulation to melt through and short.

    Install heat wrap tape all the way from the connector to about 3-4 feet up the wire. You want the wire to make it into the car with the tape on it. It will not only protect it from heat but also debris and cuts.

    After the connector is dry re-install the motors on the mufflers. Note: If the valves won’t line up right move the motor position slightly with a battery.

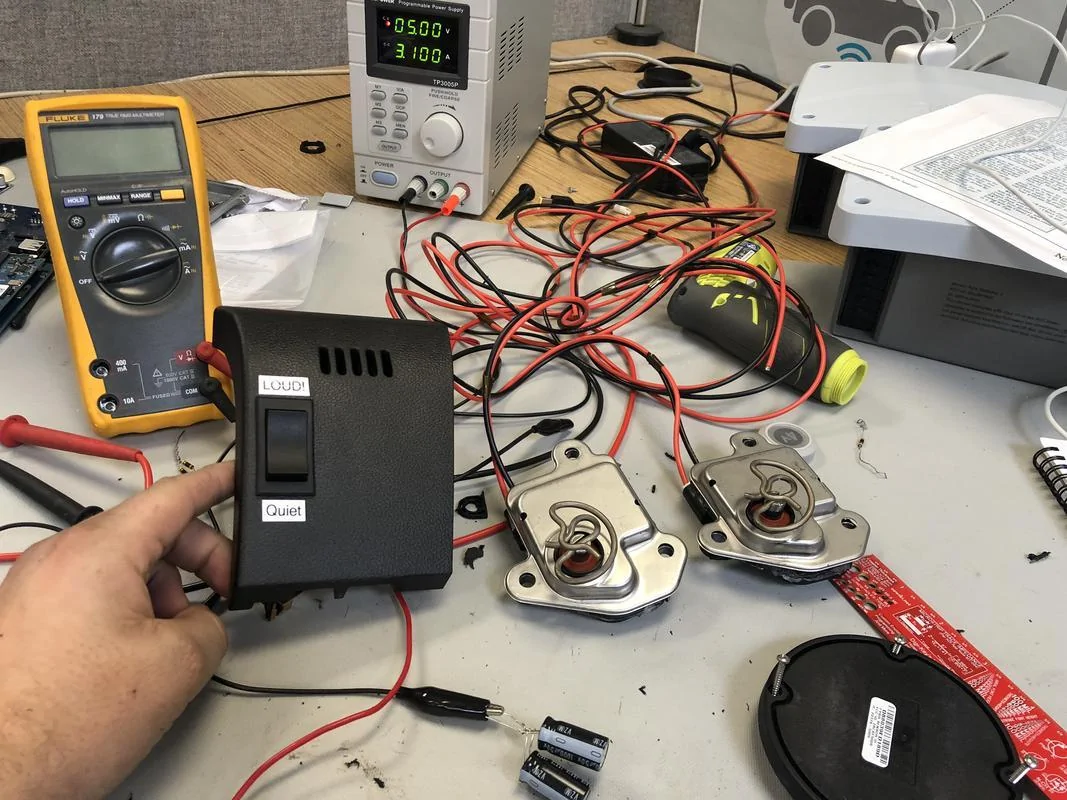

    Step 3: Setup the Switch

I ordered this switch but you can use any DPDT ON-OFF-ON polarity reversing switch: https://amzn.to/2EVs8Nr

    You’ll need to decide where you want to place the switch. Ben decided to use the little piece of trim with the interior temp sensor on it and I decided that was a good place too. Remove it by pulling straight out on it. You may need to move the steering wheel to get a better grip. Release the retaining strap and electrical connector for the air temp sensor.

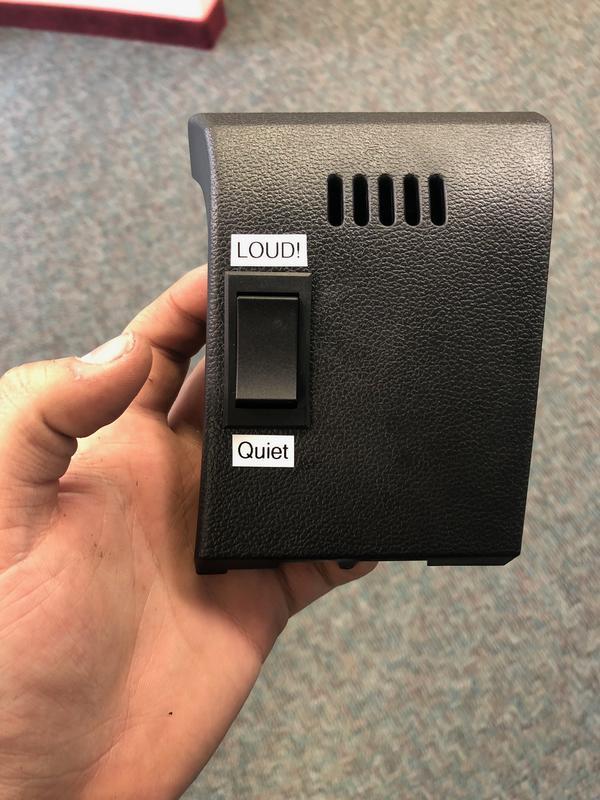

    I measured the switch area and marked it on the tirm piece. I then drilled a hole and used a routing tool on my dremel to make a hole large enough for the switch. Once your hole is the right size you just push it through.


    You can either use the crimp connectors or solder wires directly to the switch. Up to you. You need a wire to go from the interior fuse box to the switch and the one to ground. It does not matter which set of pins connect to the power and which to motors but I recommend using the crossover pins for the motors.

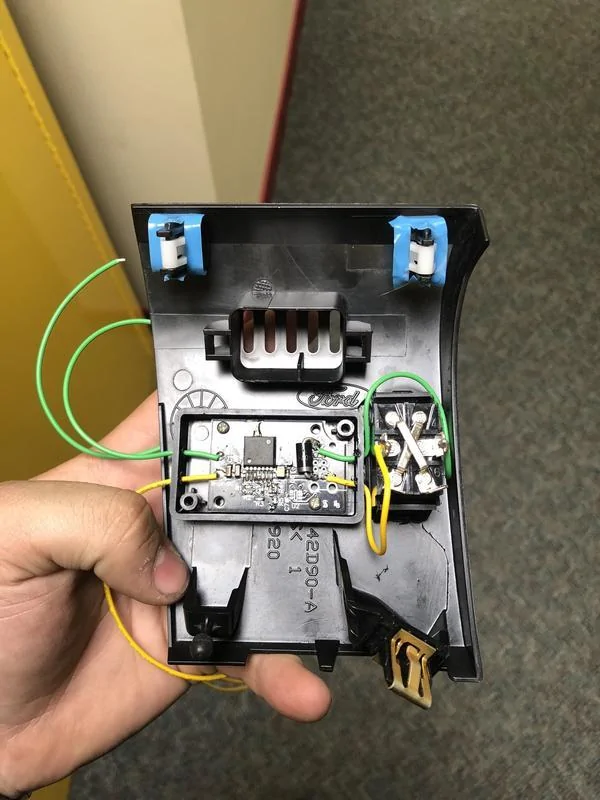

    I added a DC-DC converter here as well. The reason for this is at 12-15V the motors move SUPER fast. They open and close in less then a second.

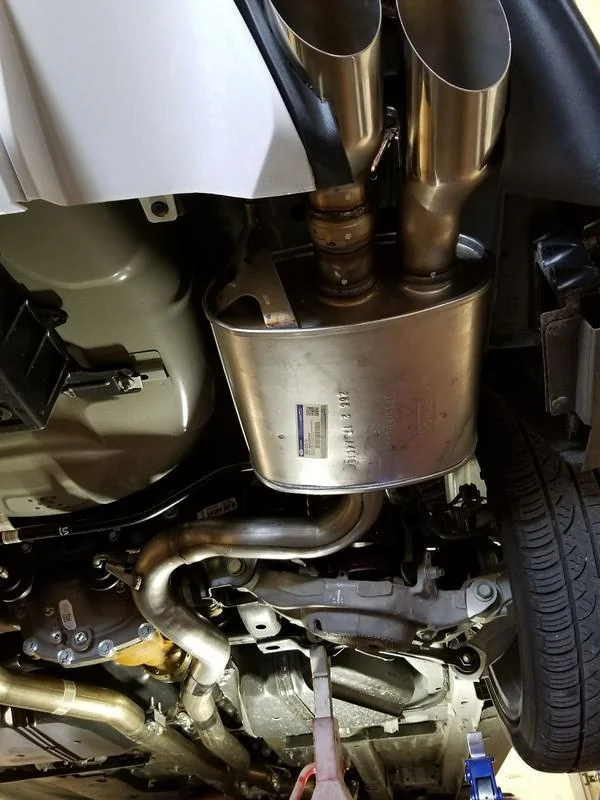

    Step 4: Install the Mufflers

    Skip this step if you want and just cut your valance and have an exhaust shop install them. Otherwise follow the steps below.

    This is honestly pretty easy. You need either two 2.5” band clamps or two 2.5” couplers and 4 2.5” clamps. These are easy to get at any parts store. Seems that NAPA only carries the band clamps though.

    Put the car in the air and set the mufflers underneath the current ones. Look at the hanger position and be sure to line that up along with the pipes. You can then see about how you need to cut the rear valance. Use a plastic cutting wheel and carefully cut the valance to try and match the new tips. Look at the pics to see how Ben did it and I recommend learning from his mistakes and cutting them slightly differently. Mine look even worse then his so I’m not going to bother posting the pics.

    Next, measure the length from the inside of the end of the pipe. These can be slightly different from the factory. Then measure the same length on your stock pipe and mark it. If using a band clamp cut it just slightly longer if using the coupler cut it a decent amount longer. Don’t cut it too short. It is a lot easier to make a second cut then add another piece of pipe. I had to make 2 cuts on one side. You will need to use a 13mm socket to remove the rear hangers. This makes it quite a bit easier to remove the exhaust. Drop the old mufflers out and put the hanger on the new muffler.

    Push the muffler into the rear hanger and then either slide the pipes together if using a coupler or put your band clamp on. You may have to pull on the old exhaust to get it to line up for the coupler. Be sure to get the front hanger installed and tightened back down!


    Step 5: Run the wires

    On the passenger side there is a small round plug near the very rear of the car. Pop it out. Put a hole in it with a screwdriver or pen or something similar. Doesn’t need to be cut through. Stick your 4 wires from both motors through the hole and push all your extra wire up into the trunk and pop the plug back in. Be sure to zip tie the wires to whatever you can to make sure they don’t rub on anything.

    Once in the trunk you can run the wire however you want. I recommend splicing the two wires together at this point. I just used T-Taps to connect the two. This way you only run two wires instead of 4 to the swtich. Since I have no spare tire I just ran it straight through the around to the left side of the trunk to make its way up the drivers side of the car.

    Remove the back seat by pushing the clip in under the middle of each seat. The seat then pulls straight up. Lower the back seats and get the wire under the carpet. Be sure it won’t get pinched by the seats moving up and down.

    Pull the middle trim off of the driver side foot rail area. Pull straight up. Also pull the lower left dash trim off. Pull straight out to remove. Run the wire through the trim that extends from the rear drivers side to the seat. Then run it all the way up under the dash how you’d like. Run the wire across the lower side of the kick panel and pull it out where the switch will go. Be sure to zip tie it under the kick panel so it doesn’t fall and get in the way of your feet.

    Next, run a power wire from the passenger side fuse box. It is in the right side of the passenger footwell. Remove the cover by pulling out and up. I put my add-a-fuse near the top left of the box on a 7.5A fuse. This was a switched power fuse that only enables the motors when the ignition is on. If you want you can use a different circuit. Be sure to put a smaller 1A (if using DC-DC converter) or 2A fuse (if using full 12v power) in your circuit.

    Note: The reason we use a small fuse is to keep the motors from burning out. If your switch gets stuck somehow the motors combined will bind and pull over 1A current. After a while of this binding the fuse will blow. If the motors are able to continuously draw power indefinitely they will burn out. The fuse of course is also for safety incase of short circuiting.

    The ground proved to be a tad harder then I expected. You can look around and add it to another body ground or T-Tap into a ground wire that’s big enough (22GA or larger). I just used a self tapping screw and screwed right into the metal under the kick panel. Easy and effective. Used a crimp ring terminal to get back to the switch.

    Step 6 (optional): Install a DC-DC converter.
    I have a switcher design I engineered and build myself that’s multipurpose. It takes a 9-20v input and has a 0.8-6v output. I set it to 4.3V and added a flyback diode and 1mF 6.3V capacitor. If adding a DCDC converter the large capacitor is required for cold temp starting of the motors. A flyback diode is recommended due to the inductive load of the motor suddenly switching off. It allows the current to flow back into the motor and use that inductive energy instead of sending it back into the converter. I’m happy to sell these converters. PM if interested. I have never had one fail. I’ve had the cheap Chinese converters fail after mere months of use. These have been tried and tested for over a year in outdoor applications with constant current demand.

    The converter will have the power and ground to the car and then the output of it will go to the middle pins on the switch. The motors still go directly to the polarity reversing outside pins of the switch. This substantially lowers the speed at which the motors operate and can give you finer control over them. It may also increase the life of the motors – though I don’t think their life will be a problem due to the limited use they get.

    I put these motors with switch and my DC DC converter in a temperature chamber at -30ºF and the motors still started and functioned both ways. Temperature is not an issue.

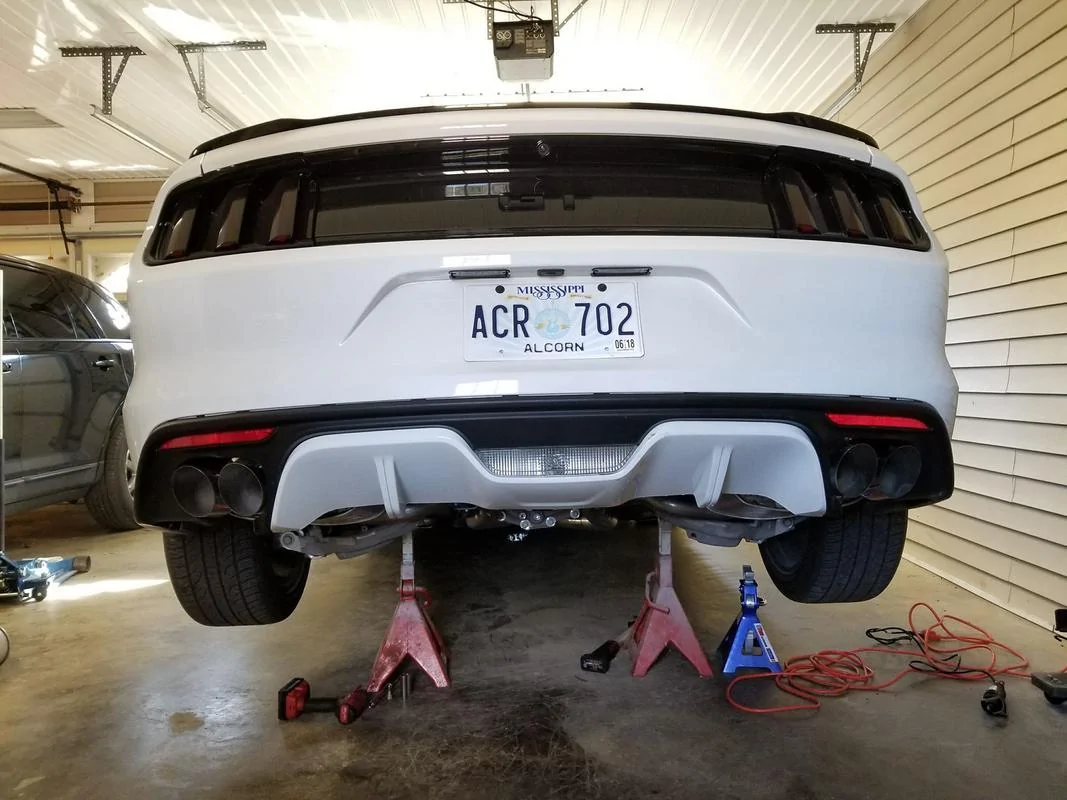

    Step 7: Button Everything Up and Test!
    Once all of your wires are connected plug the temp sensor back in and push your trim piece back in. Make sure all of your wires are zip tied and out of the way.

    Test the motors and make sure they work! If they don’t be 100% sure the switch is getting power. A standard multimeter will work. If you run into other issues feel free to PM me.





  2. TonyT

    TonyT New Member

    Vehicle(s):
    2017 GT PP
    Joined:
    Apr 18, 2018
    Location:
    TX
    Posts:
    3
    Likes Received:
    4
    0   0   0
    Great write up on this. I am very interested to see if the Roush valence will fit without modifications. Keep us posted if you try the Roush valence.

  3. OP
    OP
    breeves002

    breeves002 Well-Known Member
    Gold Sponsor


    First Name:
    Sam
    Vehicle(s):
    2016 GT Premium PP
    Joined:
    Mar 15, 2017
    Location:
    St. Louis, MO
    Posts:
    526
    Likes Received:
    183
    0   0   0
    As of now I don't think it will, but still waiting on a friend to make some measurements for me. I'll probably know next week.

  4. Orange_cru$h

    Orange_cru$h Well-Known Member

    Vehicle(s):
    2015 Mustang GT CO Premium Pkg 6A 3.15 18"
    Joined:
    Nov 27, 2015
    Location:
    PR
    Posts:
    62
    Likes Received:
    5
    0   0   0
    Great Write up...So the stock motors open at 12v or close at 12v?

  5. OP
    OP
    breeves002

    breeves002 Well-Known Member
    Gold Sponsor


    First Name:
    Sam
    Vehicle(s):
    2016 GT Premium PP
    Joined:
    Mar 15, 2017
    Location:
    St. Louis, MO
    Posts:
    526
    Likes Received:
    183
    0   0   0
    They operate with PWM signals. The IPC tells the PCM what mode it wants and the PCM tells the board in the valves where to set it. It has a sensor to see how far open the valves are to get a precise setting.

  6. Bowen_Racing

    Bowen_Racing Well-Known Member

    First Name:
    Gary
    Vehicle(s):
    2018 Mustang GT
    Joined:
    Mar 4, 2018
    Location:
    Lexington, SC
    Posts:
    54
    Likes Received:
    12
    0   0   0
    Hey Sam, I would love to be able to add this feature to my 2018. Have you been able to look into seeing how it would attach to the wiring harness without the option from the factory? I know we could easily add the ability in the cluster modifying the AS Built data but I haven’t been able to figure out how it would connect to the ECU.

    drabon74 likes this.
  7. DukeGaGa

    DukeGaGa Well-Known Member

    Vehicle(s):
    2018 Mustang GT Premium PP
    Joined:
    Jun 27, 2017
    Location:
    Champaign, IL
    Posts:
    741
    Likes Received:
    178
    0   0   0
    This is neat, though it would be better if you can figure out how to connect the RPM/throttle to the actuators as well, I've seen a video posted by borla that in all modes (except track mode), the valve will open up once RPM/throttle reached a certain range.

  8. OP
    OP
    breeves002

    breeves002 Well-Known Member
    Gold Sponsor


    First Name:
    Sam
    Vehicle(s):
    2016 GT Premium PP
    Joined:
    Mar 15, 2017
    Location:
    St. Louis, MO
    Posts:
    526
    Likes Received:
    183
    0   0   0
    #8 breeves002, Apr 19, 2018
    Last edited: Apr 19, 2018
    Yeah there are PCM pins for it. You'd have to modify your PCM harness and probably add pins. We can give it a shot if you're savvy electrically. That is only possible on the 2018's.

    Unfortunately this connects to the 2018 PCM and the 15-17 PCM has no provisions for the pins required for this. Honestly it doesn't really bother me though...I leave it in quiet mode most of the time except when I'm cruising windows down or just want to hear the car. Back roads, track, etc. Then its full time loud.

  9. HoosierDaddy

    HoosierDaddy Well-Known Member

    Vehicle(s):
    2016 GT Premium PP and a few others
    Joined:
    Jan 2, 2016
    Location:
    Winchestertonfieldville (ok, Scottsdale), AZ
    Posts:
    3,998
    Likes Received:
    1,695
    Rating:
    100%
    2   0   0
    FWIW, Ford has a history of massively increasing prices for parts that get a lot of orders for retro-fitting. If you are going to do this, might save by not delaying. Of course a bunch of people doing that might trigger the price increase.

  10. OP
    OP
    breeves002

    breeves002 Well-Known Member
    Gold Sponsor


    First Name:
    Sam
    Vehicle(s):
    2016 GT Premium PP
    Joined:
    Mar 15, 2017
    Location:
    St. Louis, MO
    Posts:
    526
    Likes Received:
    183
    0   0   0
    Yeah this is true. Luckily we haven't seen the 2018 digital clusters go up in price yet. Not many people have ordered these mufflers yet but I know of at least 20 orders for the clusters. This happened with the GT350 intake though. They rev'd it and you could order it for about $650...6 months later its $1500.

    The mufflers are a part you don't have to give a VIN for so they don't know if the dealer is ordering due to a warranty issue with the factory mufflers on a 2018 or for retrofitting.

    djcwardog likes this.
  11. Ecoboosted15

    Ecoboosted15 Well-Known Member

    Vehicle(s):
    2018 Mustang GT Perf pack A10
    Joined:
    Apr 10, 2015
    Location:
    Las Vegas
    Posts:
    217
    Likes Received:
    28
    0   0   0
    Breeves002, have you though or maybe you already tried that route, but buying the factory style pigtail (connector) to that motor so you wouldn't have to solder anything internally?

  12. djcwardog

    djcwardog V8 Driver

    Vehicle(s):
    2017 Mustang GT
    Joined:
    Jun 27, 2017
    Location:
    Central KY
    Posts:
    71
    Likes Received:
    16
    0   0   0
    #12 djcwardog, Apr 19, 2018
    Last edited: Apr 19, 2018
    You are ahead of me - so cool!

    Holley Performance Products sells active exhaust kits for the SS Camaro crowd and they also offer just the valves along with their electronics as part #71013001-RHKR

    https://www.holley.com/products/exh...aust_kits_and_accessories/parts/71013001-RHKR
    I am inquiring to see if this system could be used with the stock Ford mufflers and valves instead of your Step 2: Mod the Motors

    Great job figuring this out. I am also inquiring of Mike at Autonation for a 2108 rear valence panel to fit my 2017 bumper.

  13. OP
    OP
    breeves002

    breeves002 Well-Known Member
    Gold Sponsor


    First Name:
    Sam
    Vehicle(s):
    2016 GT Premium PP
    Joined:
    Mar 15, 2017
    Location:
    St. Louis, MO
    Posts:
    526
    Likes Received:
    183
    0   0   0
    You can use the factory pigtail to connect your wires to (if they sell it) but you still have to mod the motor internally. You have to bypass the circuit board. In my history I find pigtails are crazy overpriced. Usually $15-75 depending on the connector. This one would likely be in the $15-25 range. I have the connector pinouts and pigatil part numbers I'm just too lazy to go find it. I found soldering to the pins was easier. I do a lot of it so it isn't difficult for me. Someone new to soldering or with a large tip will have trouble. I have some very small soldering iron tips and a very expensive iron.

    The 2018 valance is different and will not fit a 2015-2017 without major custom fab work and cutting like the Roush valance requires. You have to get the entire 2018 rear bumper. The 2018 bumper DOES fit -however there are a lot of little piece you need to make sure you get. Mike should be able to help if you go the whole bumper route just be ready for expensive shipping unless you can get SPEEDEE delivery from them.

  14. Ecoboosted15

    Ecoboosted15 Well-Known Member

    Vehicle(s):
    2018 Mustang GT Perf pack A10
    Joined:
    Apr 10, 2015
    Location:
    Las Vegas
    Posts:
    217
    Likes Received:
    28
    0   0   0
    Very true on the connectors being over priced. My deal is I have an 18. So today Im going to check the wiring all the way to the underside of the vehicle to see if its already pre-wired since mine is a NON active valve set up. I have pin colors and connectors numbers and all that myself. Im wondering if the 18's will be as easy as buying the mufflers, adding the relay and fuse in the battery junction box and doing an as-built with an IDS. But ofcourse I will need a pigtail from the body to the muffler motors.

    Mickeymeanie likes this.
  15. djcwardog

    djcwardog V8 Driver

    Vehicle(s):
    2017 Mustang GT
    Joined:
    Jun 27, 2017
    Location:
    Central KY
    Posts:
    71
    Likes Received:
    16
    0   0   0
    Those pigtails may be standard industry items similar to the various plugs that retrofitters use when working on the oem audio system.

  16. djcwardog

    djcwardog V8 Driver

    Vehicle(s):
    2017 Mustang GT
    Joined:
    Jun 27, 2017
    Location:
    Central KY
    Posts:
    71
    Likes Received:
    16
    0   0   0
    I did a few cool mods to my prior car, a 2007 BMW 650i. Many of those required you to find a nearby harness with CANBUS leads - then tap in. Then you flash updated modules if needed and coded the car. Here we don’t flash modules so much as just use FORScan.

    Checking out a 2018 with Active Exhaust would help understand for sure, but if there are 4 wires going into each motor, perhaps we have 12v+ on pin 1 (or 4) and ground on pin 4 (or 1)? That would leave the middle two pins perhaps for Can High and Can Low? If so, then you would want to route the same signals to it, even if not directly out of the PCM. CAN is CAN insofar as the car reading all modules on the CANBUS? BMW’s seem to have CAN wiring running all over the car. If that small circuit board in the OEM motor accepts CAN signals then perhaps it shows up as a module in the As Built Data? Lots of questions but this why we enjoy figuring out these things!

  17. OP
    OP
    breeves002

    breeves002 Well-Known Member
    Gold Sponsor


    First Name:
    Sam
    Vehicle(s):
    2016 GT Premium PP
    Joined:
    Mar 15, 2017
    Location:
    St. Louis, MO
    Posts:
    526
    Likes Received:
    183
    0   0   0
    I need to look at the wiring diagram and I’ll tell you exactly how you need to do it. You shouldn’t need a relay.

    We do use FORScan to “flash” the modules but we aren’t changing the software so much as a config file. There is a way to flash the software with FORScan it just isn’t available to the public.

    There is no can connection to the exhaust valves. It’s a data connection directly from the PCM...I need to find the wiring diagram again...

  18. OP
    OP
    breeves002

    breeves002 Well-Known Member
    Gold Sponsor


    First Name:
    Sam
    Vehicle(s):
    2016 GT Premium PP
    Joined:
    Mar 15, 2017
    Location:
    St. Louis, MO
    Posts:
    526
    Likes Received:
    183
    0   0   0

    Looks like there is a relay to make it so it doesn’t have power unless the PCM has power.

    Then there are two data lines direct from the PCM. Likely data TX and RX lines. The pcm tells the motors where it wants them and they reply saying they are working and in the correct position.

    djcwardog likes this.
  19. djcwardog

    djcwardog V8 Driver

    Vehicle(s):
    2017 Mustang GT
    Joined:
    Jun 27, 2017
    Location:
    Central KY
    Posts:
    71
    Likes Received:
    16
    0   0   0
    Mike at Autonation just ordered me a pair of these mufflers. Said there were 58 of one and 40 of the other shown in stock at Ford. One was $172 and the other was $173. Don’t know whether right or left for either case above, but no worries, plenty to go around at least for now. Thanks to breeves002 for his great ideas and the how-to. By the way, Mike is ordering me the digital 12” cluster pieces also. Appears that the bezel will be the waited-for piece.

  20. OP
    OP
    breeves002

    breeves002 Well-Known Member
    Gold Sponsor


    First Name:
    Sam
    Vehicle(s):
    2016 GT Premium PP
    Joined:
    Mar 15, 2017
    Location:
    St. Louis, MO
    Posts:
    526
    Likes Received:
    183
    0   0   0
    Gonna be expensive to get shipped from MN to KY there. I went to my local dealer and got them for $185 each but no shipping.

    Yeah Mike just shipped me 3 clusters for people. Bezels are due April 25th.

    I just need to find a rear valance to replace my cut up one that will actually fit. Its driving me nuts... I may get pricing on an 18 bumper and all its assorted pieces. My car is plastidipped so its easy for me to just do one part.
