The "what things weigh thread."

[dsp4848]

Have a Paxton kit sitting in my living room right now, so figured I would weigh a few things:

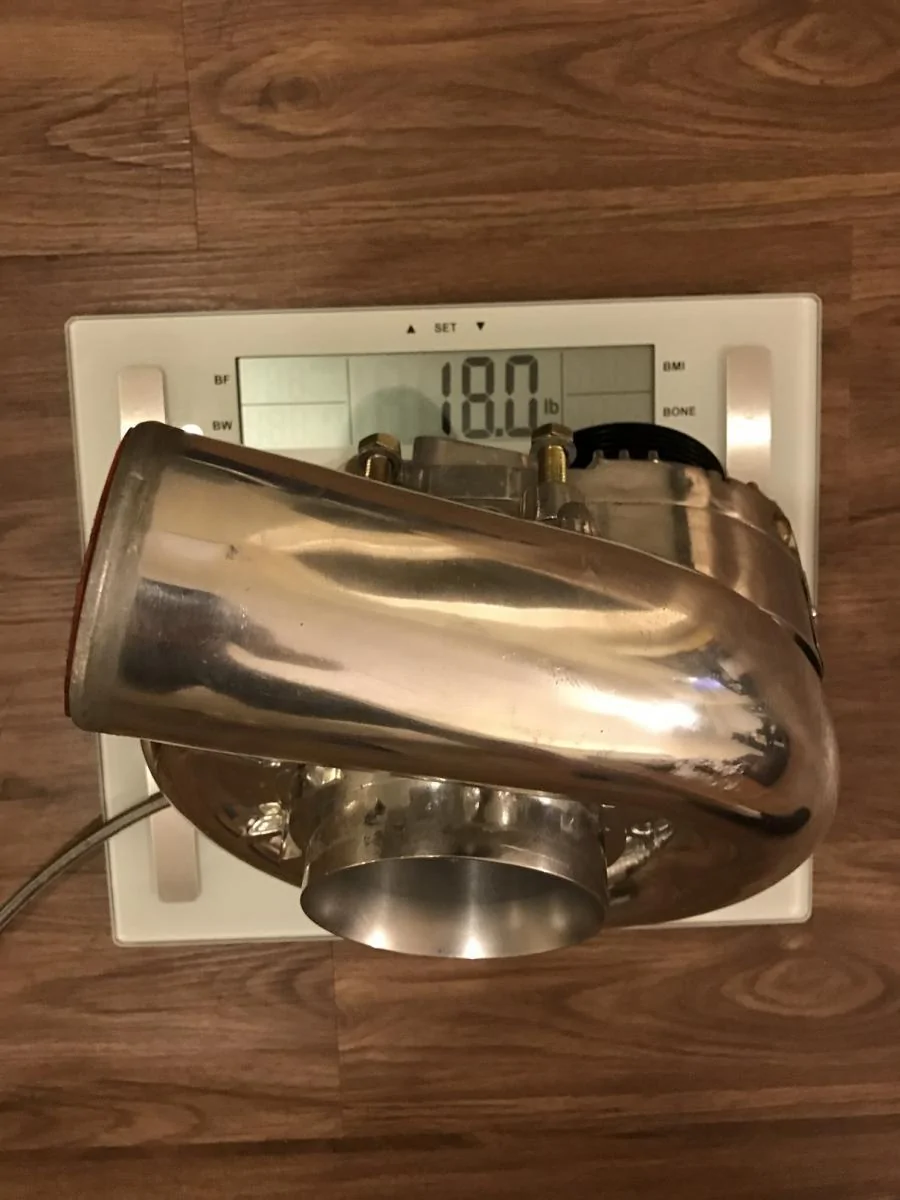

Paxton Novi 2200SL head unit (without oil): 18.0 lbs

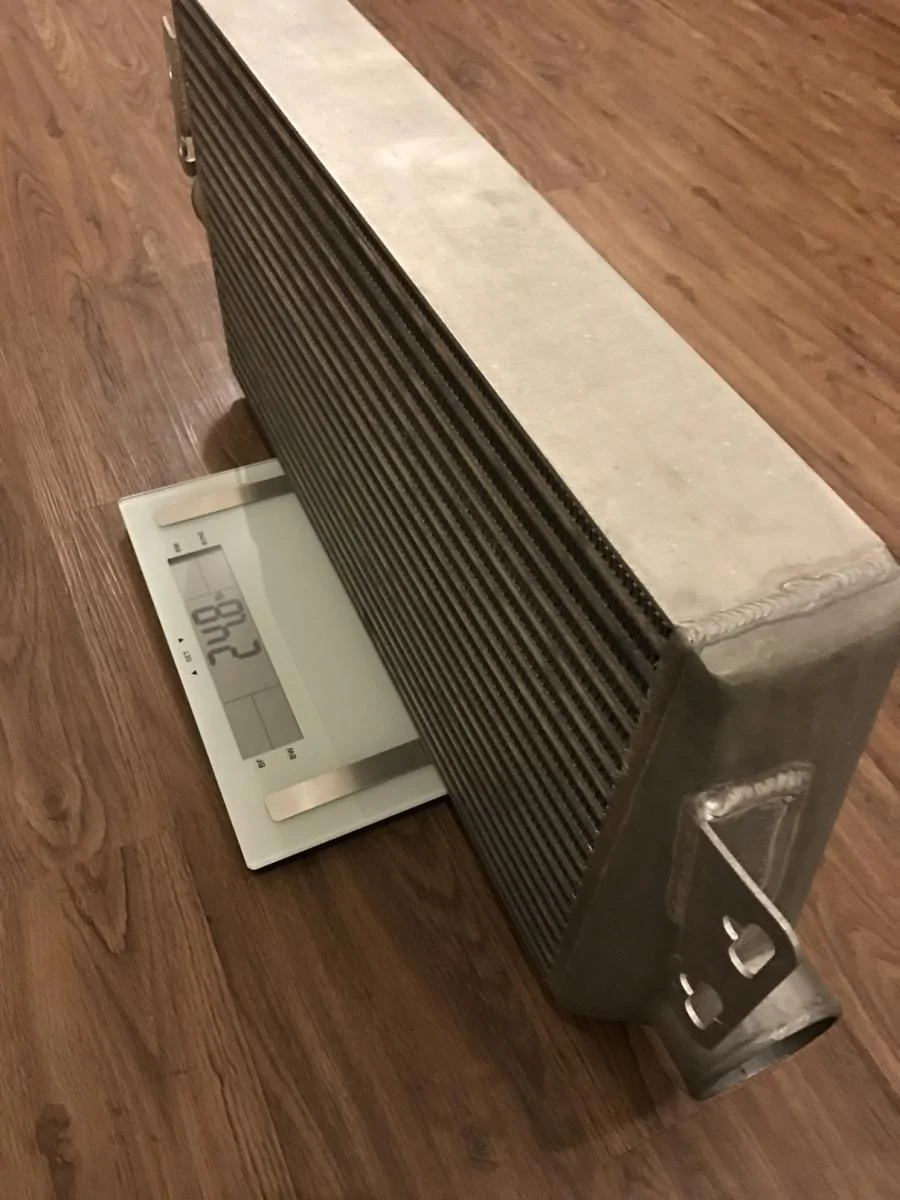

Paxton intercooler: 24.8 lbs

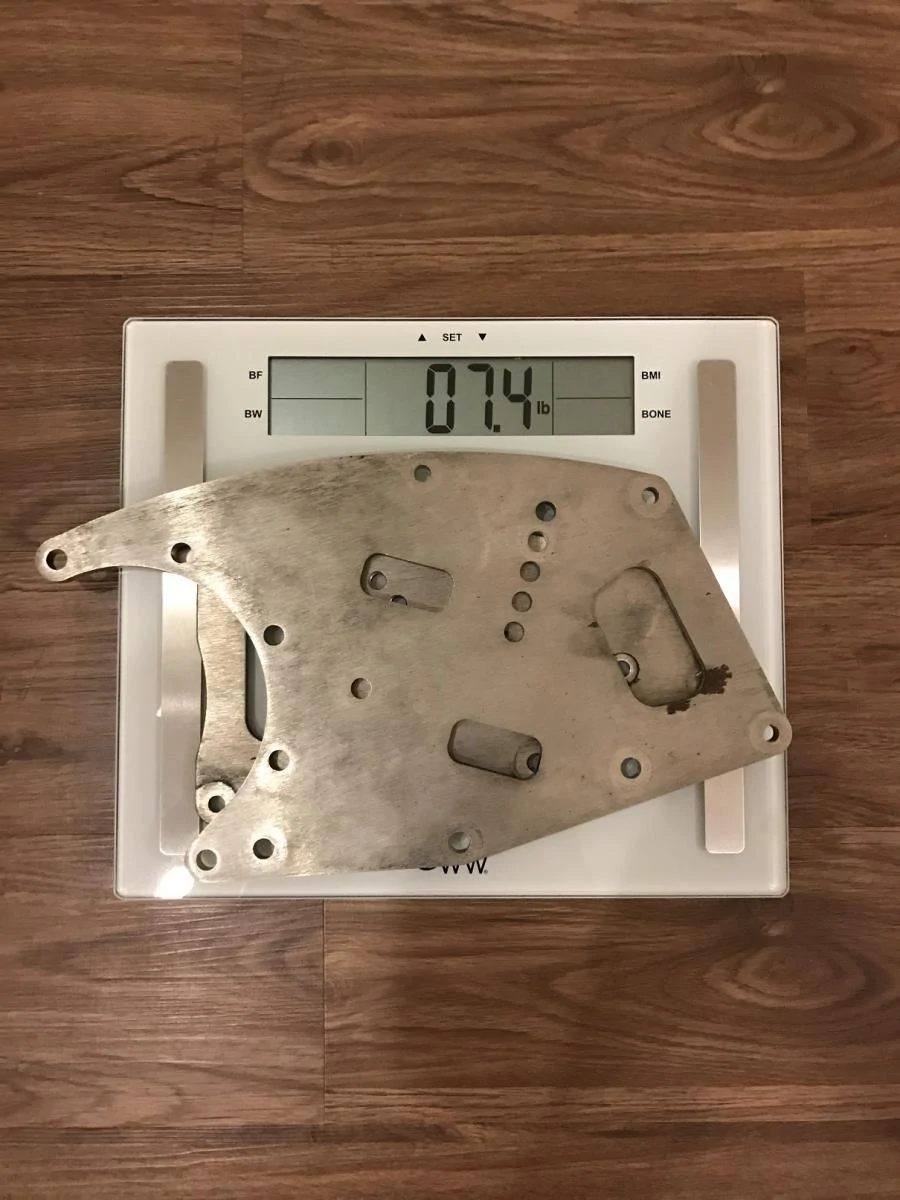

Paxton steel mounting plates: 7.4 lbs

Sponsored



[1badrz28]

OBX 1 7/8" headers

RH 14lb 2oz
LH 13lb 15oz
Resonators 4lbs 8oz x2
Mid-Pipes 2lbs 2oz x2
Clamps 11.5 oz

Total 53lbs 14oz



[Ghost.5.0]

Thanks for doing this, I was actually wanting to do something like this for my 17 when it gets here.



[Chameleon]

OEM PP wheels and DWS 19" tires vs. Falken G4 18" tires and 18" OEM foundry wheels.

PP wheels 129.8 +

DWS tires 116

= 245.8 lbs.


Foundry wheels 98 +

Falken G4 tires (28 each) 112

= 210 lbs.


Savings of 35.8 lbs



[BMR Tech]

Performance Pack people who want to drag race, 43lbs savings alone with just the Billet Specialties 17" rear wheels with Hoosier 28x10-17 slicks.

The wheels with tires come in at 42.9lbs per side.

Pretty good savings!



[KazzMANIA]

I just took the clutch, flywheel and clutch line out of a new 2017 Mustang GT w/PP. The flywheel is nodular type and weighs 21.6 pounds. The clutch (with 9 bolts) weighs 25.5 pounds. My dealer put in a McLeod RXT clutch and McLeod aluminum flywheel so I was not able to weight them. American Muscle reports that the aluminum flywheel is 14.5lbs . I can't find a weight on the RXT.



[dsp4848]

I just took the clutch, flywheel and clutch line out of a new 2017 Mustang GT w/PP. The flywheel is nodular type and weighs 21.6 pounds. The clutch (with 9 bolts) weighs 25.5 pounds. My dealer put in a McLeod RXT clutch and McLeod aluminum flywheel so I was not able to weight them. American Muscle reports that the aluminum flywheel is 14.5lbs . I can't find a weight on the RXT.

I have a McLeod RXT clutch and McLeod billet steel flywheel here that haven't been installed, so I weighed them.

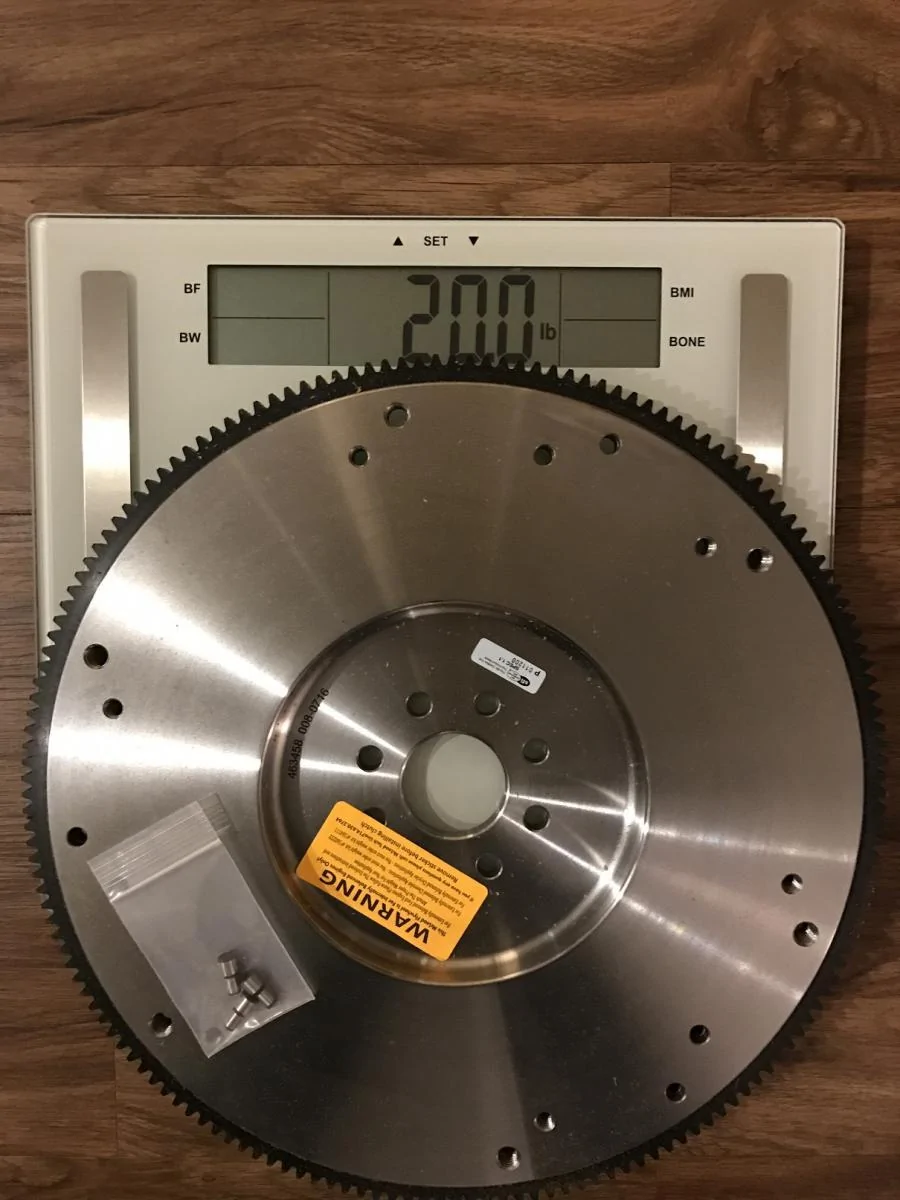

McLeod Billet Steel Flywheel - 20.0 Lbs

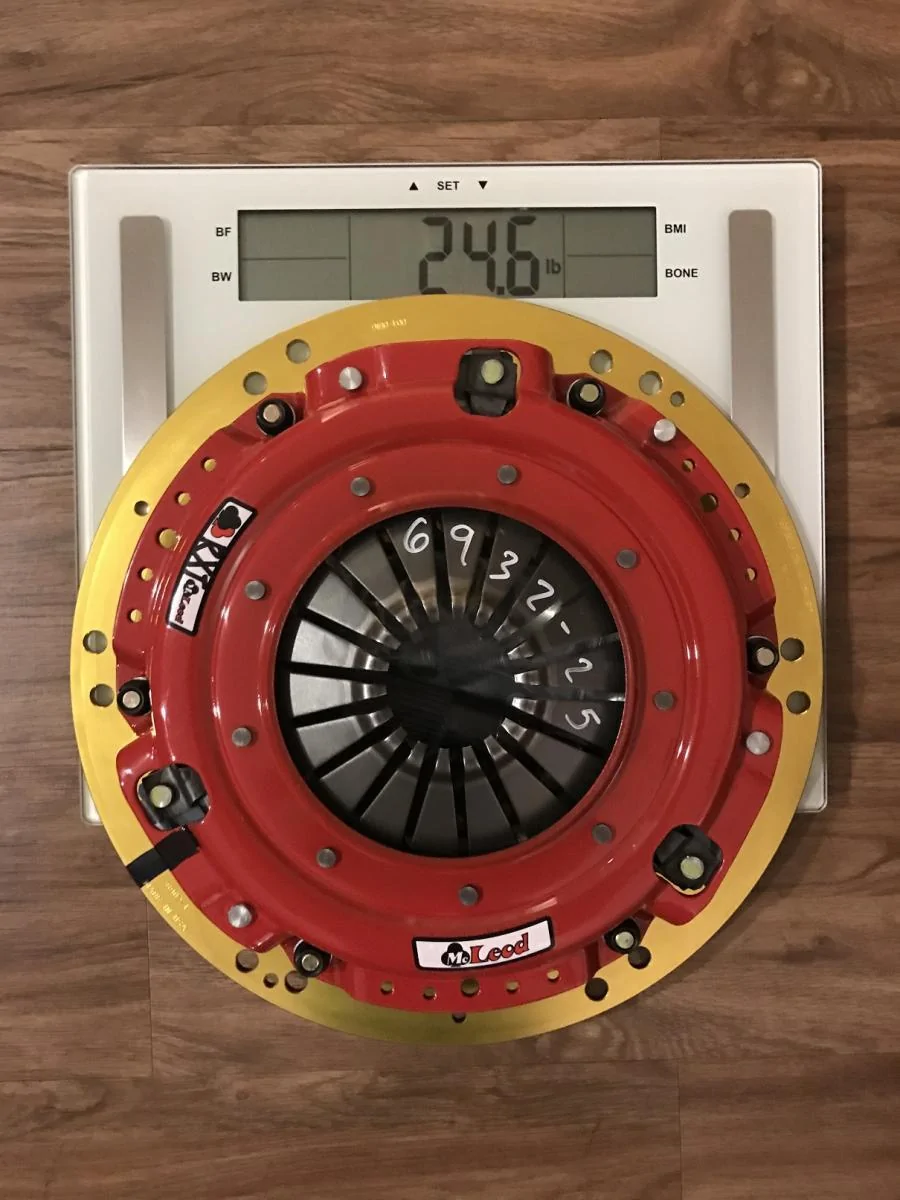

McLeod RXT Twin Disc Clutch (including ARP bolts and alignment tool inside) - 24.6 Lbs



[TDC]

45" section of factory GT350 pipe from behind the cats to just before the axle weighs 23lbs (includes x-pipe and resonators)

Corsa double helix mid-pipe with hardware to replace the above mentioned section is 23lbs (the pipe is 14lbs and hardware and couplers 9lbs)



[Jprada1210]

Crazy question since I was crazy enough to daily drive my sti like this . Anyone remove their bumper beams and not replace them at all . Supposedly bumper beams are only designed for impacts 5 mph or less . On my sti the combined weight of both was 38 lbs . 21 up front 17 in the rear ..



[Mikegig]

Just received my Roush X-pipe. Shipping weight 12.2lbs. Gotta be at least 10lbs savings off the resonator. I'll weigh them both upon install.



[rs7337]

stock hood really only weighs 30lbs? damn it feels heavy as hell



[mikeD4V]

Crazy question since I was crazy enough to daily drive my sti like this . Anyone remove their bumper beams and not replace them at all . Supposedly bumper beams are only designed for impacts 5 mph or less . On my sti the combined weight of both was 38 lbs . 21 up front 17 in the rear ..

[MENTION=27858]Jprada1210[/MENTION] The older cars had heavy supports, the S550 front one weighs 12lbs. Not sure about the rear.

This was done a lot on the sn95s/new edges and I think foxes (never had one). Everyone started making their own lightweight support replacements to keep the bumper from flexing then companies jumped in and offered "drag race only" versions.

Here's one for the S550 http://www.lethalperformance.com/wa...ghtweight-drag-race-front-bumper-support.html



[Jprada1210]

[MENTION=27858]Jprada1210[/MENTION] The older cars had heavy supports, the S550 front one weighs 12lbs. Not sure about the rear.

This was done a lot on the sn95s/new edges and I think foxes (never had one). Everyone started making their own lightweight support replacements to keep the bumper from flexing then companies jumped in and offered "drag race only" versions.

Here's one for the S550 http://www.lethalperformance.com/wa...ghtweight-drag-race-front-bumper-support.html

Only 12 pounds ? I was expecting a lot more . Probably not worth messing with it .



[Trent W]

Crazy question since I was crazy enough to daily drive my sti like this . Anyone remove their bumper beams and not replace them at all . Supposedly bumper beams are only designed for impacts 5 mph or less . On my sti the combined weight of both was 38 lbs . 21 up front 17 in the rear ..

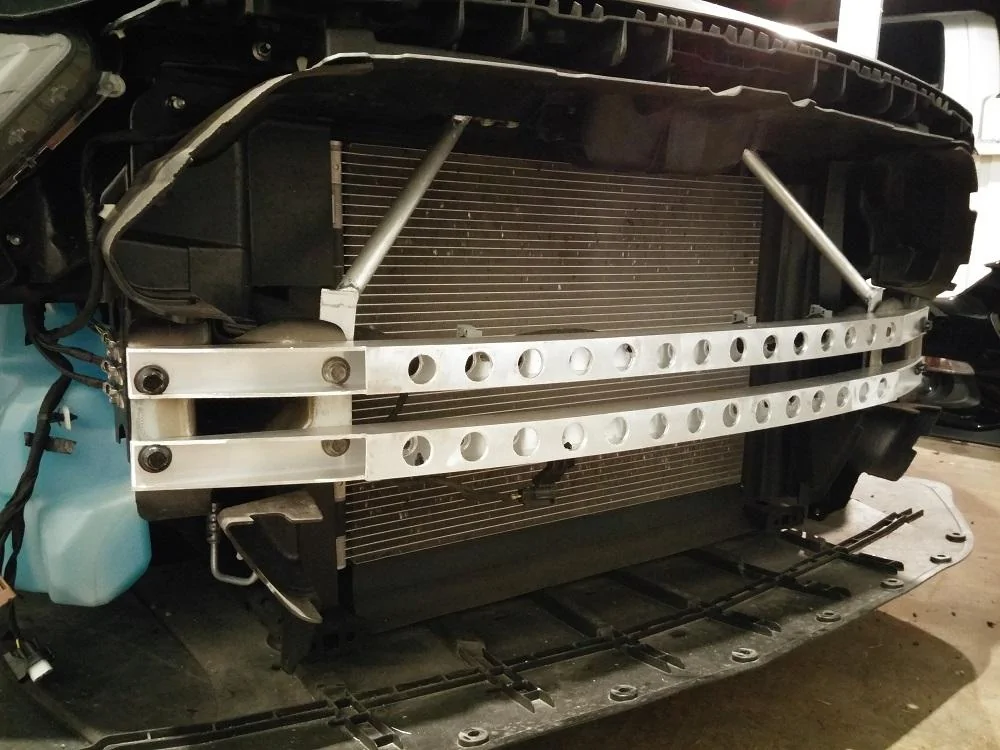

Earlier in the thread I posted my aluminum ones I made that were only 4lbs. you can't just remove them completely since they actually hold your front fascia and back bumper on. you remove it and fenders will start falling of.



[GT_Roadcourse_Newb]

For one, maybe two HPDE's I ran my s2000 with negligible front bumper mass. It did seem to make a difference, but that might have been a sum of more than the lack of parts
