GT Suspension Torque Numbers

mustang5o

Well-Known Member
Joined
Aug 7, 2015
Messages
399
Reaction score
91
Location
Middle America
Vehicle(s)
2019 Kona Blue 301A, PP2, Active Exhaust, Recaro's
I need a diagram of the front like this. Guess I should just order the service manual. I wonder how quickly they get shipped out. I'm hoping to get some work done in less than 10 days before an event.

Here's a page from the Ford service manual.

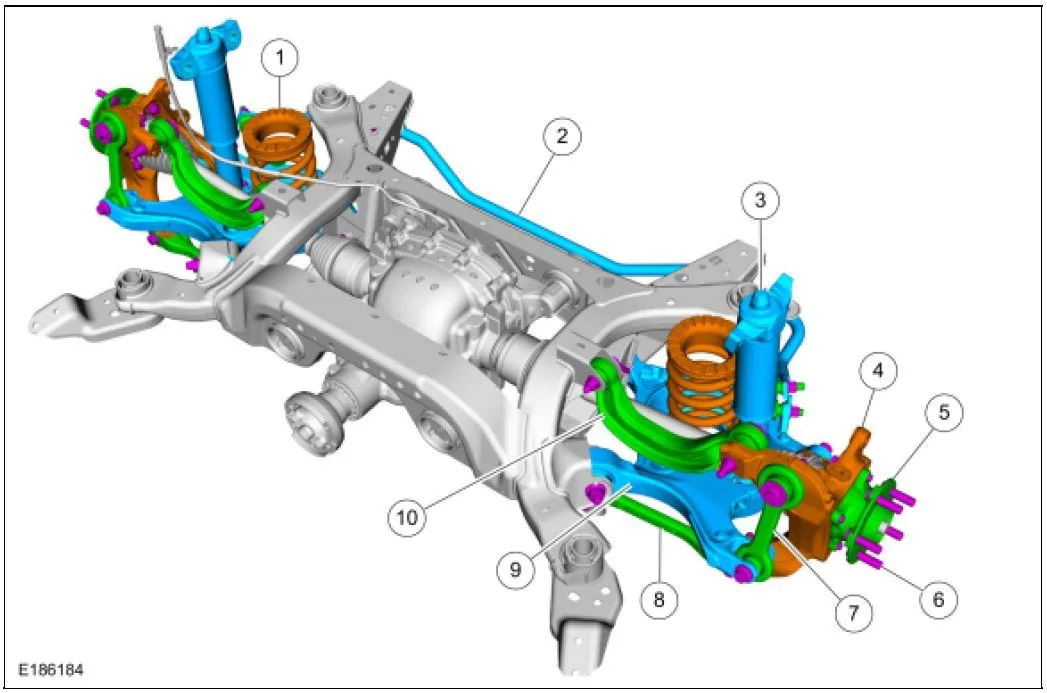

Rear Suspension Components.JPG

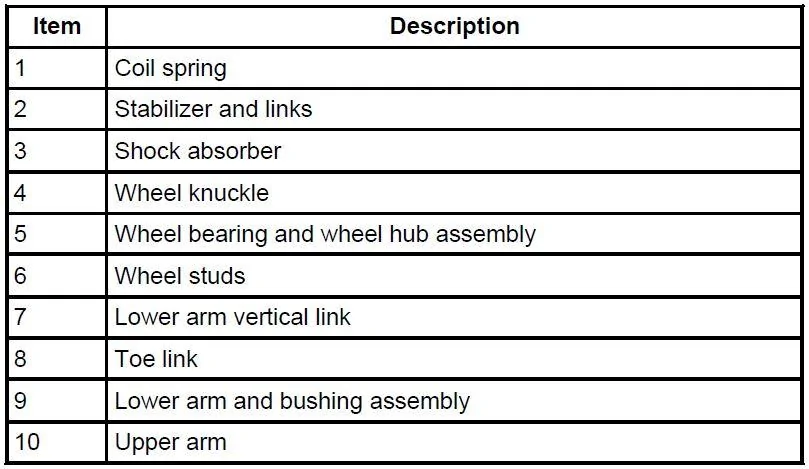

Rear Suspension Components Labeling.JPG
I need to know which bolts to remove the front hub (and their torque values when putting it back on) so I can swap out the studs for ARP extended studs. I grabbed this picture...are the ones I circled in red with red arrows pointing at them the correct ones. I'm presuming there's a fourth hidden in this pic.
