GT Suspension Torque Numbers

Discussion in 'Suspension, Brakes & Chassis' started by Coaster, Mar 10, 2016.

  1. Coaster

    Coaster RallyNorthAmerica.com

    First Name:
    Brian
    Vehicle(s):
    '15 Fastback GT Guard
    Joined:
    Jan 9, 2015
    Location:
    Central Ohio
    Posts:
    939
    Likes Received:
    429
    0   0   0
    #1 Coaster, Mar 10, 2016
    Last edited: May 22, 2017
    Here is a list of torque values I've collected and summarized for myself while doing my build. I'm willing to keep this first post updated if people would like to list additional info and any corrections.

    I make no guarantees they are correct since they came from multiple places.

    Front Suspension
    BMR Camber Bolt (18mm / 21mm): 125 ft/lbs.
    Factory Upper/Lower Strut to Knuckle Bolt (21mm / 24mm): 184 ft/lbs.
    Upper Strut Mount Nuts x 3 (15mm deep): 46 ft/lbs.
    Strut End Bolt (Do not remove without compressing the spring) (21mm): 76 ft/lbs.
    Brake Caliper Bolts (15mm): 85 ft/lbs.
    Sway Bar End Links (18mm / 17mm): 85 ft/lbs.
    BMR Sway Bar End Links (19mm / 14mm): 85 ft/lbs.
    Front Sway Bar Mounts (18mm):
    BMR Sway bar Mounts (10mm allen):
    Front Lower Control Arm (24mm): 184ft/lbs
    Front Lower Control Arm Nut to Spindle: 85 ft/lbs.
    Rear Lower Arm to Frame: 184 ft/lbs.
    Rear Lower Arm Outboard Nut to Spindle: 85 ft/lbs.
    Cowl Extension (Upper K brace): 26 ft/lbs.
    Strut Tower Cross Brace (15mm deep): 41 ft/lbs.
    BMR Front Subframe Chassis Brace Rear Bolts (1"): 100 ft/lbs.
    Inner Radius Arm Bolt (24mm):
    Tie Rod to Spindle (18mm):
    Steeda Extreme G-Trac Brace Front (10mm allen): 60 ft/lbs.
    Steeda Extreme G-Trac Brace Rear (22mm): 60 ft/lbs.
    Front spindle/hub nut: 251 ft/lbs.



    Body/General
    Oil Drain Plug: 19 ft/lbs EB+V6: 20 ft/lbs.
    BMR Jacking Rails (15mm): 63 ft/lbs.
    Lug Nuts: 148 ft/lbs.
    Front Exhaust Clamp: 35 ft/lbs.
    Exhaust Hangers: 18 ft/lbs.
    Windshield Wiper Pivot Arm Nuts: 26 ft/lbs.
    Negative Battery Cable: 44 in/lbs.
    Transmission Cross Member (18mm): 85 ft/lbs.
    BMR Driveshaft Loop (3/8"): 40 ft/lbs.
    Front Belly Pan (7mm):
    Differential Drain and Fill Plugs: 25 ft/lbs.
    Water Pump Pully: 18 ft/lbs. EB: 177 in/lbs. V6: 18 ft/lbs.


    Rear Suspension
    Front Inner lower control arm bolts (24mm): 166 ft/lbs.
    Rear Inner lower control arm bolts (24mm): 184 ft/lbs.
    Outer control arm bolt (21mm): 203 ft/lbs.
    Shock to Upper Shock Mount Nut: 22 ft/lbs.
    Upper Shock Bolts: 66 ft/lbs.
    Lower Shock bolts (15mm): 35 ft/lbs.
    Main Cradle Bolts (21mm): 129 ft/lbs.
    Front Cradle Bracket Bolts (13mm): 41 ft/lbs.
    Rear Sway Bar Mount (13mm): 24 ft/lbs.
    BMR Rear Sway Bar Mounts (13mm): 24 ft/lbs.
    BMR Rear Sway Bar Thrust Washers (3/16" allen):
    Sway Bar End Links (15mm / 18mm / 6mm allen): 85 ft/lbs.
    Stabilizer Bar Bracket Bolts: 52 ft/lbs.
    BMR Sway Bar End Links (19mm / 14mm): 85 ft/lbs.
    BMR Sway Bar End Links Jam Nuts (19mm):
    Rear Swaybar Endlink Brake Hose Mount (10mm):
    Vertical Link Upper Bolt (15mm): 76 ft/lbs.
    BMR Vertical Link Upper Bolt (19mm): 81 ft/lbs.
    Vertical Link Lower Bolt (18mm): 129 ft/lbs.
    Toe Rod Inner Bolt (18mm / 21mm): 129 ft/lbs.
    Toe Rod Outer Bolt (18mm): 129 ft/lbs.
    BMR Toe Rod Inner Bolt (22mm x 2): 129 ft/lbs.
    BMR Toe Rod Outer Bolt (22mm): 129 ft/lbs.
    Camber Arm to Knuckle: 76 ft/lbs.
    Camber Arm to Subframe: 85 ft/lbs.
    Rear Brake Caliper Bolts: 24 ft/lbs.





    Bump Stops

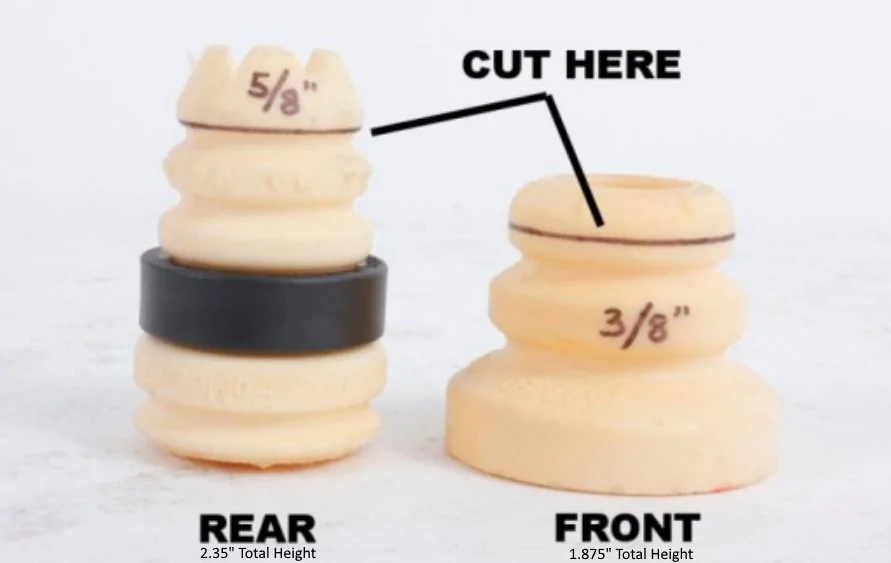

    Bump stop trim dimensions for lowered cars pictured below. FRPP Bump stops are identical (same durometer as well) to the factory ones other than cut down. Save money and either cut your originals or order factory replacements to cut.



    Alignment

    Factory Spec
    Front - Camber: -1.03 Total Toe: 0.00
    Rear - Camber: -1.50 Total Toe: 0.23

    Ford Performance Spec
    Front - Camber: -1.55 Total Toe: 0.00
    Rear - Camber: -1.98 Total Toe: 0.23

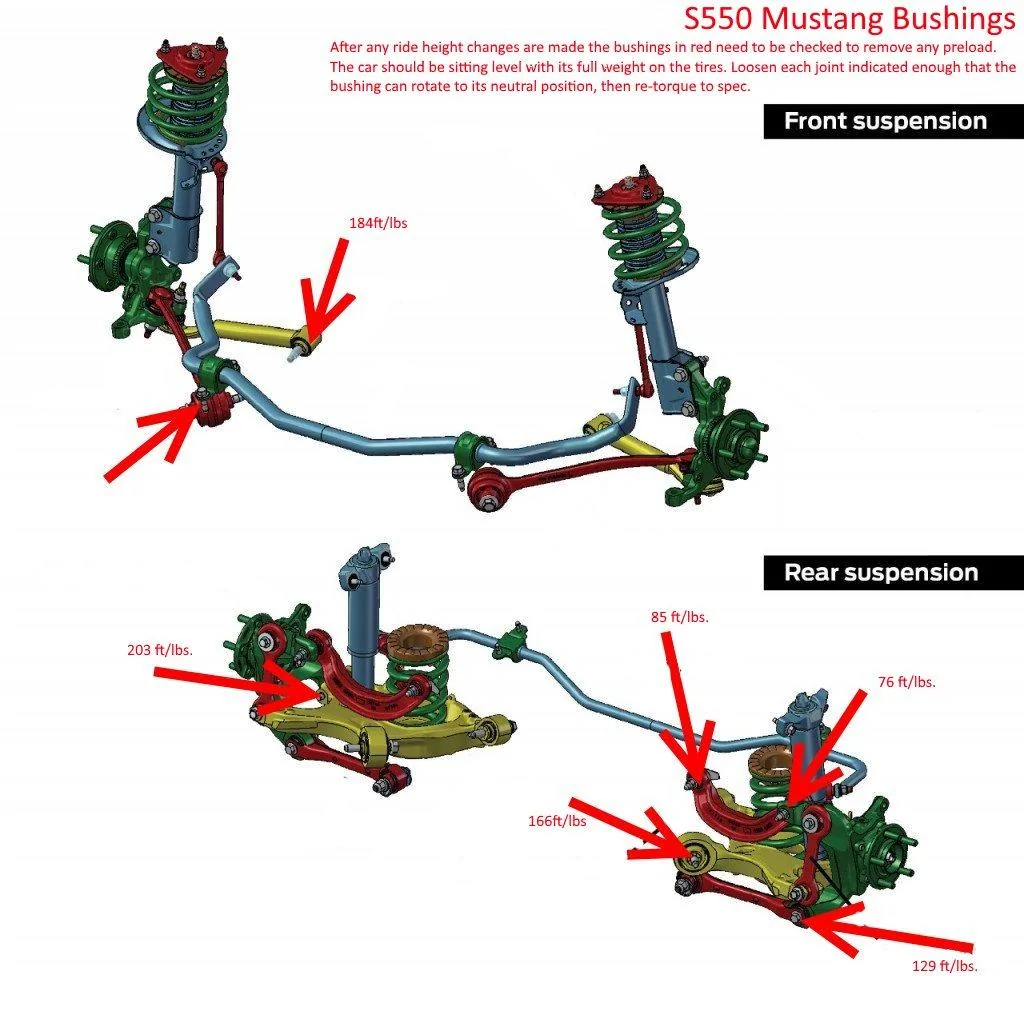

    :D 4v_AQwj1.jpg Do_HIH8_M.jpg
