Differential Bushing finally failed...

AlbertD

Well-Known Member
Joined
Jun 18, 2016
Threads
74
Messages
627
Reaction score
366
Location
Tucson, AZ
Vehicle(s)
2016 GT/PP
Noticed clunking in the rear at low speeds (10-15mph) over rough patches of road so checked the rear suspension and noticed the driver side differential bushing to have significant damage. The car has 51k miles and over 25 hours of hard track time so I'm guessing the repetitive heat cycles from track abuse may have lead to the failure.

I searched online at Ford parts sites and it doesn't look like they sell the OEM bushing separately. I would have to buy the entire sub frame. Ugh...

I'm torn whether to replace with a poly or aluminum bushing. I'm leaning towards the aluminum option from BMR since the car is 80% track 20% street and NVH isn't necessarily top priority, although if I could avoid it that would be a plus. Poly would provide less NVH, but would it stand up to the track abuse (high heat) or will it eventually fail like the factory bushing did?

Anyone else had their bushing fail from repetitive track use and if so, what did you end up replacing them with? Happy with your decision?

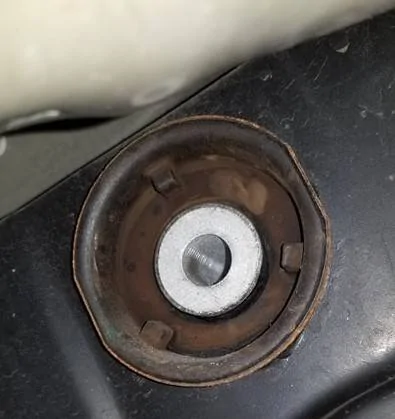

Picture of the damaged differential bushing:
Sponsored



JohnD

Legend in his own mind
Joined
Sep 26, 2016
Threads
2
Messages
687
Reaction score
325
Location
beyond the pale
Vehicle(s)
2023 Mach 1 track day car
I have black bushings in my diff, BMR steel lockouts and CBR05 on the cradle and the rear gear howl is phenomenal! Can't imagine what it would be like with aluminum ones. I actually have grown to like that sound, it varies with throttle and sounds real racecar-ish!! Simple things....LOL! This stuff was all put in when the car was new so the stock bushings are undamaged.

For aluminum, I dunno did not try them on the rear end. But I replaced Steeda motor mounts with BMR motor mounts and with the black aluminum pucks they were completely unlivable on the street, poly was much more reasonable though still way more NVH than stock.

My car is only street driven to get to and from the track or maybe to bed brakes, but even that was too much with aluminum inserts in the motor mounts. I was seriously concerned the vibration was going to cause major issues with fasteners loosening and components getting rattled to death. But that was motor mounts, diff may not be that bad.


BmacIL

Enginerd
Joined
Sep 21, 2014
Threads
69
Messages
15,010
Reaction score
8,921
Location
Naperville, IL
Vehicle(s)
2015 Guard GT Base, M/T
Vehicle Showcase
1
Unfortunately, they fail because Ford put a 2 mm oversize sleeve in it compared to the bolt. It can only take so much shock loading. The first thing I'd tell a new S550 owner to do is get the Lethal extreme hardware upgrade kit, and push the sleeves provided into the rear bushings. This creates a correct size condition and no more uncontrolled shock loading from the oversize.


BmacIL

Enginerd
Joined
Sep 21, 2014
Threads
69
Messages
15,010
Reaction score
8,921
Location
Naperville, IL
Vehicle(s)
2015 Guard GT Base, M/T
Vehicle Showcase
1
To the question: I would do through-bolting and poly bushing inserts.

OP
OP
AlbertD

AlbertD

Well-Known Member
Joined
Jun 18, 2016
Threads
74
Messages
627
Reaction score
366
Location
Tucson, AZ
Vehicle(s)
2016 GT/PP
Thanks for the feedback.

I did quite a bit of reading and I am leaning towards getting the Poly bushing replacement for the diff (BMR BK049), it also seems to address the other issue you bring up Bmac. While the sub frame is out I plan to also install BK048 (delrin cradle bushings) to eliminate any movement in the cradle. Looks like some folks have found out that if you spray Great Stuff (foam) into the sub frame that it helps mitigate some of the NVH incurred from the diff so I plan to try that out as well


Sponsored

OP
OP
AlbertD

AlbertD

Well-Known Member
Joined
Jun 18, 2016
Threads
74
Messages
627
Reaction score
366
Location
Tucson, AZ
Vehicle(s)
2016 GT/PP
Installed the BK048/BK049 combo this weekend

All the low speed clunking noises I was hearing before are completely gone. There is certainly new NVH from the bushings, but it was a lot less than I expected. There is now some pronounced clunks in between shifts which I imagine is the driveline slop. It is surprisingly loud, but... I can live with that. I can also hear the exhaust a tad more.

The improvement from the bushings is night and day. The rear end feels a lot more communicative to me and doesn’t wiggle over road irregularities like it did before. Zero wheel hop. Powering out of a corner feels WAY smoother which is an enormous improvement for me. The rear end is just overall completely planted.

Cant wait to see how it feels out on track.

Last edited:

shogun32

Well-Known Member
Joined
Feb 8, 2019
Threads
89
Messages
14,682
Reaction score
12,214
Location
Northern VA
First Name
Matt
Vehicle(s)
'19 GT/PP, '23 GB Mach1, '12 Audi S5 (v8+6mt)
Vehicle Showcase
2
I went with the Whiteline diff bushings (70 shore) so a bit softer than either the BMR or Steeda alternatives, and also half the price. Ford needs to be forced to recall every diff and at minimum install a correct sleeve. Just unforgivable engineering F'up.

I used the CB010 for IRS stability.


EFI

Well-Known Member
Joined
May 19, 2015
Threads
62
Messages
4,809
Reaction score
4,091
Location
Masshole central
Vehicle(s)
5.Br0
I went with the Whiteline diff bushings (70 shore) so a bit softer than either the BMR or Steeda alternatives, and also half the price. Ford needs to be forced to recall every diff and at minimum install a correct sleeve. Just unforgivable engineering F'up.

I used the CB010 for IRS stability.
Which one? KDT933 or 934?


shogun32

Well-Known Member
Joined
Feb 8, 2019
Threads
89
Messages
14,682
Reaction score
12,214
Location
Northern VA
First Name
Matt
Vehicle(s)
'19 GT/PP, '23 GB Mach1, '12 Audi S5 (v8+6mt)
Vehicle Showcase
2
Which one? KDT933 or 934?
933.
For the EB car I might just do the fastener fix ($29?) for the moment. But I do have another 933 and also Steeda kit which likely need a new home.


Schnupper

Active Member
Joined
Jul 21, 2017
Threads
0
Messages
29
Reaction score
19
Location
Chicagoland
Vehicle(s)
Black
I noticed mine also failed during my pre-weekend safety check a few months ago. I was starting to get some bad wheel hop during launches and shifts so that explains it. I run F-Street so I'm going to have to get the whole subframe replaced. My car had about 29k when it failed.The car had close to 200 autox runs on it at the time also.



Sponsored

nrm101

Well-Known Member
Joined
Apr 3, 2020
Threads
11
Messages
100
Reaction score
30
Location
Mass
First Name
Nathan
Vehicle(s)
2019 Mustang GT Premium
Vehicle Showcase
1
I noticed mine also failed during my pre-weekend safety check a few months ago. I was starting to get some bad wheel hop during launches and shifts so that explains it. I run F-Street so I'm going to have to get the whole subframe replaced. My car had about 29k when it failed.The car had close to 200 autox runs on it at the time also.

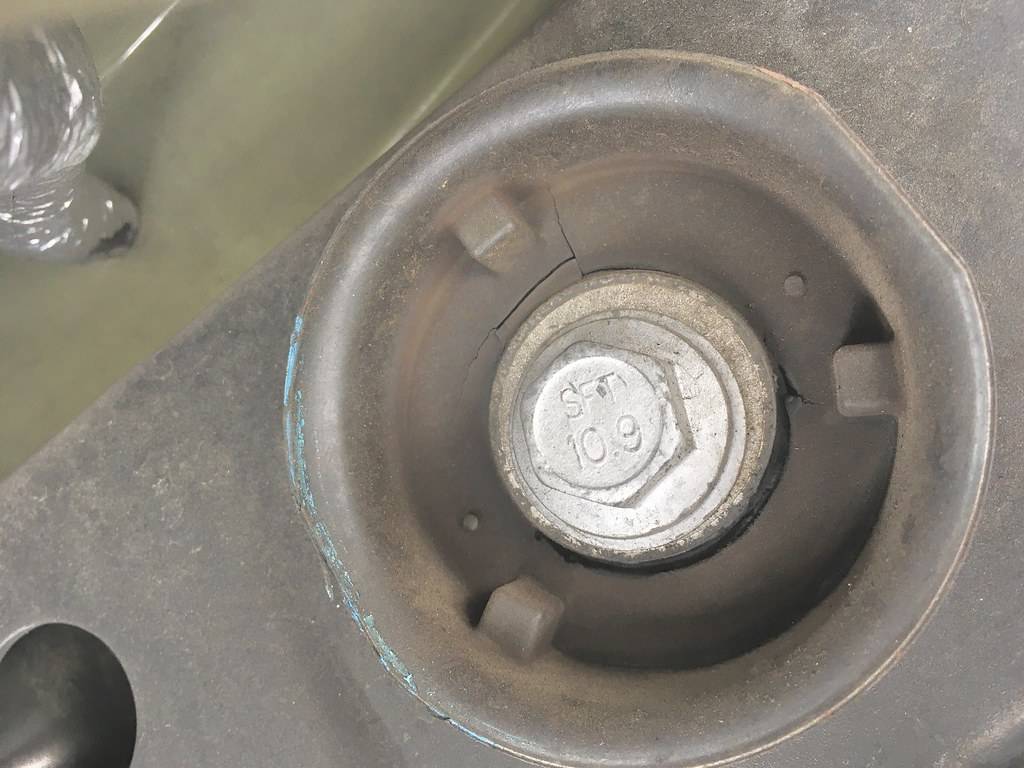

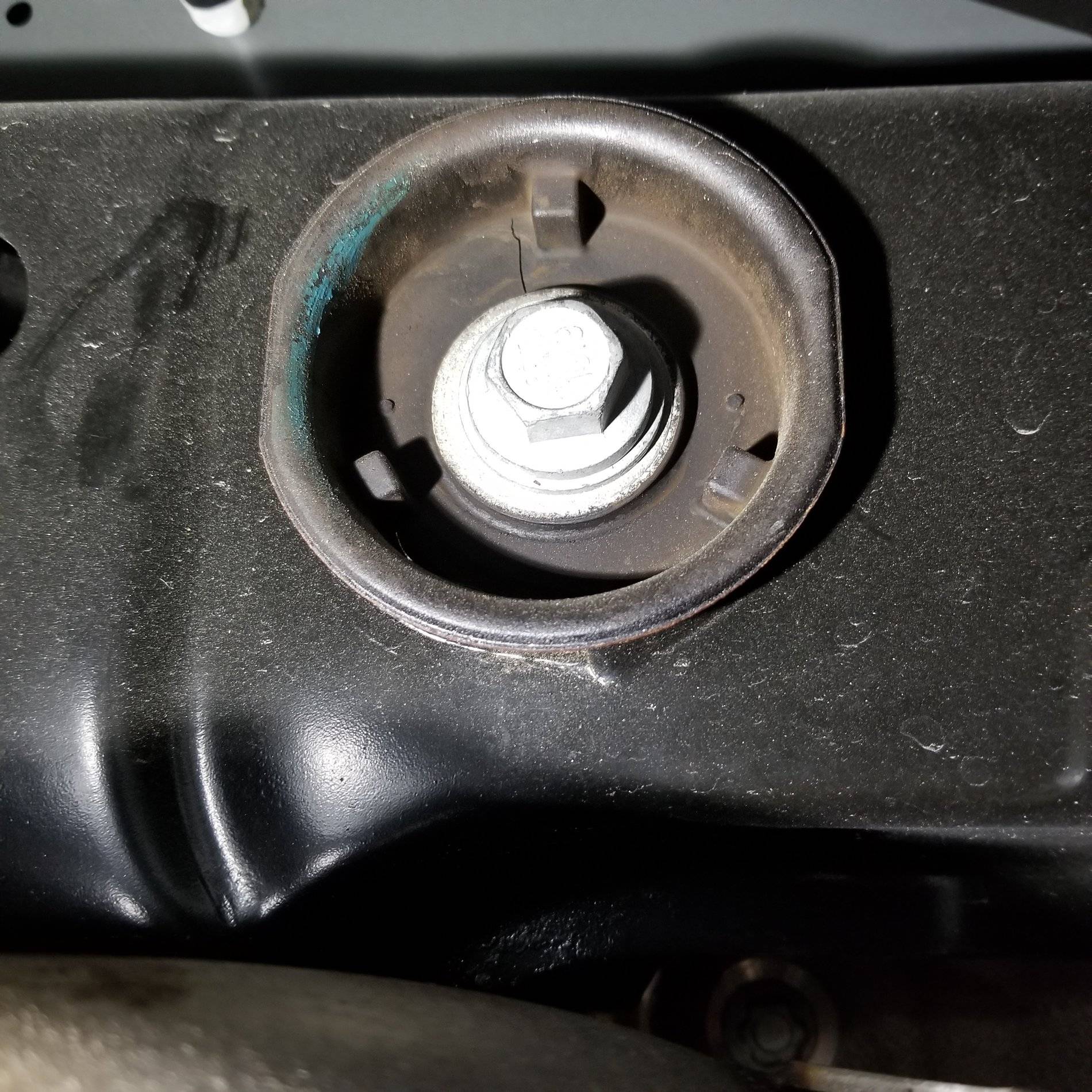

Looking for some feedback / advice ... i started hearing a clicking sound from the rear of the car, gone thru retighten everything and confirm all aftermark parts are good and installed to spec, I have Peddlers Coilovers height settings 1" lower than factory, and Steeda IRS Subframe Bushing Support and alignment sleeves. here is my drivers side sub frame-bushing the car has 9k miles on it?? i haven't tracked the car, yet at all , just typical spirted driving, and pzero tires .. is this possible cause of the clicking, and will just get worse, should i push for Dealer warrenty fix even with the after market parts installed?
