The more info can be achieved the better) thank you)
So control arms also need to be sourced or fabed.
Struts with springs, height sensors, vdm, rear arms, bcm with magneride support, wiring.
Probably Gauge cluster in case of 2015-2017 to support suspension modes?
That seems to be complete list? Could you provide part numbers of sensors, vdm and bcm?

Also about worth the effort: you are not so impressed of it’s operation? I’m currently trying to decide the route: magneride or some active coilovers (not many to choose from in fact, tein seems to be the only viable option)
On 15-17 i wouldn't attempt it at all since who knows what else they will need.
Magneride works great - i just think amount of work required to retrofit it is not worth the final outcome. Especially the programming piece for the car modules will be difficult. I think most people trying to retrofit it are thinking plug and play which which this very much isn't going to be. At that point - for me - it would be off the table.

Front control arms need a sensor bolted to the them too btw.
I can look up P/Ns when I'm working on it later today - if i don't forget.
Sponsored



TicTocTach

Well-Known Member
Joined
Mar 15, 2018
Threads
24
Messages
980
Reaction score
994
Location
DFWTX
First Name
Clair
Vehicle(s)
2018 EBPP
For the '18+ cars, at least the MR was an option outside of the GT350 so there's a chance the base wiring is in place. I think if you shopped around you could source all of the hardware for less than $1K, but the wiring is the main hurdle to make the project feasible unless you're really into chasing those circuits. There is a huge amount of communication that goes to the VDM from other parts of the car, and I have no idea how much of that infrastructure might be present on a base vs. premium car for example. I know that all MR cars required a minimum of the 101A or 301A packages, so that's probably a starting point.

My interest in the controllers is to see if it is possible or beneficial to swap a different VDM into my '18 EBPP+MR as I upgrade the suspension. I installed GT350R springs in my car a couple days ago, and so far the stock '18 EB/GT VDM is doing a great job. I need to drive a lot more to see if something ugly pops up, but it has been cold and wet so not ideal for playing. The take-home here is that whatever system you source is going to be pretty capable. There are also tunable options out there if you really want to get into things.


kz

Well-Known Member
Joined
Oct 26, 2014
Threads
58
Messages
4,102
Reaction score
2,399
Location
West Chester, OH
Vehicle(s)
Mustangs & F150
My interest in the controllers is to see if it is possible or beneficial to swap a different VDM into my '18 EBPP+MR as I upgrade the suspension.
Why wouldn't you get a DSC Controller then (Tee Lew will probably be happy to sell you one ;-) ) ?

Not only you take the guessing work out of the calibration, you can make your own adjustments. DSC also can - from what I have heard - use full damping capability of the MR shocks unlike Ford OEM controllers. I will get one, once I finish other upgrades, especially fucking (excuse my language) knuckle to toe bearing...


TicTocTach

Well-Known Member
Joined
Mar 15, 2018
Threads
24
Messages
980
Reaction score
994
Location
DFWTX
First Name
Clair
Vehicle(s)
2018 EBPP
Why wouldn't you get a DSC Controller then (Tee Lew will probably be happy to sell you one ;-) ) ?

Not only you take the guessing work out of the calibration, you can make your own adjustments. DSC also can - from what I have heard - use full damping capability of the MR shocks unlike Ford OEM controllers. I will get one, once I finish other upgrades, especially fucking (excuse my language) knuckle to toe bearing...
It's on my list as well, and I've been talking with TeeLew about just that. However, it's a pretty steep step up, plus a learning curve. I need to pace myself on steep steps with learning curves as I only have so much money and time to spare... I've got an old car project that needs an EFI upgrade and the cost is about the same. Used VDM's are out there for $100 or less, and plugging in a GT350 unit would be awesome - if it actually worked and made things better.

So far, it doesn't seem like that's going to be necessary. Hopefully the AutoX season will be a reality next year and I'll get a chance to push it hard enough to see what's really going on.


Sponsored

kz

Well-Known Member
Joined
Oct 26, 2014
Threads
58
Messages
4,102
Reaction score
2,399
Location
West Chester, OH
Vehicle(s)
Mustangs & F150
The different arms likely have the machining to accept suspension travel sensors. This could be done easily on std. arms.
It also appears shock mounting is different on MR arms - the "foot" of the shock goes underneath on MR cars and goes on top of the arm on on MR ones.

I have both arms completely out of the car right now. Shocks and knuckles are off too....

So if anyone wants any detailed pics or P/Ns, now would be a good time...


terion

Well-Known Member
Joined
Sep 27, 2019
Threads
10
Messages
55
Reaction score
6
Location
Ukraine
First Name
Volodymyr
Vehicle(s)
GT PP MT 2016 (restyled)
So if anyone wants any detailed pics or P/Ns, now would be a good time...
Of course we want, entire thread is about this) Did you take photos?


kz

Well-Known Member
Joined
Oct 26, 2014
Threads
58
Messages
4,102
Reaction score
2,399
Location
West Chester, OH
Vehicle(s)
Mustangs & F150
Of course we want, entire thread is about this) Did you take photos?
Sorry - car has been back together for about a week now. I am going to have it up though adjusting rear camber, changing brake rotors and taking preload of both sway bars so if there something specific you're interested in - let me know. Determining if someone with non-MR car has wiring for it should be extremely easy. Post a pic of an upper side of rear wheel well and I will tell you.


kz

Well-Known Member
Joined
Oct 26, 2014
Threads
58
Messages
4,102
Reaction score
2,399
Location
West Chester, OH
Vehicle(s)
Mustangs & F150

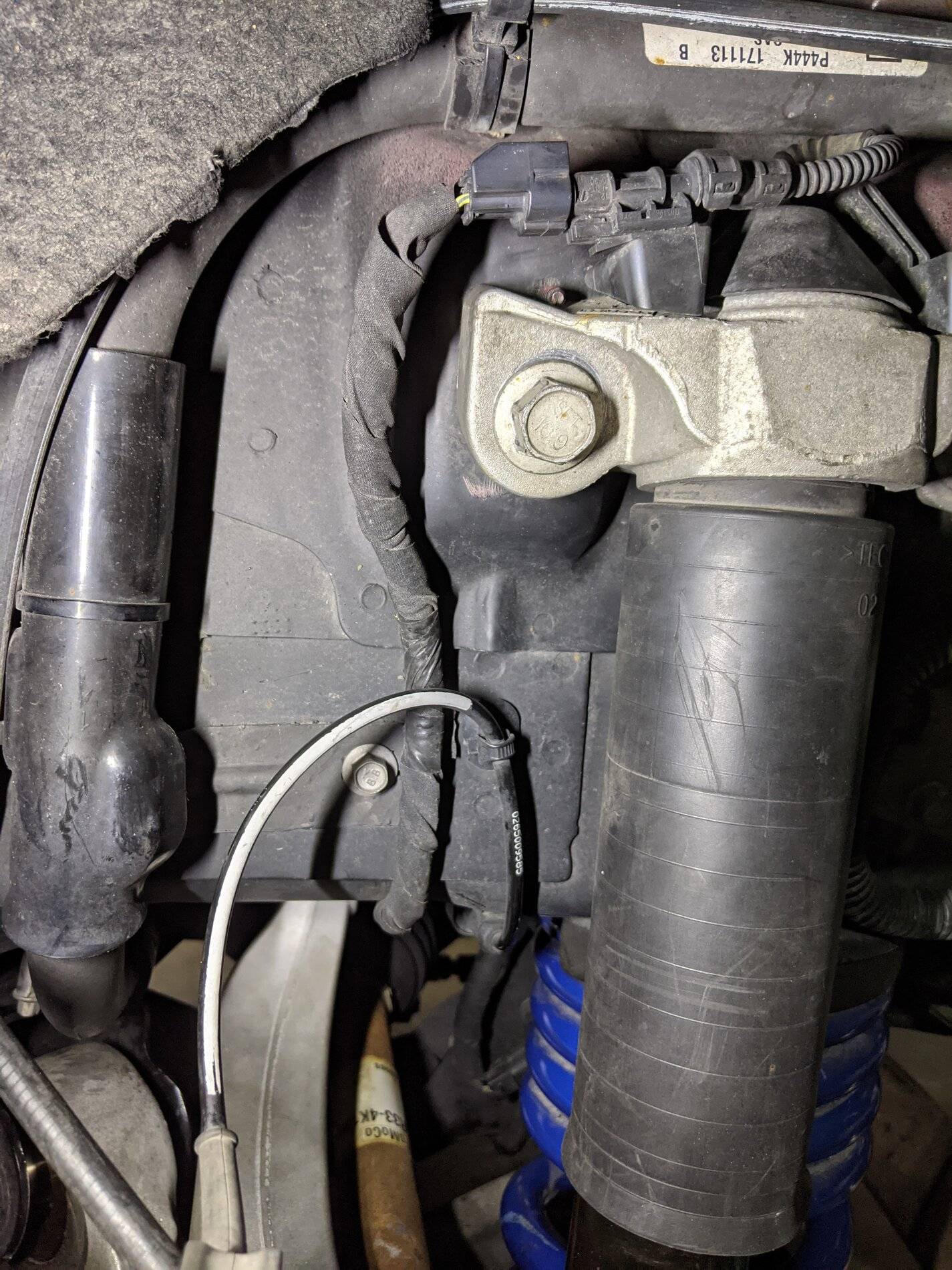

Here's pretty clear view of wiring going to rear left Magneride shock - you should the wire on the left side of the connector if you have non-MR car and think wiring is there.
