HR361 Caliperfexion stud installation highlights

Discussion in 'Shelby GT350 Mustang' started by Tomster, Nov 26, 2017.

  1. Tomster

    Tomster Beware of idiots

    First Name:
    Tom
    Vehicle(s):
    2 - 17 GT350 R's
    Joined:
    Feb 20, 2016
    Location:
    FL
    Posts:
    3,506
    Likes Received:
    2,272
    0   0   0
    Some of you may recall that I am trying to ready HR 361 for the track weekend coming up. I went to my friends shop this AM to find the lift is still being used. Some of you may remember that my friend has quite an elaborate shop and he works on high end Porsches and such. Today I arrived to find a Lamborghini on the lift and it wasn't going anywhere anytime soon, so the MGW shifter is out for now.

    However..... Way up on my list of things to accomplish is camber plate and caliperfexion caliper stud installation. So I turned around and went home to start the work. The vorshlag plates will be written up when the job is complete, so in the mean time, I will highlight the caliperfexion stud installation.

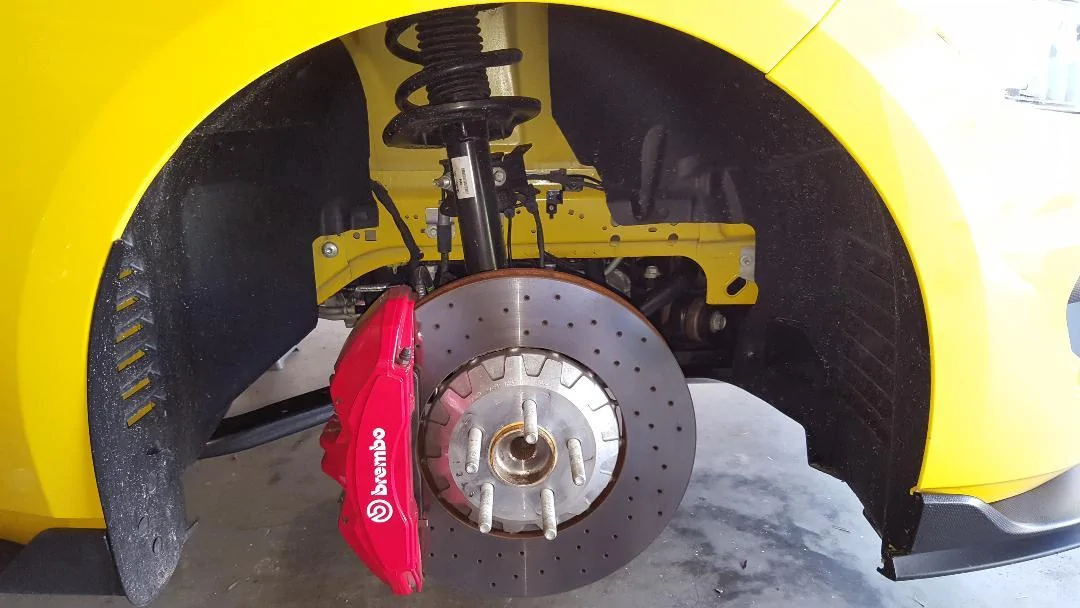

    First, the front wheel lug nuts were loosened before jacking the car and putting it on jack stands. Once up in the air, the front wheels were removed.

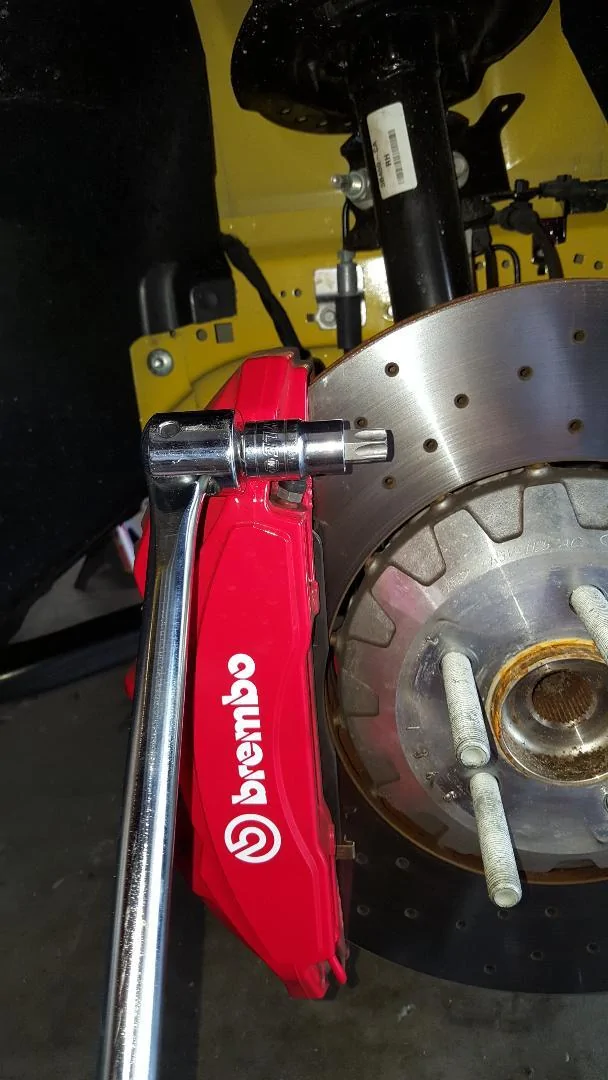

    A torx T60 bit is needed to remove the brake caliper bolts. I strongly suggest using a breaker bar because these bolts are very tight, to the order of around 130 ft lbs.

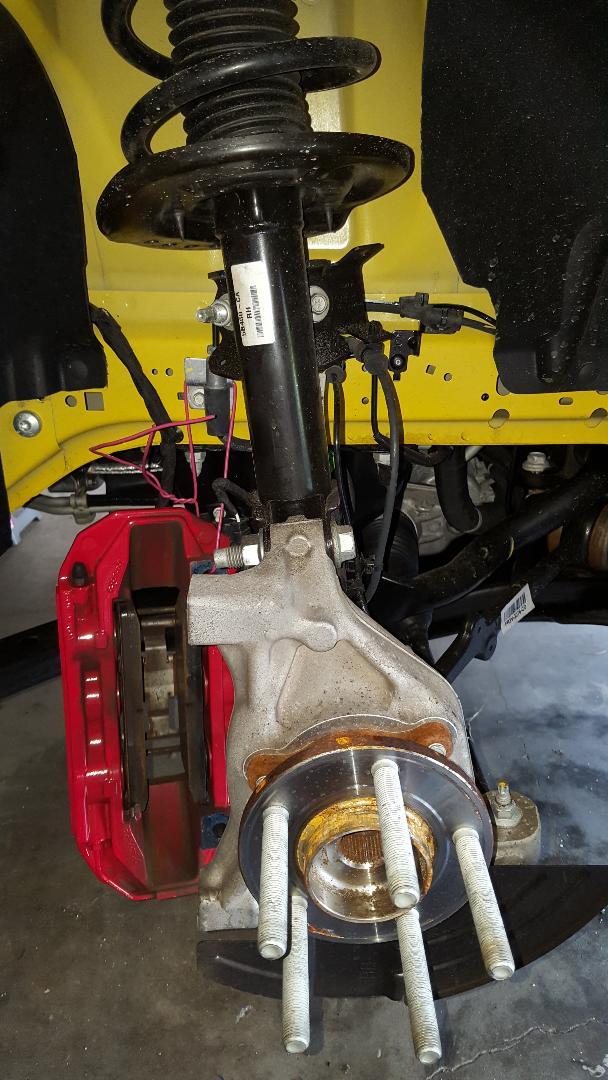

    Once the caliper bolts are removed, the caliper will pull right off. I suggest having some wire or zip ties to suspend the calipers from a secure point because you don't want them hanging by the brake line.

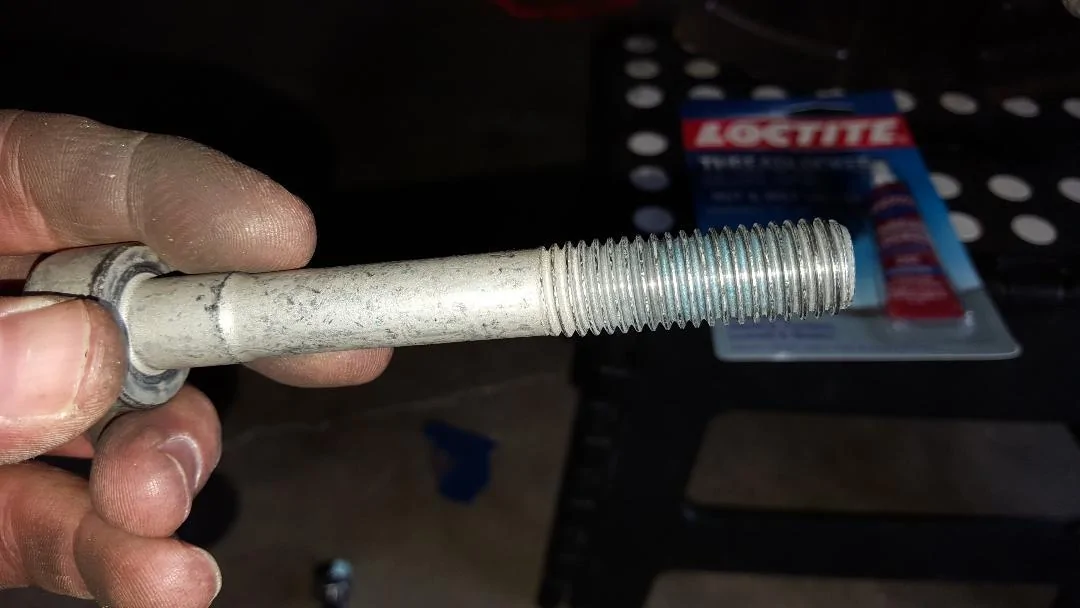

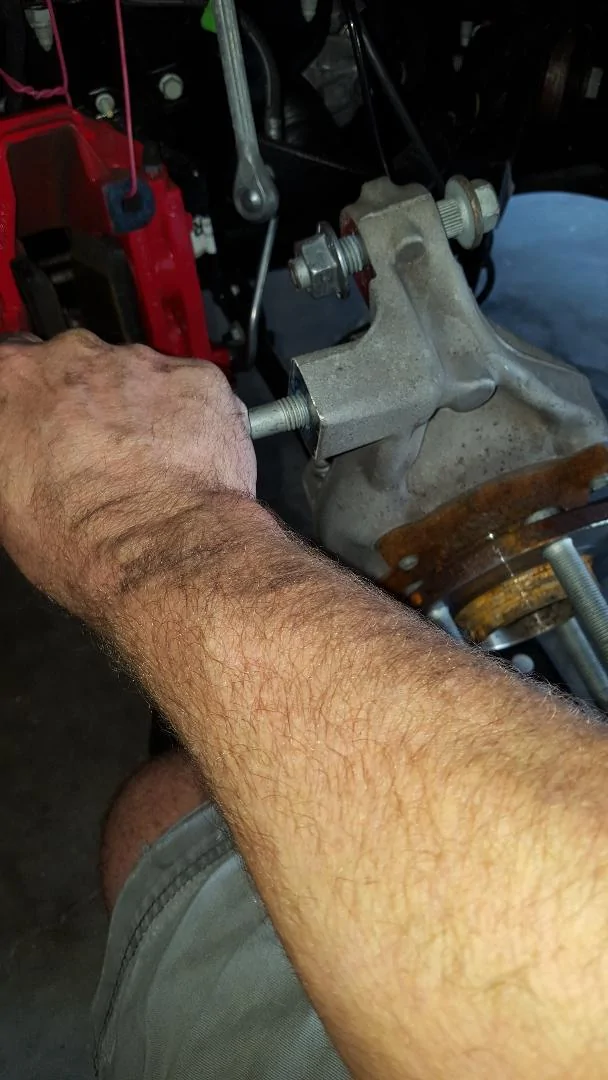

    Find the best caliper bolt in the lot (in terms of thread condition as well as overall condition) and clean it up with a wire brush. Use this bolt to chase the threads (screw it in and out) of the knuckle until you can turn it by hand with no assistance of tools. Be sure to blow out the contaminants between attempts. Eventually, the threads will clean up and you will be able to screw it in by hand.

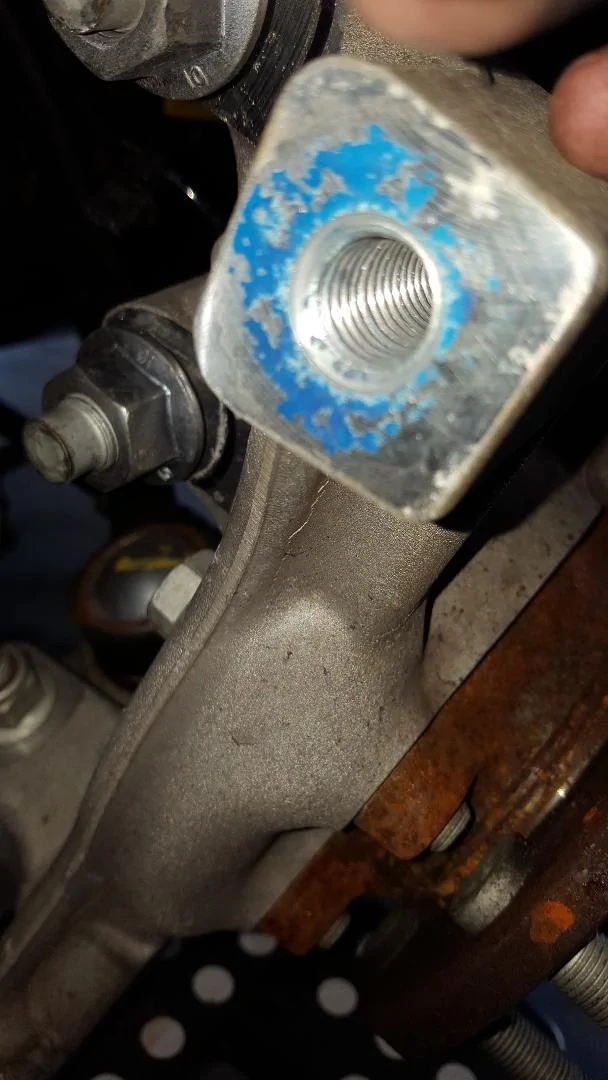

    Eventually, the threads will look like this.

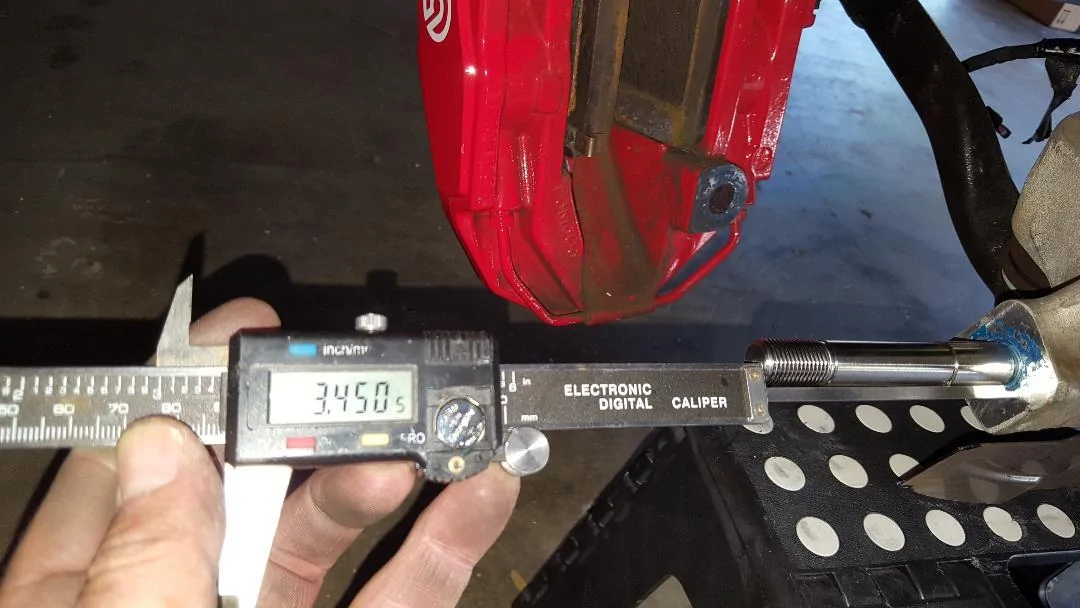

    You should be able to install the new caliperfexion stud finger tight (snug). Install it and check overall length. (see instructions for length value and tolerances).

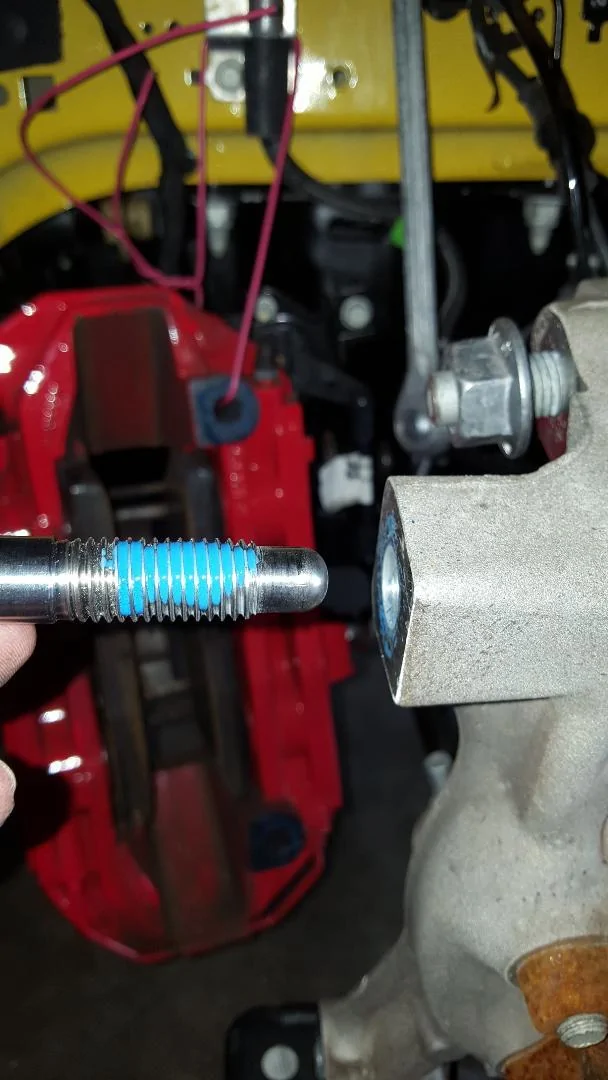

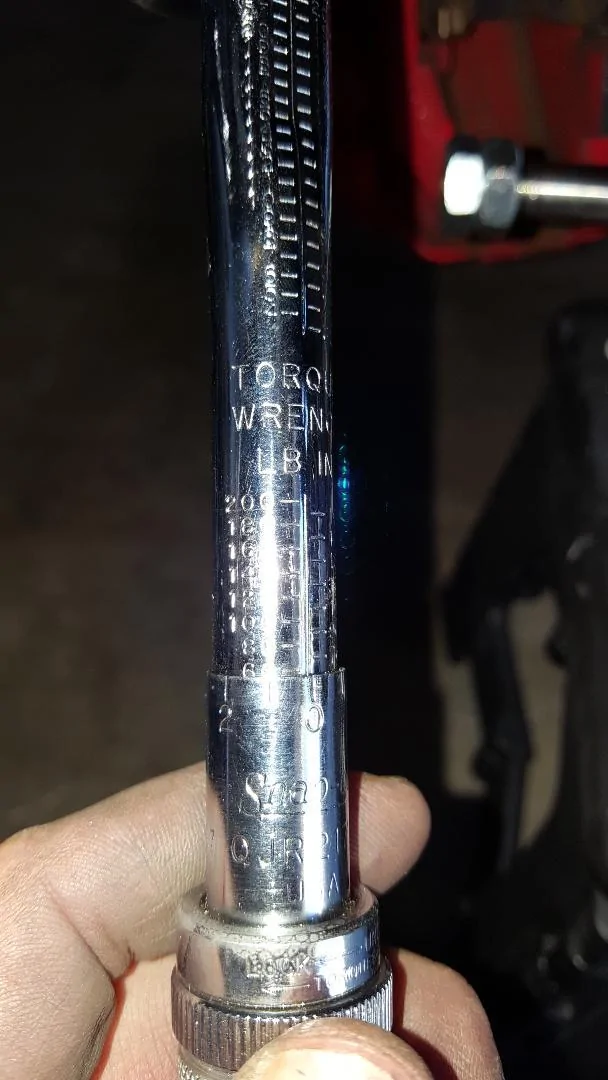

    Once you have verified that the threads are clear and the stud will bottom out leaving you with the appropriate overall length, it is time to mount them using some blue Loctite and a torque wrench. Note: The instructions specified not to reef the stud into the knuckle and to use 5 ft lbs of torque. I thought that was really low and verified that with Epiphany via text before completing this step. That sounds awfully low, but he's a smart guy..... BTW, a specification of 5 ft lbs equates to a value of 60 in lbs (you might want to use a torque wrench with values in the in lbs).

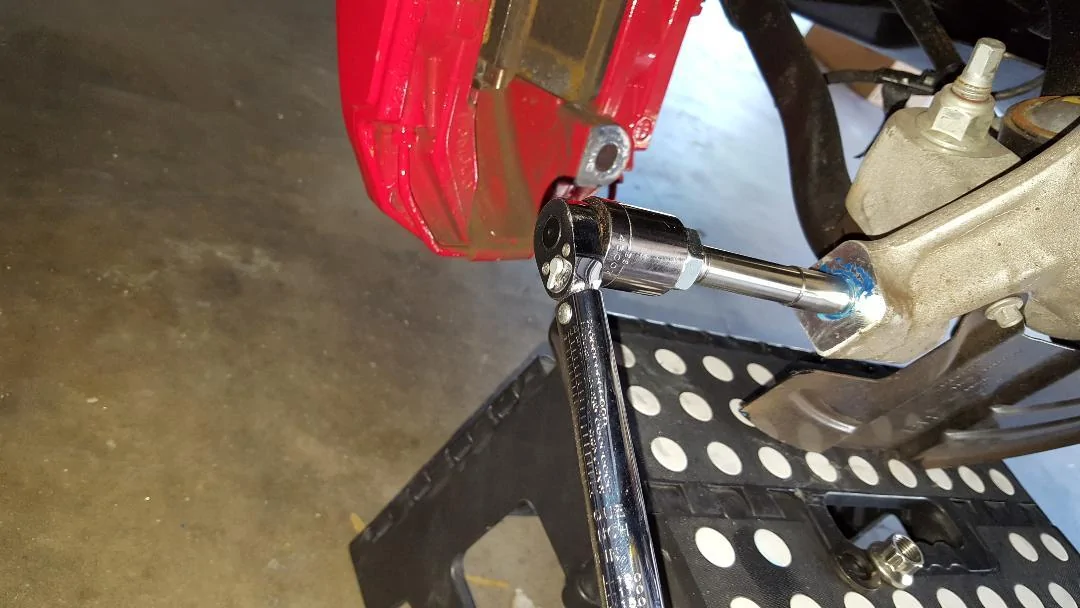

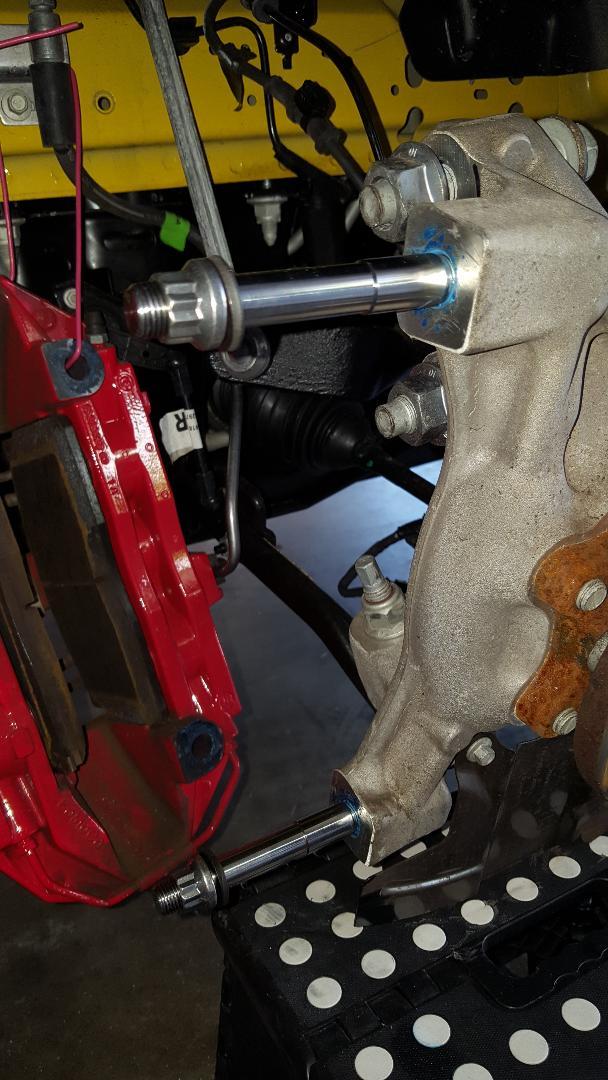

    Borrowing the below image from above, notice the double nuts on the stud. Snug them up against each other so that you can torque the stud to length.


    Now, it is important to let the Loctite cure as per the manufacturers directions. Since I am doing the vorshlag plates at the same time, I will pick it up and finish the installation tomorrow.

    For all practical purposes, the caliperfexion stud installation is complete. All that is left to do is re-install the caliper and torque the nut as per the instructions.


    I would like to thank Epiphany for providing such quality parts. These caliperfexion studs will make future brake pad changes a snap. I know this because I had them on my previous track pack. After a weekend of heavy braking, I had to swap the pads out. It was as easy as could be.

    Thanks Epiphany!

    Bullitt40, mephim, Minn19 and 12 others like this.
  2. Next Phase

    Next Phase Well-Known Member

    Vehicle(s):
    Mopar
    Joined:
    Apr 25, 2016
    Location:
    NC
    Posts:
    353
    Likes Received:
    177
    0   0   0
    Thanks for the write up, I'm doing this over the winter break.

  3. GT_Dave

    GT_Dave Well-Known Member

    Vehicle(s):
    1970 Mach 1 408EFI , 2016 GT350
    Joined:
    Dec 13, 2015
    Location:
    NE Illinois
    Posts:
    962
    Likes Received:
    572
    0   0   0
    A tip for the crowd . . . .I find if you grind a single groove thru the threads down the length of one of the original bolts (kind of a makeshift tap), the thread cleaning process will go quicker without a chance of distorting the threads in the aluminum knuckle. Better to trim out the old thread lock compound then trying to push it off of the thread form. Or you can clean out the hole with a tap if one is available.

  4. DocWalt

    DocWalt Well-Known Member

    Vehicle(s):
    GT350
    Joined:
    Jun 20, 2017
    Location:
    SE PA
    Posts:
    420
    Likes Received:
    165
    0   0   0
    Yup, this is exactly what I did. Make sure you don't create any burrs on the threads!

  5. OP
    OP
    Tomster

    Tomster Beware of idiots

    First Name:
    Tom
    Vehicle(s):
    2 - 17 GT350 R's
    Joined:
    Feb 20, 2016
    Location:
    FL
    Posts:
    3,506
    Likes Received:
    2,272
    0   0   0
    Although your suggestion might go quicker (with the exception of taking the time to cut a groove into the bolt), my approach worked out perfectly fine. Again, make sure the threads in the bolt are not imperfect and go back and forth clearing the Loctite out of threads.

    Now, If I thought my threads were messed up or I ran into unusual resistance, yes, a tap would be the way to go.

    Unless you have imperfect or messed up threads to begin with, there is no problem with this approach. Its kind of funny, [MENTION=19066]Epiphany[/MENTION] suggested this approach to me after I was about halfway done.

    To each his own I guess.

    Zitrosounds, H6G and Epiphany like this.
  6. Av8orntn

    Av8orntn Well-Known Member

    Vehicle(s):
    GT350R
    Joined:
    Apr 1, 2017
    Location:
    Memphis
    Posts:
    73
    Likes Received:
    22
    0   0   0
    Appreciate the write up. I may try to install mine next weekend.

  7. DocWalt

    DocWalt Well-Known Member

    Vehicle(s):
    GT350
    Joined:
    Jun 20, 2017
    Location:
    SE PA
    Posts:
    420
    Likes Received:
    165
    0   0   0
    Either method is fine and yours definitely carries less risk assuming the bolt is in good shape. You can easily mangle the threads with an imperfect cut or a tap that's being misused.

    I appreciate the documentation with the pics, Tom

    :)

  8. Epiphany

    Epiphany Well-Known Member

    Vehicle(s):
    Quick
    Joined:
    Oct 11, 2015
    Location:
    Global
    Posts:
    2,685
    Likes Received:
    3,330
    0   0   0

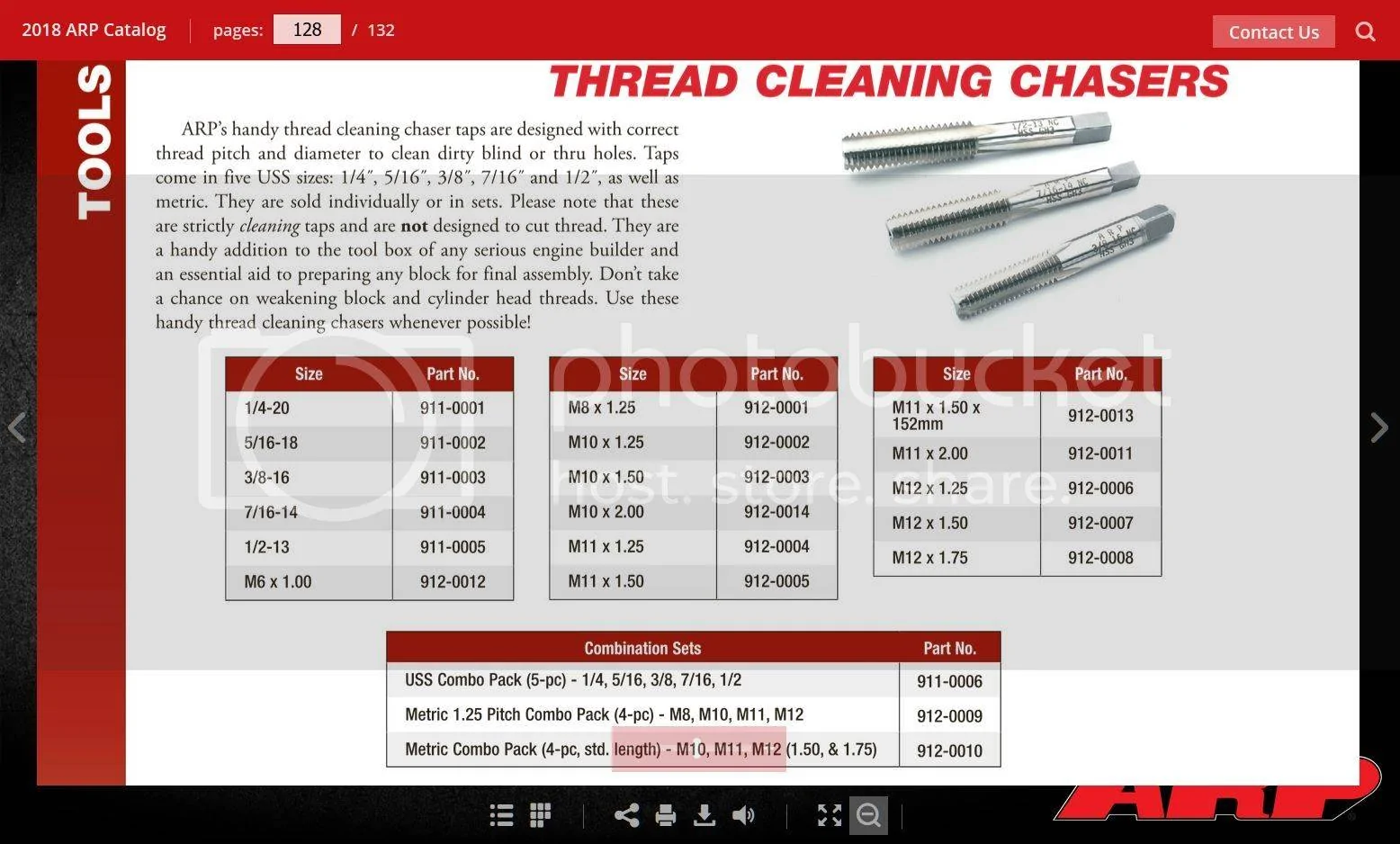

    Ultimately a chase tap is the way to go. Technically, a regular tap is designed to cut threads. Even when used just to clean up, a regular tap can and will remove some virgin material in addition to any thread locker, etc. Problem is, chase taps can be difficult to source in bigger sizes and the factory M14 x 2 thread is a "bigger" size.

    [​IMG]


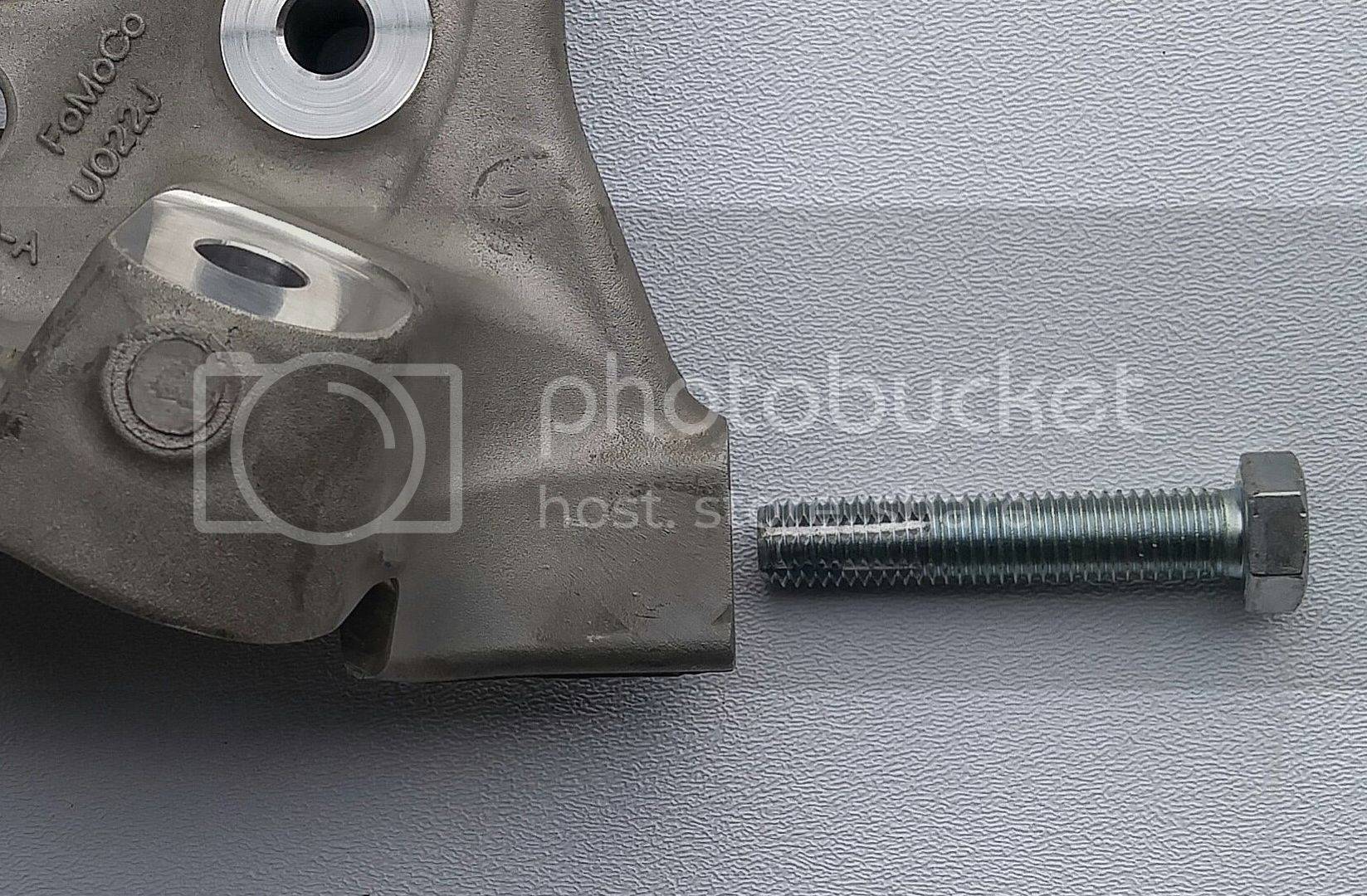

    The suggestion to groove a fastener to in effect, create a chase tap, is indeed a good one. The problem is that many home mechanics aren't aware of how to do it or don't have the capability. It is simple to do it if you do. I start with a new bolt in the appropriate size, and use a Dremel with a small stone to create a few grooves (they don't have to be full length). This does help to release trapped debris and prevents it from binding the fastener up. Here's one I did with a GT350 test knuckle.

    [​IMG]

    Running a clean bolt in and out a few times while blowing out the factory blind holes with compressed air works sufficiently too. I think Tom can attest to how much thread locker is in the threaded hole. You can see residual bits of it get between the caliper and knuckle flats. Some insight here....when Ford tests for days on end they need(ed) to access the pads quickly and were using anti-seize on OEM bolts of the GT350 (where the bolt enters the knuckle). They recognize what a PIA it is to service the front pads with the original bolts.

  9. loco_GT350

    loco_GT350 Well-Known Member

    Vehicle(s):
    2017 Race Red GT350
    Joined:
    Aug 9, 2017
    Location:
    Tempe, AZ
    Posts:
    79
    Likes Received:
    28
    0   0   0
    Thanks for taking the time to document this installation, it is really well done! I will use this when I install the caliber studs in the future.

  10. jefc73

    jefc73 Well-Known Member

    First Name:
    Jeff GTFO_0019
    Vehicle(s):
    2017 GT350R
    Joined:
    May 29, 2015
    Location:
    Detroit, michigan The Motor City
    Posts:
    937
    Likes Received:
    477
    Rating:
    100%
    2   0   0
    Nice Tom. Just ordered a set for the R. :thumbsup:

  11. Tank

    Tank 9/11 - Never Forget

    First Name:
    Jim
    Vehicle(s):
    G0853; 2015 Tacoma
    Joined:
    Feb 19, 2016
    Location:
    New England
    Posts:
    1,878
    Likes Received:
    979
    0   0   0
    Hey Tom,
    Nice write up, thanks for the pics!

    You went w the stainless and not the 4340s. Could you let us know how you decided?
    Thanks in advance :cheers:

  12. Gilby

    Gilby Well-Known Member

    Vehicle(s):
    GT350, 98 Cobra
    Joined:
    Mar 17, 2017
    Location:
    Diamond in the rough
    Posts:
    182
    Likes Received:
    55
    0   0   0
    I also went with the stainless, both studs have enough strength (more than factory) and the stainless just offers that corrosion resistance that I like. [MENTION=19066]Epiphany[/MENTION] and I had a discussion about it as well. They are a nice piece, [MENTION=21788]Tank[/MENTION]

    Tank likes this.
  13. cking

    cking Well-Known Member

    Vehicle(s):
    17GT350AG/BS-MGW/UPR/ABLIP
    Joined:
    Dec 27, 2016
    Location:
    FL
    Posts:
    830
    Likes Received:
    223
    0   0   0
    I prefer to cut the cleaning groove with 90' edge of a file held at 60' angle in an original bolt. Tap will remove some metal. You should use some break cleaner or loctite primer on hole and bolt and wear gloves to keep finger grease off. Follow this rule on all threads in aluminum and it will stop the corrosions that cause thread failure in aluminum.

  14. OP
    OP
    Tomster

    Tomster Beware of idiots

    First Name:
    Tom
    Vehicle(s):
    2 - 17 GT350 R's
    Joined:
    Feb 20, 2016
    Location:
    FL
    Posts:
    3,506
    Likes Received:
    2,272
    0   0   0
    Hey Tank,

    Way back when I had the track pack, I had a long conversation with Epiphany about this subject matter. The conclusion to the matter was that 4340 was stronger and would provide the best strength. I was advised that for all practical purposes there really wasn't much of a difference between stainless and the 4340 for this application.

    I chose the 4340. At the time, Epiphany didn't have 4340 in stock. Daytona was right around the corner and time was of the essence. What Tob did was sent me a set of the stainless and promised to expedite the 4340 when it arrived. I was fortunate enough that Epiphany got the 4340 out just in time and it was installed in the track pack. The fact is 4340 is stronger than stainless, but all these studs do is hold the caliper in place against sheering brake forces.

    So I guess it is safe to say that Epiphany is one of my sponsors in the HR361 build. All that aside, this modification is one of the best things you can do with your car. If you track, it is a must. Who enjoys a brake pad change? With the caliperfexion studs, it makes it a snap. Now with the extension rods it is even easier.

    when HR871 needs a brake change, caliperfexion studs will be part of the job. At that time, I will be placing another order.

    Again, thanks to Epiphany for the great product and great support!

    Tank, Epiphany and mkonrad like this.
  15. Epiphany

    Epiphany Well-Known Member

    Vehicle(s):
    Quick
    Joined:
    Oct 11, 2015
    Location:
    Global
    Posts:
    2,685
    Likes Received:
    3,330
    0   0   0
    Be extremely wary of chemical cleaners and the potential damage they can cause at fastened junctures. Hydrogen can be introduced into the fastener or aluminum knuckle even after the parts are placed into service. Hydrogen embrittlement can be introduced as a byproduct of this newfound chemical reaction. Chlorinated "cleaners" are something that should not be introduced into the joint. When HE issues do occur it is typically in fasteners with an HRC of over 40. The HRC numbers for Caliperfexion hardware is below that threshold with the stainless at 34 and the 4340 at 38. The factory bolt is in the same range.

    Always use the mildest cleaner possible if you feel you need to use it. Read the label clearly and understand what you are about to do. This goes for critical fasteners of any vehicle related component.

    Zitrosounds, DocWalt and FogcitySF like this.
  16. Bender

    Bender Well-Known Member

    Vehicle(s):
    17 LB GT350R HR909, 2017 AG Raptor Screw
    Joined:
    Mar 14, 2015
    Location:
    SE PA
    Posts:
    749
    Likes Received:
    300
    0   0   0
    Nicely documented! Can't wait to get mine on this coming spring

  17. 1stGT350

    1stGT350 Active Member

    Vehicle(s):
    16 GT350
    Joined:
    Nov 28, 2016
    Location:
    SOCAL
    Posts:
    36
    Likes Received:
    6
    0   0   0
    Has anyone else had problems opening the website for this the past few days?

  18. OP
    OP
    Tomster

    Tomster Beware of idiots

    First Name:
    Tom
    Vehicle(s):
    2 - 17 GT350 R's
    Joined:
    Feb 20, 2016
    Location:
    FL
    Posts:
    3,506
    Likes Received:
    2,272
    0   0   0
  19. 1stGT350

    1stGT350 Active Member

    Vehicle(s):
    16 GT350
    Joined:
    Nov 28, 2016
    Location:
    SOCAL
    Posts:
    36
    Likes Received:
    6
    0   0   0
    Thanks, Tom I was using .com not . net.

  20. jefc73

    jefc73 Well-Known Member

    First Name:
    Jeff GTFO_0019
    Vehicle(s):
    2017 GT350R
    Joined:
    May 29, 2015
    Location:
    Detroit, michigan The Motor City
    Posts:
    937
    Likes Received:
    477
    Rating:
    100%
    2   0   0
    Got the stainless set coming. Should have today or tomorrow. Will try and get on this weekend. :thumbsup:
