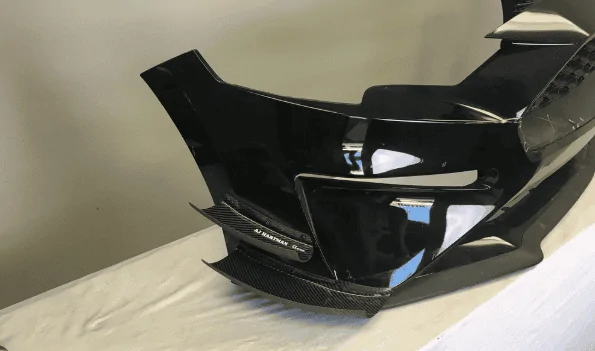

I'm not sure how long these have been on their website but oh how I want them!!

By chance, anyone have these? I'm curious if they provide a noticeable amount of downforce. I know everything AJ makes is 100% functional, just wondering by how much. I didn't see any wind tunnel data on the website.



https://ajhartmanaero.com/2018-mustang-canards/
Sponsored



L8APEX

Well-Known Member
Joined
Jun 30, 2013
Threads
127
Messages
1,637
Reaction score
610
Location
Nice try NSA
Vehicle(s)
'15 GT, '20 Raptor
Thank you for posting. I am seriously considering buying their splitter kit.


boardkat

CAMtard
Joined
Nov 17, 2013
Threads
45
Messages
900
Reaction score
569
Location
Lake Oswego, OR
Vehicle(s)
'15 GT
I have them, along with the splitter/air dam. Going on the car next weekend and will have the car out at Thunderhill next month. Stay tuned.

Last edited:

Performance nut

Well-Known Member
Joined
Feb 10, 2015
Threads
178
Messages
1,667
Reaction score
626
Location
TX
Vehicle(s)
2018 Mustang GT A10
Vehicle Showcase
1
At first I was where is the 2018+. Then I saw how low it is to the ground. Not very streetable unfortunately.


Sponsored

boardkat

CAMtard
Joined
Nov 17, 2013
Threads
45
Messages
900
Reaction score
569
Location
Lake Oswego, OR
Vehicle(s)
'15 GT
At first I was where is the 2018+. Then I saw how low it is to the ground. Not very streetable unfortunately.
If you make it modular when you chassis mount, it will take less than a minute to remove. I’ll be doing this, since my front width is already approaching the limits of my trailer, and adding another 3-5” per side with the splitter ain’t gonna help!


saleen367

Well-Known Member
Joined
Aug 9, 2015
Threads
14
Messages
531
Reaction score
417
Location
SE MN
First Name
Jeff
Vehicle(s)
2022 Mach 1 - N3451 2015 Focus Titanium
I'm also interested.... not sure I can justify the cost, but real world feedback could sway me. Beautiful pieces.... :clap:


Performance nut

Well-Known Member
Joined
Feb 10, 2015
Threads
178
Messages
1,667
Reaction score
626
Location
TX
Vehicle(s)
2018 Mustang GT A10
Vehicle Showcase
1
If you make it modular when you chassis mount, it will take less than a minute to remove. I’ll be doing this, since my front width is already approaching the limits of my trailer, and adding another 3-5” per side with the splitter ain’t gonna help!
I was thinking about that exactly when I was looking at it. Question is how to do it. Would need more info.
I'm also interested.... not sure I can justify the cost, but real world feedback could sway me. Beautiful pieces.... :clap:
Check out this link.


boardkat

CAMtard
Joined
Nov 17, 2013
Threads
45
Messages
900
Reaction score
569
Location
Lake Oswego, OR
Vehicle(s)
'15 GT
I was thinking about that exactly when I was looking at it. Question is how to do it. Would need more info.
I’ll be doing it with rivnuts, aluminum, a lathe and a brake press. Maybe some TIG and the 3D printer if necessary. Will post up some pics when it’s done.


Sponsored

boardkat

CAMtard
Joined
Nov 17, 2013
Threads
45
Messages
900
Reaction score
569
Location
Lake Oswego, OR
Vehicle(s)
'15 GT
He’s a good teacher, doesn’t want to be doing all fab work forever for me! Maybe you should swing by too and prove that you *can* teach an old dog new tricks :p


Performance nut

Well-Known Member
Joined
Feb 10, 2015
Threads
178
Messages
1,667
Reaction score
626
Location
TX
Vehicle(s)
2018 Mustang GT A10
Vehicle Showcase
1
I contacted AJ to see if they would be creating a 2018+ splitter/air dam and the answer was not any time soon as it is a complex process which there is no bandwidth to do at this time.


boardkat

CAMtard
Joined
Nov 17, 2013
Threads
45
Messages
900
Reaction score
569
Location
Lake Oswego, OR
Vehicle(s)
'15 GT

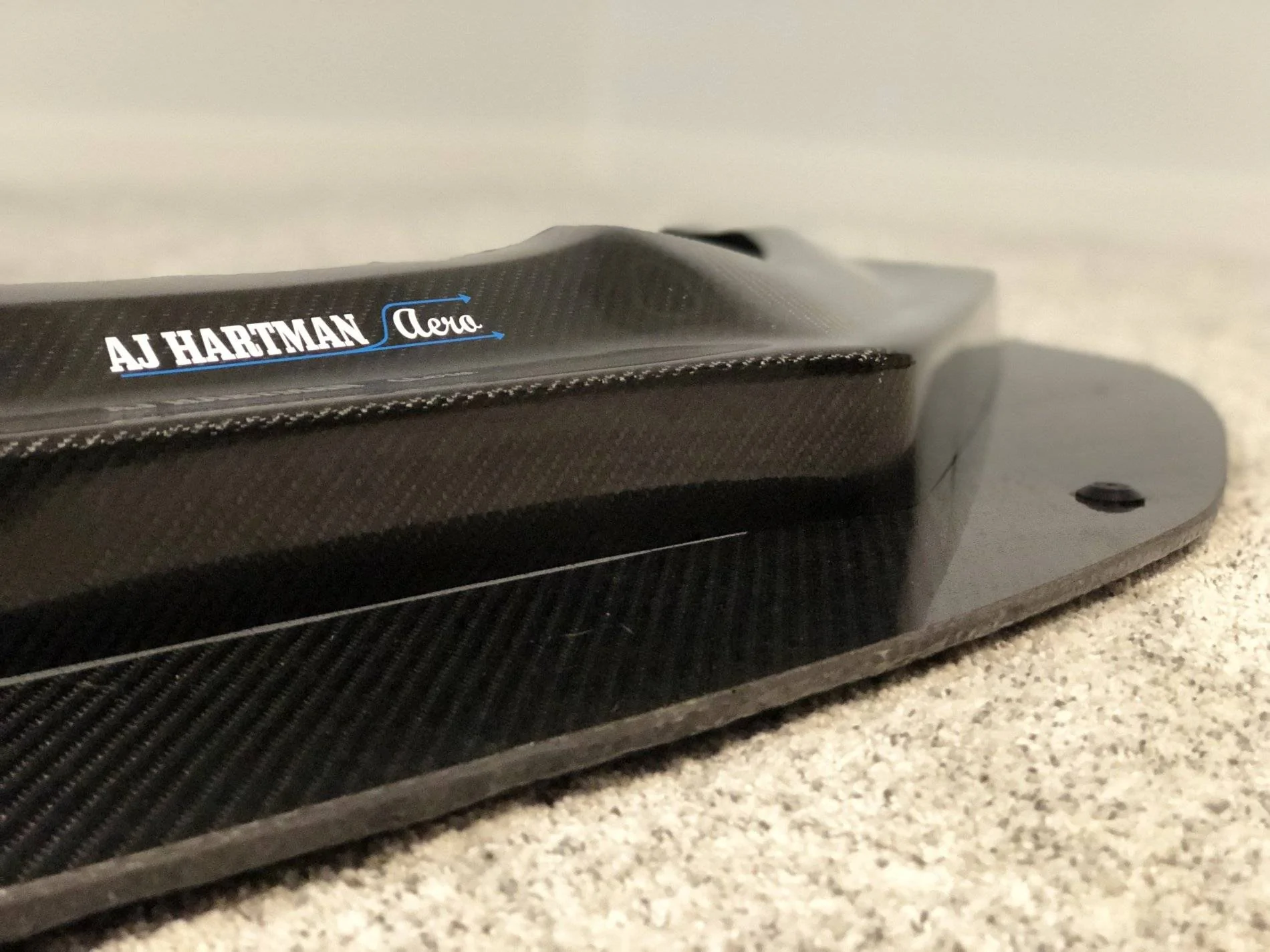

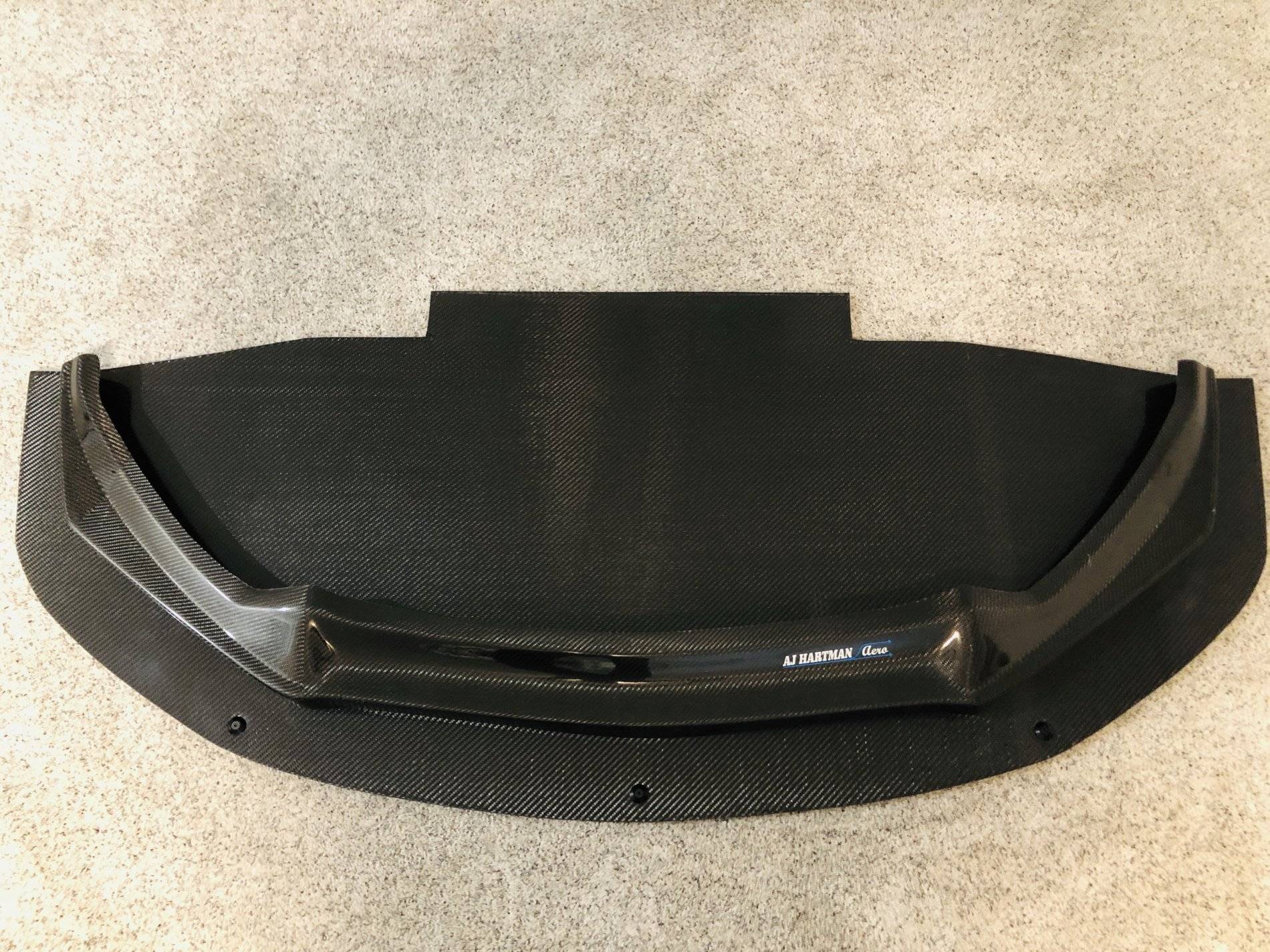

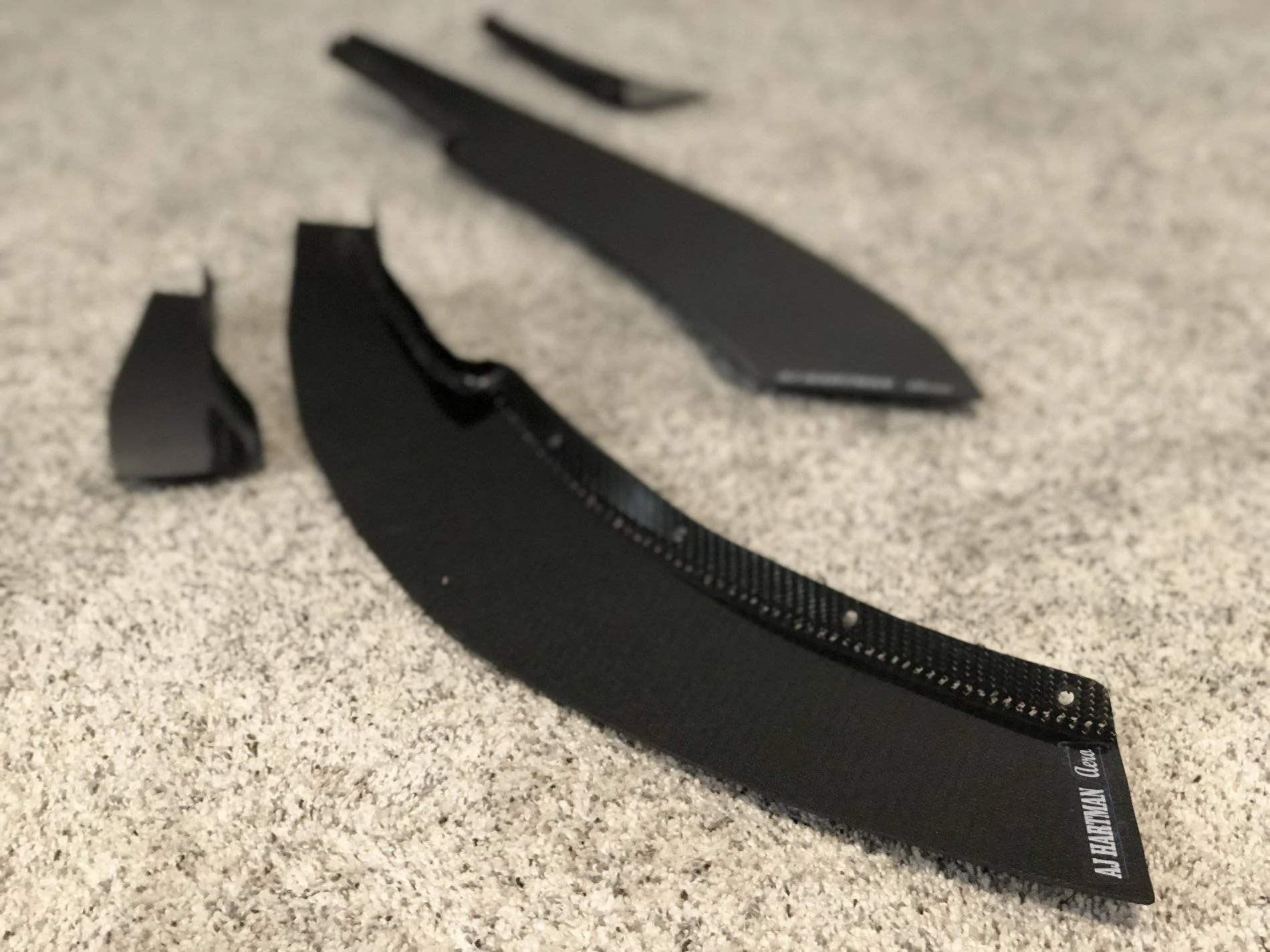

So I know this discussion started as an 18+ AJ Hartman Aero thread, but with such limited info about his parts elsewhere on the forum, figure this would be as good a place as any to post up pics of how my air dam/splitter/canards install went. I can't take credit for how it all came together; a good friend conjured up the idea, then designed, waterjetted and welded the final product together. Very happy with the end result and will be putting the car through its paces in (2) weekends @ Thunderhill. Will be sure to post up pics, vids and data on my FB racing page afterwards.

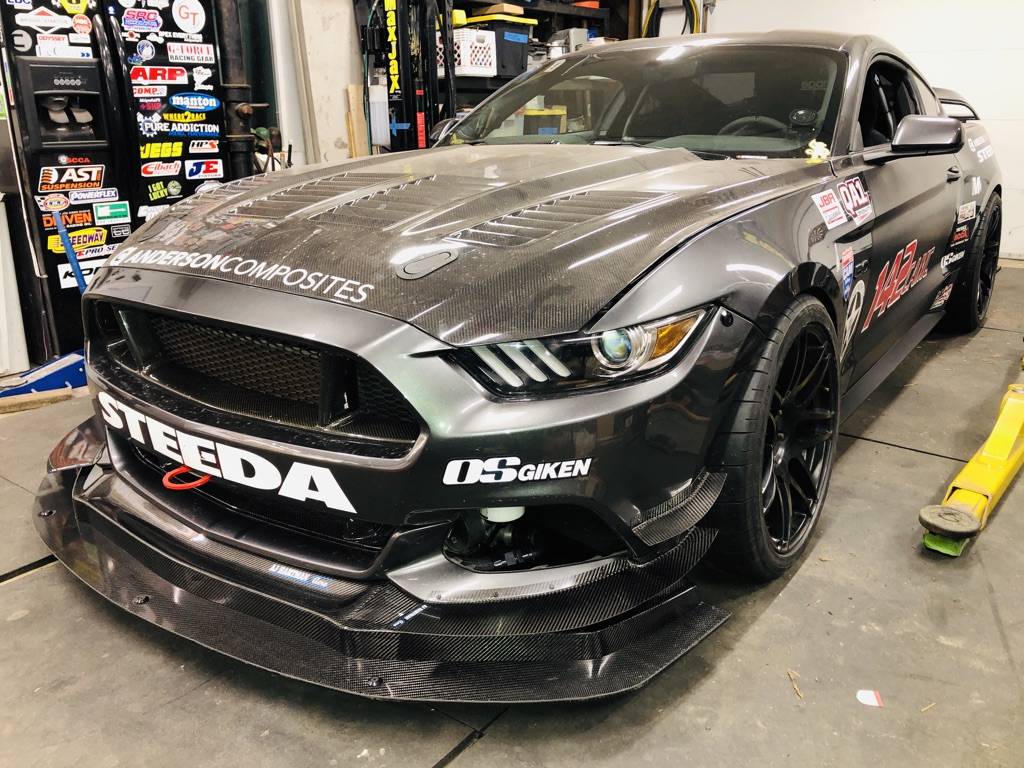

End result. Tough to tell from this angle, but the splitter and canards line up perfectly with the tire and should do a great job directing proper airflow:

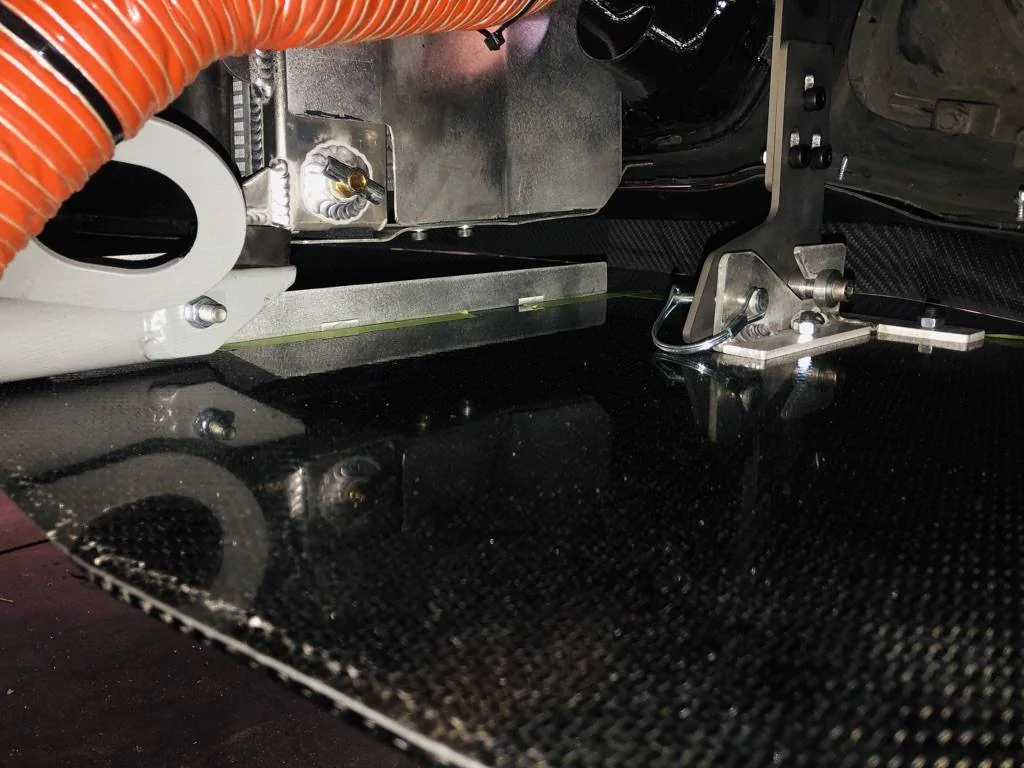

Quick release mechanism, to aid in fast R&R:

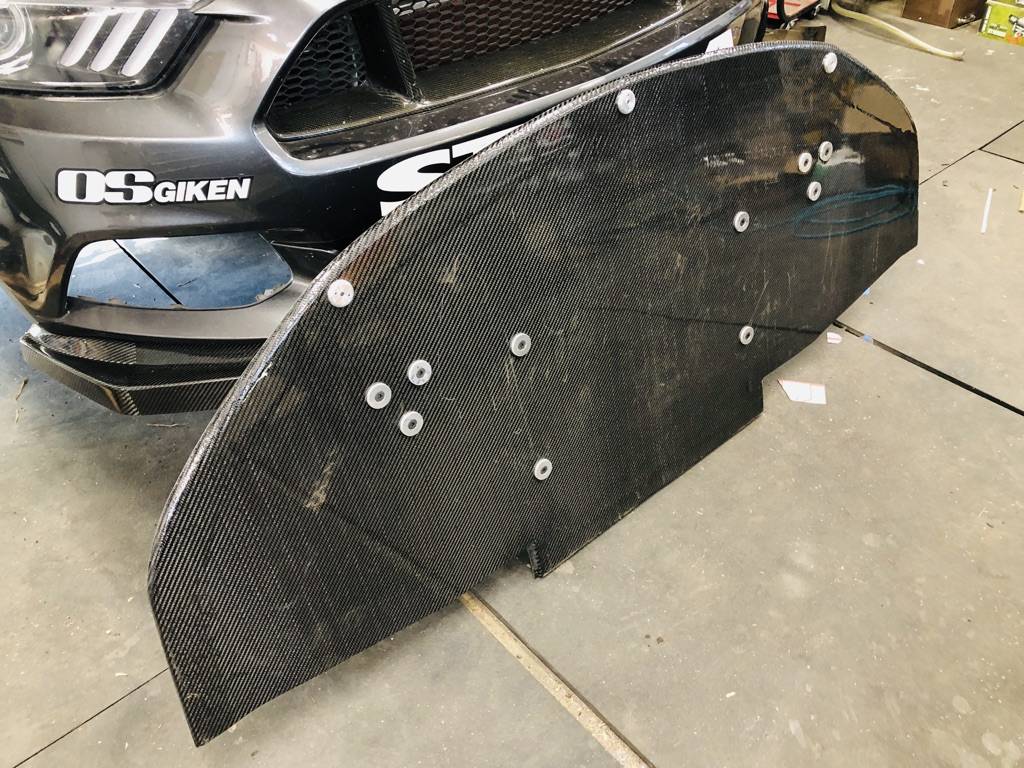

Waterjetted pucks turned on a lathe to distribute load and provide protection for the carbon fiber:

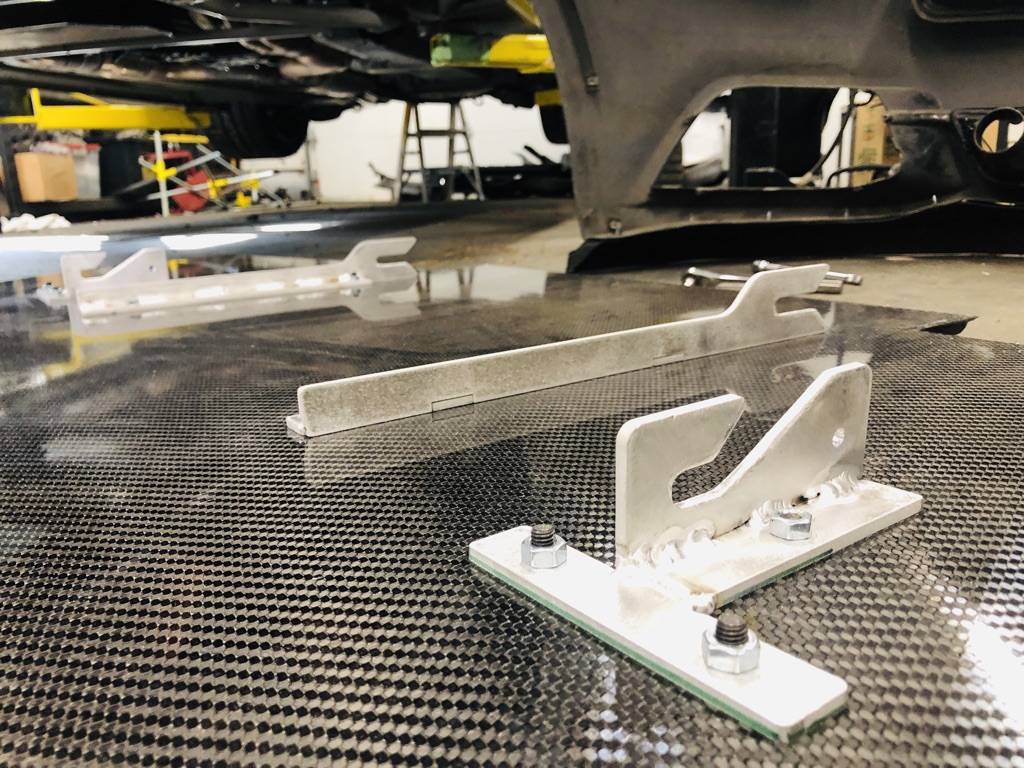

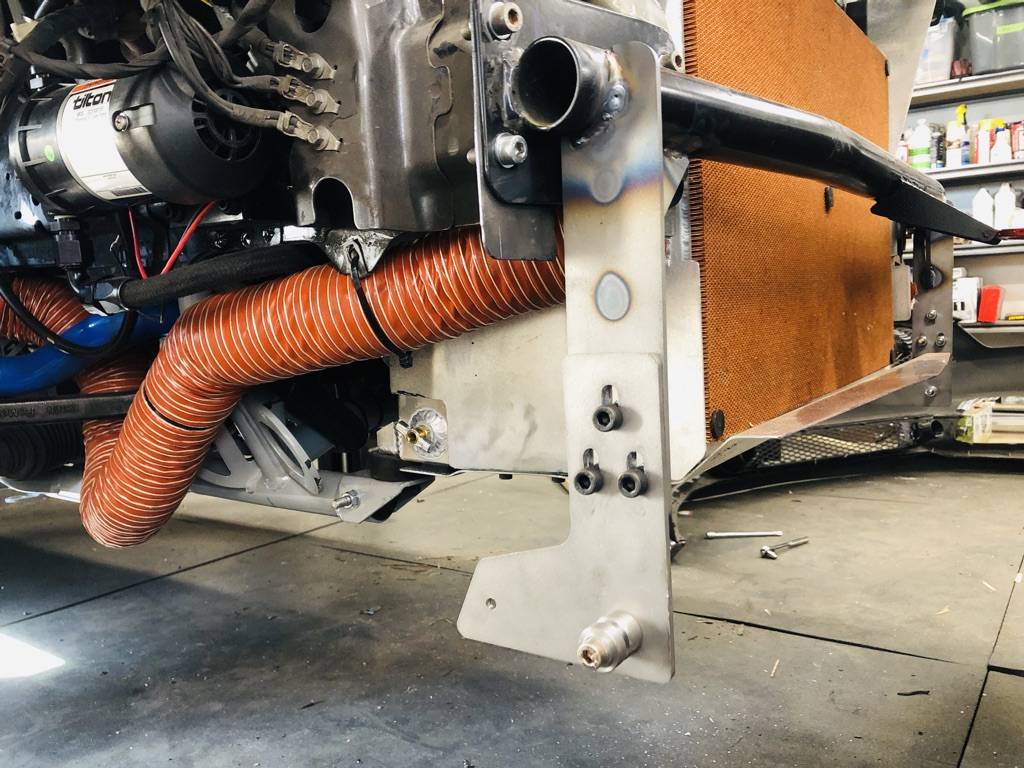

Height-adjustable front chassis mount:

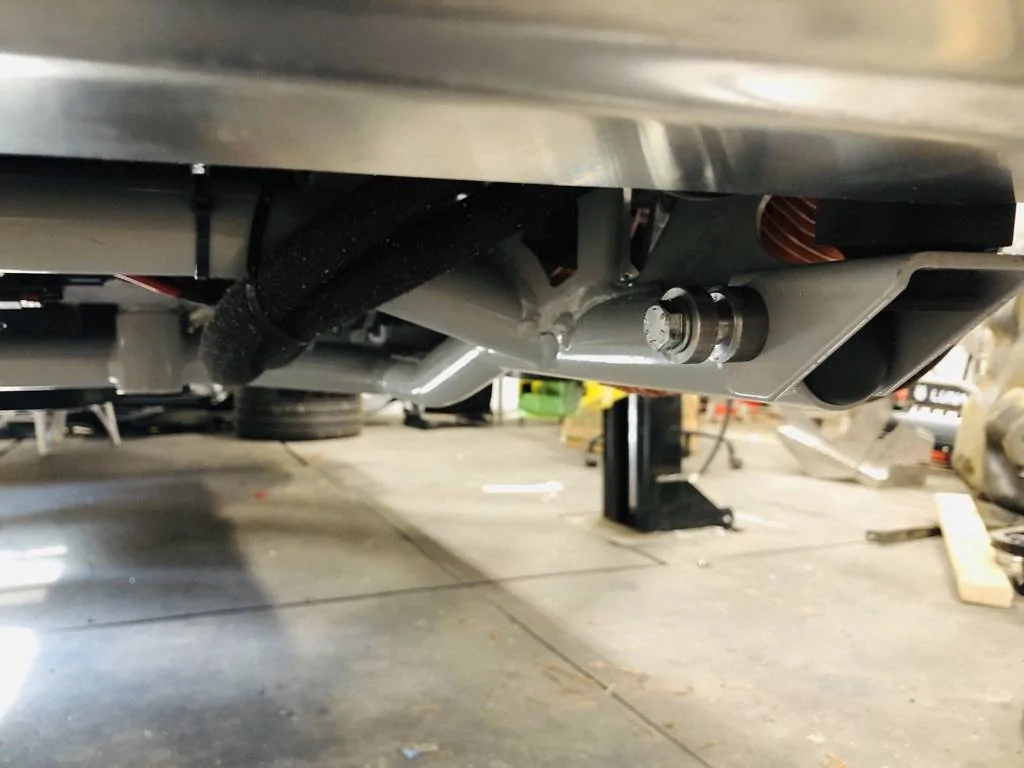

Rear chassis mount:


Quick release pin:


Performance nut

Well-Known Member
Joined
Feb 10, 2015
Threads
178
Messages
1,667
Reaction score
626
Location
TX
Vehicle(s)
2018 Mustang GT A10
Vehicle Showcase
1
Steeda K-member? I like his stuff but it looks like it goes way too low for the street. Looks like a race only thing.


boardkat

CAMtard
Joined
Nov 17, 2013
Threads
45
Messages
900
Reaction score
569
Location
Lake Oswego, OR
Vehicle(s)
'15 GT
Steeda K-member? I like his stuff but it looks like it goes way too low for the street. Looks like a race only thing.
Yep, their road race version. FWIW, the splitter has more ground clearance than my frame rails, long tube headers, FP350S pan, etc - about 3.75”.
