The "what things weigh thread."

[Stang 19]

Took mine to a nearby Cat scale & weighed her after topping off the tank:

2018_Mustang_Weight-Full by clair_davis, on Flickr

For what it's worth, she's an EBPP, premium, wheels/tires are swapped out but only saved a couple pounds per corner so not a big deal. I'm 215#, so that puts old girl at 3,725 lb. Ouch.

Wow, and that is the turbo 4 cylinder. Anyone do the same with the Mustang Gt?

Sponsored



[bnightstar]

I took mine to a cat scale 2017 GT PP Premium - 4056 lbs with me (264 lbs I'm on a diet now) and half a tank. So the car by itself is: 3792 lbs.



[Stang 19]

I took mine to a cat scale 2017 GT PP Premium - 4056 lbs with me (264 lbs I'm on a diet now) and half a tank. So the car by itself is: 3792 lbs.

Ok, 3,792 car only with 1/2 tank. Makes sense. I will look thru the thread called “what things weigh”, but is there a succinct chart/ table someone has to make looking up easier?



[TicTocTach]

Ok, 3,792 car only with 1/2 tank. Makes sense. I will look thru the thread called “what things weigh”, but is there a succinct chart/ table someone has to make looking up easier?

boB weighed his GT @ 4020# with driver or 3860# without. Mine was weighed with a full tank - an empty tank was 100# less and it was damn near empty-empty. I don't know if the various car weights have been tabulated in a meaningful way. Would be nice to see real weights for base & premium builds so this news would be less shocking...



[TicTocTach]

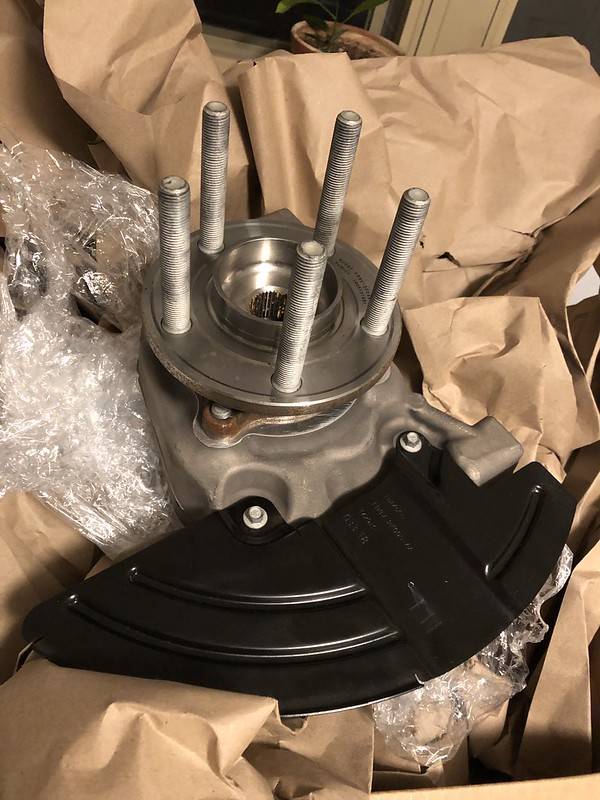

2019 GT350R aluminum hub / spindle / bearing assembly - 18.5 #

GT350R_Hub-01 by clair_davis, on Flickr

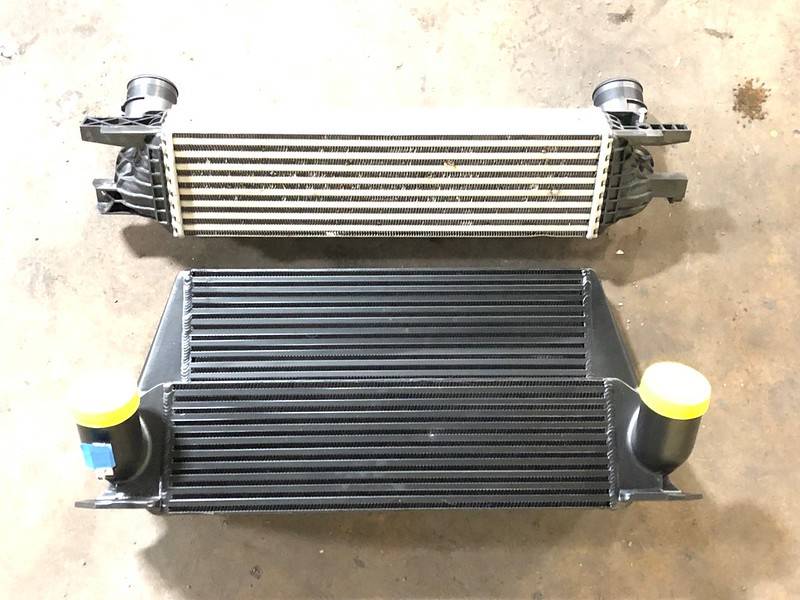

ATM intercooler - 29#
OEM 2018 EBPP intercooler - 6#

EB_IC_Upgrade-18 by clair_davis, on Flickr



[psg]

2018 GT rear wing-5.6lb



[gmuffley]

Has anyone weighed the PP 2 OEM wheels?



[TJ55]

2015 Mustang Component Weights

Making a list here. Will have more parts soon - just needed to start keeping track!


OEM PP Shock Tower Brace: 7.6lbs

OEM PP K-Brace: 10.4lbs

OEM Front Subframe (K-Member): 58.2lbs
BMR Street/Handling K-Member:
BMR Drag K-Member:
Watson Racing Drag K-Member & Arms: 42lbs

OEM Rear IRS Subframe (Empty): 55lbs

OEM IRON Diff Housing, Loaded - No Fluid: 99lbs
OEM IRON Diff Housing, Bare/Empty:
OEM Aluminum Diff Housing, Loaded - No Fluid: 77lbs
OEM Aluminum Diff Housing, Bare/Empty: 16.64lbs

OEM IRS Halfshafts: 21.1lbs/each
FRPP Halfshafts: 31lbs/each
GForce Halfshafts: 31lbs/each

OEM Iron Diff Loaded, Halfshafts, Inner/Outer Stubs - NO Fluid: 158.5lbs
G-Force 9" Diff Loaded, Halfshafts, Inner/Outer Stubs - NO Fluid: 163.2lbs (4.7lbs gain to do a 9" GForce Swap)

OEM Rear Lower Control Arm: 15.24lbs - each

OEM Rear Upper Camber Link Arm: 5.0lbs - each
BMR Billet Fixed UCL: 2.22lbs each
BMR Adjustable UCL:
Steeda Billet Fixed UCL: 3.0lbs each
Steeda Adjustable UCL:

OEM Vertical Link: 3.2lbs - pair
BMR Billet Vertical Link: 3.2lbs - pair

OEM Rear Toe Link/Rod Arm: 2.42lbs - each
BMR Adjustable Toe Rod w/ Lock Out Plate:

OEM Rear IRS Cradle Mount Bushings: 1.05lbs - each
BMR Delrin Cradle Mount Bushings: .50lbs - each

OEM Rear IRS Diff Mount Bushings: .90lbs - each
BMR Billet Aluminum Diff Bushings: 1.47lbs - each

OEM Rear Lower Control Arm Bushings: 1.1lbs - each
BMR RLCA Bearing Upgrade Bushings:

OEM EPAS Rack: 36.46lbs

OEM Motor Mounts: 7.8lbs - pair
BMR Adjustable Motor Mounts: 3.8lbs - pair

OEM Windshield Washer Fluid Res. w/ Fluid: 9lbs

OEM Battery: 31.31lbs
Deka ETX18: 17.67lbs
Anti-Gravity YTX12-24: 5lbs
Anti-Gravity YTX12-20: 4.5lbs
Anti-Gravity YTX12-16: 4lbs

OEM Catback Exhaust: 72lbs
Magnaflow 3" Comp CB: 44lbs
Corsa 3" Sport CB: 61lbs
Bassani X-Pipe CB: 38.4lbs

OEM Axle Back Exhaust: 38.4lbs
Pypes Touring Axle Back: 20.4lbs

OEM "Mid Pipes" w/ Cats: 22lbs
MAK O/R Pipes:

OEM Resonator "Suitcase": 17lbs (others report 22-23lbs)
CJPP H-Pipe Res. Delete: 10.5lbs
SR Performance X Pipe Res. Delete: 9lbs

OEM GT/V8 Passenger Side Header: 10lbs.
OEM GT/V8 Driver's Side: 19lbs
Borla GT/V8 Longtube Headers: 14.2lbs per side

OEM Base 18" GT Wheel w/ Tire: 54.5lbs
OEM PP Model 19" GT Wheel w/ Tire: F-60.6lbs / R-64.3lbs
OEM Dark Stainless Painted Aluminum 19" x 8.5" Wheel w/ Tire: 57.6 lbs
OEM Foundry Wheel w/ Stock Tire: 55.2lbs
OEM Foundry 20" Wheel w/ Tire: 64lbs
OEM Premium20x9 Foundry Wheel: 35.7 lbs
OEM GT PP Front 9" Wheel: 32.5lbs
OEM GT PP Rear 9.5" Wheel: 32.4lbs
Billet Specialties 17x4.5 w/ MT SR 28" Radial: 39.8lbs
Racestar 17x4.5 w/ MT SR 26" Radial: 34.6lbs
Billet Specialties 17x9.5 w/ MT 28" Drag Radial: 51lbs
Billet Specialties 17x10 w/ Hoosier 28x10-17 Slick: 42.9lbs
Weld RTS 17x10 and Nitto 555 285/40/17: 50.4lbs
MRR M350 19x10 Wheel: 23.7lbs

HRE FF15 Wheels: Each
18x10 ET40 - 21lbs
19x10 ET40 - 22.6lbs
19x11 ET55 - 23lbs
20x10 ET40 - 24.2lbs
20x11 ET55 - 24.6lbs

OEM Lug Nuts: 12oz (per wheel, 5)
Titanium Lug Nuts: 3.5oz (per wheel, 5)


OEM GT Cloth Seat: 50lbs
OEM Cloth Recaro Seat: 50lbs
Corbeau FX1 w/ Bracket: 25.7lbs

OEM GT Base 14" Front Brake Kit (Rotor/Caliper/Pads): 43.8lbs per side (87.6lbs total L+R)
OEM GT PP 15" Front Brake Kit (Rotor/Caliper/Pads): 47.2lbs per side (94.4lbs total L+R)
Aerospace 13" Lightweight Street Brakes (Rotor/Caliper/Pads/Brackets): 19.4lbs per side (38.8lbs total L/R)

OEM GT Base REAR Brake Kit (Rotor/Caliper/Pads): 31lbs per side (62lbs total L+R)
OEM GT PP REAR Brake Kit (Rotor/Caliper/Pads) -
Aerospace DRAG Rear Brake Kit (Rotor/Caliper/Pads/Brackets): 12.2lbs per side (24.4lbs total L+R)

OEM GT 14" Base Front Rotor: 28.56lbs (57.12lbs pair)
OEM GT PP 15" Front Rotor: 33.4lbs (66.8lbs pair)
Aerospace 13" Lightweight Street Rotor: 14.3lbs (28.6lbs pair)
BAER Eradispeed GTPP Slotted 2-Piece: 22.8lbs (45.6lbs pair)

OEM GT Base Rear Rotor: 17.2lbs (34.4lbs pair)
OEM GTPP Rear Rotor:
BAER Eradispeed GT Slotted 2-Piece: 12lbs (24lbs pair)

OEM GT Base Front Caliper: 15.24lbs (30.5lbs pair)
OEM GT PP Front Caliper: 13.8lbs (27.4lbs pair)
Aerospace Lightweight Front Caliper: 5.1lbs (10.2lbs pair)

OEM GT Base REAR Caliper: 13lbs (26lbs pair)
OEM GT PP REAR Caliper:
Aerospace 2 pot DRAG REAR Caliper:

OEM Front "base" Sway Bar: 12.7lbs
OEM Front PPGT Sway Bar: 14.5lbs
FRPP Track Front Sway Bar: 15.5lbs

OEM Rear "base" Sway Bar: 4.4lbs
OEM Rear PPGT Sway Bar: 4.5lbs

OEM GTPP Front Strut:
OEM GT Base Front Strut:
Koni Yellow Front Strut: 10.3lbs each

OEM S550 Front Strut ASSEMBLY - "Complete" (strut, spring, strut mount): 19.40lbs / per side
VikingFront Coilover Kit ASSEMBLY w/ Sway Bar Mounts - Complete w/ BMR CC Plates: 15.90lbs / per side

OEM GTPP Rear Shock: 4.5lbs
OEM GT Base Rear Shock: 4.5lbs
Koni Yellow Rear Shock: 4.9lbs each

OEM Front V8/GT Coil Springs: 4.8lbs - each
BMR Drag Front Springs: 3.95lbs - each
BMR Performance Front Springs: 4.8lbs - each
BMR Min Drop Front Springs: 4.75lbs - each
BMR Handling Front Springs: 4.8lbs - each

OEM Rear V8/GT "base" Coil Springs: 9.7lbs - each
OEM Rear GTPP Coil Springs: 8.5lbs (reported for '17 MY)
BMR Drag Rear Springs:
BMR Performance Rear Springs:
BMR Min Drop Rear Springs:
BMR Handling Rear Springs:

OEM Front Sway Bar End Links: 1.6lbs pair
BMR Adjustable Front End Links: 2.2lbs pair

OEM Front Bumper Bar: 11.2lbs
BMR Front Bumper Support: 2.8lbs

OEM Rear Bumper Support Bar: 16lbs
BMR Rear Bumper Support Bar: 3.4lbs

OEM 2-Piece Driveshaft / Auto: 29lbs
OEM 2-Piece Driveshaft / Manual: 36.2lbs
Shaftmasters Auto 1-Piece Aluminum DS - 19lbs
Shaftmasters MT82 1-Piece Aluminum DS - 18.73lbs
Dynotech MT82 1-Piece Aluminum DS - 17.4lbs
DSS Auto 1-Piece Aluminum DS - 27.6lbs
DSS Auto 1-piece Carbon Fiber DS - 24lbs

OEM Front Spindle/Hub Assembly: 19.3lbs each
OEM Front Spindle - Bare: 12.19lbs each
S197 Front Spindle/Hub Assembly: 16.25lbs each

OEM Front Control Arm: 4.3lbs each

OEM Front Radius Arm: 6.8lbs each

OEM Front Tie Rod: 2lbs each

OEM Tire Air Pump: 5lbs

OEM EVAP Module/Canister

OEM Engine Sound Tube: 1.3lbs

OEM Engine Coil Covers: .75lbs/each

OEM Engine Cover: 3.4lbs

OEM Battery Cover: 1.23lbs

OEM Plastic Trunk Latch Cover: 2.40lbs

OEM Rear Seats: 30.8lbs

OEM Rear Lower Seat Cushion: 11lbs

OEM Trunk Carpet Cover: 4.6 pounds.

OEM Stock Floor Mats: 2.6 pounds.

OEM Carpet / Complete: 16.5lbs

OEM S550 BARE Hood: 31lbs
OEM S550 Loaded Hood: 36~lbs
Trufiber Carbon Fiber (Lightweight) Hoods: 17lbs
Trufiber Carbon Fiber (Standard) Hoods: 30lbs
Trufiber Fiberglass Hoods: 40lbs Anderson Composites CF Hood: 22lbs


2015 Mustang GT Performance Pack 300A - MT82 Transmission
Curb Weight (scaled at BMR) - 3736lbs
Front Unsprung Weight: 143.9lbs per side
Rear Unsprung Weight: 132lbs per side


2015 Mustang GT Base 300A - 6R80 Automatic Transmission
Curb Weight (scaled at BMR) - 3704lbs
Front Unsprung Weight:
Rear Unsprung Weight:


***AFTERMARKET "ADD-ON" PARTS (parts that the vehicle is not equipped with from the factory)

Chassis Jacking Rails
BMR CJR001: 21lbs
BMR CJR002: 13.76lbs
Steeda Ultra Lite: 12lbs

Newbie member making first post, I am looking for weight of dressed ecoboost, with turbo, throttle body, starter and alternator, did a thread search and did not find. Thank you



[OrangeFury1]

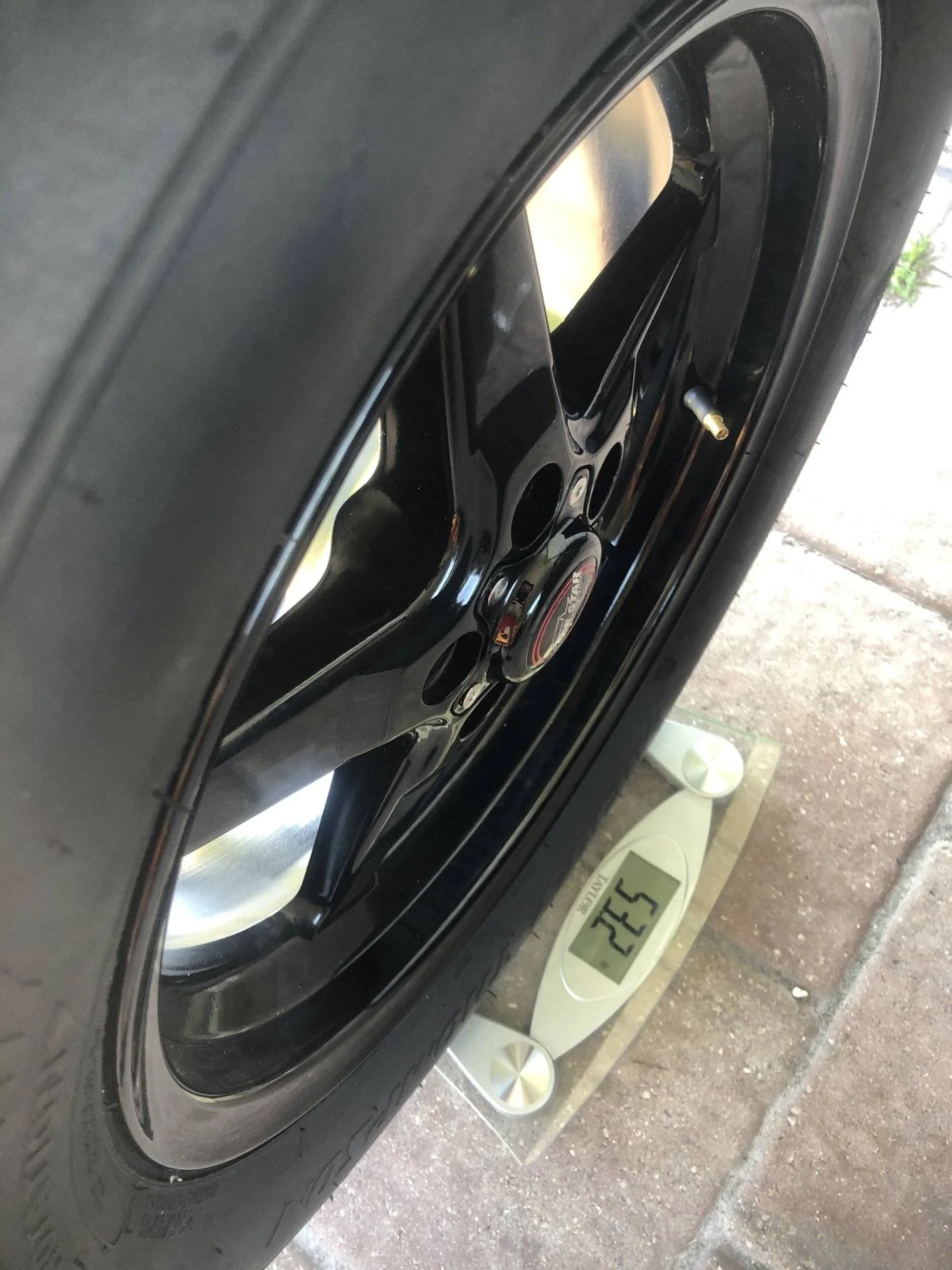

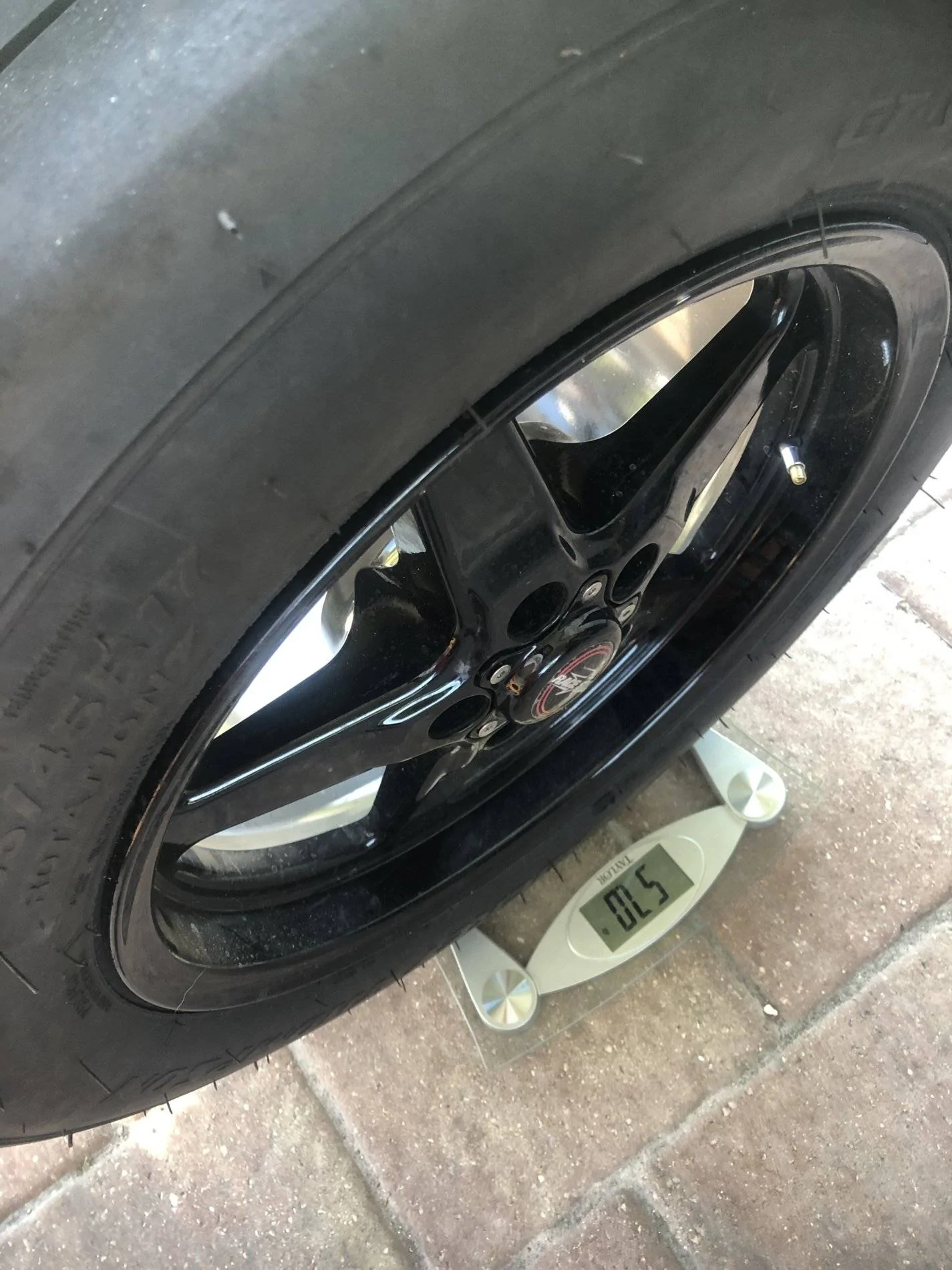

In case anyone was curious.

Tires: 305-45-17 Mickey Thompson ET Street Rs.

Race Star wheels. One 9.5 other 10.5. Both around 25psi.

9.5 weighed around 53lbs
10.5 around 57lbs.



[Semp1]

Theyre

Has anyone weighed the PP 2 OEM wheels?

32lbs each. Pretty much same as PP1 wheels.



[gmuffley]

Theyre

32lbs each. Pretty much same as PP1 wheels.

Thanks



[Andy13186]

I weighed VMS racing wheels 17x10 they are 23.2 lbs (they are advertised as 22)

325 45 17 M&H racemaster drag radial tires are 33.6 lbs



[Andy13186]

Baer eradispeed+ drilled and slotted rotors for performance pack

26.8 lbs front (53.6 for the pair incorrect info in OP that must be for the 14 inch rotors)
13.2 lbs for the rears (26.4 for the pair)

Total all 4 rotor weight of 80 lbs for current baer eradispeed+ drilled and slotted

Total all 4 rotor weight for OEM rotors according to OP is 101.2 I will be able to confirm this once I get these baer installed. So far the baer arent saving as much weight as they were advertised to, they said 5.75 lighter than oem on each of the rear rotors and 10lbs lighter than oem for each of the front which would have been over 30 lbs of weight savings, at this time its looking like 21.2 lbs but I will have to weigh my OEM rotors (they are used though - 17k miles on them)

Edit* I looked up videos of CJponyparts install of baer eradispeed rotors and they are different than the current, the older ones have thinner walls but less holes drilled in them, mine have 6 holes drilled per drill line the older version has 4, mine have thicker rotor faces/walls. also the current ones have unpolished vanes.

update *

I weighed my stock rotors with 17k miles on them and 34 lbs for the fronts and 17.2 for the rear.

Total weight savings going to baer eradispeed+ from stock 2018 PP1 rotors was approximately 24 lbs.



[SLY550]

2015 Mustang Component Weights

Making a list here. Will have more parts soon - just needed to start keeping track!

HRE FF15 Wheels: Each
18x10 ET40 - 21lbs
19x10 ET40 - 22.6lbs
19x11 ET55 - 23lbs
20x10 ET40 - 24.2lbs
20x11 ET55 - 24.6lbs

Forgestar F14 Drag Pack Wheels Each

18 x 5 - 18.8lb
17 x 10.5 - 20lb



[Biggus Dickus]

How about PPL2 wheels?
