No fuel pressure Arcane stage 2

[DevonTK]

So I have everything wired and plumbed for the arcane stage 2 fuel system and am not getting fuel pressure trying to start. Any ideas?

Sponsored



[DevonTK]

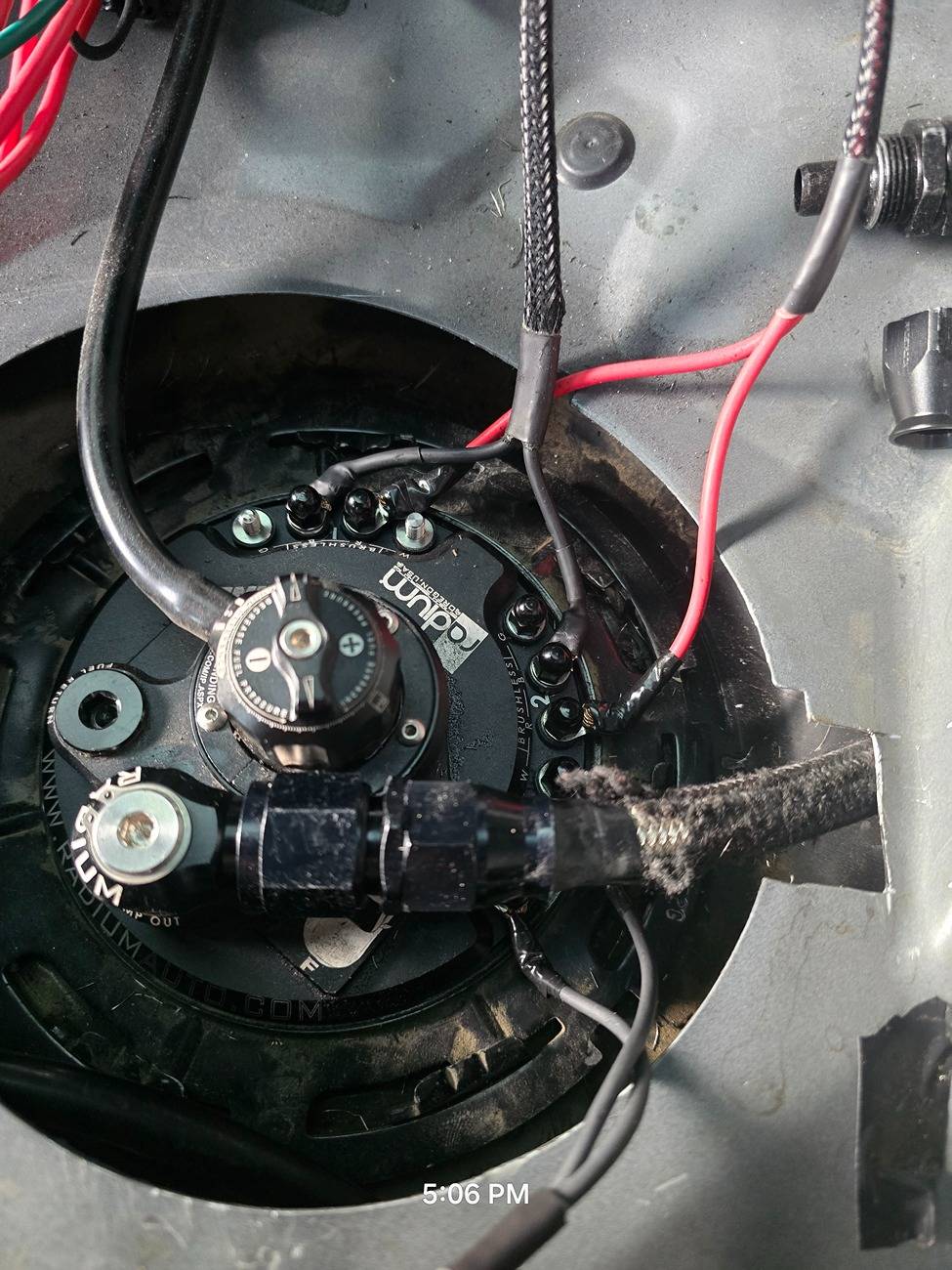

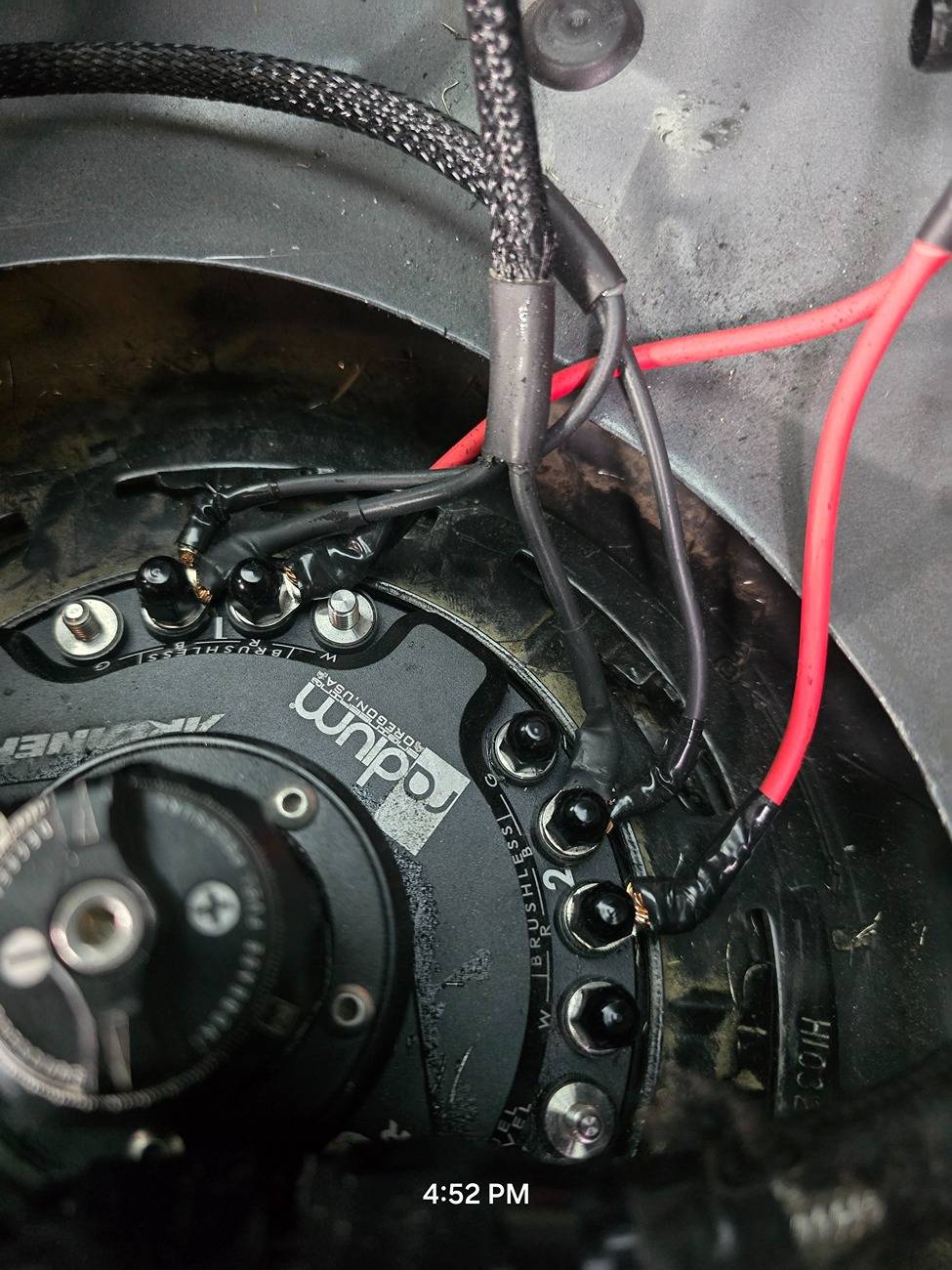

I saw my fuel level wires were wrong. This is what I have now



[Magony15]

The terminals under the hat can get loose too.



[DevonTK]

The terminals under the hat can get loose too.

Does my wiring look alright?



[LOL WUT]

Does my wiring look alright?

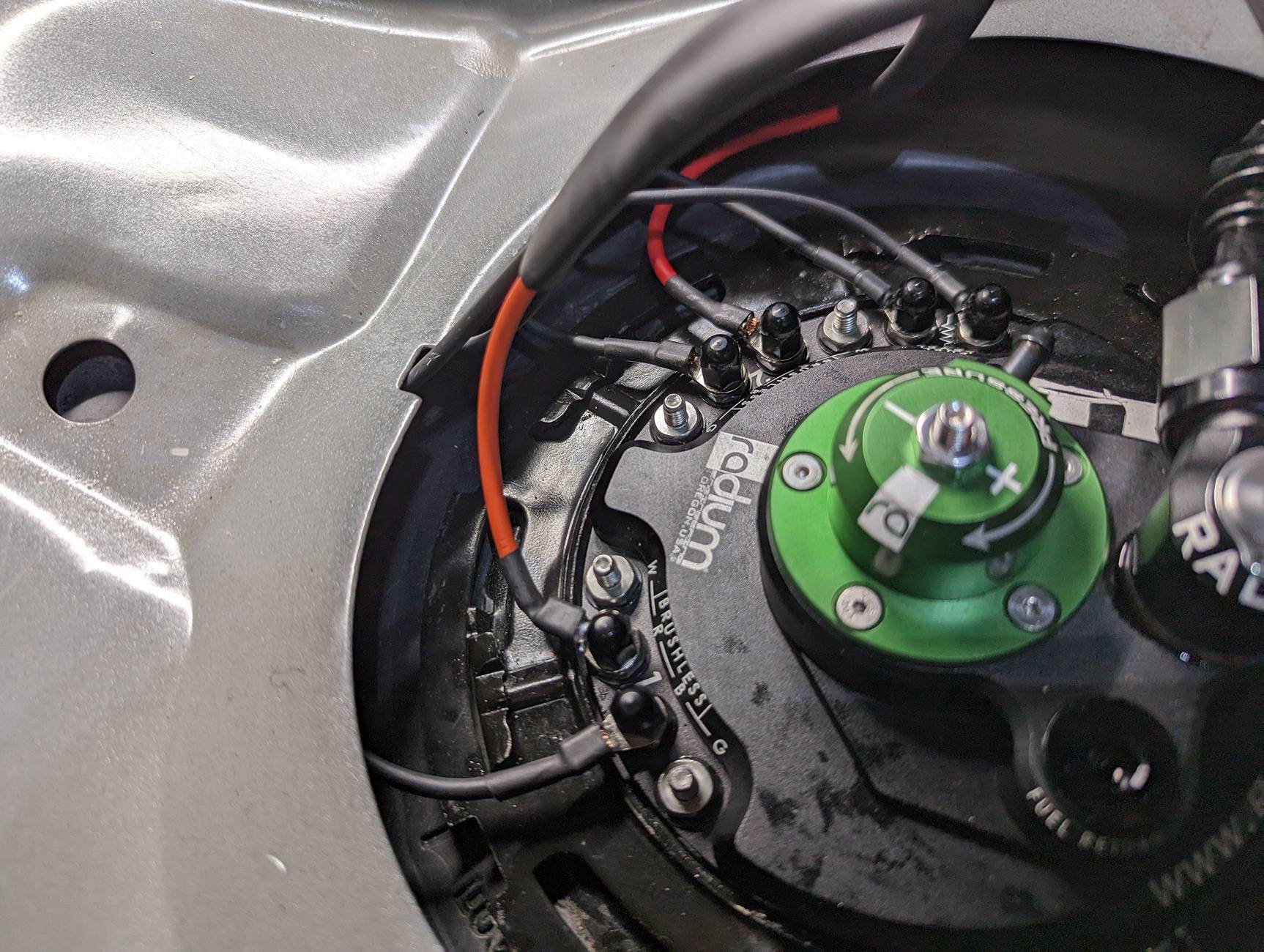

Your wiring looks good. Black to B post, R to R post. Fuel level wires to fuel level post.

If you’re having issues, check your ground, they can be very finicky. I have mine grounded to the car seat anchor bolt. If that doesn’t resolve the issue, it may be that the post on the underside of the hat are loose. I have not experienced that but it’s my only assumption given that the wiring to the hat looks good.



[DevonTK]

Your wiring looks good. Black to B post, R to R post. Fuel level wires to fuel level post.

If you’re having issues, check your ground, they can be very finicky. I have mine grounded to the car seat anchor bolt. If that doesn’t resolve the issue, it may be that the post on the underside of the hat are loose. I have not experienced that but it’s my only assumption given that the wiring to the hat looks good.

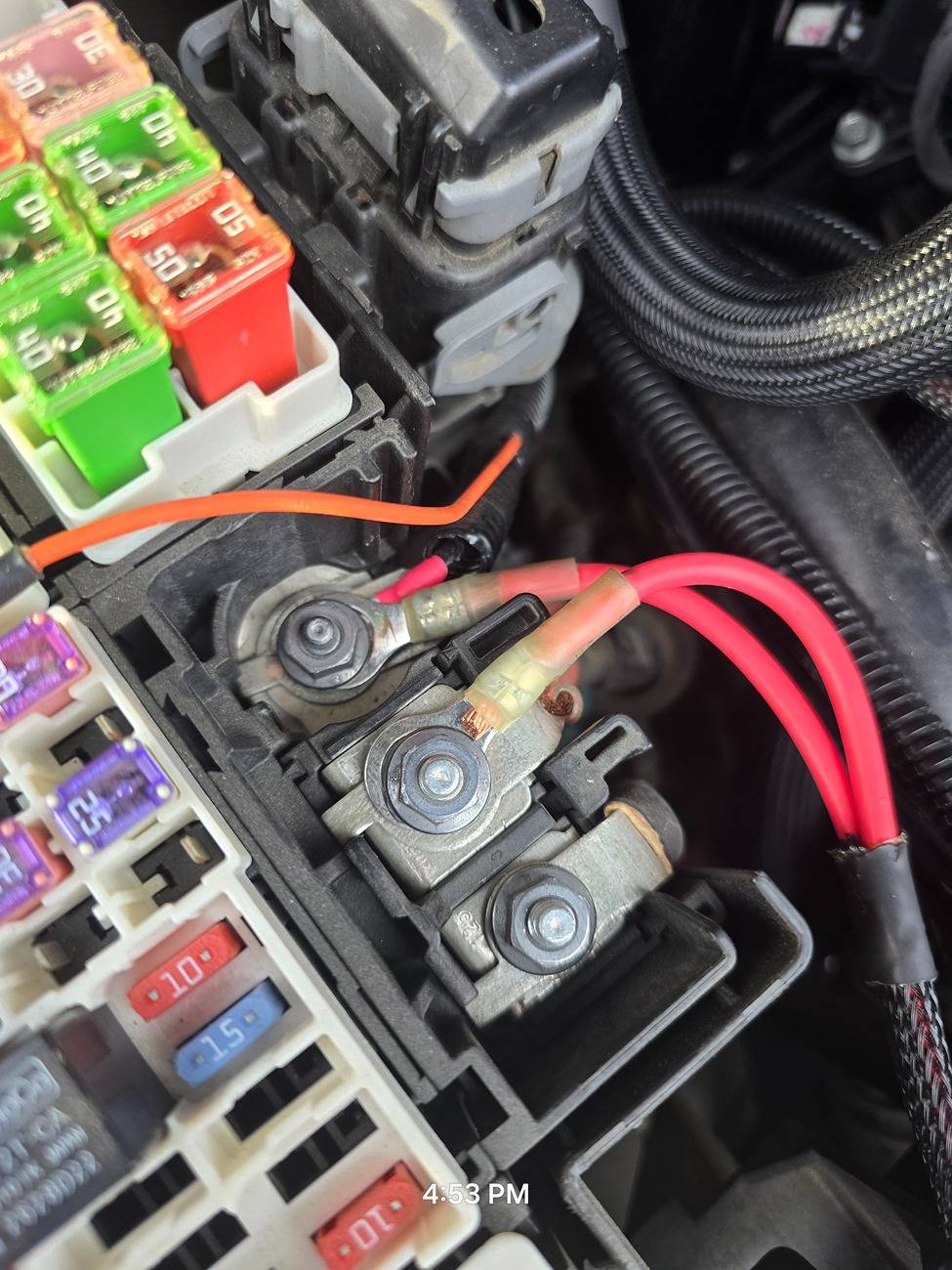

Ok thanks. And the wires going to the fuse box are ok how they are?



[thunderclaps691]

Both wires on the box go to the upper red.



[DevonTK]

Both wires on the box go to the upper red.

Alright, I will move that one over. I sanded the seat belt anchor and grounded both wires to it. I will also try to ground it to the other seat belt anchor I guess. If that doesn't work I will remove hat and check inside it I guess. I had the company assemble the hat for me.



[thunderclaps691]

Let me know if you need help. PM me we can schedule a FaceTime



[DevonTK]

Let me know if you need help. PM me we can schedule a FaceTime

Ok thank you. I will try those things when I get off work and if it still won't work I'll shoot you a pm.



[LOL WUT]

@DevonTK any luck resolving this?



[DevonTK]

@DevonTK any luck resolving this?

I have narrowed it down to the relay box on the fuel system harness. I'm getting power to the relays but nothing from the relays to the hat. Checked the relays and they are good. After work today I'm going to take apart the relay box and make sure everything is cramped right. If that doesn't work I'm thinking about deleting the relays to see if that let's power through.



[SheepDog]

I have narrowed it down to the relay box on the fuel system harness. I'm getting power to the relays but nothing from the relays to the hat. Checked the relays and they are good. After work today I'm going to take apart the relay box and make sure everything is cramped right. If that doesn't work I'm thinking about deleting the relays to see if that let's power through.

Did you assembly the fuel hat, or have Arcane do it?

I assume there must be fuses somewhere in the harness or under that black cover, maybe you popped one.



[DevonTK]

Did you assembly the fuel hat, or have Arcane do it?

I assume there must be fuses somewhere in the harness or under that black cover, maybe you popped one.

Arcane assembled it. I checked the fuses by the firewall and they are fine. Power just isn't getting past the relays to the wires that run to fuel hat.



[DevonTK]

Ok I'm getting power off the relays to the hat now, but still no fuel getting pumped to the rails should I just take the hat out and check their wiring?
