Well, two 10'inch subs have more cone area than one 12 inch sub.
So it's natural that they have higher SPL.

With one driver each ported is higher SPL though.

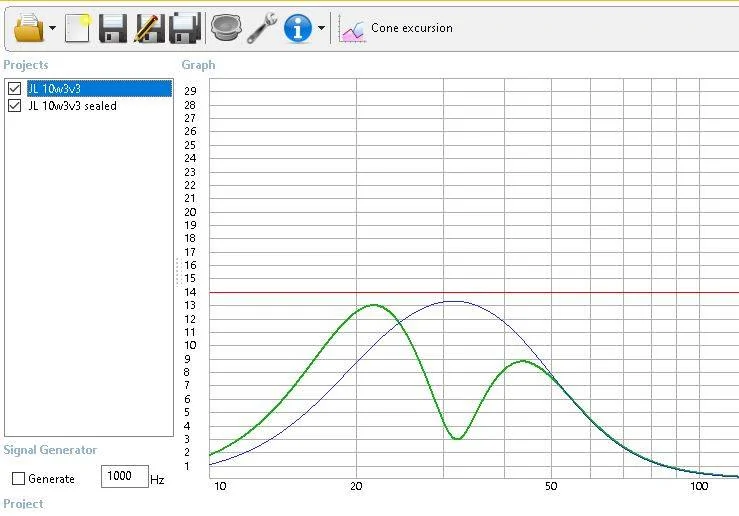

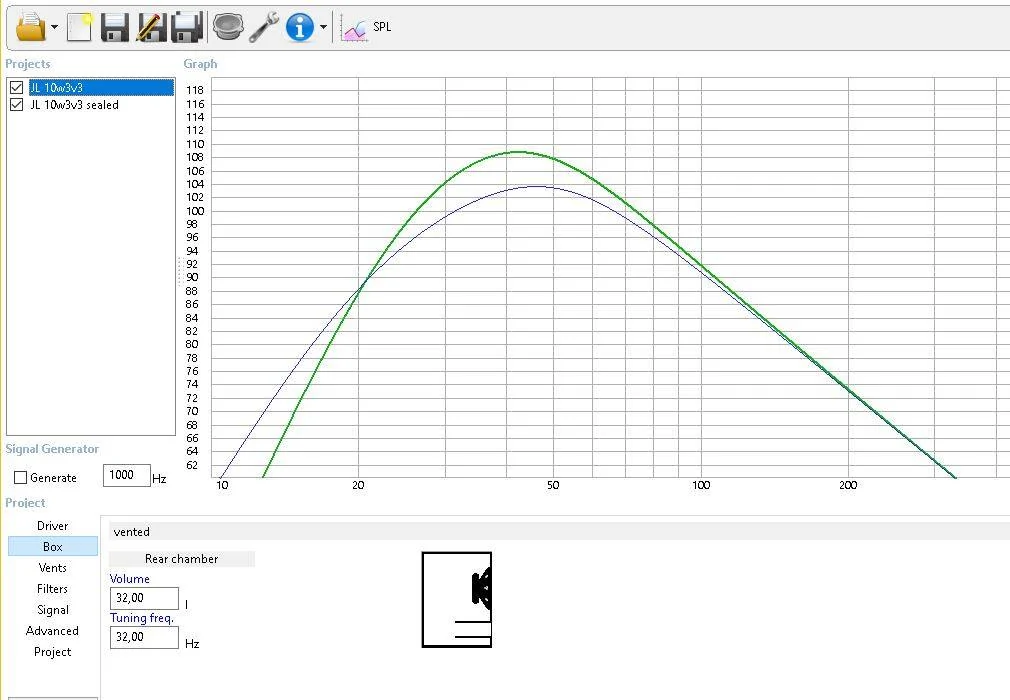

See my screenshot. WinISD model of both sealed and ported 10w3v3 with 32liters each. Ported is tuned to around 32Hz.
Both simulations have a lowpass BW 18db at 50Hz and both have a highpass at 21db LR24db (to limit excursion below the excursion limit).
Green is ported, blue is sealed. Ported wins down to about 22Hz. ;)


I guess this is the reason that Marc from CAF has chosen a ported box for the blueprint.
Ported is also way less excursion between 50Hz and 25Hz, which means lower distortion.
Sponsored



StangTime

Well-Known Member
Joined
Apr 16, 2019
Threads
77
Messages
3,491
Reaction score
3,884
Location
Ontario 🇨🇦
First Name
Todd
Vehicle(s)
19' GT PP1 Manual
Well, two 10'inch subs have more cone area than one 12 inch sub.
So it's natural that they have higher SPL.

With one driver each ported is higher SPL though.
See my screenshot. WinISD model of both sealed and ported 10w3v3 with 32liters each. Ported is tuned to around 32Hz.
Both simulations have a lowpass BW 18db at 50Hz and both have a highpass at 21db LR24db (to limit excursion below the excursion limit).
Green is ported, blue is sealed. Ported wins down to about 22Hz. ;)


I guess this is the reason that Marc from CAF has chosen a ported box for the blueprint.
Ported is also way less excursion between 50Hz and 25Hz, which means lower distortion.
If the trunk was bigger I could do 2 ported drivers... but a single ported 12" box is using more volume than 2 sealed 10's. AND the dual 10's were cheaper than a single 12". I added the filters and they look very close in terms of response.

Curious to see how yours turns out.

OP
OP
mikes2017gt

mikes2017gt

Well-Known Member
Joined
Feb 21, 2017
Threads
59
Messages
936
Reaction score
311
Location
San Antonio, TX
Vehicle(s)
17 GT Prem M/T 3.55

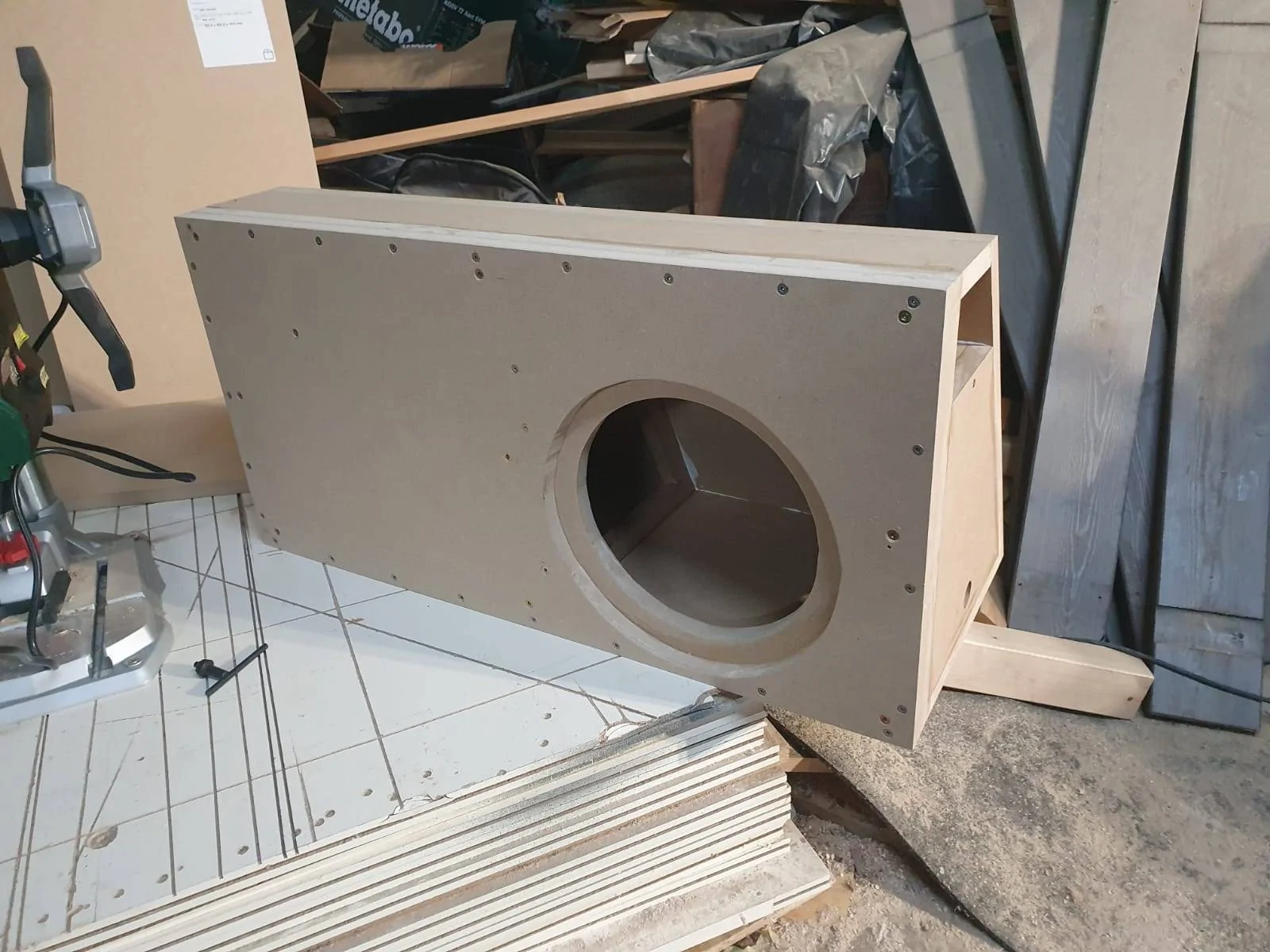

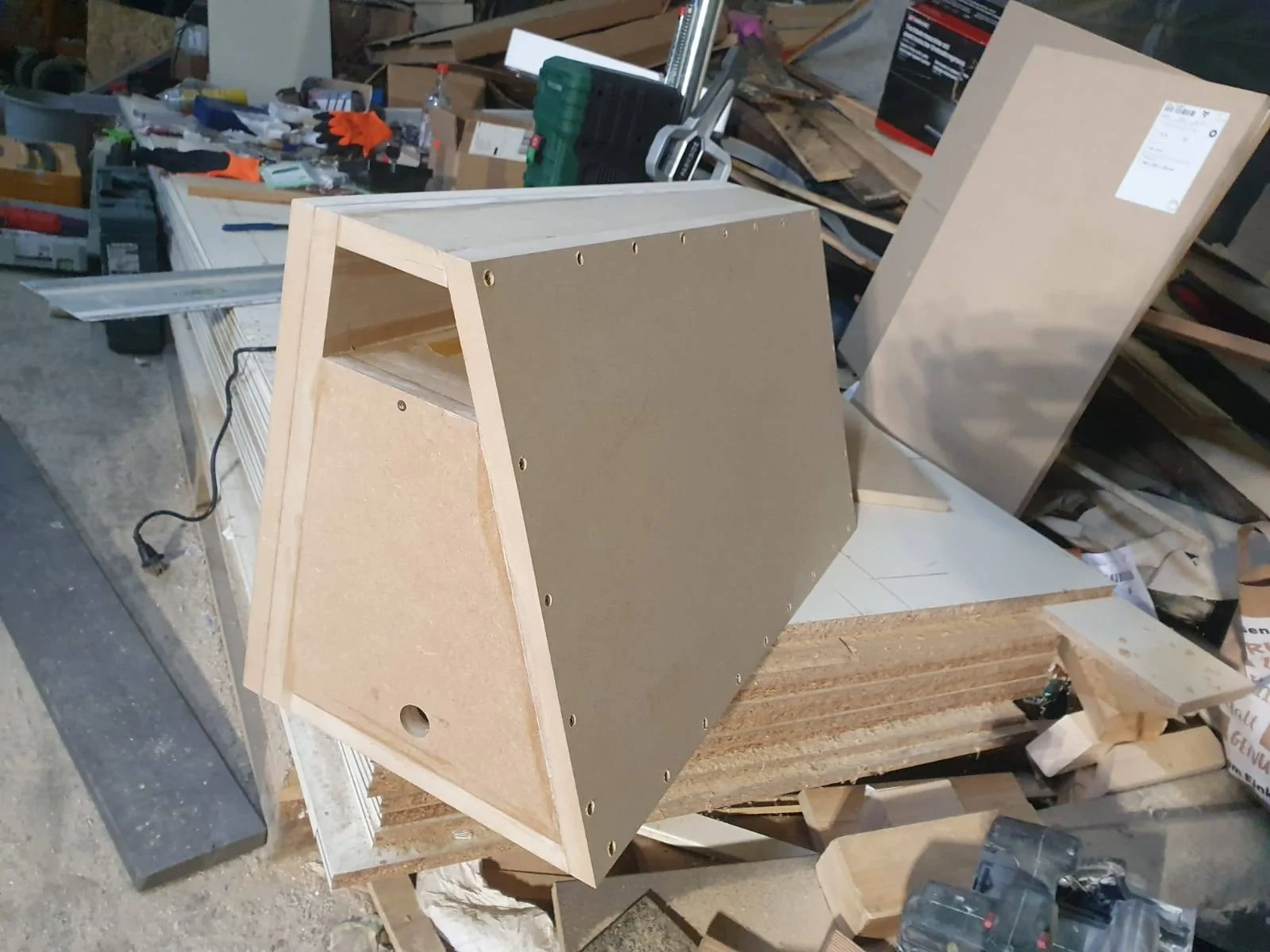

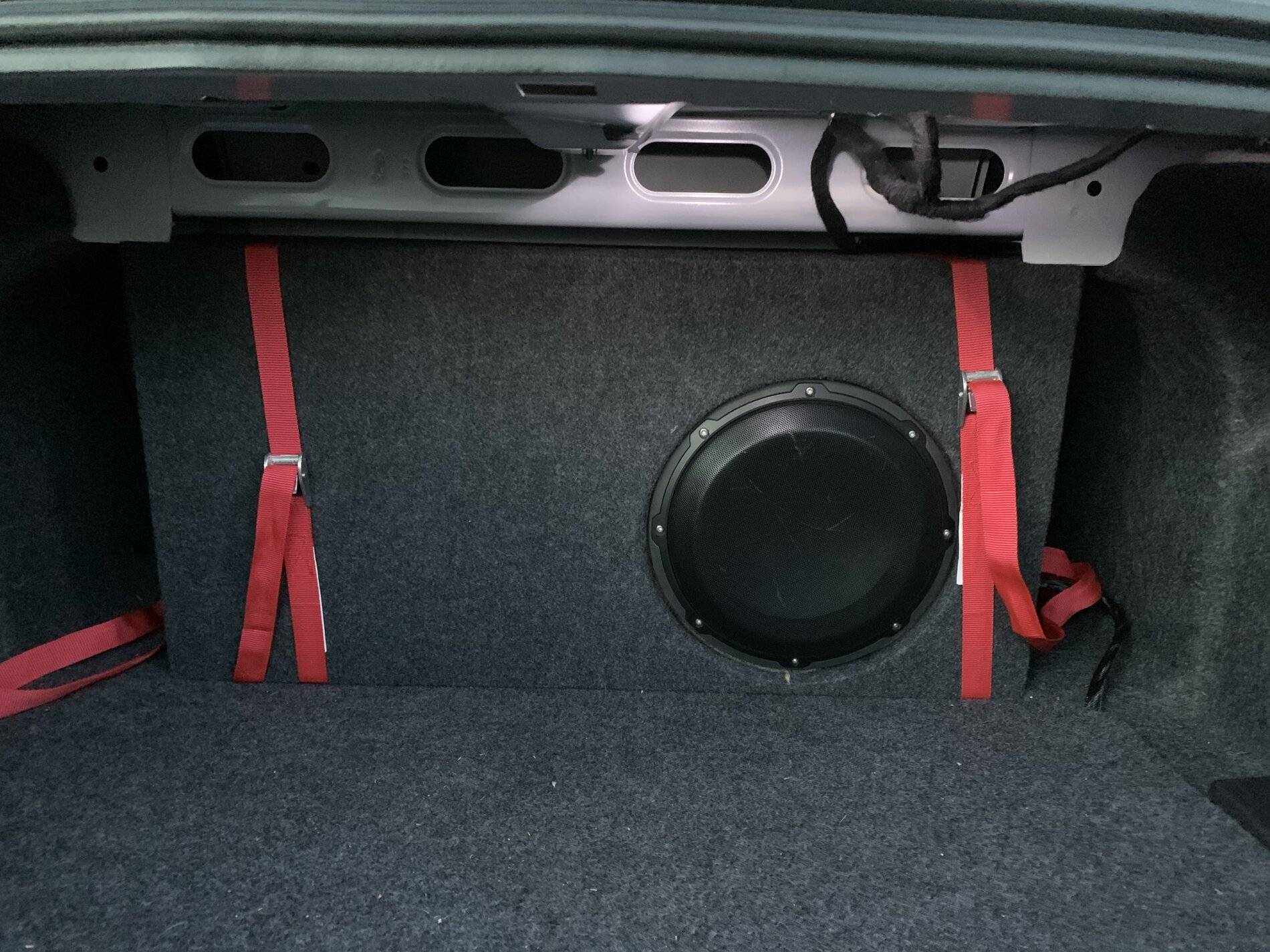

Here are a few pictures of the new sub enclosure build after Marks (Caraudiofabrication.com) blueprint.

That is one solid-looking box! Is that 25mm MDF or 19mm (3/4"?) It seems the rest of the world has easy access to 25mm (1") MDF but here in the states you have to buy it buy the pallet of like 50 sheets.


Sponsored

5.0hopeful

Well-Known Member
Joined
Sep 3, 2015
Threads
33
Messages
200
Reaction score
18
Location
Texas
Vehicle(s)
2016 Mustang GT
I know this is an old thread and apologies for that but I just went through this whole thread. It was amazing to learn. @mikes2017gt , did you ever finish this off and what were your thoughts? Do you still have the car?


joe603

Well-Known Member
Joined
Feb 2, 2021
Threads
49
Messages
583
Reaction score
384
Location
ATL
First Name
Joe
Vehicle(s)
2021 GT Premium PP
Wow! Such an awesome build! I started my project with just replacing the factory "sub" with a zen dual 12s box. Was going to just mount the amp on the box, but this thread inspired me to do the amp rack. Still a work in progress (I used an old shelf from a stereo cabinet to mount everything while I work on the final amp rack). Now, I think I'm going to replace the door/rear deck speakers...has anyone tried to not use a DSP and only the LC8i?


Ben James

Well-Known Member
Joined
Oct 19, 2018
Threads
0
Messages
83
Reaction score
91
Location
Queensland, Australia
First Name
Ben
Vehicle(s)
2018 S550 Mustang GT
Excellent thread. I’m stealing some of your ideas for my own setup which I’m in the process of building. I’m in Australia so I’ve got the Eruo version of the 2018 Mustang PP1 GT with the Shaker system. I’m just about to see where the easiest way to feed a power cable is for our battery’s which are on the left hand side of the engine bay.

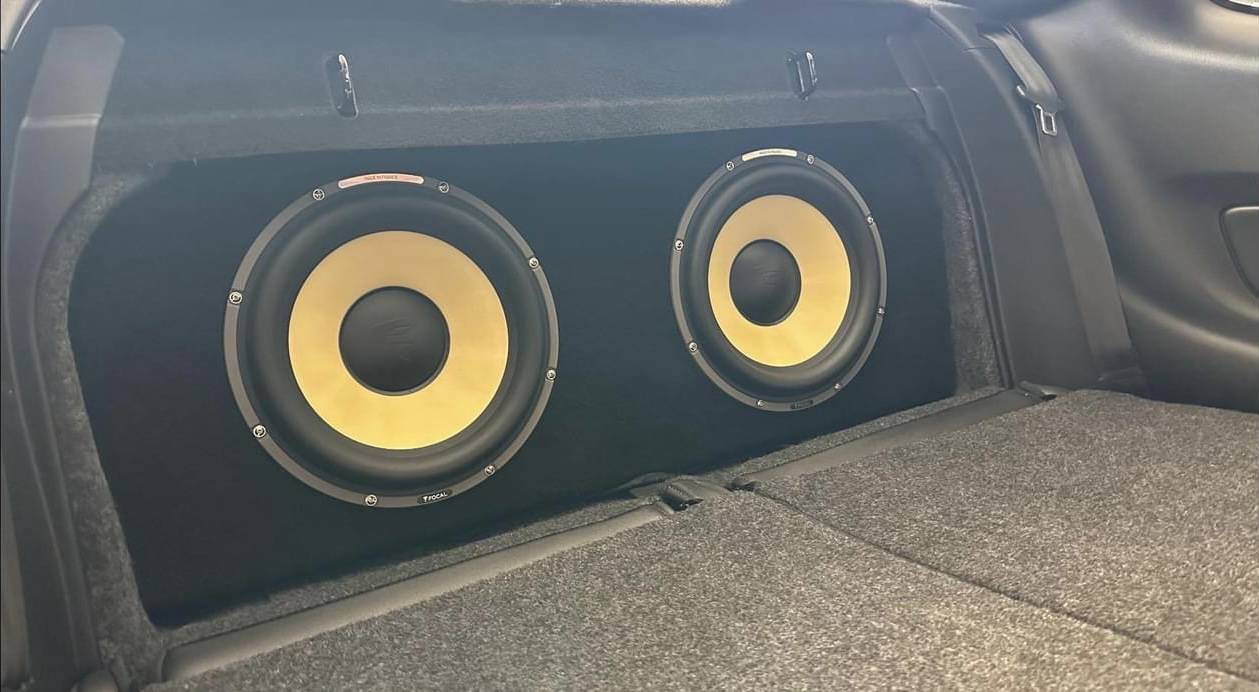

so far I’ve managed to shove in two Focal E30kx subs between the wheel well which was a task and a half to say the least.

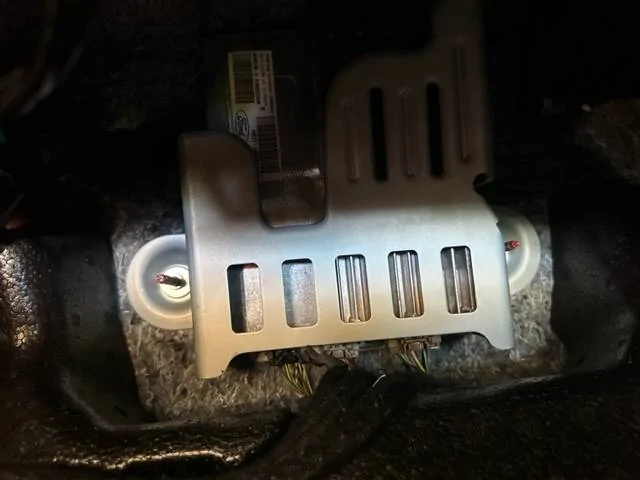

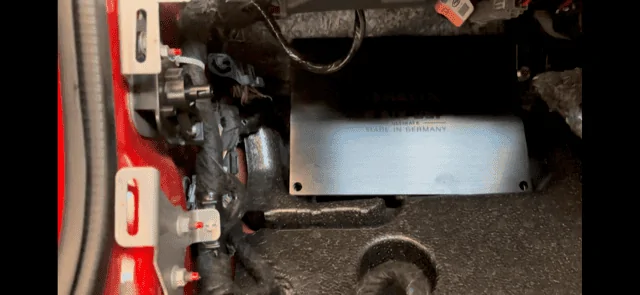

next step is to try and fit an amp for the front stage under the dash to save as much wiring as possible…

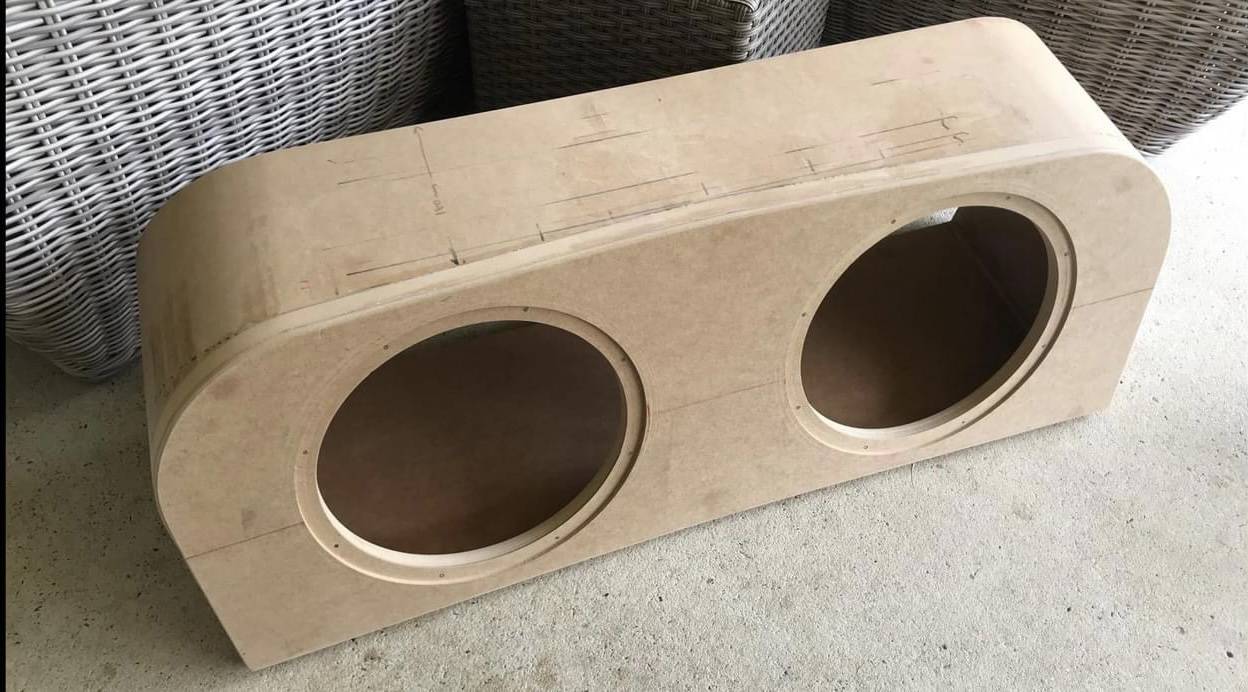

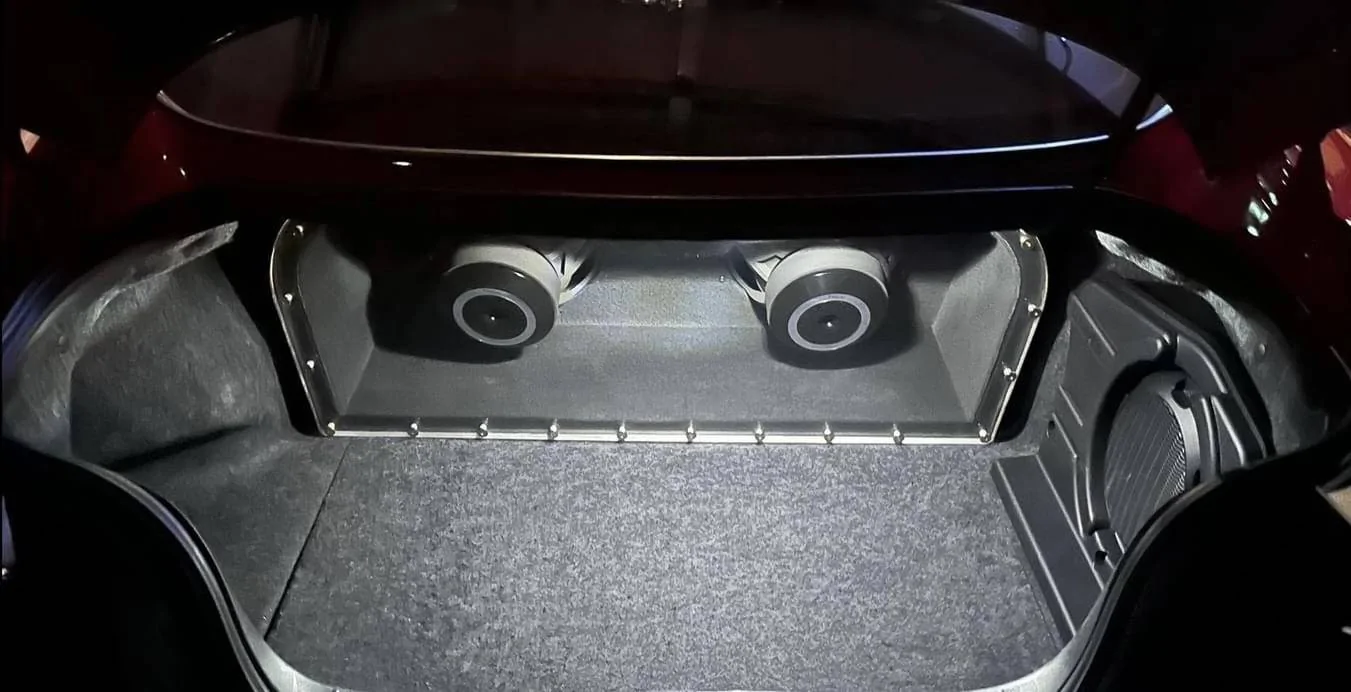

thanks again for inspiring my own build, sneaky couple of preview pics included. Box is exactly 2.5 cuft sealed.







Sponsored
OP
OP
mikes2017gt

mikes2017gt

Well-Known Member
Joined
Feb 21, 2017
Threads
59
Messages
936
Reaction score
311
Location
San Antonio, TX
Vehicle(s)
17 GT Prem M/T 3.55

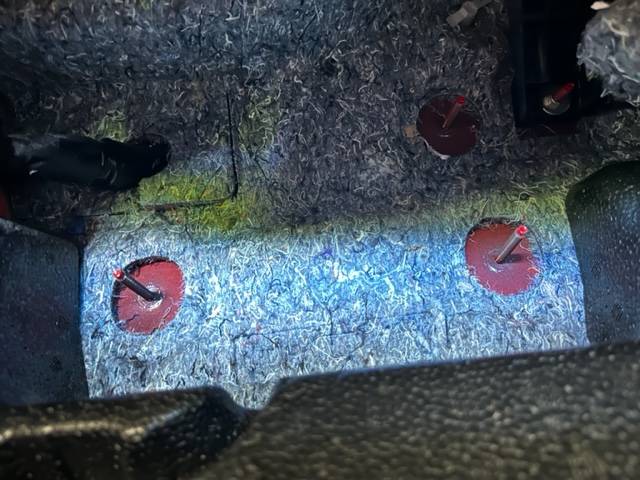

Thanks for the compliment. The stand-offs are acrylic. 1 3/4" I think. Just parted them off on a lathe. Drilled and tapped. The were bolted from the bottom. I drilled a hole through the board and then a second hole to accommodate the 5mm led. Question..is your box a ported one?
