I will explain better. My previous car, 2010 Fusion Sport...if I unlocked the car during the day, nothing happened. If I unlocked it at night, the headlights would turn on, which provides better light in dark areas. So it is not while I am driving, but when I am out of the car, walking to it and unlocking it. Hope that makes more sense.
many cars do as you described not sure it's possible(not easily) I think ford substituted the headlights for the gill lights for that function.
Sponsored



Randhawa_KS

Well-Known Member
Joined
Oct 18, 2018
Threads
0
Messages
68
Reaction score
21
Location
Melbourne
First Name
KS
Vehicle(s)
2019 Mustang GT OF vert, FG XR6, Lexus RX 350
this is the link to the german forum entry. It includes the replacement part number of the receiver as well as the Forscan codes
https://mustang6.de/viewtopic.php?f=8&t=2250&p=204099&hilit=Fernstart#p224633

extract:
tascaparts.com (Teilenummer: FR3Z-15607-C)
Forscan:
IPC: 720-04-01 / 0400 0000 0040
720-04-02 / 5553 00D5
BCM: 726-20-01 / 0303 0303 035D
726-22-02 / 0001 0001 AAFD
Thanks rodi22, I checked with one of the Mustang tech shop here and they are bringing the US remote start kit with all the hardware as you mentioned including key fob, receiver module etc in next couple of weeks and will start installing locally.


Sponsored

fairplayinc

Well-Known Member
Joined
Jul 17, 2016
Threads
12
Messages
64
Reaction score
3
Location
West Palm Beach, FL
Vehicle(s)
2019 GT PP1 Convertible

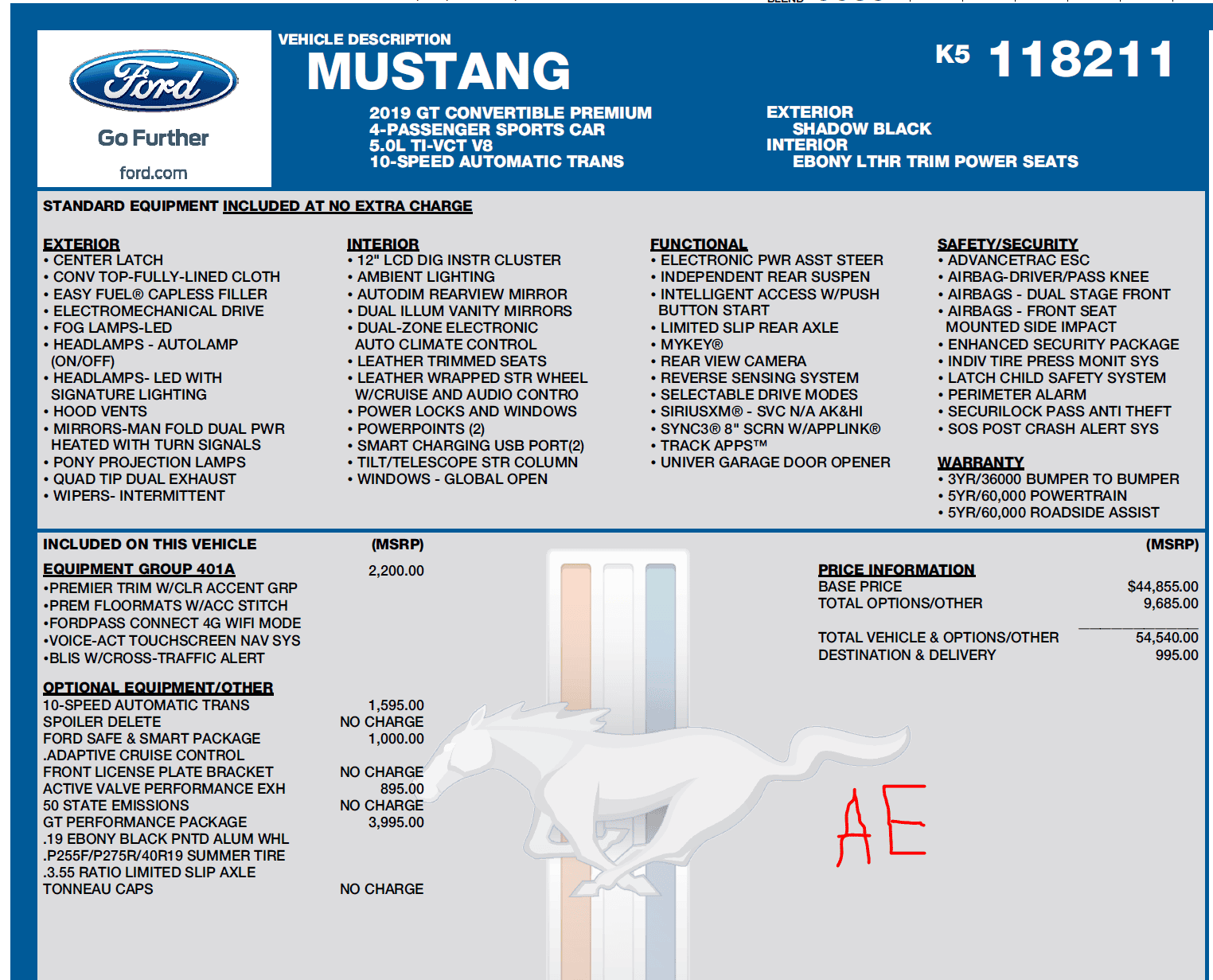

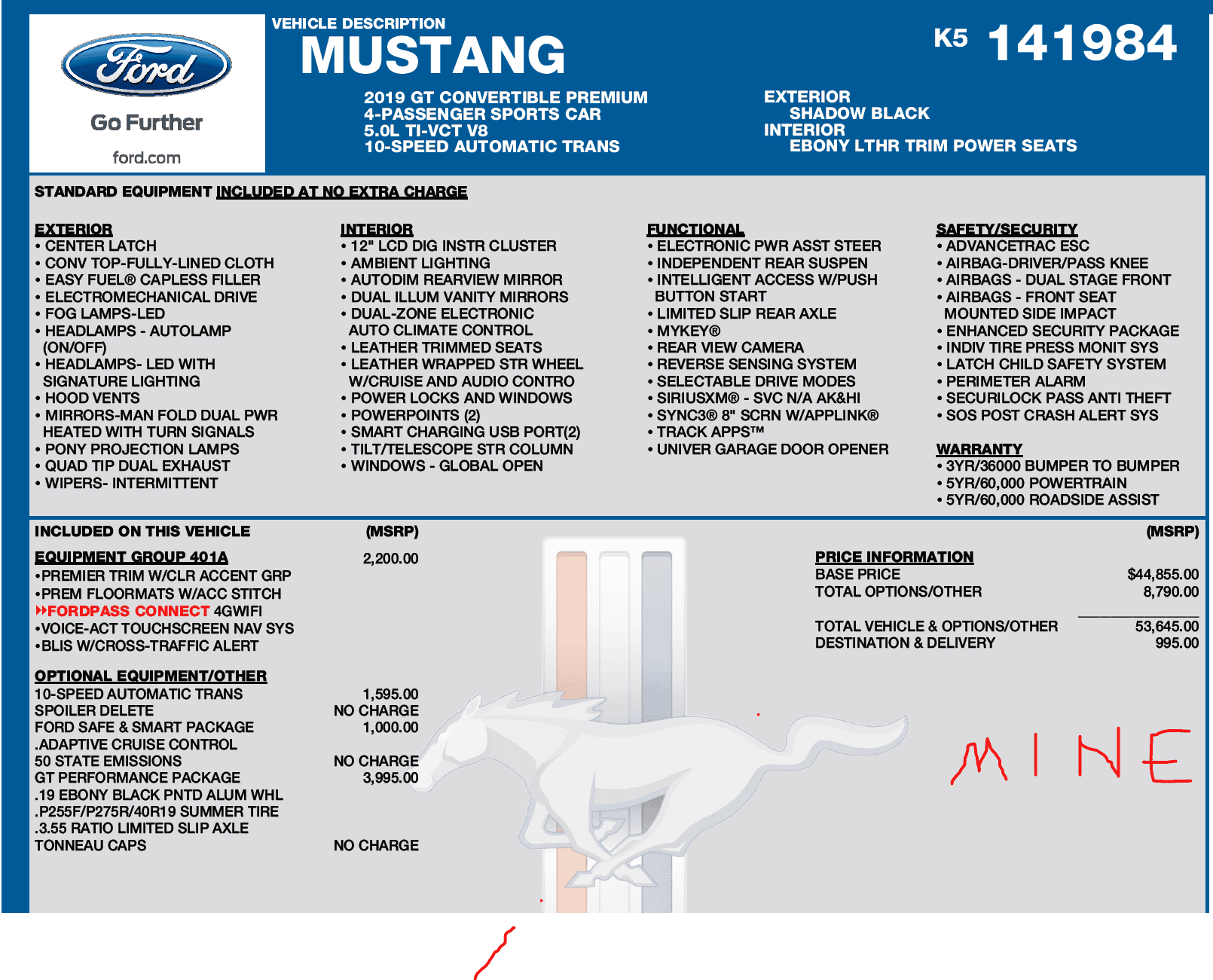

Hi Folks, I need some assistance. Active Exhaust. I posted this in the thread relating directly to the Active Exhaust retrofit and while folks have been quite helpful, I still cannot get it working. Some folks have had success changing 720-04-01 and 720-10-01 on 2018s. Mine is a 2019 and Ford must have changed things up. I pulled a VIN and sticker for a duplicate to my car but WITH active exhaust (see below). I then crossed ALL of the AB data and found which ones are different. There are quite a few. I imagine some are VIN related.

I have changed the 720-10-01 and can see the active exhaust modes on my instrument cluster, I have the plug at the back of the vehicle. I have power going to that plug (confirmed with voltmeter). It does NOT give me the error that other folks received about "no exhaust modes available".

Any insight you all could give on the module line details would be amazing. TIA

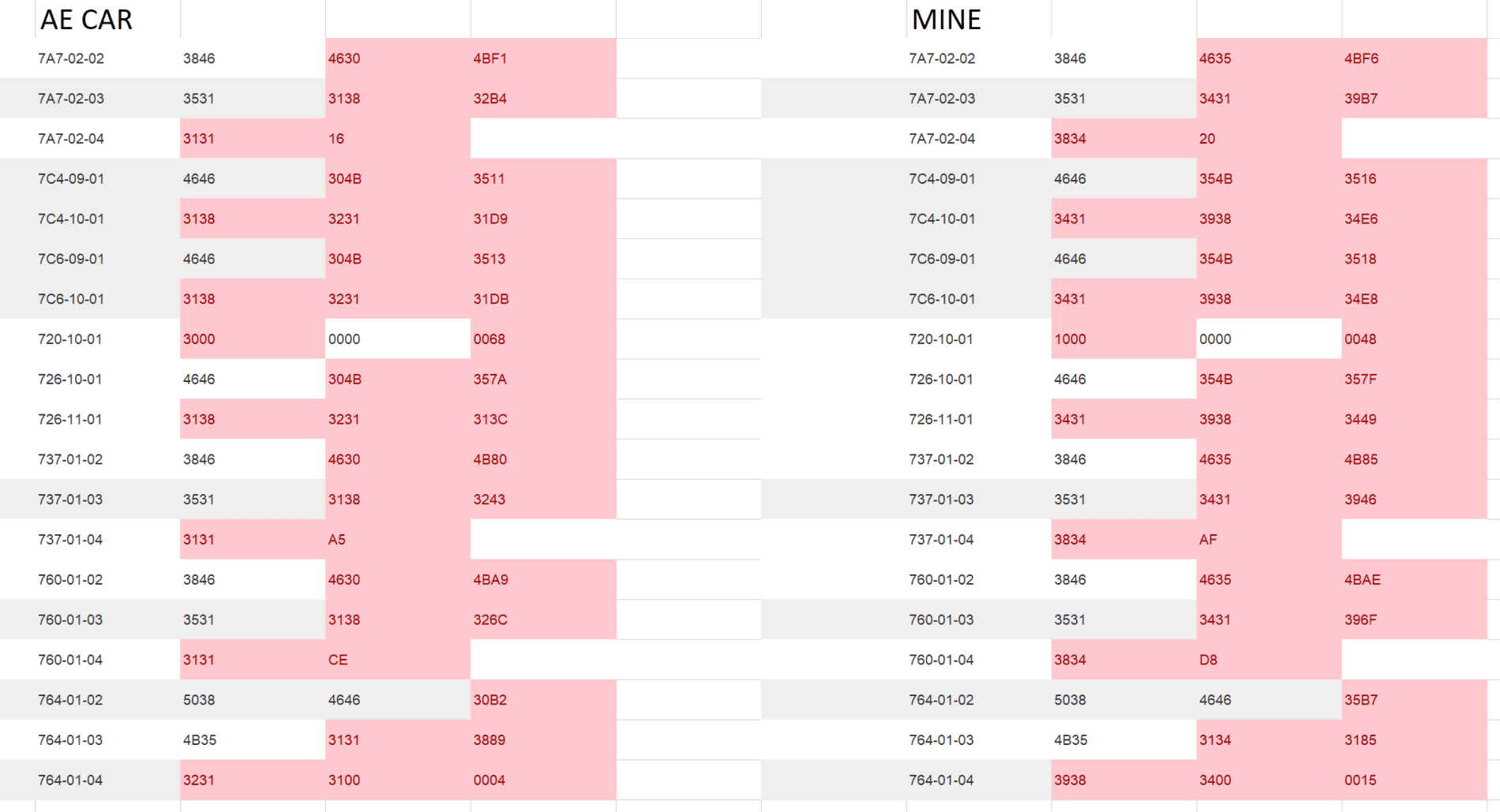

All AB Diffs.PNG


Kahboom

Kahboom
Joined
Nov 28, 2014
Threads
26
Messages
1,206
Reaction score
184
Location
Cathedral City, CA
Vehicle(s)
2015 Mustang GTPP, Recaros/2014 Explorer Sport 4X4
How do you change dual to single zone A/C or vise versa, I've seen it somewhere just don't remember where to find it. Thx.


Spart

Well-Known Member
Joined
Jul 29, 2016
Threads
18
Messages
1,205
Reaction score
577
Location
Iowa
Vehicle(s)
17 GT350

sed6

Well-Known Member
Joined
Feb 9, 2017
Threads
9
Messages
67
Reaction score
21
Location
OKC, OK
First Name
Scott
Vehicle(s)
2018 GT Premium
Anyone know what 0726-32-01 does for 2018 and 2019? For 15-17 that was Dark Mode/Police Mode but doesn't do anything in my '18.
Thanks!
Scott

Edit to ask: I can write to BdyCM and AIPM but not IPC. I get and error that says procedure has been interrupted. Ideas?

Last edited:

Boggus

Well-Known Member
Joined
Jan 6, 2016
Threads
22
Messages
325
Reaction score
68
Location
Cypress
Vehicle(s)
16 Mustang GT PP
Anyone ever figure out how to turn the steering wheel controls, lights on/ off?


Sponsored

fiveliter

Active Member
Joined
Jan 23, 2019
Threads
0
Messages
26
Reaction score
2
Location
New York
First Name
Sean
Vehicle(s)
2015 Mustang Ecoboost, 2003 Mustang Mach 1
Vehicle Showcase
1
I have a 2015 base model Ecoboost Mustang, automatic, and MFT. I just added a premium gauge cluster with Mycolor. Everything is working perfectly except that I’m getting a “check park aid” message at start up. Using FORScan, I changed the IPC 720-02-02 from 1Axx-xxxx to 08xx-xxxx to disable the parking aid, but I’m still getting the message at start up. Am I missing anything? Any other as-built changes?


Dave_6

Well-Known Member
Joined
Oct 26, 2017
Threads
0
Messages
56
Reaction score
49
Location
Alabama
Vehicle(s)
2017 LB Mustang GT PP
I bought the OBDLink MX a few weeks ago but I cannot get my damn laptop to see it. I know my laptop has bluetooth (or I'm 99% sure it does) but it will not find it. Probably something to do with my laptop but I'm at my wits end with this.


5.0_SD

Village Idiot/Biermeister
Joined
Feb 24, 2017
Threads
25
Messages
1,136
Reaction score
395
Location
Central Florida
First Name
Bill
Vehicle(s)
17 GT Base Lightning Blue
@Dave_6 go into device manager, look under bluetooth and make sure you have current drivers. If you see no bluetooth, then find the drivers for your motherboard and install the most up to date bluetooth drivers.


Dave_6

Well-Known Member
Joined
Oct 26, 2017
Threads
0
Messages
56
Reaction score
49
Location
Alabama
Vehicle(s)
2017 LB Mustang GT PP

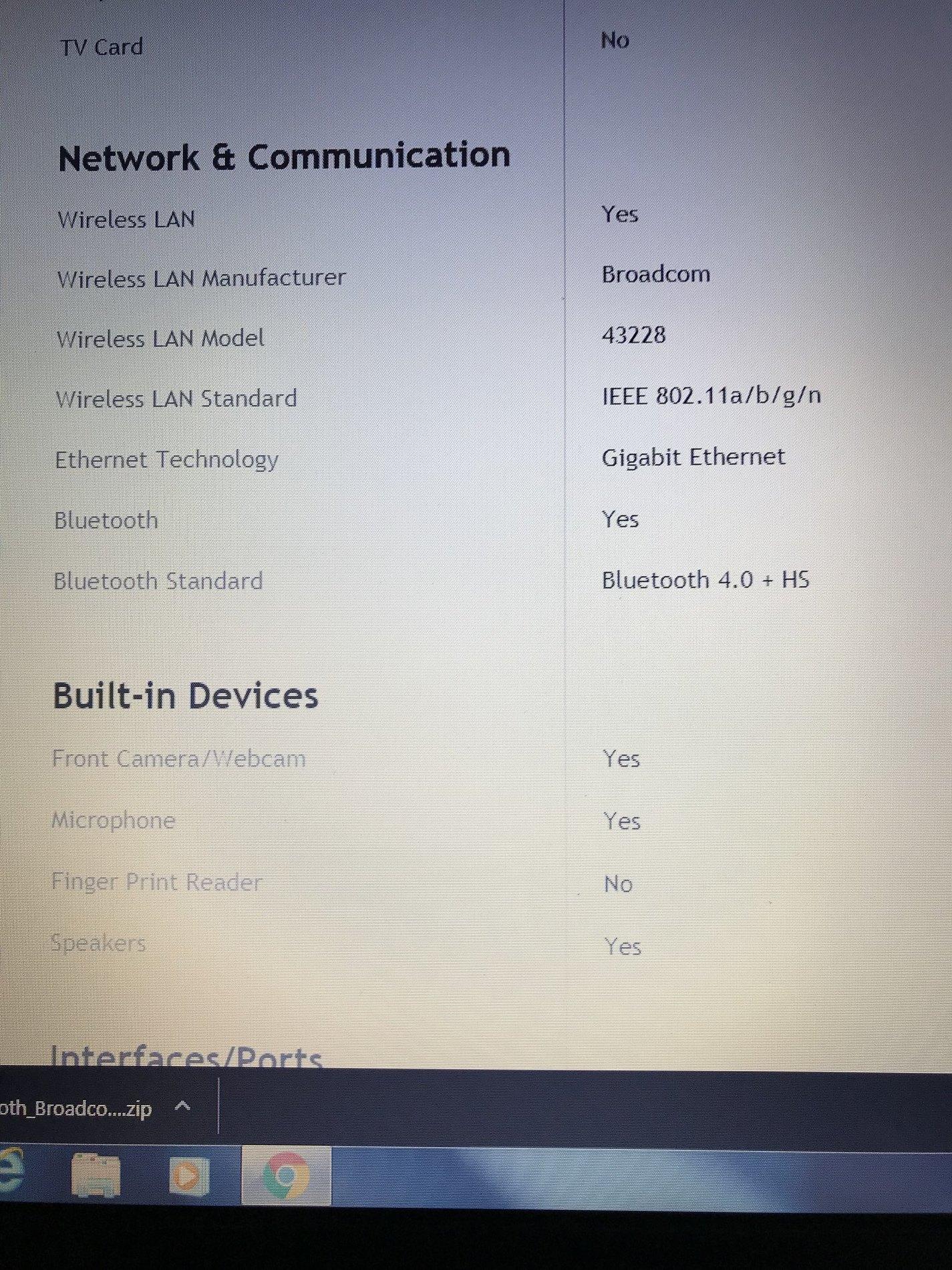

Yeah there's nothing bluetooth mentioned anywhere in devices or device manager. I'm guessing it has software support for it but not hardware...? Here's the specs on it:


TexasRebel

Gearshifter
Joined
Mar 19, 2016
Threads
27
Messages
2,500
Reaction score
835
Location
between the mustard and the mayo
Vehicle(s)
2016 YZ GTPP - PP2
Yeah there's nothing bluetooth mentioned anywhere in devices or device manager. I'm guessing it has software support for it but not hardware...? Here's the specs on it:
looks like it should have it. The hardware is what determines the Bluetooth standard. Is it disabled somewhere? If you type "bluetooth" into the start menu does anything come up?
