Modifying As-Built Data Guide

[TexasRebel]

Haven't been in this thread in a while, but it looks like the F150 guys finally got their Global Windows to close.
https://www.f150forum.com/f118/fors...tures-your-truck-348987/index318/#post5054511

If I'm not mistaken, they didn't have open or close.

The difference is they have framed windows. The frameless windows on the Mustangs are physically missing hardware that allows global close. It is not an as-built data change.

Sponsored



[Boggus]

Any luck on .... my headlight switch and steering wheel illumination doesn't light up. Took it out of dark car and it's still not lit. I'm sure I changed something, just don't know how to get it back.



[justusdude]

Did we ever find codes for always-on gear indicators for autos? So it would always show what gear you in even when you aren't on the paddles?



[Henry_Hentzschel]

Did we ever find codes for always-on gear indicators for autos? So it would always show what gear you in even when you aren't on the paddles?

you need a PCM software tune. its the only way to show the selected gear all time.



[dbranger94]

SUCCESS!

I think people are getting confused, yes the base GT has vacum but I don't believe "boost" is included, at least it wasn't on my 2016.

I have a '15 and can confirm it has always had a boost/vacuum gauge in the IPC. It's a GT Premium non PP.



[thet33]

I have a '15 and can confirm it has always had a boost/vacuum gauge in the IPC. It's a GT Premium non PP.

Yea I think someone mentioned the 2016 didn't have boost, only vacuum. Idk why boost would even be displayed for a non-boosted vehicle but mine is all sorted out now. Just need to get my radio values worked out now.



[Henry_Hentzschel]

Yea I think someone mentioned the 2016 didn't have boost, only vacuum. Idk why boost would even be displayed for a non-boosted vehicle but mine is all sorted out now. Just need to get my radio values worked out now.

bost gauge its easy to program



[thet33]

I've already corrected the gauge issue. I reverted it back to no boost as mine was previously. Thanks guys.



[solodogg]

so what was the value changed to program the boost gauge? I've been searching to see if there's possibly a different value to make the 2015 display the 30psi gauge instead of the 20psi gauge it comes with.

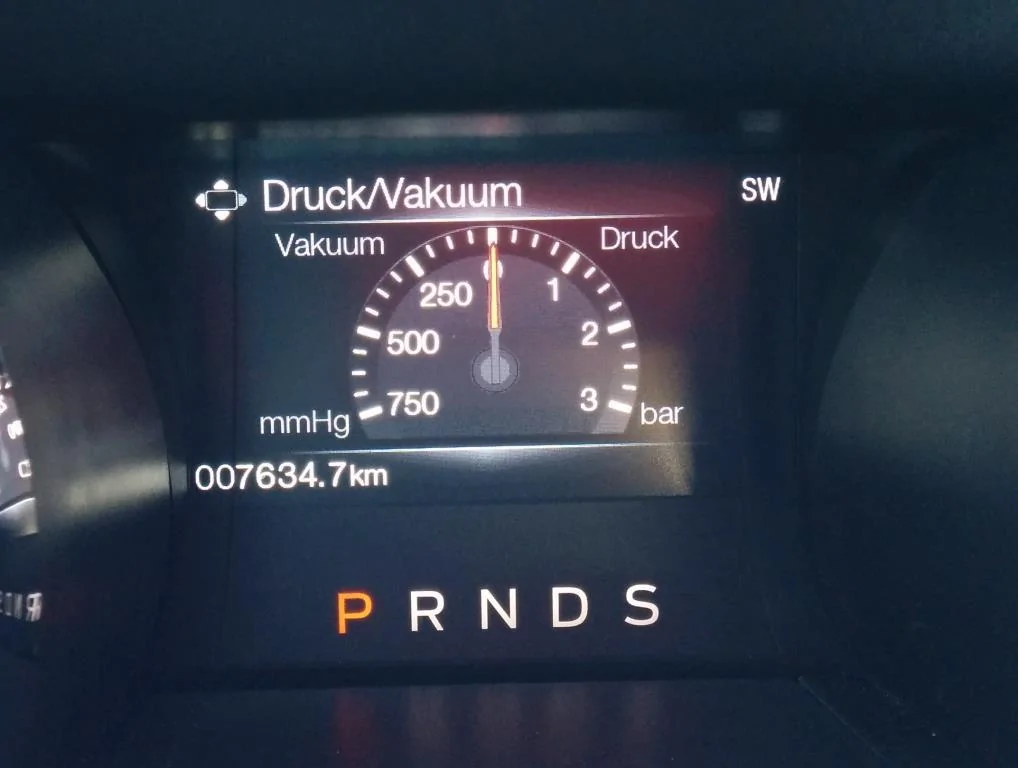

[Spart]

bost gauge its easy to program

MOAR DRUCK!



[thet33]

so what was the value changed to program the boost gauge? I've been searching to see if there's possibly a different value to make the 2015 display the 30psi gauge instead of the 20psi gauge it comes with.

Not sure, I didn't copy down the previous value though I may have it saved. I was programming out the boost gauge. I think I have a backup tho, I'll look at it this weekend.



[justusdude]

Can anyone help me with codes for turn signals on as running lights? I have switchbacks but the code I found causes them to be always on AND yellow instead of white for some reason. I was able to combine two codes to get them to turn on if the fog lights are enabled as running lights but I'd rather not have the fog lights on.



[00racer]

Just enabled Boost /Vacuum on my 2016 GT

720-06-01 F87F 8664 18A7 ........ IPC As Built

Enjoy



[2qwk4ya]

Just enabled Boost /Vacuum on my 2016 GT

720-06-01 F87F 8664 18A7 ........ IPC As Built

Enjoy

Thank you! :cheers:





.



[MakStang]

Just enabled Boost /Vacuum on my 2016 GT

720-06-01 F87F 8664 18A7 ........ IPC As Built

Enjoy

CAUTION: Like someone else (I think it was [MENTION=25607]Spart[/MENTION]) advised a couple of months ago, this is not the way to post changes in FORScan. The right and safe way to post changes in a certain block is by replacing all numbers with X's and only show the number that has to be changed in a before and after manner. And don't forget that the last two numbers are changed automatically by FORScan as they are the sum of all the other numbers in that particular block. Click here to see an example of how changes in FORScan should be presented.

Some numbers in a certain block of a module might be different from one car to the other due to different initial factory configurations. The way you posted the change in that block doesn't tell us which particular number you changed. If someone simply replaces all the numbers in that block with the numbers in your post, he might end up having serious problems, even with an unusable ECU.
