Gen 3 Aluminator crate engines

I Bleed Ford Blue

Well-Known Member
Joined
Nov 24, 2018
Threads
33
Messages
1,436
Reaction score
1,111
Location
North East OHIO
First Name
Mike
Vehicle(s)
2017 grabber blue GT PP1 convertible

rancid

Well-Known Member
Joined
May 14, 2020
Threads
4
Messages
139
Reaction score
70
Location
ATL
First Name
Jonathan
Vehicle(s)
2019 Mustang GT Convertible
Phew, that price tag. How much HP do the aluminators typically hold? Can't imagine it being a better route from a performance standpoint vs building one if you have a local shop unless they hold over 1000RWHP.


ENPhoto

Hoonigan
Joined
Aug 21, 2016
Threads
0
Messages
194
Reaction score
122
Location
Calgary, Alberta, Canada
Website
www.ErikNymanPhotography.com
First Name
Erik
Vehicle(s)
2016 Mustang Gt Premium Performance Pack
Can't imagine it being a better route from a performance standpoint vs building one if you have a local shop unless they hold over 1000RWHP.
The build in the link comes with aftermarket pistons, rods and oil pump gears....I'd say the aluminator is still at the limits of stock sleeves.

OP
OP
I Bleed Ford Blue

I Bleed Ford Blue

Well-Known Member
Joined
Nov 24, 2018
Threads
33
Messages
1,436
Reaction score
1,111
Location
North East OHIO
First Name
Mike
Vehicle(s)
2017 grabber blue GT PP1 convertible
Well it's a gen 3 aluminator, so it uses the gen 3 block with the sprayed plasma sleeves, not the press in like the gen 1 and 2 blocks. Also, for the price you are getting a gen 3 coyote crate engine with 460 hp just like what comes in an 18+ GT that has been upgraded to include mahle forged pistons, manley H beam rods with ARP 2000 rod bolts and billet OPG's. They come in two versions, stock 12:1 compression or lower 9.5:1 for boosted applications.

BTW, the bone stock gen 3 coyote crate engine plucked right off the assembly line lists for $9500, so for roughly 3K more you get forged internals. All pre-assembled, ready to run. Also, the aluminators come off the niche line, the same guys that builds the GT 350 and 500 engines.


Mrzero

Well-Known Member
Joined
Jul 28, 2017
Threads
59
Messages
216
Reaction score
125
Location
Los Angeles
Vehicle(s)
AGT350
I'm curious to know why they don't advertise HP and TQ figures for this NA aluminator, they advertise it for the 5.2.



olaosunt

Well-Known Member
Joined
Jan 10, 2015
Threads
70
Messages
4,207
Reaction score
1,481
Location
Indiana
Vehicle(s)
Guard,base,M6,KB-2.DIB,auto,Hellion TT,2016 GT 350/Gen 3 Whipple ,2018 Mustang GT/Gen 5 Whipple
Was browsing the ford racing site and in the new parts released in the last 30 days the have a gen 3 aluminator listed in both supercharged and N/A versions. The also have the new 7.3

https://performanceparts.ford.com/new/30/30 Days New
I have been waiting to see what they would be asking .
Typically you should be able to buy retail for less than that MSRP .

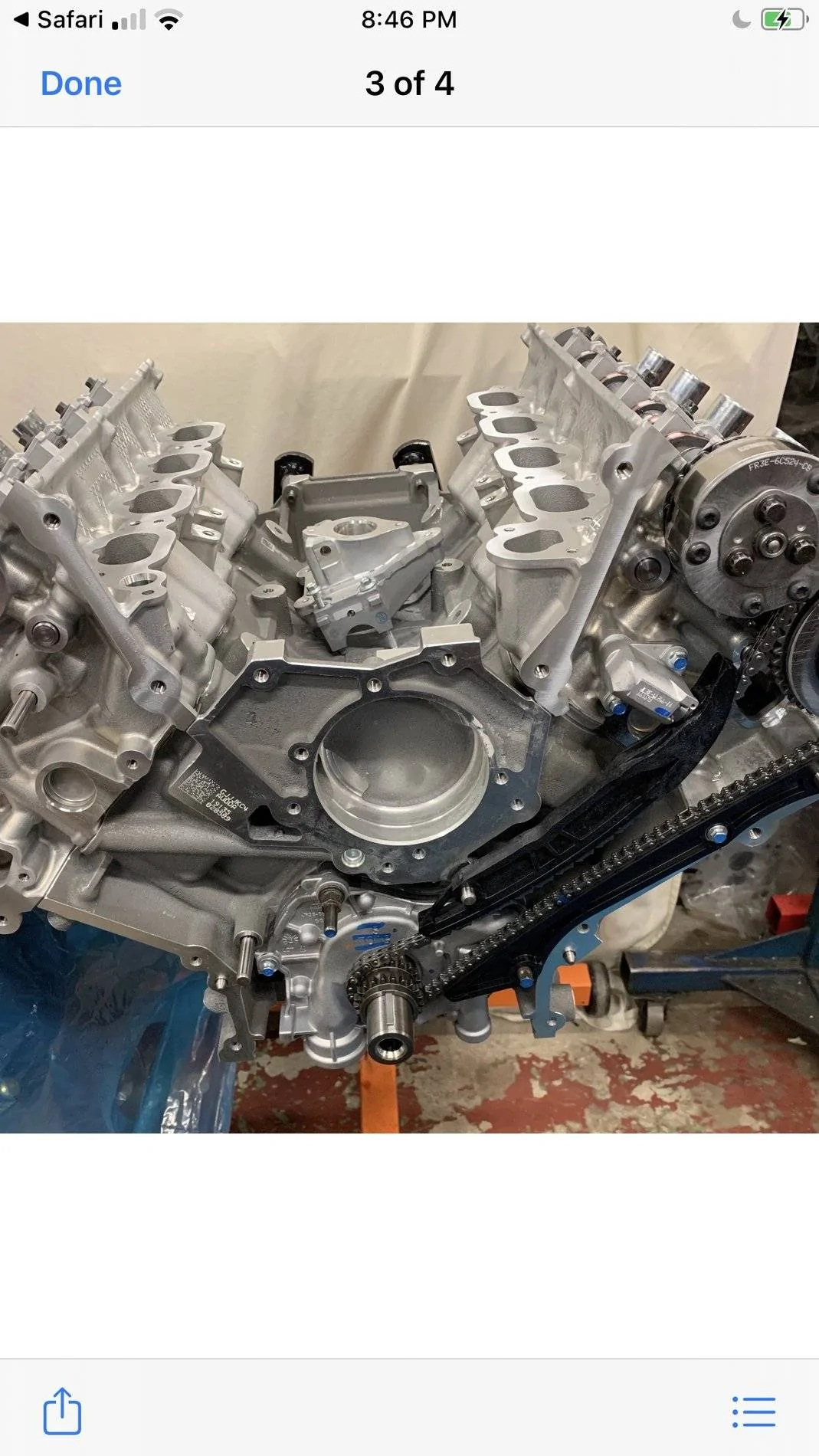

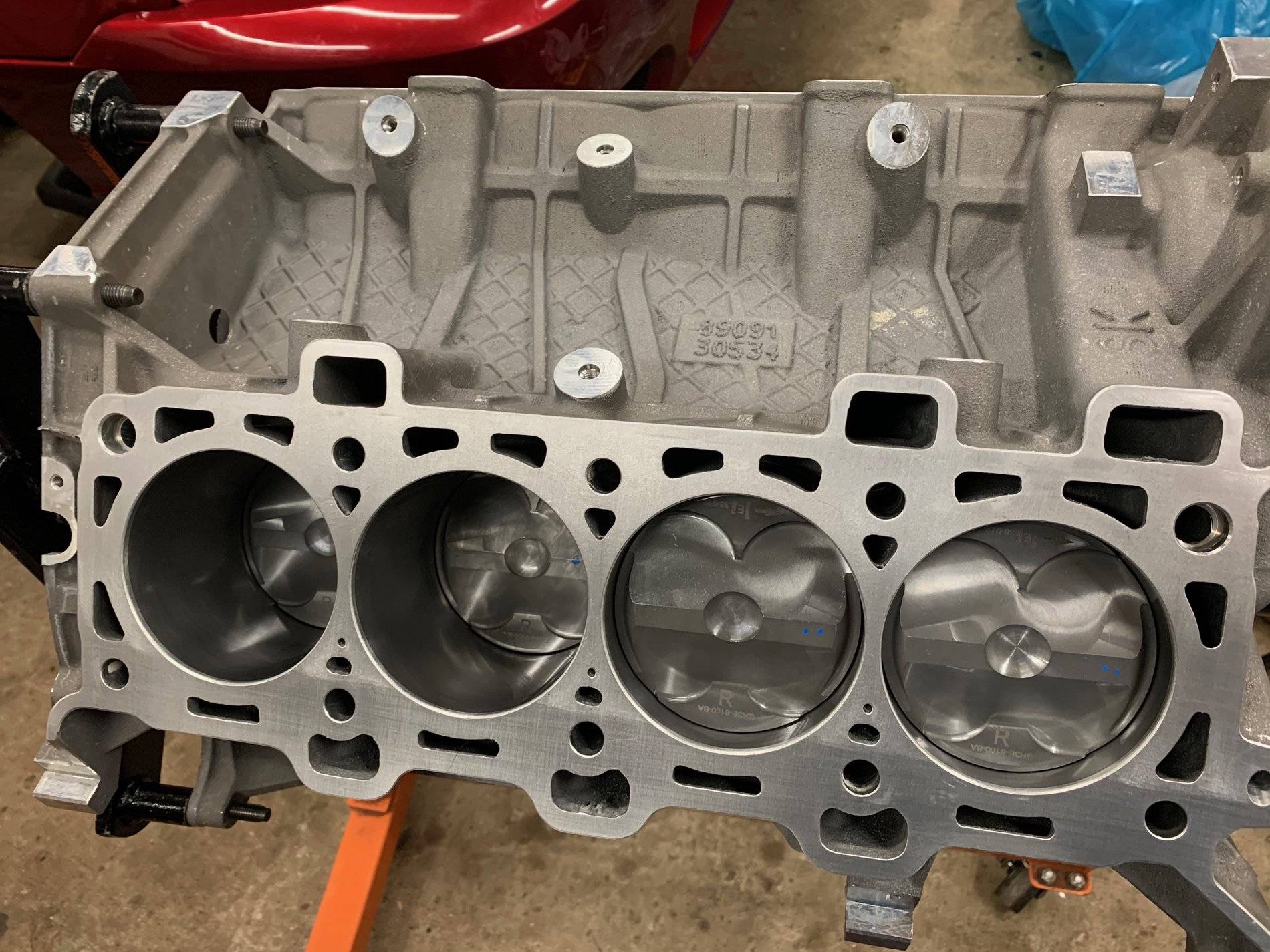

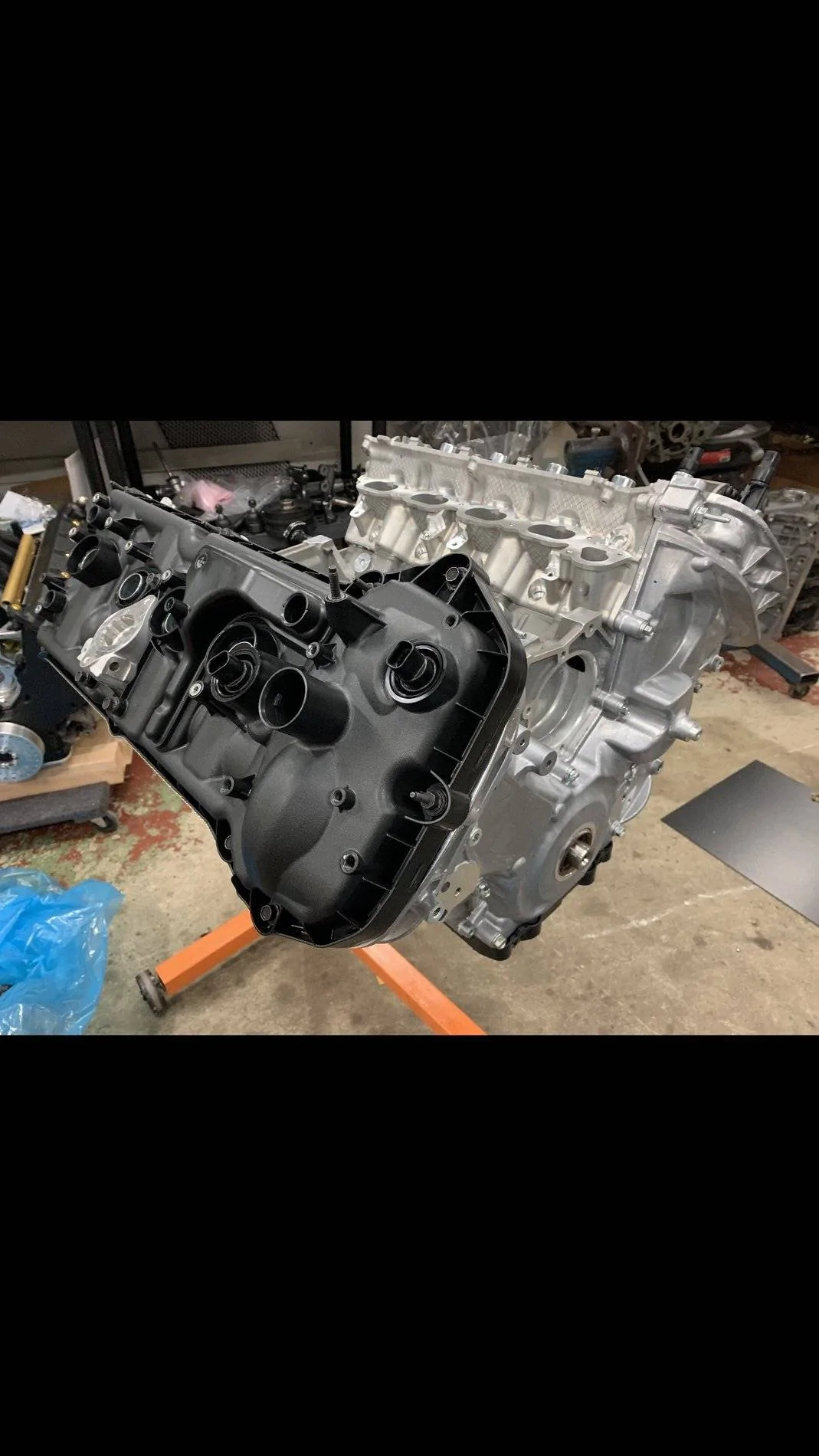

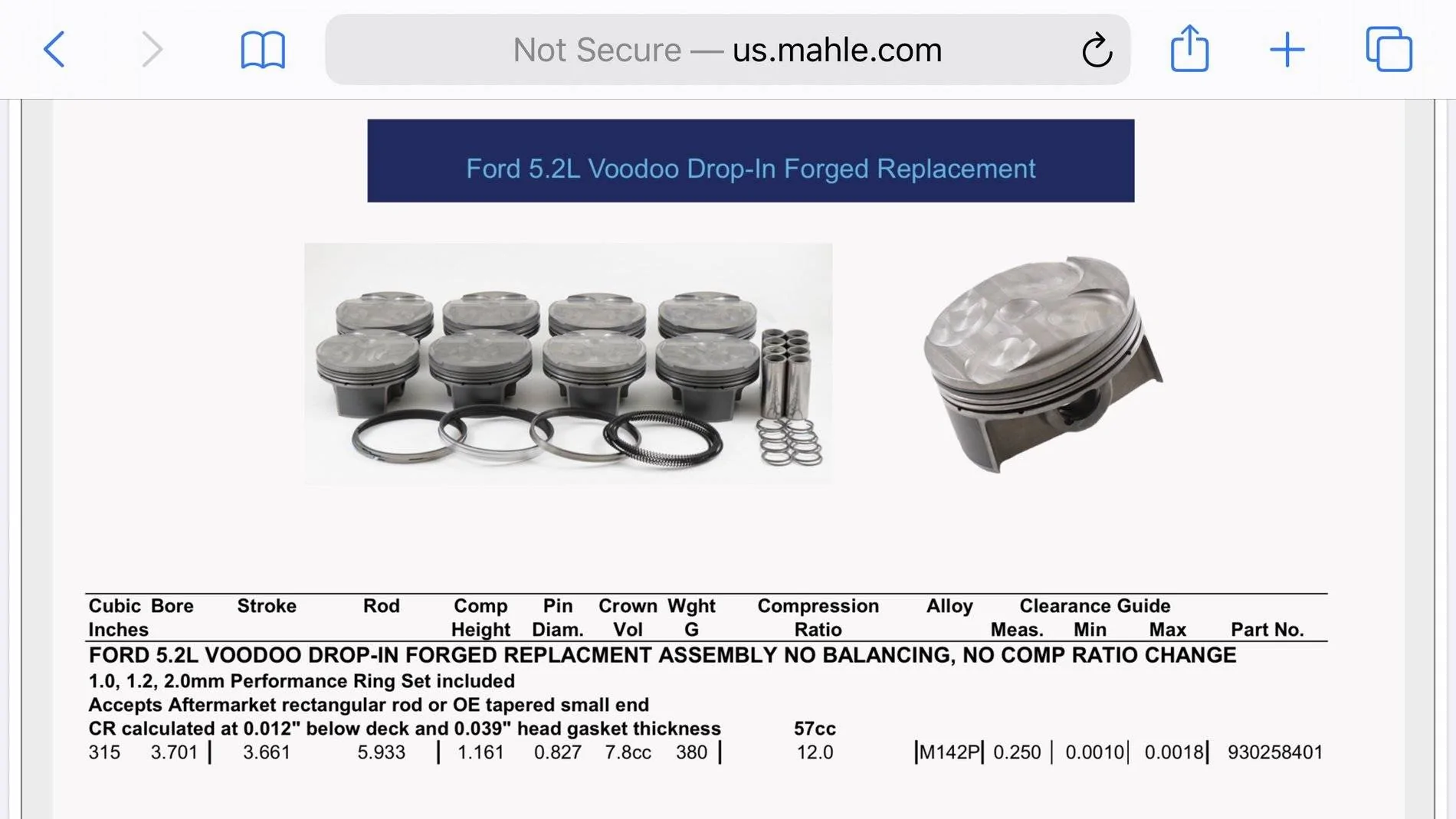

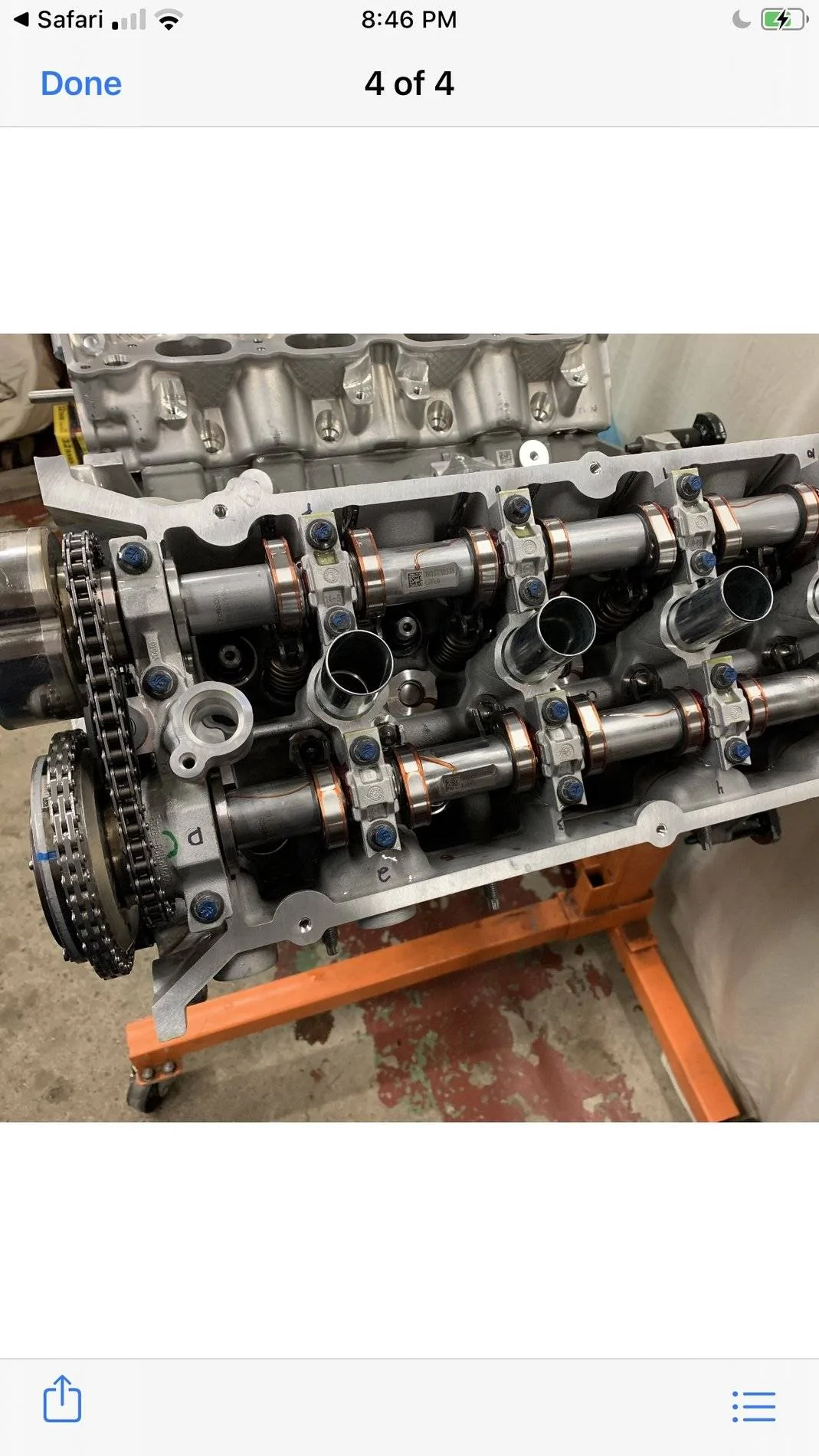

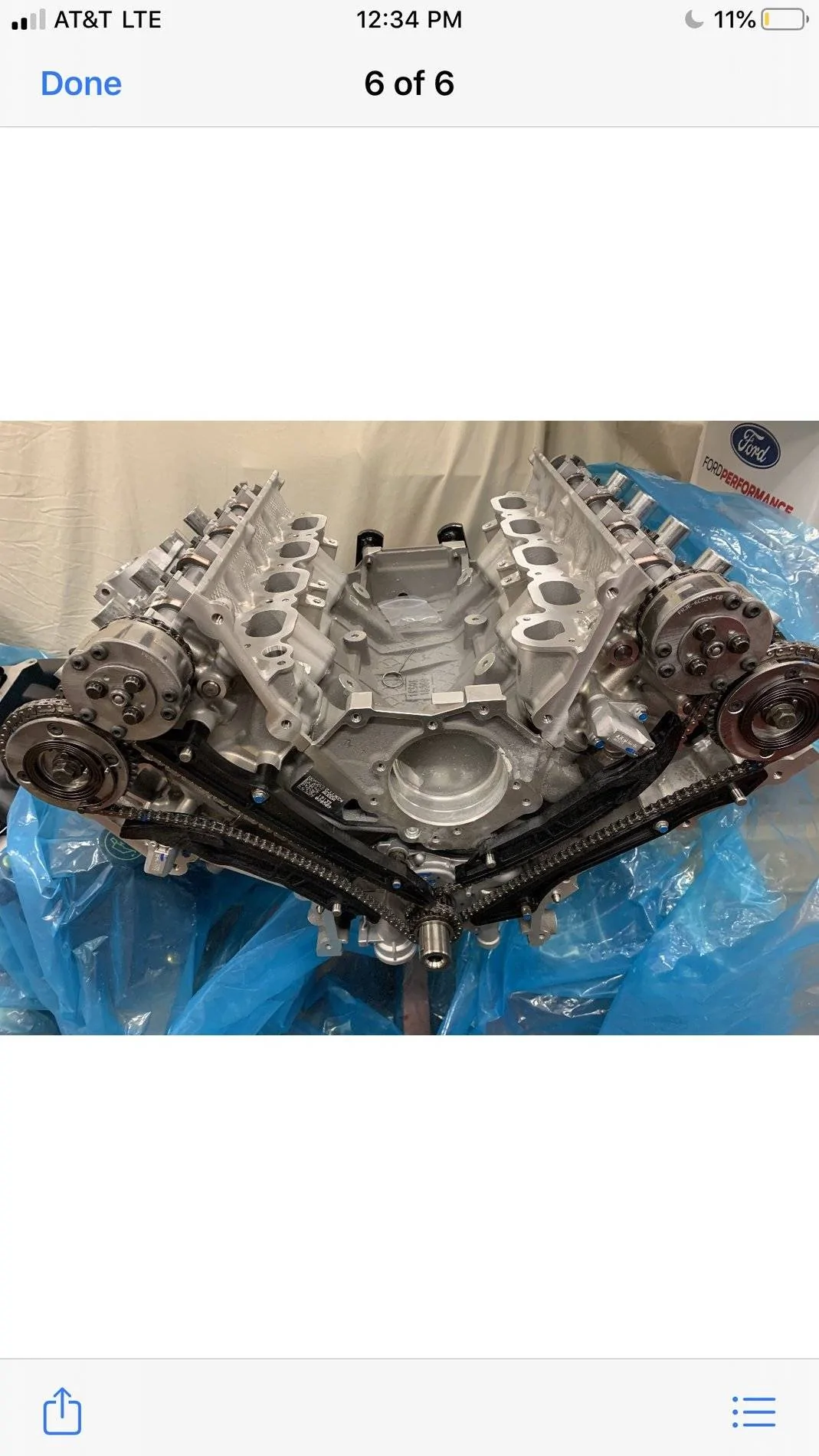

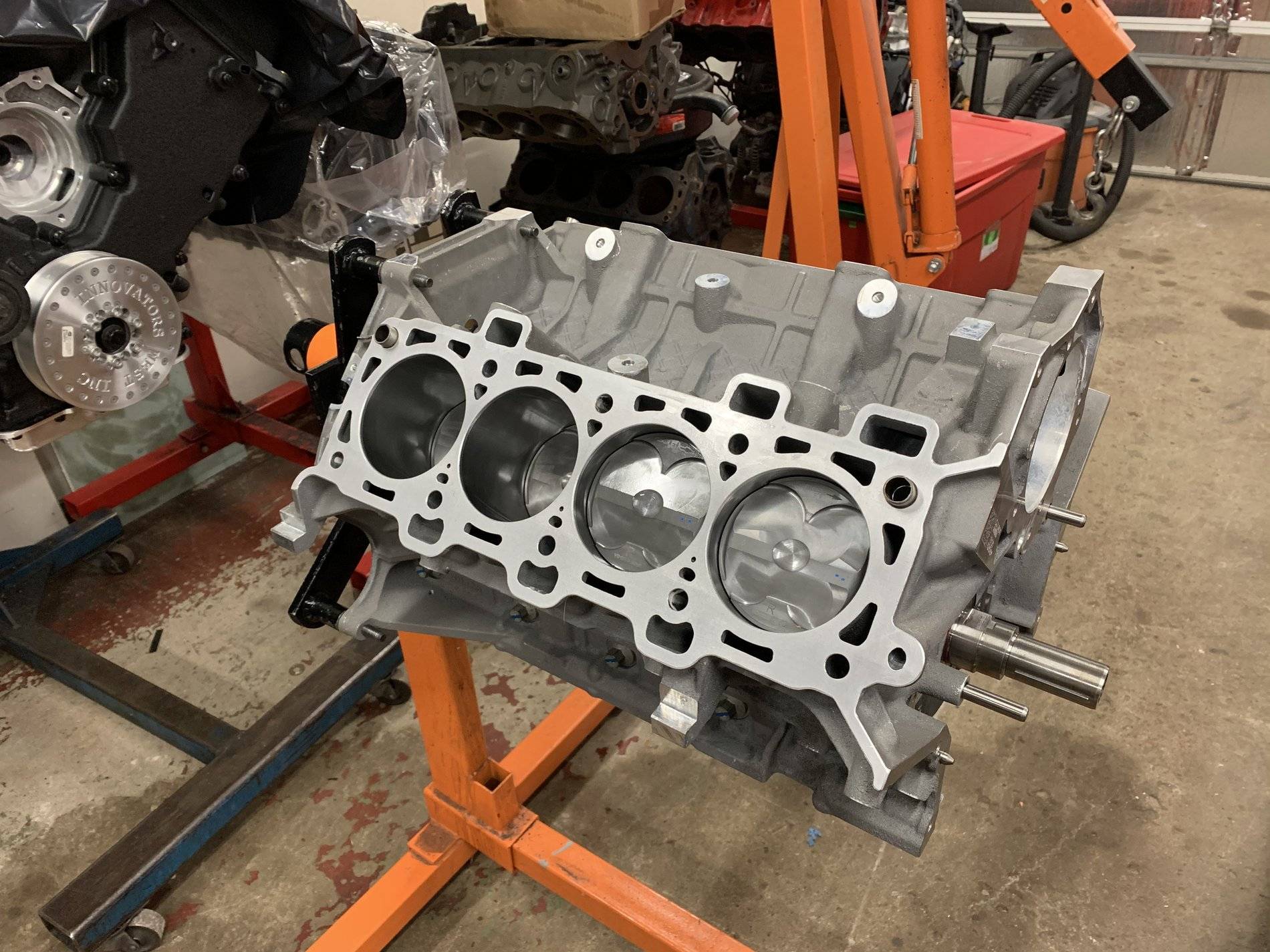

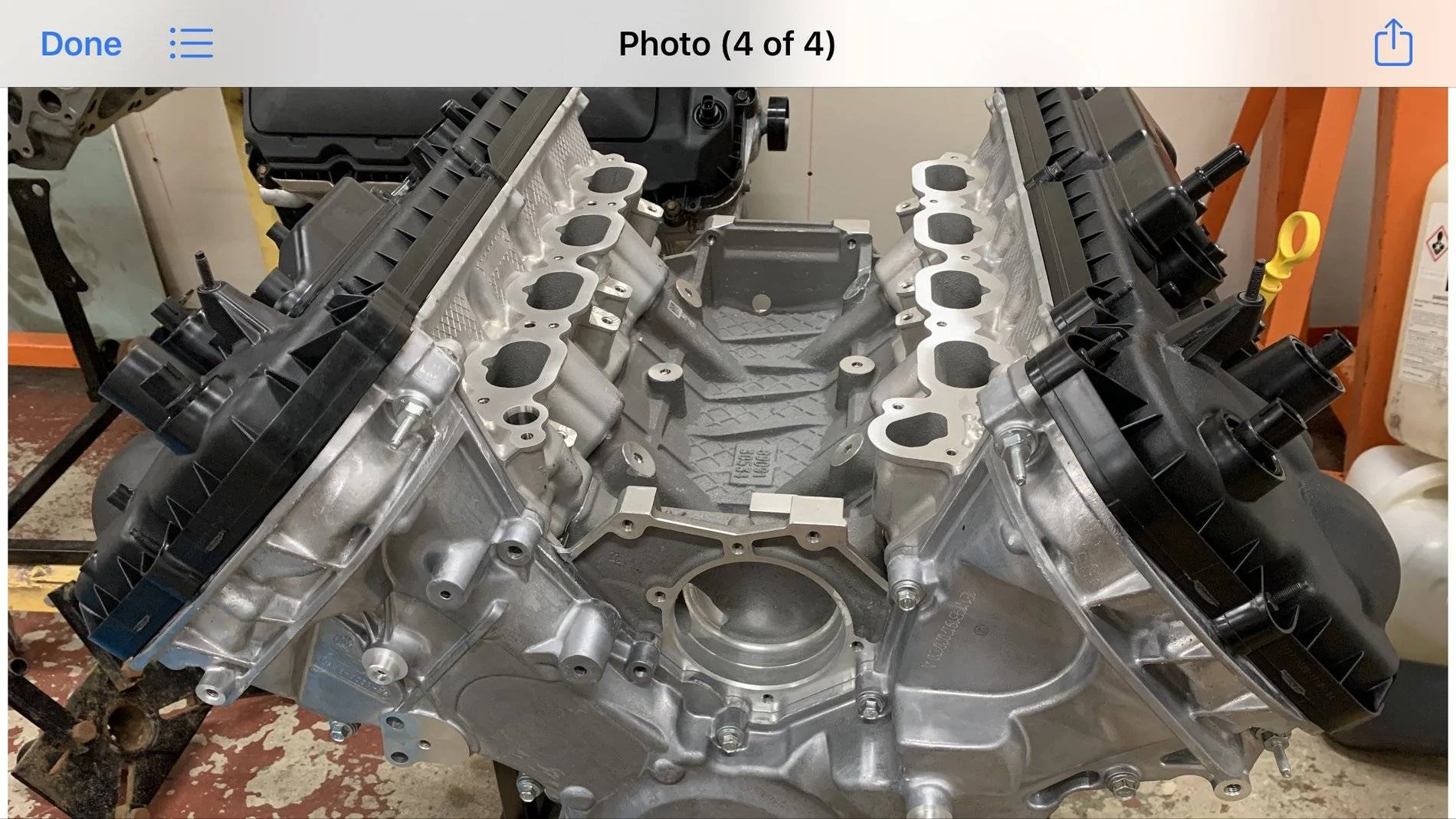

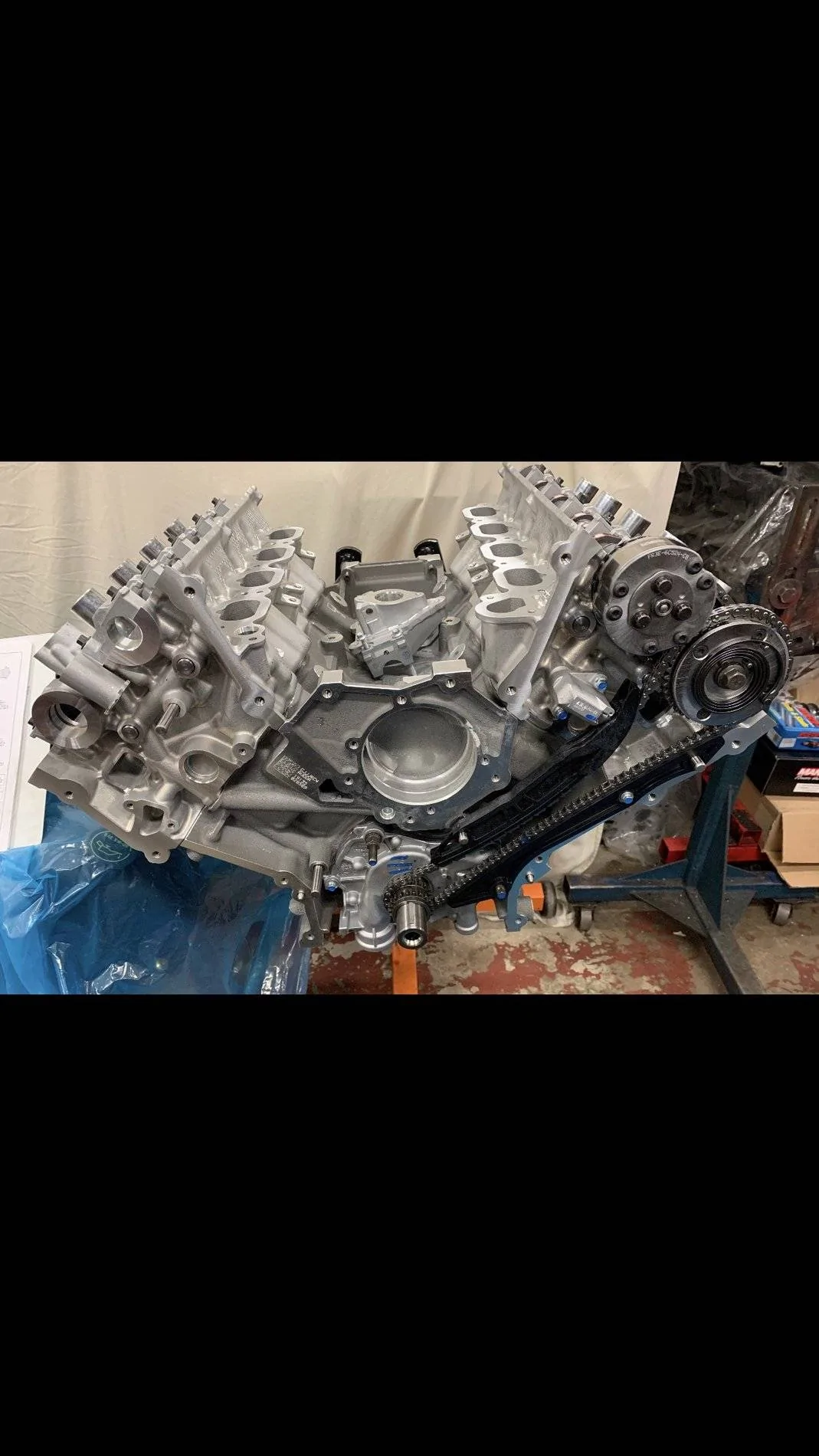

I just had a long block built to almost same specs except I used the much more stronger Gen 3 /5.2 block/Voodoo pistons (also Mahle )and upgraded the valve springs in all new heads /ARP head studs instead of bolts .

Mine is a long block vs a complete engine (I do have the intake off my stock motor - has a whipple “intake” now )
I can assure you it’s much cheaper to have one built by a reputable shop .


olaosunt

Well-Known Member
Joined
Jan 10, 2015
Threads
70
Messages
4,207
Reaction score
1,481
Location
Indiana
Vehicle(s)
Guard,base,M6,KB-2.DIB,auto,Hellion TT,2016 GT 350/Gen 3 Whipple ,2018 Mustang GT/Gen 5 Whipple
Phew, that price tag. How much HP do the aluminators typically hold? Can't imagine it being a better route from a performance standpoint vs building one if you have a local shop unless they hold over 1000RWHP.
lots of cheaper options .
I also scored a used low mileage Gen 3 long block for $3500

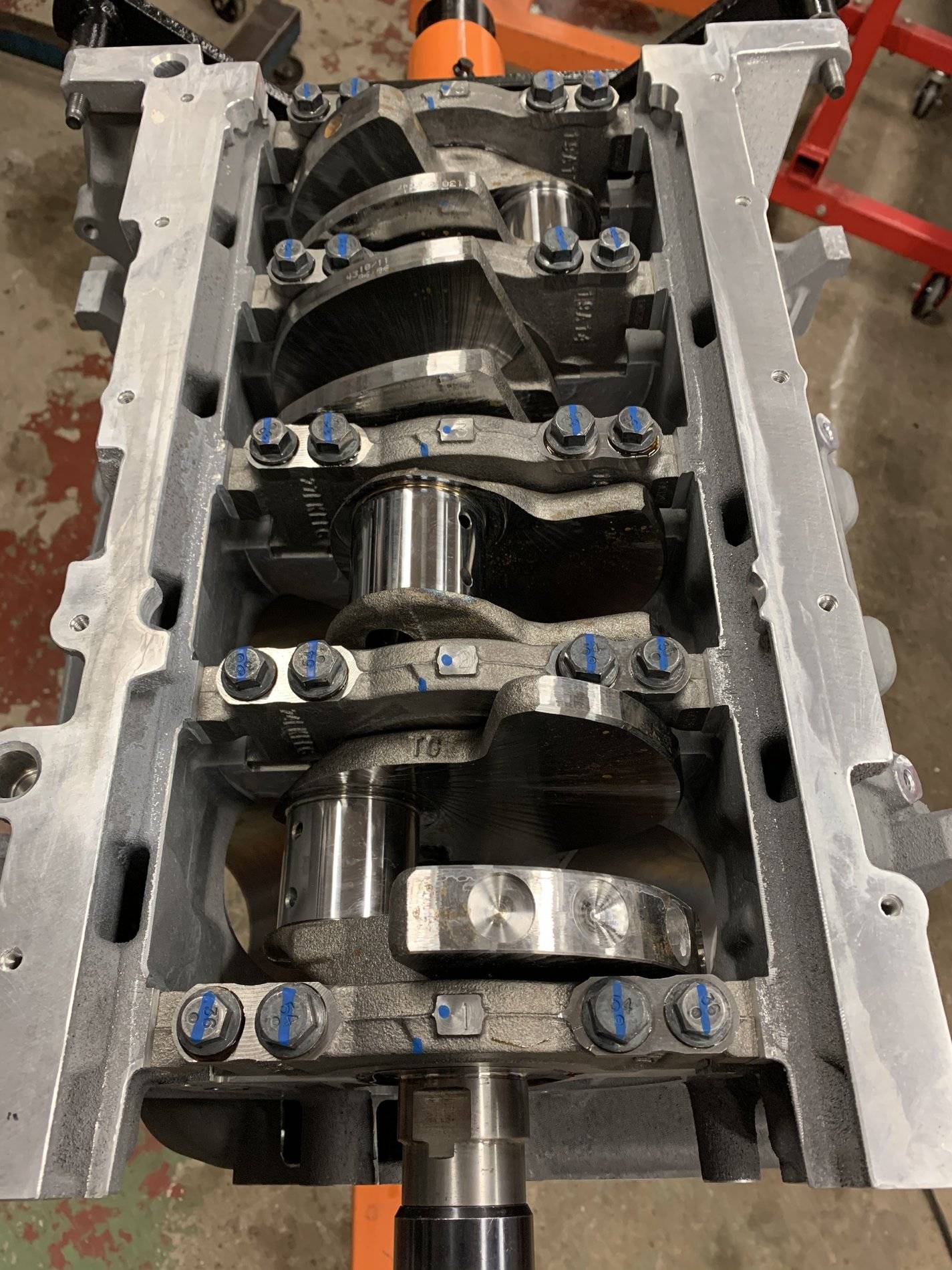

I am rebuilding it to the same EXACT specs as the Gen 3 Alluminator except will be using the stronger H tuff rods /ARP head studs and upgrading the valve springs .

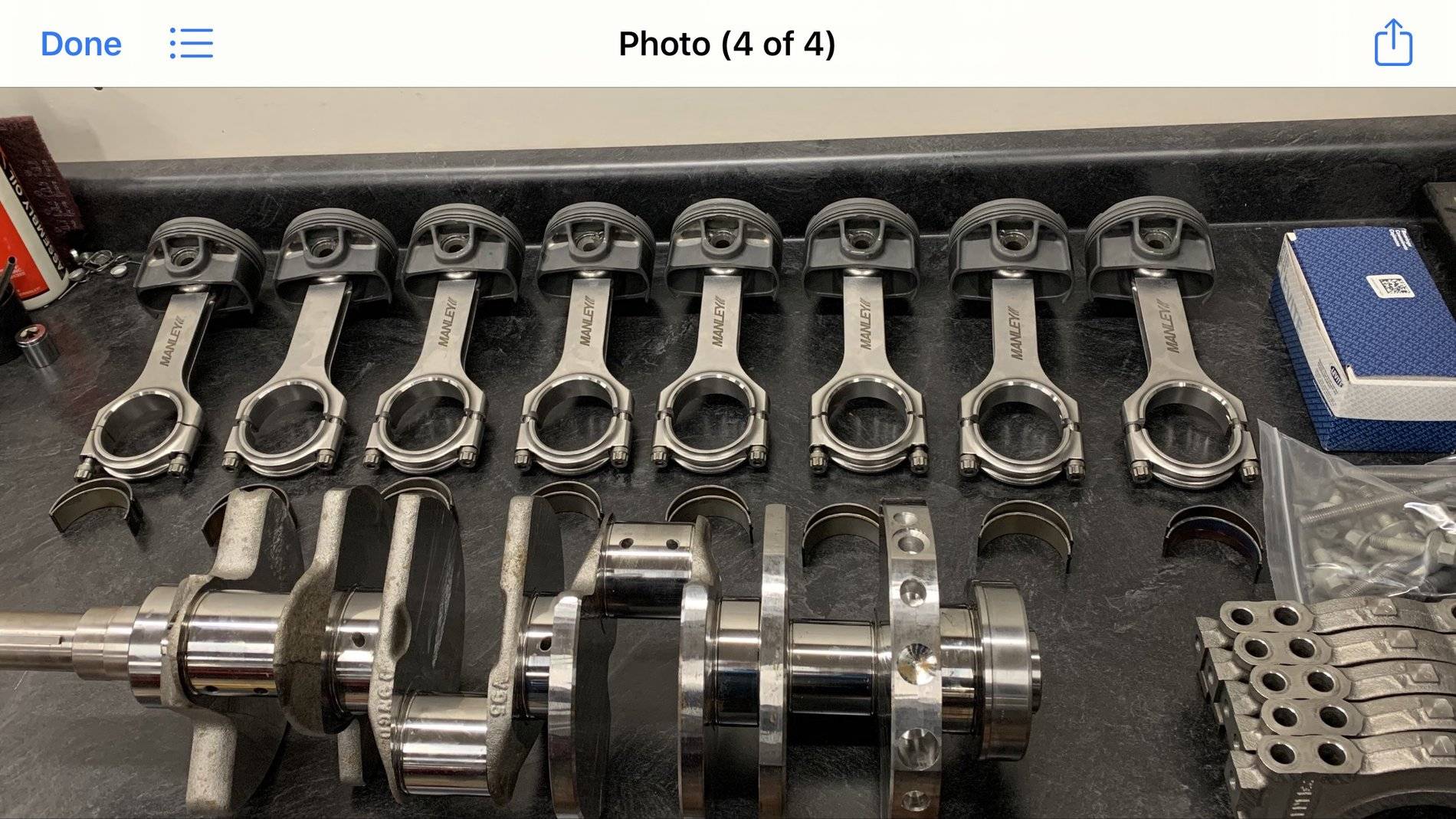

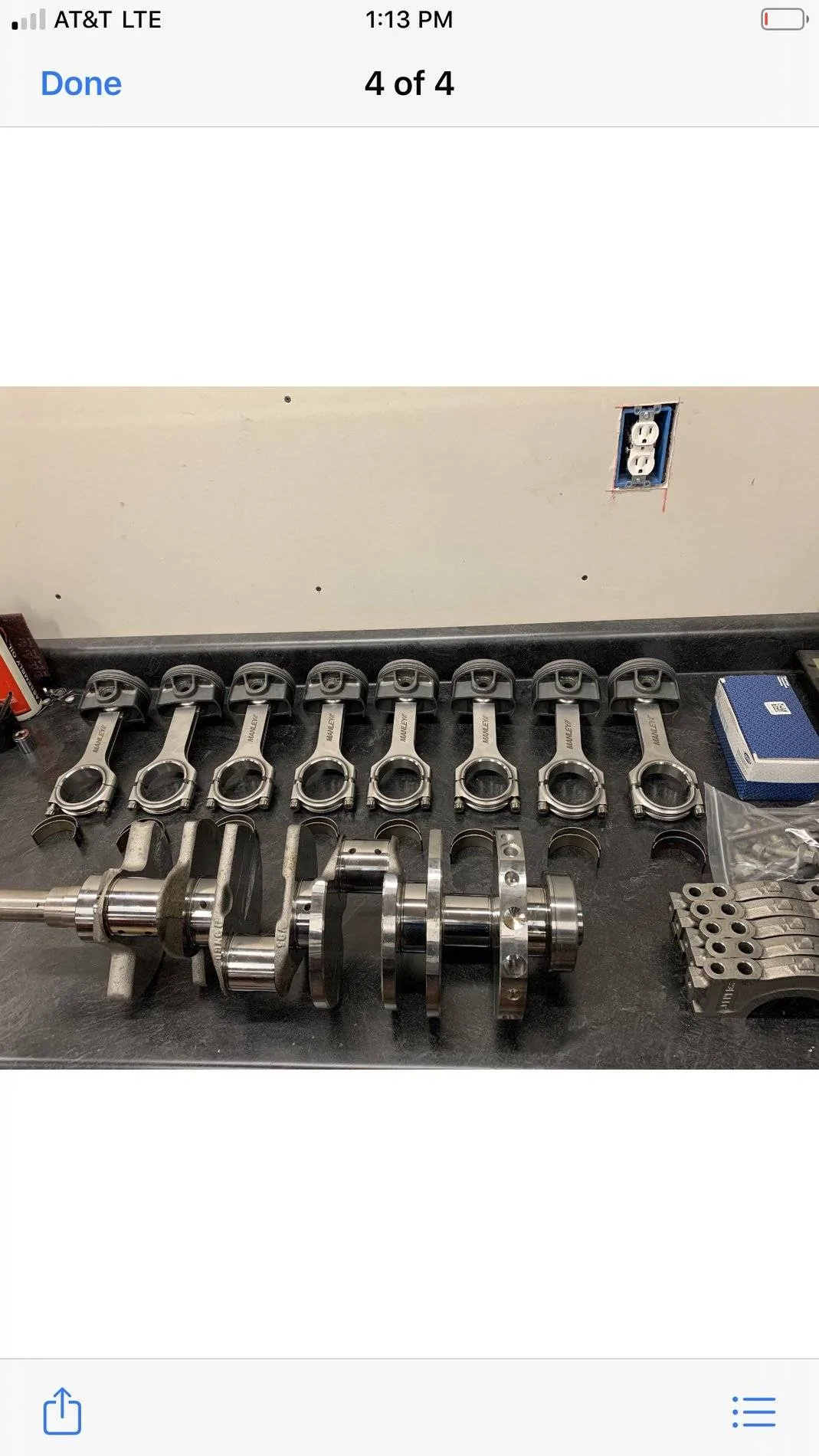

The piston/rod combo was bought during Black Friday sale for about $1400.
Let’s just say for the MSRP of the Alluminator I built 2 much better long blocks .
Would be even cheaper if I used my stock lokg block but I have bigger plans for that one when I swap it out (sleeves /I beam upgrade - even considering a stroker ).


Performance nut

Well-Known Member
Joined
Feb 10, 2015
Threads
172
Messages
1,666
Reaction score
638
Location
TX
Vehicle(s)
2018 Mustang GT A10
Vehicle Showcase
1
Forged internals are good, was hoping for something more though above stock. Bump the compression up a bit for this engine and require higher octane fuel (91/93 minimum vs 87 minimum), performance camshafts vs the stock camshafts, lighter block... seems Ford really maxed out the Gen III to the limit of their comfort zone.


Elp_jc

Well-Known Member
Joined
May 2, 2020
Threads
48
Messages
3,531
Reaction score
783
Location
USA
Vehicle(s)
None
Doesn't the stock Gen3 come with forged pistons and rods too? Not Mahle, but read on a technical document somewhere on this forum that they were forged too. Curious if true now :).

And another question for those 'Aluminator' engines: Do they do the same nasty noises as the stockers (2K rattle and 'tick')? Thx.


olaosunt

Well-Known Member
Joined
Jan 10, 2015
Threads
70
Messages
4,207
Reaction score
1,481
Location
Indiana
Vehicle(s)
Guard,base,M6,KB-2.DIB,auto,Hellion TT,2016 GT 350/Gen 3 Whipple ,2018 Mustang GT/Gen 5 Whipple
Definitely not “forged “ in the true sense
Rods might be “sinster” forged bur look like tooth licks compared to the Manley rods . Pistons are not forged in anyway .

I know of someone who has the first one of the assembly line so will be interesting to see if he has issues with the tick .


Elp_jc

Well-Known Member
Joined
May 2, 2020
Threads
48
Messages
3,531
Reaction score
783
Location
USA
Vehicle(s)
None
And the 2K rattle, which is there since day 1. The tick might appear later on. The rattle is more annoying, so ask him on that too :D. Thx.


olaosunt

Well-Known Member
Joined
Jan 10, 2015
Threads
70
Messages
4,207
Reaction score
1,481
Location
Indiana
Vehicle(s)
Guard,base,M6,KB-2.DIB,auto,Hellion TT,2016 GT 350/Gen 3 Whipple ,2018 Mustang GT/Gen 5 Whipple
Care to share some of those options? I've been looking at a forged short block for a while now and still can't find anything even remotely cheaper than an Aluminator short block.
See posts below


I have been waiting to see what they would be asking .
Typically you should be able to buy retail for less than that MSRP .

I just had a long block built to almost same specs except I used the much more stronger Gen 3 /5.2 block/Voodoo pistons (also Mahle )and upgraded the valve springs in all new heads /ARP head studs instead of bolts .

Mine is a long block vs a complete engine (I do have the intake off my stock motor - has a whipple “intake” now )
I can assure you it’s much cheaper to have one built by a reputable shop .
lots of cheaper options .
I also scored a used low mileage Gen 3 long block for $3500
I am rebuilding it to the same EXACT specs as the Gen 3 Alluminator except will be using the stronger H tuff rods /ARP head studs and upgrading the valve springs .
The piston/rod combo was bought during Black Friday sale for about $1400.
Let’s just say for the MSRP of the Alluminator I built 2 much better long blocks .
Would be even cheaper if I used my stock lokg block but I have bigger plans for that one when I swap it out (sleeves /I beam upgrade - even considering a stroker ).


olaosunt

Well-Known Member
Joined
Jan 10, 2015
Threads
70
Messages
4,207
Reaction score
1,481
Location
Indiana
Vehicle(s)
Guard,base,M6,KB-2.DIB,auto,Hellion TT,2016 GT 350/Gen 3 Whipple ,2018 Mustang GT/Gen 5 Whipple
Care to share some of those options? I've been looking at a forged short block for a while now and still can't find anything even remotely cheaper than an Aluminator short block.
you can have a short block built starting with the stronger Gen 3 /predator /5.2 block , stronger internals (H - tuff instead of the Manley H rods )for less than the cost of an Alluminator short block .


EFI

Well-Known Member
Joined
May 19, 2015
Threads
61
Messages
3,934
Reaction score
2,640
Location
Masshole central
Vehicle(s)
5.Br0
See posts below
Ok but it still doesn't say what shop it is or how much it cost.

All the major ones I've talked to (MPR, RG, L&M, Livernois etc.) are more than what an equivalent Aluminator is. Alot of them even advertise their lower end budget stuff as "Aluminator clones".
