Another NA car breaks diff bolts...

ponie1992

Well-Known Member
Joined
Jan 4, 2016
Messages
1,550
Reaction score
408
Location
Elgin, SC
Vehicle(s)
2016 Ruby Red PP GT
2016 Mustang PP GT with T56 Magnum XL swap. Installed a JPC line lock and ended up breaking the rear diff mounting bolts (BMR) on my fourth burnout attempt. I haven't looked at the front yet, but both rear bolts broke. The fronts may be damaged as well because the rear of the diff dropped down causing my DSS halfshafts to grind on the subframe. I didn't look for any further damage because I was completely disgusted by this happening. The halfshaft boots are destroyed and I only hope the halfshafts themselves are ok. Also praying my driveshaft is ok, which I believe contacted the fuel tank shield because lots of fibers were on the ground.
I'm gonna pull the entire cradle, assess and repair once I can prepare myself for more possible disappointment. I'm posting this for others who may have or will install a diff mount bushing kit. My advice is to upgrade to stronger bolts or the through bolt upgrade.
Enjoy a good laugh at my expense:

Advertisement



xXoVrKiLLXx

Well-Known Member
Joined
Sep 21, 2019
Messages
106
Reaction score
53
Location
Florida
First Name
TLo
Vehicle(s)
SOLD
2016 Mustang PP GT with T56 Magnum XL swap. Installed a JPC line lock and ended up breaking the rear diff mounting bolts (BMR) on my fourth burnout attempt. I haven't looked at the front yet, but both rear bolts broke. The fronts may be damaged as well because the rear of the diff dropped down causing my DSS halfshafts to grind on the subframe. I didn't look for any further damage because I was completely disgusted by this happening. The halfshaft boots are destroyed and I only hope the halfshafts themselves are ok. Also praying my driveshaft is ok, which I believe contacted the fuel tank shield because lots of fibers were on the ground.
I'm gonna pull the entire cradle, assess and repair once I can prepare myself for more possible disappointment. I'm posting this for others who may have or will install a diff mount bushing kit. My advice is to upgrade to stronger bolts or the through bolt upgrade.
Enjoy a good laugh at my expense:
That sucks; so sorry dude. It will wash out though and be right when you are done. Subbed to the channel!

OP
OP
ponie1992

ponie1992

Well-Known Member
Joined
Jan 4, 2016
Messages
1,550
Reaction score
408
Location
Elgin, SC
Vehicle(s)
2016 Ruby Red PP GT
That sucks; so sorry dude. It will wash out though and be right when you are done. Subbed to the channel!
Thank you, man! I'll get er fixed, just had to walk away for a bit. Very much appreciate you subbing! Maybe one day I'll be able to make some cash from youtube and be able to afford these kinds of issues lol.


Martin5.0sc

Well-Known Member
Joined
Oct 12, 2018
Messages
65
Reaction score
11
Location
Ellington, CT
First Name
Ainsley
Vehicle(s)
2016 Whippled Mustang GT
Vehicle Showcase
1
That dam red company strikes again smh, thanks for sharing man and sorry for your troubles I’ll be swapping mine out ASAP

OP
OP
ponie1992

ponie1992

Well-Known Member
Joined
Jan 4, 2016
Messages
1,550
Reaction score
408
Location
Elgin, SC
Vehicle(s)
2016 Ruby Red PP GT
That dam red company strikes again smh, thanks for sharing man and sorry for your troubles I’ll be swapping mine out ASAP
Yeah man, wish I was better informed before installing these. I had seen a little about it, but thought I should be good since I'm still NA. Oh well, live and learn. Just hope my axles and driveshaft aren't damaged. But, hopefully this will save some people from going through this.


moffetts

Well-Known Member
Joined
Nov 30, 2015
Messages
967
Reaction score
310
Location
San Mateo CA
Vehicle(s)
Black Whippled 2015 GT PP
Is this the hardware that comes with the BK051 kit? I’m really not sure why the hardware upgrade kit (rh017) isn’t included with the bushing/insert upgrades.

OP
OP
ponie1992

ponie1992

Well-Known Member
Joined
Jan 4, 2016
Messages
1,550
Reaction score
408
Location
Elgin, SC
Vehicle(s)
2016 Ruby Red PP GT
Is this the hardware that comes with the BK051 kit? I’m really not sure why the hardware upgrade kit (rh017) isn’t included with the bushing/insert upgrades.
Yep, that's the kit. I wondered myself why they don't include upgraded hardware.

OP
OP
ponie1992

ponie1992

Well-Known Member
Joined
Jan 4, 2016
Messages
1,550
Reaction score
408
Location
Elgin, SC
Vehicle(s)
2016 Ruby Red PP GT

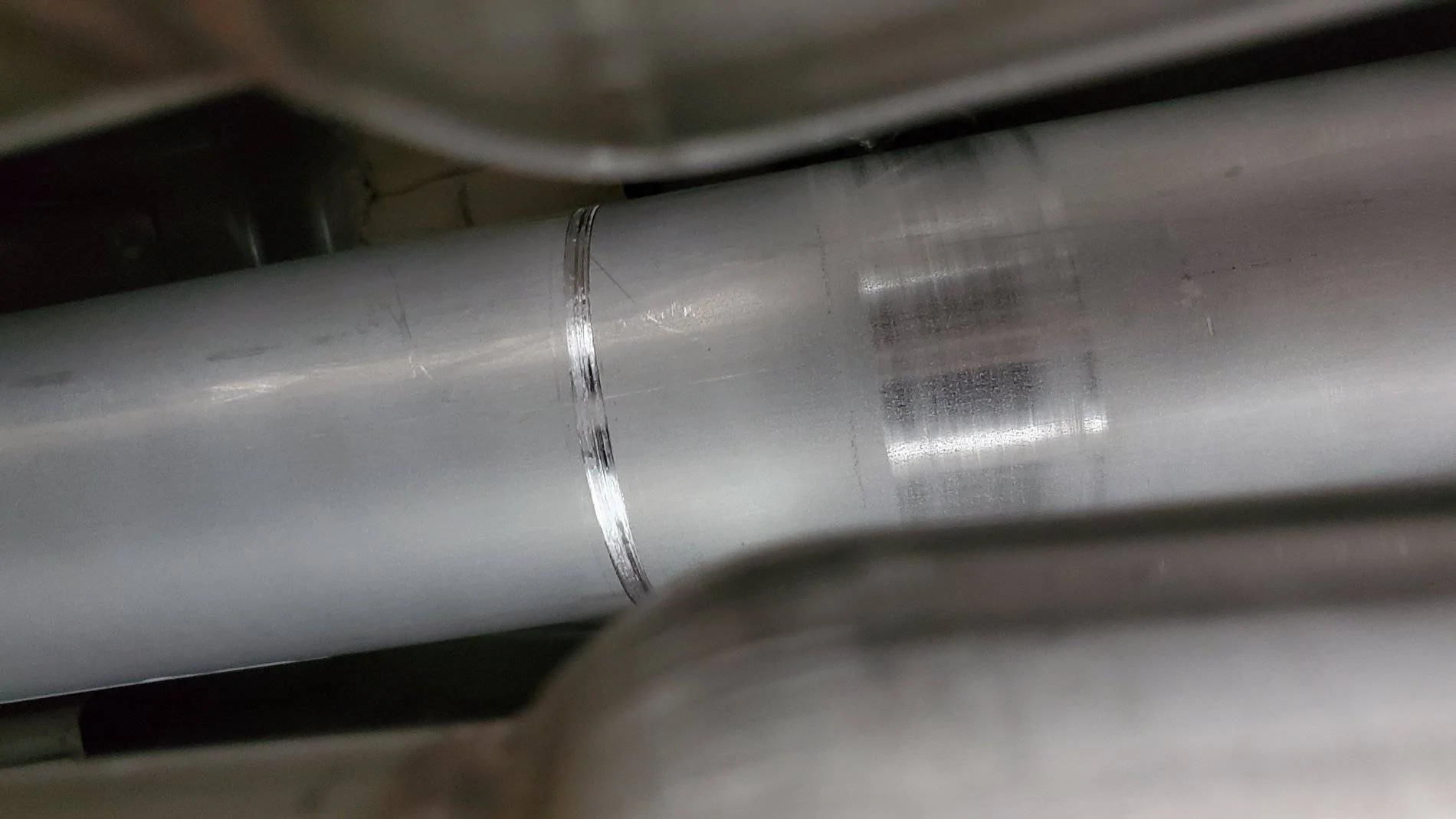

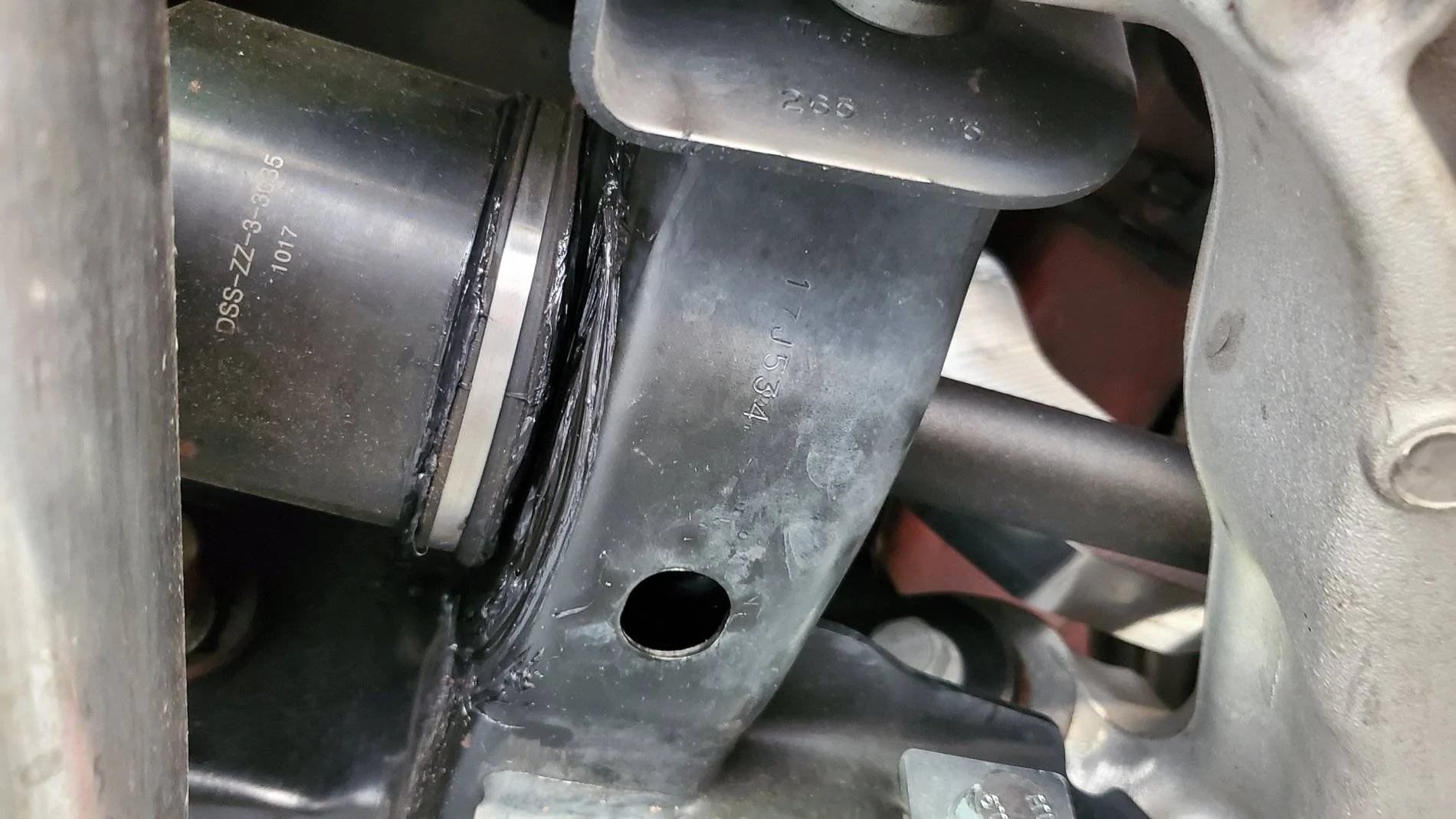

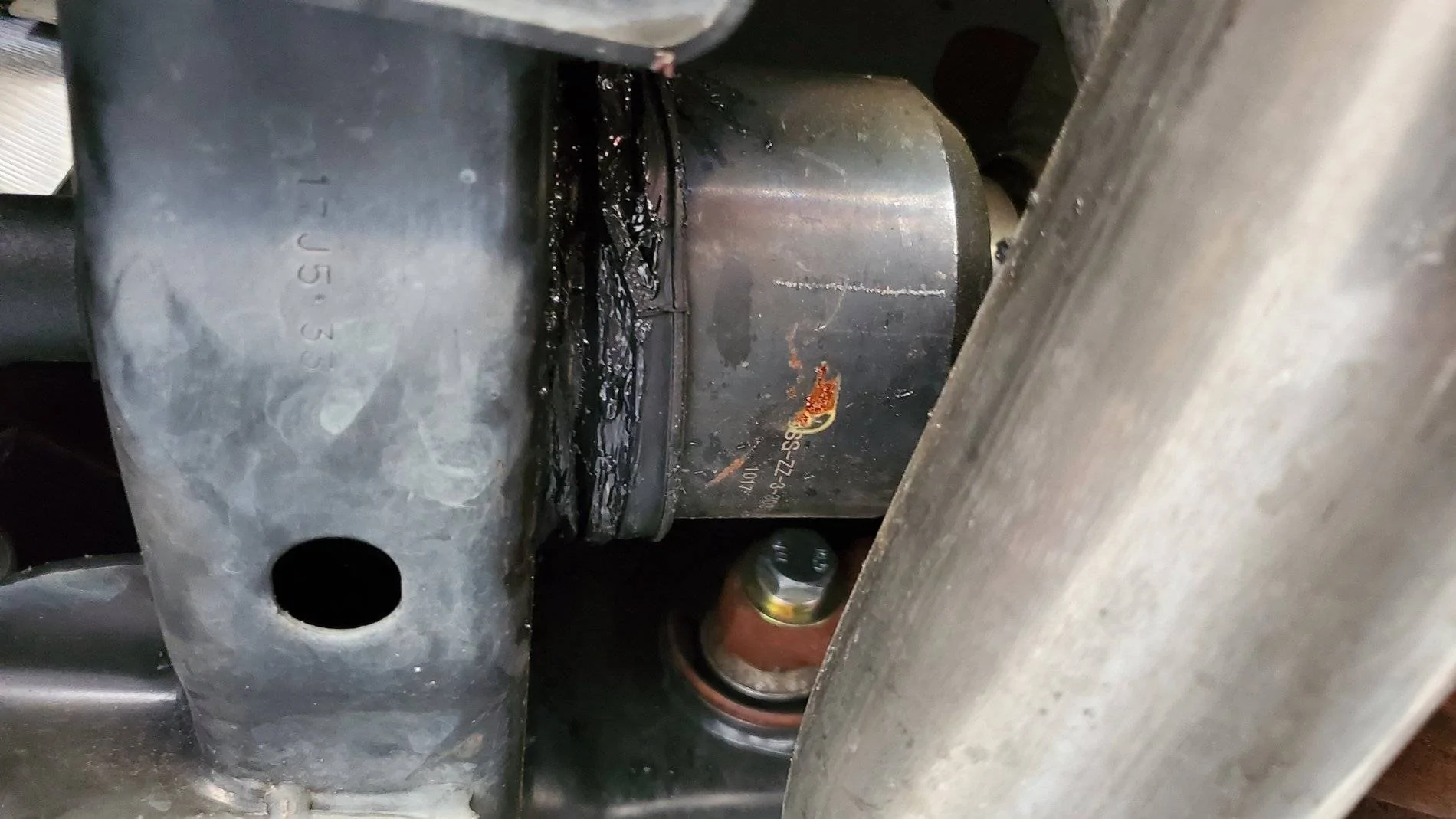

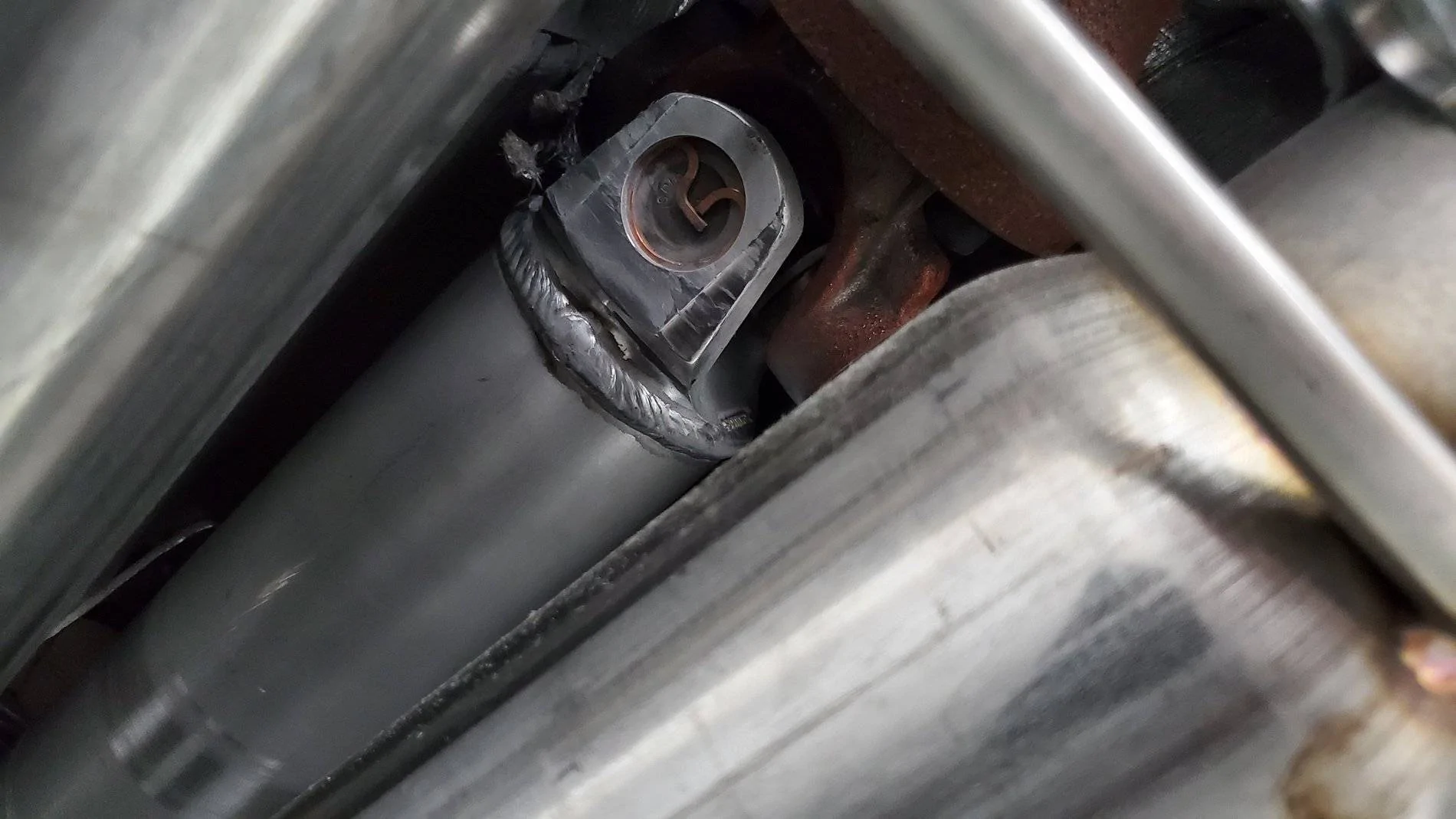

So, I finally gathered the courage to crawl under the car and see what's damaged. As long as my axles are not hurt, they should only need boots. Gonna have the driveshaft balance checked, but it should be good. The driveshaft came in contact with the parking brake cable and has a small width scrape all the way around. The rear u joint end tore up the silver heat shielding that's stuck to the fuel tank cover. Here's a few pics.
