I have a 2017 with a manual transmission and would love to see the gear indicator work correctly. Form what I've read there is a sensor on 2018+ mustangs that reads the current gear. Is it possible to add this sensor to a 2017? Anyone done it?





Advertisement



mikes2017gt

Well-Known Member
Joined
Feb 21, 2017
Posts
933
Reaction score
296
Location
San Antonio, TX
Vehicle(s)
17 GT Prem M/T 3.55
What gear indicator? I have a 17 GT/manual as well. My car has never had a gear indicator. Besides, your ears, hands and butt are what tells you what gear you're in. :D


racingandfishing

Well-Known Member
Joined
Oct 27, 2015
Posts
506
Reaction score
197
Location
Austin, Texas
Vehicle(s)
2015 Mustang GT PP
I have a 2017 with a manual transmission and would love to see the gear indicator work correctly. Form what I've read there is a sensor on 2018+ mustangs that reads the current gear. Is it possible to add this sensor to a 2017? Anyone done it?
Was added to the '18 MT-82 D4 as it is needed for rev match. Don't believe it is possible to add the sensor to the previous MT-82.


opengl128

Well-Known Member
Joined
Jan 26, 2018
Posts
249
Reaction score
234
Location
PA
Vehicle(s)
2018 GT PP1 400A 6MT
Was added to the '18 MT-82 D4 as it is needed for rev match. Don't believe it is possible to add the sensor to the previous MT-82.
19+. 2018 doesn't have gear display/rev match.


Nemes1s

Active Member
Joined
Jan 31, 2017
Posts
27
Reaction score
41
Location
Denver, Colorado
Vehicle(s)
2019 Roush Stage 2, 2013 Boss 302
Installed the digital cluster and sent back my old SCCM. My question is that if at some point I decide to re-install the original analog gauges, will I need to get a new SCCM?


p6cl

Well-Known Member
Joined
Dec 4, 2017
Posts
299
Reaction score
122
Location
Near Cleveland OH
First Name
Ray
Vehicle(s)
2016 Ford Mustang GT Convertible
Vehicle Showcase
1
If you keep the steering wheel switches same 18 up, you will be fine.


doubledeee

New Member
Joined
Nov 20, 2018
Posts
4
Reaction score
2
Location
Collierville, Tennessee
First Name
Dan
Vehicle(s)
2015 Mustang GT, 2003 Dodge Dakota, 2012 Harley Davidson Road Glide
I completed the digital cluster installation on my 2015 GT PP Premium over the weekend, this past summer I upgraded from MFT to SYNC 3 ver 3.4 non nav. Its all working great but I haven't been able go get Google Maps/Waze via CarPlay to display on the IPC. They SYNC APIM was manufactured in January 2020 and is on build 19200. I have studied Forscan IPC and APIM until I was crosseyed, not sure what I am missing. I entered a destination but no joy. Is there another APIM build revision that I need to load to get it working?

Thanks in advance.


hamzah596

Well-Known Member
Joined
May 1, 2016
Posts
437
Reaction score
52
Location
Hampton Roads Virginia
First Name
Hamza
Vehicle(s)
2017 GT Premium
Vehicle Showcase
1
I completed the digital cluster installation on my 2015 GT PP Premium over the weekend, this past summer I upgraded from MFT to SYNC 3 ver 3.4 non nav. Its all working great but I haven't been able go get Google Maps/Waze via CarPlay to display on the IPC. They SYNC APIM was manufactured in January 2020 and is on build 19200. I have studied Forscan IPC and APIM until I was crosseyed, not sure what I am missing. I entered a destination but no joy. Is there another APIM build revision that I need to load to get it working?

Thanks in advance.
The feature only works with android auto right now.


rtrdude

Member
Joined
May 16, 2020
Posts
12
Reaction score
1
Location
cincinnati ohio
First Name
jeremy
Vehicle(s)
2019 mustang gt

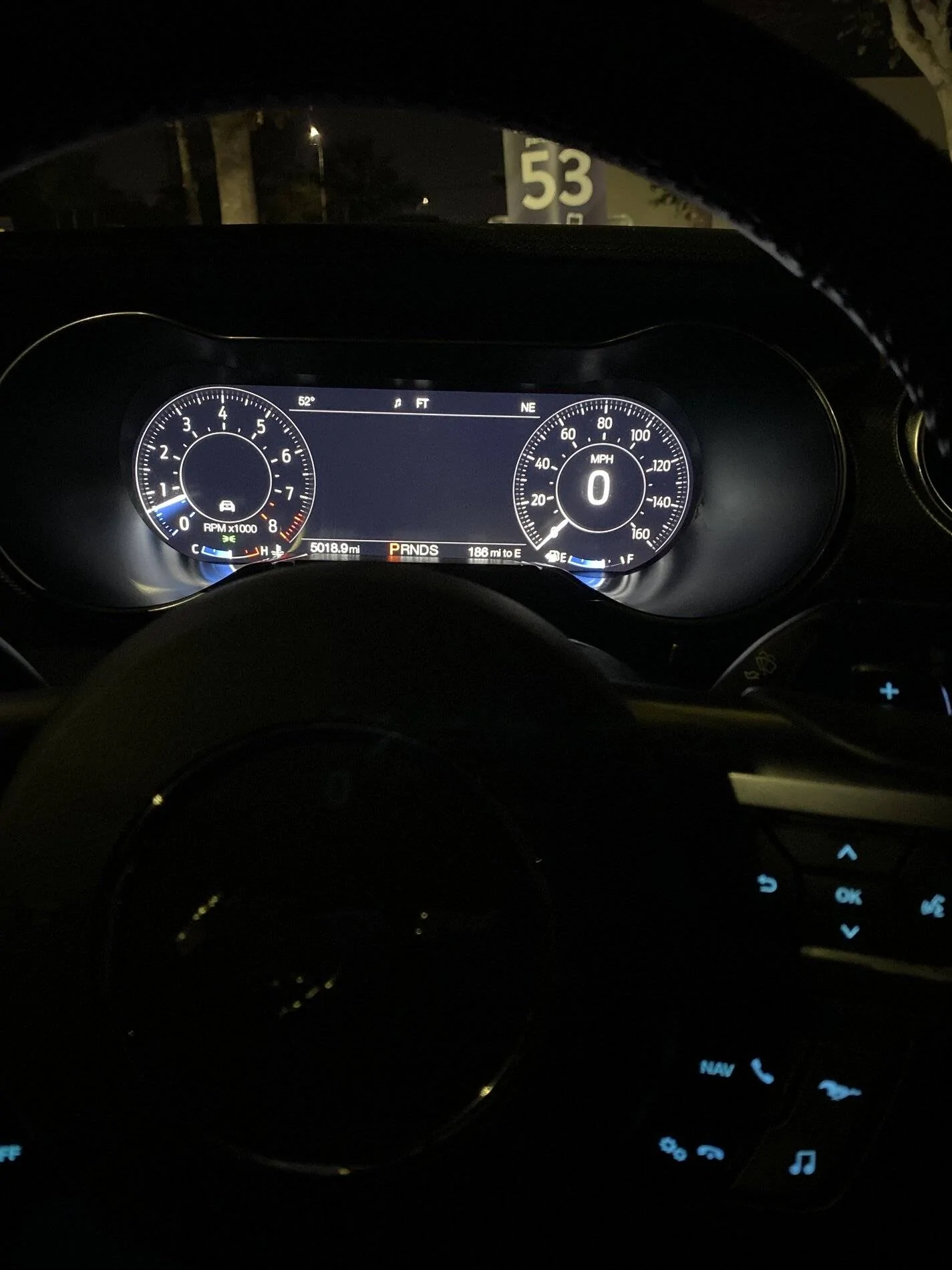

Just did the install on my
19 base. Got all features working awesome work on this write up and a huge thanks to p6cl for all the info you guys rock


codereddew

Well-Known Member
Joined
Apr 21, 2020
Posts
85
Reaction score
25
Location
USA
Vehicle(s)
Mustang GT
I purchased from Hell Horse and paid extra for the pre-programmed file. Got the cluster installed and it’s working; however, the pony button doesn’t do anything when I press it. I also don’t have any gauges on the “main” screen.

Do I need to do something in Forscan to get this working? I have a base 2020 with 301a package.



rtrdude

Member
Joined
May 16, 2020
Posts
12
Reaction score
1
Location
cincinnati ohio
First Name
jeremy
Vehicle(s)
2019 mustang gt
I purchased from Hell Horse and paid extra for the pre-programmed file. Got the cluster installed and it’s working; however, the pony button doesn’t do anything when I press it. I also don’t have any gauges on the “main” screen.

Do I need to do something in Forscan to get this working? I have a base 2020 with 301a package.

You need to program the sccm
I purchased from Hell Horse and paid extra for the pre-programmed file. Got the cluster installed and it’s working; however, the pony button doesn’t do anything when I press it. I also don’t have any gauges on the “main” screen.

Do I need to do something in Forscan to get this working? I have a base 2020 with 301a package.

you need to program the sccm using forscan so the pony button works


dperea

New Member
Joined
Dec 9, 2020
Posts
2
Reaction score
0
Location
Miami, FL
First Name
Danny
Vehicle(s)
2019 Mustang GT Premium PP1

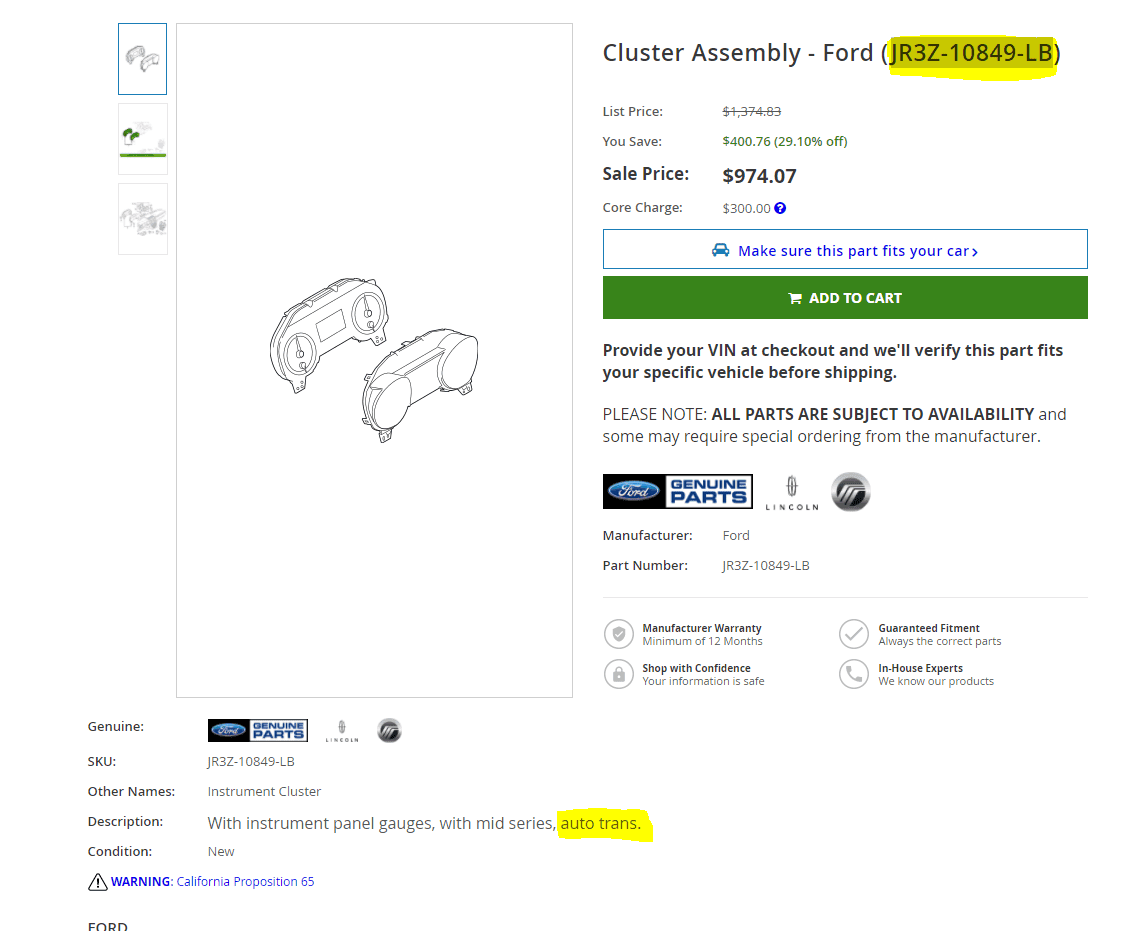

Hello Everyone. I have a 2019 GT premium PP1 with 6 speed manual and I am looking to purchase the digital cluster. After searching for the cluster with the part number provided on the first post for MPH manual cluster. All web pages are showing Auto Trans. Can anyone confirm the correct part number for MPH manual cluster or what they purchased that works?



LoudGT_IN

Member
Joined
Sep 21, 2019
Posts
11
Reaction score
1
Location
Indianapolis, IN
First Name
Eric
Vehicle(s)
2015 Mustang GT Premium (Ruby Red)
I have a 2017 with a manual transmission and would love to see the gear indicator work correctly. Form what I've read there is a sensor on 2018+ mustangs that reads the current gear. Is it possible to add this sensor to a 2017? Anyone done it?
Out of curiosity, I searched into the 2019 Mustang Service Manual to see how the Neutral/Gear Position Sensor works in the new vehicles. I attached a full PDF as well.

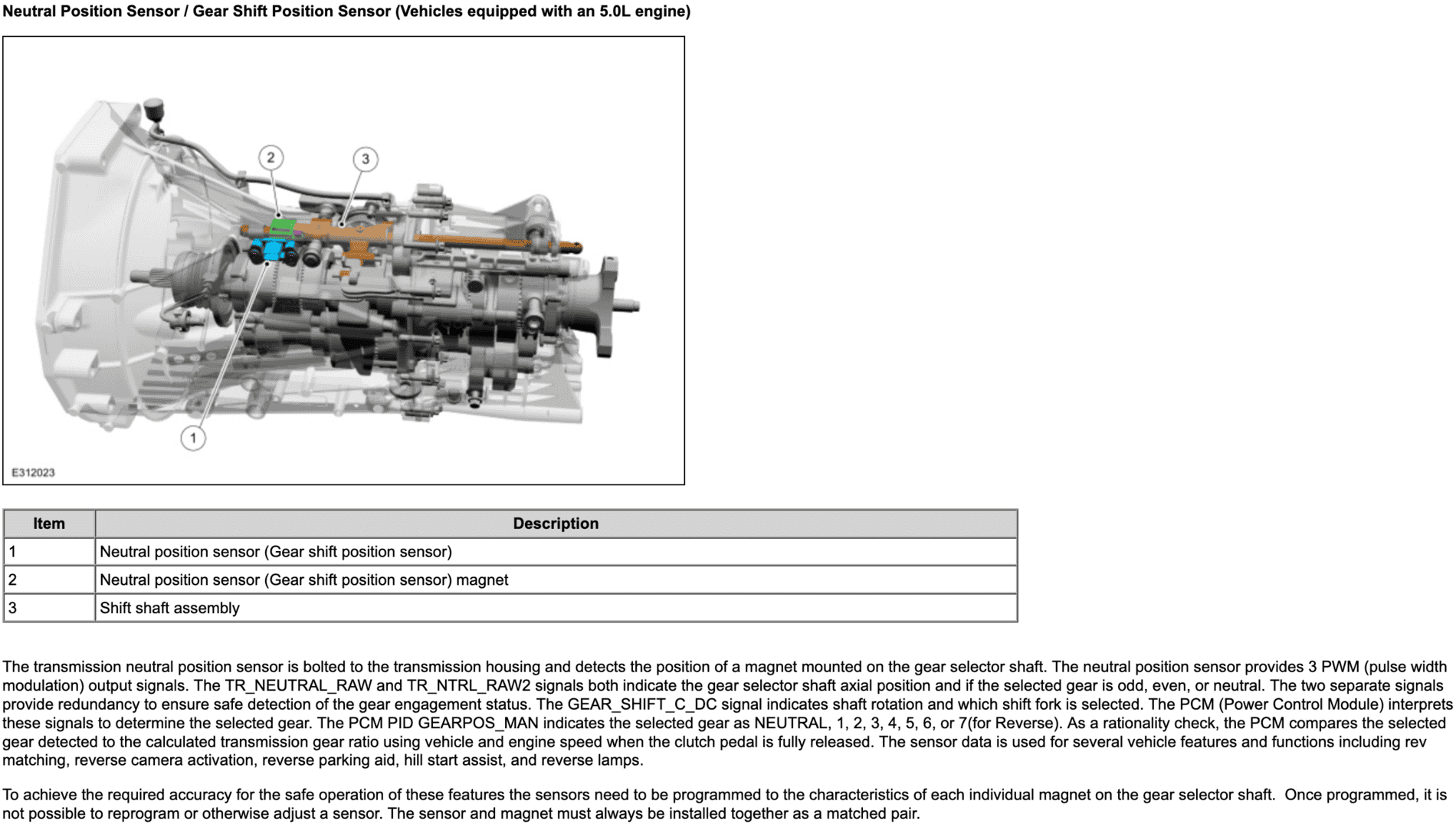

It's built into the transmission itself:


It mentions needing programmed, but I have no idea how it gets programmed, there is no information on it.

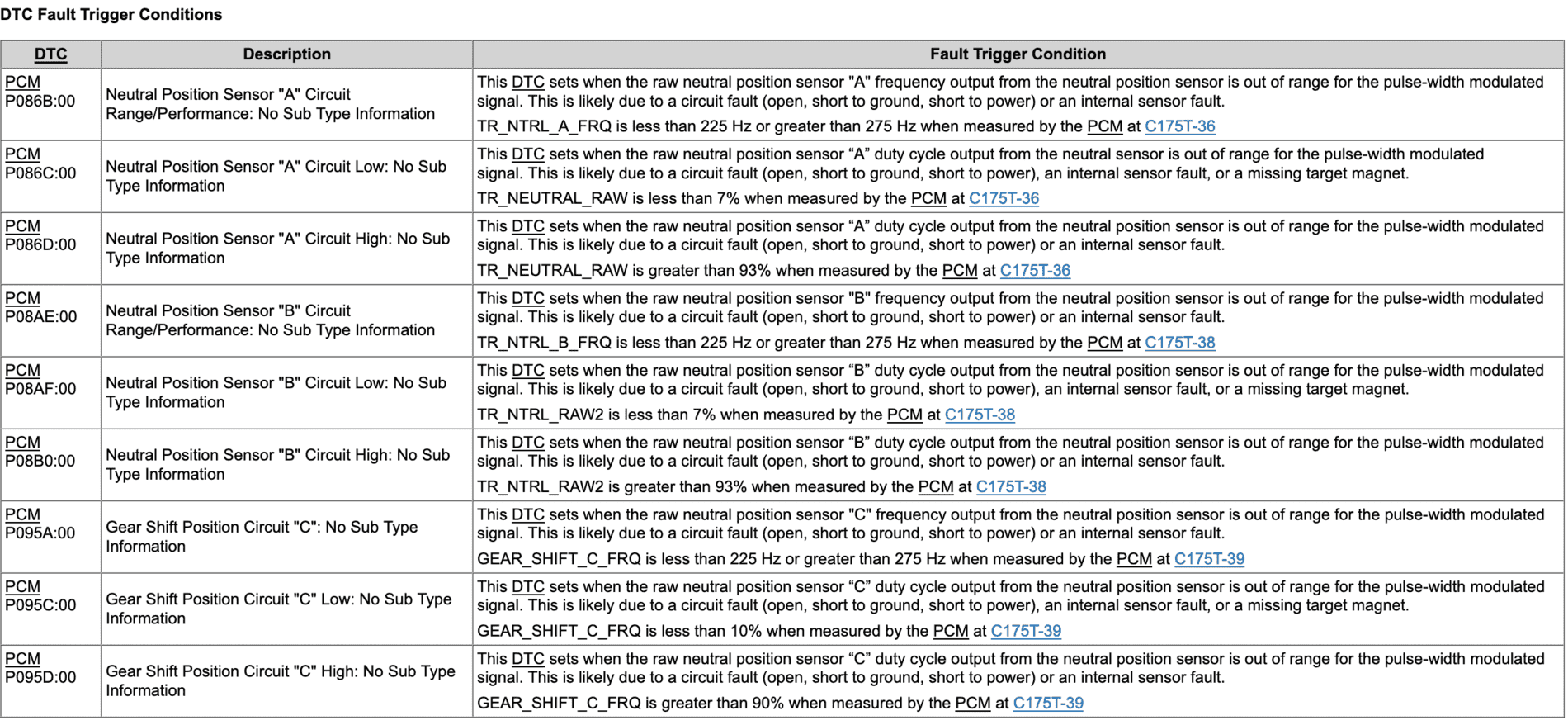

In the Diagnosis portion, it mentions these values. Maybe the PCM just needs to be programmed to recognize these thresholds?

Theoretically, I don't see why you couldn't disassemble your transmission and add the sensor and magnet to an older MT-82. The other obstacle would be obtaining this sensor and magnet in the first place. I tried searching some Ford Parts websites, but they probably are built into the transmission from factory. No idea how you would get a new one if it broke.

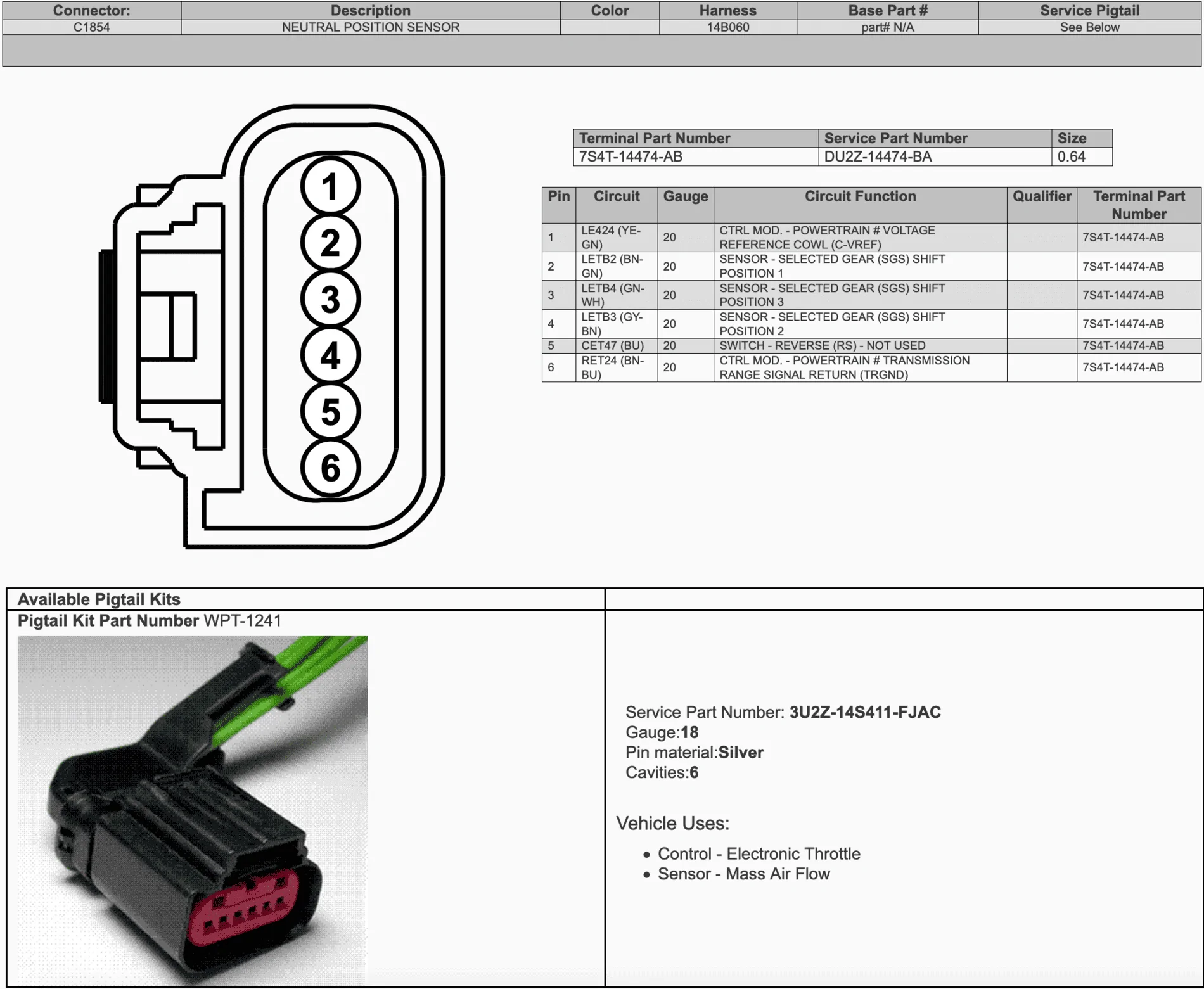

It then uses this connector:

to send data back to the PCM.

Full wiring diagrams are in the PDF.


Attachments

LoudGT_IN

Member
Joined
Sep 21, 2019
Posts
11
Reaction score
1
Location
Indianapolis, IN
First Name
Eric
Vehicle(s)
2015 Mustang GT Premium (Ruby Red)
Hello Everyone. I have a 2019 GT premium PP1 with 6 speed manual and I am looking to purchase the digital cluster. After searching for the cluster with the part number provided on the first post for MPH manual cluster. All web pages are showing Auto Trans. Can anyone confirm the correct part number for MPH manual cluster or what they purchased that works?

The one in my 2015 MT-82 is JR3T-10849-ALC
