Lots of people say not to use that data. It’s very confusing haha. They claim it’s for 39.15 psi systems and the coyote is like 55
Next log add Fuel Lift pump pressure actual to you channels
Sponsored



WildHorse

N/A or GO HOME
Joined
Jun 28, 2017
Threads
270
Messages
10,297
Reaction score
8,350
Location
Home World: CLASSIFIED
First Name
Puddintane
Vehicle(s)
'17 S550
Vehicle Showcase
1
Lots of people say not to use that data. It’s very confusing haha. They claim it’s for 39.15 psi systems and the coyote is like 55
It's 43.5 psi, so you multiply flow rate by 1.054.

OP
OP
tdstuart

tdstuart

Well-Known Member
Joined
Apr 6, 2021
Threads
72
Messages
2,567
Reaction score
1,292
Location
Arizona
First Name
Triston
Vehicle(s)
2015 Mustang Gt Premium
It's 43.5 psi, so you multiply flow rate by 1.054.
Idk where you are getting 43.5. I’ve seen lots of people quote 55-58. Never seen anyone say 43.5 though. And are you multiplying the tables or just the high low and breakpoint values


Sponsored

OP
OP
tdstuart

tdstuart

Well-Known Member
Joined
Apr 6, 2021
Threads
72
Messages
2,567
Reaction score
1,292
Location
Arizona
First Name
Triston
Vehicle(s)
2015 Mustang Gt Premium
The last log he posted with diff injector data. Pretty sure the PMAS
Everything posted here so far is PMAS. I do have Lund logs on the JLT tho


Pistol_91

Well-Known Member
Joined
Oct 25, 2023
Threads
12
Messages
1,385
Reaction score
1,408
Location
Clearwater
Vehicle(s)
2020 mustang GT
I found this on an HPT thread, lu47 roush file. Doesnt match what wildhorse posted in that link. Cross reference the info to the other data you have to see if you have already tried these values.
Did you ever specify which lu47 injectors you had?
Hope it helps

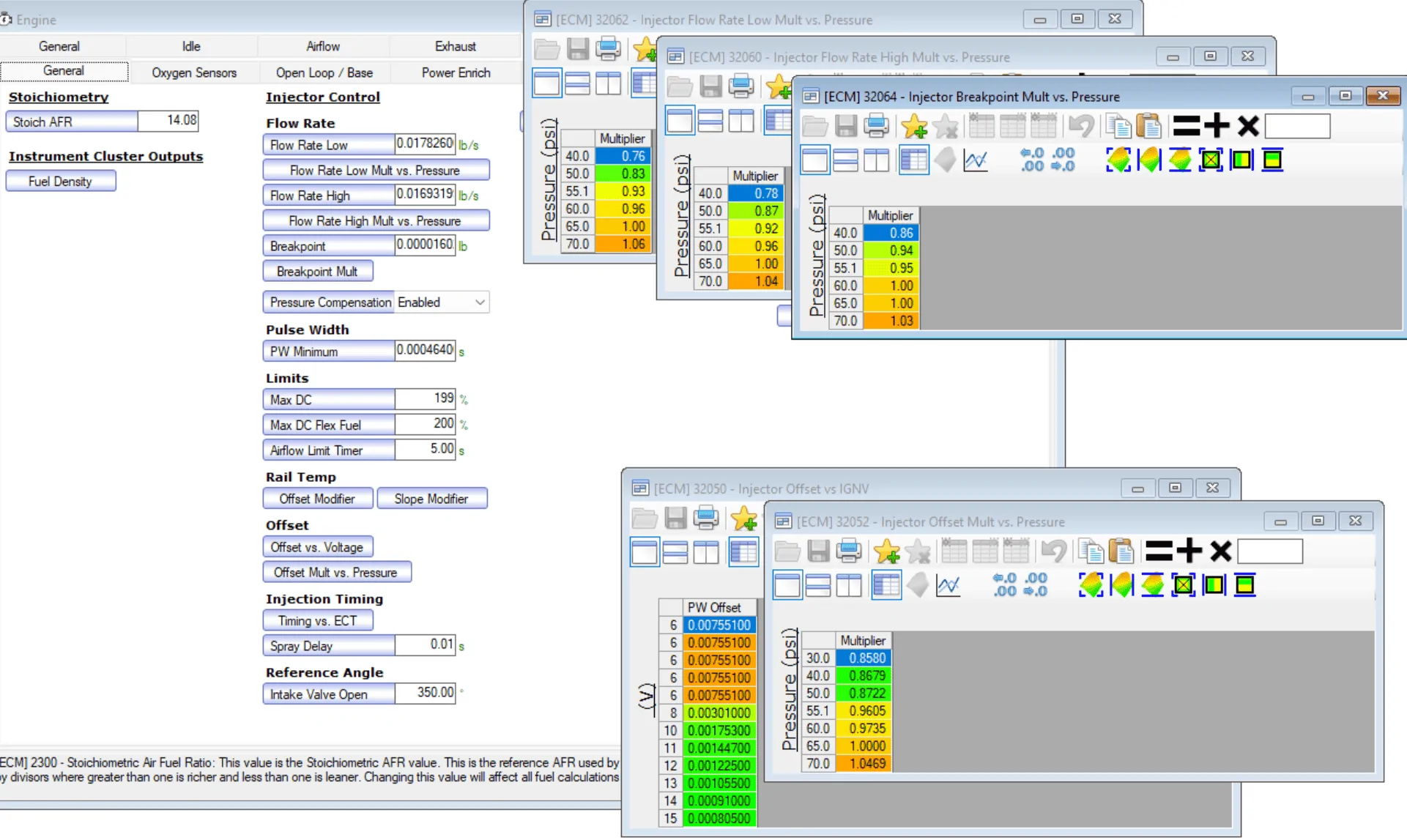

Screenshot 2024-06-09 030941.png

Last edited:
OP
OP
tdstuart

tdstuart

Well-Known Member
Joined
Apr 6, 2021
Threads
72
Messages
2,567
Reaction score
1,292
Location
Arizona
First Name
Triston
Vehicle(s)
2015 Mustang Gt Premium
I found this on an HPT thread, lu47 roush file. Doesnt match what wildhorse posted in that link. Cross reference the info to the other data you have to see if you have already tried these values.
Did you ever specify which lu47 injectors you had?
Hope it helps

Screenshot 2024-06-09 030941.png
Haven't tested those yet. Thats the 3rd different roush file for lu47 injectors ive seen so far haha.

Do you mind attaching the file? Just have to .zip it. I would be interested in giving those a try aswell.

And the injectors are the Ford performance lu47


Pistol_91

Well-Known Member
Joined
Oct 25, 2023
Threads
12
Messages
1,385
Reaction score
1,408
Location
Clearwater
Vehicle(s)
2020 mustang GT
Haven't tested those yet. Thats the 3rd different roush file for lu47 injectors ive seen so far haha.

Do you mind attaching the file? Just have to .zip it. I would be interested in giving those a try aswell.

And the injectors are the Ford performance lu47
yes, but there are 2 different kinds 3 bar and 4 bar from what I have been reading. This may be your issue.


Attachments

engineermike

Well-Known Member
Joined
Jul 15, 2018
Threads
31
Messages
6,193
Reaction score
6,470
Location
La
Vehicle(s)
2018 GTPP A10
@tdstuart how do you suppose the injector flow rate slope and multiplier vs pressure work together to determine the final pressure-adjusted rate?


Sponsored

deanm11

Well-Known Member
Joined
Oct 27, 2020
Threads
54
Messages
485
Reaction score
318
Location
Northern NJ
First Name
Dean
Vehicle(s)
2020 Mustang GT A10
Do you care to post them?
Certainly. I share any and all results I get. Engineermike has helped me through time, I give him credit in contribution to my tune for sure. My build is the Gen3 comp cams (#433430). "NSR" no springs required but comp really means to stock redline. I did PAC 1281X springs, titanium retainers, billet oil pump gears, upgraded chains and tensioners. Currently closed Steeda pro-flow air box, Soler 95mm ZR1 throttle body into a Holley short-ram. (523 rwhp). Here's what I found best from dyno work. As usually, the vast majority of the power is from intake timing.

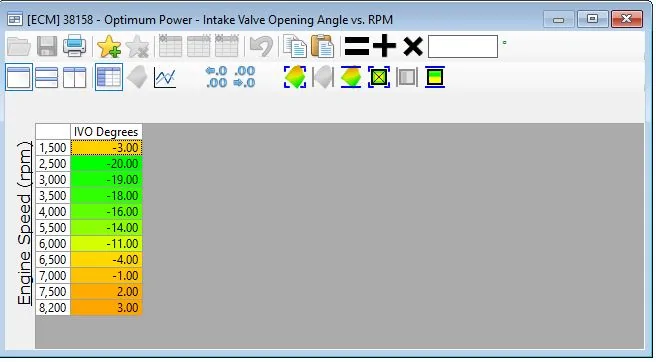

intake cams.webp

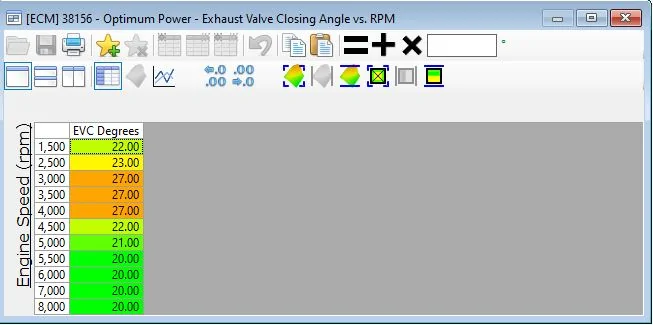

exhaust cams.webp

OP
OP
tdstuart

tdstuart

Well-Known Member
Joined
Apr 6, 2021
Threads
72
Messages
2,567
Reaction score
1,292
Location
Arizona
First Name
Triston
Vehicle(s)
2015 Mustang Gt Premium
@tdstuart how do you suppose the injector flow rate slope and multiplier vs pressure work together to determine the final pressure-adjusted rate?
No idea haha.

I don’t even know how the car is handling the pressure low/high values with the pressure slope values.

From what some people said it sounds like you need to convert all the non slope values. But in my mind it looks like you should just leave those and the car will you the slope values to automatically adjust them for the correct pressure.

The ford values show the 39.15 psi as a 1 multiplier. So I would think if the car thought it was at 39.15 psi then it would use that but the car should know it’s higher and use the higher multipliers.

I wonder if I can log values and tell


markmurfie

Well-Known Member
Joined
Jun 6, 2015
Threads
15
Messages
1,320
Reaction score
625
Location
Hawaii
First Name
Mark
Vehicle(s)
2015 Ford Mustang GT
No idea haha.

I don’t even know how the car is handling the pressure low/high values with the pressure slope values.

From what some people said it sounds like you need to convert all the non slope values. But in my mind it looks like you should just leave those and the car will you the slope values to automatically adjust them for the correct pressure.

The ford values show the 39.15 psi as a 1 multiplier. So I would think if the car thought it was at 39.15 psi then it would use that but the car should know it’s higher and use the higher multipliers.

I wonder if I can log values and tell

Injection pressure is a function of not just fuel rail pressure, but also manifold pressure. While fuel rail pressure is kept fairly constant around 55-58PSI on the injector inlet, manifold pressure varies from 3psi-14.7psi on the injector outlet, which has a larger effect on how much flow the injector can provide. Using a 1:1 vacuum reference regulator maintains the pressure difference, but returnless systems can't do that.
Keep in mind, in 15-17 mustangs fuel rail pressure, manifold pressure, and rail temperatures are all inffered values from other parameters. You can log them, but its all just math functions to change what the ECU thinks they are. You have your MAF/ IAT sensor and cylinder head temperature sensor controlling all of this.

"With the advent of returnless fuel delivery systems (no fuel returned to the tank), a sensor to measure Δp inj would be needed to help replace the function of the mechanical pressure regulator. This Δp inj can be measured using a differential pressure sensor mounted between the fuel rail and the intake manifold. Furthermore, a sensor to measure the temperature of the fuel within the fuel rail (Tfr) was needed since ΔPinj is commanded to be higher with temperature to minimize fuel vaporization in the rail. Beyond simply using the information provided by the pressure sensor to help maintain Δp inj to a desired value, it may be used to modify the calculation of the PWinj for the following two reasons. First, since maintaining the exact pressure in a returnless fuel delivery system with a pump controller is not possible, transient pressure errors may be accounted for by using the actual Δp inj in the PW inj calculation. Second, since the Δp inj desired across the injectors may not be constant, fuel metering accuracy may still be maintained using the same idea; account for the actual Δp inj in the PW inj calculation."

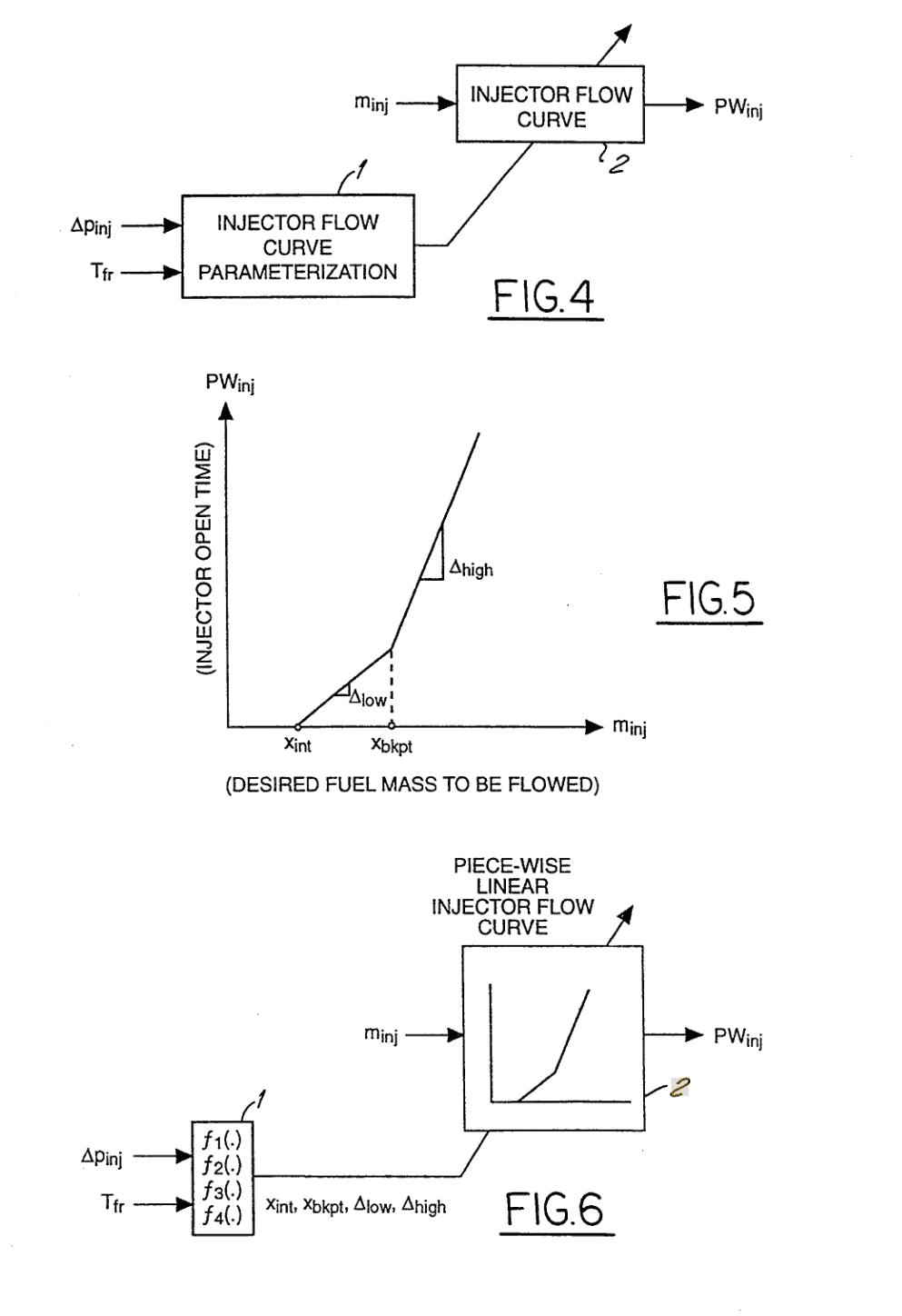

"FIG. 5. This curve may be completely described by four terms of parameters: The x-axis intercept (Xint), the breakpoint (Xbkpt), the slope along the lower portion (Δlow), and the slope along the higher portion (Δhigh). Block 1 of FIG. 4 becomes four relationship (f1, f2, f3 and, f4) that determine the four fuel-injector curve parameters given Δpinj and Tfr."

Fuel injector pulsewidth compensation for variations in injection pressure and temperature.png


GregO

Well-Known Member
Joined
Mar 5, 2018
Threads
41
Messages
3,320
Reaction score
2,470
Location
Illinois
Vehicle(s)
S550 GTPP
You can log them, but its all just math functions to change what the ECU thinks they are. You have your MAF/ IAT sensor and cylinder head temperature sensor controlling all of this.
All the more reason for the OP to get his IAT fluctuations sorted out first. Agreed ?

OP
OP
tdstuart

tdstuart

Well-Known Member
Joined
Apr 6, 2021
Threads
72
Messages
2,567
Reaction score
1,292
Location
Arizona
First Name
Triston
Vehicle(s)
2015 Mustang Gt Premium
The graph makes sense to me just not sure how to convert the ford values to get the same graph.

But according to this then I should be able to use the ford data and not touch it because the slope multipliers will correct for the pressure difference
