Over The Radiator Cold Air Intake, first off to me CAI should be called AAI Ambient Air Intakes.
I know this is not practical or pretty, but it works! This was a part of being able to make a 9 second pass N/A!

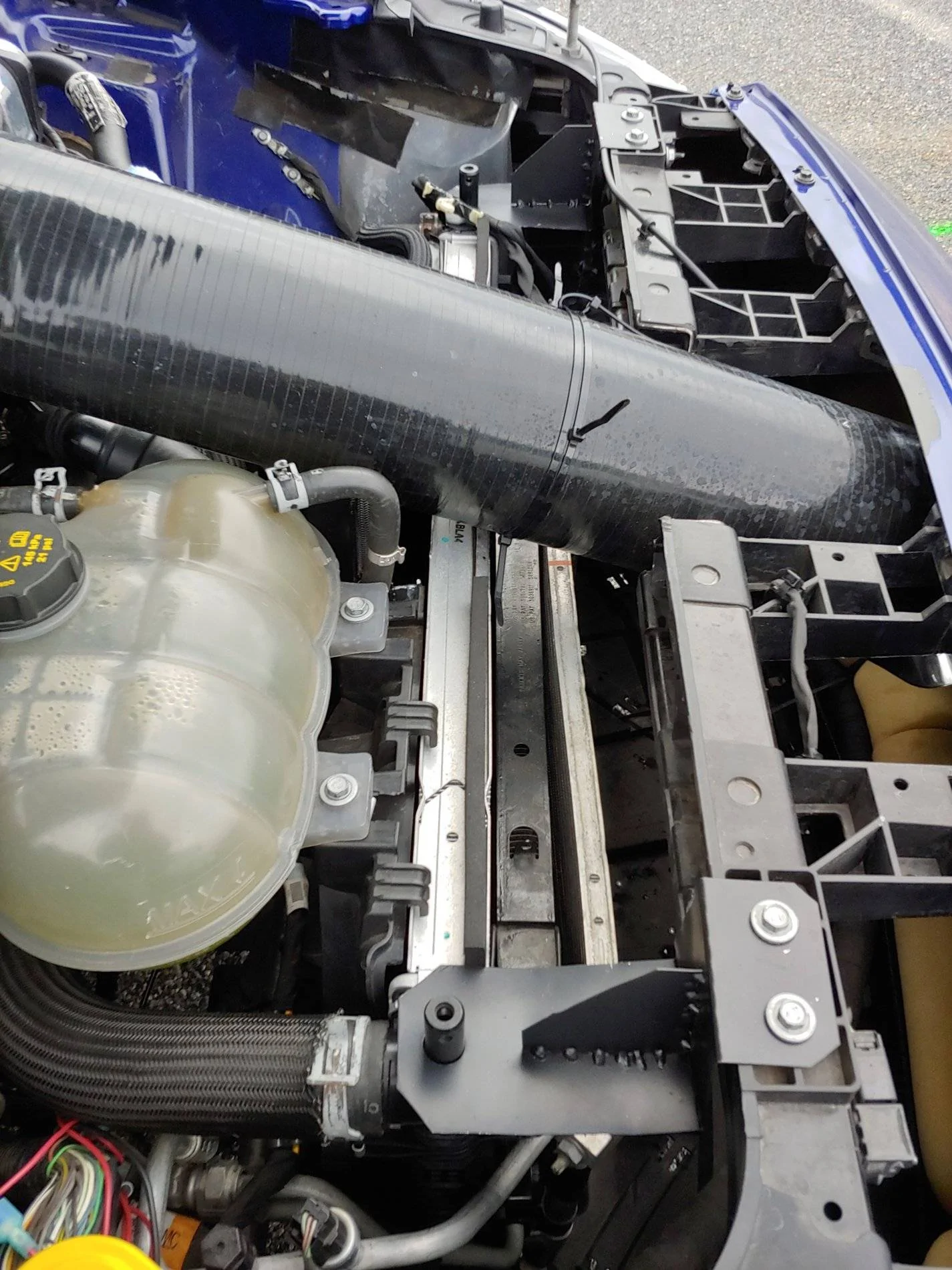

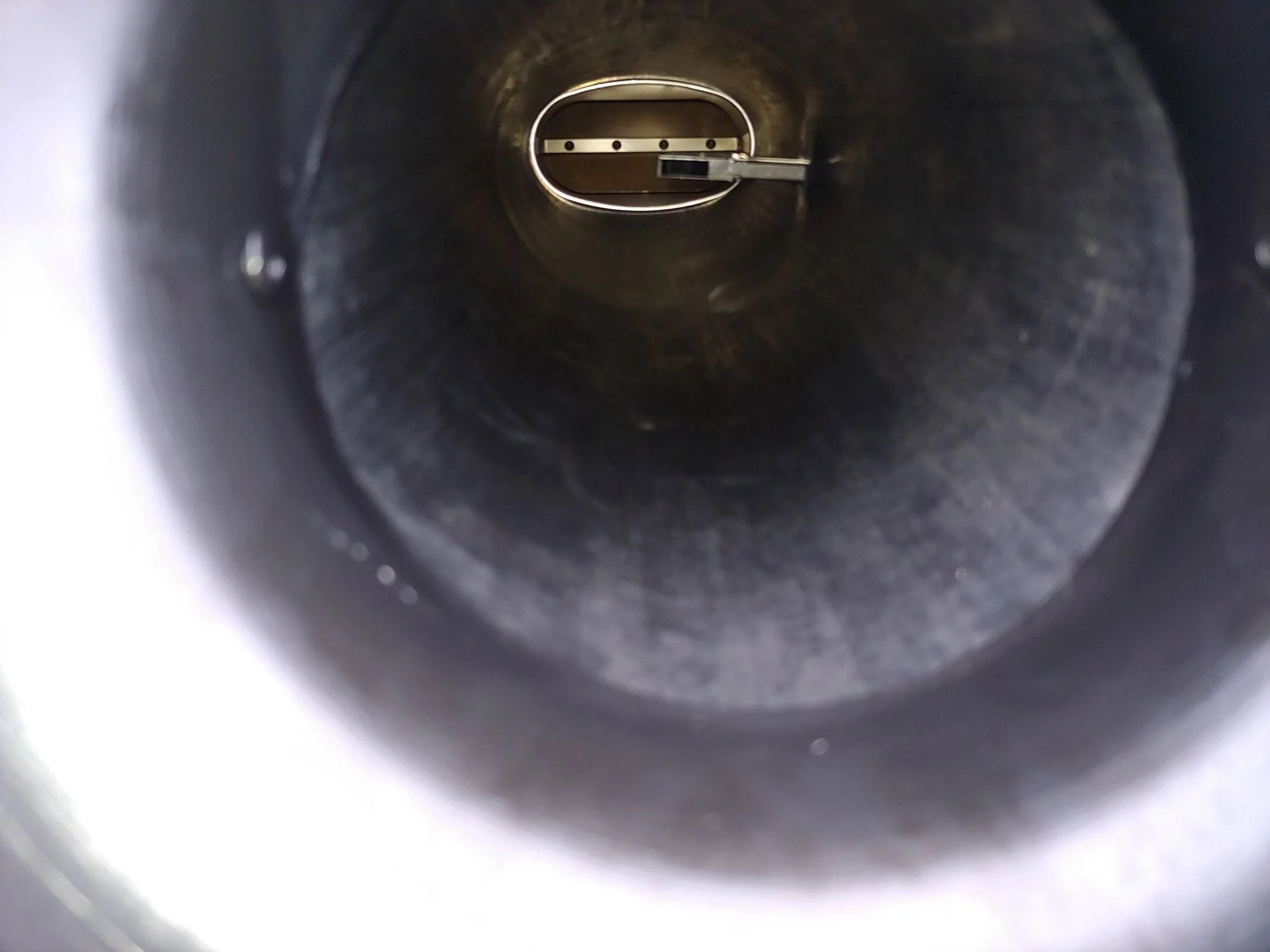

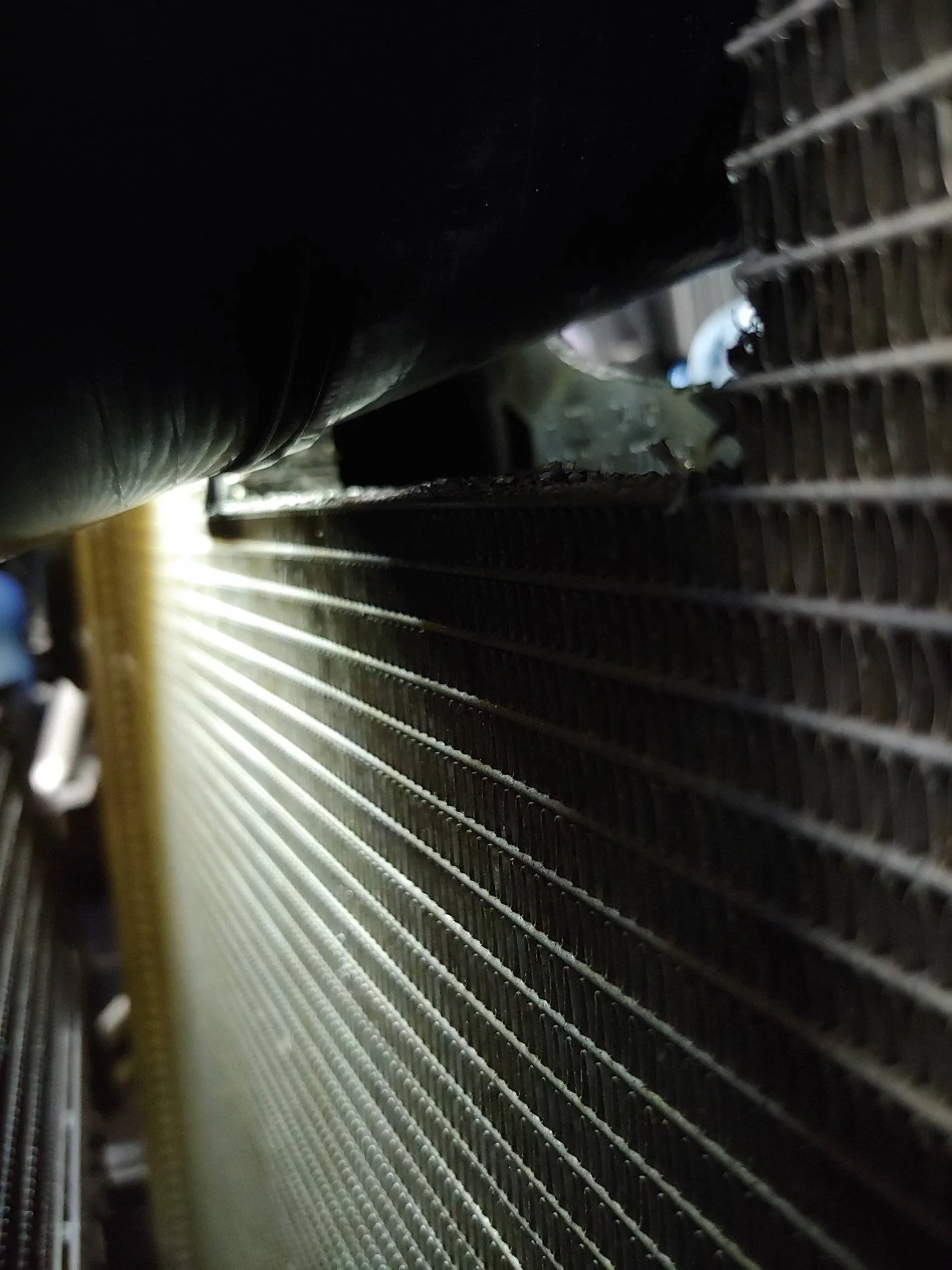

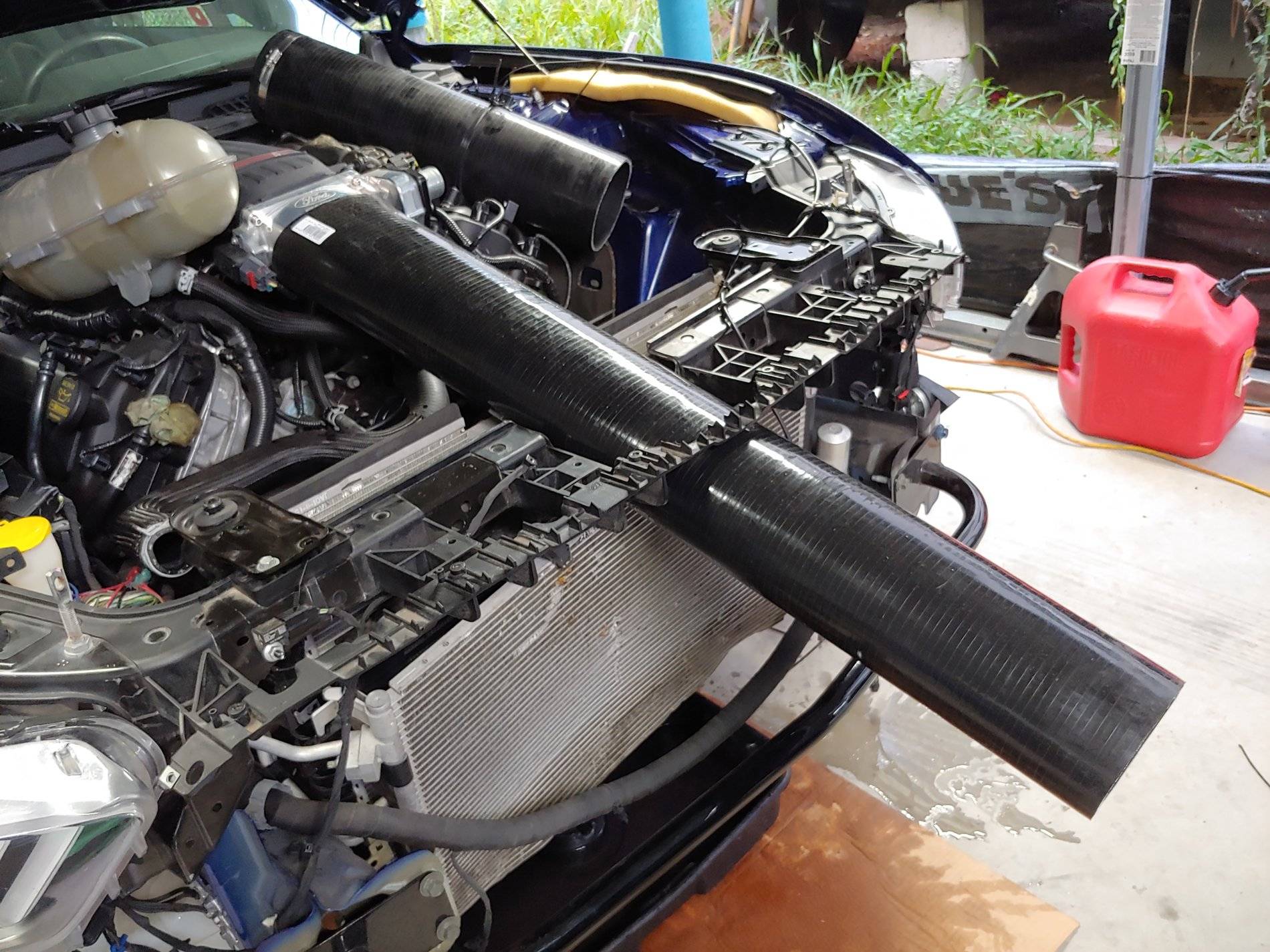

This is just a 5" silicone hose with a hole I cut in it for the MAF sensor. I lowered the stock radiator 3", half of that was achieved by removing the rubber bushings on the bottom radiator pegs, the other half was by cutting off the lower radiator mounts, flipping them over and welding back on. (Watson K-member)
Now before there is a bunch of negative or suggestive comments.....I work 500 miles from home, 13 hrs day and stay in a camper for my work location....so time is limited and conditions to play with car are not the best. PLUS....this was the first S550 to go 9's N/A and to date still the quickest with a 9.89.

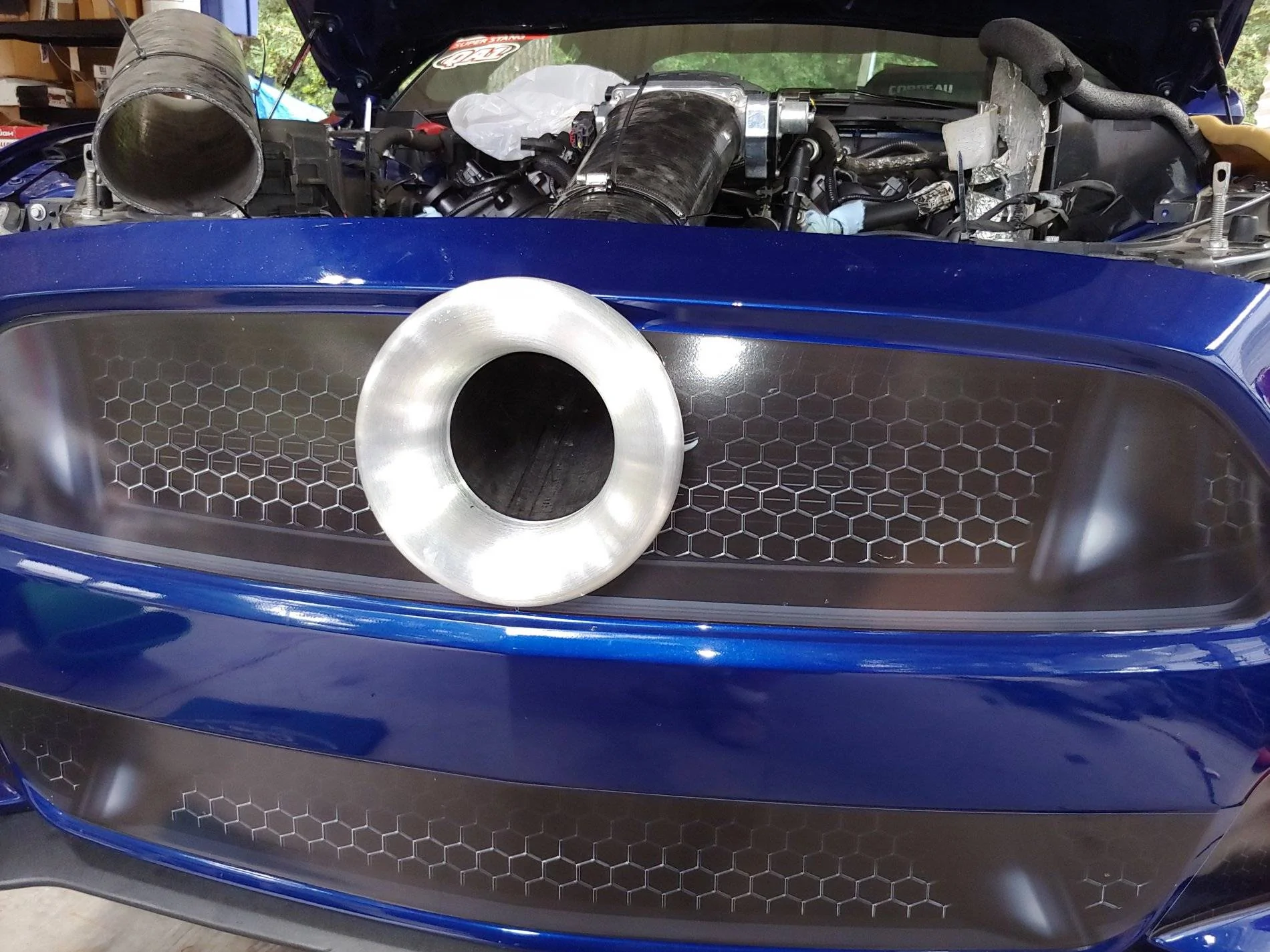

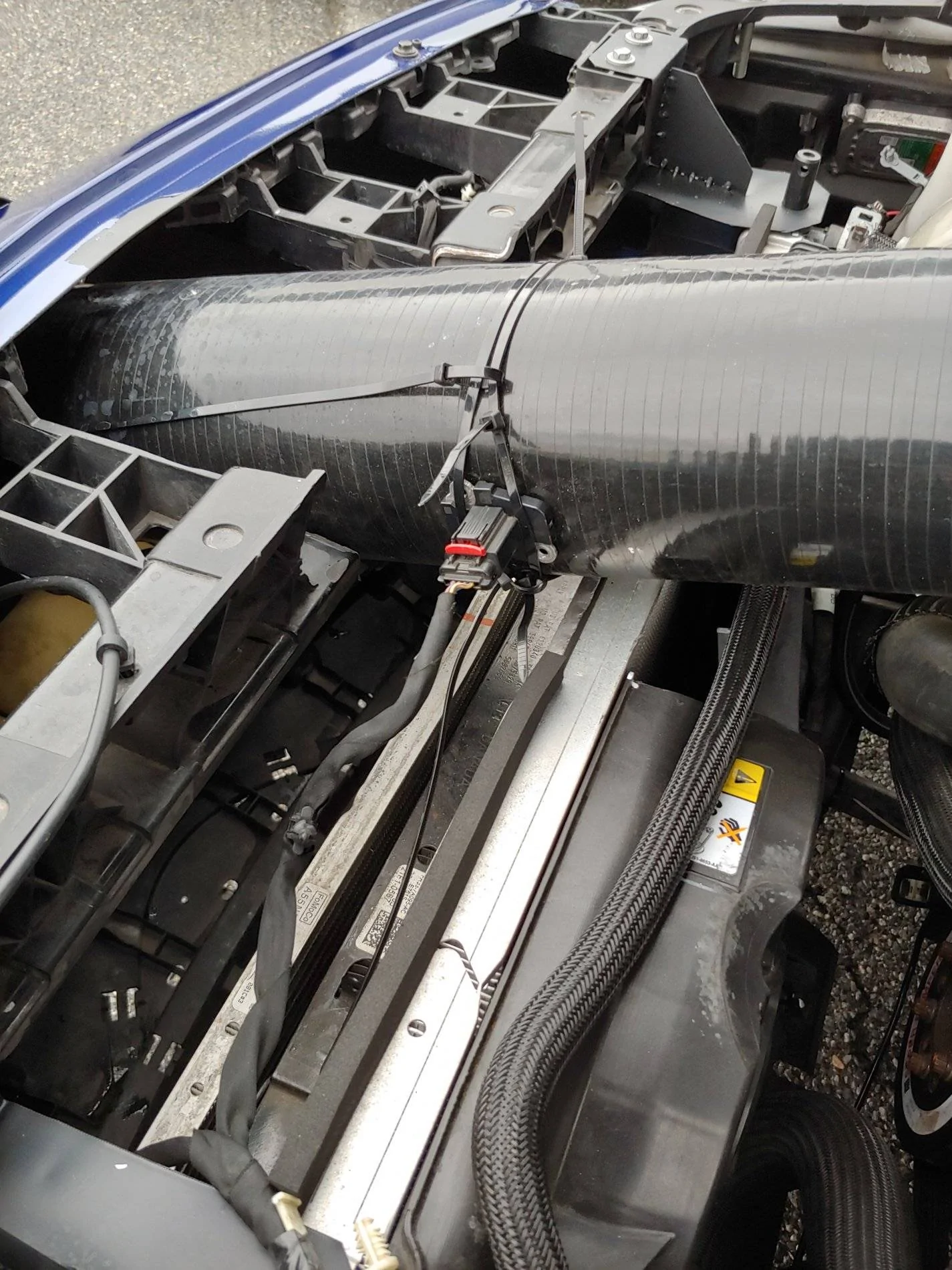

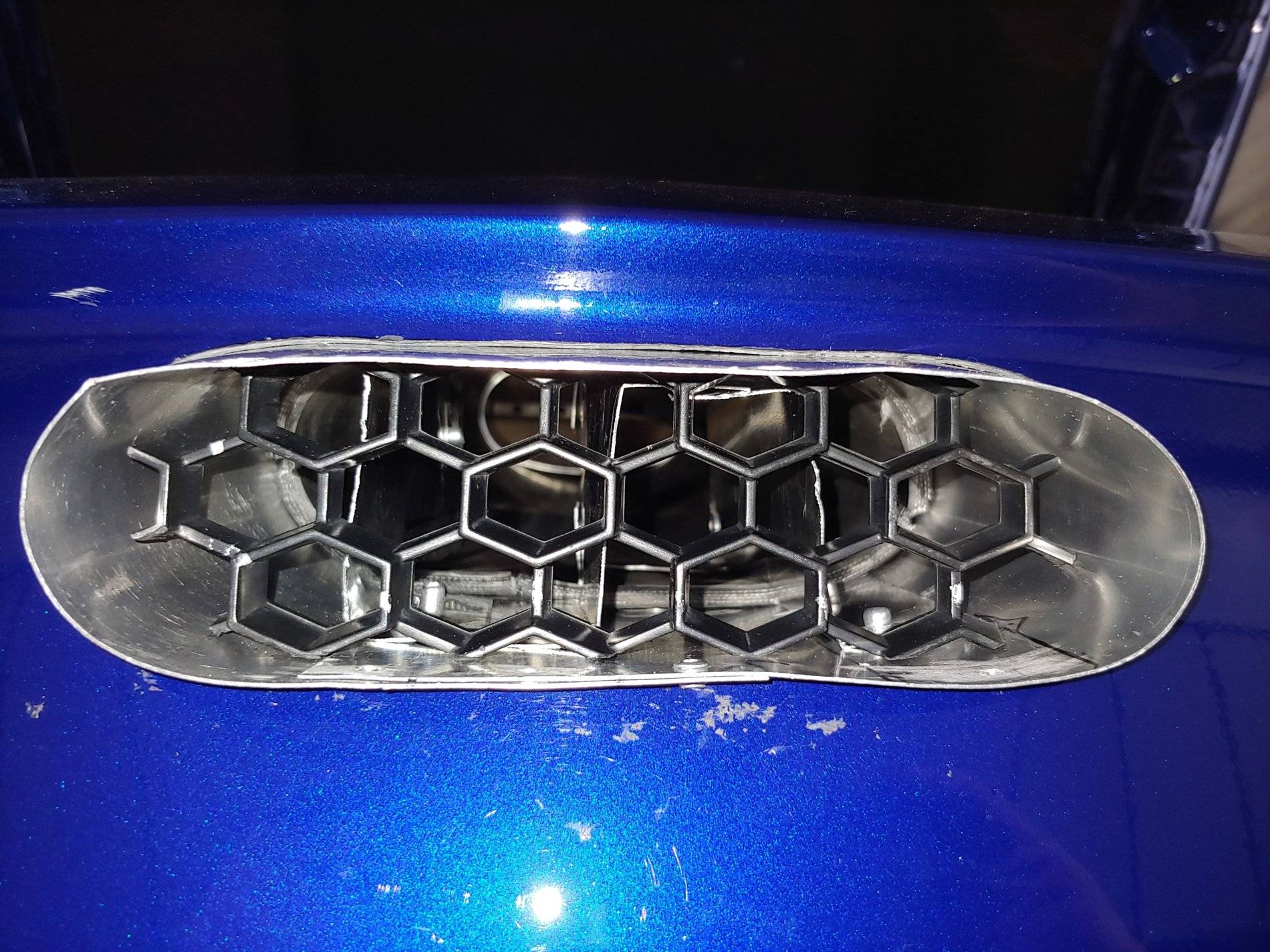

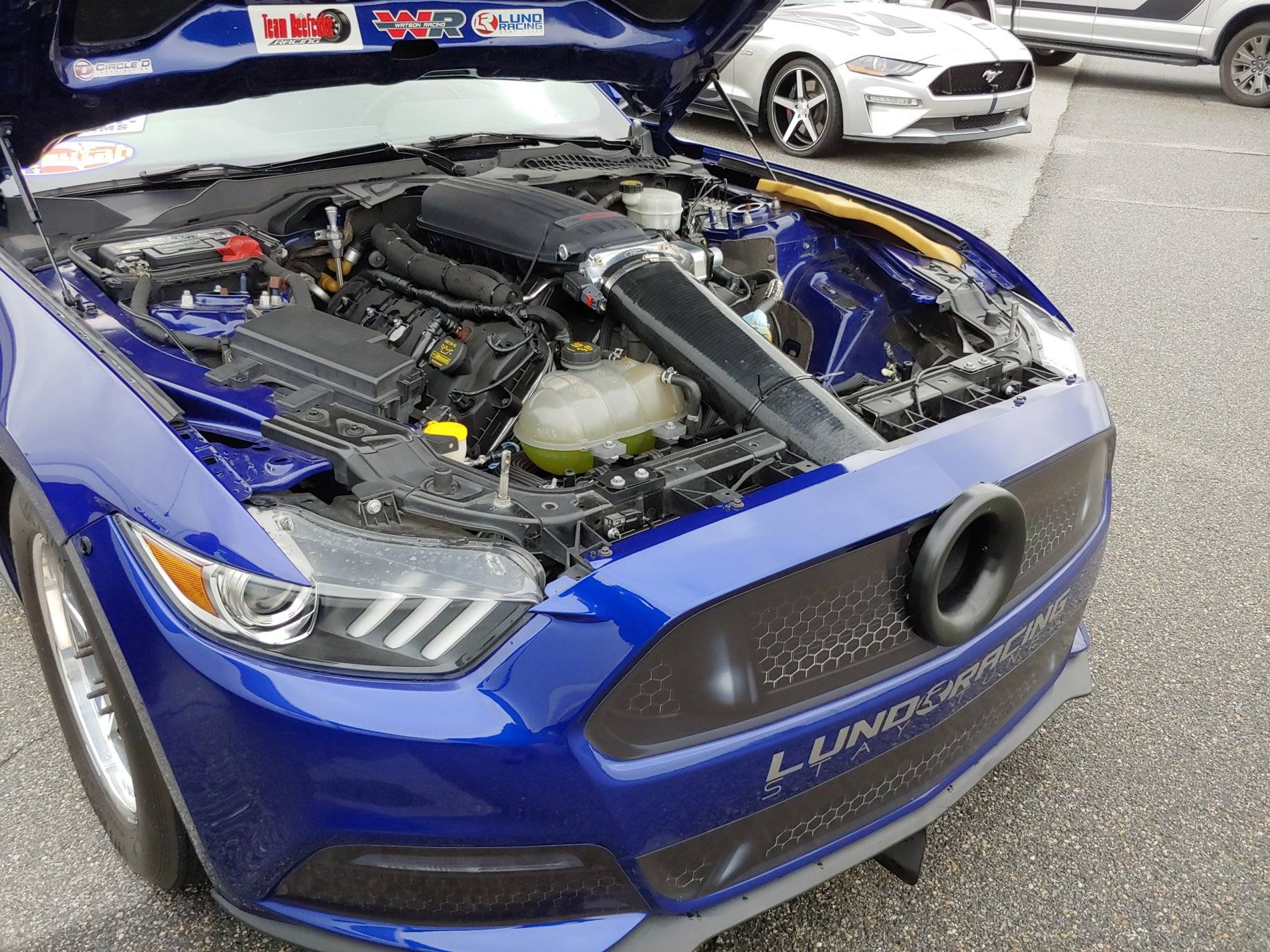

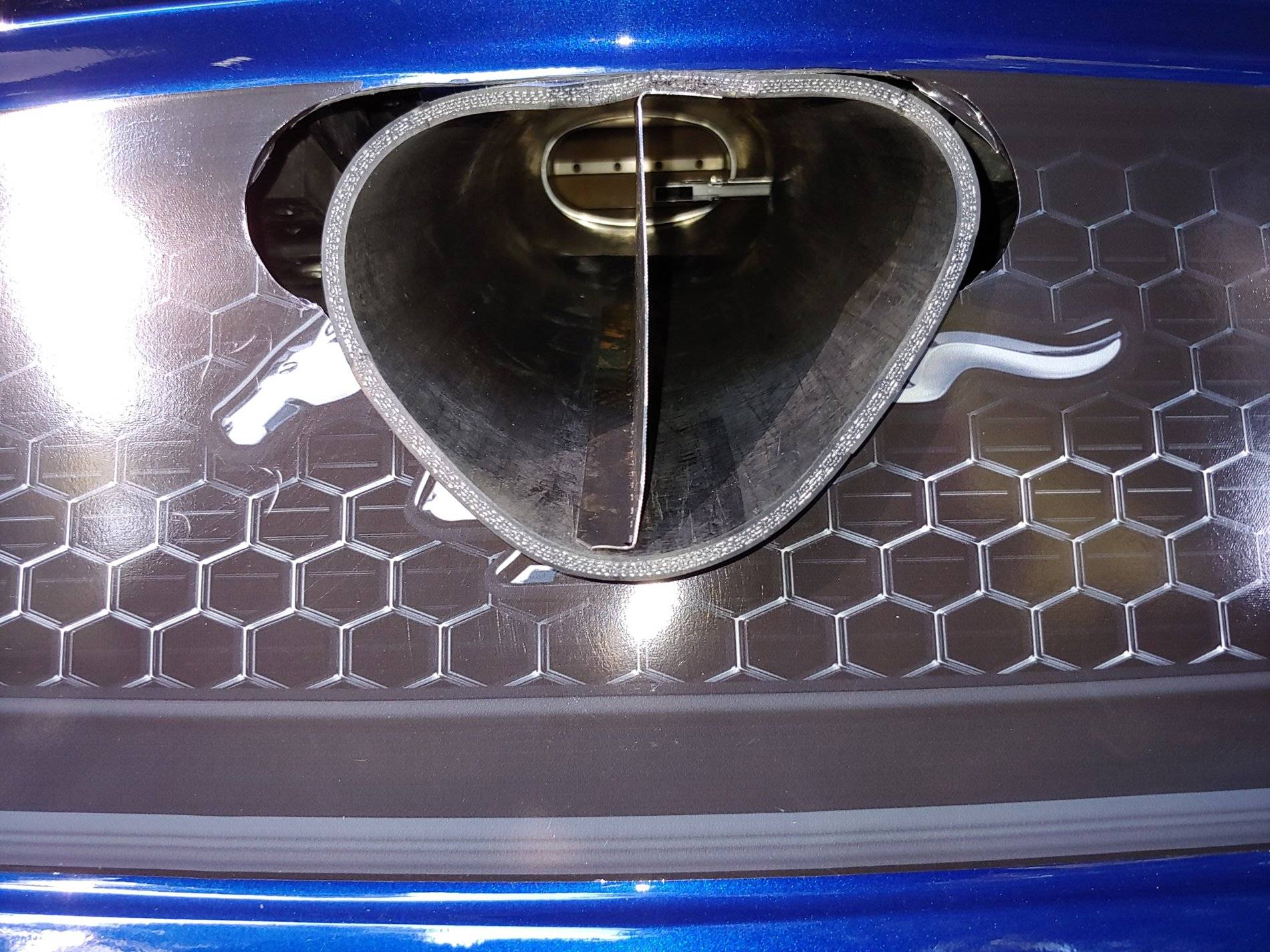

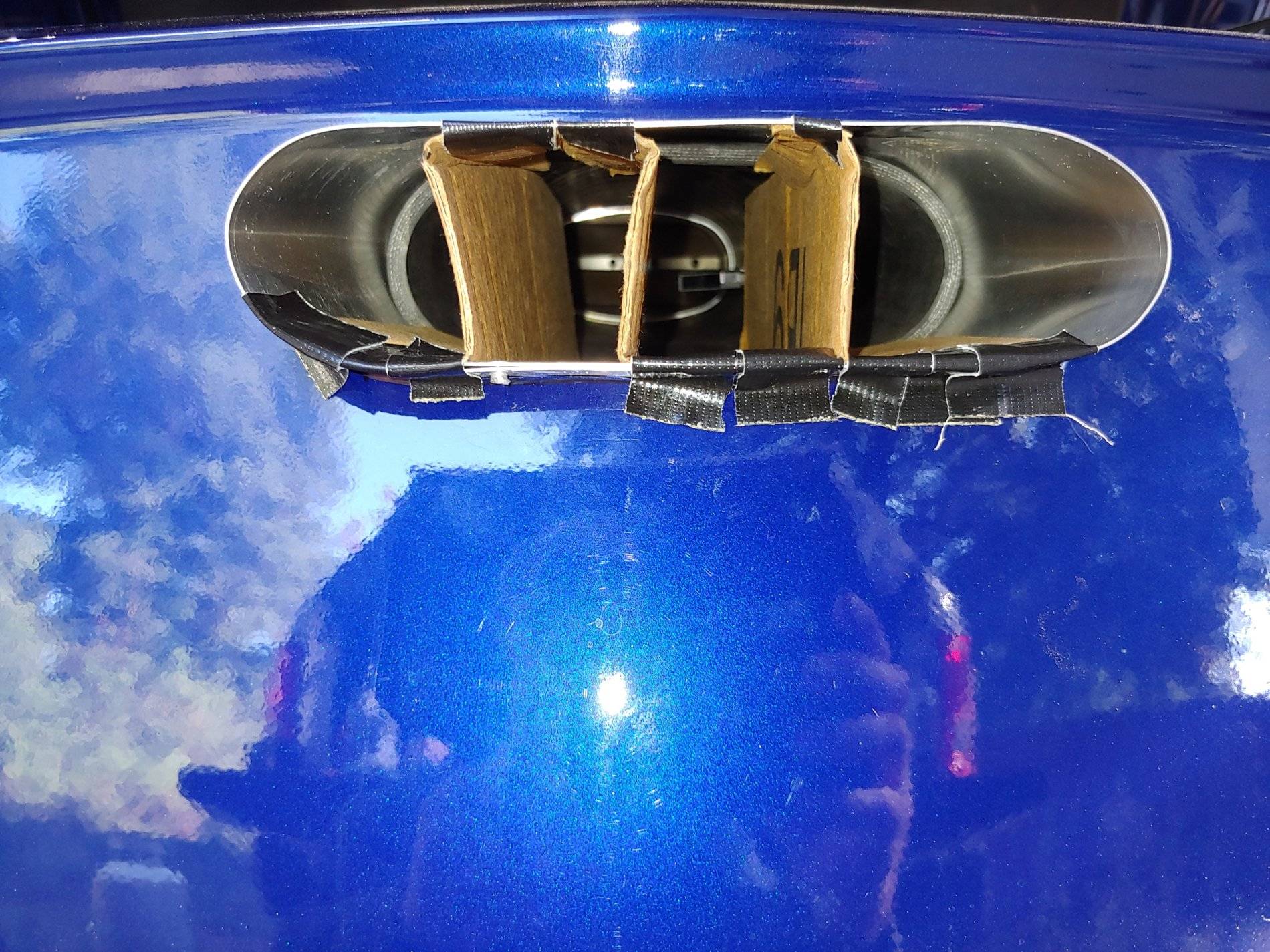

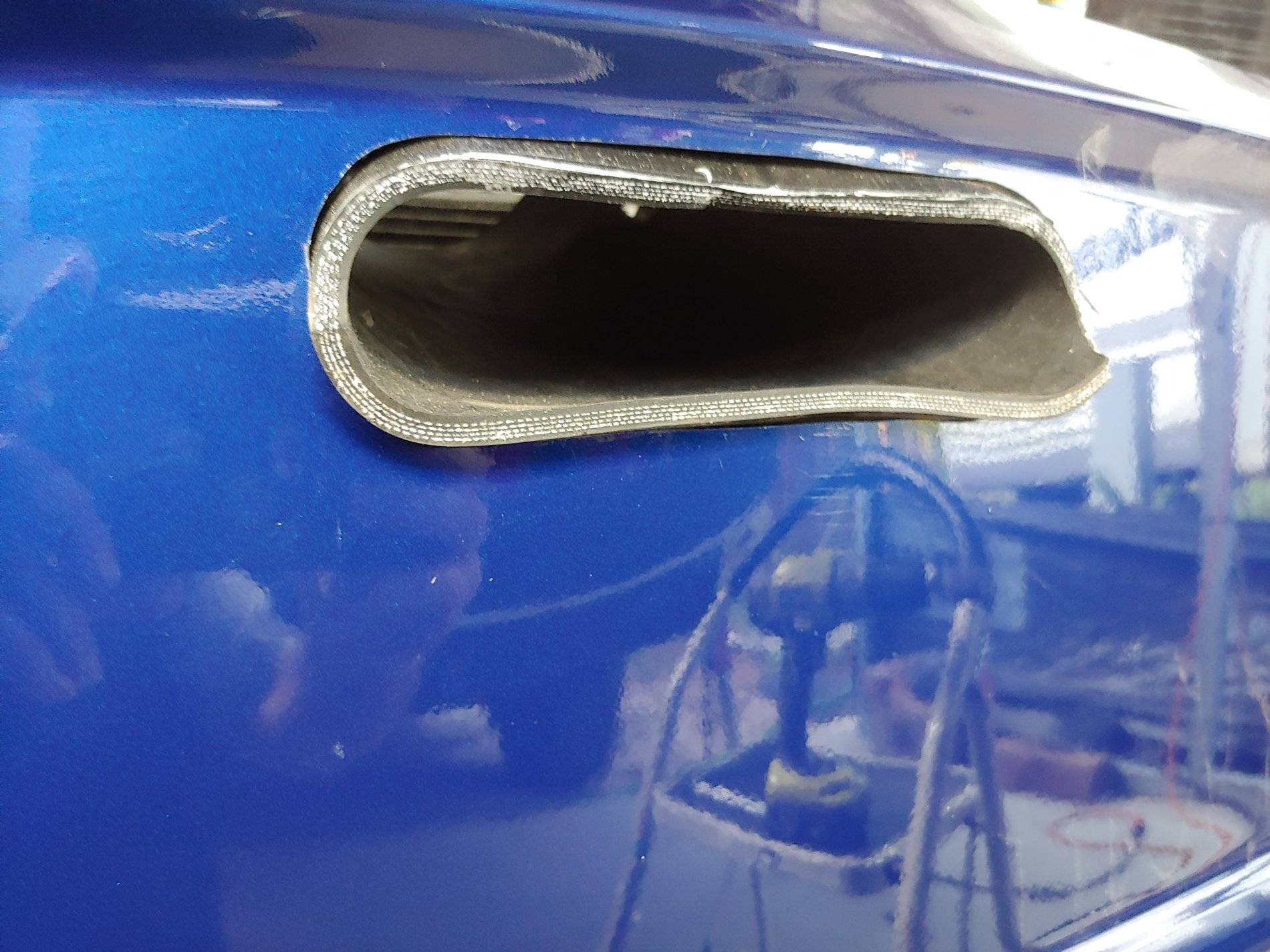

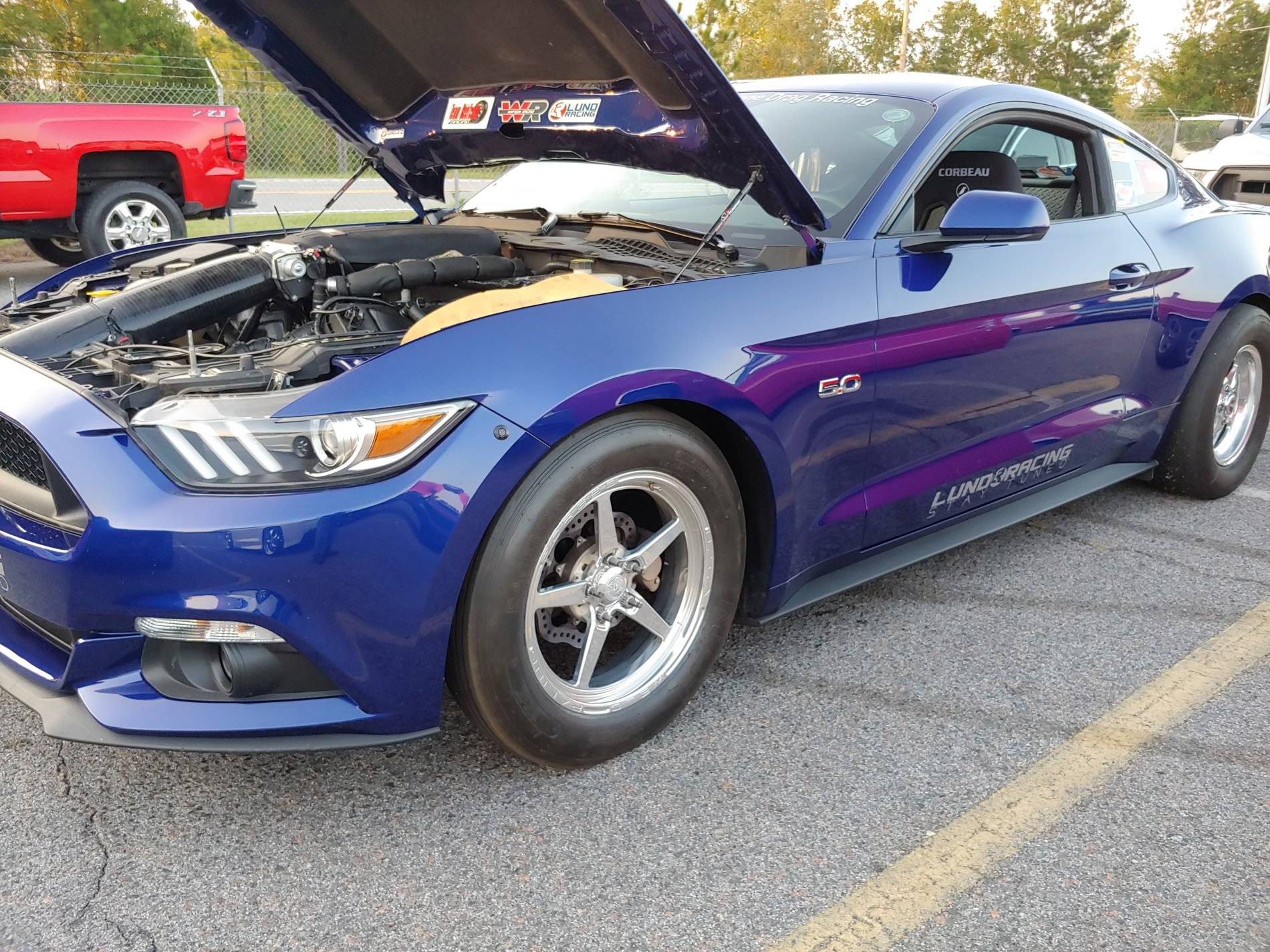

So..... yes this could be done better than what I did and maybe somebody will market a clean setup in the future. The first 5 pics are the current setup. The rest are all the versions that lead up to my current setup.
Also it's been awhile since I've posted.....if I have posted this in the wrong area please move or let me know I need to move it.





Advertisement



Stng50

Member
Joined
Oct 15, 2018
Messages
20
Reaction score
4
Location
Sydney
Vehicle(s)
Mustang GT
Its a good idea and has been proven on the LS motors.
What gains do you get with that down the 1/4 Mile?
The LS guys were dropping times by .1 or so when switching to an OTR back in the day.
I only know of one shop selling these for the s550, but they charge big $

OP
RBS550

RBS550

Well-Known Member
Joined
May 10, 2015
Messages
645
Reaction score
432
Location
Port St Lucie Fl
Website
www.youtube.com
First Name
RB
Vehicle(s)
2015 Mustang GT
  • Thread starter
  • Thread Starter
  • #4
Its a good idea and has been proven on the LS motors.
What gains do you get with that down the 1/4 Mile?
The LS guys were dropping times by .1 or so when switching to an OTR back in the day.
I only know of one shop selling these for the s550, but they charge big $
I would say at least a tenth and maybe a couple MPH.
The testing went quick and with multiple changes....I did Comp Cams Stage 3 N/A cams, I lost 60lbs and this OTR CAI....prior to this with stock cams and Ford Racing CAI in January I ran a best of 10.27 @130 DA-400'.

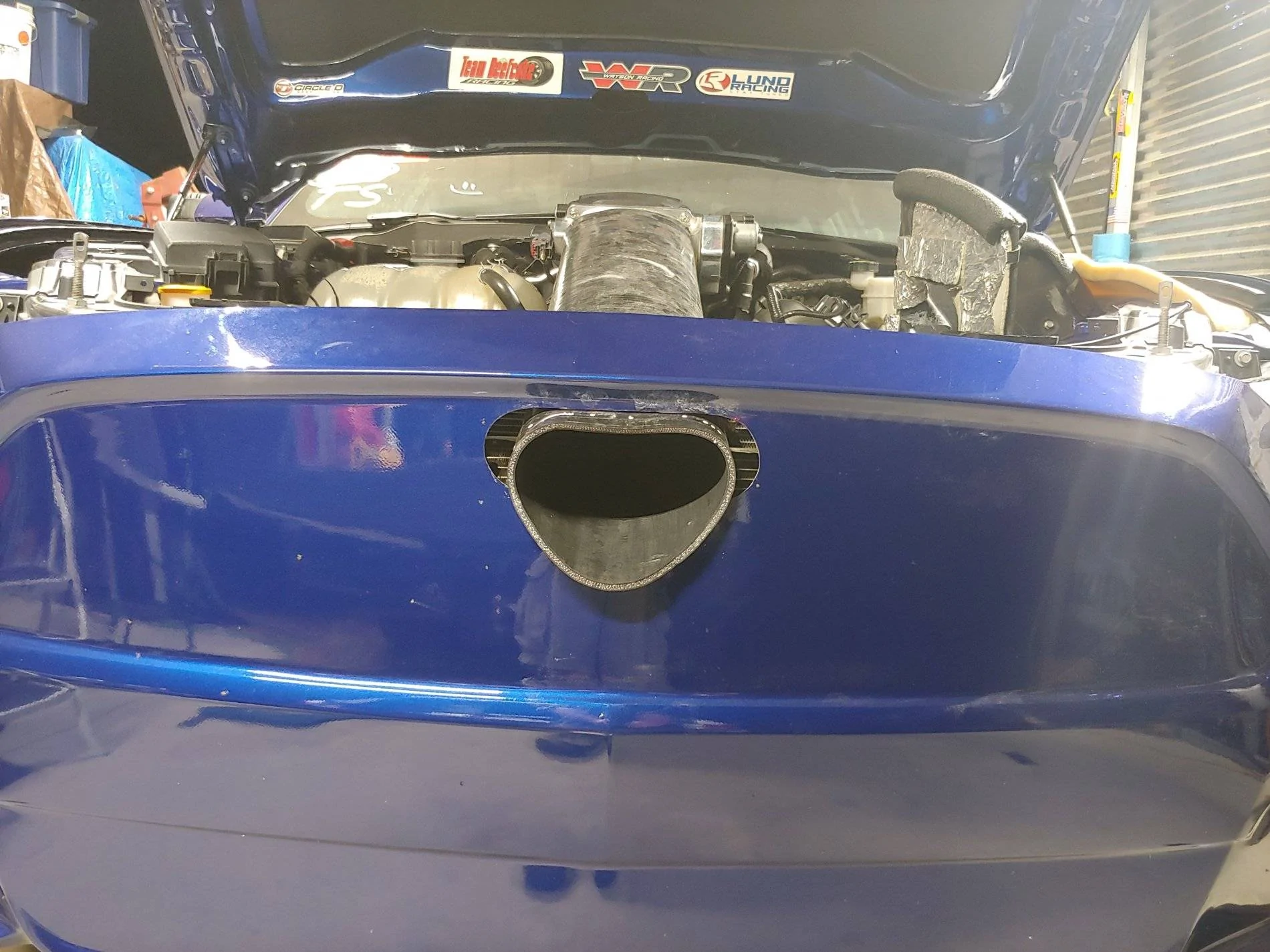

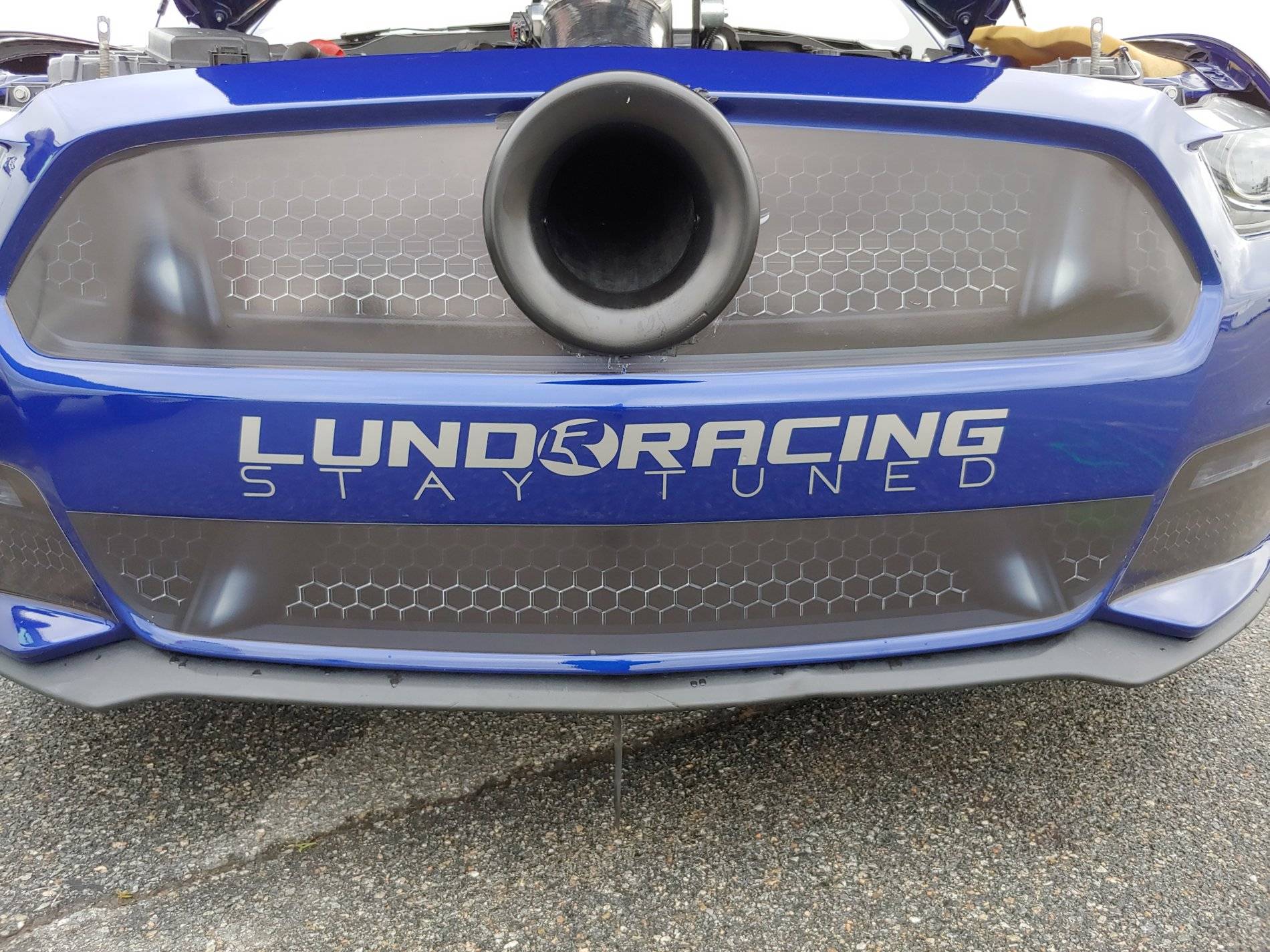

I did run the OTR at the last NMRA race in October, I just had the hose behind the stock grille (see pic just above the pony) and DA was +2,000'...I ran 131 mph with that combo.

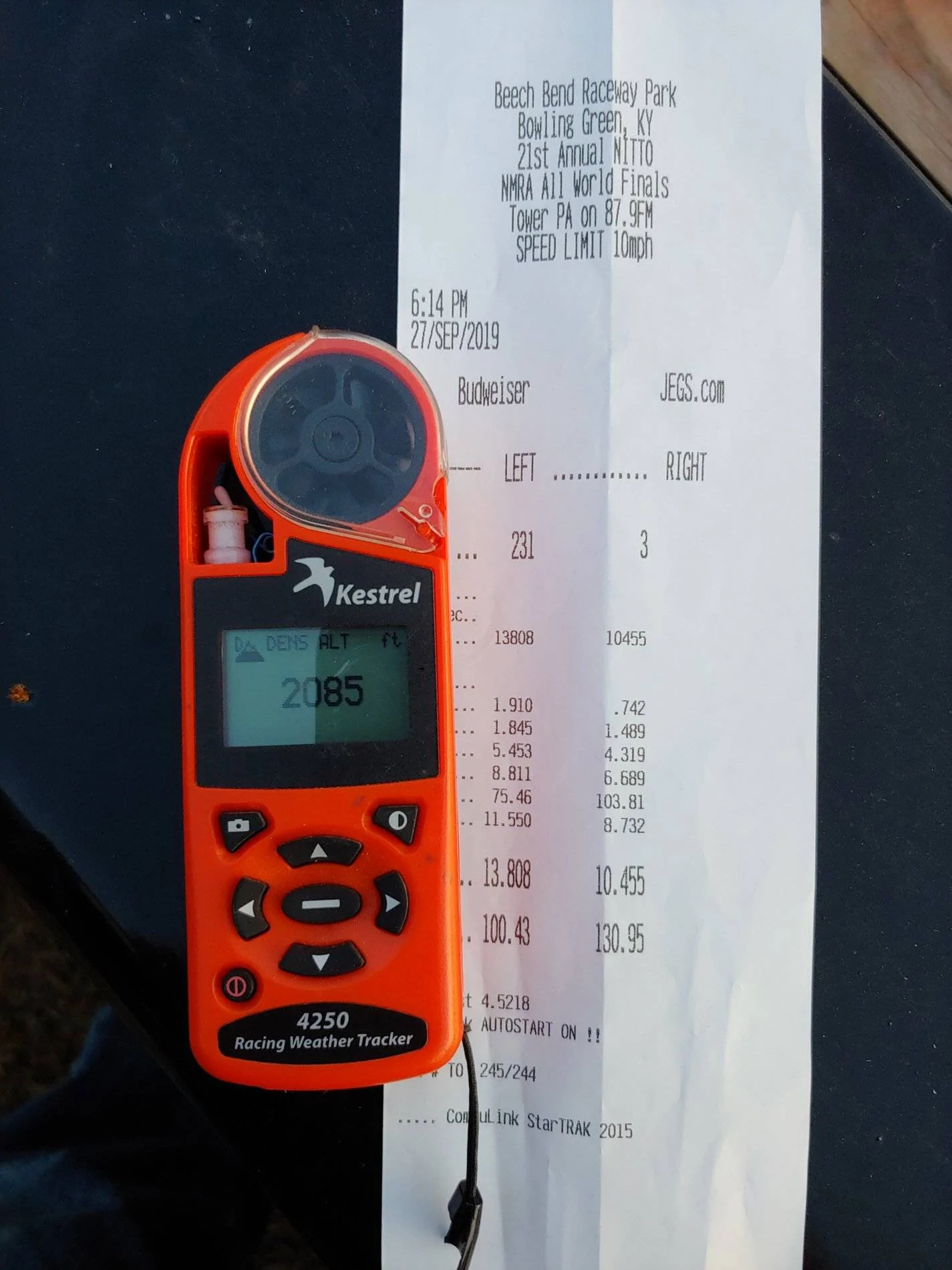

Then after the last NMRA race I put on the carbon fiber bumper with the bellmouth, taller front tires 28" vs 24" for NMRA, removed the passenger seat, DA was -500' or so...first night I went four 10.05's, then I went from 255/60/15 to 275/60/15 on 11" rim, DA was around -500' and I 9.98, by the end of the night I got a 9.93, the next night I went out I got a 9.89 @ 136.85 mph 1.35 60'.
Here's one of many videos I would love to see or know more about the shop you know that is selling these, maybe I can learn from their setup. I have NO interest in producing or selling.


Zelek

Well-Known Member
Joined
Feb 11, 2016
Messages
3,065
Reaction score
1,758
Location
Austin, TX
First Name
Matt
Vehicle(s)
2017 Mustang GT Premium PP, 2018 Honda Accord Touring 2.0T
You mean elephant trunk intake.



msweet

Well-Known Member
Joined
Nov 3, 2015
Messages
1,635
Reaction score
1,520
Location
Sydney
First Name
Matt
Vehicle(s)
2019 Ruby GT PP 10A w/ Magride, Recaros
I would love to see or know more about the shop you know that is selling these, maybe I can learn from their setup. I have NO interest in producing or selling.

This is the shop in Sydney that was doing them. It's based off the VCM OTR intake for commodores/chevy SS. It's a no tune intake though so no real hp increase


Stng50

Member
Joined
Oct 15, 2018
Messages
20
Reaction score
4
Location
Sydney
Vehicle(s)
Mustang GT
That's the one. Very expensive though.

RBS550 is getting some amazing times with his setup though.


EFI

Well-Known Member
Joined
May 19, 2015
Messages
2,822
Reaction score
1,376
Location
Masshole central
Vehicle(s)
5.Br0
This is the shop in Sydney that was doing them. It's based off the VCM OTR intake for commodores/chevy SS. It's a no tune intake though so no real hp increase
The ram air affect and much cooler air temps (compared to anything but a completely closed air box) does have some benefits. In the GTO/G8 world those have shown to make decent difference over even bigger regular location intakes.


bootlegger

Enginerd
Joined
Jul 12, 2017
Messages
1,780
Reaction score
595
Location
Mount Pleasant, SC
First Name
James
Vehicle(s)
Ex 2008 Mustang GT Owner
Why not simply make a hood scoop?

OP
RBS550

RBS550

Well-Known Member
Joined
May 10, 2015
Messages
645
Reaction score
432
Location
Port St Lucie Fl
Website
www.youtube.com
First Name
RB
Vehicle(s)
2015 Mustang GT
  • Thread starter
  • Thread Starter
  • #10
Why not simply make a hood scoop?
That could be done, but in the NMRA class I run you can't have any forward facing hood scoops. Also during competition I put the stock bumper back on and feed from behind the grille to meet class rules.


EFI

Well-Known Member
Joined
May 19, 2015
Messages
2,822
Reaction score
1,376
Location
Masshole central
Vehicle(s)
5.Br0
Why not simply make a hood scoop?
A majority of the hood area is a low pressure zone, so a frontal scoop would not be too efficient at drawing air in unless you have one of those huge gaudy looking scoops like the older Subarus that have top mounted intercoolers.

The best place for a hood scoop would be at the rear of the engine by the cowl area, similar to what alot of the older cars that had shaker hoods. But unless you flip over the intake manifold to face backwards, there will be a lot of tubing with several hard bends that totally defeats the purpose of a ram air intake.

If you want a truly cold air intake, one has to plumb one to the fenderwell like the Cobra Jet, or if you want a cold air and ram intake, straight forward is the only choice.


BlkPP

Well-Known Member
Joined
Nov 30, 2019
Messages
54
Reaction score
8
Location
Jacksonville
First Name
Christopher
Vehicle(s)
2019 mustang gt PP
I had one of these on my 12 2ss. Made some decent power and didn’t require a tune...which was a major reason I went with it. Anyone know the price? I tried looking at their website but it isn’t listed ...was it disconnected?


msweet

Well-Known Member
Joined
Nov 3, 2015
Messages
1,635
Reaction score
1,520
Location
Sydney
First Name
Matt
Vehicle(s)
2019 Ruby GT PP 10A w/ Magride, Recaros
I had one of these on my 12 2ss. Made some decent power and didn’t require a tune...which was a major reason I went with it. Anyone know the price? I tried looking at their website but it isn’t listed ...was it disconnected?
yeah it was like $750AUD, roughly $500USD. Welcome to Australia's Mustang tax


Schwerin

Well-Known Member
Joined
Jan 31, 2018
Messages
2,944
Reaction score
1,493
Location
Philly
Vehicle(s)
2019 Mustang BULLITT

This is the shop in Sydney that was doing them. It's based off the VCM OTR intake for commodores/chevy SS. It's a no tune intake though so no real hp increase
That looks like it's blocking most the radiator isn't it?


bootlegger

Enginerd
Joined
Jul 12, 2017
Messages
1,780
Reaction score
595
Location
Mount Pleasant, SC
First Name
James
Vehicle(s)
Ex 2008 Mustang GT Owner
A majority of the hood area is a low pressure zone, so a frontal scoop would not be too efficient at drawing air in unless you have one of those huge gaudy looking scoops like the older Subarus that have top mounted intercoolers.

The best place for a hood scoop would be at the rear of the engine by the cowl area, similar to what alot of the older cars that had shaker hoods. But unless you flip over the intake manifold to face backwards, there will be a lot of tubing with several hard bends that totally defeats the purpose of a ram air intake.

If you want a truly cold air intake, one has to plumb one to the fenderwell like the Cobra Jet, or if you want a cold air and ram intake, straight forward is the only choice.
I was talking about a big hood scoop. I don't think looks are a concern here. I didn't realize the OP was running a specific class where that wasn't allowed, though.
