Magnaride Controller

[Cdnspeed]

Some of you guys are so smart its mind blowing sometimes. Just curious, what do you do for a living? EE?

I run a technical training dept for a commuter rail road, abit of a jack of all trades

Sponsored



[Cdnspeed]

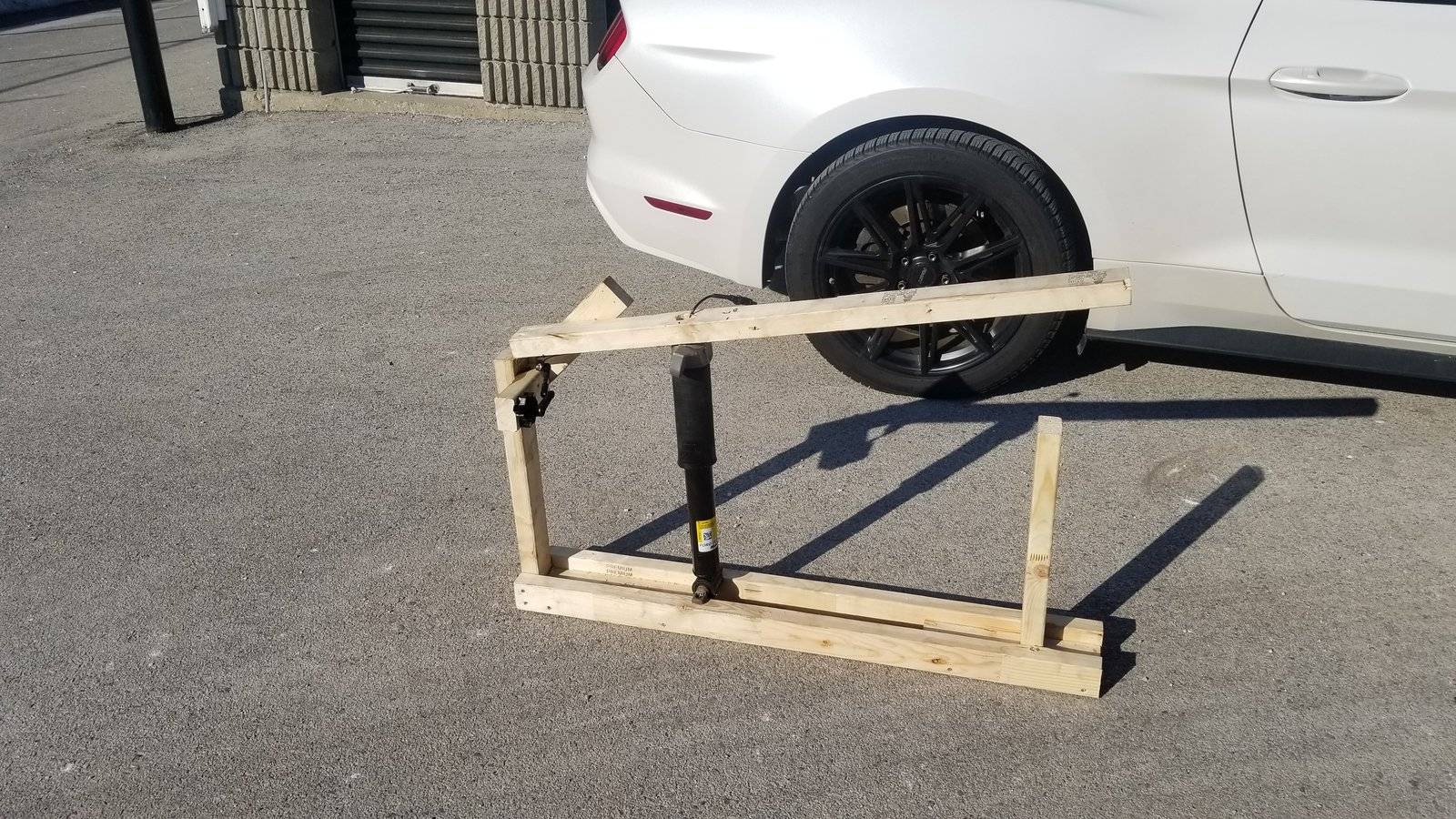

My Ghetto test rig

Just set it up so i can have some leverage over the shock when applying amperage

the spare ride height sensor i install on there so I can figure out what the sensor would be seeing in cycle, the shocks only have about 3" of travel and the sensor only sees maybe 1/2" its tricky to determine how fast a shock is moving when you only have a .3v range to work with.



[BLUE DEVIL]

I can probably help with the wire. Let me know the gauges, respective colors, and amount necessary. If any will be exposed to sharp edges or exposed under the car, these should be a heavywall insulation.

Commercial vehicle grade wire is usually of GXL (std wall) or SXL (heavy wall). It is a high carbon content insulation and is VERY good for temp. and under vehicle exposure. The insulation is a bit more rigid or stiff than the more typical GPT or GPT heavy wall grade of automotive wire insulation.



[Cdnspeed]

I can probably help with the wire. Let me know the gauges, respective colors, and amount necessary. If any will be exposed to sharp edges or exposed under the car, these should be a heavywall insulation.

Commercial vehicle grade wire is usually of GXL (std wall) or SXL (heavy wall). It is a high carbon content wire and is VERY good for temp. and under vehicle exposure. The insulation is a bit more rigid or stiff than the more typical GPT grade of automotive wire insulation.

ill take you up on that as soon as i have sourced all my connectors and crimps, I have 70% of what i need so far.



[krishelnino]

sub'd to the thread, good luck with your project and looking forward to the results !



[Nagare]

Not sure if you've seen this post in the Classifieds (or if you're willing to pay that much): https://www.mustang6g.com/forums/threads/fs-dsc-suspension-controller.138665/



[PistolPete]

Nice!



[Cdnspeed]

Not sure if you've seen this post in the Classifieds (or if you're willing to pay that much): https://www.mustang6g.com/forums/threads/fs-dsc-suspension-controller.138665/

Thanks for the heads up, funny enough was just watching his youtube channel and he mentioned he was posting it for sale.

I think I've got it figured out, whenever my coilovers sell. i'll be buying the rest of the stuff i need for this.



[barron64]

I love this... Good luck!
Years ago in my turbocharging Toyota truck days, I swapped EFI from a wrecked early 90's pickup into my 81 model that was originally had a carburator. Local dealer techs said it could not be done. That just added fuel to the fire. Got a factory service manual and studied the EFI wiring diagram...Needed only 5 wires, out of that harness bundle, to be hooked to get functional efi. Loved the day I drove up to the Toyota service dept!



[Cdnspeed]

Covid 19 Update:

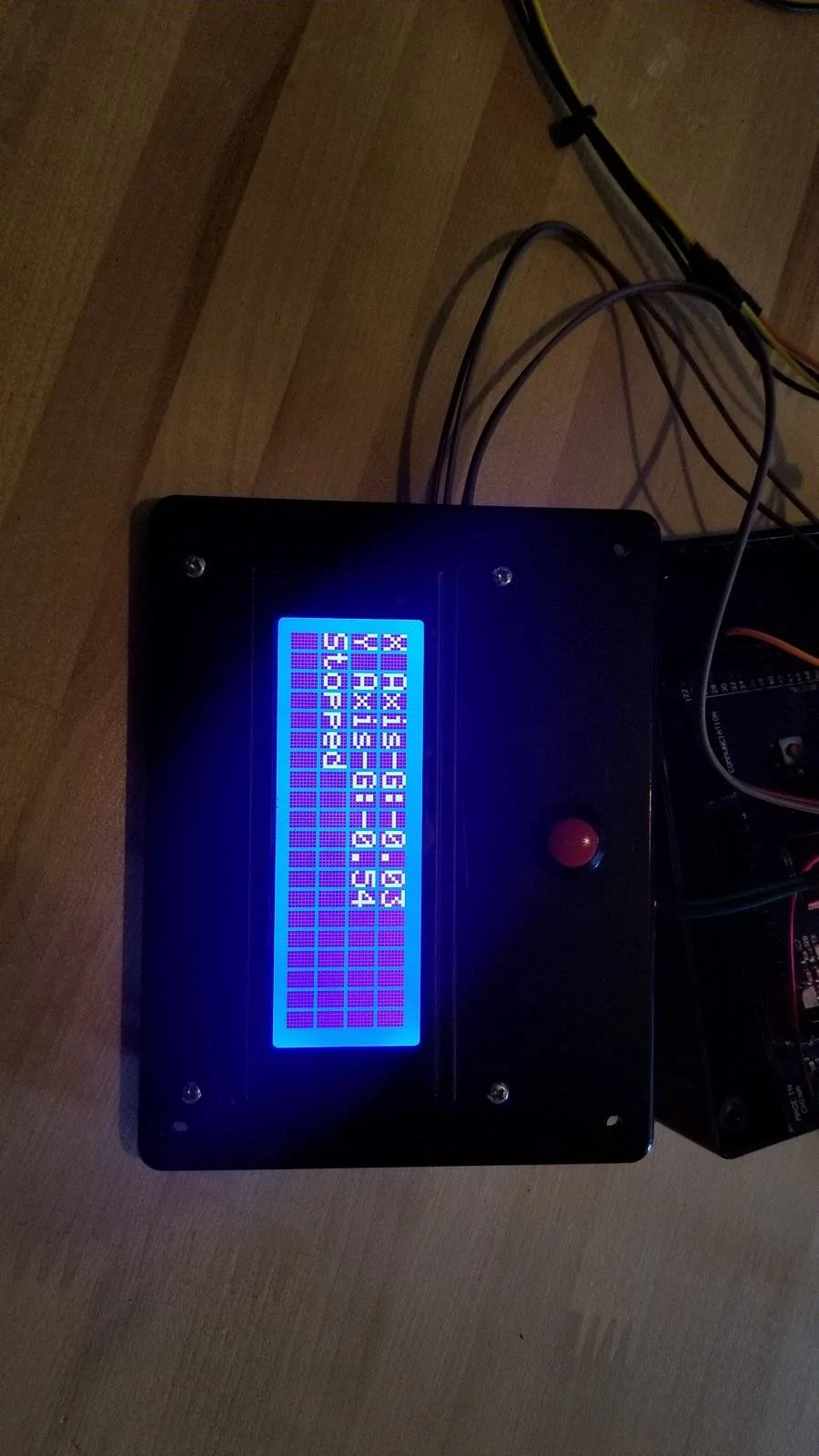

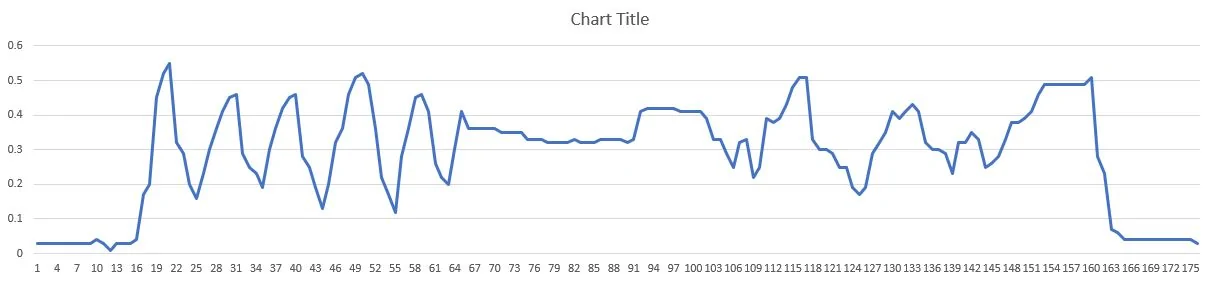

Got my G force data logger built one of the stepping stones to getting this to work. This was pretty simple hardware wise, an Arduino, Sd card writer, display and G Force sensor.
Push button to start/stop logging and display actual G force. the hard part was getting a nice clean signal from all the vehicle noise.

Okay next step is to datalog the wheel travel. First step is hardware.

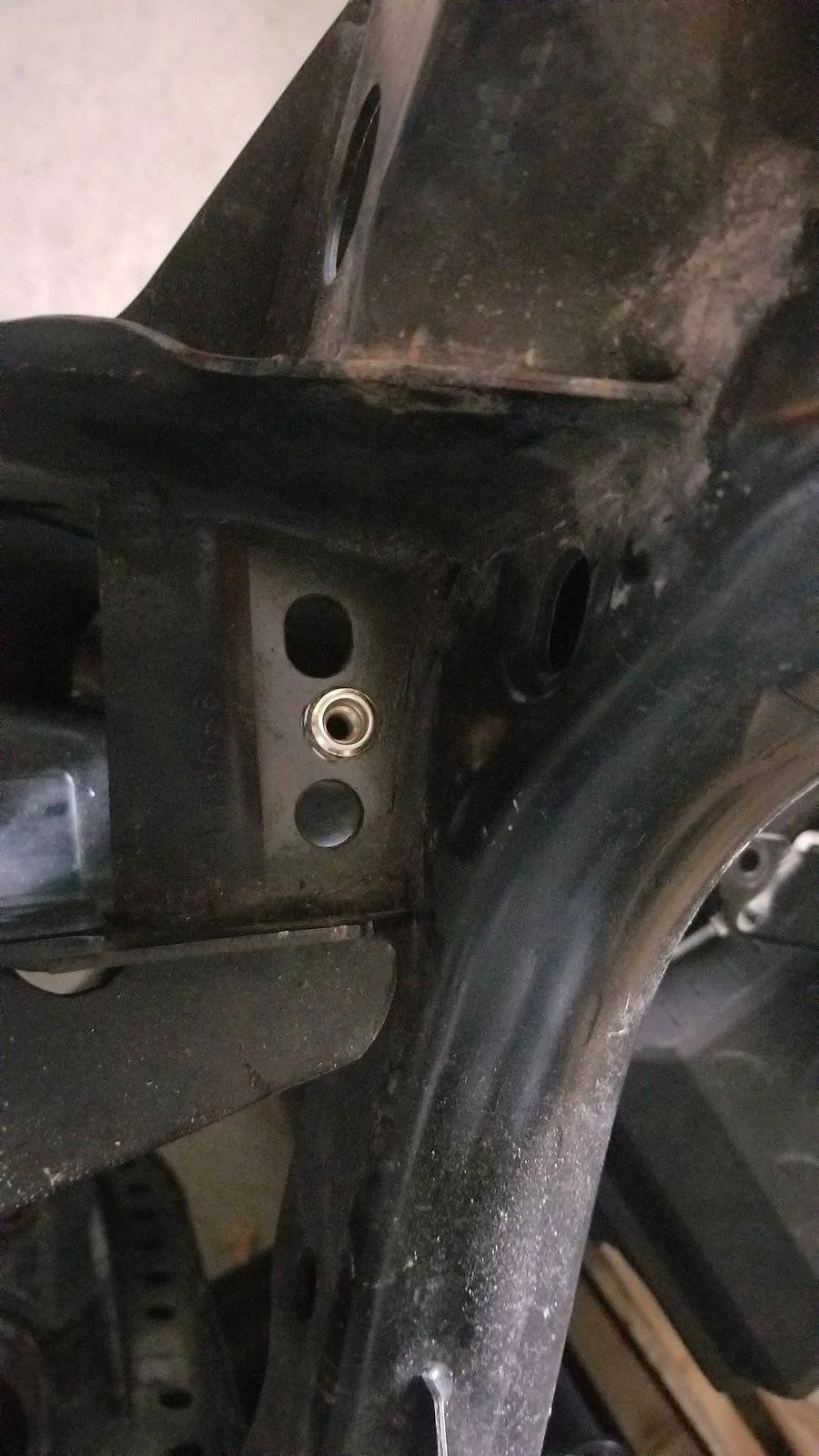

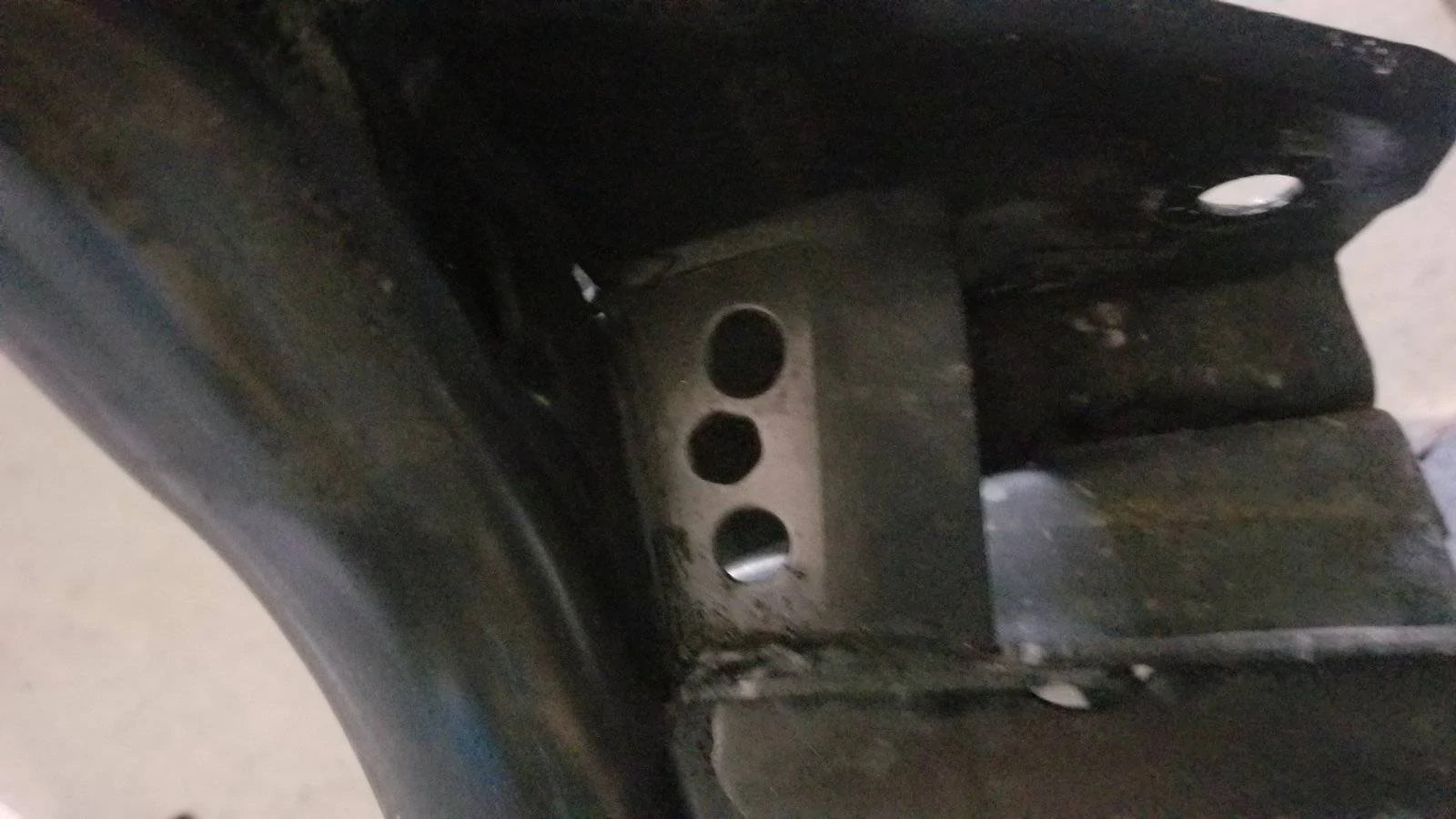

I have a spare rear subframe and lower arms so I grabbed some rivnuts and carefully riveted them into place

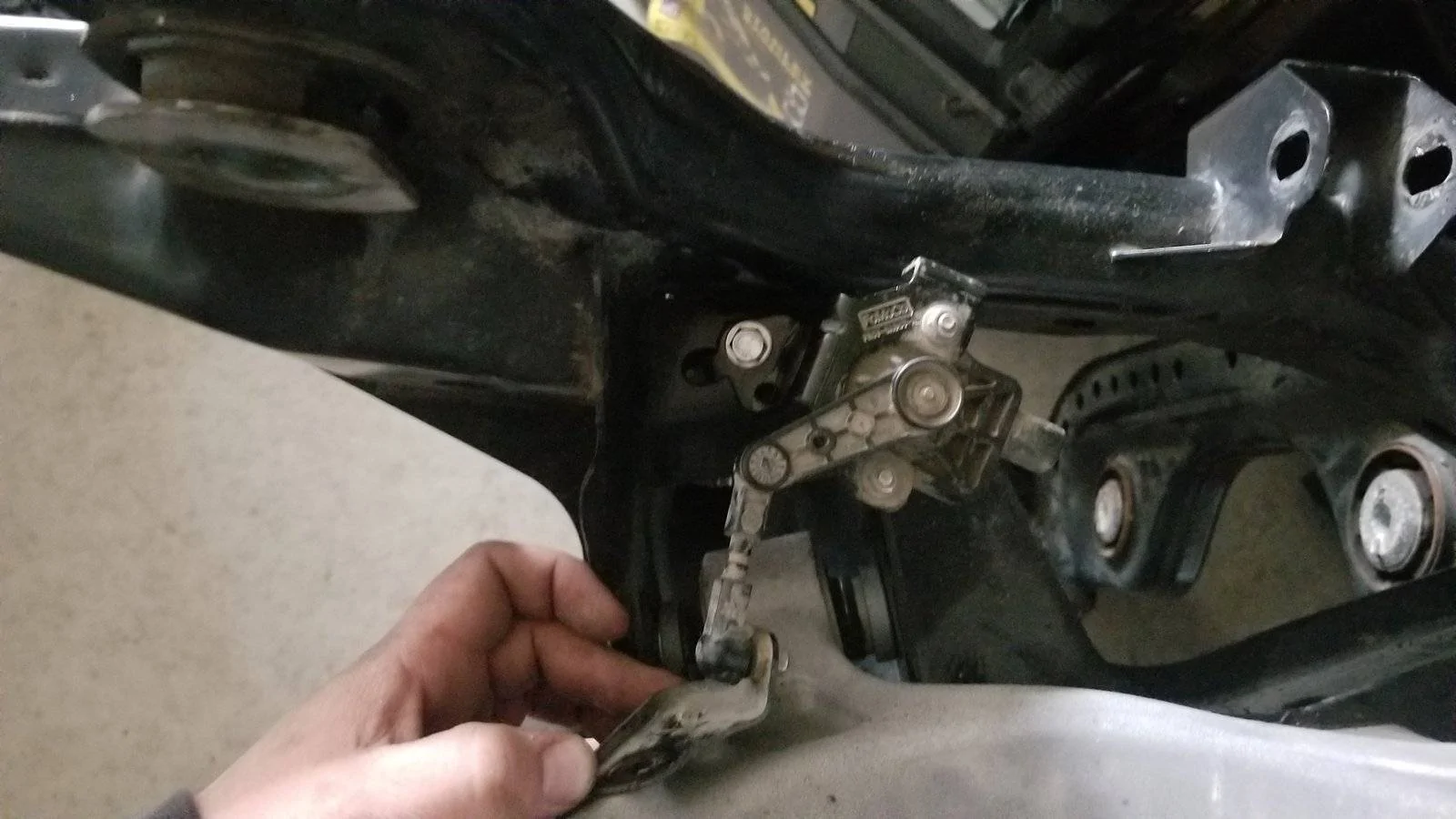

And the sensor in place!

next Item I need to get is a tap for the rear arms so I can actually fully bolt these into place and start building the sub harness

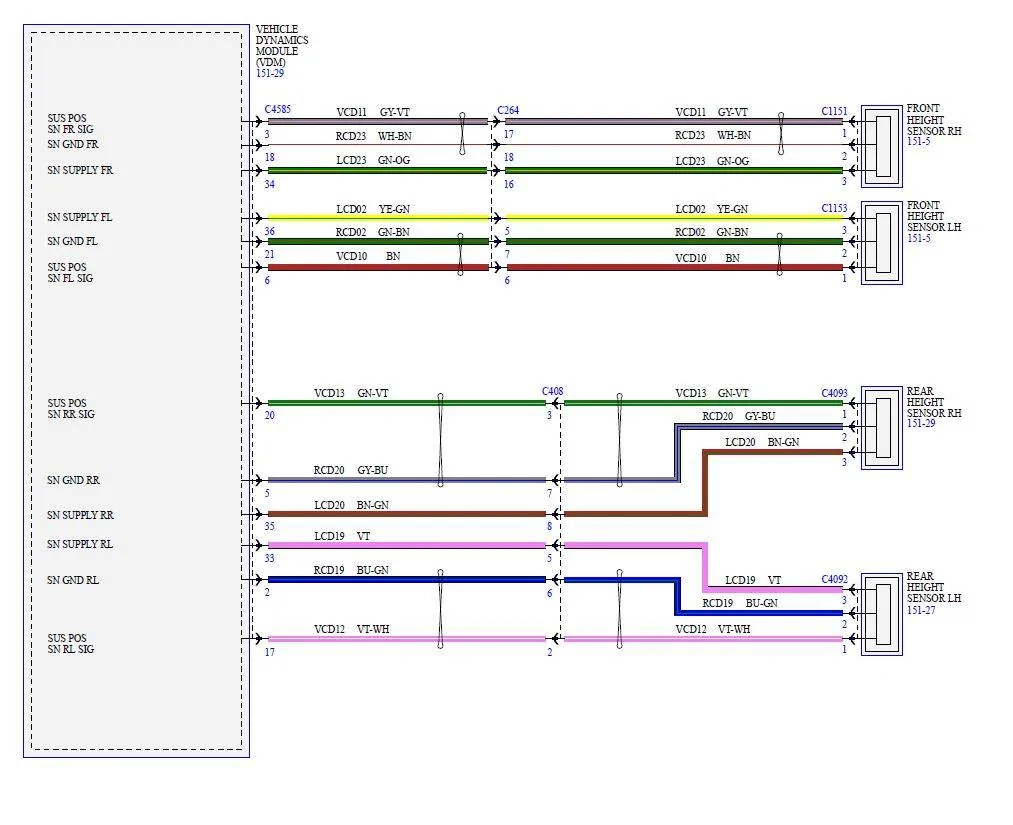

I've got the OEM connectors and pins for the sensors, now im going to order the same colour wire and gauge to match the OEM diagram.

Hopefully will be logging suspension travel real soon.



[Mikepol2]

So if the factory hardware for Magnaride cars is the four struts plus a controller, what would be involved with just adding those factory parts and reprogramming the computer to get a car with factory Magnaride?



[Cdnspeed]

4 struts, 4 ride height sensors, Harness and Controller. 18+ would be fairly straight forward just reflash your car with the same Forscan info as a car with Magnaride.

15-17 would require all the interior controls from a GT350 to make it work as intended.



[Mikepol2]

Sounds like the wiring harness would be the problem, if the car isn't already wired to accept the hardware.



[Cdnspeed]

It wouldn't be wired, I've sourced all the hard to find connectors, just havent put much time into this lately
