M1 HP Removable Lower Splitter Task

Knockdown

Well-Known Member
Joined
Oct 23, 2021
Threads
11
Messages
84
Reaction score
150
Location
FL
First Name
Greg
Vehicle(s)
2021 Mustang Mach 1
I’ll be installing some dual rate springs in the near future, so I would like to run with the lower splitter on for track days, but take it off if I’m heading out for a road trip.

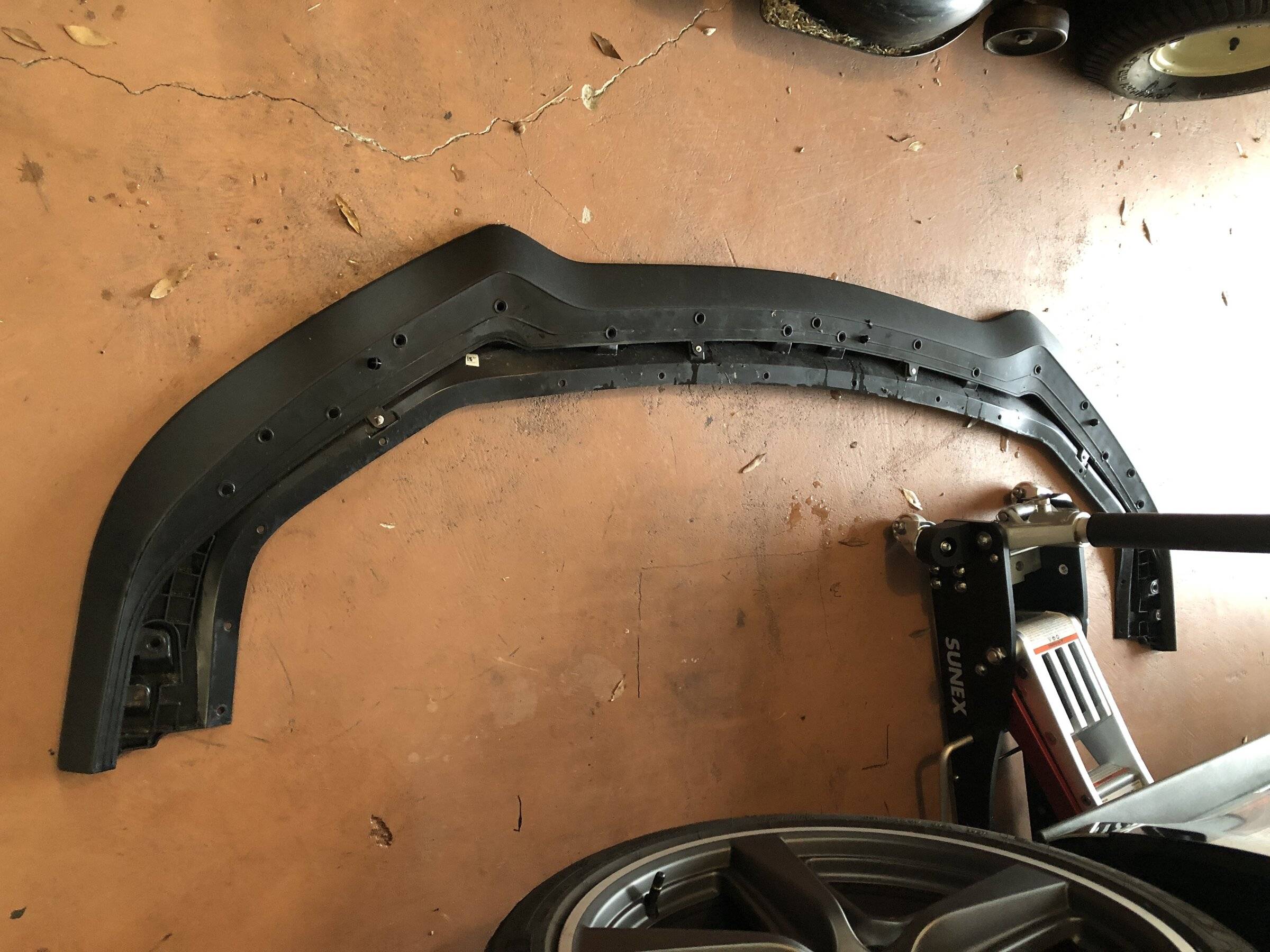

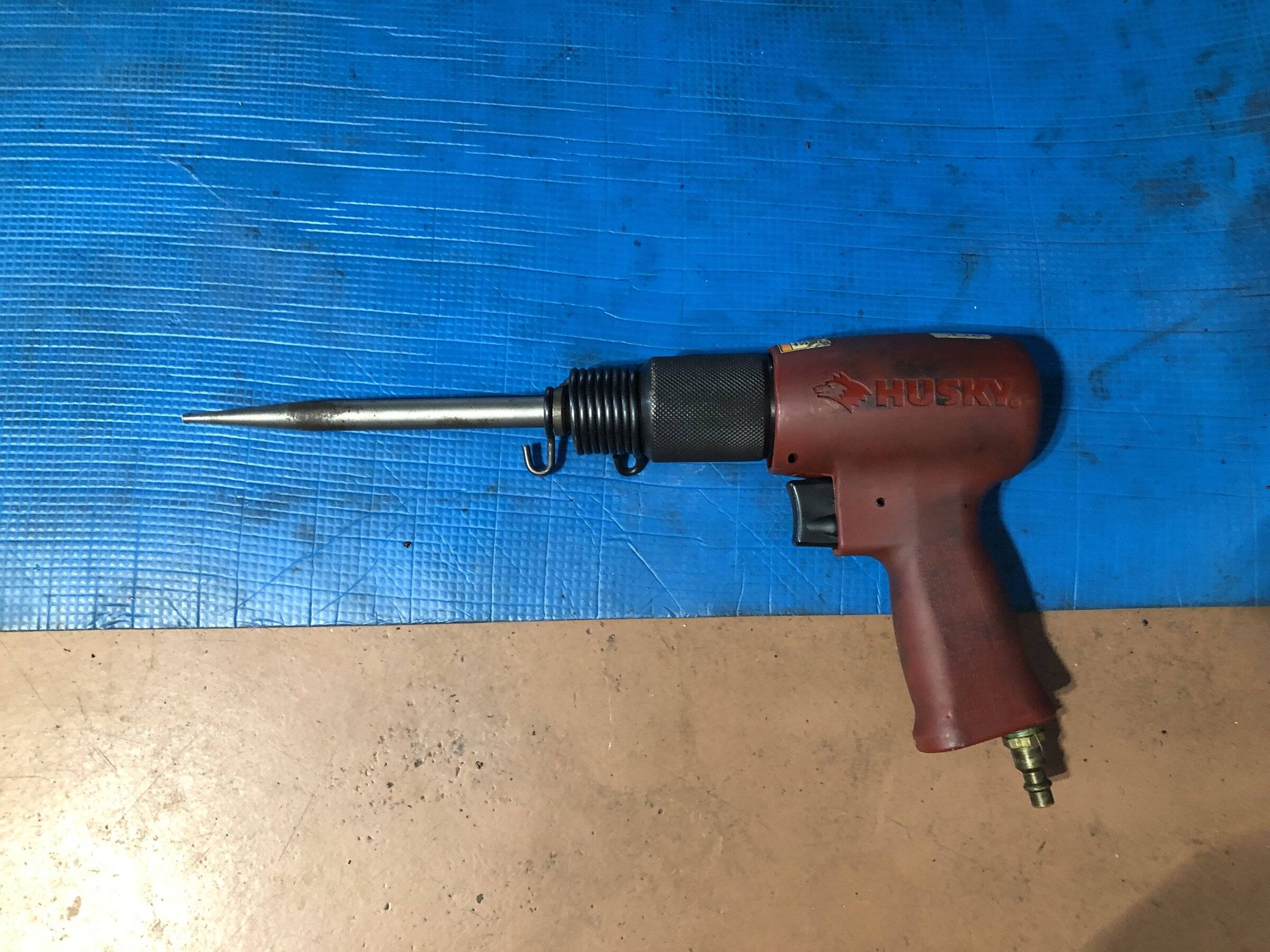

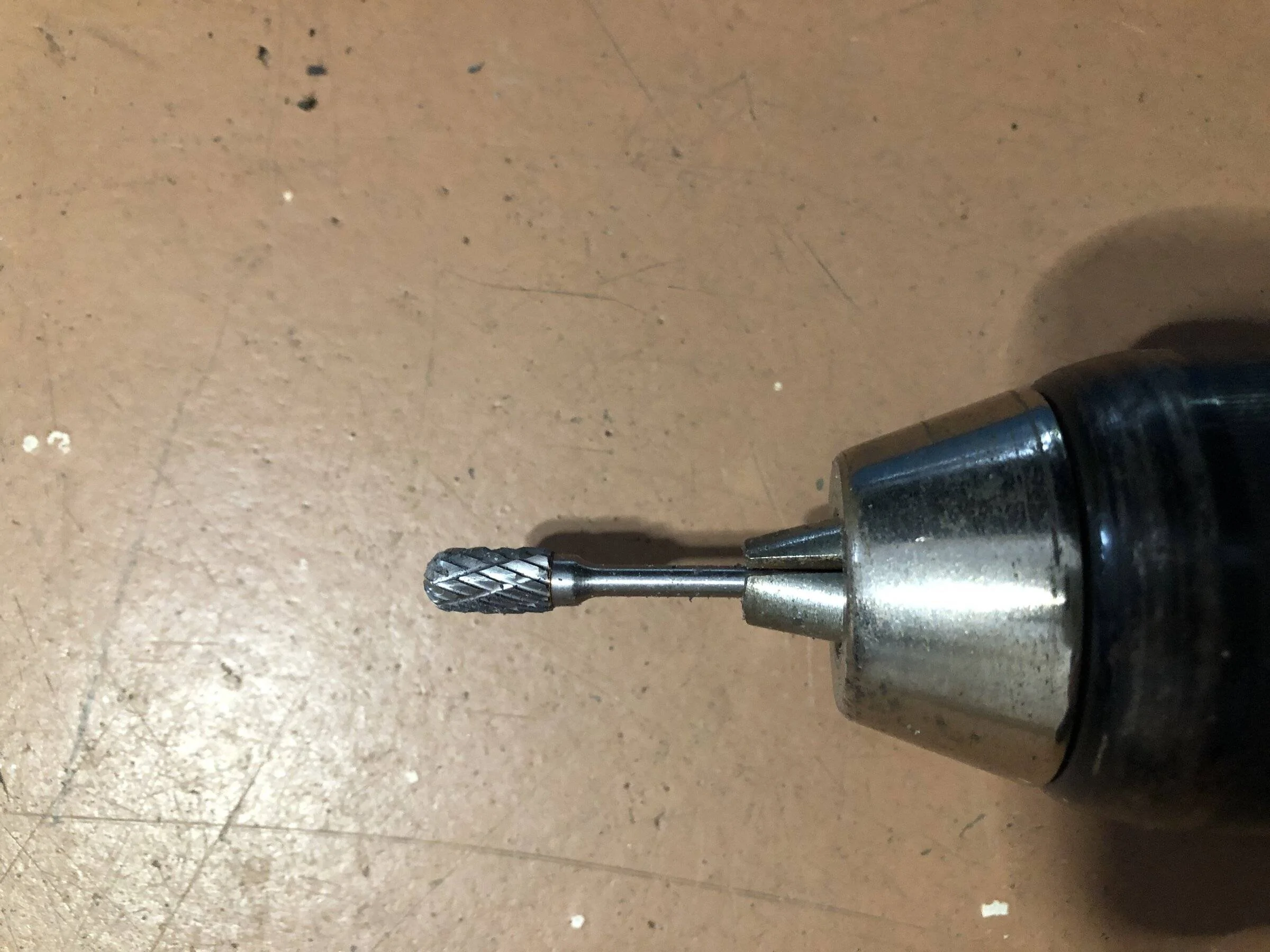

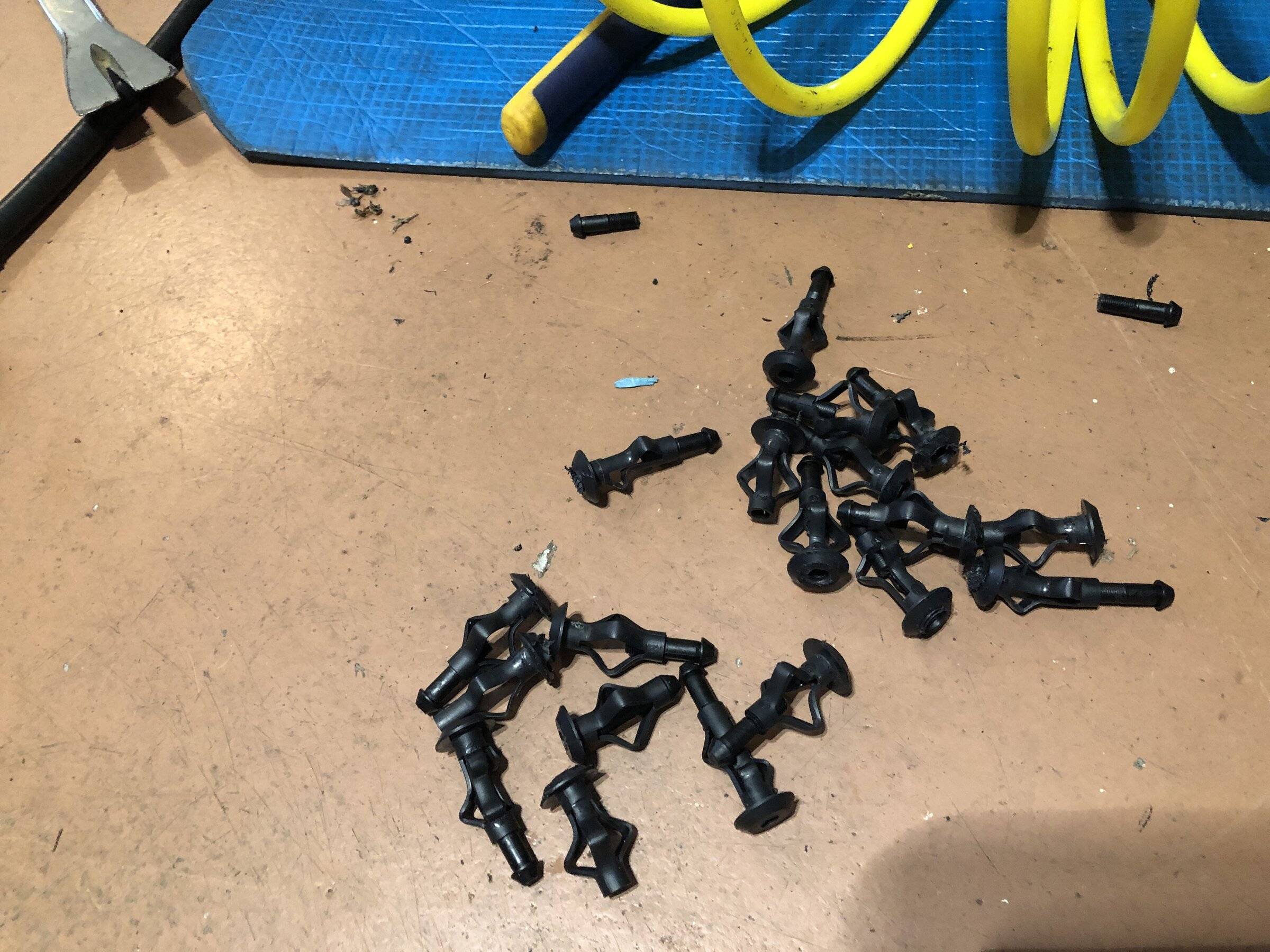

The first step was lower splitter removal, a small burr bit on a drill to provide a center for a pointed air hammer bit worked the best to remove all of the plastic rivets.

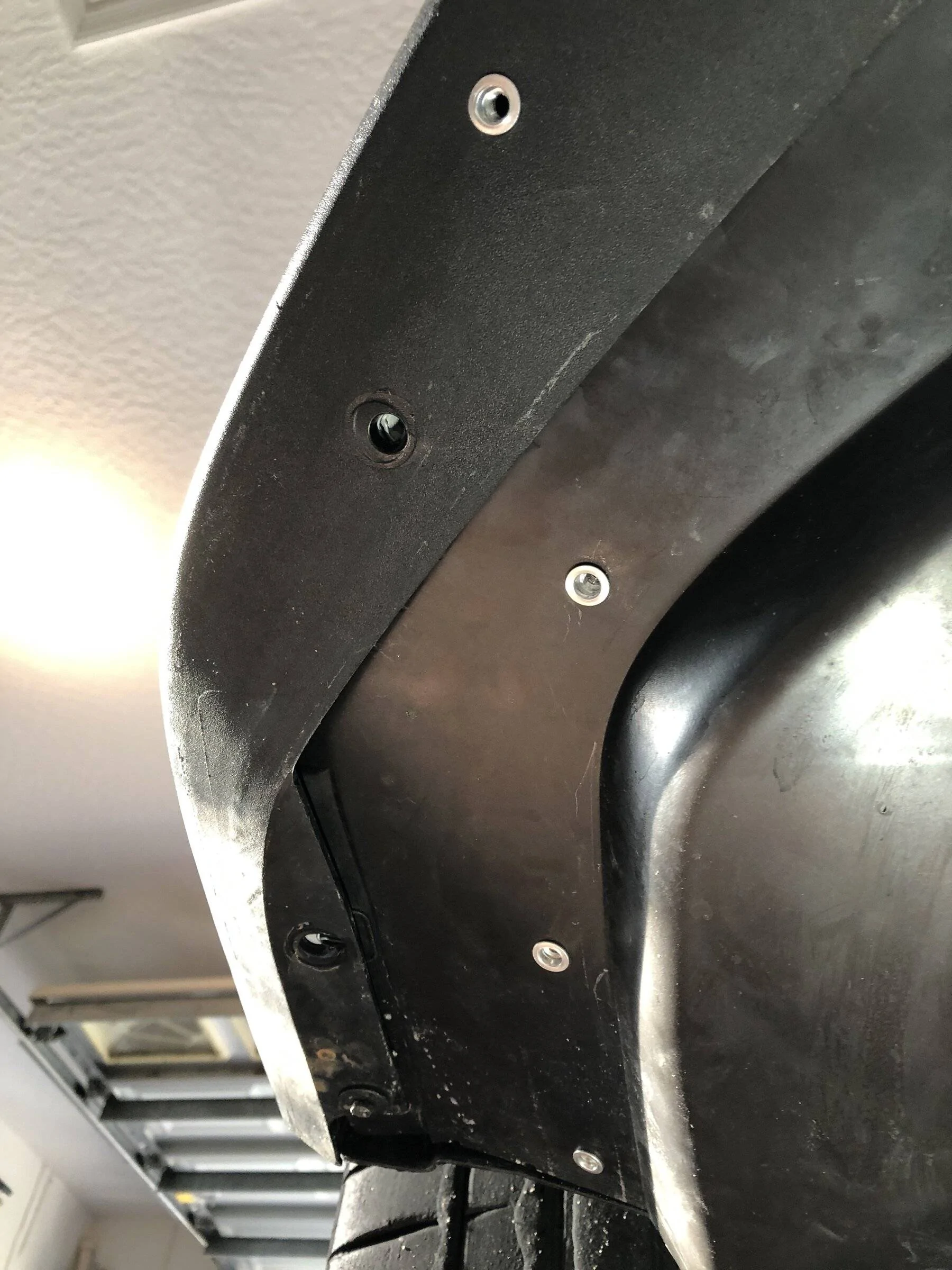

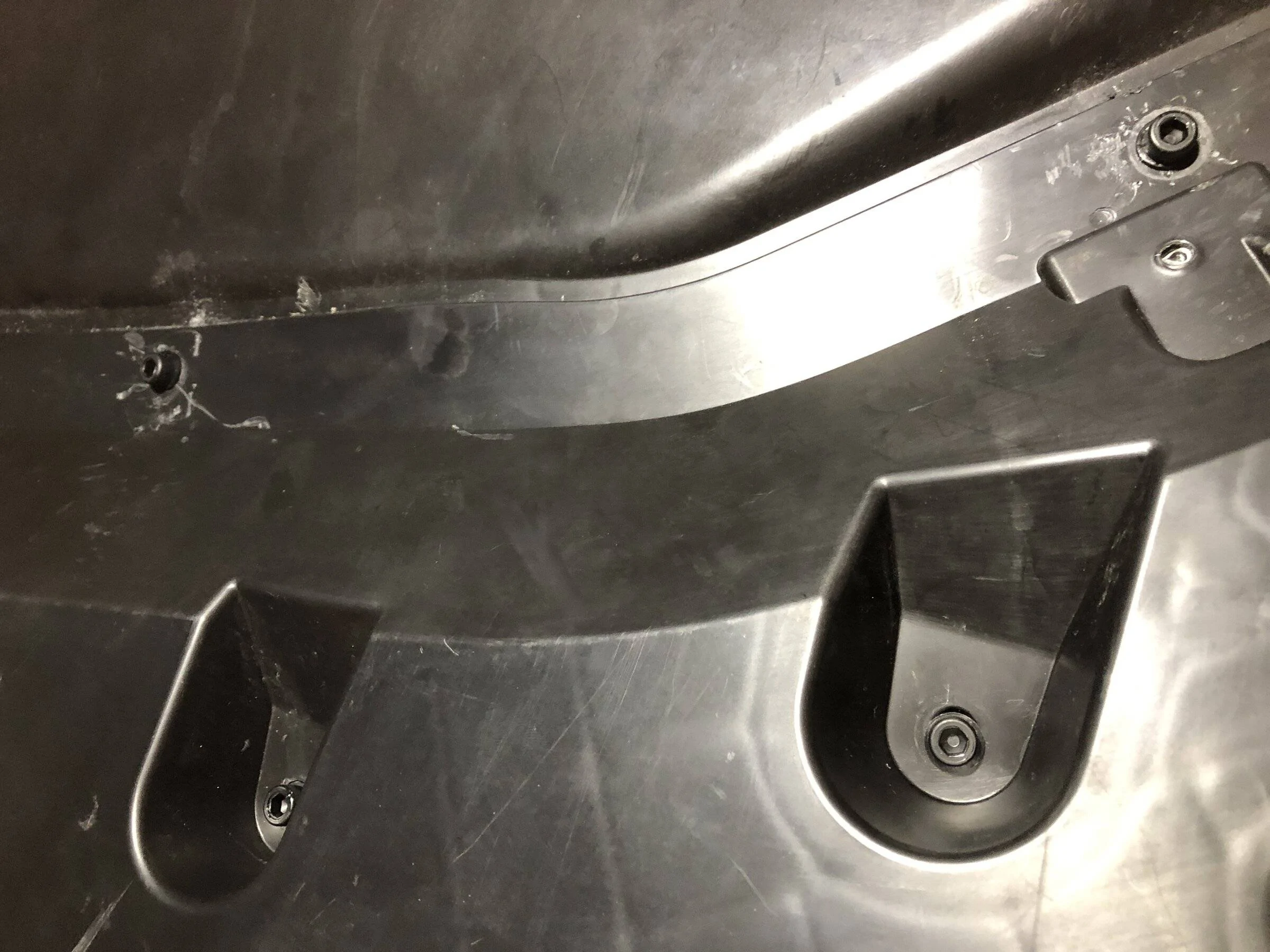

I ordered some M5 aluminum rivet nuts, M5-20 nylon machine screws and a M5 rivet nut wrench style install tool off of Amazon to replace the plastic rivets. I added a large fender washer to the install tool in order to get some pressure on the spacer.



Reattached the lower splitter. The “Nylon” screws from Amazon were very fragile, I snapped a few with just a T handle Allen wrench, I’m going to have to rethink the fasteners, but it’s back on.



Last edited:

RobZ71LM7

Well-Known Member
Joined
Oct 14, 2021
Threads
8
Messages
291
Reaction score
501
Location
Louisville, KY
First Name
Rob
Vehicle(s)
2021 Mach 1 #M6510, 2019 F-150
Very interested in this mod. Had a chance to mount and dismount? Just curious any reason why you went aluminum versus plated steel?


WCRookie99

Well-Known Member
Joined
Apr 5, 2021
Threads
43
Messages
386
Reaction score
610
Location
Naperville
First Name
George
Vehicle(s)
2021 Mach 1, 2010 Porsche Carrera S
Actually, great start. This removable lower splitter needs to be a "kit"

OP
OP
Knockdown

Knockdown

Well-Known Member
Joined
Oct 23, 2021
Threads
11
Messages
84
Reaction score
150
Location
FL
First Name
Greg
Vehicle(s)
2021 Mustang Mach 1
Very interested in this mod. Had a chance to mount and dismount? Just curious any reason why you went aluminum versus plated steel?
Yes, I did take it off to remove the broken plastic M5-20 screws and replaced all with M5-16 stainless button head screws. I chose aluminum rivet nuts since it’s a plastic base material and the nuts collapse easier.

BTW, just installed the Steeda dual rate springs and they are sweeeet!



RobZ71LM7

Well-Known Member
Joined
Oct 14, 2021
Threads
8
Messages
291
Reaction score
501
Location
Louisville, KY
First Name
Rob
Vehicle(s)
2021 Mach 1 #M6510, 2019 F-150
Thanks for the details, I’ll have to do this to mine.

OP
OP
Knockdown

Knockdown

Well-Known Member
Joined
Oct 23, 2021
Threads
11
Messages
84
Reaction score
150
Location
FL
First Name
Greg
Vehicle(s)
2021 Mustang Mach 1
Let’s see some before after pics! And height measurements!
Not sure the car has totally settled but after one 30 mile local trip to bed the brake pads, there is about 4.25” clearance to the lower splitter. The cornering and braking dive is greatly improved without compromising the normal ride quality.


SloppyTX

Member
Joined
Jan 12, 2022
Threads
1
Messages
20
Reaction score
68
Location
Ft Worth TX
First Name
Marc
Vehicle(s)
22 Mach , Race Red, on order Dec4'21
I’ll be installing some dual rate springs in the near future, so I would like to run with the lower splitter on for track days, but take it off if I’m heading out for a road trip.

The first step was lower splitter removal, a small burr bit on a drill to provide a center for a pointed air hammer bit worked the best to remove all of the plastic rivets.








I ordered some M5 aluminum rivet nuts, M5-20 nylon machine screws and a M5 rivet nut wrench style install tool off of Amazon to replace the plastic rivets. I added a large fender washer to the install tool in order to get some pressure on the spacer.



Reattached the lower splitter. The “Nylon” screws from Amazon were very fragile, I snapped a few with just a T handle Allen wrench, I’m going to have to rethink the fasteners, but it’s back on.

Which Rivnut style did you end up going with? Thinwall etc.


Coastal-Mach

Well-Known Member
Joined
Oct 21, 2021
Threads
10
Messages
913
Reaction score
1,319
Location
Wilmington, NC
First Name
Anthony
Vehicle(s)
2016 BMW 528i, 2020 Ram 1500

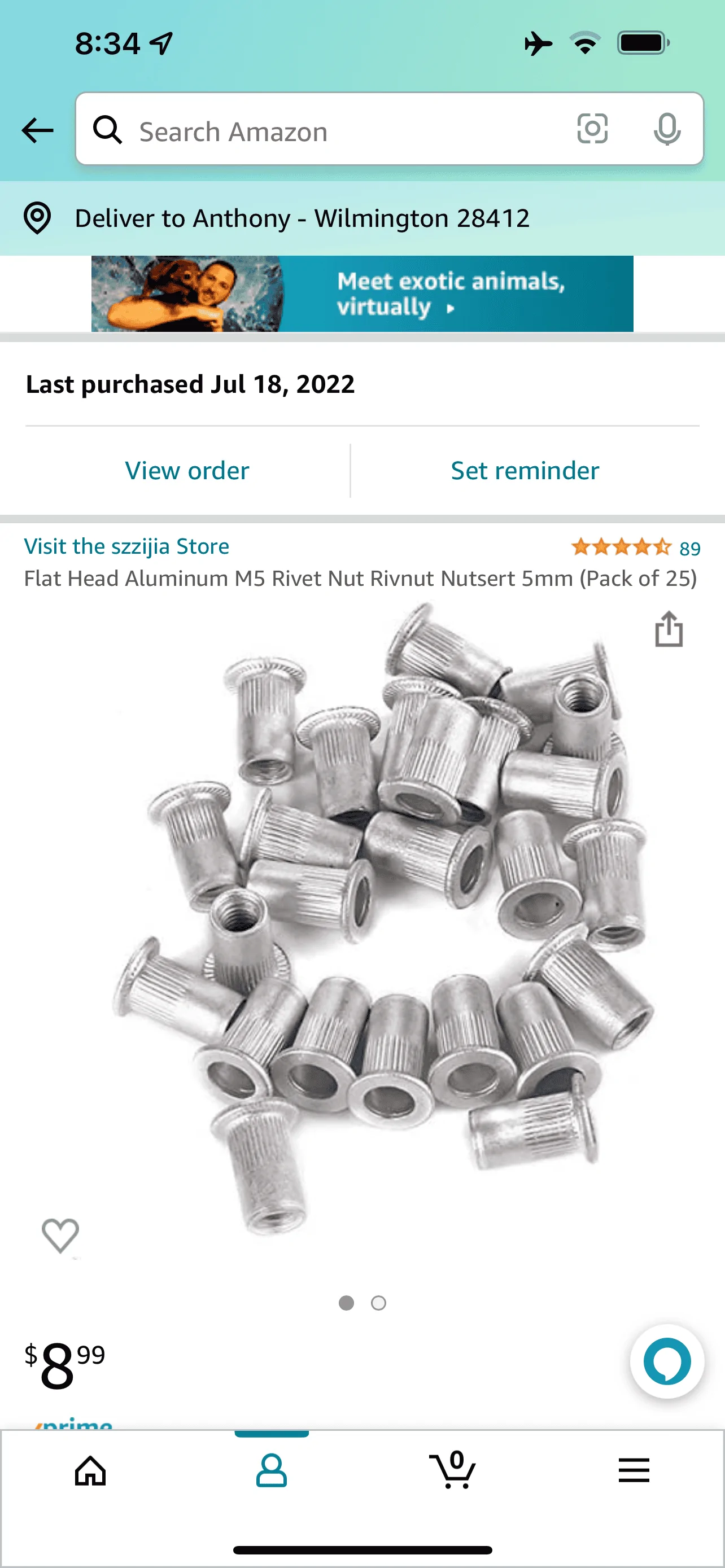

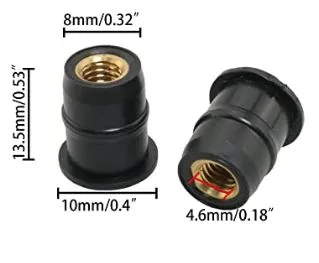

These are the ones I ordered. Install next week
