Frank Talk About Headers Requested

[guzie]

I have the ARH headers on mine and fitment on mine wasn’t an issue. I am not sure what the last poster was dealing with but I didn’t experience it. These are definitely 5.2 specific as well. Thicker gauge steel to better deal with the 5.2 and its flat plane. The flanges May be the same as the 5.0 but the tubes are specific.

Hey guys.

I know this is an older thread but I’ve just finally made a forum account and plan to be active with it and start a build thread on my 350. Recently bought a 18 after having built a 900WHP 3.6L kenne bell 2015 GT. Am more active on IG previously as rubyredrocket and now as shadowblackbeasts as I also have a 2018 coyote F150 with a whipple.

I had kooks on my GT but decided to give ARH a try this time around

Sponsored



[Shadowblackbeast]

I have the ARH headers on mine and fitment on mine wasn’t an issue. I am not sure what the last poster was dealing with but I didn’t experience it. These are definitely 5.2 specific as well. Thicker gauge steel to better deal with the 5.2 and its flat plane. The flanges May be the same as the 5.0 but the tubes are specific.

I never said there was a fitment issue my friend. I said that there was a production issue which 2 runners were touching and vibrating causing false knock. The headers fit just fine. And they are in no way 5.2 specific. Maybe thicker grade stell was used (it’s marginal if any I weighed them against 5.0 headers from ARH) and not only are the flanges the same the runners are EXACTLY the same as 5.0 headers, Compare for yourself if needed or I can post you side by side pics to show you they are exactly the same design. Which may or may not be an issue. The firing order is completely different between the 2 motors and the runners should reflect that imo. Kooks did the proper thing by keeping the flange pattern and modifying the runners to adapt to the firing order of the FPC. Not that I have a replacement header from ARH there is no false knock and I’m happy about that. And they do make power and are ARH quality as expected. But if you check your driver side header I guarantee you it’s super close to the valve cover. I know this because I confirmed on 3 other 350’s running ARH and they are exactly the same.

They are not bad headers by far. But at some point I’ll switch back to kooks so I have headers with runners designed to scavenge the FPC better, that retain the factory style dampers and flex plate and that won’t melt my valve cover at some point down the road.

Thanks



[EF300]

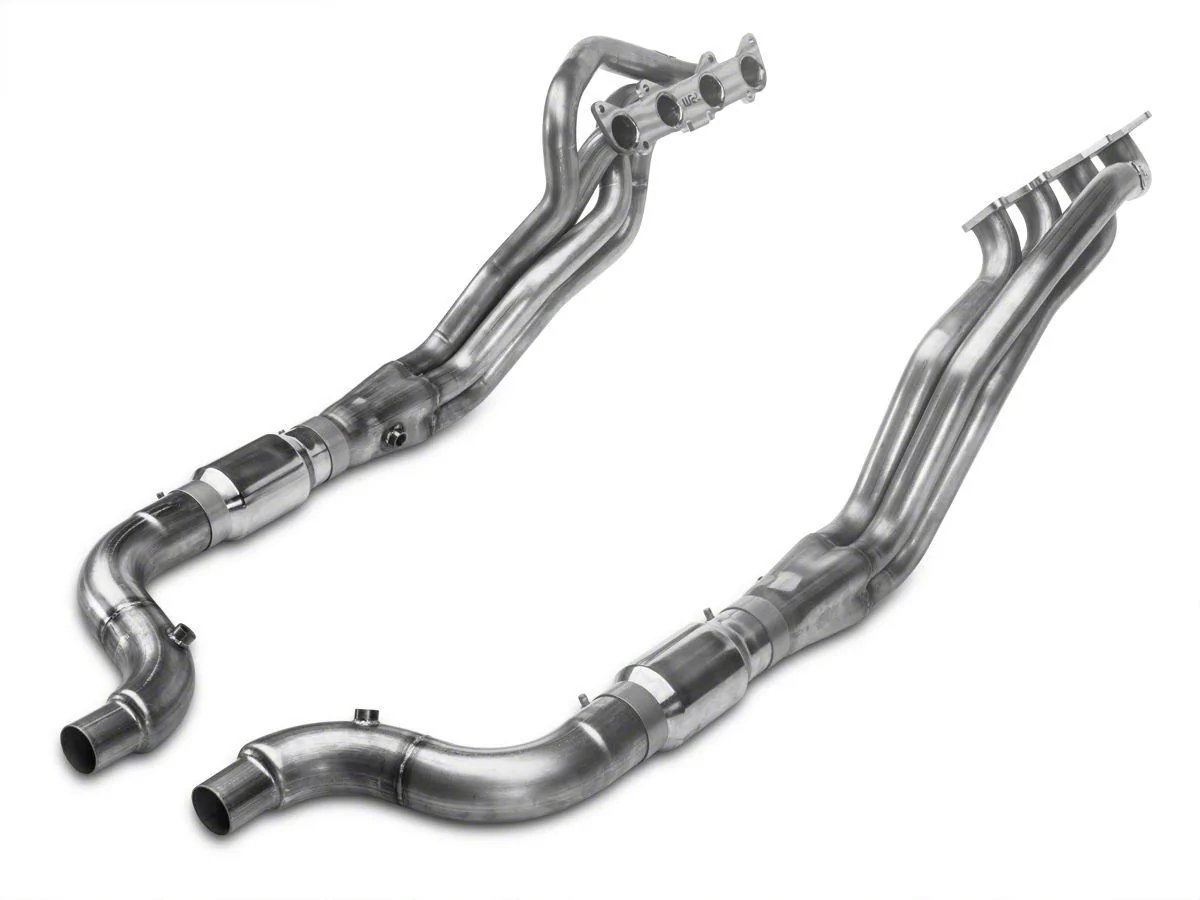

I was looking at stainless Works headers on the internet today. They look really nice. Anybody use them?



[jvandy50]

I was looking at stainless Works headers on the internet today. They look really nice. Anybody use them?

Not on my 350, but used the cheaper version (stainless power) on my coyote and they fit great. They even redesigned them to stay away from the ac line bolt because it was causing false knock. A company taking feedback and changing something fairly quickly made a good impression on me. And to boot, they sounded fawkin awesome



[EF300]

The Kooks exhaust seems to be very well thought out. Apparently it can pick up 25 wheel horsepower without a tune. Nice for those who don't want to flash the ECU.



[Demonic]

The Kooks exhaust seems to be very well thought out. Apparently it can pick up 25 wheel horsepower without a tune. Nice for those who don't want to flash the ECU.

I hadn’t seen any info before about that kind of gain without a new tune. Do you have a link where someone talked about that or showed it? Not doubting, just curious.



[EF300]

Here u go

Original

https://www.fordnxt.com/tech-storie...gets-a-power-boost-from-kooks-custom-headers/

Headers

By JASON REISS MAY 09, 2016

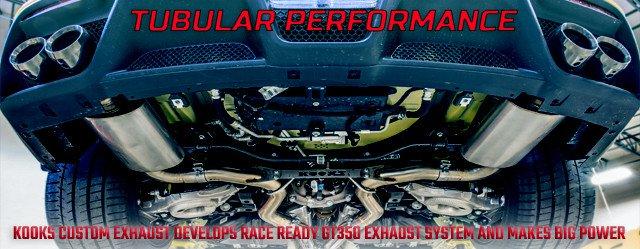

The 2016 model-year Shelby GT350 Mustang made its debut in late-summer 2015 to much fanfare. Representing the closest thing Ford has offered to a mass-produced factory racer, the anxiously-awaited car hit the showroom with a bang. There are a number of advances in technology showcased with this platform, as it features a 5.2-liter engine – code-named Voodoo – which is substantially different from the 5.0-liter Coyote engine found in the standard Mustang GT.

The use of the new engine prompted Kooks Custom Headers to develop a new exhaust system from the headers to the muffler tips. The setup featured in this article belongs to none other than HiPo Joe Charles’ GT350 was created in-house, on the car, and serves as the foundation for Kooks’ line of GT350 products, which are on the shelf at this very moment.

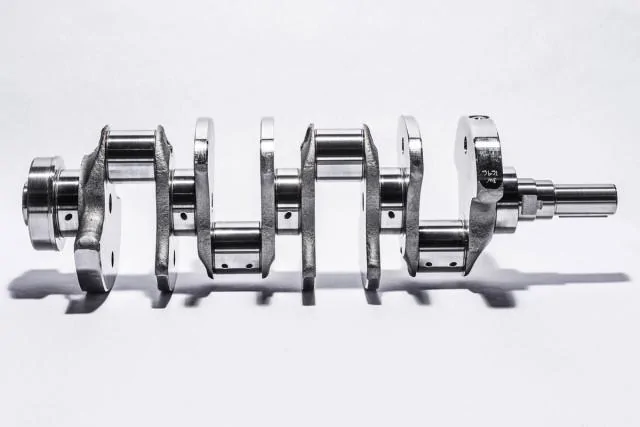

One major change in the Voodoo engine is found in the use of a flat-plane crankshaft. While not any sort of revolutionary development in and of itself (many four-cylinder engines use a flat-plane crank), the design presents unique challenges when selected for use in a V8 engine of this type. Ford’s powertrain engineers went to great lengths to counteract the unwanted harmonics in the production vehicle, notable issues that crop up with regard to noise, vibration, and harshness (NVH).

In the all-new Ford 5.2-liter V8, the connecting rods attach to the flat-plane crankshaft at aligned 180-degree intervals – creating what looks like a flat line of counterweights when viewed down the axis of the crankshaft. This crankshaft configuration improves cylinder exhaust-pulse separation, improving airflow and increasing power.

From Conception To Design

By virtue of its prominent place within the automotive aftermarket, Kooks has the ability to work closely with Ford’s engineering team – and well-placed race teams – on product development long before the vehicle in question is ready for prime time.

“We’ve been working with Multimatic in developing the exhaust for Jack Roush, Jr.’s Mustang that he’s used in road racing competition, so we knew about the issues that the car had,” says Chris Clark, Kooks’ director of sales and marketing.

The complete Kooks exhaust system for the GT350 picks up monster power on the dyno, without requiring a tune. Kooks engineers devised a solution to keep the ECU happy when removing the dual-mode mufflers, and have kept the factory programmable driving modes intact as a result.

“There are some vibration issues, but we got a jump-start on figuring that out. We had an idea that the chassis and the header configuration was close [to the Coyote engine in the standard S550], so we figured out to start with our 2015 S550 Mustang header as a base, and then we were going to build from there,” Clark said.



“This thing just keeps pulling; if it weren’t for the factory shift light you’d never be able to bang the gears. It’s unbelievable.” – Joe Charles, car owner

Prior to the 2015 SEMA show, the engineers at Kooks began working with CAD files made available from the 5.0 program and tweaking the dimensions, trying a variety of tubing configurations in the process.



“We tried different primary lengths, different tubing diameters, and we even looked into going with a Tri-Y design at one point. Ultimately, we decided to use a four-into-one stepped-style header,” Clark continued.

In an attempt to retain the low- and mid-range torque available from the 5.2-liter engine, the decision was made to retain the primary tubing length on the short side to keep the torque values up. The step location was catered to the engine’s torque band.

“We felt that running a full-length big-tube 1.875-inch primary was going to cost us in the torque curve, whereas the stepped header gives us the best of both worlds. As the RPM climbs, the larger-diameter tube after the step helps to get the exhaust out of the cylinder head,” says Clark.

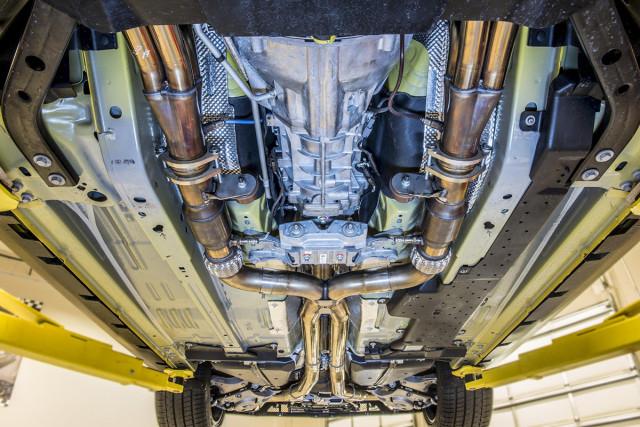

The headers use a 1.750 to 1.875-inch step that runs into Kooks’ traditional 3-inch collector, complete with ball-and-socket connector for easy installation of the X-pipe.

Factory Configuration

In its as-delivered form, the 2016 GT350 (and its big-brother, the GT 350R) arrive with dual-mode mufflers that offers drivers the choice of a subdued — like-a-Mustang-GT-but-better tone — or the all-out, ear-splitting insane howl of the uncorked pipes. This system is controlled by the driver using a selectable switch on the dash.

The OEM exhaust consists of an interesting 4-into-3-into-1 short-tube header configuration, which has been enhanced to work with the low backpressure this engine produces, thanks to the flat-plane crankshaft’s tendencies. In addition, the engine has a super-wide powerband – nearly 3,000 rpm separates the torque and horsepower peaks – which was also taken into account during Kooks’ design process.

Kooks' Green cats (left) and off-road extension pipes are available for the system, as are its traditional high-flow catalysts.

“Keep in mind that we still have to play with the factory exhaust; we also made sure we still had room in there for catalytic converters for those people who need emissions-testing capability,” Clark said. “The idea is to design an exhaust system that will be the best on the street, at the track, and really give the system that’s going to make the most overall power for everyone – road racers, drag racers, or street-car guys.

The System In Action On Charles’ Car

Product Construction

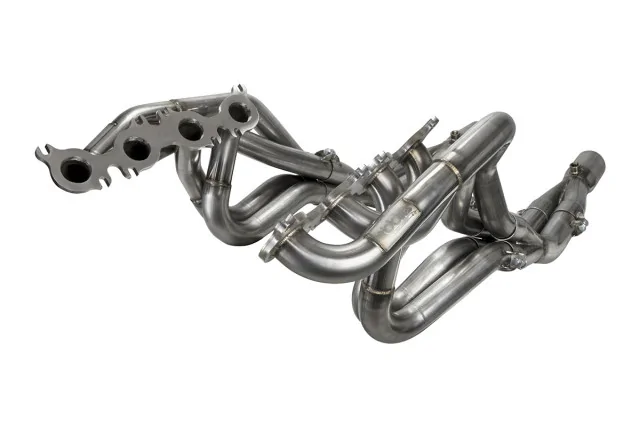

The heavy-wall stainless-steel headers Kooks developed for the GT350 (PN 11542300, MSRP $1,449.99) utilize a 1.75 to 1.875-inch tubing step; the primary tube then feeds into the company’s traditional three-inch collector. Included with the headers are oxygen sensor extensions, Cometic header gaskets, and Stage 8 locking header bolts. Headers are offered with the option of ceramic coating in one of three styles: High Lustre Silver Calico, Cool Black, or Cool Gray (MSRP $371.31).



“The idea is to design an exhaust system that will be the best on the street, at the track, and really give the system that’s going to make the most overall power for everyone,” – Chris Clark, Kooks Custom Headers

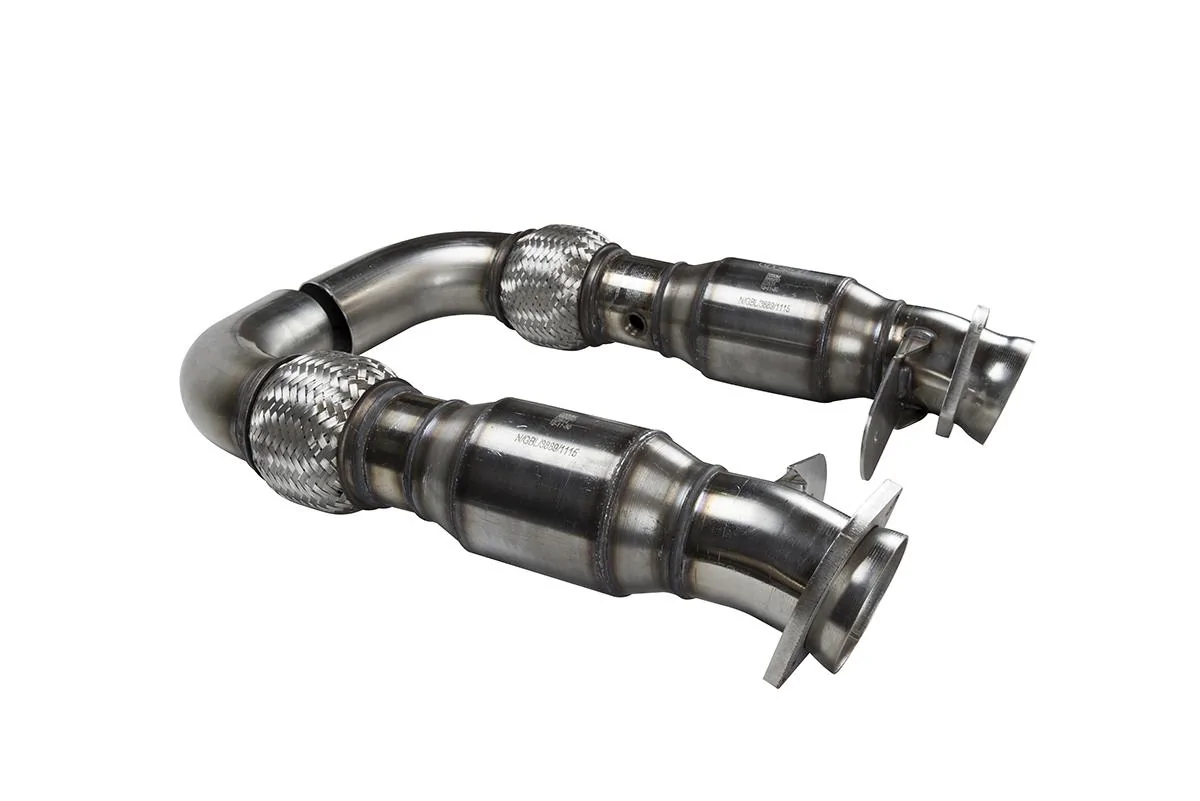

The headers must be used with a Kooks X-pipe, as the products have been constructed to work together. There are three different X-pipe designs available for use with these headers. The company’s exclusive Green ultra high-performance catalyst pipe (PN 11543300, MSRP $1,349.99) is 49-state legal.

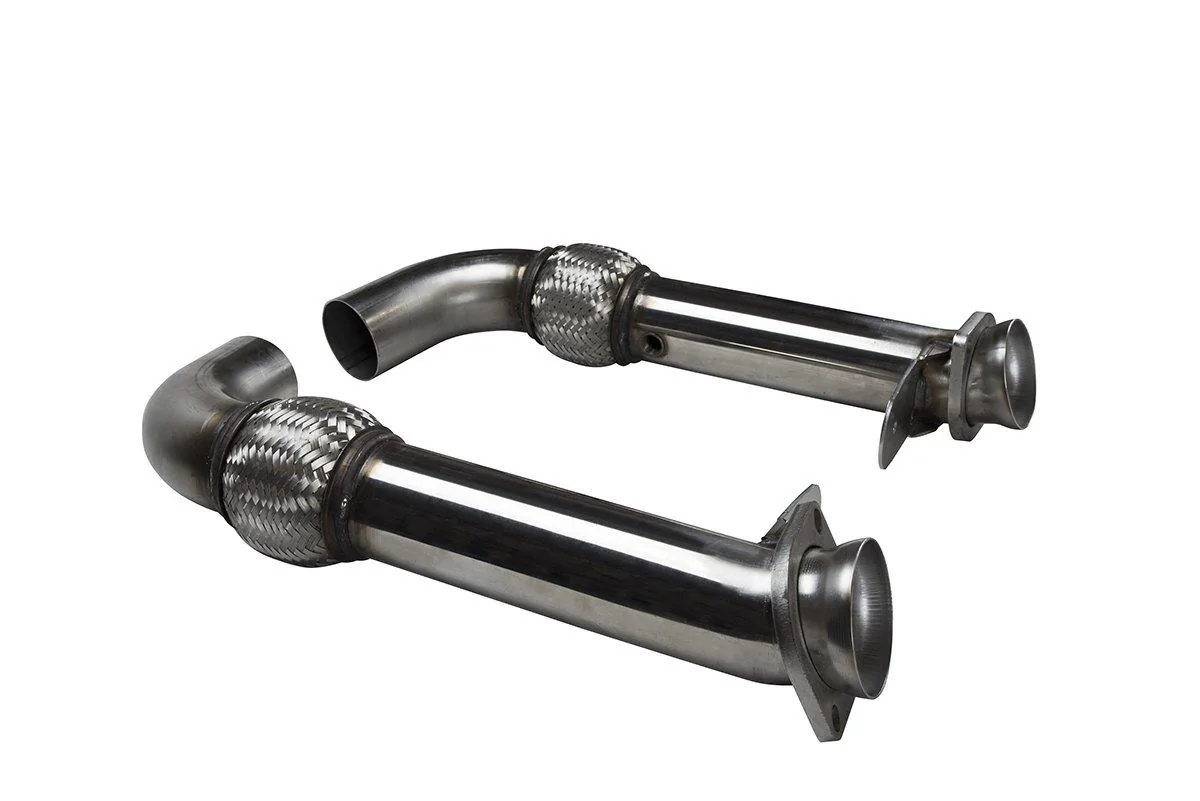

The Tuner high-flow catalyst stainless-steel X-pipe system is also available (PN 11543200, MSRP $899.99), as is an off-road stainless setup (PN 11543100, MSRP $749.99). Each of the X-pipe systems features 2.750-inch outlets to mate properly with the OEM exhaust setup, and will require the OE system to be cut to match up correctly with Kooks’ products.

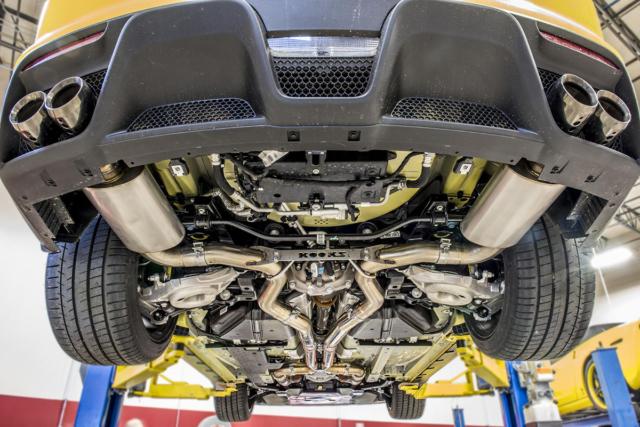

This exhaust system is sexy from stem to stern – Kooks has pulled out all the stops in creating an exhaust system for the GT350 that not only performs on the dyno, but looks amazing from any angle.

For those owners who wish to replace the entire exhaust system – as Charles did here – the company is also producing a complete 3.000-inch rear muffler section exhaust system (PN 11546300, MSRP $1,399.99), which includes Kooks mufflers and works with the factory quad tips to retain the OE appearance when viewed from the rear of the car.

Customers also have the option of selecting one of the three complete kits that Kooks has available, the Off Road Comp system (PN 1154F310, MSRP $3,599.97), the Tuner Catted Comp system (PN 1154F320, MSRP $3,749.97), or the Green catted Comp System (PN 1154F330, MSRP $4199.97).

Clark says installation of the entire system isn’t much different than any other Coyote-equipped car – it’s not the easiest task as it’s time-consuming, but it’s not especially challenging.

The system installation process is much like that on a 5.0-liter Coyote-equipped Mustang, although the Kooks system retains the GT350’s factory dampers ahead of the catalysts. In addition, they’ve added flexible pipe sections to help combat the vibrations encountered with the 5.2-liter Voodoo powerplant.

Active Exhaust – Or The Lack Thereof



NVH Concerns
One concern that has been noted by various sources with this engine configuration are the aforementioned harmonics, which can play havoc with speed parts if they aren’t developed properly.

Although Kooks has built its exhaust products with heavy-gauge tubing, they also made provisions to use some of the factory mounting arrangement to retain the vibration reduction measures Ford engineers built into the car.

There are two areas where Kooks chose to mimic the factory configuration in order to lessen vibration concerns; through the use of the tuned OE-style dampers just ahead of the catalysts, and just aft of the catalysts, where sections of flex pipe are installed into the X-pipe to assure that unwanted vibrations don’t damage expensive pipe sections.


One area which required special attention is the active exhaust actuator system as developed by Ford.



Put simply, this system from Kooks doesn’t have it — but the car thinks it does.

“If you disconnect the valves for the actuators, you will not be able to control your driving modes,” says Clark. “The system requires a complete closed loop – what happens is that the car needs to see one rotation of the mechanism in each direction, or it won’t give you access to the driving modes. We made a custom bracket on top of the mufflers that acts as the valve, and allows the system to see that full rotation in order to allow mode control and damper adjustment.”

Each muffler has this bracket to connect the factory valve; although you’re technically fooling the system, you want to hear the tone of your new exhaust without any compromises. Another interesting note is that Kooks reuses the factory GT350 exhaust tips, which are welded to the Kooks dual-exit muffler tubing.

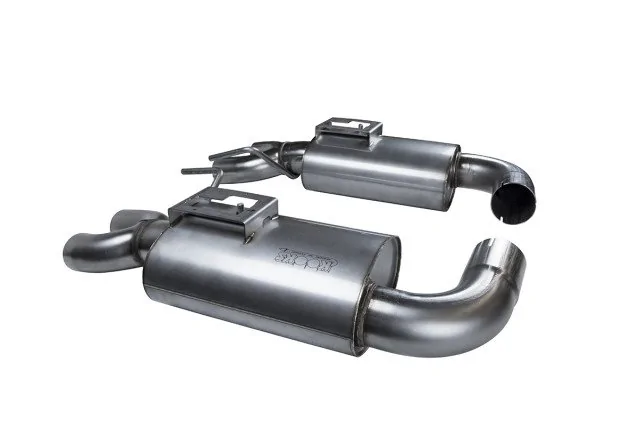

Note the brackets atop the mufflers; this engineering feat helps to trick the ECU into thinking the factory dual-mode mufflers are still in place.

Final Results

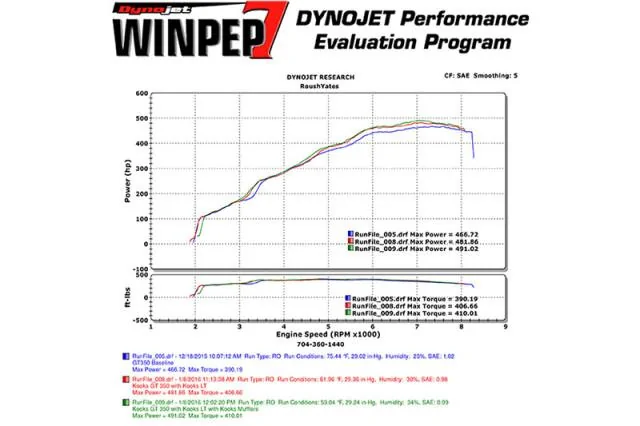

In testing, the car made 466.72 horsepower to the tires in stock configuration. With the headers and X-pipe installed, the power shot up to 481.8 horsepower, a gain of 15 horsepower at the tire.

Finally, once their own muffler system was installed to go with the new headers and Green catted X-pipe, the car pumped out a whopping 491.0 rwhp – a gain of 24.3 ponies to the tire – with no tune help to maximize the car’s performance with the improved breathing. The car also produced 20 lb-ft more torque with the full exhaust system.

“The exhaust system is freaking awesome,” says Charles. “It sounds awesome and makes awesome power. The biggest thing in my opinion going into this project was that I wanted more horsepower, and we found power all over the board, especially peak power. This thing just keeps pulling; if it weren’t for the factory shift light you’d never be able to bang the gears. It’s unbelievable.”

This car made insane power as a result of the exhaust installation, and Charles says there’s even more in it than what’s reflected here. He took the car home, put a cold-air kit on it, and ran it on the dyno at Tim Matherly’s MV Performance with excellent results.

In Conclusion

As proven from the impressive gains found on the dyno, the Kooks GT350 exhaust system just flat out works. Charles found even more power once he got the car home, installed a cold-air kit, and set the car up on Tim Matherly’s dyno at MV Performance for a proper tune with the CAI installed. He wouldn’t share how much more power they found from that session, however. We heard the car recently at the NMRA/NMCA All Star Nationals in Georgia, and all we’ll say is that Charles’ claims of “it sounds awesome” were backed up. Solid sound, solid engineering, solid performance.

“What matters to us is that we can build a header that isn’t going to break on people,” Clark said.



[sublime1996525]

I gotta say I’m impressed by those numbers.



[honeybadger]

@EF300

Thanks for posting this! You can definitely color me intrigued now



[EF300]

@EF300

Thanks for posting this! You can definitely color me intrigued now

IKR, 25 WHP w/o a tune is pretty awesome imo prolly woth the $. All the fun and no major implications on your power train warranty.



[madlag]

IKR, 25 WHP w/o a tune is pretty awesome imo prolly woth the $. All the fun and no major implications on your power train warranty.

I can confirm. I did the kooks exhaust less the mufflers and went catless with a 93 tune. I made 545 to the ground afterward.



[Shadowblackbeast]

I can confirm. I did the kooks exhaust less the mufflers and went catless with a 93 tune. I made 545 to the ground afterward.

You have the dyno sheet for that run? Not challenging your results but I want to see if kooks on 93 can actually produce those numbers. Was that SAE? What was the correction factor used? All this plays a lot into dyno numbers. Because I’ve played around a lot with my Shelby on the dyno and I ran it with ARH headers,no cats, Lund E85R tune with 30 degrees max timing all the way to 8500 RPMs and got nowhere near 545. That would mean u cranked out over 600 crank HP with nothing but headers and pump gas with much less timing and if that is indeed true all of us looking for max HP N/A need to do exactly what you did. So if u could post that dyno sheet with ur exact mods and tuner that would be great!!

Thanks



[Shadowblackbeast]

I can confirm. I did the kooks exhaust less the mufflers and went catless with a 93 tune. I made 545 to the ground afterward.

If u made 545 wheel on 93 then on E85 you would be creeping close to 575-580. That I can’t wrap my head around. But I pray is possible someone has the secret sauce combo



[EF300]

In the original article they made plus 25 horsepower on the exhaust alone. They made additional power on top of that with a tune but they never said how much additional power they made. It might be possible to get those numbers. I mean 25 from the headers and exhaust and another 25 from a tune put you at 575
I find that believable.



[I am Jeff]

I can confirm. I did the kooks exhaust less the mufflers and went catless with a 93 tune. I made 545 to the ground afterward.

I have the kooks headers too and I am curious about your dyno graph. On average, a stock gt350 puts 450 to the wheels. Can you provide a before and after graph that shows that you gained 95 rwhp from just a tune and headers?
