5.0 Dyno Chart Compilation

Htk084 · May 21, 2020

I don’t know different dyno different day, etc?

Marketplaza said:
How

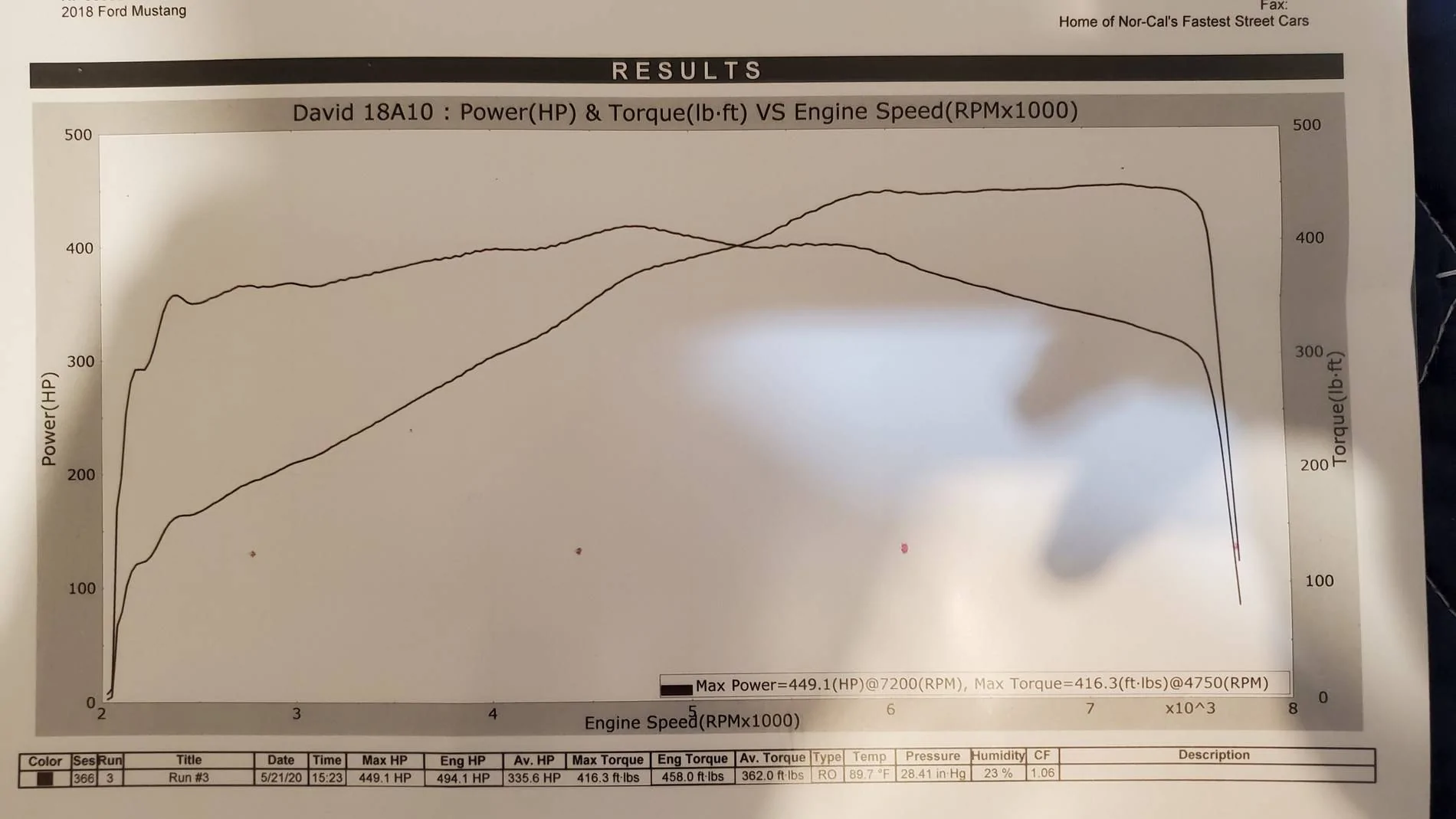

how’s it possible for a stock Bullitt to have that kind of hp when mine with a e85 tune and Roush cai came out to 429? A stock Bullitt has 20 more hp stock then a normal gt.

cahouston · May 21, 2020

Marketplaza said:
How

how’s it possible for a stock Bullitt to have that kind of hp when mine with a e85 tune and Roush cai came out to 429? A stock Bullitt has 20 more hp stock then a normal gt.

You mentioned the shop performed the Dyno test on your car in 3rd gear. If your can has a stock manual mt-82, that is not the 1:1 gear and will not give the best result. It also looks like they used STD correction for the Dyno as some use SAE. These will yield different results in and of themselves on same Dyno, same car. STD will typically read higher than SAE. Different dynos can be calibrated differently which would again vary results when comparing to others. Finally, there are variances between cars on how much power they make. You could have 2 brand new Mustang GTs with same options, bone stock run on the same Dyno 30 minutes apart and make different numbers which could vary quite a lot of one makes less than average and the other makes more than average (build and manufacturing differences). All this together makes comparing your numbers to someone else's a moot point. What is the better value in a baseline Dyno is when you start modifying, comparing results on the same Dyno before/after mods. Then you have a better indication on your gains.

Forgot to mention depending on Dyno correction and calibrations, location altitude and weather conditions can also affect numbers. The best comparisons would be Dyno results on the same Dyno on the same day/time of cars both run in 1:1 gear.

Marketplaza · May 21, 2020

cahouston said:
You mentioned the shop performed the Dyno test on your car in 3rd gear. If your can has a stock manual mt-82, that is not the 1:1 gear and will not give the best result. It also looks like they used STD correction for the Dyno as some use SAE. These will yield different results in and of themselves on same Dyno, same car. STD will typically read higher than SAE. Different dynos can be calibrated differently which would again vary results when comparing to others. Finally, there are variances between cars on how much power they make. You could have 2 brand new Mustang GTs with same options, bone stock run on the same Dyno 30 minutes apart and make different numbers which could vary quite a lot of one makes less than average and the other makes more than average (build and manufacturing differences). All this together makes comparing your numbers to someone else's a moot point. What is the better value in a baseline Dyno is when you start modifying, comparing results on the same Dyno before/after mods. Then you have a better indication on your gains.

Forgot to mention depending on Dyno correction and calibrations, location altitude and weather conditions can also affect numbers. The best comparisons would be Dyno results on the same Dyno on the same day/time of cars both run in 1:1 gear.

so really the only way to test my gains would be to race another mustang at the track that has the same mods?

GreenS550 · May 21, 2020

Marketplaza said:
they told me they did the main pulls in third gear. Does it matter what gear it’s in?

Absolutely!

GreenS550 · May 21, 2020

Marketplaza said:
so really the only way to test my gains would be to race another mustang at the track that has the same mods?

SO many variables at the dragstrip. Autos are much easier to get consistent times. But, that said the real test of any car in the 1/4 mile is racing at the strip in the 1/4 mile! Dynos don't mean much if a person doesn't shift, launch, etc properly. That's why you can see GT500s (2014 and down), hellcats, etc do so poorly at the strip. And some guys with much less power win. Talent, patience, coordination, etc.

Elp_jc · May 22, 2020

I just wanted the dyno graph, to see more or less the torque curve and peak, to know how to drive the car the most efficient way. Will search for LMR and Steeda to see if they posted a chart, since I'm not interested at the peak numbers, but where the peaks are

. Will have to work for that chart, I guess. Ha ha. Thank you guys.

GT Pony · May 22, 2020

Elp_jc said:
I just wanted the dyno graph, to see more or less the torque curve and peak, to know how to drive the car the most efficient way. Will search for LMR and Steeda to see if they posted a chart, since I'm not interested at the peak numbers, but where the peaks are . Will have to work for that chart, I guess. Ha ha. Thank you guys.

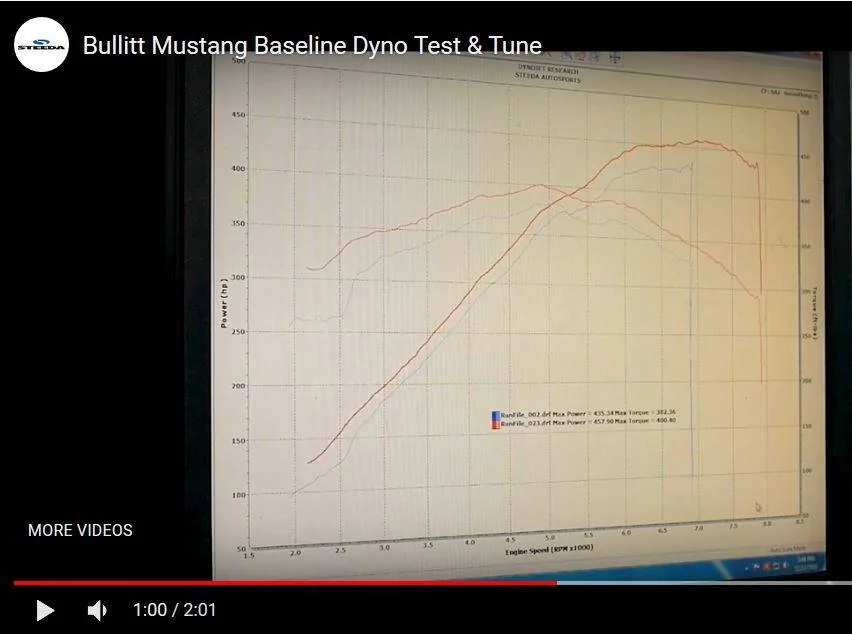

The graph for a bone stock Bullitt is shown in this video.

Elp_jc · May 23, 2020

They didn't show the torque curve, which is what I wanted the most, since the HP curve is pretty much an even line, curving at the peak, which some dynos show at around 6,500 rpm, but Ford says 7K. Will keep looking, for thanks anyway

. Was curious if the Bullitt hit redline stock in 4th (1:1), since it has a higher top speed limit of 163 (vs 155), and the 3.73 Torsen diff. Regular GTs only get to 6,700 rpm or so before hitting the 155 speed limit, but I assume with 3.55.

After seeing the Steeda dyno guy rev the crap out of that Coyote (8K), which is obviously not the stock rev limiter, does anybody know at which rpm the engine cuts off? Google wasn't any help. Only the redline of 7,400 rpm is mentioned. I assume 7,500 or 7,600, but curious. Thanks.

GT Pony · May 23, 2020

Elp_jc said:
They didn't show the torque curve, which is what I wanted the most, since the HP curve is pretty much an even line, curving at the peak, which some dynos show at around 6,500 rpm, but Ford says 7K.

Look again at time 1:00. I see both T and HP curves. The peak torque is around 4800 to 5000 RPM.

Elp_jc · May 23, 2020

Missed it; ha ha. Sorry about that. Thank you for posting it. Peak TQ is at 4,900 rpm, by the way, so right in the middle of your estimations

. Is it possible to make a picture of that chart, or a .pdf? Would like to save it on my computer. Thank you.

EDIT: Forgot I bought a set of full jacking rails from Steeda (waiting for them), so asked them for the dyno file. Will post it here if I receive it, in case others want it

.

GT Pony · May 23, 2020

Elp_jc said:
Missed it; ha ha. Sorry about that. Thank you for posting it. Peak TQ is at 4,900 rpm, by the way, so right in the middle of your estimations . Is it possible to make a picture of that chart, or a .pdf? Would like to save it on my computer. Thank you.

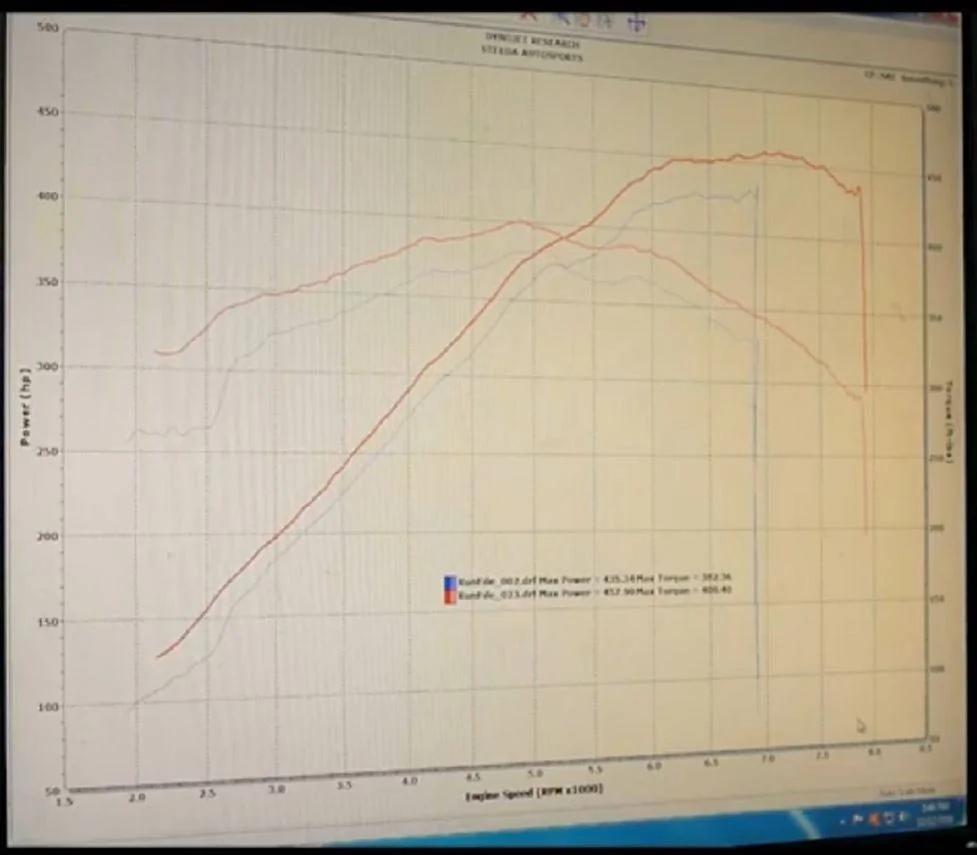

Here ya go ... see attached PDF. JPG also shown.

Elp_jc · May 23, 2020

Thanks a million brother; greatly appreciate it. Have a great long weekend, and that goes for everybody.

dn1984 · May 25, 2020

AED E85 tune, AFE drop in, Steeda axleback, stock everything else. Clogged passenger side cat costing me at least 10-15hp too

cib24 · May 25, 2020

How did the cat get clogged on such a new car?

Htk084 · May 25, 2020

Hey by chance did Shaun have any recommendations as far as intake goes? He knows so much I’d be interested what he thinks and if you should just stay stock intake. Great graph, really impressed with aed
