Hi There,

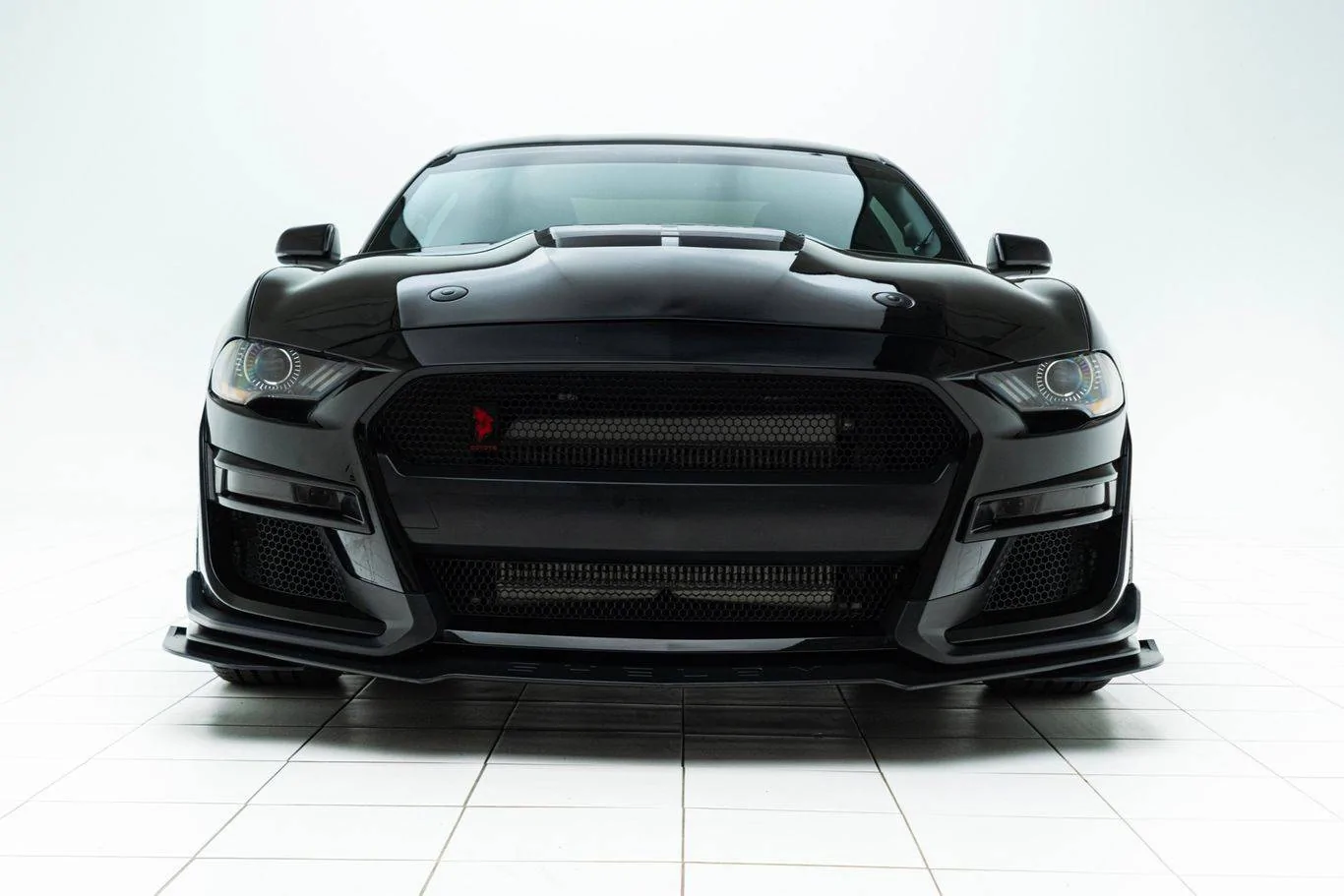

Posting here as well as the new member thread as I am sure to be here often. Here is the list and some photos:
ALL MODIFICATIONS PERFORMED BY GEARHEADS PERFORMANCE

750WHP @ 10PSI ON 93 OCTANE

FULLY FORGED 5.0 ENGINE

MAHLE FORGED PISTONS

MAHLE STAINLESS STEEL PISTON RINGS

FORGED H-BEAM CONNECTING RODS

ARP-2000 ROD BOLTS

FORD PERFORMANCE MAIN STUD KIT

ARP HEAD STUD KIT

MMR BILLET OIL PUMP GEARS & CRANKSHAFT SPROCKET

HELLION "SLEEPER" TWIN TURBO SYSTEM

UPGRADED 62mm BALL-BEARING TURBOCHARGERS

HELLION LARGE FRONT MOUNT INCERCOOLER

TWIN TURBOSMART COMP-GATE 40mm WASTEGATES

TWIN TURBOSMART VEE PORT BLOW OFF VALVES

AEM TRUEBOOST BOOST CONTROLLER

GEARHEADS PERFORMANCE DUAL OIL CATCH CAN KIT

IMRC LOCKOUT KIT

UPGRADED NGK SPARK PLUGS

FREE FLOWING MID-PIPE TO OEM ACTIVE VALVE CATBACK

MCLEOD RXT TWIN DISC PERFORMANCE CLUTCH & FLYWHEEL

FULL SHELBY GT500 FRONT BUMPER CONVERSION INCLUDING ALL LIPS, CANARDS, LIGHTS, ETC.

GT500 STYLE VENTED HOOD

GT500 STYLE FAKE HOOD PINS

CUSTOM RED COYOTE GRILLE BADGE

MMD V-SERIES COLOR MATCHED REAR SPOILER









Sponsored



NGOT8R

Well-Known Member
Joined
Jul 19, 2020
Threads
138
Messages
7,739
Reaction score
5,558
Location
Florida
First Name
Adrian
Vehicle(s)
2019 Bullitt
Nice mod list! Sounds like it should be pretty stout and reliable. Did you utilize the coolant ports on your wastegates to keep them cool and help them live a longer/happier life? Any pics of the turbos and intercooler mounted? Curious to see what Gearheads did for the front bumper support.

Are you still on the factory MT82-D4, but with the upgraded clutch and flywheel? Roll racer, road course or drag car (or all the above)?

OP
OP
Flubuyu2!

Flubuyu2!

Member
Joined
Feb 2, 2025
Threads
2
Messages
15
Reaction score
16
Location
Amarillo
First Name
Mark
Vehicle(s)
2020 Ford Mustang GT, C7 Z06 Corvette, Audi B9 RS5, BMW X4 M Comp, SLK55 AMG
As far as I know the 6 speed is stock. I will look for the ports when I get home and take some pics of the turbo's hanging under the car and front end work. We are road racers out this way.


NGOT8R

Well-Known Member
Joined
Jul 19, 2020
Threads
138
Messages
7,739
Reaction score
5,558
Location
Florida
First Name
Adrian
Vehicle(s)
2019 Bullitt
As far as I know the 6 speed is stock. I will look for the ports when I get home and take some pics of the turbo's hanging under the car and front end work. We are road racers out this way.

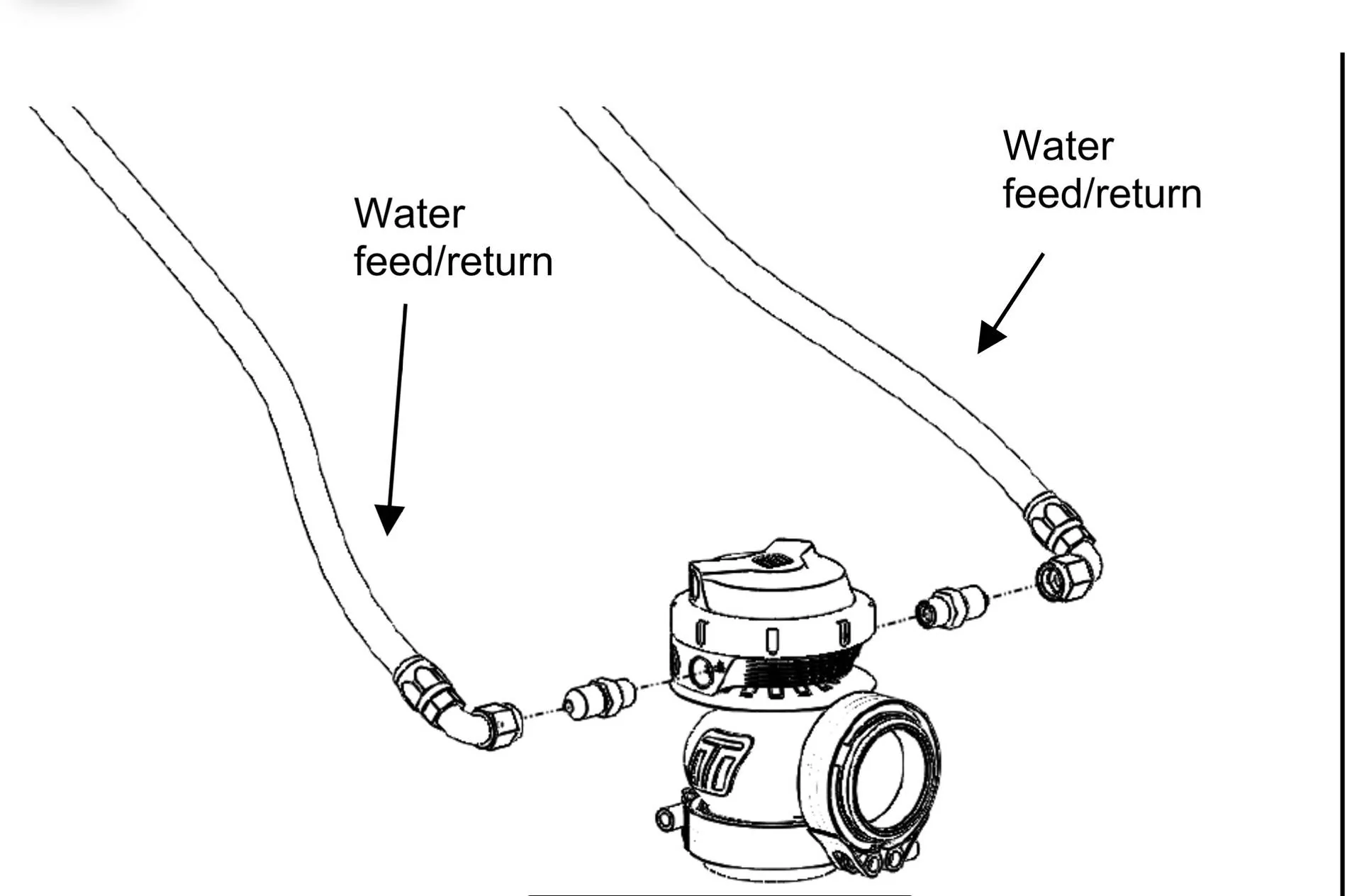

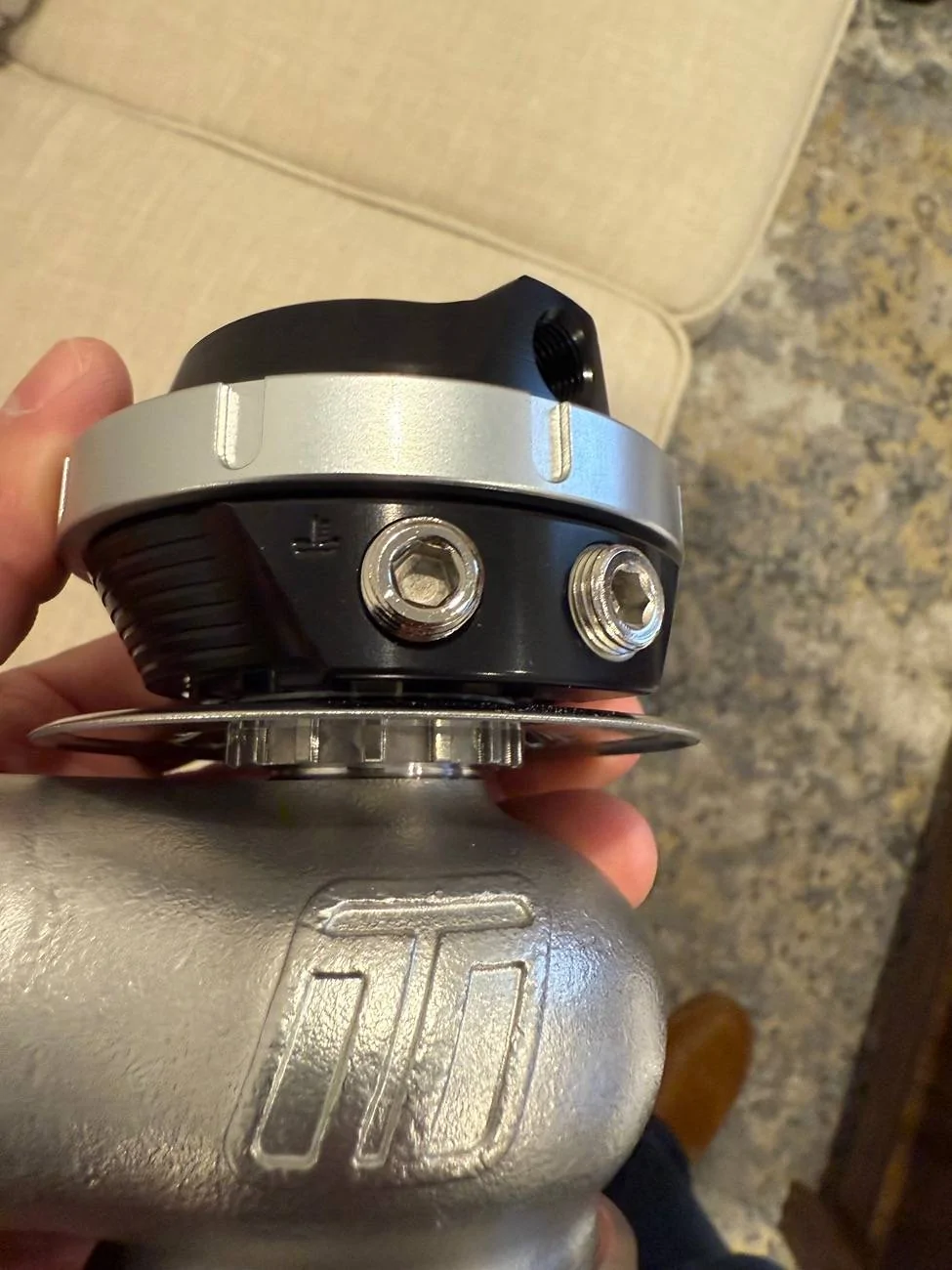

Oh okay. Hereā€™s a pic of one of my wastegates to show the coolant symbol that youā€™ll be looking for. There will be one on each side of the wastegates and either side can be used as feed/return. See also the Turbosmart coolant hose connection diagram pic below. FatHouse Performance also makes a coolant distribution block to facilitate using the cooling feature on these wastegates. See link to FatHouse below as well.




https://www.fathouseperformance.com/product/coolant-distribution-block-orb/

OP
OP
Flubuyu2!

Flubuyu2!

Member
Joined
Feb 2, 2025
Threads
2
Messages
15
Reaction score
16
Location
Amarillo
First Name
Mark
Vehicle(s)
2020 Ford Mustang GT, C7 Z06 Corvette, Audi B9 RS5, BMW X4 M Comp, SLK55 AMG
Thank you for this! I will check and see if there are lines already plumbed.


Sponsored

NGOT8R

Well-Known Member
Joined
Jul 19, 2020
Threads
138
Messages
7,739
Reaction score
5,558
Location
Florida
First Name
Adrian
Vehicle(s)
2019 Bullitt
Thank you for this! I will check and see if there are lines already plumbed.
Youā€™re welcome. It would seem that youā€™d stand to really benefit from utilizing this feature on a road race car.


Zrussian13

Well-Known Member
Joined
Nov 16, 2018
Threads
26
Messages
2,359
Reaction score
2,271
Location
Phoenix
First Name
Chris
Vehicle(s)
2019 Mustang GT, 2018 Acura MDX
Do the gen 5 compgates have coolant lines? I've got the gen4s and they do not. I've also got over 50k miles on them and 3 arizona summers so I'm guessing it's not that necessary.


NGOT8R

Well-Known Member
Joined
Jul 19, 2020
Threads
138
Messages
7,739
Reaction score
5,558
Location
Florida
First Name
Adrian
Vehicle(s)
2019 Bullitt
Do the gen 5 compgates have coolant lines? I've got the gen4s and they do not. I've also got over 50k miles on them and 3 arizona summers so I'm guessing it's not that necessary.

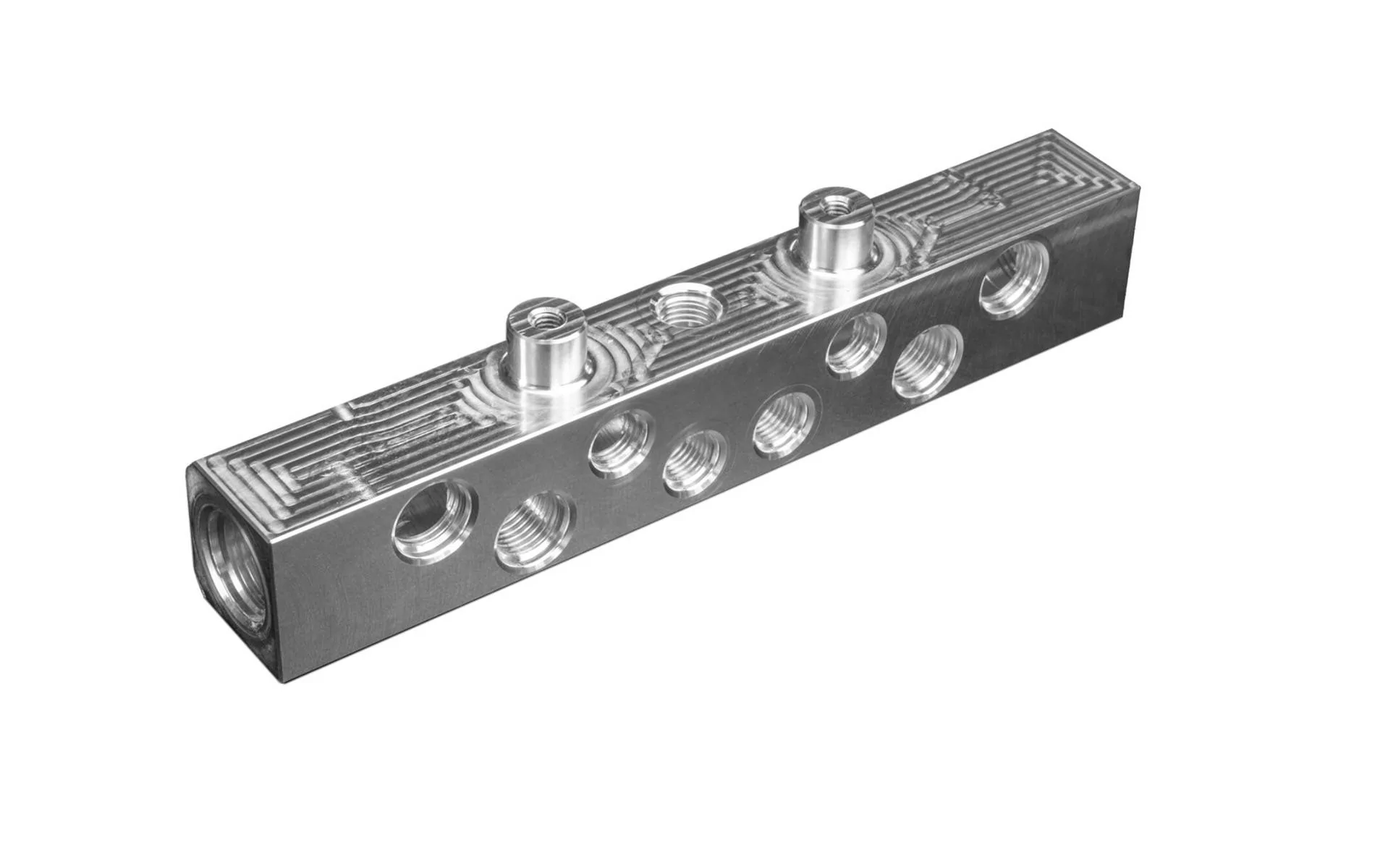

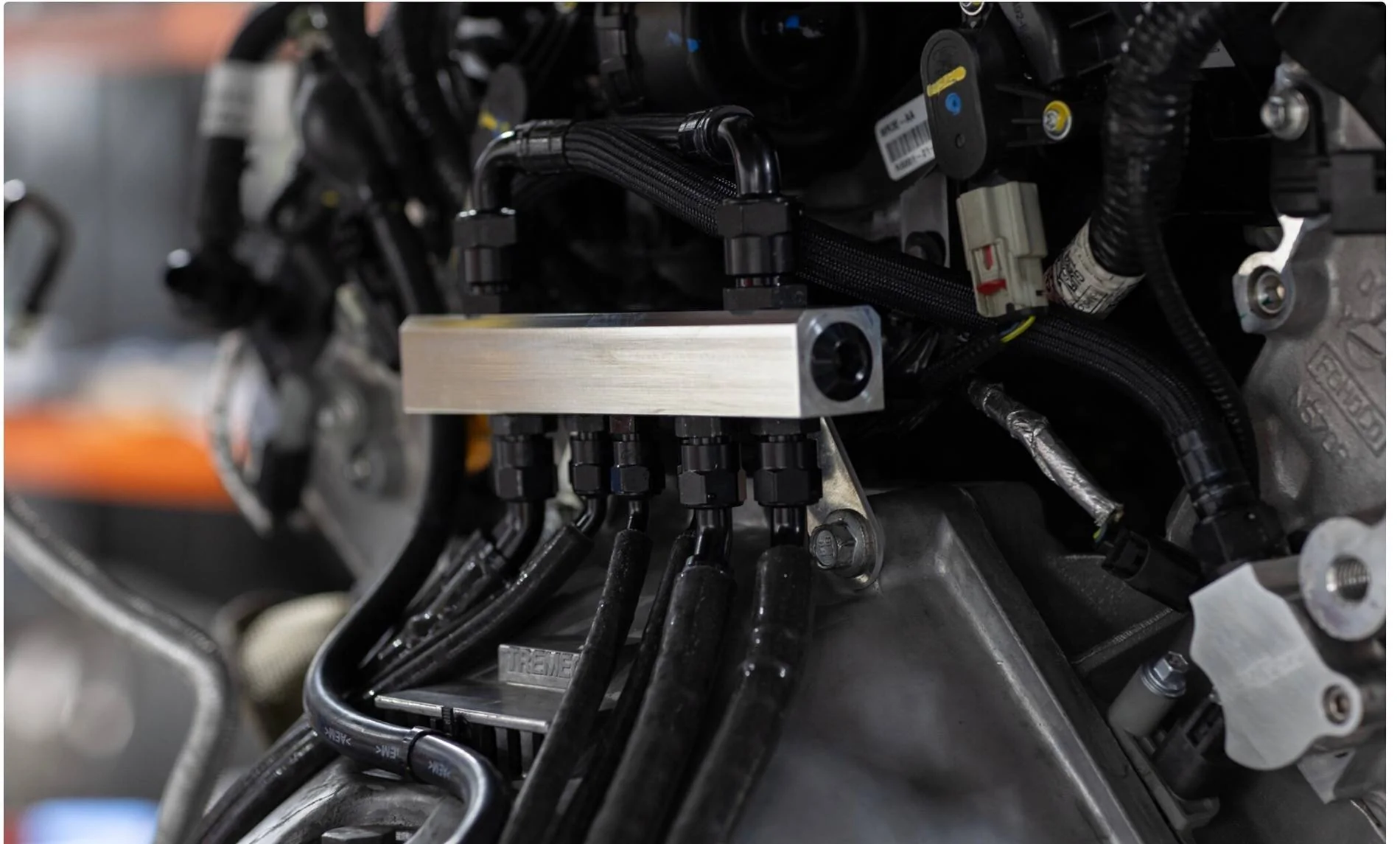

Yes they do. Itā€™s definitely more work to plumb them for use of the coolant feature, but Iā€˜m planning on using mine. I just ordered one of these FatHouse coolant distribution manifolds to help make things a bit easier. Itā€™s my understanding that turbos generate a crap ton of heat, so I want to do everything that I can to mitigate the heat.

Then thereā€™s the need for a good cooling fan setup, which is a whole other story.







RMoeslein

Well-Known Member
Joined
Jul 27, 2022
Threads
5
Messages
76
Reaction score
77
Location
Pittsburgh
First Name
Rich
Vehicle(s)
2022 Mustang Mach 1, 2020 f250 lariat Tremor
Hi There,

Posting here as well as the new member thread as I am sure to be here often. Here is the list and some photos:
ALL MODIFICATIONS PERFORMED BY GEARHEADS PERFORMANCE

750WHP @ 10PSI ON 93 OCTANE

FULLY FORGED 5.0 ENGINE

MAHLE FORGED PISTONS

MAHLE STAINLESS STEEL PISTON RINGS

FORGED H-BEAM CONNECTING RODS

ARP-2000 ROD BOLTS

FORD PERFORMANCE MAIN STUD KIT

ARP HEAD STUD KIT

MMR BILLET OIL PUMP GEARS & CRANKSHAFT SPROCKET

HELLION "SLEEPER" TWIN TURBO SYSTEM

UPGRADED 62mm BALL-BEARING TURBOCHARGERS

HELLION LARGE FRONT MOUNT INCERCOOLER

TWIN TURBOSMART COMP-GATE 40mm WASTEGATES

TWIN TURBOSMART VEE PORT BLOW OFF VALVES

AEM TRUEBOOST BOOST CONTROLLER

GEARHEADS PERFORMANCE DUAL OIL CATCH CAN KIT

IMRC LOCKOUT KIT

UPGRADED NGK SPARK PLUGS

FREE FLOWING MID-PIPE TO OEM ACTIVE VALVE CATBACK

MCLEOD RXT TWIN DISC PERFORMANCE CLUTCH & FLYWHEEL

FULL SHELBY GT500 FRONT BUMPER CONVERSION INCLUDING ALL LIPS, CANARDS, LIGHTS, ETC.

GT500 STYLE VENTED HOOD

GT500 STYLE FAKE HOOD PINS

CUSTOM RED COYOTE GRILLE BADGE

MMD V-SERIES COLOR MATCHED REAR SPOILER









Sick ride!


80FoxCoupe

Well-Known Member
Joined
Mar 28, 2018
Threads
50
Messages
5,022
Reaction score
5,281
Location
Cincy, OH
Vehicle(s)
16 GT, 80 Fox
Yes they do. Itā€™s definitely more work to plumb them for use of the coolant feature, but Iā€˜m planning on using mine. I just ordered one of these FatHouse coolant distribution manifolds to help make things a bit easier. Itā€™s my understanding that turbos generate a crap ton of heat, so I want to do everything that I can to mitigate the heat.

Then thereā€™s the need for a good cooling fan setup, which is a whole other story.





Slick piece but will be a pain to get to the top 2 bell housing bolts with that manifold in place.


Sponsored

NGOT8R

Well-Known Member
Joined
Jul 19, 2020
Threads
138
Messages
7,739
Reaction score
5,558
Location
Florida
First Name
Adrian
Vehicle(s)
2019 Bullitt
Slick piece but will be a pain to get to the top 2 bell housing bolts with that manifold in place.
I agree! I will run a Holley low-ram IM this time around, plus without any IMRC components in the way, I will create a little extra room. I donā€™t expect it to be a piece of cake though (of course nothing ever is). I may also explore different options for mounting it which will require a bracket of some sort to be fabbed up. Iā€™ll share more info. about the port sizes and flow path once I get it in hand.


Zrussian13

Well-Known Member
Joined
Nov 16, 2018
Threads
26
Messages
2,359
Reaction score
2,271
Location
Phoenix
First Name
Chris
Vehicle(s)
2019 Mustang GT, 2018 Acura MDX
I'm just not seeing the need for cooling to the wastegates??? I beat on this F'er until it gets over 105Ā° out here and never had an issue. What does cooling the wastegates accomplish? I get the extra water cooling to the turbo but I don't even do that out here. 104,xxx with oil cooling only since 48k and turbos and wastegates are solid. Am I missing something?


NGOT8R

Well-Known Member
Joined
Jul 19, 2020
Threads
138
Messages
7,739
Reaction score
5,558
Location
Florida
First Name
Adrian
Vehicle(s)
2019 Bullitt
I'm just not seeing the need for cooling to the wastegates??? I beat on this F'er until it gets over 105Ā° out here and never had an issue. What does cooling the wastegates accomplish? I get the extra water cooling to the turbo but I don't even do that out here. 104,xxx with oil cooling only since 48k and turbos and wastegates are solid. Am I missing something?
Many people get by without cooling the wastegates, but Iā€˜ve read about people having issues with their cars running hot with the supplied fan, so I want to use every feature available to help everything live longer. Wastegates arenā€™t exactly cheap at $400 each.

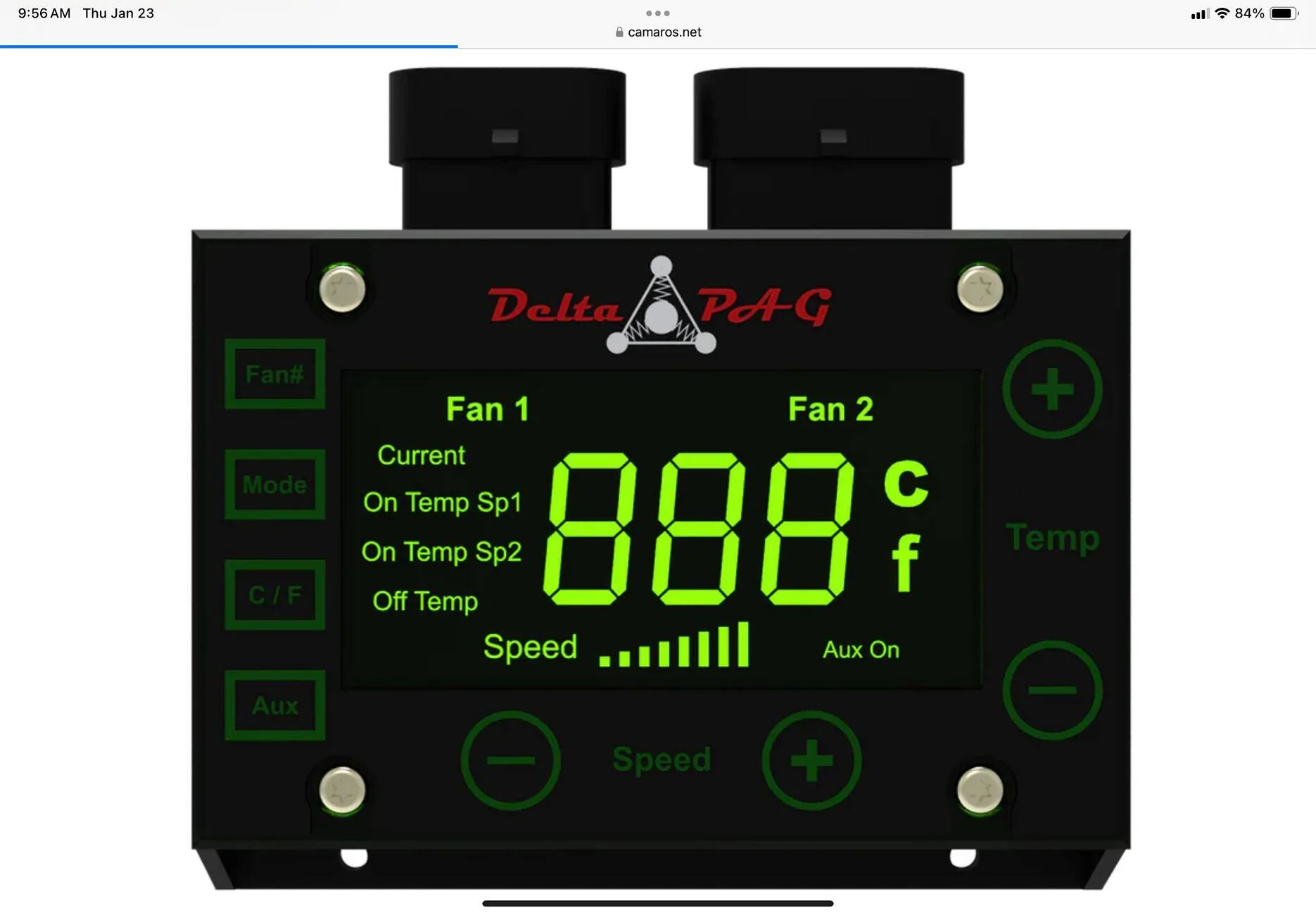

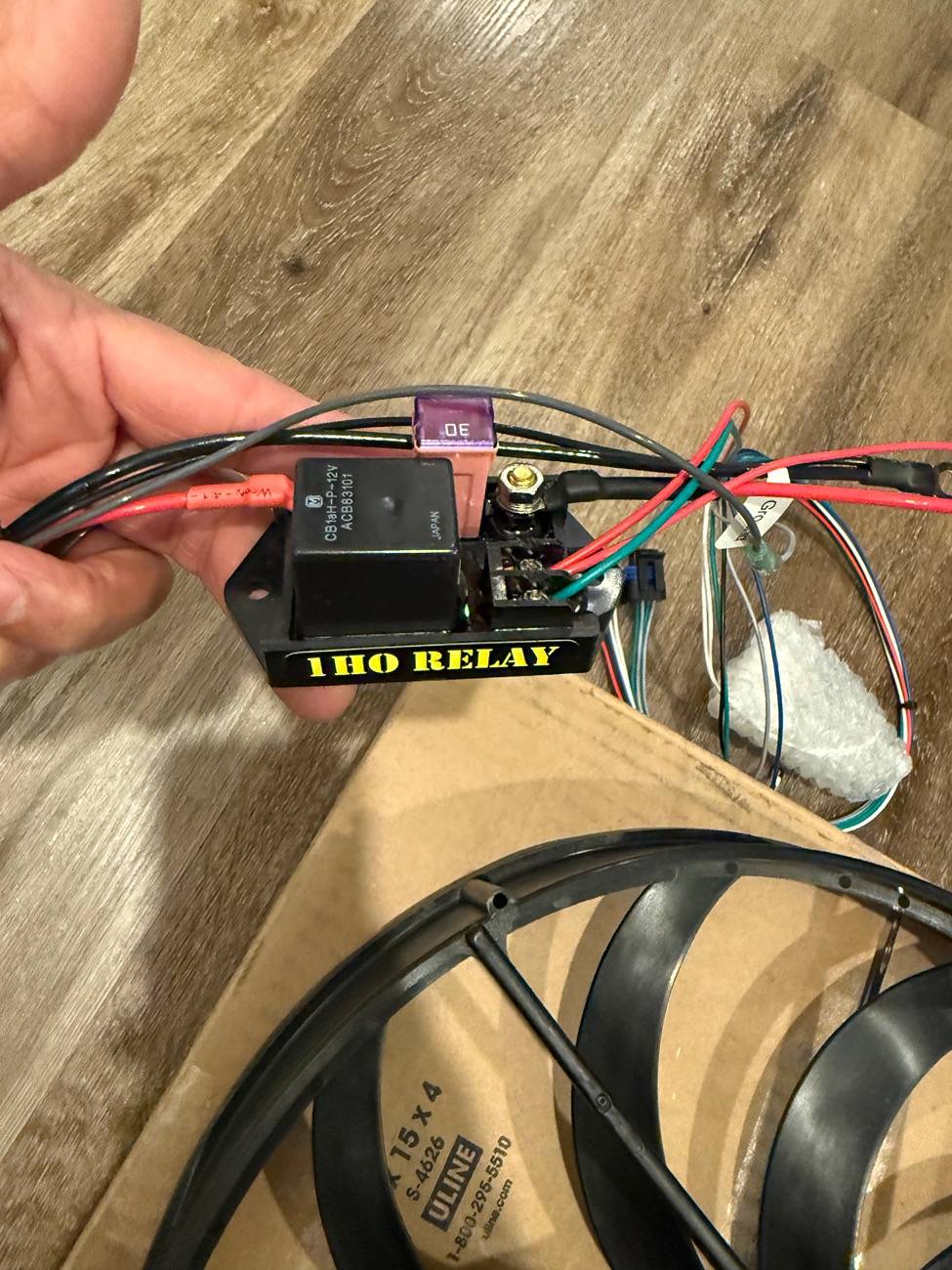

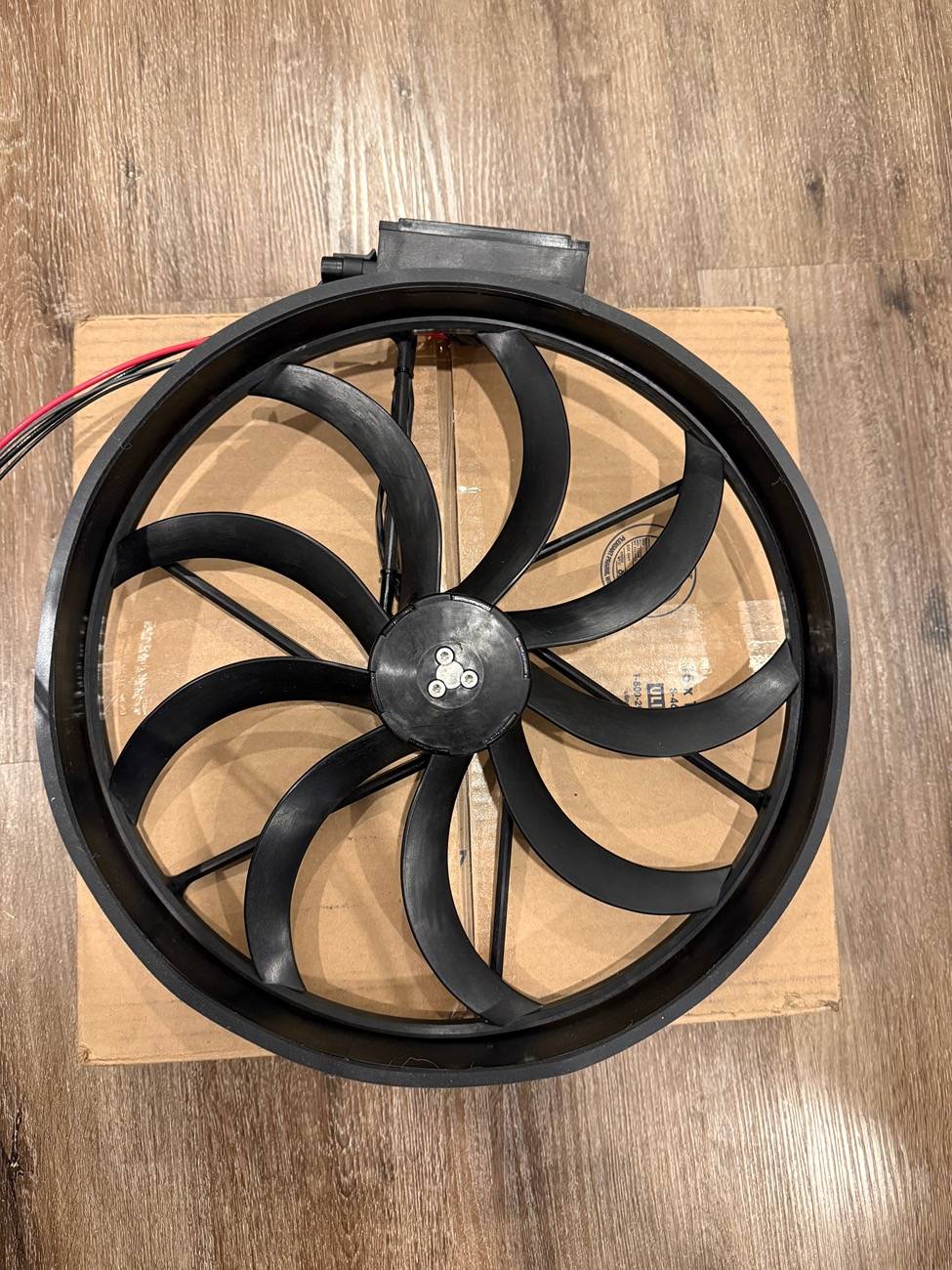

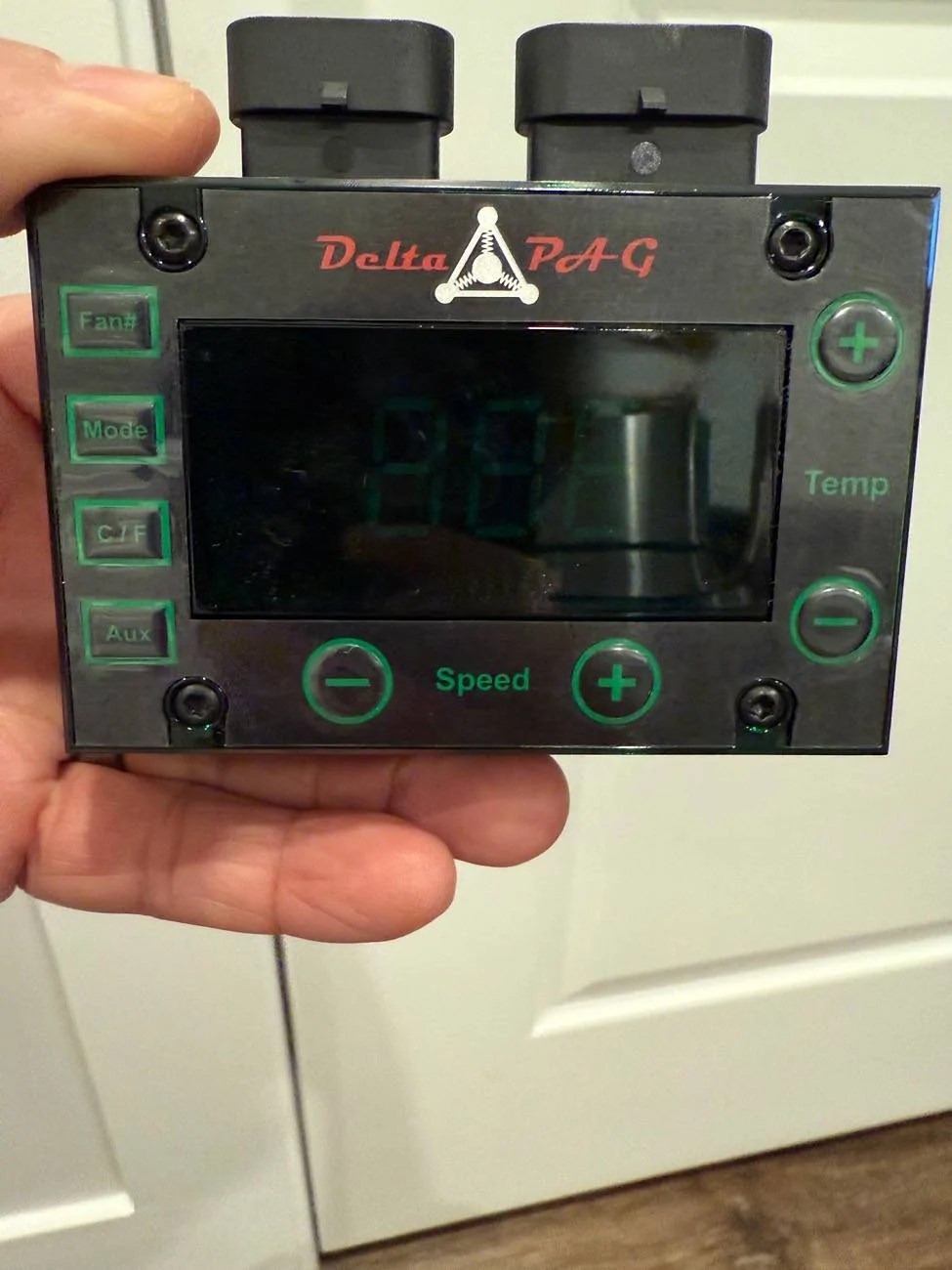

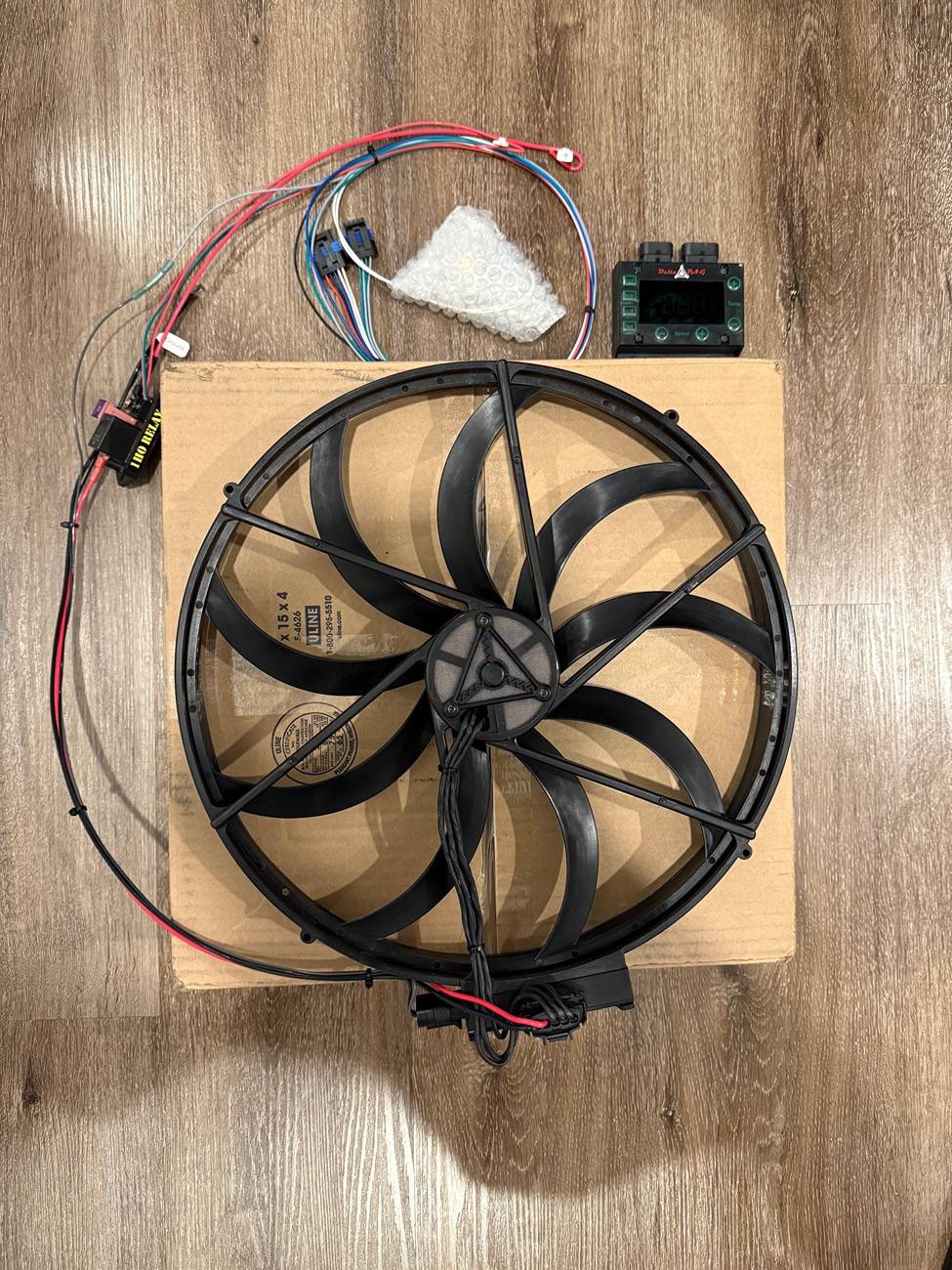

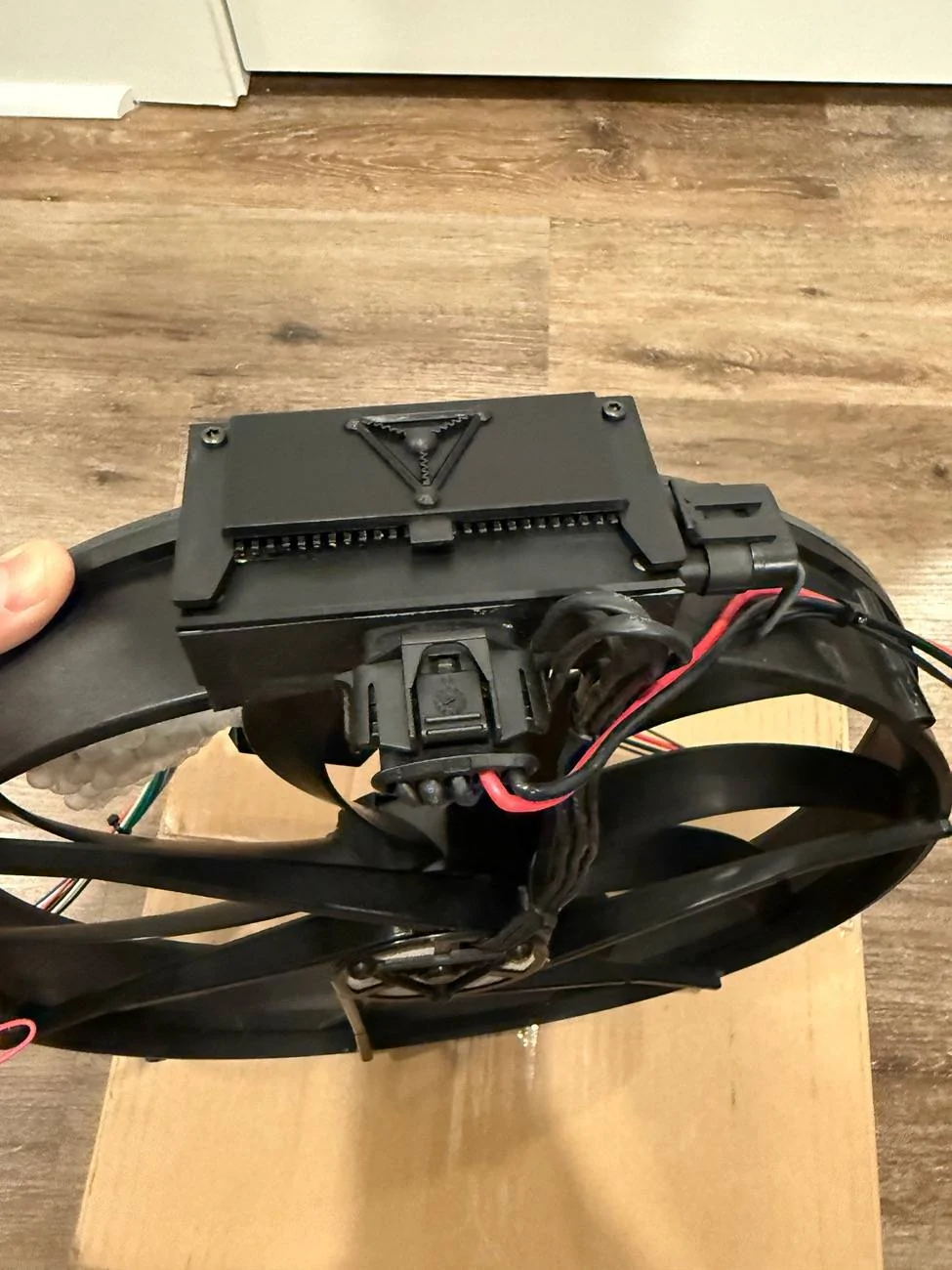

I will also be running a Delta PAG single 14ā€ fan thatā€™s capable of pulling in 2600 CFM to help keep things happy. Iā€™m learning as I go here and I havenā€™t even started work on the car yet, lol. When the time comes to begin work, I want to ensure that I have every possible scenario covered.
