Quick questions about the axle nuts

WildHorse

N/A or GO HOME
Joined
Jun 28, 2017
Threads
270
Messages
10,297
Reaction score
8,350
Location
Home World: CLASSIFIED
First Name
Puddintane
Vehicle(s)
'17 S550
Vehicle Showcase
1
Are they 1 time use only ? I see various answers to this and the service manual doesn't mention it ? or I'm blind to the fact haha. Thanks.
Sponsored


Last edited:

Mikepol2

Well-Known Member
Joined
Jul 17, 2018
Threads
139
Messages
3,953
Reaction score
6,984
Location
Pittsburgh, PA
First Name
Mike
Vehicle(s)
2021 Mach 1, 2019 Ram 1500
I used two CCPZ-3B477-F Ford rear axle spindle nuts for $19 each on Ebay when I installed the 4.09's. The threads had a blue-green threadlocker coating. The Ford Performance rear differential cooler instructions say use new axle nuts if you have the stock half shafts.

OP
OP
WildHorse

WildHorse

N/A or GO HOME
Joined
Jun 28, 2017
Threads
270
Messages
10,297
Reaction score
8,350
Location
Home World: CLASSIFIED
First Name
Puddintane
Vehicle(s)
'17 S550
Vehicle Showcase
1
I used two CCPZ-3B477-F Ford rear axle spindle nuts for $19 each on Ebay when I installed the 4.09's. The threads had a blue-green threadlocker coating. The Ford Performance rear differential cooler instructions say use new axle nuts if you have the stock half shafts.
Yeah the Ford dealership had 4 left in stock. So i bought em all. Better safe than sorry. Thanks guys !


Elp_jc

Well-Known Member
Joined
May 2, 2020
Threads
48
Messages
3,527
Reaction score
805
Location
USA
Vehicle(s)
None
But if they just got loose, no need to change them, right? Just tighten them back up? I'll check mine soon, maybe setting the torque wrench to 100 ft/lbs, and if it 'clicks', leave it alone. My car only has 4K miles, but saw several reports of the axle nuts (especially the left one) being loose even on new cars. If torque wrench clicks, then will just mark them, in case they get looser in the future. Is my checking method okay? Or do you recommend any other ft/lb setting? Thank you.


Sponsored

OP
OP
WildHorse

WildHorse

N/A or GO HOME
Joined
Jun 28, 2017
Threads
270
Messages
10,297
Reaction score
8,350
Location
Home World: CLASSIFIED
First Name
Puddintane
Vehicle(s)
'17 S550
Vehicle Showcase
1
But if they just got loose, no need to change them, right? Just tighten them back up? I'll check mine soon, maybe setting the torque wrench to 100 ft/lbs, and if it 'clicks', leave it alone. My car only has 4K miles, but saw several reports of the axle nuts (especially the left one) being loose even on new cars. If torque wrench clicks, then will just mark them, in case they get looser in the future. Is my checking method okay? Or do you recommend any other ft/lb setting? Thank you.
It's 90 lbs-ft plus a additional 45 degree which would bring it to over 200 lbs-ft. Marking the nut is always a good idea.


Elp_jc

Well-Known Member
Joined
May 2, 2020
Threads
48
Messages
3,527
Reaction score
805
Location
USA
Vehicle(s)
None
Thank you, but that's to tighthen them. I don't want to loosen them, since they'd require new nuts. Plus they're probably fine. Just want to apply certain torque to make sure they're not loose. Would 100 ft/lbs be fine?

OP
OP
WildHorse

WildHorse

N/A or GO HOME
Joined
Jun 28, 2017
Threads
270
Messages
10,297
Reaction score
8,350
Location
Home World: CLASSIFIED
First Name
Puddintane
Vehicle(s)
'17 S550
Vehicle Showcase
1
Would 100 ft/lbs be fine?
No. Cause as I said the final torque is over 200 ft bs. So if it clicks off at say 110 that could be only half. Set it to like 200. You should be fine.


Mikepol2

Well-Known Member
Joined
Jul 17, 2018
Threads
139
Messages
3,953
Reaction score
6,984
Location
Pittsburgh, PA
First Name
Mike
Vehicle(s)
2021 Mach 1, 2019 Ram 1500

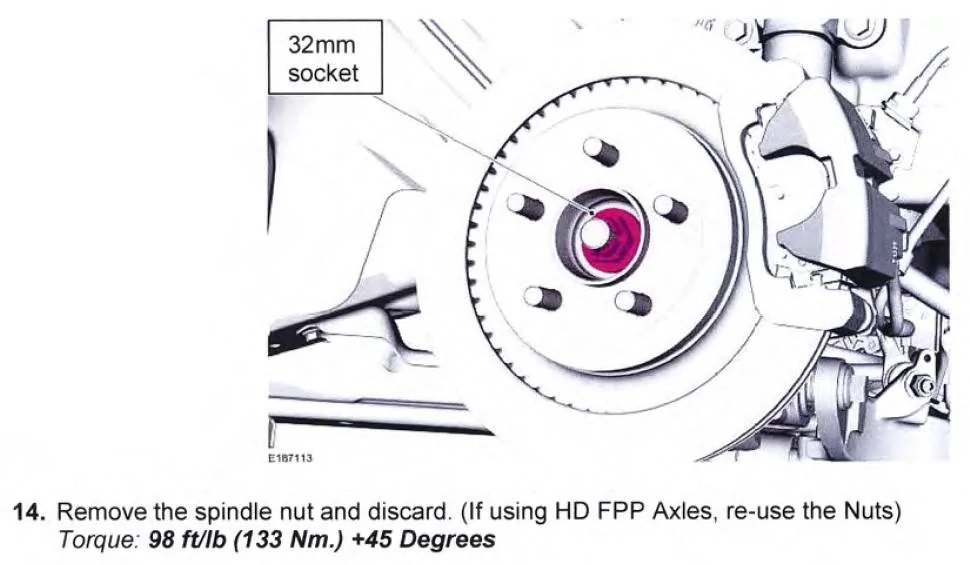

The shop manual says 98 ft-lbs, plus an additional 45 degrees of rotation. Keep in mind also that there are two types of torque - static (breakaway) and dynamic. When you torque something till the wrench clicks, then try to torque it again, it takes a higher torque to get the fastener turning than it does to keep it moving. So torque till it clicks at 98-100, then turn it another 45 degrees. I did this on both new rear axle nuts after the 4.09 installation and have had no problems with them loosening after 18 months of driving on them, with no addition of threadlocker to what was already on the new axle nuts.

axle nut (2).webp

Last edited:

Sponsored

NightmareMoon

Well-Known Member
Joined
Nov 22, 2015
Threads
62
Messages
7,059
Reaction score
6,318
Location
Austin
Vehicle(s)
2016 Mustang GT PP w/ Voodoo
Vehicle Showcase
1
Thank you, but that's to tighthen them. I don't want to loosen them, since they'd require new nuts. Plus they're probably fine. Just want to apply certain torque to make sure they're not loose. Would 100 ft/lbs be fine?
Testing them with only 100ft/lbs or torque won’t tell you anything. Won’t hurt them tho either, just kind of useless exercise.

Your wheels require 150ft/lbs. sounds like you need a bigger torque wrench!


TopJimmyCooks

Well-Known Member
Joined
Dec 19, 2016
Threads
6
Messages
306
Reaction score
376
Location
Raleigh, NC
First Name
James
Vehicle(s)
2017 GT Prem PP; 2019 EcoBoost Prem
Vehicle Showcase
1
For what it's worth, it is good to check the torque now and again. From what I can gather axle nuts coming loose on S550s is "a thing". I've had it twice now on mine. I didn't catch the first one in time and it ate the bearing up.
