Jhatley7's Build thread

[jhatley7]

Car is at Tig Vision now for the 10 point.

Sponsored



[olaosunt]

Nice .



[jayman33]

Charge pipe has been shipped off to get powdercoated.

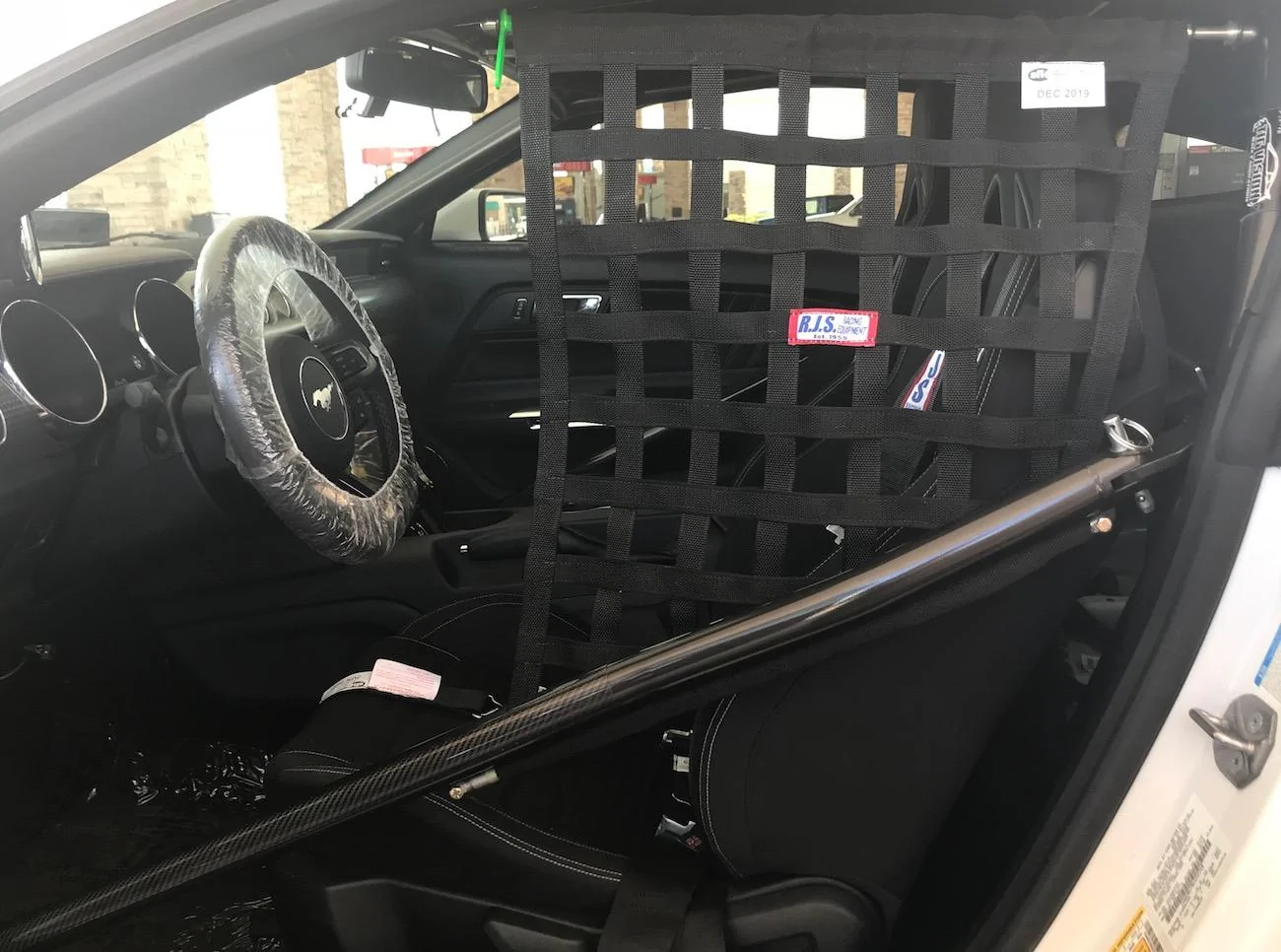

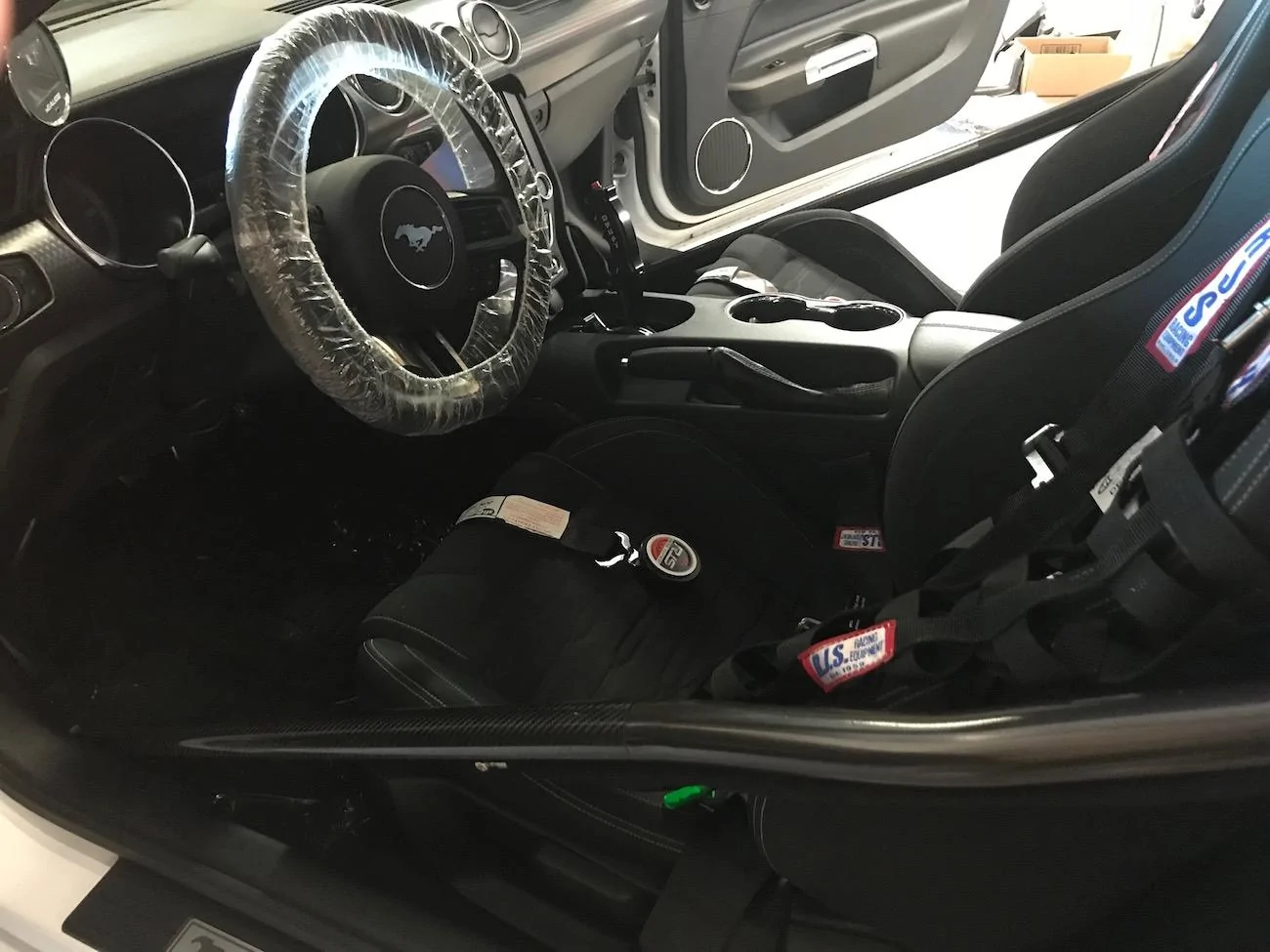

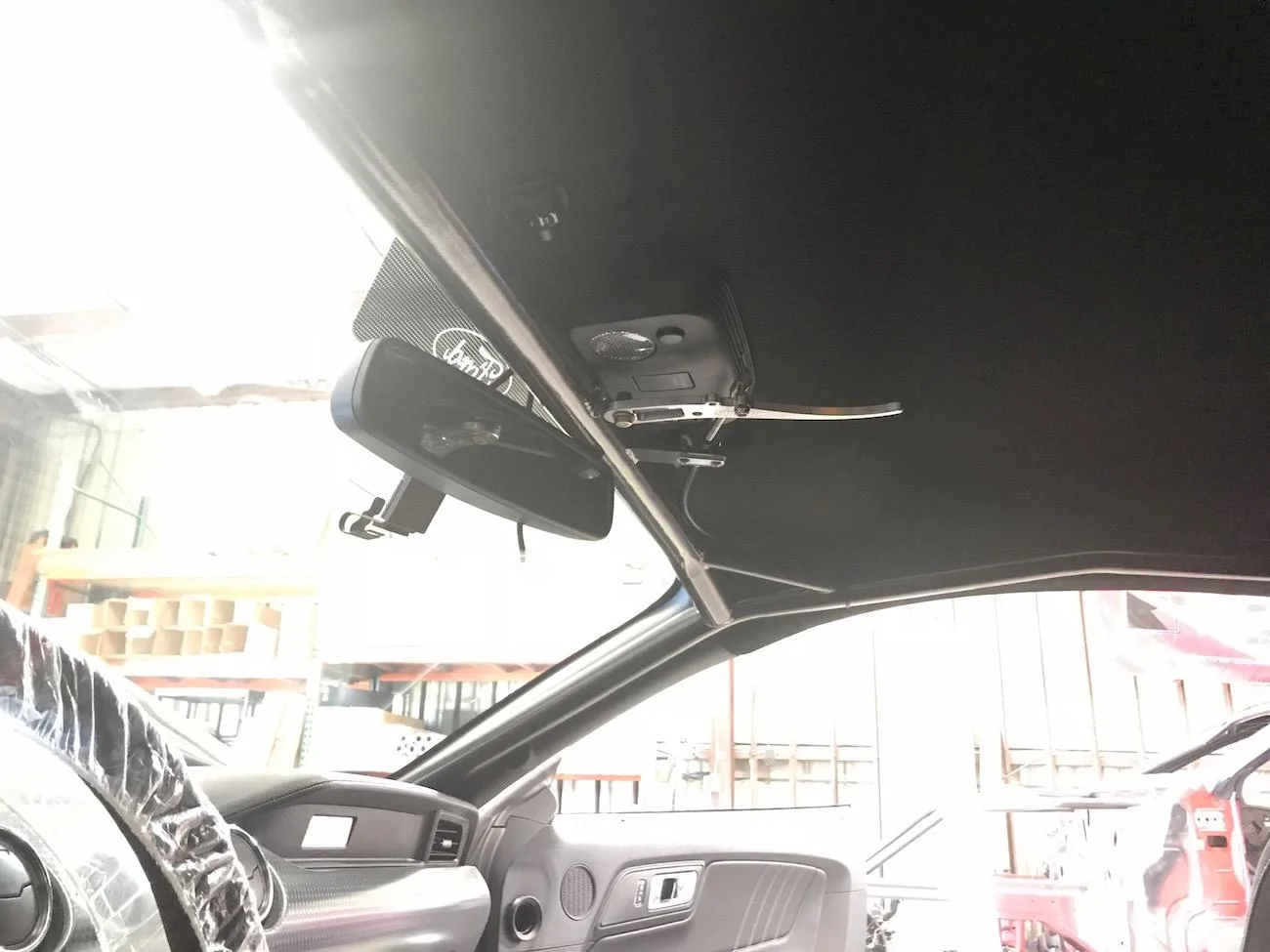

Josh's car is chilling at Tig Vision right now getting an 8.5 certified cage put in



[olaosunt]

Damn .This is going to be awesome .



[SoCalTim]

Wow! :eyebulge: :eyebulge: :eyebulge:



[esacteksab]

Charge pipe has been shipped off to get powdercoated.

Josh's car is chilling at Tig Vision right now getting an 8.5 certified cage put in

In an effort to stir shit...I wonder how many cars are actually NHRA certified to run their ET?

Can't wait to see this done.



[jhatley7]

In an effort to stir shit...I wonder how many cars are actually NHRA certified to run their ET?

Can't wait to see this done.

My local tracks check all safety.



[ahl395]

Damn that looks awesome



[RoadCone]

What an impressive build! Thanks for sharing! Can't wait to see some results, good luck and keep it up.....



[jhatley7]

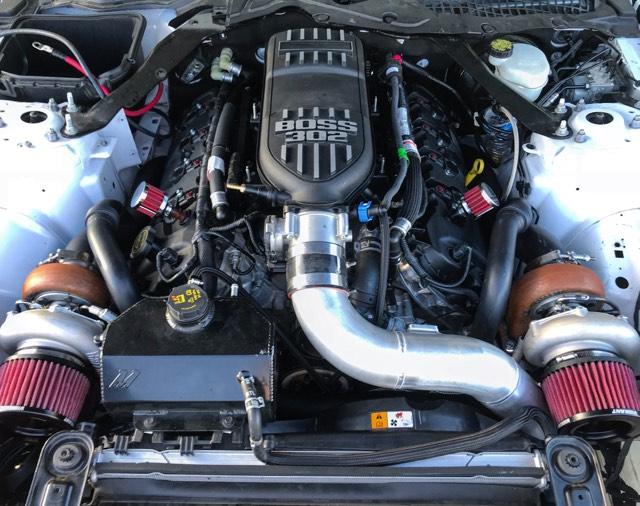

Few pics. Getting close.



[BigButchClarke]

Can you give some info on the block? Cost, wait time, etc. Great build you have there.



[jhatley7]

Can you give some info on the block? Cost, wait time, etc. Great build you have there.

TKM/ Hypermotive 1500+ HP Race Prepped Short Block:
Decked/ Honed/ Deburred/ Hot Washed/ full race prepped,
balanced, and blueprinted
FRPP Aluminum Coyote Block Darton Sleeved and race
reinforcement water jacket supports/ O Ringed for further
head gasket support
FRPP Crankshaft BOSS 302 and 2016 Cobra Jet; Forged 4130 Steel.
Custom CP Coyote pistons setup for 1600hp turbo with .250” wall pins and
Nitrided Stainless Rings
Top ring moved down for big power
Thicker tops and skirts for strength
Using 1mm nitrided steel top, 1.2mm napier 2nd ring, and
Manley Pro I beam billet connecting rods W/ ARP Bolts
King/ Clevitte main and rod bearings
ARP main studs and side bolts
ARP/ Livernois head studs

About 10k for the short block. Wait was about 3 months. Pistons held up the assembly.



[BigButchClarke]

Thanks for the info. I haven't seen the water jackets done like that, I've seen the supports but not like those. I'm fairly new to this coyote stuff. Keep up the good work, very impressive.



[08StangGT_CS]

Can't wait to see it run!



[jhatley7]

Can't wait to see it run!

Haha me too. A lot of time and money to get it where it is.
