2018 Digital Cluster Installation Guide

[w1ldthing]

Anybody got the latest part number to replace
JR3Z-10849-LB MPH 6 SPEED MANUAL CLUSTER?
(Thought I saw it somewhere in this thread but can't find it again)

Sponsored



[breeves002]

Yes I can. PM me for more info please.



[breeves002]

Anybody got the latest part number to replace
JR3Z-10849-LB MPH 6 SPEED MANUAL CLUSTER?
(Thought I saw it somewhere in this thread but can't find it again)

You don't need it. Order the -LB one and they give you whatever the current is. It changes all the time.

The 2019's may have a different P/N but I haven't gotten it yet.



[breeves002]

I sent you a PM.​



[2morrow]

Great write up Sam. It was also great meeting you over at Dave's place over the summer.

Definitely interested in this.



[BEEFKING69]

What would it take to put the lcd cluster in a 15 up f150? Im in the process of planning a 5.0 coyote swap in my 95 f150 with 15 or newer f150 dash column and harness and 2 of the main things i want to add is the raptor paddle shift wheel and a mustang lcd cluster.



[breeves002]

No idea. If the harness is the same it will probably work with some programming but not sure.



[BEEFKING69]

From some pics ive found it appears the mustangs have 16 pin connector and f150s have 14 pin connector......but i wonder if it could still be spliced in.....Does anyone have the mustang cluster pinout?



[Ecoboosted]

Installed my digital gauge cluster today. Took my time as to not break any plastic clips. Took me about 1&1/2 - 2 hours. I want to thank breeves002 for an excellent write up and for offering a kit set up and custom to my car’s options etc. where everything works and looks fantastic!

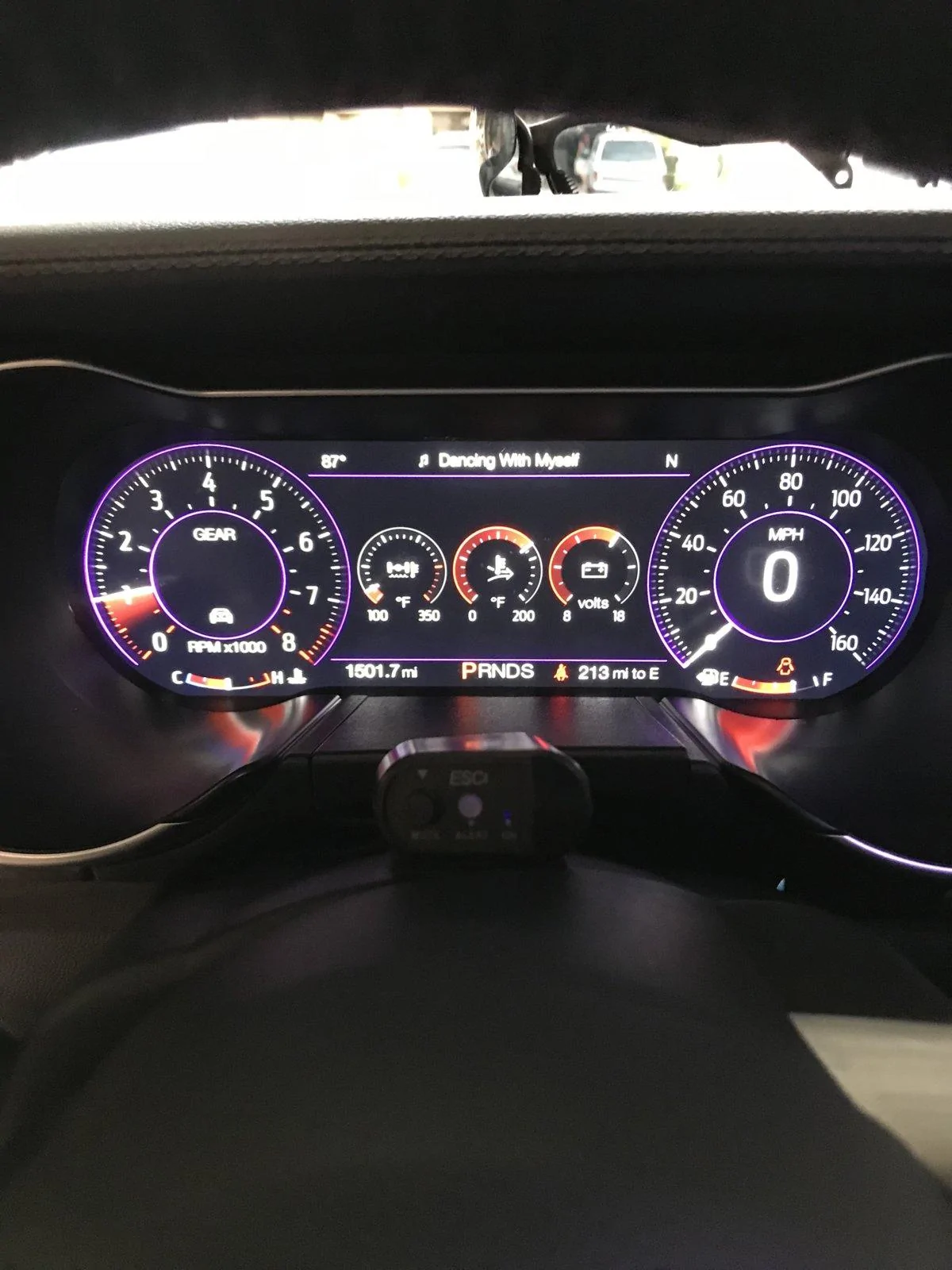

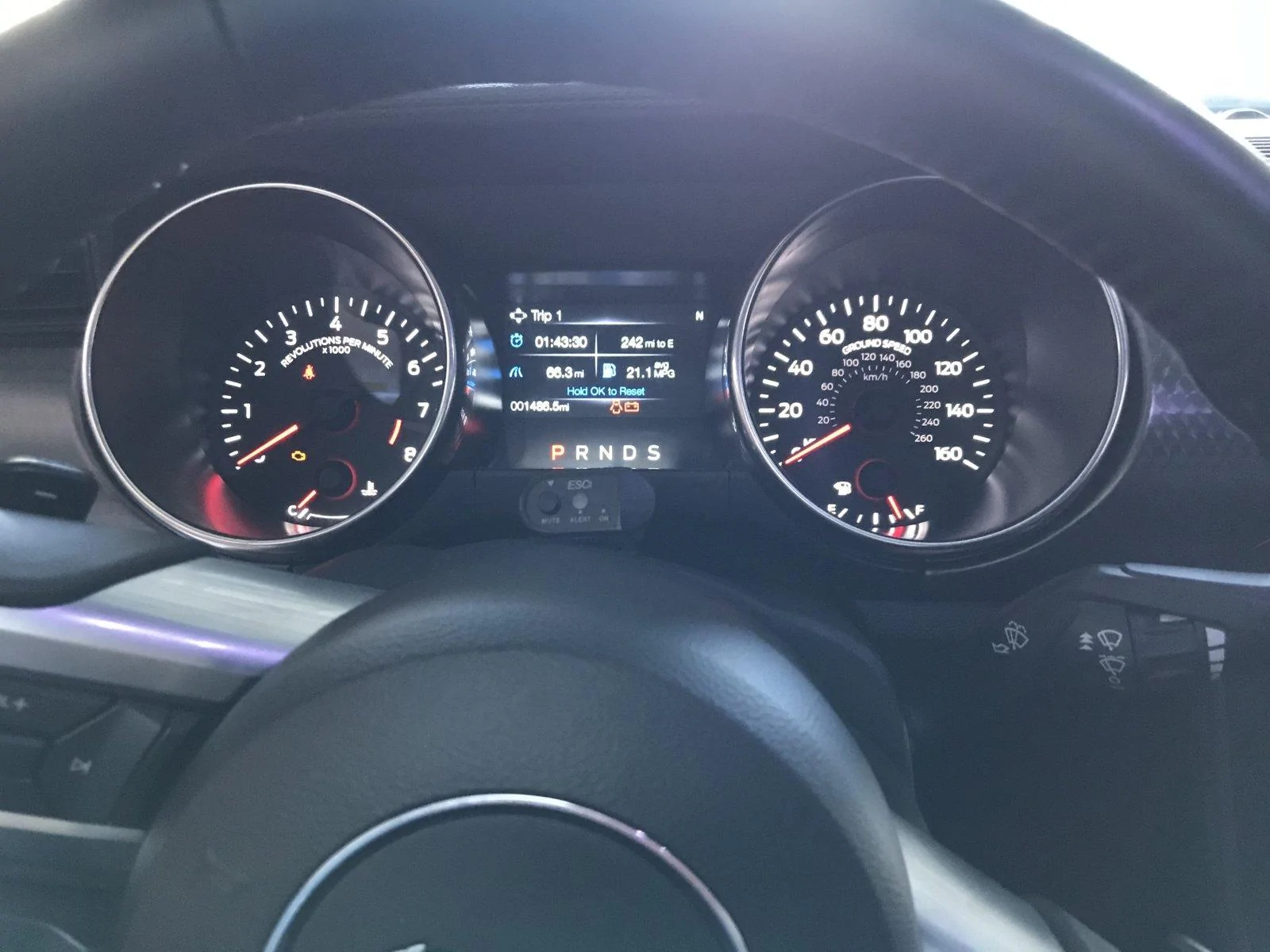

Before and after pictures



[5.0_SD]

1500 miles and already a digi cluster!?! You didn't mess around did ya! Looks great, I'll hit up Sam at some point, after I install all the stereo stuff in my sig.



[Ecoboosted]

1500 miles and already a digi cluster!?! You didn't mess around did ya! Looks great, I'll hit up Sam at some point, after I install all the stereo stuff in my sig.

I wanted a digital cluster since i first ever saw one and knew it was an option on the 18' Mustang. I didn't want to spend the money on the 401A option just to get it. I didn't want leather or any of the other options that come with the 401A option. I had a 2015 GT with premium/leather. The seat bottom's looked stretched and the cooling function sucked. I debated on getting this on my 18' but after much deliberation I said FK it and went for it. It’s one of the best mods I’ve ever done in any car I’ve ever owned. Very cool how you can customize the gauges to your liking. It’s easy to see your speed etc at a glance vs the analog display. Every Mustang should come with this.



[w1ldthing]

How are people getting their odometer set to the correct mileage? Is it set when purchasing or a visit to the dealer after install? Most places I've asked (tasca, fordgiants etc) say they don't programme.



[breeves002]

1500 miles and already a digi cluster!?! You didn't mess around did ya! Looks great, I'll hit up Sam at some point, after I install all the stereo stuff in my sig.

I've had guys do it with less then 100 miles on the clock haha! One guy had a mere 74 miles. I had two I shipped this week that were under 1000 miles!



[samd1351]

I didn't see it here, but I may have missed it. If one were to do the instrument cluster swap, could one also incorporate the active exhaust swap and have it work on the cluster?

I'd like to do both, if it would work.



[Shifuharris]

I noticed in the directions that it looks like you have to cut out a plastic mount from the old cluster to get the new one in. Is that the case and if so, would that make it a permanent mod? I really want to do this on my '17 GT/CS but I don't like doing anything that is not easily reversible .

Thanks!
