Stripe dimensions

[simonp83]

I did post this in cosmetic sub-forum but thought it might be better asking in here.

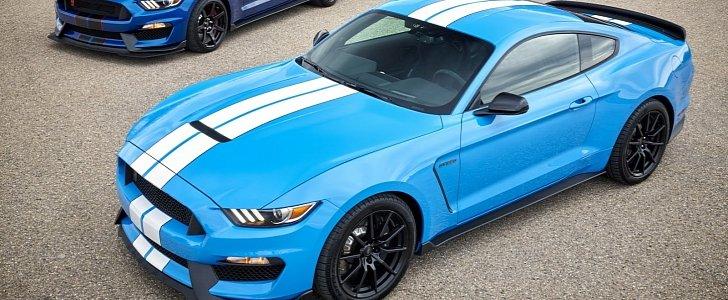

I'm looking at getting stripes for my new GT in the same style as the image below I.e. White stripes with black pinstripe. Does anyone know the total width of each stripe, how much of it is white vs the black and also the gap please?

There are kits about but as I'm UK based, the installer doesn't want to use a kit when it gets detailed as any minor issue with the kit or installation, it's a long wait for a replacement.

Sponsored



[GT_Dave]

The stripes are 6.25", the gap in the middle is 1.125", the pin stripes are 3/8".



[simonp83]

The stripes are 6.25", the gap in the middle is 1.125", the pin stripes are 3/8".

Absolutely perfect, thank you



[DB83]

Can anyone confirm this is accurate? For some reason i thought they were 8" and had a slight taper at the front?

Thank you!



[swish77]

I was told by the company that these are exact factory spec replicas of the current Shelby stripes, and they're listed as 6.75 inches wide. Note that it says they won't fit non-GT350s because of the difference in the hood design. They have another stripe kit for the regular GTs that are very similar to the ones for the GT350s.

https://www.bigwormgraphix.com/2015-17-gt350-full-length-stripes.html



[dgc333]

These are the ones I put on my car. The main stripe is 9.5" wide and the accent stripe is 1/2" wide. I have a 1.5" space between them.
https://photos.app.goo.gl/dPD1dGzhqJ0dHRfr2

https://photos.app.goo.gl/tVR7FQTdX4HwybXo2



[dgc333]

These are the ones I put on my car. The main stripe is 9.5" wide and the accent stripe is 1/2" wide. I have a 1.5" space between them.
https://photos.app.goo.gl/dPD1dGzhqJ0dHRfr2

https://photos.app.goo.gl/tVR7FQTdX4HwybXo2



[Tomster]

Yes, get the bigworm stripes. (swish77^^^)

Maybe get two kits and return the one you don't use if you are worried about a wait for replacement.
