Reverse camera wiring.

[Eric5.0]

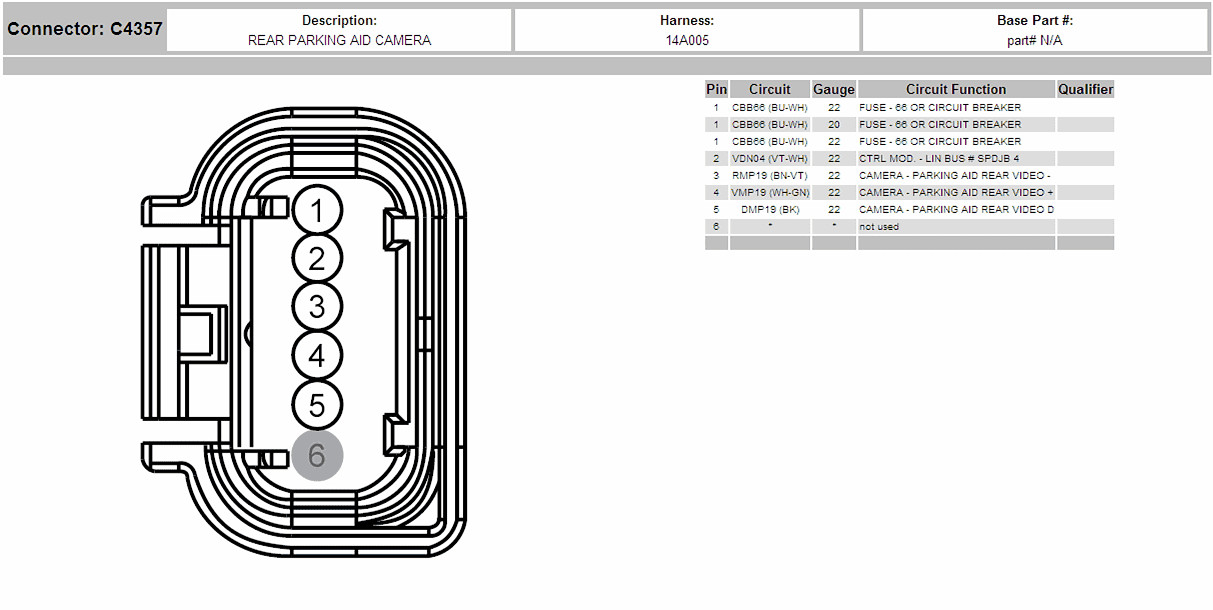

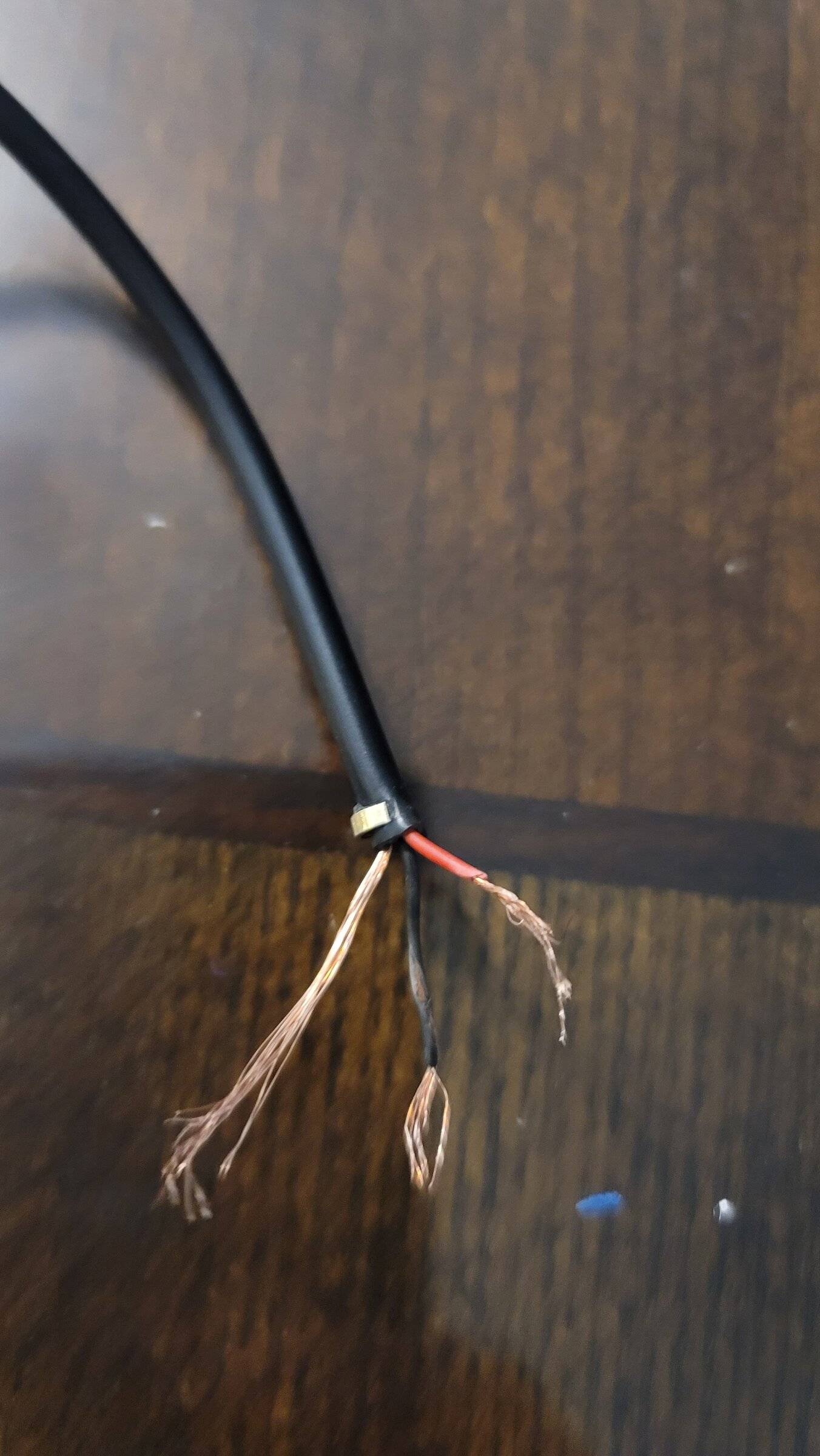

Hi. I have a review display that has three wires that I'm trying to mount to the factory reverse camera. 3 wires form the display for video but I can't figure out which pins to use on the stock camera on a 2015 mustang to make it work. Anyone know based on the diagram?

Sponsored



[PC_GUARD]

What are you trying to do? Replace the camera with better or get the camera to work?


Theres a recall on the trunk wiring for the camera, without a resolution from Ford yet. To be released end of second quarter.

That's why I am asking



[Eric5.0]

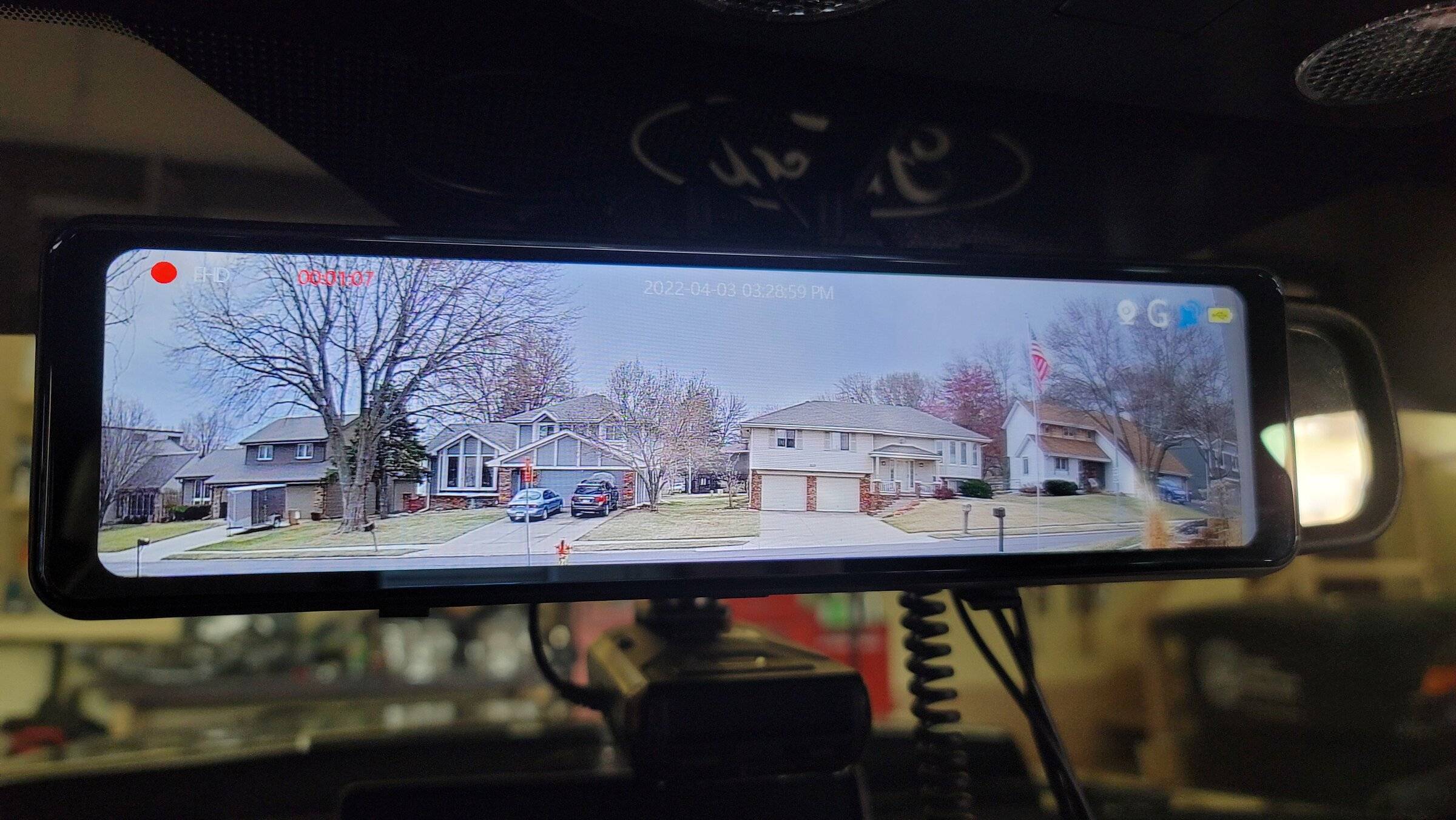

Trying to get the factory camera hooked up to this.



[White Samoan]

Trying to get the factory camera hooked up to this.

Did you ever figure out how to hook this up? Looking to do the same thing.



[526 HRSE]

Did you ever figure out how to hook this up? Looking to do the same thing.

I can't even find what wire is for the reverse light. Just trying to hook up the aftermarket camera. I found something that says Ford is black with pink for reverse?



[Blue_themustang]

I've been looking for a wiring diagram for the harness that goes into the Sync Module. I'm trying to do some specific mods like this but I can't seem to find an actual wire diagram to save my life. I'm looking for something that will show me why a disconnected APIM Module doesn't shut off the gauge cluster on its own, but if you try to remove the c2342 connector, it shuts it all off. I'm looking to see what's missing so I can add in the camera from there and ultimately make an actual adapter for this cable instead of splicing wires.



[ORRadtech]

Have you tried getting a FSM with the wiring diagrams for your specific year/car? Mine has hundreds of pages of wiring diagrams for mine.
Edit: also online services like AllData should have them too. You can often buy diy and/or short term subscriptions to them.
