NEW TURBO KIT!!!!!! STREET SLEEPER!!!

Discussion in 'Forced Induction - 5.0L V8 Engine' started by HELLION TURBO, Jul 19, 2018.

  1. HELLION TURBO

    HELLION TURBO Well-Known Member
    Gold Sponsor


    Vehicle(s):
    2015 Mustang GT
    Joined:
    Dec 19, 2014
    Location:
    United States
    Posts:
    378
    Likes Received:
    296
    0   0   0
    #1 HELLION TURBO, Jul 19, 2018
    Last edited: Jul 20, 2018
    Hellion’s Innovative Street Sleeper Twin-Turbo System Delivers Up To 2000+ Hidden Horsepower For Modern Mustangs

    The next big thing is here! Recognizing the popularity of huge-horsepower street cars with the ultimate “sleeper” image, Hellion designed the most innovative twin-turbo system in history — the Street Sleeper!

    “We have listened to our customers who desired a different design for the S550 Mustangs. This new system places the turbos in a hidden location — all factory hoses, airbox and connections stay intact!” said John Urist, President of Hellion Power Systems. “You can open the hood and it will just look like any stock Coyote V8 with a cold-air intake. However, it is a twin-turbo system that is fully adjustable from five to 40 pounds of boost and performance levels anywhere from 600 to over 2000+ horsepower!”
    With over 15 years in building hidden turbo systems, Hellion designed a true bolt-on system. There is no need to tap the oil pan or modify any factory sheet metal. The simple installation can be performed in under a day.
    While the base Street Sleeper system is a tuner kit with entry-level, cast-wheel 62mm turbos, Hellion naturally offers a massive number of available upgrades, including choice of turbo size, turbo brand, injector size, tuning options, custom-tuning sessions, fuel system upgrades and even complete Blackout packages!

    2015-2019 Mustang GT Hellion Street Sleeper Turbo System Standard Features

    • Base kit price is $6,395
    • Bolt-on system is easily installed and removed with NO body modifications
    • Dual Turbosmart Comp-Gate 40 wastegates for boost control
    • Dual Turbosmart Vee Port Pro blow-off valves
    • Standard 62mm “Sleeper” turbos
    • Sheet metal bar-and-plate air-to-air Hellion intercooler
    • Turbo system can bolt up to stock exhaust or 3-inch cat-back systems

    Options:


    • “Blackout” visual package
    • Complete fuel injector and tuning packages
    • Multiple turbochargers available as upgrades, including Precision, Garrett and Borg-Warner
    • Fuel system upgrades
    • Turbosmart E-Boost 2 boost controller
    • Air-to-water intercooler

    The future of boost is here! This modern power-adder system fits 2015-2018 Mustang GTs and requires no pulley changes, no billet throttle bodies, no oil-pump gears, and no long-tube headers. Just bolt it on and go — really fast! For more on these innovative, new Street Sleeper systems and the full line of Hellion offerings, visit www.hellionturbo.com.

    https://www.hellionpowersystems.com...-mustang-gt-street-sleeper-twin-turbo-system/

    505-873-4670

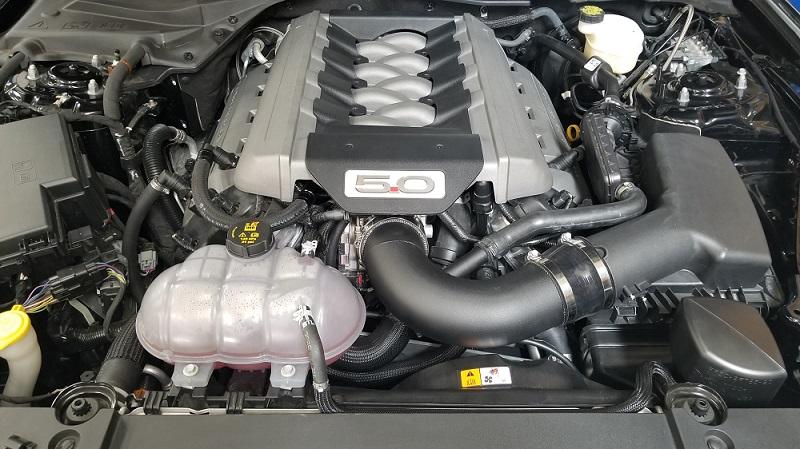

    [ame] SS ENGINE SMALL.jpg

    SoCalTim, Strokerswild, pwny and 7 others like this.
  2. kcc0521

    kcc0521 Well-Known Member

    First Name:
    Bo
    Vehicle(s):
    2015 Black GT PP
    Joined:
    Feb 24, 2015
    Location:
    Falls Church VA
    Posts:
    1,748
    Likes Received:
    174
    Rating:
    100%
    2   0   0
    Does the kit use the stock headers? Are the turbos a cheaper design? It seems odd that this kit it 2K less than the other kit. I am happy to see this but curious how it is so much cheaper.

  3. Performance nut

    Performance nut Well-Known Member

    Vehicle(s):
    2018 Mustang GT A10
    Joined:
    Feb 10, 2015
    Location:
    TX
    Posts:
    930
    Likes Received:
    232
    Garage Profiles:
    1
    0   0   0
    Do you have pics of the "blackout" visual package? Also, what is different about the "cast" 62mm turbo vs your standard 62mm turbos on your top mount kits?

  4. OP
    OP
    HELLION TURBO

    HELLION TURBO Well-Known Member
    Gold Sponsor


    Vehicle(s):
    2015 Mustang GT
    Joined:
    Dec 19, 2014
    Location:
    United States
    Posts:
    378
    Likes Received:
    296
    0   0   0
    The kit uses the factory headers, a driver side from a 2011-2014, and the stock S550 pass. side header.

    The standard turbos are our "Sleeper" brand private label units with a cast 62mm compressor wheel. We can option Precision, Garrett, or Borg Warner for an upgrade cost.

    The system consists of fewer hot side components, which allows us to offer it at a more affordable price.

    Team Hellion

    2morrow and Performance nut like this.
  5. OP
    OP
    HELLION TURBO

    HELLION TURBO Well-Known Member
    Gold Sponsor


    Vehicle(s):
    2015 Mustang GT
    Joined:
    Dec 19, 2014
    Location:
    United States
    Posts:
    378
    Likes Received:
    296
    0   0   0

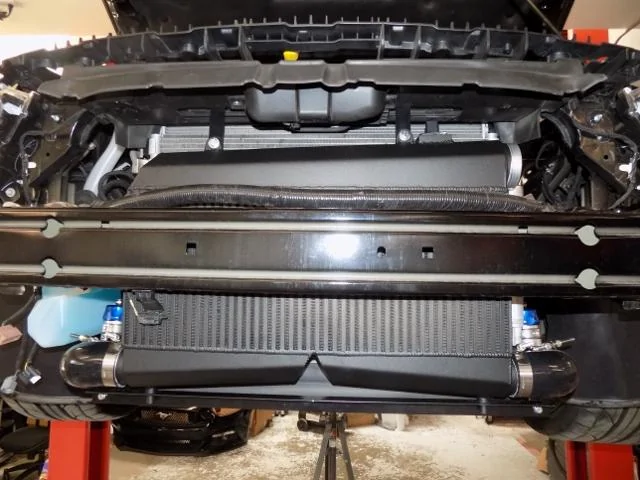

    The complete blackout comes with a black coated intercooler, and all brackets and components coated black to make everything fade into the car :headbang: DSCN0441 (640x480).jpg

    Performance nut likes this.
  6. SoCalTim

    SoCalTim Member

    First Name:
    Tim
    Vehicle(s):
    Paxton 2015 GT
    Joined:
    Sep 14, 2015
    Location:
    CA
    Posts:
    2,659
    Likes Received:
    1,134
    Rating:
    100%
    5   0   0
    Do you have any photos of the complete kit lay on the ground? Interested to see the complete setup

  7. GT2

    GT2 Well-Known Member

    Vehicle(s):
    NADA BRAH
    Joined:
    Apr 17, 2016
    Location:
    NEVERADA
    Posts:
    112
    Likes Received:
    27
    0   0   0
    Is the 62mm cast turbo option the same as on your other kit? just trying to see comparative results per boost etc

    Also what's your estimated install time

  8. Phils15GT

    Phils15GT Well-Known Member

    Vehicle(s):
    2018 Mustang GT
    Joined:
    May 13, 2015
    Location:
    Albany, NY
    Posts:
    496
    Likes Received:
    38
    0   0   0
    I like. Very well priced too.

  9. Joe 5.0

    Joe 5.0 Well-Known Member

    Vehicle(s):
    2015 Mustang GT/PP
    Joined:
    Feb 16, 2015
    Location:
    Bermuda Triangle
    Posts:
    931
    Likes Received:
    181
    Garage Profiles:
    1
    Rating:
    100%
    1   0   0
    This is amazing. The base kit is priced just like your the typical centrifugal superchargers.

  10. Performance nut

    Performance nut Well-Known Member

    Vehicle(s):
    2018 Mustang GT A10
    Joined:
    Feb 10, 2015
    Location:
    TX
    Posts:
    930
    Likes Received:
    232
    Garage Profiles:
    1
    0   0   0
    Do you mind expanding on this more? Was this more of a price point decision or was there an opportunity that these cast wheels work better in this scenario? Just curious why it is available on this kit and not the others and if it has any impact on performance. I'm not looking to make an 8 second record breaking machine but don't mind putting in extra to reach my goals.

  11. Bartly

    Bartly Well-Known Member

    Vehicle(s):
    2016 Mustang GT
    Joined:
    Oct 25, 2015
    Location:
    Out West
    Posts:
    1,429
    Likes Received:
    175
    0   0   0
    #11 Bartly, Jul 19, 2018
    Last edited: Jul 19, 2018
    edit.
    looks like it would be some fun.

  12. Brostang

    Brostang Well-Known Member

    Vehicle(s):
    17 Oxford White Tree Fiddy
    Joined:
    Jul 24, 2016
    Location:
    Hampton Roads
    Posts:
    301
    Likes Received:
    78
    0   0   0
    Seems like the same design principles as some other S550 brands - low mount, minimal hotside, oil scavenge pump, stock header mounting, etc.

    The kicker... it's from the brand that will always deliver on promises, and has the most proven track record (in every sense of the phrase) of any Mustang turbo system manufacturer. I spy a return fitting on the oil cap. What's my prize? haha. Also, is the coating on the IC one of the high thermal conductivity coatings (i.e. cerakote P-202Q)?

    Is there a chance for a GT350 variant system in the future? I'm trying to talk myself down from ordering headers, and the only thought keeping me from pulling that rigger is the thought that I may want boost some day.

    3beeps likes this.
  13. RenegadeRedneck

    Vehicle(s):
    2011 Mustang GT
    Joined:
    Jan 29, 2018
    Location:
    Alberta
    Posts:
    19
    Likes Received:
    5
    0   0   0
    How do bottom mount turbos fare when driven year round, ie snow, salt, - 30c temps?

    Notagain likes this.
  14. Dream50

    Dream50 Active Member

    Vehicle(s):
    2017 mustang gt
    Joined:
    Dec 25, 2017
    Location:
    Florence Ky
    Posts:
    35
    Likes Received:
    3
    0   0   0
    Is there's any advantage to this or your other kit for daily drive. What setup would you recommend for stock motor 650-750 hp mt 82 car with future plans of around 900-1000 once the stock motor lets go ?

  15. 2qwk4ya

    2qwk4ya Well-Known Member

    Vehicle(s):
    2017 gt, 401a, auto
    Joined:
    Aug 14, 2015
    Location:
    ...
    Posts:
    162
    Likes Received:
    54
    0   0   0
    Should be called "The Money Maker"











    .

    Notagain likes this.
  16. Kinjirra

    Kinjirra I R Slow

    First Name:
    Brian
    Vehicle(s):
    16 Ruby Red GT W/PP, 401a
    Joined:
    Aug 30, 2016
    Location:
    Chapel Hill, TN
    Posts:
    580
    Likes Received:
    221
    Garage Profiles:
    1
    0   0   0
    If only you did your topmount at that price you would own the FI arena. Cant do lowmount turbo's. I daily mine would be worried to death about them.

    Love seeing new products though. Keeps the market fresh and the innovation going

  17. 3beeps

    3beeps Well-Known Member

    Vehicle(s):
    '17 GT
    Joined:
    Feb 13, 2016
    Location:
    Atlanta
    Posts:
    765
    Likes Received:
    298
    0   0   0
    Awesome idea. Can't wait to see one in action.

    Hellion FTW! :headbang:

  18. GT2

    GT2 Well-Known Member

    Vehicle(s):
    NADA BRAH
    Joined:
    Apr 17, 2016
    Location:
    NEVERADA
    Posts:
    112
    Likes Received:
    27
    0   0   0
    Tons of other DOH V cars run low mount. It's fine. If you're "worried" about the turbos getting rusted etc from salt, spend 300$ and have a local guy make you a psuedo skidplate out of aluminum. Or even get some corrugated plastic signage material. There's no real risk with these things. Give them a proper oil return and you're set. If anything, this kit will be a lot easier to install than the other.

  19. Kinjirra

    Kinjirra I R Slow

    First Name:
    Brian
    Vehicle(s):
    16 Ruby Red GT W/PP, 401a
    Joined:
    Aug 30, 2016
    Location:
    Chapel Hill, TN
    Posts:
    580
    Likes Received:
    221
    Garage Profiles:
    1
    0   0   0

    Ya I would still be worried. I;ve seen what happens to hot metal when it gets hit with cold water...not cool. piece of mind I will stick with top mounts. Plus what the fun in hiding all that stuff... My car is already kinda obvious that its not stock and I want the screamer surge covers lol.

  20. 3beeps

    3beeps Well-Known Member

    Vehicle(s):
    '17 GT
    Joined:
    Feb 13, 2016
    Location:
    Atlanta
    Posts:
    765
    Likes Received:
    298
    0   0   0
    The screamer covers are incredibly intoxicating :love: I love mine.
