Headlight depth issue

Discussion in 'Mustang S550 General Forums' started by docmustang, Nov 18, 2019.

  1. docmustang

    docmustang New Member

    Vehicle(s):
    Mustang 2015 GT
    Joined:
    Nov 17, 2019
    Location:
    San Diego
    Posts:
    1
    Likes Received:
    0
    0   0   0
    #1 docmustang, Nov 18, 2019
    Last edited: Nov 18, 2019
    Greetings,

    I recently bought my Mustang GT 2015. Long story short I had to replace both headlights of my car bc they were cracked. I bought a new set of lights from Ebay which did not come with their own bulbs, so I just plugged the old set of bulbs.

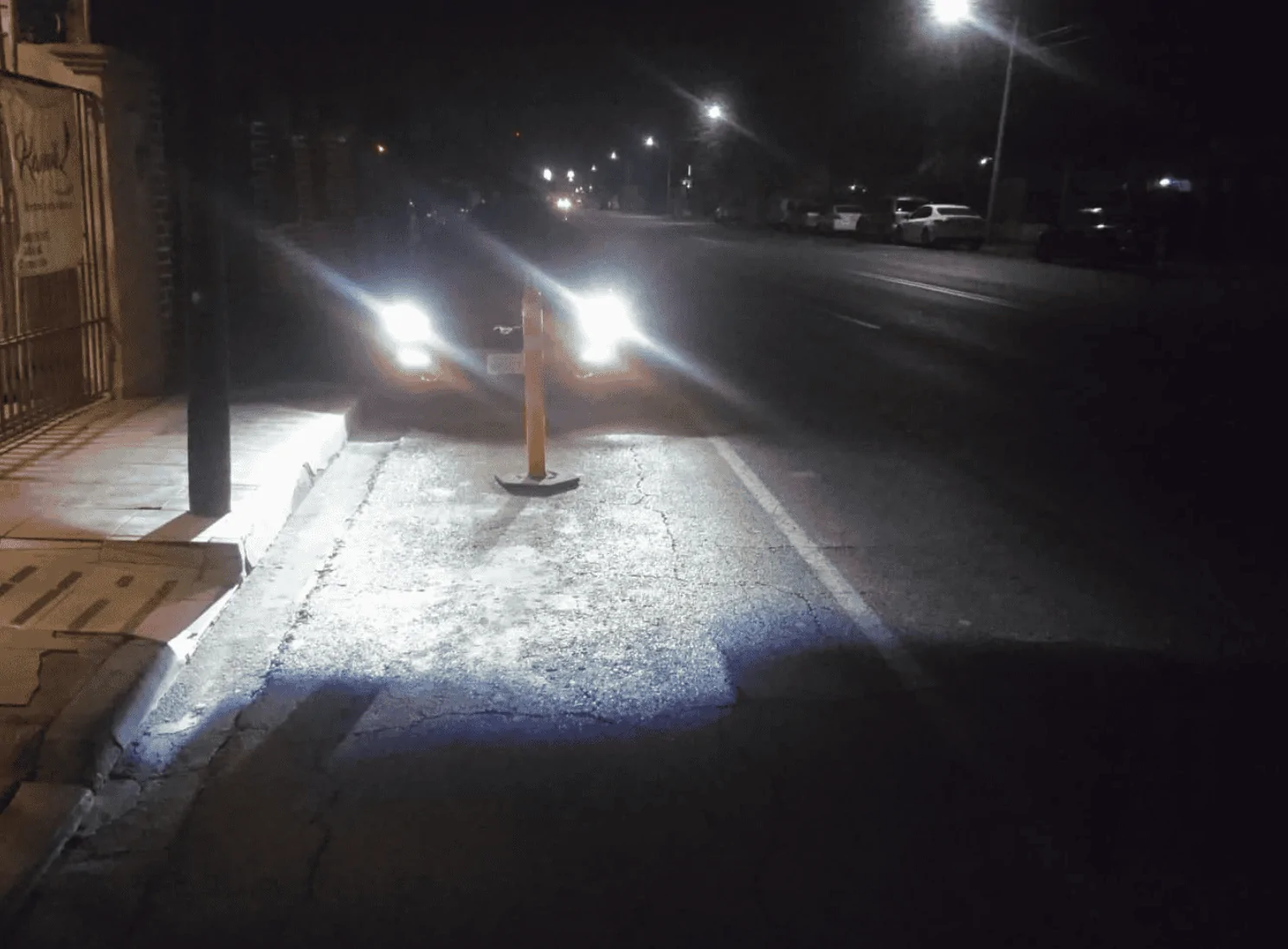

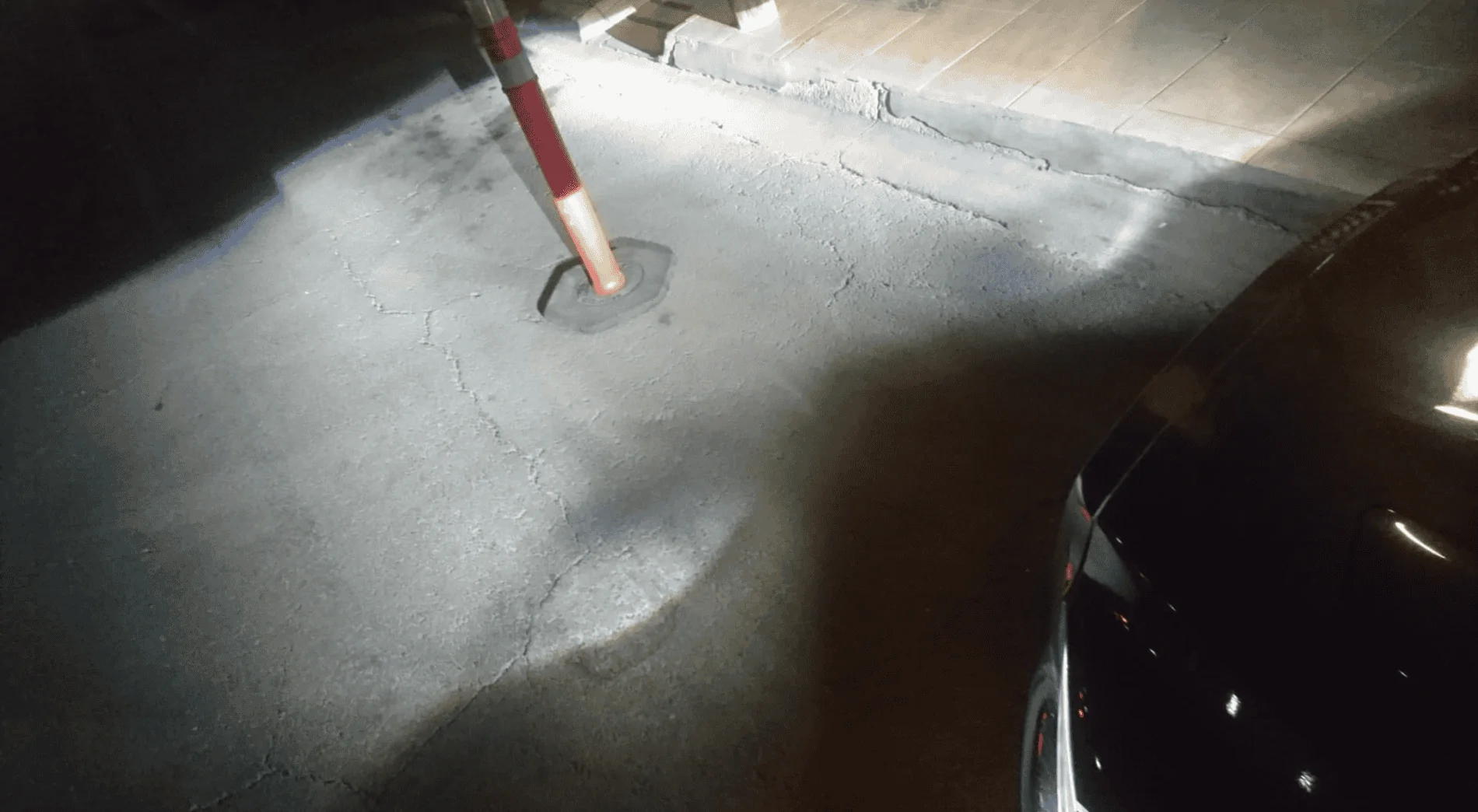

    The problem is that now I am not getting any depth/visibility (6ftish) as I use to get with the old set of lights. My mechanic already tried messing with the adjustment screws but nothing changed. At this point I am wondering if it is a defect on the headlamps I bought or to swap the bulb - even though it would not make sense because on the old set they showed clear depth/visibility.

    So at this point is:
    1. Either I have a shitty mechanic that doesn't know how to play with adjustment screws
    2. Change lightbulbs to a new set of D3S

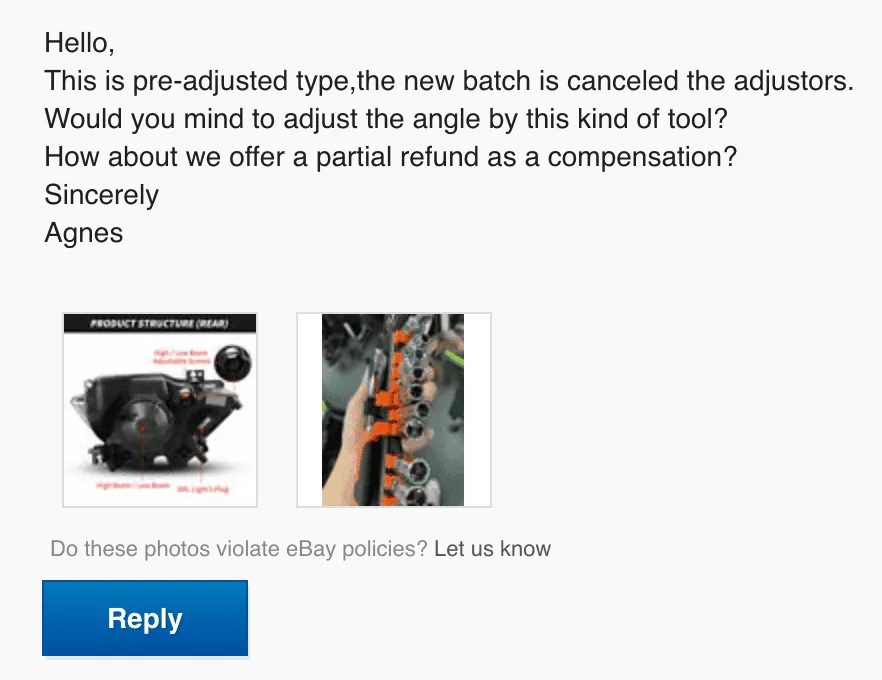

    3. Get a partial refund for headset of lamps? (I will attach pic below from ebay seller)

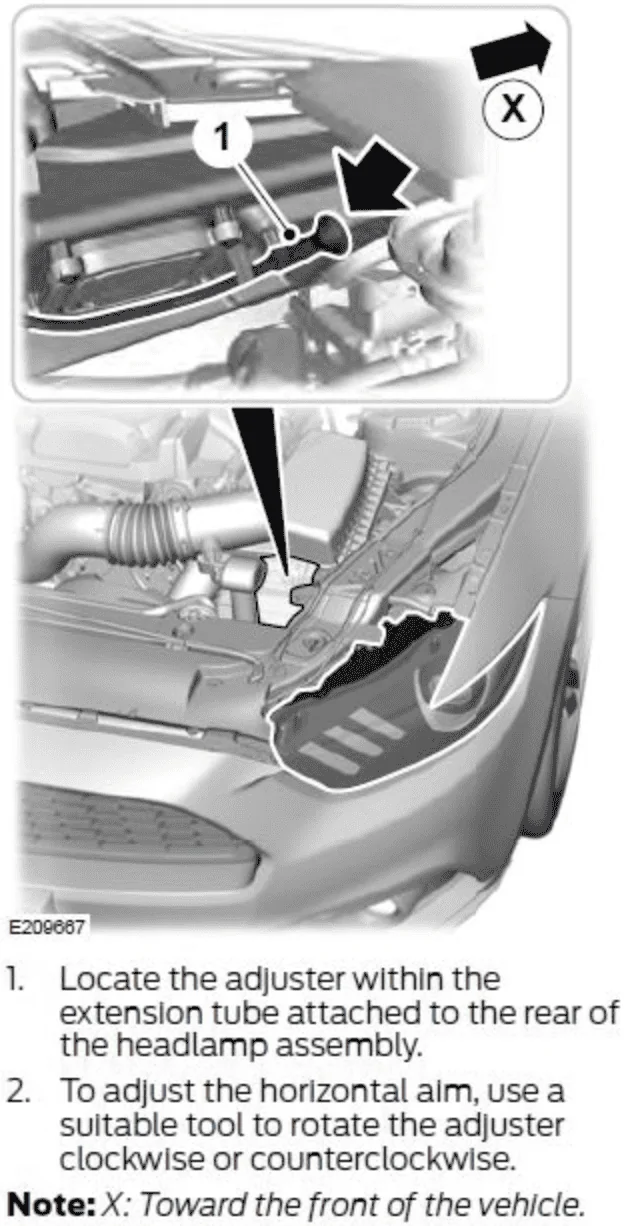

    4. Mess again with adjustment screws (Idk if you can adjust the horizontal view I will attach a pic below of what I found but from what I know it only comes in EU cars)

    Pls help haha


    Thank you Screen Shot 2019-11-17 at 9.20.35 PM.png Screen Shot 2019-11-17 at 9.20.42 PM.png Screen Shot 2019-11-18 at 10.06.45 AM.png Screen Shot 2019-11-18 at 9.49.51 AM.png

  2. WILDB

    WILDB Well-Known Member

    First Name:
    Will
    Vehicle(s):
    2017 GT convertible Oxford White
    Joined:
    May 10, 2014
    Location:
    Australia
    Posts:
    626
    Likes Received:
    421
    0   0   0
    Are these genuine headlights or knock offs?

  3. tokuzumi

    tokuzumi Well-Known Member

    Vehicle(s):
    2004 Escalade ESV
    Joined:
    Apr 3, 2019
    Location:
    Atlanta
    Posts:
    259
    Likes Received:
    107
    0   0   0
    Seconding what WILDB says. If the projectors aren't designed for xenon bulbs, they will never look right. If you paid less than $600-700 for the set (used), you probably have Chinese knockoffs.
