Gt350 hood

[TDC]

If you're looking for a GT350 Carbon Hood for a GT350, we can help you.
We have a primer race hood in stock, very light weight, no cores, built as a proto for race only use.

We are in the middle of laying up a GT350 street hood that is full carbon with cores that should be ready in a few days.

Big difference here, gt350 and stock mustang are very different as has been pointed out many times.

If you're after the GT350 look that fits the stock mustang, it's not far away.

Toddc

Are u going to have provisions for hood pins in the street hood? There are a lot of GT350 owners who track their cars and get concerned about hood flutter above 130mph. I know the thought crosses my mind from time to time about the hood flying up.

Sponsored



[toddc]

Are u going to have provisions for hood pins in the street hood? There are a lot of GT350 owners who track their cars and get concerned about hood flutter above 130mph. I know the thought crosses my mind from time to time about the hood flying up.

We're not planning on incorporating hood pin provisions into the street hoods.
If a buyer were so inclined, they could be added as wanted.

Hood flutter doesn't necessarily mean that the hood will fly up at speed. I'm confident that Ford figured out the appropriate latching mechanism to handle the anticipated loads to ensure this doesn't happen.
With regard to how we build composite hoods, we incorporate steel reinforcement plates at all of the hinge and latch locations and allow for use of stock mounting hardware. These are all trapped between the inner frame and outer skin and are bonded with a methacrylate adhesive engineered for bonding composites and dis-similar materials. i.e., steel.

Our construction on the ford bits is the same as our construction on every other hood we've done, audi, porsche, aston martin, camaro, etc. Many of which have been proven in race series such as world challenge. We've never seen one fly off or de-laminate at speed.

Hope this helps,

Toddc
Helion Composites



[Lexluther]

I can confirm the hood hinges are vastly different. Thats why Redline has a strut kit with a different bracket for the GT and GT350.

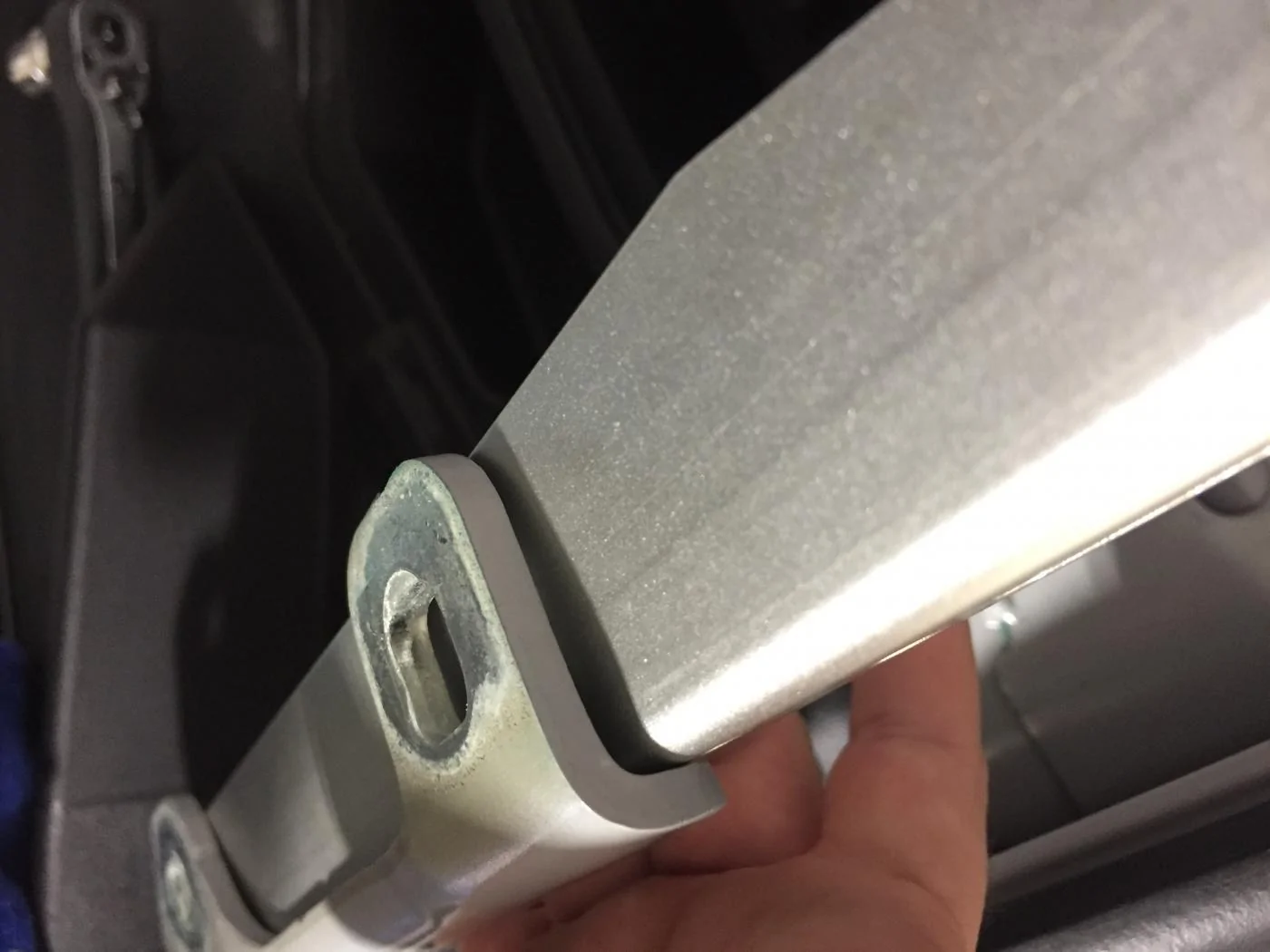

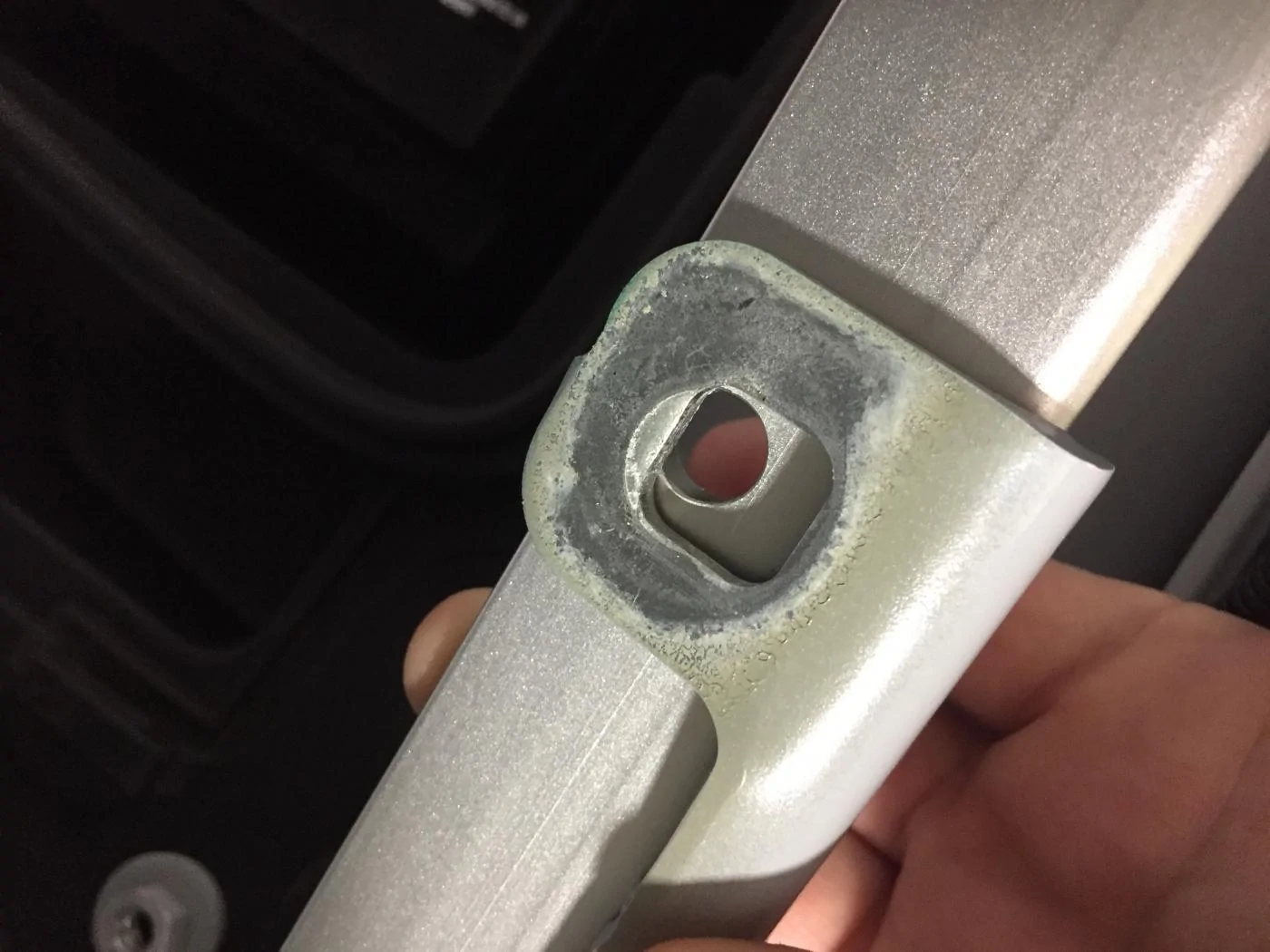

A Drake billet hood strut kit didn't fit my GT350 see pic. It wouldn't seat in the channel and bolt holes were off. The GT350 hinge is a lot narrower.

The clip for the windshield washer line is also in a different spot.



[MCarsFan]

If you're looking for a GT350 Carbon Hood for a GT350, we can help you.
We have a primer race hood in stock, very light weight, no cores, built as a proto for race only use.

We are in the middle of laying up a GT350 street hood that is full carbon with cores that should be ready in a few days.

Big difference here, gt350 and stock mustang are very different as has been pointed out many times.

If you're after the GT350 look that fits the stock mustang, it's not far away.

Regards,

Toddc

Toddc,

Any info regarding the price? I might be interested.

Thx



[toddc]

Time fora quick update,

We have a primered Carbon race only GT350 hood in stock along with a Clear Carbon Street GT350 hood currently getting trimmed and bonded, should be availabe in a few days.

We completed outer skin tooling on the Stylized GThood forthe stock body mustang a couple of weeks ago and nearing completion on the inner tool as well.

We're hoping to have the stylized version available at Christmas.

With regard to pricing,
the GT350 Clone hoods in carbon are $2150, in fiberglass $1850.

The Helion GT350 Style Hood for he stock body Mustang is $2350 in clear carbon, in fiberglass $2050.

I'm sure someone will ask, so here is the reason for difference in pricing given that both are same relative size....
There is a significant investment in the Helion GT350 Style Hood that comes from the clay modeling, surfacing and tooling development. We need to amortize this over the production run where as the Clone hood is simply a duplication of a stock part.

Hope this helps,

Todd



[zzj]

Any idea for the weight? I'm sure it helps a lot to save the weight especially GT350 are 53/47 weight distribution. Meaning the front end is 200lb+ more than the rear. Weight saving in the front would make it a little bit more balanced.



[toddc]

Any idea for the weight? I'm sure it helps a lot to save the weight especially GT350 are 53/47 weight distribution. Meaning the front end is 200lb+ more than the rear. Weight saving in the front would make it a little bit more balanced.

Sure,

I'm going to generalize a little bit as I'm grouping shelby and stock body mustang together...

Stock hoods for either weigh ~30 lbs, Helion carbon hoods for either weigh ~16 lbs. Fiberglass hoods for either actually weigh more than the stock aluminium parts

Regards,
Toddc



[zombiekiller]

Sure,

I'm going to generalize a little bit as I'm grouping shelby and stock body mustang together...

Stock hoods for either weigh ~30 lbs, Helion carbon hoods for either weigh ~16 lbs. Fiberglass hoods for either actually weigh more than the stock aluminium parts

Regards,
Toddc

Todd,

So If I am reading this correctly, you have a carbon hood that fits GT350s that is 14 lbs lighter than the stock aluminum hood?

If so, who do I talk to to order one?



[toddc]

Todd,

So If I am reading this correctly, you have a carbon hood that fits GT350s that is 14 lbs lighter than the stock aluminum hood?

If so, who do I talk to to order one?

You are reading correctly,

shoot us an email,

[email protected]

Regards,

Toddc



[JN66]

Pics?



[uglygun]

Needing updates. Just got wheels/tires.

Time to start saving for a hood.



[GTRacerX.]

GT350 Conversion

What a shame now I gotta find the fenders part number too

Here you go buddy. :ford:

Original OEM GT350 production hood - $1,642.48
Hood FR3Z-16612-C
Scoop FR3Z-16C630-AB
Nuts W701567-S450 x4

17D957-AC - Ford BUMPER ASY - FRONT -
17D957-APTM - Ford BUMPER ASY - FRONT -

Ford Mustang Fender GT350 Left FR3Z-16006-C $788.97
Ford Mustang Fender GT350 Right FR3Z-16005-C $946.76
Ford Mustang Emblem Shelby GT350 Fender FR3Z-16098-A $54.13
Ford Mustang Door Sill Plates - GT350 FR3Z-6313208-DA x2 $350.82
Ford Mustang Steering Wheel Upgrade - GT350R w/Bezels M-3600-M350R $364.55
Ford Performance Mustang GT350 Red Starter Button M-10B776-MR $30.48
Ford Performance Mustang Muffler Kit w/GT350 Valance - 5.0L GT Sport - GT350 Tips M-5230-M8SBV $1,860.10



[Epiphany]

Ford Mustang Fender GT350 Left FR3Z-16006-C $788.97

Ford Mustang Fender GT350 Right FR3Z-16005-C $946.76

Minor deviations in price between sides I get. But $160? Interesting.



[stanglife]

Minor deviations in price between sides I get. But $160? Interesting.

It's a very complicated calculation based on many factors that determines the price of these parts - left and right...



[dron_jones]

I thinks its politically charged the right is being penalized and forced to pay more, these are some bad (sick) guys! :lol:
