2018 Digital Cluster Installation Guide

[kilos550]

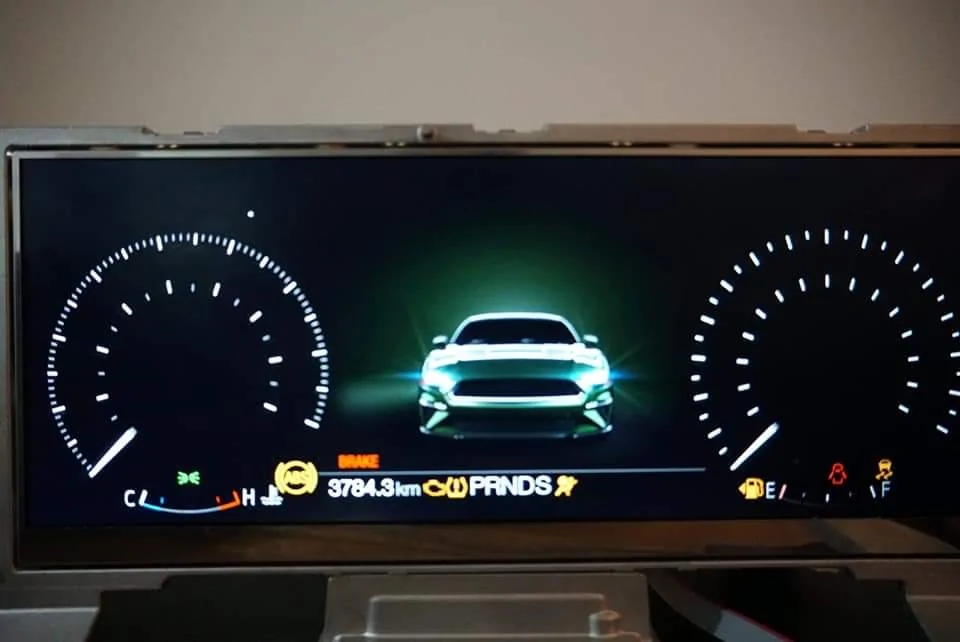

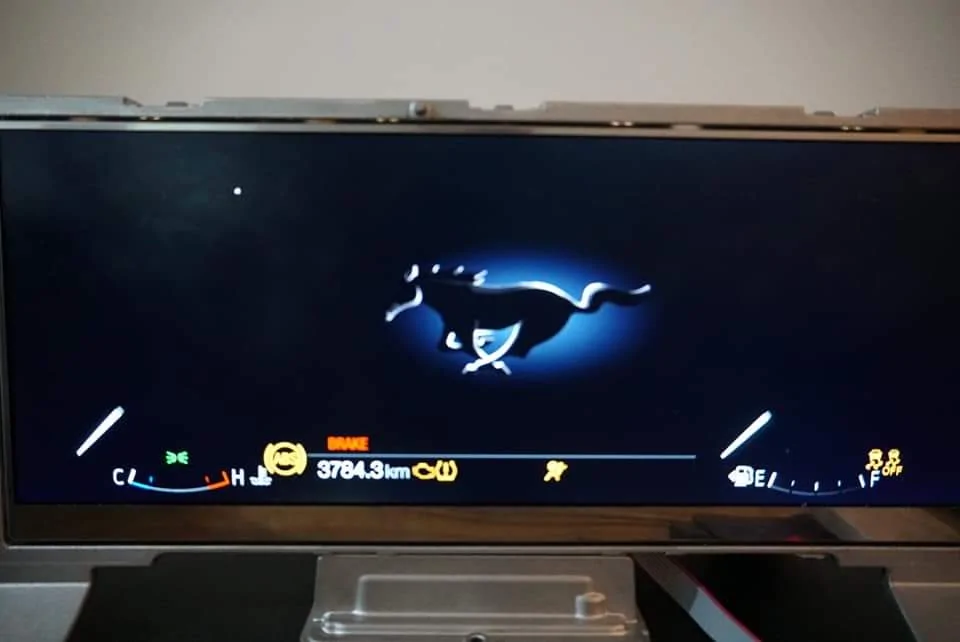

The hardware is the same across all clusters MPH/KPH/Manual/Auto/Bullitt/Mustang
Only the software revision is different but that doesn't mean u can just change between modes by flashing different firmware, you'd need the right tools to do that (I recently spent 2 weeks until I figured it all out haha) and I guess it's the same for the oil temp

what tools do you need to flash cluster to bullit revision?

Sponsored



[breeves002]

what tools do you need to flash cluster to bullit revision?

It involves taking apart the cluster and flashing the memory chip with a known configuration. I offer this service if interested. You also have to update the cluster to 2019 software which you can do with a tool like UCDS.



[breeves002]

Yes I replaced the SCCM and Wheel switches, I think I have successfully programmed the SCCM.

The spreadsheet you made, I assume just start with the baseline you created, then add or remove the options?

Yes. Though that baseline isn't exactly a baseline, I need to update it. It's a good start though.



[okfoz]

It involves taking apart the cluster and flashing the memory chip with a known configuration. I offer this service if interested. You also have to update the cluster to 2019 software which you can do with a tool like UCDS.

Here is a question for you... Is it possible to Create your own Image and Flash it to the cluster?



[okfoz]

Yes. Though that baseline isn't exactly a baseline, I need to update it. It's a good start though.

That would be awesome if you would...

Thanks



[kilos550]

It involves taking apart the cluster and flashing the memory chip with a known configuration. I offer this service if interested. You also have to update the cluster to 2019 software which you can do with a tool like UCDS.

I would If i hadn't just installed it,I don't feel like doing it all over again but maybe once the GT500 is out I'll consider it.



[breeves002]

That would be awesome if you would...

Thanks

I do sell programming if you need tailored to your car



[okfoz]

I do sell programming if you need tailored to your car

I might take you up on that offer... I went thru the information on the spreadsheets and made my own, I am hoping to plug it in and see where it puts me... If I can't get it figured all out, I will be in touch.



[okfoz]

It seems that it is on the run, got rid of most of the error codes and things appear to be working...

1) The "Cross Traffic System Fault" I have a 2016 GT Premium with 400A... I honestly do not think it has the option... My mom has a lincoln with it and I cannot for the life of me remember if the chime I remember is from that or my mustang!! Is there a way to turn off the warning, or do I have a problem?

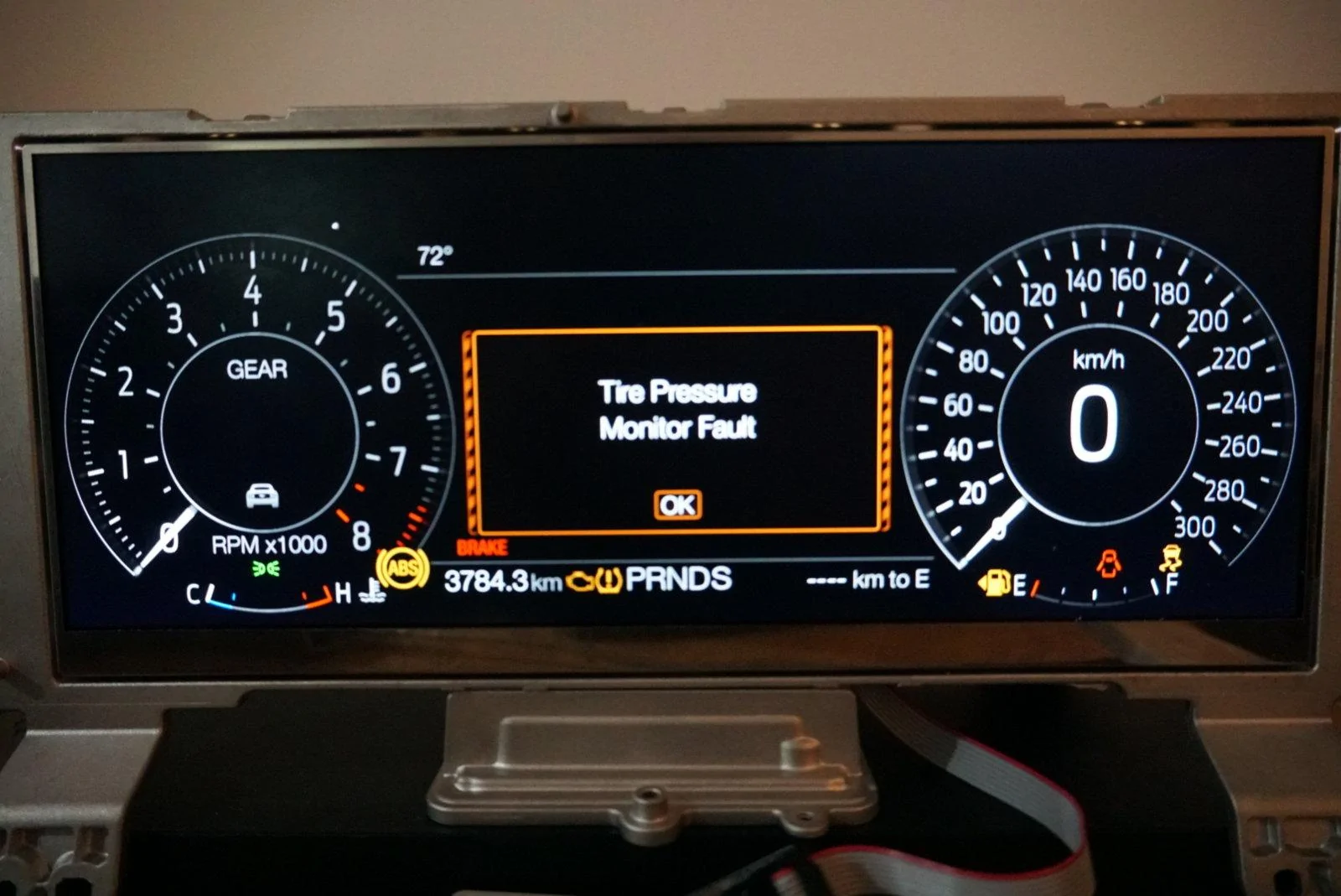

2) the Tire Pressure Monitor, I cannot seem to find it. I see where I can change it to kpa or lbs etc, but I cannot find where I can look at the pressure of my tires, my analog gauges had this and it was handy.

3) Line Lock is grayed out, do I have to have the car actually running to use this option? It is parked for the winter, and I just happened to think about this.

4) Is there a way to turn off the Headlight Green indicator? I do not mind the blue bright light's indicator or the green fog lamp, but the Green headlight icon is just irritating to me...

Thanks

John



[breeves002]

1. Yes you can turn it off. Its in the spreadsheet.

2. Settings - trip/info - scroll up or down

3. Yes running. Assuming you have a GT. Will not work with EB.

4. No its green in all new cars. I am pretty sure it was the same in the analog cluster too?



[okfoz]

1. Yes you can turn it off. Its in the spreadsheet.

2. Settings - trip/info - scroll up or down

3. Yes running. Assuming you have a GT. Will not work with EB.

4. No its green in all new cars. I am pretty sure it was the same in the analog cluster too?

1) I am not sure if I follow, I don't see one for the "Cross Traffic System", I see "lane departure Warning/Lane Keep Assist", "BLIS", and "Reverse Parking Sensors" (I do have reverse sensors) but not the Cross Traffic system... Is it the Reverse Parking sensors you are referring to? Will I still get the chime for backup from the sensors if I turn that off in the IP?

2) Funny thing, I got in the car this morning and the song "Feels like the first time" was on the radio and I scrolled down and there it was... lol, I just never went far enough... silly me.

3) Yes I have a GT Premium PP, yes my emergency brake is on, That makes complete sense now, sometimes I am a little slow.

4) Darn, I hate that green light, it makes me think my driving lights are on or Cruise is on, yes it was on my analog cluster and I hated it on that one too...

Thanks for your help, I just have to solve #1



[db252]

BLIS and CTA work off the same sensors. If you don’t have it, these two as built lines should read:

720-01-01 XXXX-XXXX-6XXX
720-03-01 2XXX-XXXX



[breeves002]

I have it in there as "CTA/Courtesy Wipe". I changed it to "cross traffic alert/courtesy wipe". I also had spelled "courtesy" wrong haha.



[okfoz]

That makes more sense now... was not sure what CTA was... thanks for that...



[okfoz]

I finally got it up and it seems perfect now... I cleared my 30 DTC's all of which seem to be associated with "loss of communication" or "low voltage" codes...

Very cool beans...

Now for the crazy question of the day:
When you set "my Cluster" or whatever it is (now that I am away from the car I cannot remember the name) As just an extreme example How would I get the "Sport mode" appearance with the "Wet/Snow" driving as my base appearance? Or is that not possible? I tried setting the cluster to the "sport mode, and then set it up and hold the "set" button and when I went back in the mode just went back to the base display. Maybe I didn't do it right... Just curious is all... If I need to make a new thread let me know.
