tq_source pid pulling timing?

Bmaughan

Well-Known Member
Joined
Sep 26, 2019
Threads
70
Messages
473
Reaction score
63
Location
Az
First Name
Ben
Vehicle(s)
2015 procharged mustang gt
Quick question, i just did some datalogging and i noticed multiple times when at WOT there was a quick moment were the timing gets pulled. Not seeing any knock... but at the same moment the torque_source pid starts reading positive.

So what exactly is the torque source pid? Is that a traction control element?

If anyone would be willing to look at the logs and let me know what you think I would really appreciate it!!


FYI, There are two logs attached at this link.

https://datazap.me/u/bmaughan/log-1584220837?log=0&data=1
Sponsored



Zinc03svt

Well-Known Member
Joined
Jun 3, 2018
Threads
30
Messages
2,342
Reaction score
1,269
Location
usa
Vehicle(s)
stang

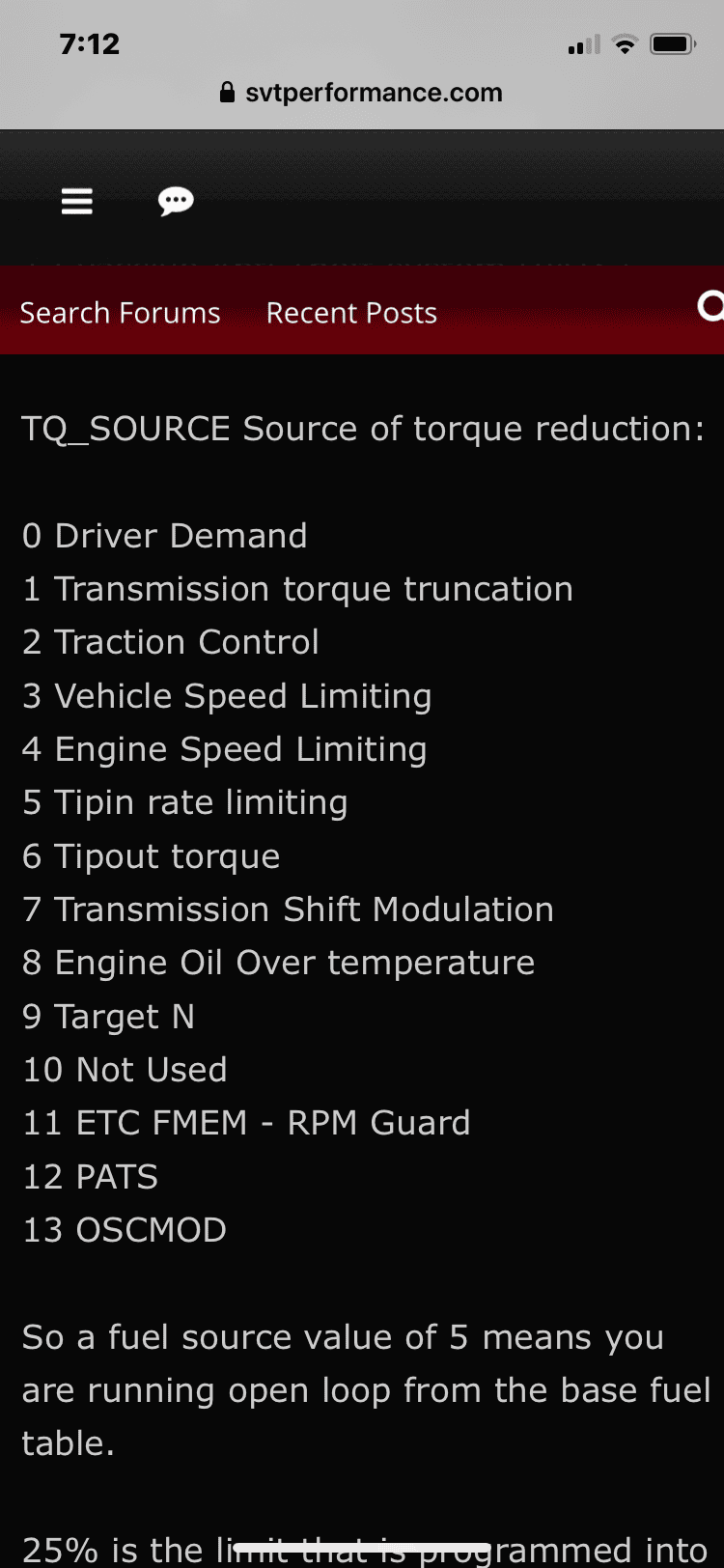

Torque source will tell where/why the timing is being pulled. Take the number you get to identify it.


markmurfie

Well-Known Member
Joined
Jun 6, 2015
Threads
15
Messages
1,157
Reaction score
502
Location
Hawaii
First Name
Mark
Vehicle(s)
2015 Ford Mustang GT

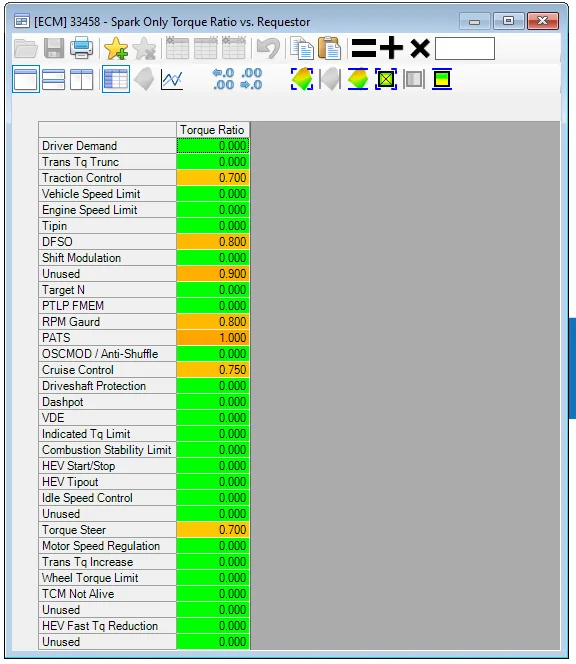

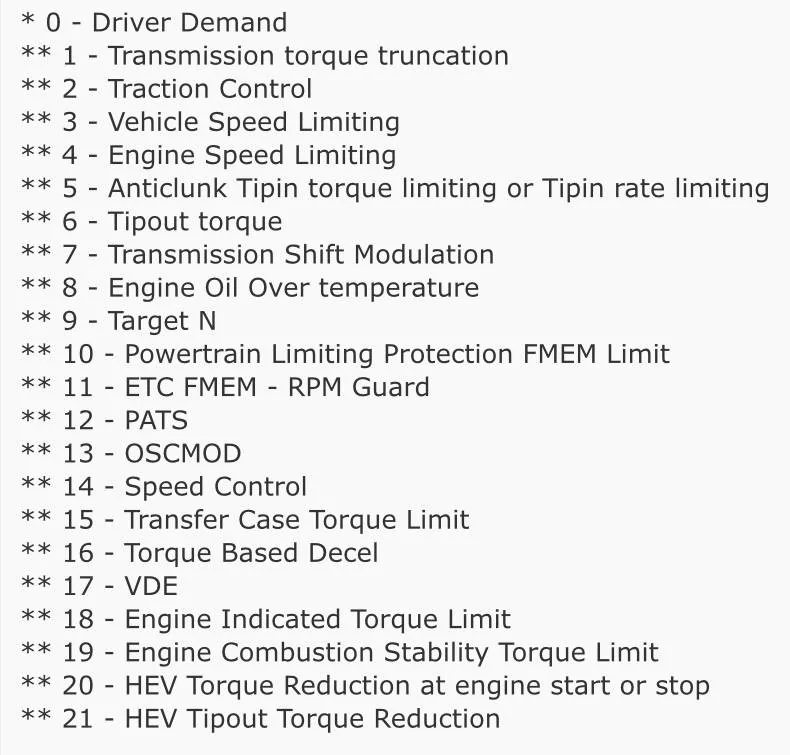

Here's a longer list.
Torque source list.PNG

OP
OP
Bmaughan

Bmaughan

Well-Known Member
Joined
Sep 26, 2019
Threads
70
Messages
473
Reaction score
63
Location
Az
First Name
Ben
Vehicle(s)
2015 procharged mustang gt
Super helpful! Thanks so much for all the info... I didn’t realize it was a like variable input timing command.. that’s pretty cool. Well I’m pretty sure I was showing a 2 so that would in fact be traction control.

Can’t thank you all enough for the help!


Sponsored

OP
OP
Bmaughan

Bmaughan

Well-Known Member
Joined
Sep 26, 2019
Threads
70
Messages
473
Reaction score
63
Location
Az
First Name
Ben
Vehicle(s)
2015 procharged mustang gt
Another question came to mind..Where would one find info on all the different pid’s?

OP
OP
Bmaughan

Bmaughan

Well-Known Member
Joined
Sep 26, 2019
Threads
70
Messages
473
Reaction score
63
Location
Az
First Name
Ben
Vehicle(s)
2015 procharged mustang gt
I'm also showing torque source 16 which according to the list previously posted is "dashpot". What is this?


Burkey

Well-Known Member
Joined
Feb 9, 2016
Threads
87
Messages
5,541
Reaction score
3,520
Location
Australia
Vehicle(s)
2016 Mustang GT
Vehicle Showcase
1
I'm also showing torque source 16 which according to the list previously posted is "dashpot". What is this?
This is from the HP Tuners forum


markmurfie

Well-Known Member
Joined
Jun 6, 2015
Threads
15
Messages
1,157
Reaction score
502
Location
Hawaii
First Name
Mark
Vehicle(s)
2015 Ford Mustang GT
OP
OP
Bmaughan

Bmaughan

Well-Known Member
Joined
Sep 26, 2019
Threads
70
Messages
473
Reaction score
63
Location
Az
First Name
Ben
Vehicle(s)
2015 procharged mustang gt
Interesting, so if i understand correctly, its using the torque source table to soften the initial decel?
