Steeda Hardcore S550 Mustang IRS Differential Support Bracket

SteedaTech

Well-Known Member
Diamond Sponsor
Joined
Aug 8, 2016
Threads
71
Messages
2,067
Reaction score
1,592
Location
Pompano Beach, FL
Vehicle(s)
2016 Mustang Q750
OP
OP
SteedaTech

SteedaTech

Well-Known Member
Diamond Sponsor
Joined
Aug 8, 2016
Threads
71
Messages
2,067
Reaction score
1,592
Location
Pompano Beach, FL
Vehicle(s)
2016 Mustang Q750

DAVECS1

Well-Known Member
Joined
Jul 28, 2016
Threads
22
Messages
512
Reaction score
247
Location
Peoria IL
Vehicle(s)
2017 PP GT Grabber Blue
This is interesting. I have refrained from mounting my differential more solidly as I figure allowing it to move a bit will help absorb some of the initial shock load and help save the diff. The suspension is a different story as I have most of the steeda replacement bearings, links, and arms.


Red65

Well-Known Member
Joined
May 2, 2018
Threads
24
Messages
327
Reaction score
172
Location
MS
Vehicle(s)
Red 1965 Coupe, 2017 Premium MT GT
Really anxious to see this kit installed. Looks like a really nice option.


Sponsored

Mootang

Well-Known Member
Joined
Oct 2, 2016
Threads
66
Messages
1,148
Reaction score
415
Location
Sacto, Caliunicornia
First Name
Henry
Vehicle(s)
2017 Mustang GT
Sub'ed


WhiteyDog

WOOF!!!
Joined
Jun 30, 2016
Threads
15
Messages
1,789
Reaction score
731
Location
Manheim, Pa.
Vehicle(s)
'16 GT PP
I don't know what the h*ll this is, but I'm sure I need it. :wink::wink::wink::wink:


tj@steeda

Well-Known Member
Diamond Sponsor
Joined
Mar 21, 2014
Threads
525
Messages
6,378
Reaction score
3,867
Location
Florida
First Name
Timothy
Vehicle(s)
2019 Steeda Mustang - White Carbon Edition
Vehicle Showcase
1
Working on the photos ... stay tuned & we apologize for the delay.

Best Regards,

TJ


tj@steeda

Well-Known Member
Diamond Sponsor
Joined
Mar 21, 2014
Threads
525
Messages
6,378
Reaction score
3,867
Location
Florida
First Name
Timothy
Vehicle(s)
2019 Steeda Mustang - White Carbon Edition
Vehicle Showcase
1
Here are a couple of additional photos:

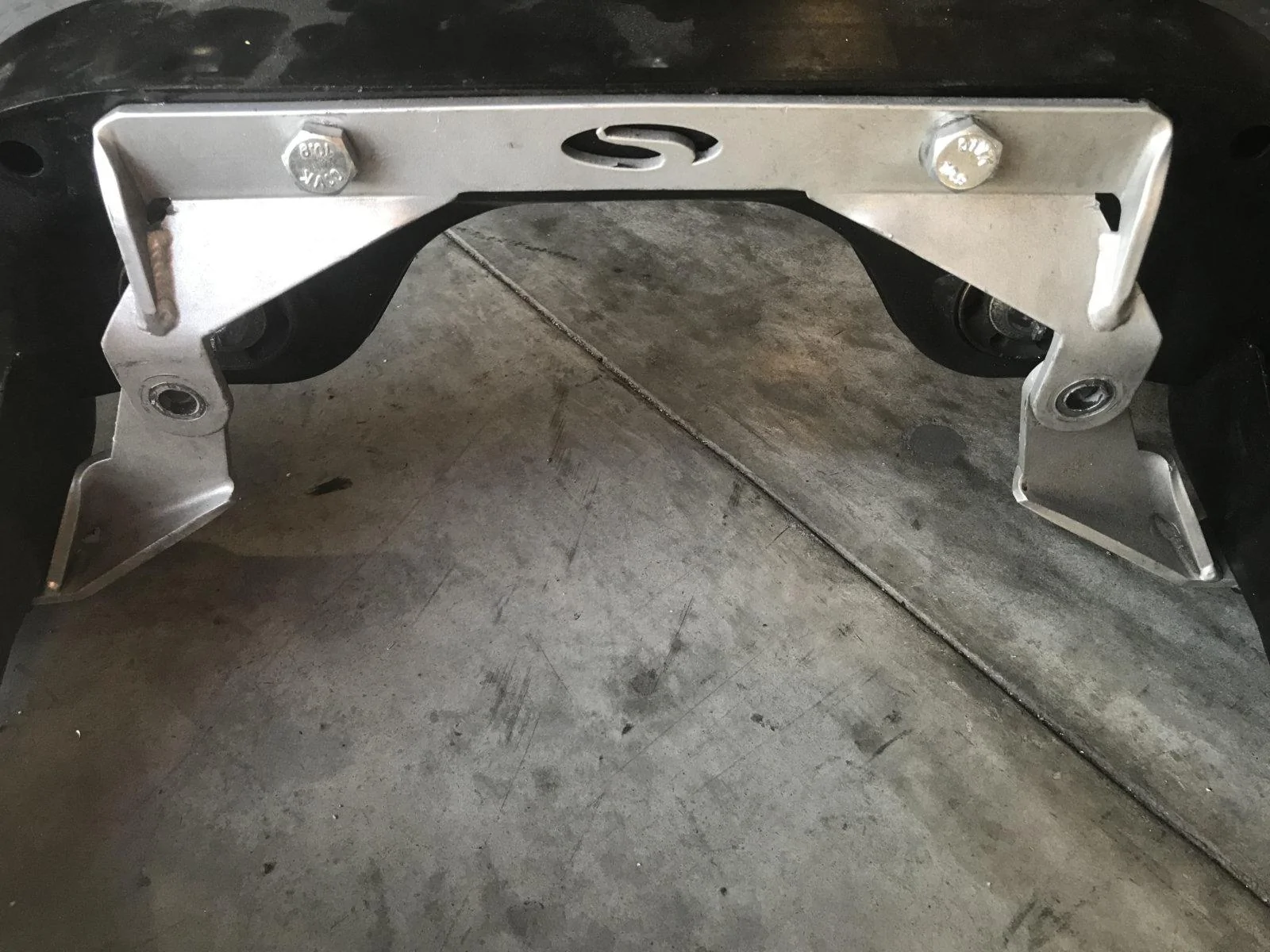

unnamed (1).jpg

OP
OP
SteedaTech

SteedaTech

Well-Known Member
Diamond Sponsor
Joined
Aug 8, 2016
Threads
71
Messages
2,067
Reaction score
1,592
Location
Pompano Beach, FL
Vehicle(s)
2016 Mustang Q750

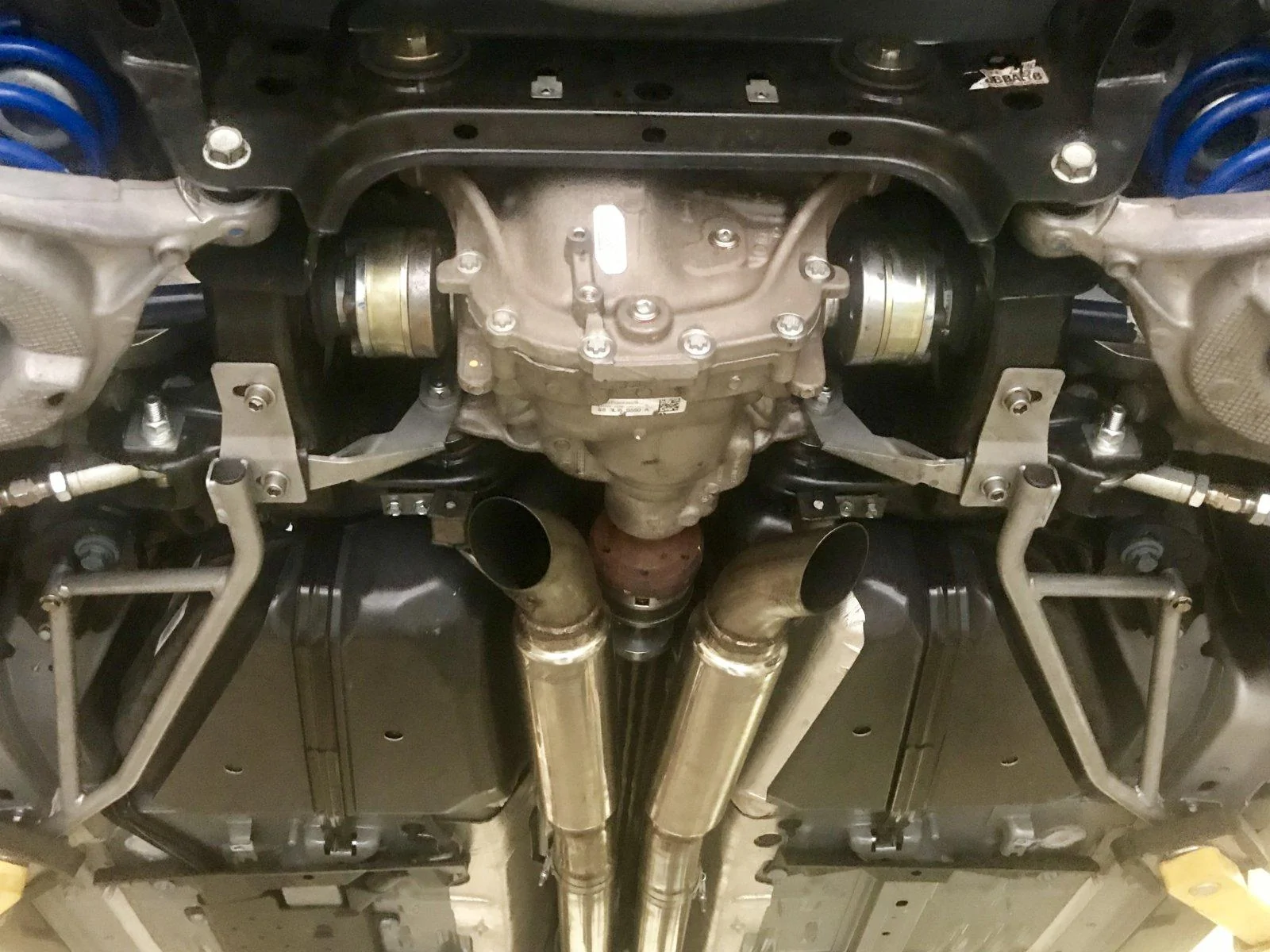

S550 IRS SUPPORT BRACKET.jpg
Another greast picture on our record holder Silver bullet S550.


Sponsored

BmacIL

Enginerd
Joined
Sep 21, 2014
Threads
69
Messages
15,010
Reaction score
8,920
Location
Naperville, IL
Vehicle(s)
2015 Guard GT Base, M/T
Vehicle Showcase
1
I like the idea and load path but not a fan of the bolt thread directly in shear. That's ripe for a fatigue failure.

OP
OP
SteedaTech

SteedaTech

Well-Known Member
Diamond Sponsor
Joined
Aug 8, 2016
Threads
71
Messages
2,067
Reaction score
1,592
Location
Pompano Beach, FL
Vehicle(s)
2016 Mustang Q750
  • You are correct. A design should avoid having the shear stress through the threaded cross section if possible.

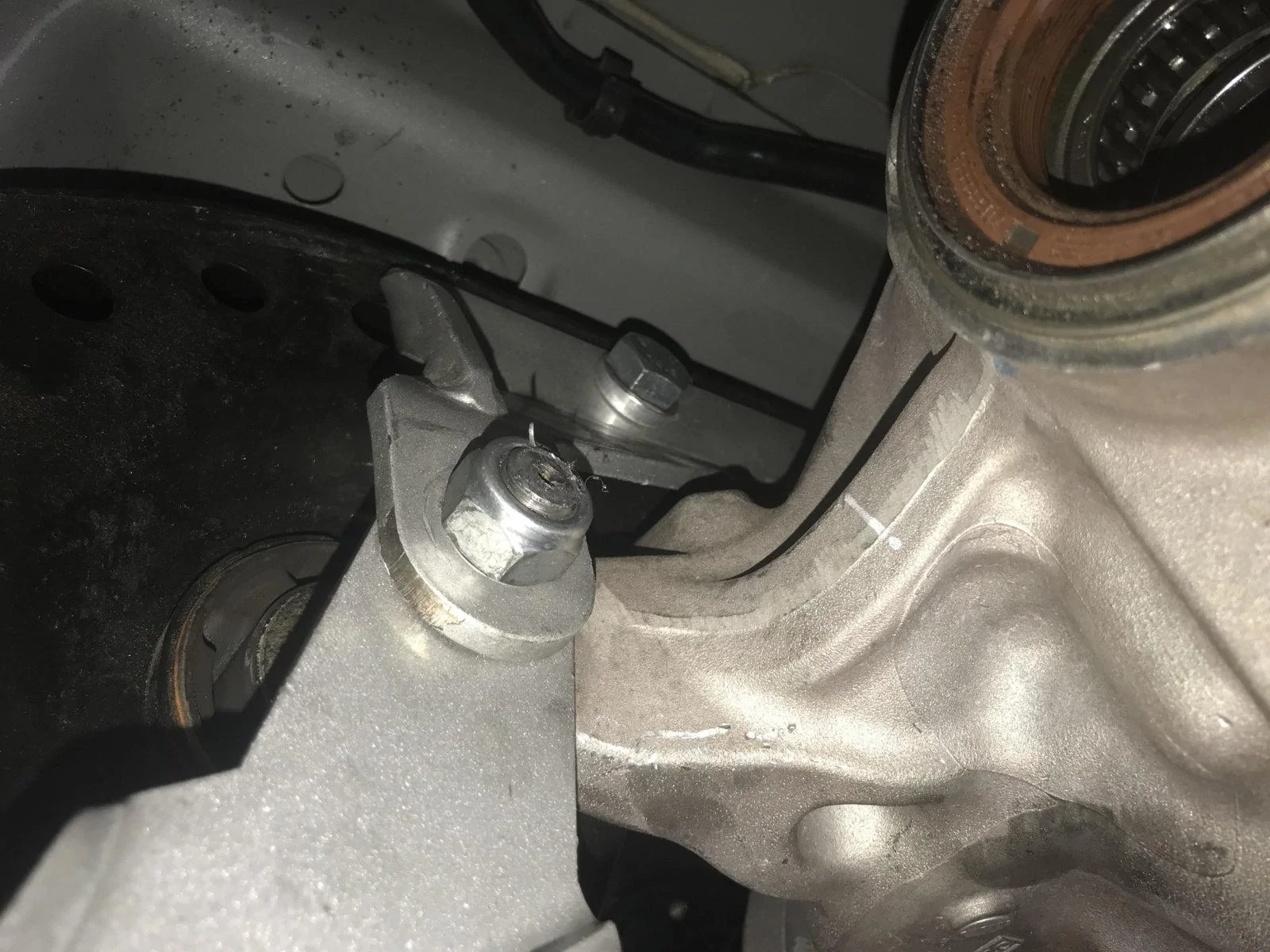

  • The pictures shown include our THRU Threaded Differential Bolt Upgrade Kit. This kit was designed as a bolt-in upgrade with no permanent modifications necessary and without having to remove the half-shafts. We had the bolts tested by a third party against the factory 10.9 bolt, our current Differential Bushing Bolt Upgrade Kit - 12.9 Hardware, and a non-heat treated 4140 chromoly version of this same bolt. Our bolts came back within spec as equivalent to a 12.9 bolt. Given the success we have seen with our Differential Bushing Bolt Upgrade Kit - 12.9 Hardware, we felt confident to move into testing.
  • These bolts were tested in single, double, and triple shear on our Silver Bullet. We even tested only the fully threaded design in all four locations on the differential with no issues.
  • Now back to the topic at hand: the Steeda IRS Differential Support Brackets. These have been tested on Donnie Gilder’s nearly 1,300hp S550 Mustang, weighing in at over 3,800lb, which cut a 1.24 60ft time. And that was with these brackets, Differential Bushing Bolt Upgrade Kit - 12.9 Hardware, and our Adjustable Differential Bushing Insert System - Urethane. So it is safe to say this design is just fine.

Steeda Tech


BmacIL

Enginerd
Joined
Sep 21, 2014
Threads
69
Messages
15,010
Reaction score
8,920
Location
Naperville, IL
Vehicle(s)
2015 Guard GT Base, M/T
Vehicle Showcase
1
Good to hear. Seems from the pics like there is enough room to add bolt shoulder length and a crush washer to avoid threads in shear. Maybe not, though.

Last edited:
OP
OP
SteedaTech

SteedaTech

Well-Known Member
Diamond Sponsor
Joined
Aug 8, 2016
Threads
71
Messages
2,067
Reaction score
1,592
Location
Pompano Beach, FL
Vehicle(s)
2016 Mustang Q750
Good to hear. Seems from the pics like there is enough room to add bolt shoulder length and a crush washer to avoid threads in shear. Maybe not, though.
If you install the bolts from the half-shaft end then the brackets will rest on the shank and not the threads.

-Steeda Tech
