Reverse Camera Graphics on Sync 3, 2018 GT Base PP1

[tangguy]

Hello everyone!

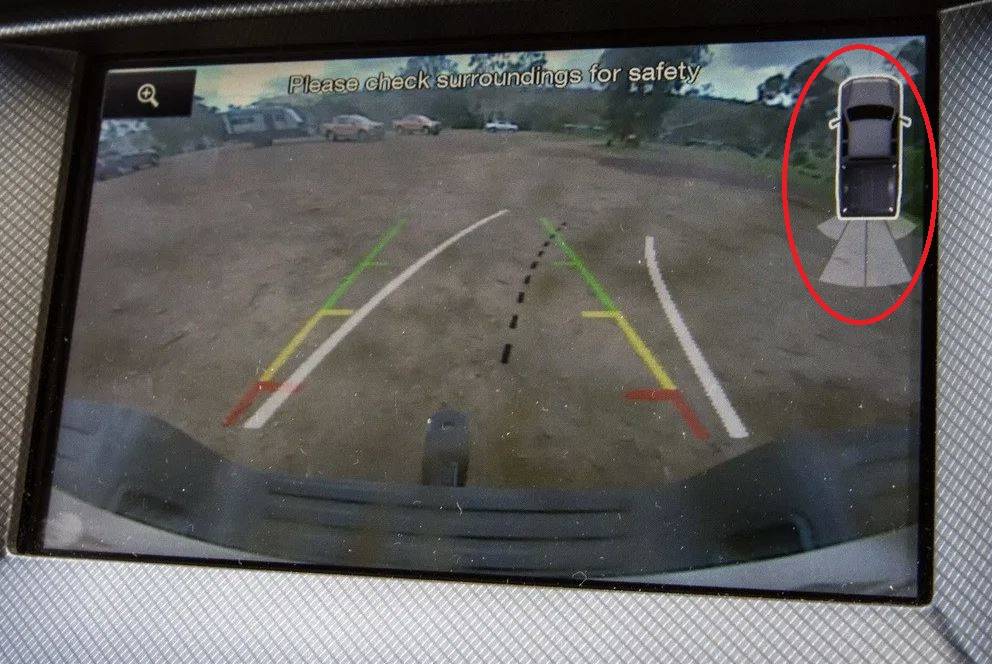

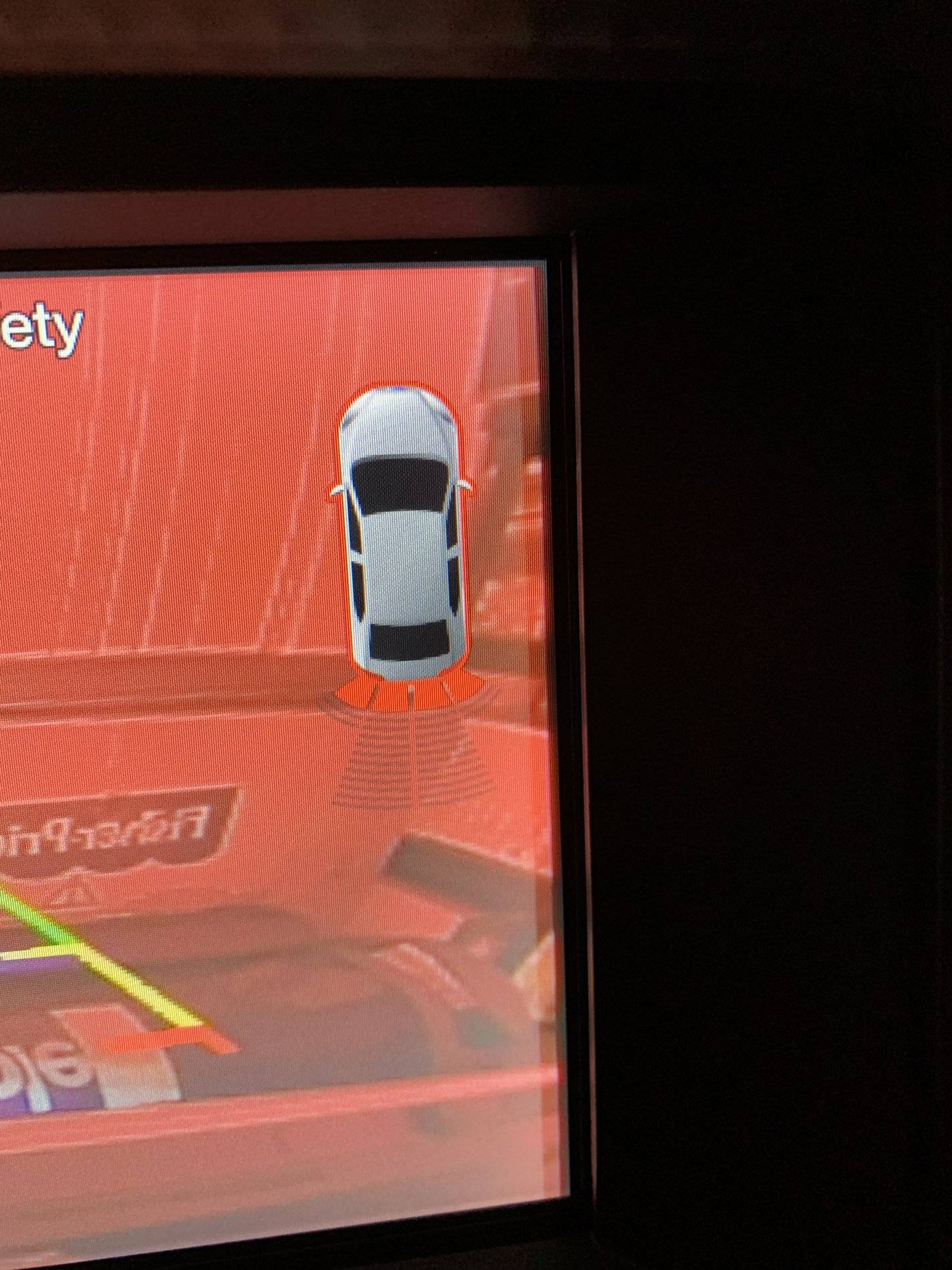

Does anyone know if the 2018 GT has the the reverse sensing graphics (circled in red)? Mine is a 2018 base GT PP1 with reverse sensors, but the previous owner upgraded the infotainment to sync 3 8" system. All my fords had this graphic (if available) and it was of immense help to me while backing-up into tight places. would appreciate any feedback you guys may have. Thanks in advance!!

Sponsored



[StangTime]

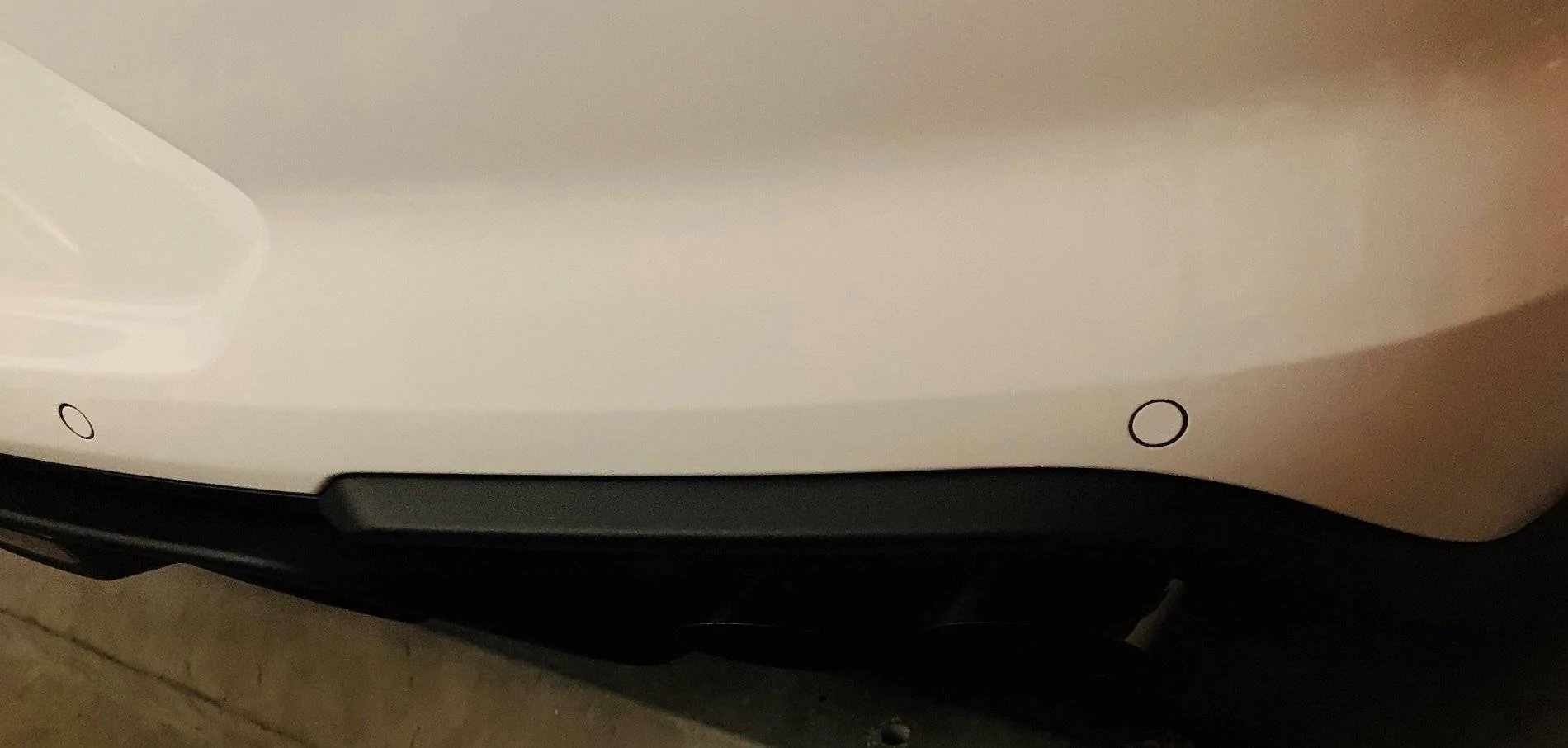

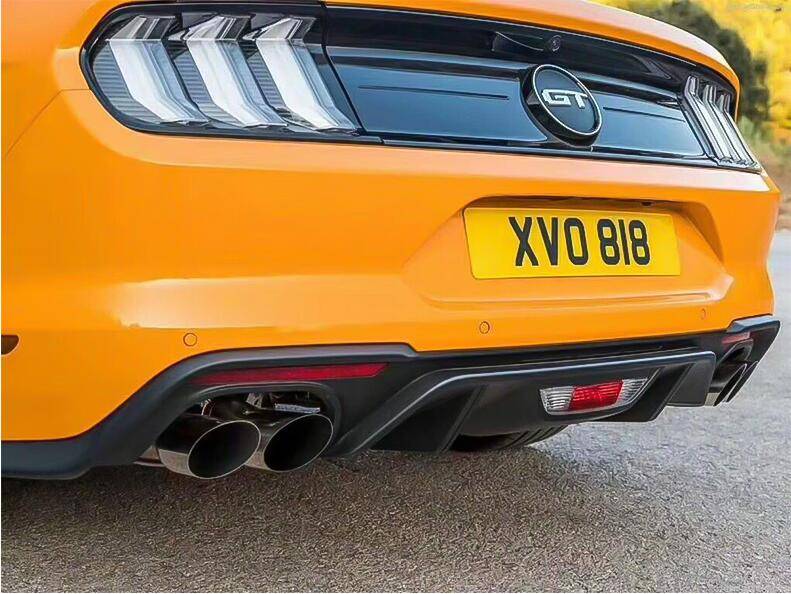

Does your car have the backup sensors in the rear bumper? See the body colored circles in the picture. If not, this feature isn't available on your car.



[tangguy]

Does your car have the backup sensors in the rear bumper? See the body colored circles in the picture. If not, this feature isn't available on your car.

sorry for not being clear! Yes, my 2018 GT does have reverse sensors, just the graphic is missing from the reverse camera view. Do you know if this is just a software issue and can be fixed by forscan?



[StangTime]

Does your car beep when you back up close to an object?

I found this on the internet but I don't know if it is correct.

In module IPC 720-02-02 ??xx xxxx

Change ?? to 1A Enable (on)
Yours likely says 08 for disabled.

Try at your own risk.



[tangguy]

Does your car beep when you back up close to an object?

I found this on the internet but I don't know if it is correct.

In module IPC 720-02-02 ??xx xxxx

Change ?? to 1A Enable (on)
Yours likely says 08 for disabled.

Try at your own risk.

I does beep, but as I mentioned no visual (graphics) on the screen.



[StangTime]

I does beep, but as I mentioned no visual (graphics) on the screen.

FWIW my car has the sensors and the beeps and the image on screen and my 720-02-02 has the 1A code.



[tangguy]

FWIW my car has the sensors and the beeps and the image on screen and my 720-02-02 has the 1A code.

Ok thanks man. I really appreciate it! I will see whats the current code is. BTW, is yours a premium?



[StangTime]

Ok thanks man. I really appreciate it! I will see whats the current code is. BTW, is yours a premium?

I have a 301A with NAV and active exhaust.

In case that code doesn't work just try changing the first digit from 0 to 1. The second code might be for NAV. Not sure.



[tangguy]

I have a 301A with NAV and active exhaust.

In case that code doesn't work just try changing the first digit from 0 to 1. The second code might be for NAV. Not sure.

Hey Todd, I checked the code, its 1A. Will it be possible for you to send me a screenshot of your IPC as-built forscan code or the relevant reverse sensing code in APIM or BCM? I know for sure its a code thing, since the hardware is there to support it. TIA



[Dadillac]

The car image is turned off in the settings menu. Turn it back on

Don



[tangguy]

The car image is turned off in the settings menu. Turn it back on

Don

Hi Don, which setting this would be? Rear park aid is already enabled in the settings menu.



[StangTime]

Hey Todd, I checked the code, its 1A. Will it be possible for you to send me a screenshot of your IPC as-built forscan code or the relevant reverse sensing code in APIM or BCM? I know for sure its a code thing, since the hardware is there to support it. TIA

Hope this helps:
APIM
7D0-01-01 xAxx xxxx xxxx (My AB data: 6A2A 0102 0070) Reverse camera (8" screen only): 0=disabled, 2=enabled, A=enabled with obstacle detection

7D0-02-01 xxxx xxx2 xxxx (My AB data: 7D0-02-01 4341 0602 C026) Vehicle Style in camera views: 1=sedan, 2=coupe/convertible, 3=truck, 4=SUV/CUV, 5=van, 6=hatchback

7D0-04-02 xxx1 xx (My AB data: 0001 DE) Parking Assistance: 0=no PDC/PSM/SAPP, 1=rear PDC, 2=rear/front PDC, 3=rear/front PDC/SAPP (NA HMI), 4=rear/SAPP (EU HMI), 5=rear/front PDC/SAPP (EU HMI), 6=rear/SAPP (EU HMI), 7=rear/front PDC with APA, 8=APA Lite, 9=APA Lite Plus (SAPP/POA-10 channel)

BCM
726-46-02 xxxx xxx1 xxxx (My AB data: 0100 0001 0077) Park Aid Feature Present Cfg: 0=not present, 1=present

IPC
720-02-02 1xxx xxxx (My AB data: 1A00 81C6)
Park Lock Ctrl (PLC), Perimeter Alarm w/Reduced Guard Ctrl (PARG), Park Aid Ctrl Front (PACF), Park Aid Ctrl Rear (PACR)
0=PLC disabled, PARG disabled, PACF disabled, PACR disabled 8=PLC enabled, PARG disabled, PACF disabled, PACR disabled
1=PLC disabled, PARG disabled, PACF disabled, PACR enabled 9=PLC enabled, PARG disabled, PACF disabled, PACR enabled
2=PLC disabled, PARG disabled, PACF enabled, PACR disabled A=PLC enabled, PARG disabled, PACF enabled, PACR disabled
3=PLC disabled, PARG disabled, PACF enabled, PACR enabled B=PLC enabled, PARG disabled, PACF enabled, PACR enabled
4=PLC disabled, PARG enabled, PACF disabled, PACR disabled C=PLC enabled, PARG enabled, PACF disabled, PACR disabled
5=PLC disabled, PARG enabled, PACF disabled, PACR enabled D=PLC enabled, PARG enabled, PACF disabled, PACR enabled
6=PLC disabled, PARG enabled, PACF enabled, PACR disabled E=PLC enabled, PARG enabled, PACF enabled, PACR disabled
7=PLC disabled, PARG enabled, PACF enabled, PACR enabled F=PLC enabled, PARG enabled, PACF enabled, PACR enabled

720-02-02 xAxx xxxx
Passive Entry Passive Start (PEPS), Pwr Liftgate Control (PLC), ParkAid Switch (PS), Pwr Liftgate Chime (LC)
0=PEPS disabled, PLC disabled, PS disabled, LC Non-DNA 8=PEPS enabled, PLC disabled, PS disabled, LC Non-DNA
1=PEPS disabled, PLC disabled, PS disabled, LC DNA 9=PEPS enabled, PLC disabled, PS disabled, LC DNA
2=PEPS disabled, PLC disabled, PS enabled, LC Non-DNA A=PEPS enabled, PLC disabled, PS enabled, LC Non-DNA
3=PEPS disabled, PLC disabled, PS disabled, LC DNA B=PEPS enabled, PLC disabled, PS disabled, LC DNA
4=PEPS disabled, PLC enabled, PS disabled, LC Non-DNA C=PEPS enabled, PLC enabled, PS disabled, LC Non-DNA
5=PEPS disabled, PLC enabled, PS disabled, LC DNA D=PEPS enabled, PLC disabled, PS disabled, LC DNA
6=PEPS disabled, PLC enabled, PS enabled, LC Non-DNA E=PEPS enabled, PLC enabled, PS enabled, LC Non-DNA
7=PEPS disabled, PLC enabled, PS enabled, LC DNA F=PEPS enabled, PLC enabled, PS enabled, LC DNA

720-04-02 xxxx x2xx (My AB data: 4341 12C3) Park Aid Fault Warning Rear and Front: 0=disabled, 2=enabled

These were all the codes I could find related to the rear park aid system.



[tangguy]

Hope this helps:
APIM
7D0-01-01 xAxx xxxx xxxx (My AB data: 6A2A 0102 0070) Reverse camera (8" screen only): 0=disabled, 2=enabled, A=enabled with obstacle detection

7D0-02-01 xxxx xxx2 xxxx (My AB data: 7D0-02-01 4341 0602 C026) Vehicle Style in camera views: 1=sedan, 2=coupe/convertible, 3=truck, 4=SUV/CUV, 5=van, 6=hatchback

7D0-04-02 xxx1 xx (My AB data: 0001 DE) Parking Assistance: 0=no PDC/PSM/SAPP, 1=rear PDC, 2=rear/front PDC, 3=rear/front PDC/SAPP (NA HMI), 4=rear/SAPP (EU HMI), 5=rear/front PDC/SAPP (EU HMI), 6=rear/SAPP (EU HMI), 7=rear/front PDC with APA, 8=APA Lite, 9=APA Lite Plus (SAPP/POA-10 channel)

BCM
726-46-02 xxxx xxx1 xxxx (My AB data: 0100 0001 0077) Park Aid Feature Present Cfg: 0=not present, 1=present

IPC
720-02-02 1xxx xxxx (My AB data: 1A00 81C6)
Park Lock Ctrl (PLC), Perimeter Alarm w/Reduced Guard Ctrl (PARG), Park Aid Ctrl Front (PACF), Park Aid Ctrl Rear (PACR)
0=PLC disabled, PARG disabled, PACF disabled, PACR disabled 8=PLC enabled, PARG disabled, PACF disabled, PACR disabled
1=PLC disabled, PARG disabled, PACF disabled, PACR enabled 9=PLC enabled, PARG disabled, PACF disabled, PACR enabled
2=PLC disabled, PARG disabled, PACF enabled, PACR disabled A=PLC enabled, PARG disabled, PACF enabled, PACR disabled
3=PLC disabled, PARG disabled, PACF enabled, PACR enabled B=PLC enabled, PARG disabled, PACF enabled, PACR enabled
4=PLC disabled, PARG enabled, PACF disabled, PACR disabled C=PLC enabled, PARG enabled, PACF disabled, PACR disabled
5=PLC disabled, PARG enabled, PACF disabled, PACR enabled D=PLC enabled, PARG enabled, PACF disabled, PACR enabled
6=PLC disabled, PARG enabled, PACF enabled, PACR disabled E=PLC enabled, PARG enabled, PACF enabled, PACR disabled
7=PLC disabled, PARG enabled, PACF enabled, PACR enabled F=PLC enabled, PARG enabled, PACF enabled, PACR enabled

720-02-02 xAxx xxxx
Passive Entry Passive Start (PEPS), Pwr Liftgate Control (PLC), ParkAid Switch (PS), Pwr Liftgate Chime (LC)
0=PEPS disabled, PLC disabled, PS disabled, LC Non-DNA 8=PEPS enabled, PLC disabled, PS disabled, LC Non-DNA
1=PEPS disabled, PLC disabled, PS disabled, LC DNA 9=PEPS enabled, PLC disabled, PS disabled, LC DNA
2=PEPS disabled, PLC disabled, PS enabled, LC Non-DNA A=PEPS enabled, PLC disabled, PS enabled, LC Non-DNA
3=PEPS disabled, PLC disabled, PS disabled, LC DNA B=PEPS enabled, PLC disabled, PS disabled, LC DNA
4=PEPS disabled, PLC enabled, PS disabled, LC Non-DNA C=PEPS enabled, PLC enabled, PS disabled, LC Non-DNA
5=PEPS disabled, PLC enabled, PS disabled, LC DNA D=PEPS enabled, PLC disabled, PS disabled, LC DNA
6=PEPS disabled, PLC enabled, PS enabled, LC Non-DNA E=PEPS enabled, PLC enabled, PS enabled, LC Non-DNA
7=PEPS disabled, PLC enabled, PS enabled, LC DNA F=PEPS enabled, PLC enabled, PS enabled, LC DNA

720-04-02 xxxx x2xx (My AB data: 4341 12C3) Park Aid Fault Warning Rear and Front: 0=disabled, 2=enabled

These were all the codes I could find related to the rear park aid system.

Thanks Todd. Really appreciate it! I'll give these a try, otherwise will settle with what I have. Win some, lose some!!



[Vlad Soare]

Is it enabled in the Sync settings?
Go to Settings, then Vehicle, and there should be an option called Enhanced Park Pilot. Turn that on.



[tangguy]

Hope this helps:
APIM
7D0-01-01 xAxx xxxx xxxx (My AB data: 6A2A 0102 0070) Reverse camera (8" screen only): 0=disabled, 2=enabled, A=enabled with obstacle detection

7D0-02-01 xxxx xxx2 xxxx (My AB data: 7D0-02-01 4341 0602 C026) Vehicle Style in camera views: 1=sedan, 2=coupe/convertible, 3=truck, 4=SUV/CUV, 5=van, 6=hatchback

7D0-04-02 xxx1 xx (My AB data: 0001 DE) Parking Assistance: 0=no PDC/PSM/SAPP, 1=rear PDC, 2=rear/front PDC, 3=rear/front PDC/SAPP (NA HMI), 4=rear/SAPP (EU HMI), 5=rear/front PDC/SAPP (EU HMI), 6=rear/SAPP (EU HMI), 7=rear/front PDC with APA, 8=APA Lite, 9=APA Lite Plus (SAPP/POA-10 channel)

BCM
726-46-02 xxxx xxx1 xxxx (My AB data: 0100 0001 0077) Park Aid Feature Present Cfg: 0=not present, 1=present

IPC
720-02-02 1xxx xxxx (My AB data: 1A00 81C6)
Park Lock Ctrl (PLC), Perimeter Alarm w/Reduced Guard Ctrl (PARG), Park Aid Ctrl Front (PACF), Park Aid Ctrl Rear (PACR)
0=PLC disabled, PARG disabled, PACF disabled, PACR disabled 8=PLC enabled, PARG disabled, PACF disabled, PACR disabled
1=PLC disabled, PARG disabled, PACF disabled, PACR enabled 9=PLC enabled, PARG disabled, PACF disabled, PACR enabled
2=PLC disabled, PARG disabled, PACF enabled, PACR disabled A=PLC enabled, PARG disabled, PACF enabled, PACR disabled
3=PLC disabled, PARG disabled, PACF enabled, PACR enabled B=PLC enabled, PARG disabled, PACF enabled, PACR enabled
4=PLC disabled, PARG enabled, PACF disabled, PACR disabled C=PLC enabled, PARG enabled, PACF disabled, PACR disabled
5=PLC disabled, PARG enabled, PACF disabled, PACR enabled D=PLC enabled, PARG enabled, PACF disabled, PACR enabled
6=PLC disabled, PARG enabled, PACF enabled, PACR disabled E=PLC enabled, PARG enabled, PACF enabled, PACR disabled
7=PLC disabled, PARG enabled, PACF enabled, PACR enabled F=PLC enabled, PARG enabled, PACF enabled, PACR enabled

720-02-02 xAxx xxxx
Passive Entry Passive Start (PEPS), Pwr Liftgate Control (PLC), ParkAid Switch (PS), Pwr Liftgate Chime (LC)
0=PEPS disabled, PLC disabled, PS disabled, LC Non-DNA 8=PEPS enabled, PLC disabled, PS disabled, LC Non-DNA
1=PEPS disabled, PLC disabled, PS disabled, LC DNA 9=PEPS enabled, PLC disabled, PS disabled, LC DNA
2=PEPS disabled, PLC disabled, PS enabled, LC Non-DNA A=PEPS enabled, PLC disabled, PS enabled, LC Non-DNA
3=PEPS disabled, PLC disabled, PS disabled, LC DNA B=PEPS enabled, PLC disabled, PS disabled, LC DNA
4=PEPS disabled, PLC enabled, PS disabled, LC Non-DNA C=PEPS enabled, PLC enabled, PS disabled, LC Non-DNA
5=PEPS disabled, PLC enabled, PS disabled, LC DNA D=PEPS enabled, PLC disabled, PS disabled, LC DNA
6=PEPS disabled, PLC enabled, PS enabled, LC Non-DNA E=PEPS enabled, PLC enabled, PS enabled, LC Non-DNA
7=PEPS disabled, PLC enabled, PS enabled, LC DNA F=PEPS enabled, PLC enabled, PS enabled, LC DNA

720-04-02 xxxx x2xx (My AB data: 4341 12C3) Park Aid Fault Warning Rear and Front: 0=disabled, 2=enabled

These were all the codes I could find related to the rear park aid system.

Bingo!! Thanks man!!
