Question: Fuel Pump Assy Bottom Line?

DougS550

Well-Known Member
Joined
May 18, 2020
Threads
317
Messages
4,735
Reaction score
2,703
Location
Fishers, Indiana
First Name
Doug
Vehicle(s)
2019 GT Premium A10 PP1 Whipple Stage 2
I must be getting tired, and was wondering, what exactly does the fuel Pump assembly bottom fuel line do?.
Sponsored



Chris.C

Member
Joined
Dec 9, 2023
Threads
0
Messages
10
Reaction score
10
Location
DFW
First Name
Chris
Vehicle(s)
2015 GTPP Comp Orange
Going to guess its to draw fuel from the opposite side of the saddle tank?

OP
OP
DougS550

DougS550

Well-Known Member
Joined
May 18, 2020
Threads
317
Messages
4,735
Reaction score
2,703
Location
Fishers, Indiana
First Name
Doug
Vehicle(s)
2019 GT Premium A10 PP1 Whipple Stage 2
Going to guess its to draw fuel from the opposite side of the saddle tank?
That's what I was thinking, but how is my question, draw fuel from the passenger side into the fuel hat/bucket assembly. No big deal, was just wondering. Thanks


LOL WUT

Well-Known Member
Joined
Aug 31, 2015
Threads
45
Messages
1,859
Reaction score
2,615
Location
Illinois
Vehicle(s)
19 GT
That hose I believe goes to a transfer pump on the passenger side of the tank.

OP
OP
DougS550

DougS550

Well-Known Member
Joined
May 18, 2020
Threads
317
Messages
4,735
Reaction score
2,703
Location
Fishers, Indiana
First Name
Doug
Vehicle(s)
2019 GT Premium A10 PP1 Whipple Stage 2
That hose I believe goes to a transfer pump on the passenger side of the tank.
And that was another thing which crossed my mind. I was wondering if the sender unit on the passenger side was also a pump which pumps fuel to the fuel hat/bucket assembly. It's just I couldn't find where it states or shows that. I will try to find my helms manual CD. Or just ask the Ford mechanic.


Sponsored

engineermike

Well-Known Member
Joined
Jul 15, 2018
Threads
31
Messages
6,188
Reaction score
6,449
Location
La
Vehicle(s)
2018 GTPP A10
There’s no pump on the passengers side of the saddle tank. It’s just a line that pulls fuel over using the venturi/siphon.


HKusp

Well-Known Member
Joined
Jul 22, 2021
Threads
37
Messages
2,227
Reaction score
2,875
Location
Hampton, Md.
First Name
Jason
Vehicle(s)
2018 Mustang GT

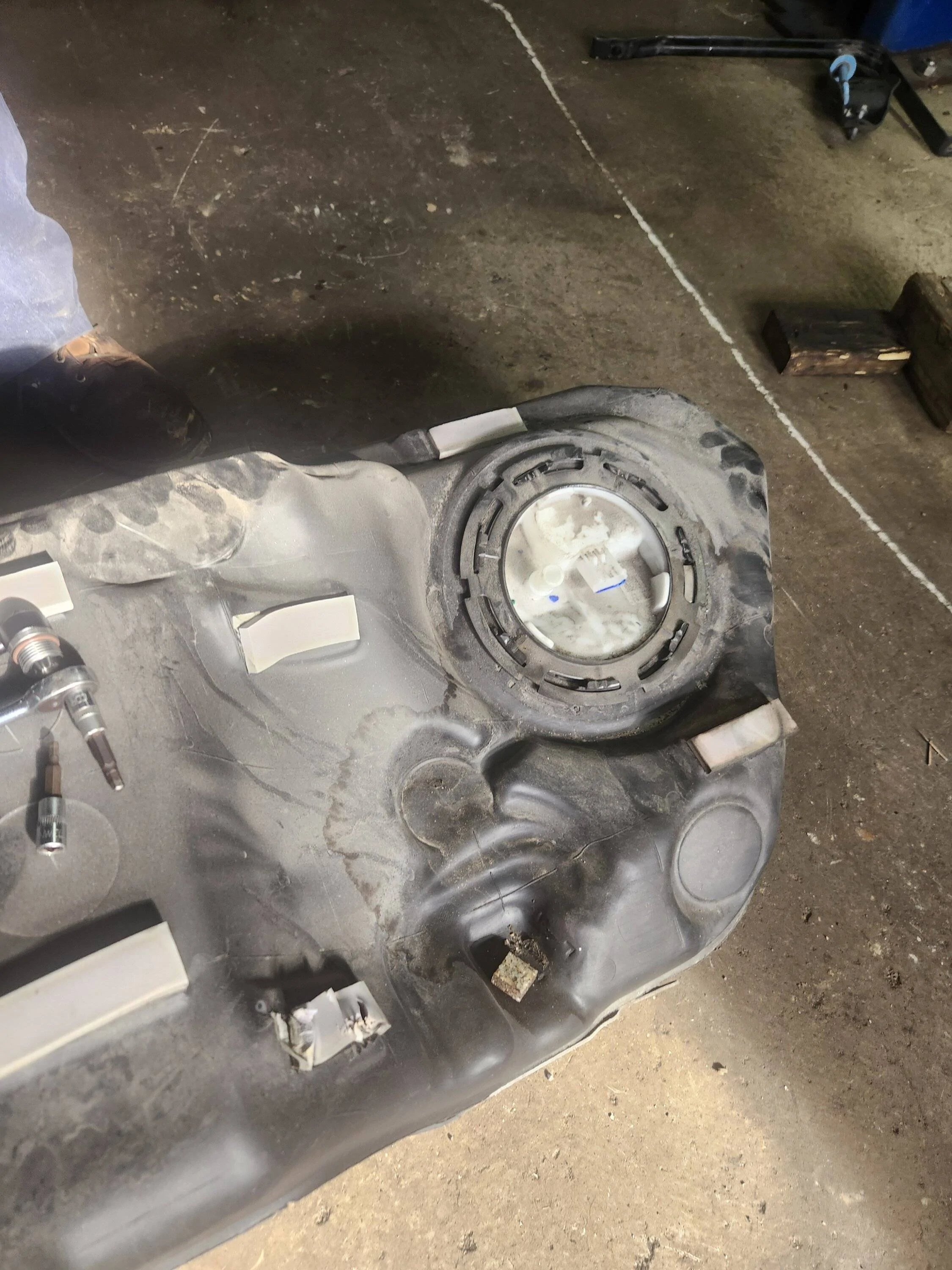

Here is the the top of the transfer pump on the passenger side of the tank. So you can get a visual.


OP
OP
DougS550

DougS550

Well-Known Member
Joined
May 18, 2020
Threads
317
Messages
4,735
Reaction score
2,703
Location
Fishers, Indiana
First Name
Doug
Vehicle(s)
2019 GT Premium A10 PP1 Whipple Stage 2
Here is the the top of the transfer pump on the passenger side of the tank. So you can get a visual.

So is it an actual pump which tranfers fuel to the drivers side fuel pump hat/bucket assembly? And not a crossfeed created by a venturi vacuum?.
Also, when people install a return style fuel system and they use a fuel hat assembly which does not have the bucket, do they just cap that line coming from the passenger side cross feed pump?
I really need to find my Helms CD.


HKusp

Well-Known Member
Joined
Jul 22, 2021
Threads
37
Messages
2,227
Reaction score
2,875
Location
Hampton, Md.
First Name
Jason
Vehicle(s)
2018 Mustang GT
So is it an actual pump which tranfers fuel to the drivers side fuel pump hat/bucket assembly? And not a crossfeed created by a venturi vacuum?.
I really need to find my Helma CD.
I believe so. It has a wiring harness that goes to it as well as what looks to be a fuel line, though I believe that line is actually a vent line that goes to the evap system. There also is a 4 wire connector, I would think that there is more going on than just a fuel level sending unit, but I could be wrong.

OP
OP
DougS550

DougS550

Well-Known Member
Joined
May 18, 2020
Threads
317
Messages
4,735
Reaction score
2,703
Location
Fishers, Indiana
First Name
Doug
Vehicle(s)
2019 GT Premium A10 PP1 Whipple Stage 2
I believe so. It has a wiring harness that goes to it as well as what looks to be a fuel line, though I believe that line is actually a vent line that goes to the evap system. There also is a 4 wire connector, I would think that there is more going on than just a fuel level sending unit, but I could be wrong.
OK, I'm heading down to my Ford dealer to talk with a mechanic and get a copy of the unit. I'm going to just buy another Helms manual CD. They are just to valuable for the work I am doing. Thanks


Sponsored

HKusp

Well-Known Member
Joined
Jul 22, 2021
Threads
37
Messages
2,227
Reaction score
2,875
Location
Hampton, Md.
First Name
Jason
Vehicle(s)
2018 Mustang GT
Please let me know what you find out about that specifically as I am curious as well.


SheepDog

Well-Known Member
Joined
Nov 3, 2018
Threads
26
Messages
4,193
Reaction score
5,257
Location
Colorado
First Name
Dax
Vehicle(s)
Iconic Silver 2022 MACH 1 HP, 2023 F150 Powerboost
do they just cap that line coming from the passenger side cross feed pump?

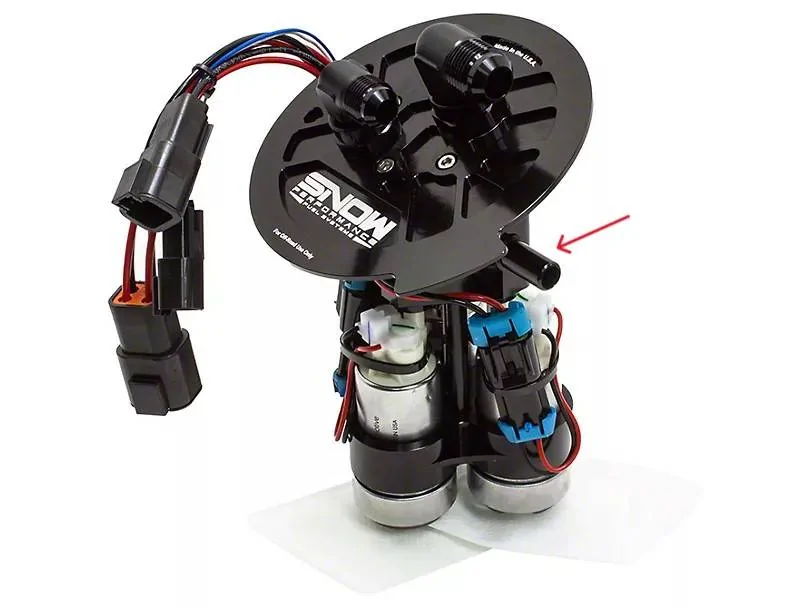

The open bottom hanger type pump assemblies still use the venturi system to suck fuel from the passenger side, via the OEM cross over tube. There is no pump on the passenger side, just a sending unit and the pickup for the venturi.

Fuel hat.webp


Fuel sender Passenger side.webp


engineermike

Well-Known Member
Joined
Jul 15, 2018
Threads
31
Messages
6,188
Reaction score
6,449
Location
La
Vehicle(s)
2018 GTPP A10
And gt500 has two lines that cross to the left side but still no pump there.

OP
OP
DougS550

DougS550

Well-Known Member
Joined
May 18, 2020
Threads
317
Messages
4,735
Reaction score
2,703
Location
Fishers, Indiana
First Name
Doug
Vehicle(s)
2019 GT Premium A10 PP1 Whipple Stage 2
The open bottom hanger type pump assemblies still use the venturi system to suck fuel from the passenger side, via the OEM cross over tube. There is no pump on the passenger side, just a sending unit and the pickup for the venturi.

Fuel hat.jpg


Fuel sender Passenger side.jpg
That pretty much explains my question. Thanks everyone for your help.
