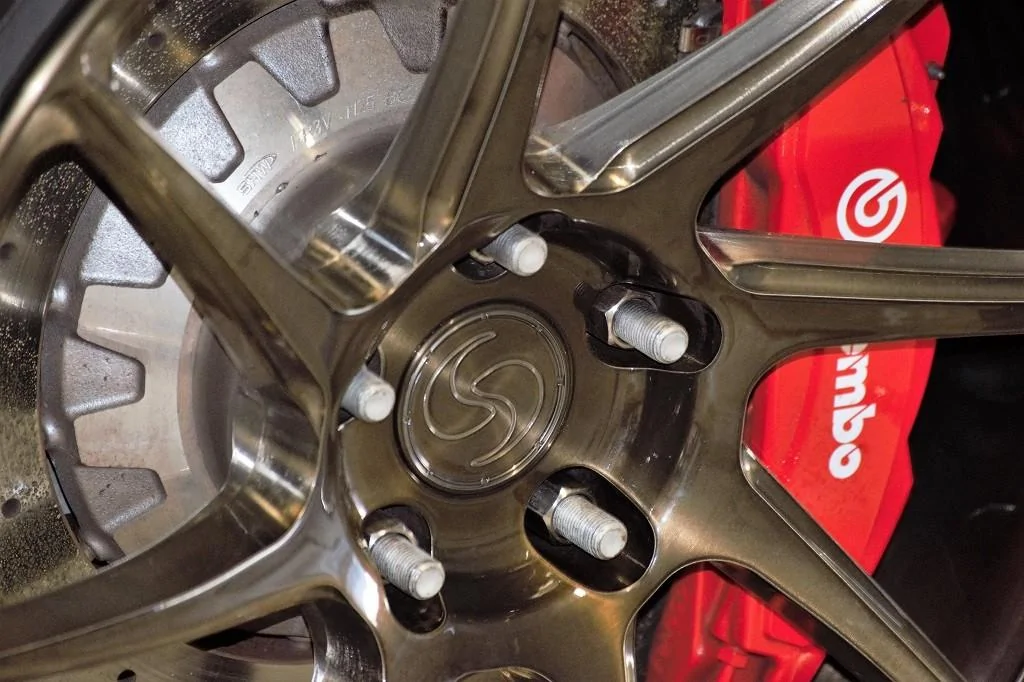

Well, it all starts with a problem. For a while now many of the GT350R owners switching to aftermarket wheels found themselves dealing with the extended front studs protruding out much further than the rear studs. For the R It all stems from the pad used on the OEM Carbon Fiber wheel. I suspect the front of the GT500 will also include extended studs to accommodate the carbon wheel design. The pad is much thicker up front and takes up the space from the extended stud. All aftermarket wheels use a thinner pad, so this is an issue for any enthusiast owner switching away from the OEM wheel. This also happens with GT500/GT350/S550 owners running extended front studs. When you swap to an aftermarket wheel, that stud requires you to run an open-ended lug nut. The end result is front and rear lug nuts that no longer sit at the same depth as OEM. Even from the factory the GT500 lug nuts sit deep inside the lug pocket, and at a different depth. For many it is aesthetically unappealing, and causes difficulty finding a lug nut to run front and rear.




Since I started with Signature Wheel I have had several customers asking about lug nut options for the extended studs on the R. As time went on it was discovered that in many situations the OEM lug nuts would distort the chrome cap, swell under heat, or had too large of a head to work on aftermarket wheel setups. The end result was the development of titanium lug nuts to solve these concerns. You can read in depth on all the benefits of the titanium, but the main points are the reduction in weight, corrosion resistance, increase in strength, and resilience to heat swelling.

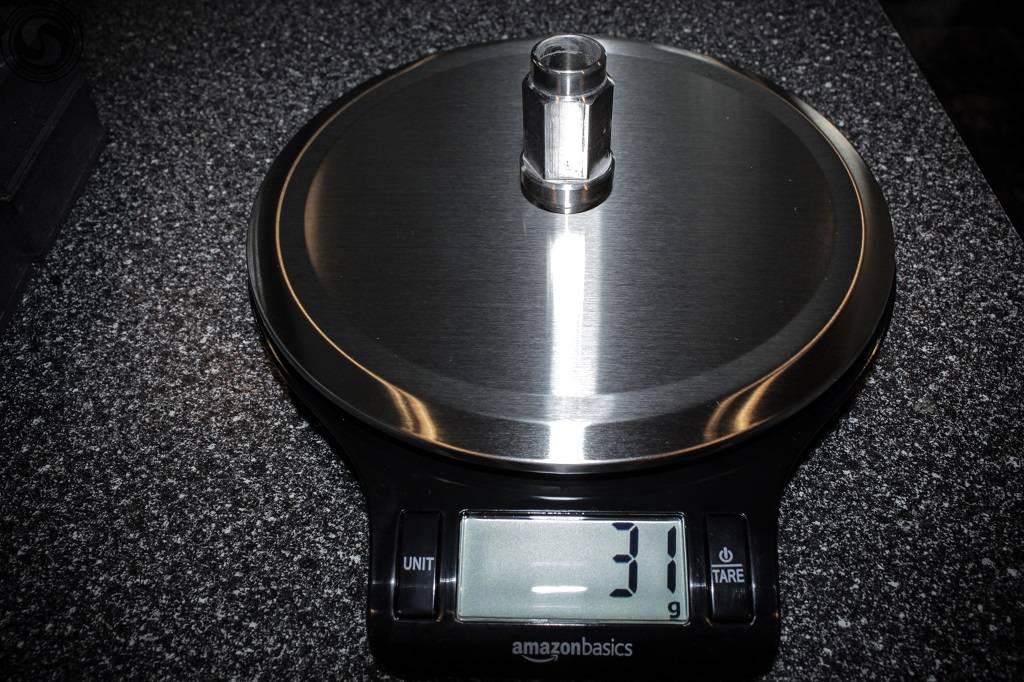

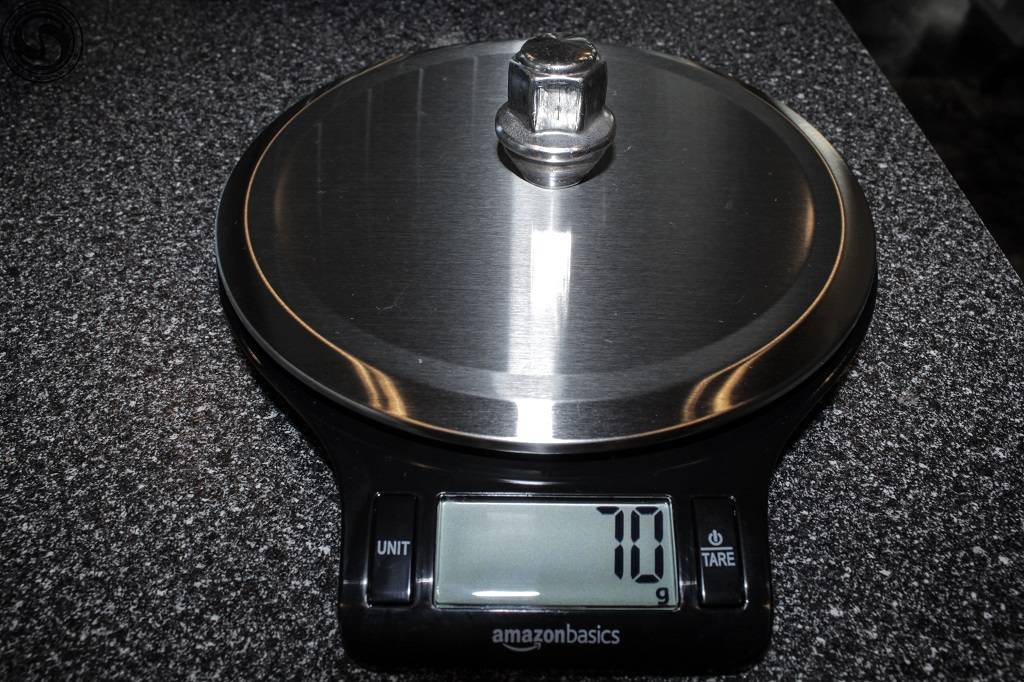

What was developed is intended to be the last lug nut you will ever need. These Exhibitions Of Speed titanium lug nuts are specifically designed to solve all of the issues S550 enthusiasts have ever had. Specific lengths are used front and rear to allow the lug nuts to sit at the same depth. Open ends are employed to work with any brand M14 stud you plan to use on the car. A raised engagement point ensures you don't demolish the inside of you lug nut recess trying to access with a deep socket. Standard 19mm hex heads ensure proper clearance at the lug nut wall, and eliminate the need for any specialty sockets. A 50% reduction in weight makes sure you are totally racecar. Complete sets of short lug nuts can be special made for those seeking to run square wheel setups with spacers.

These lug nuts were specifically designed to work with our Signature Wheel. Nothing like these exist on the market for the S550. Much work from several awesome partners brought these to being because I love you guys, and nobody will ever love you like I do. These have also been shown to work will with other brand wheels, but you cant go putting ketchup on steak. Cost has been kept down to $430 shipped for these, and if you look around at other titanium brands you will see it is well placed in the market. We have had roughly 200 sets go out over the past 3 years and never had an issue. Street them, track them, off-road them, or use them to impress girls at the bar when you show how light your nuts are.

I build small batches (30-40 sets) approximately twice a year so these are fairly rare bids. More are built according to how many place 50% deposits to have them ordered. I am planning a new batch for March and they take about 60 days to complete. They are all raw titanium to keep costs down on small batch plating/coating, plus they are corrosion resistant. Some black caps are in development, but not quite ready for market.

If you have questions please ask, and you can also see the existing thread on them linked below in the GT350 section. If you are interested in the next batch please comment below or DM me your email address.

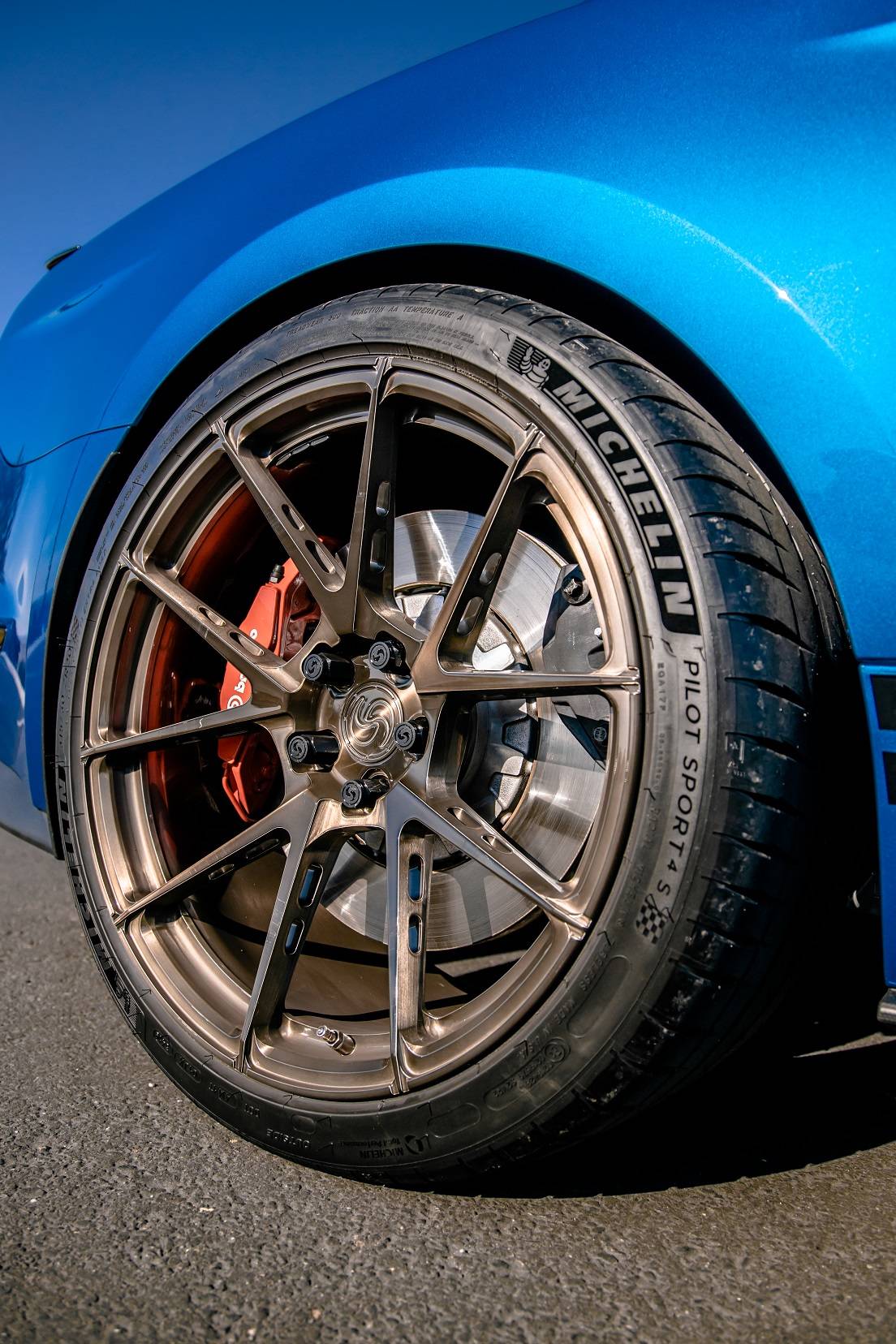

SV801 GT500 Brushed Bronze Tinted Encko (26).jpg

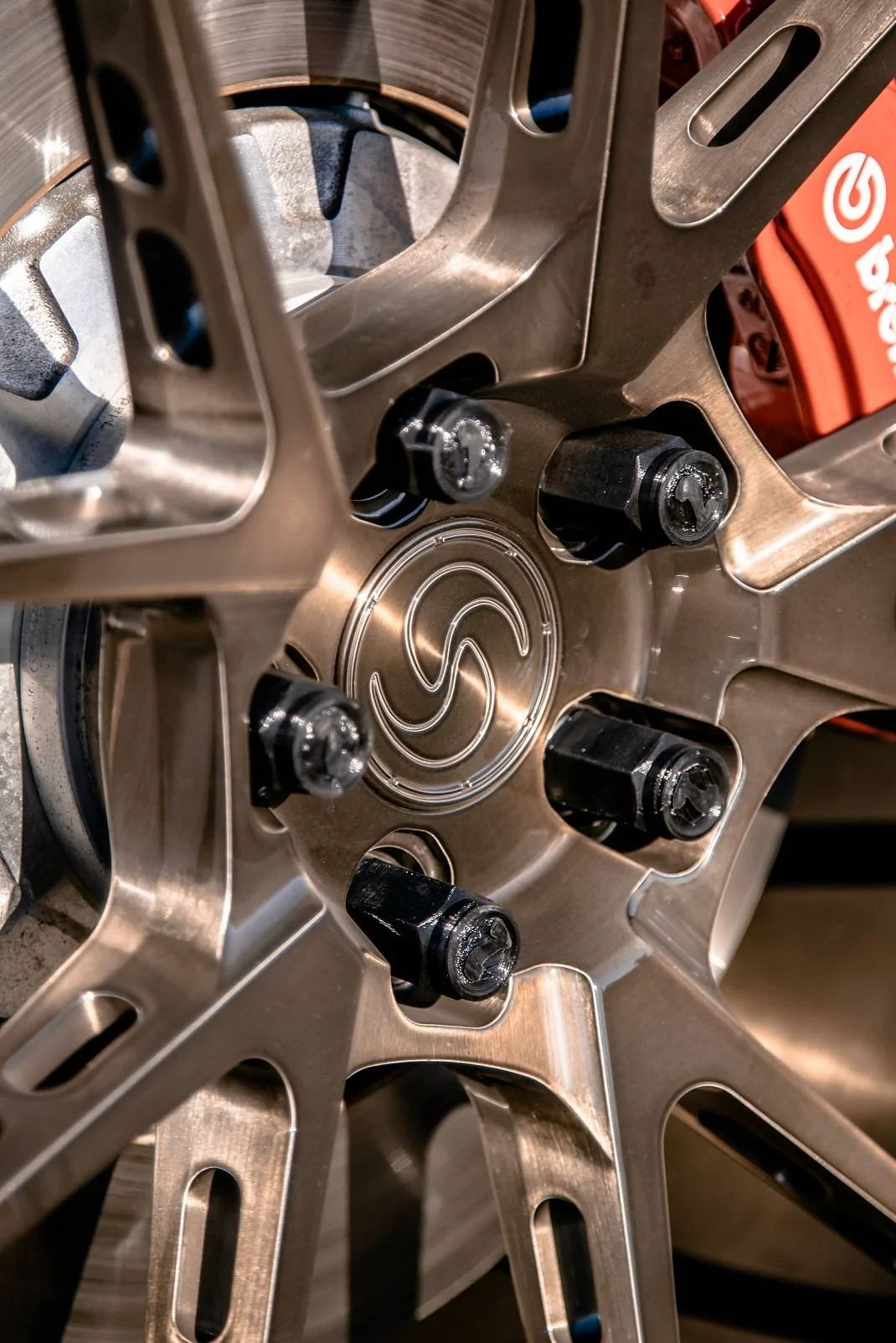

SV801 GT500 Brushed Bronze Tinted Encko (27).jpg

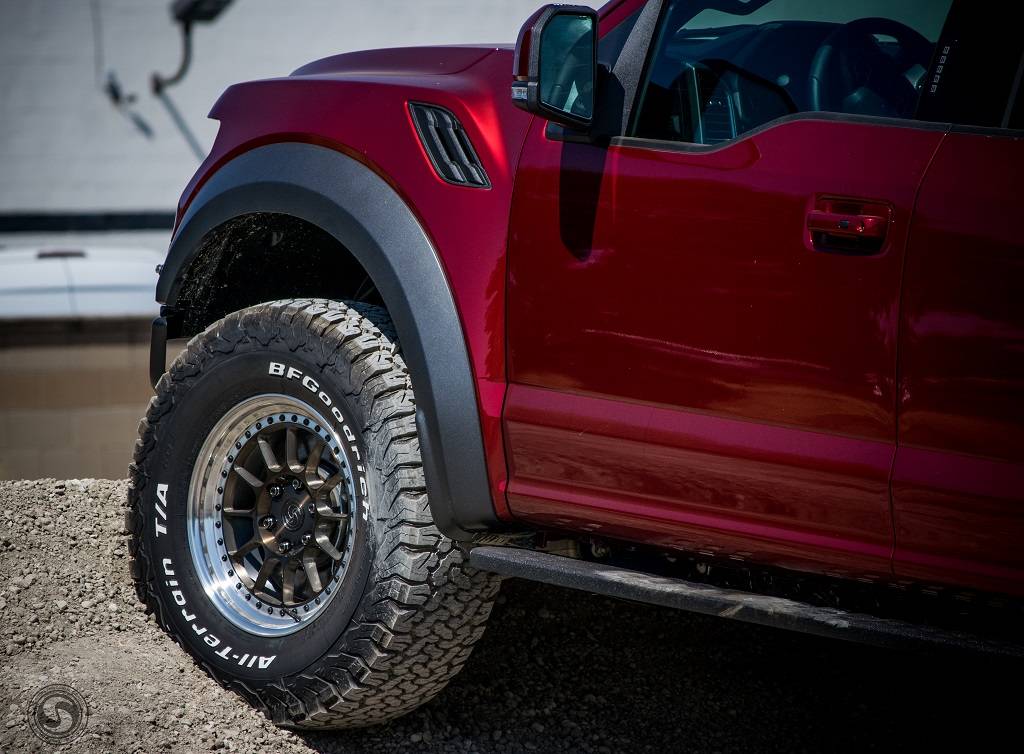

Flagship FOUR Raptor (9 of 12).jpg

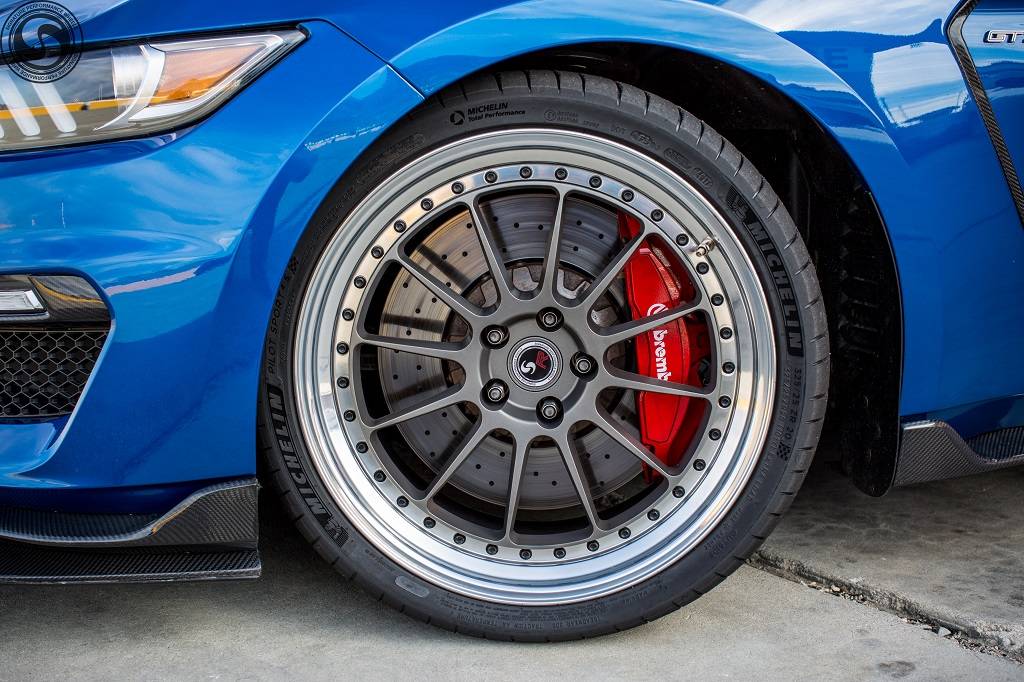

Flagship FOUR Willow Springs by Rob Gluckman (17 of 31) (2).jpg
SV108 GT350R Jorge Fab Fords 19  (5 of 8).jpg
SV302S GT350 Scott H by cristiferallen (10).jpg

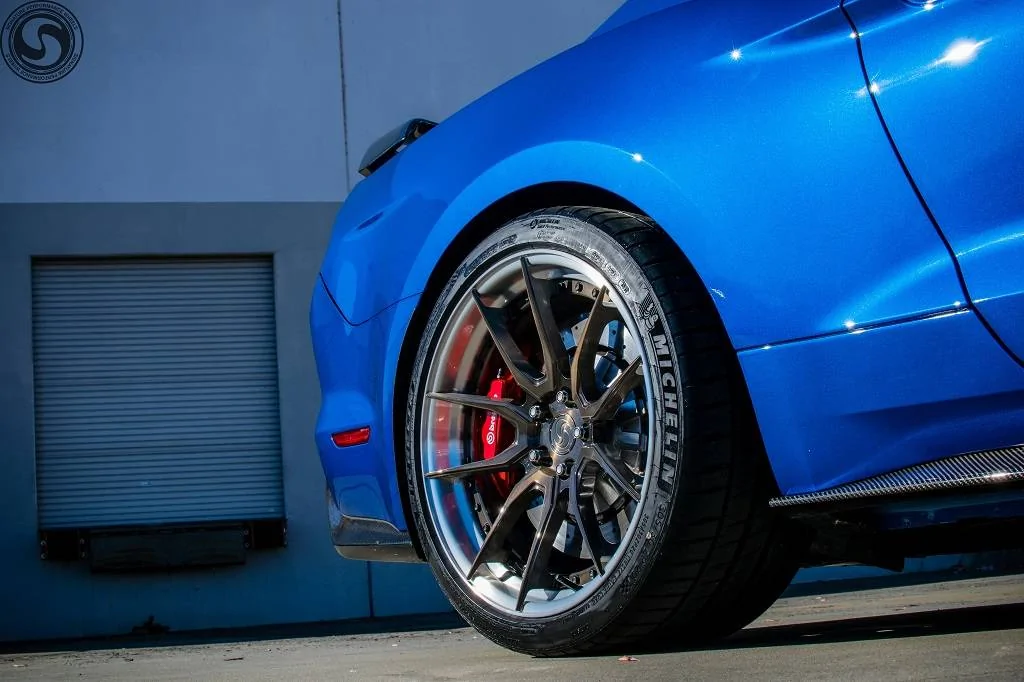

SV302S GT350R  Mounted (7).jpg

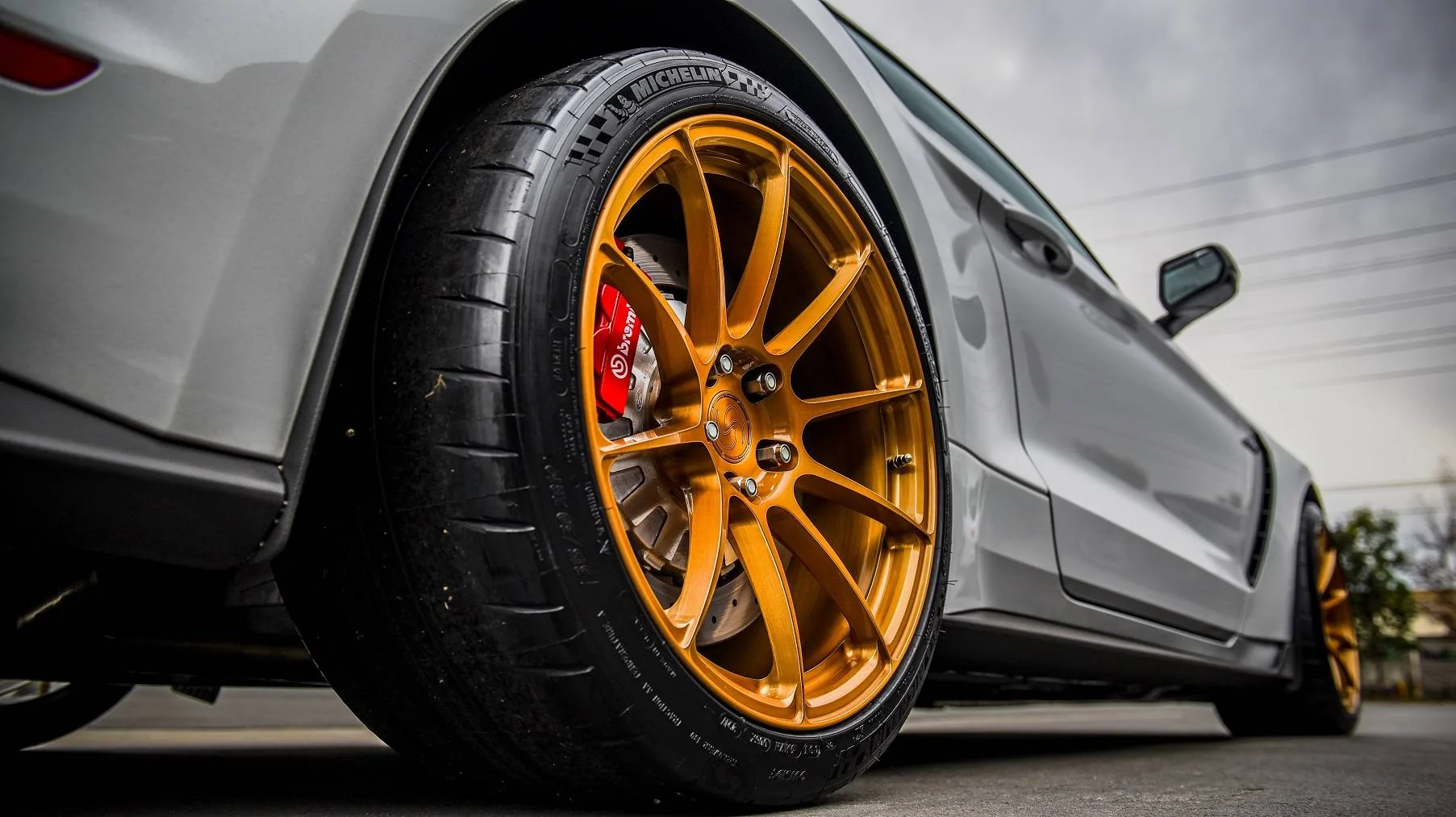

SV501 Deep Drop Cup Sahara Brushed Sand GT350R Christian 10-5.jpg
SV501 Deep Drop Cup Sahara Brushed Sand GT350R Christian 10-21.jpg

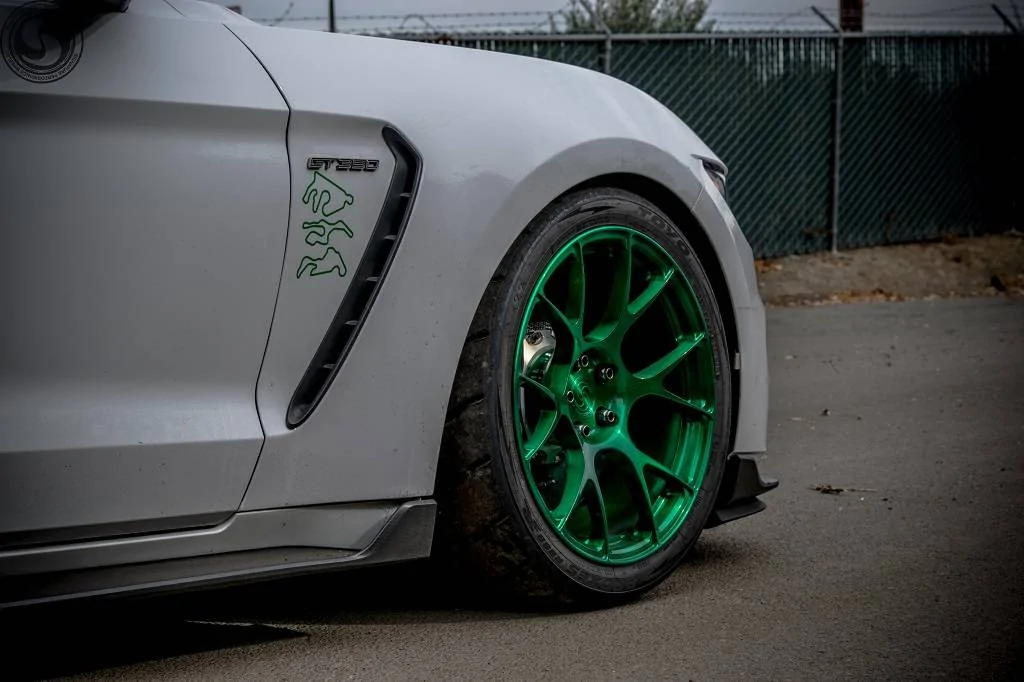

SV503 GT350 Crystal Green Dale K (9 of 10).jpg

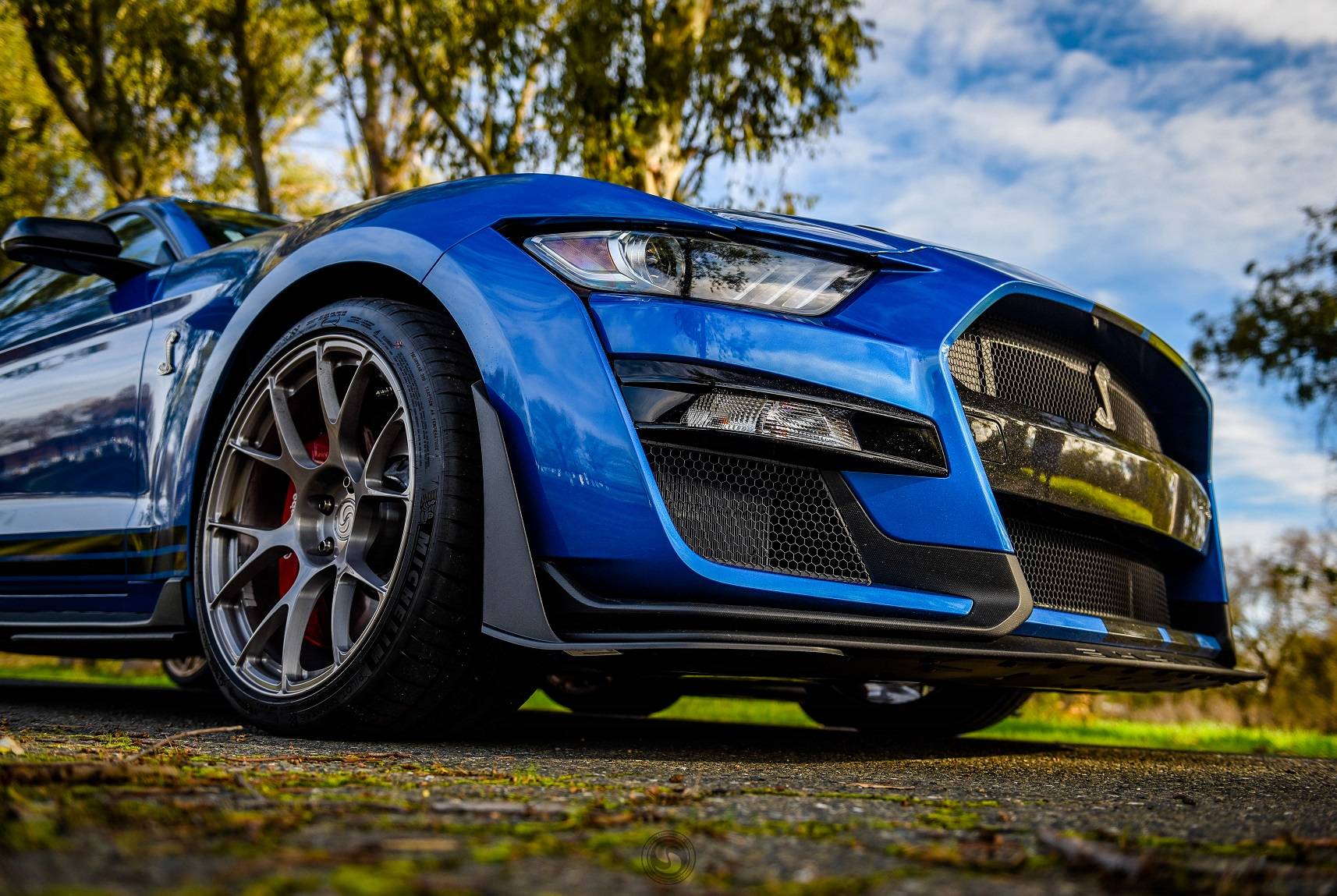

SV503 GT500 (1).jpg

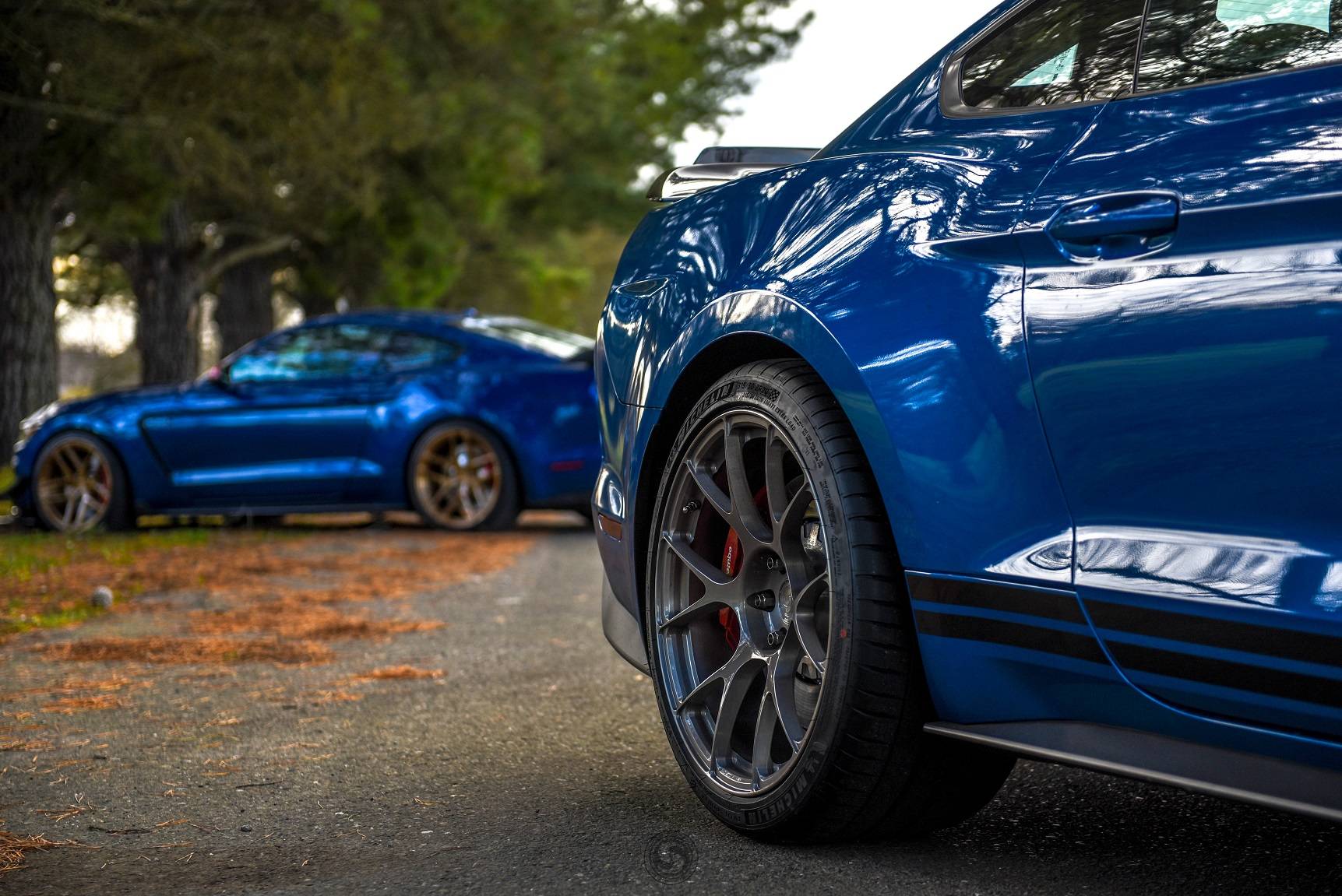

SV503 GT500 (4).jpg

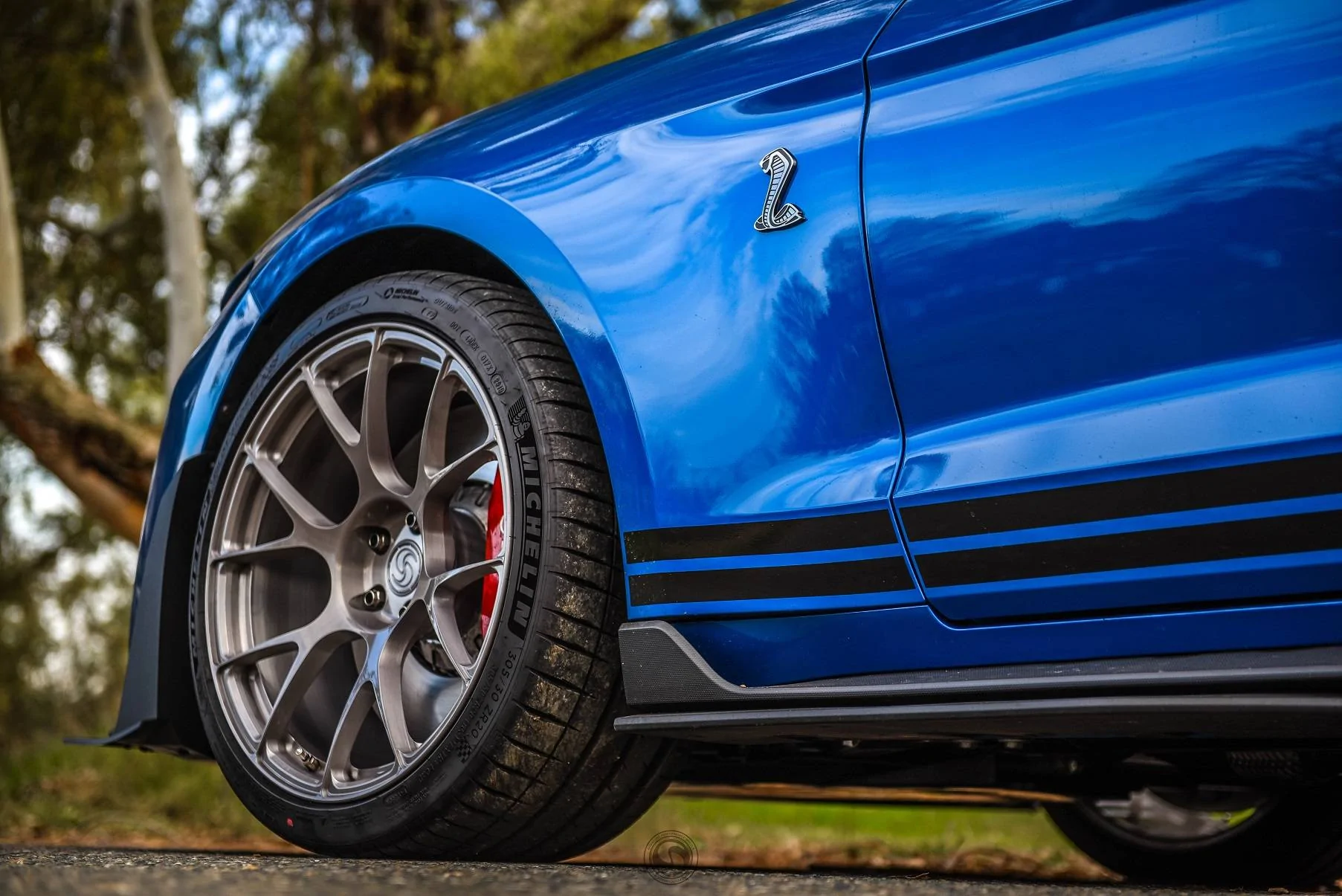

SV503 GT500 (14).jpg

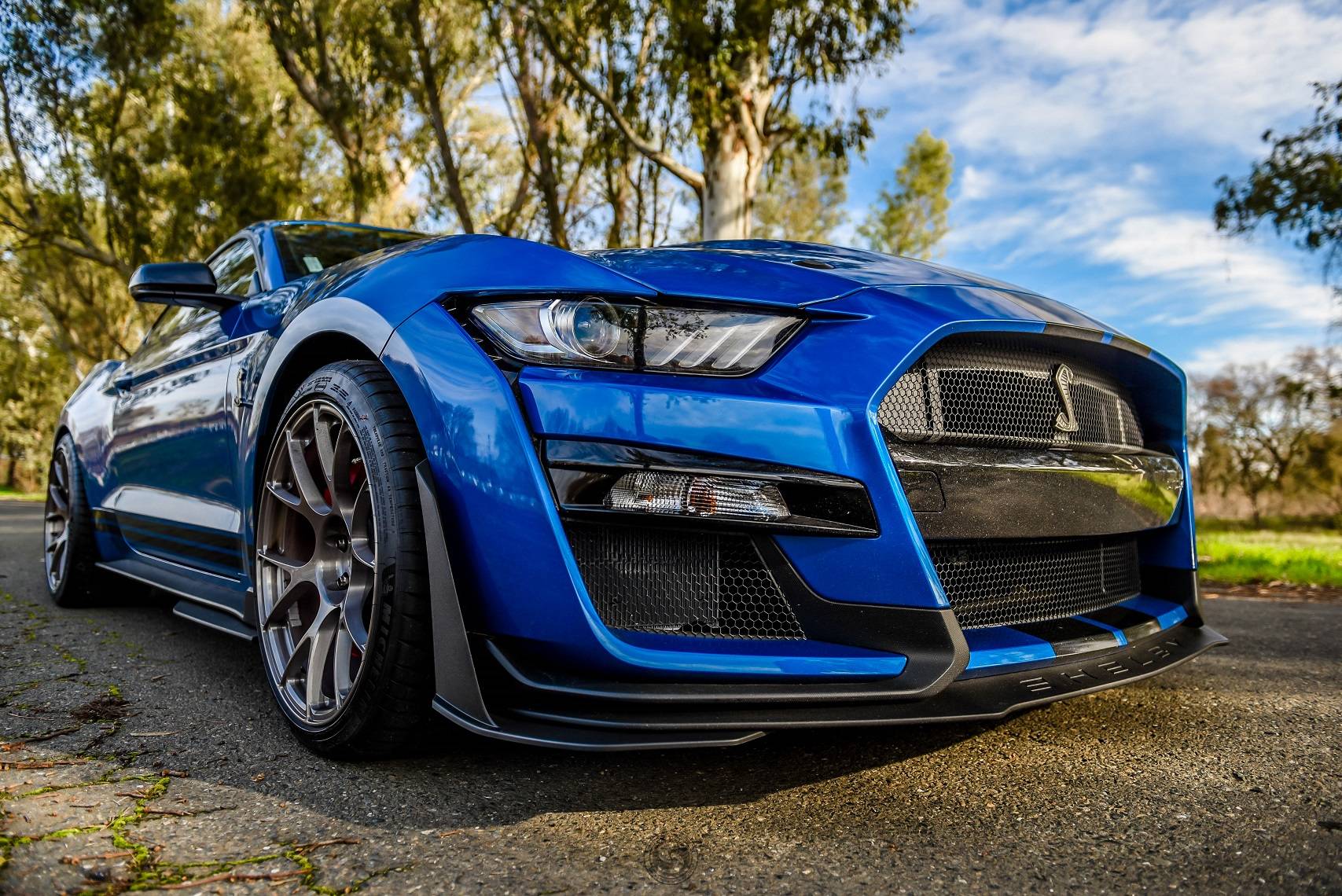

SV503 GT500 (20).jpg

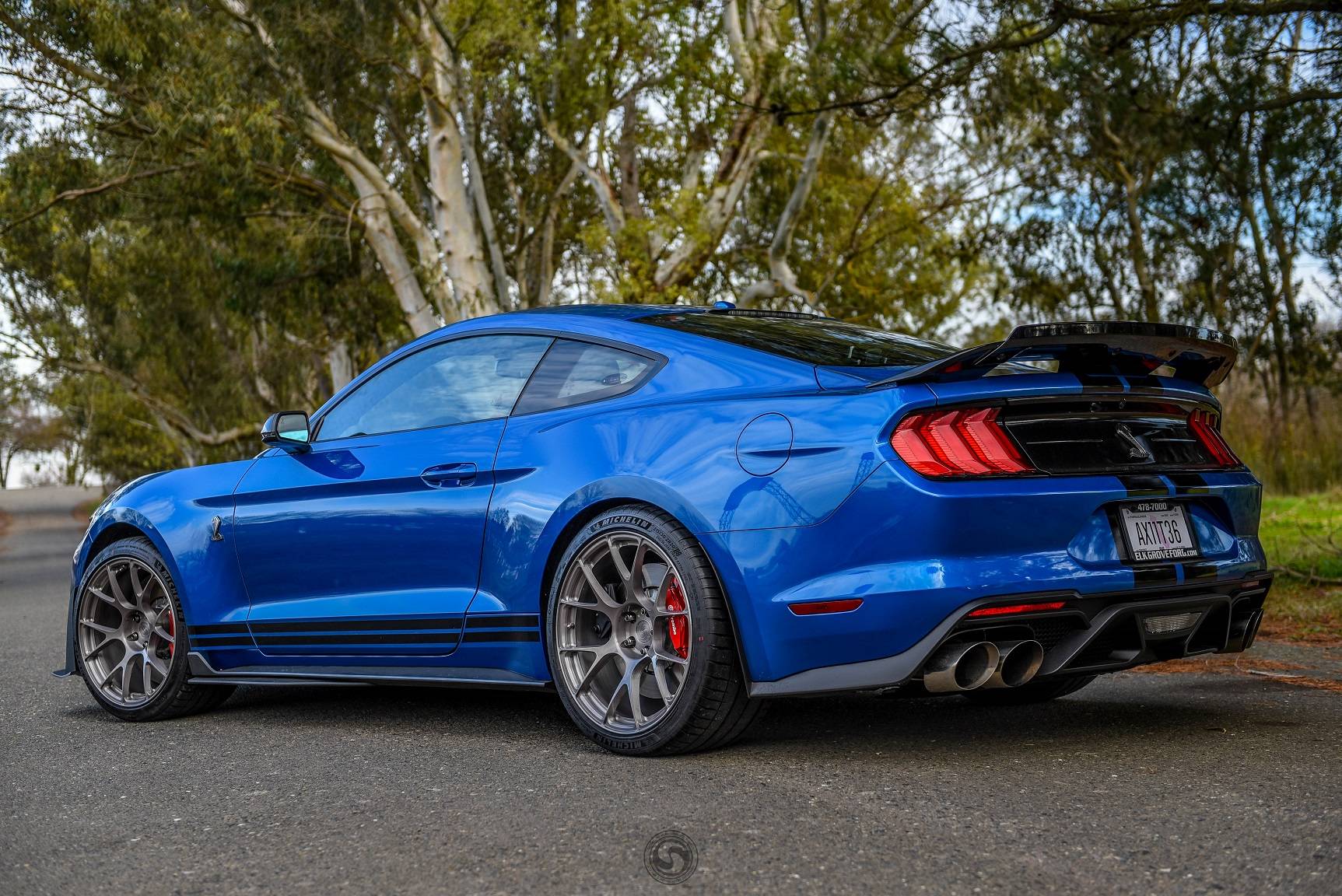

SV503 GT500 (23).jpg

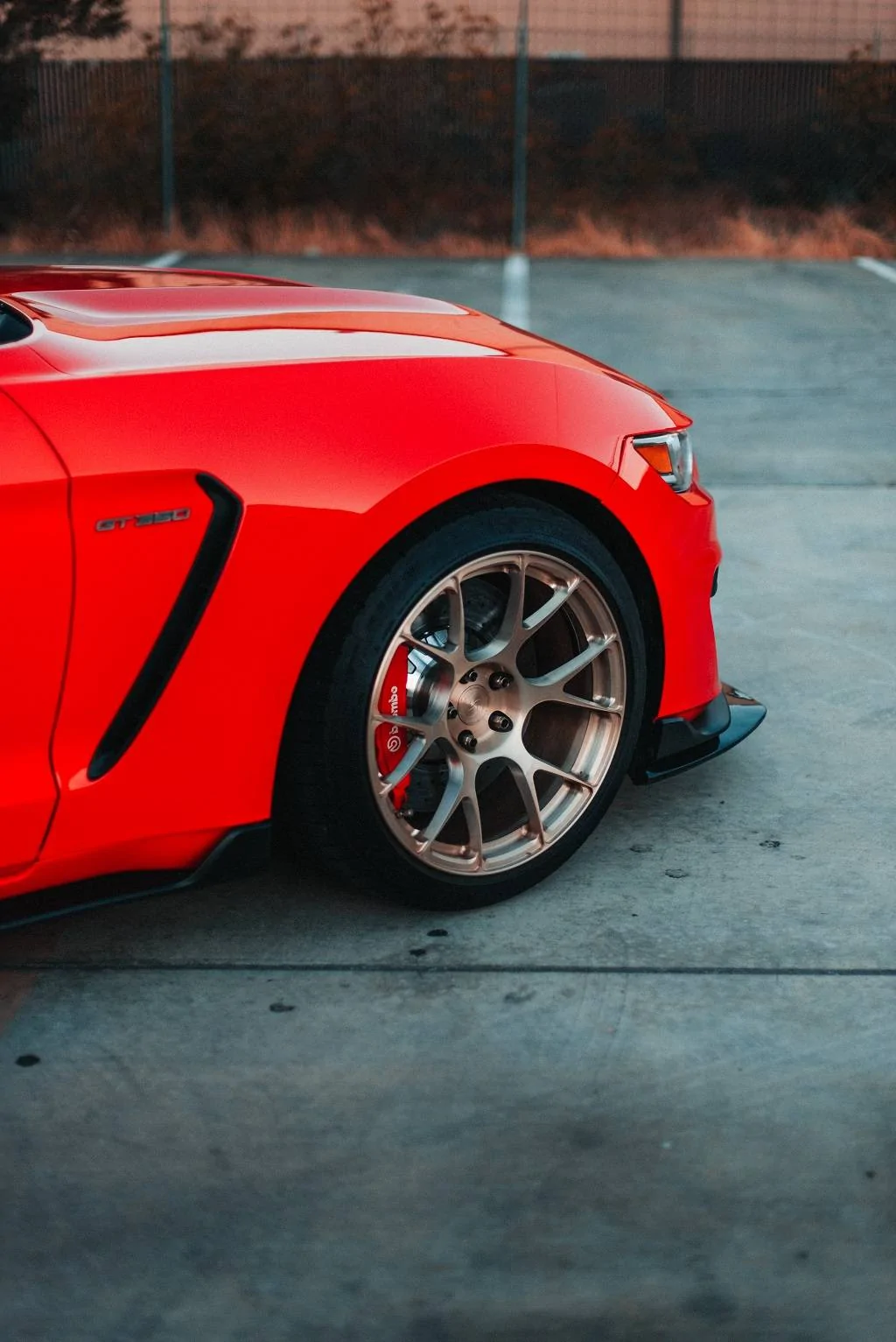

SV503 Royal Gold GT350 Byron (30).jpg

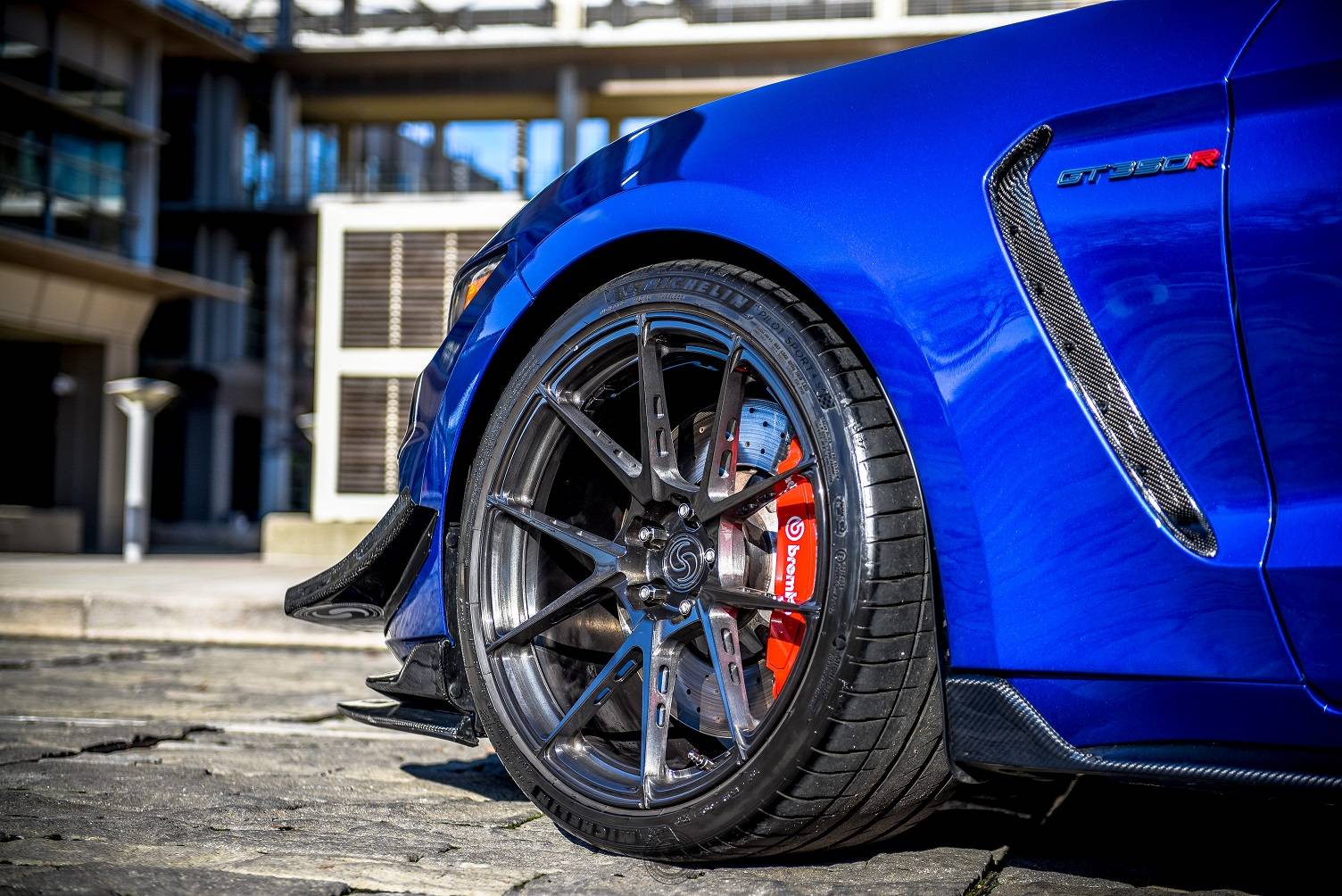

SV801 GT350R Candards.jpg
SV801 GT500 Landscape JVizualz (12).jpg

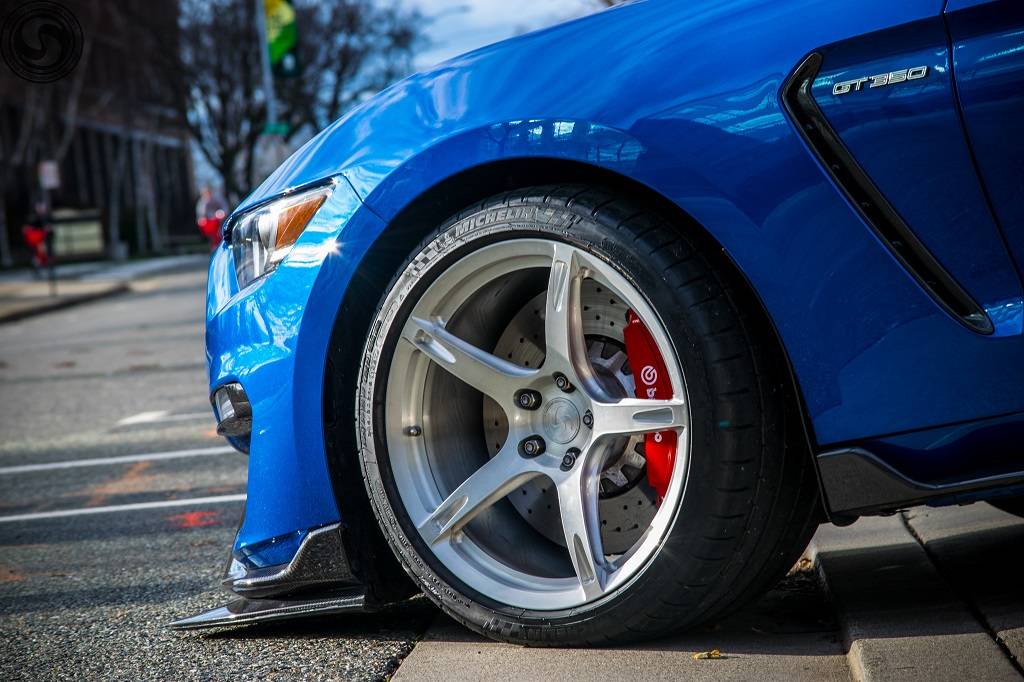

SV901 GT350R-4.jpg

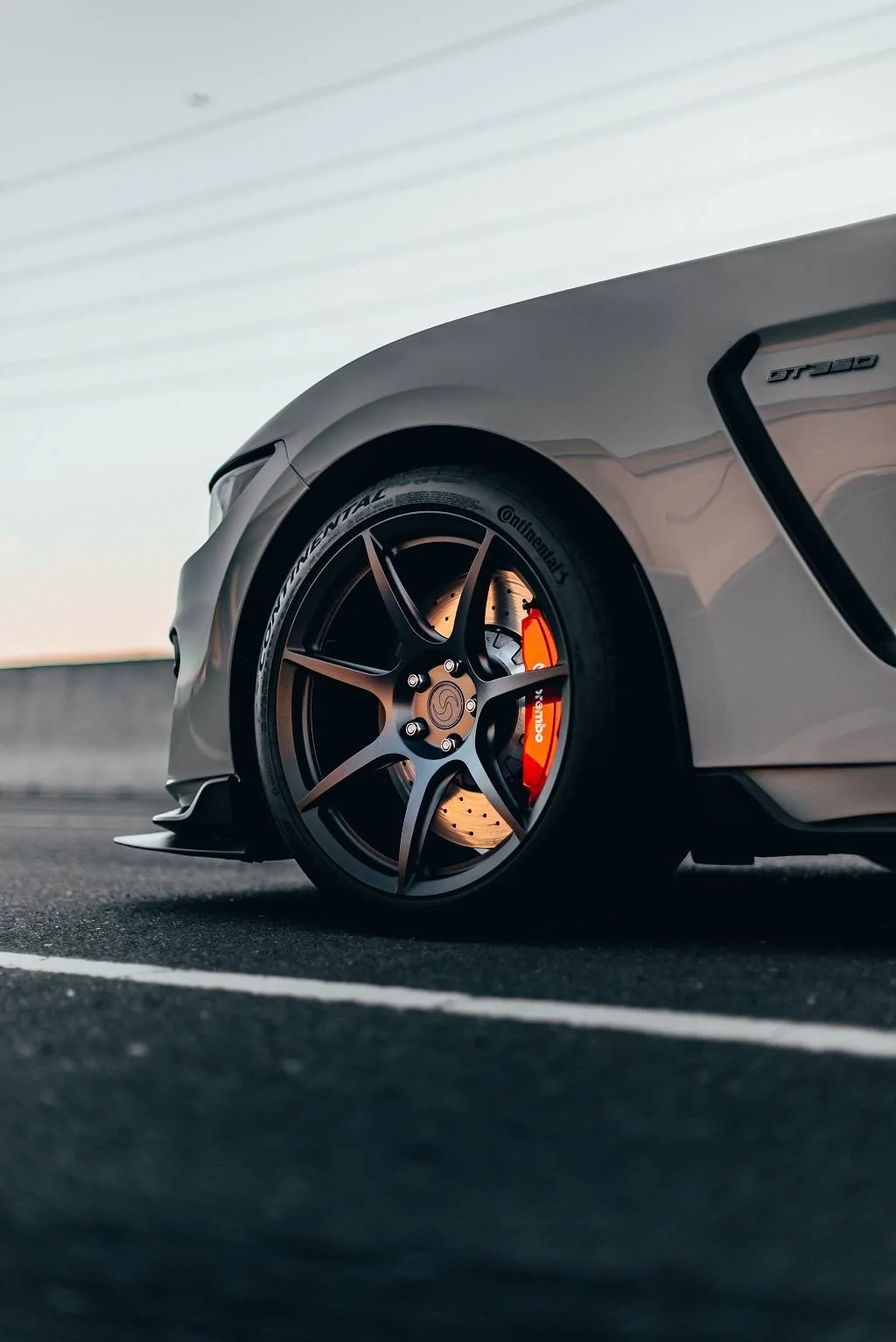

SV902 GT350R Cisco by J Vizualz (32).jpg
SV902 GT350R Flatrock Matt (4 of 11).jpg

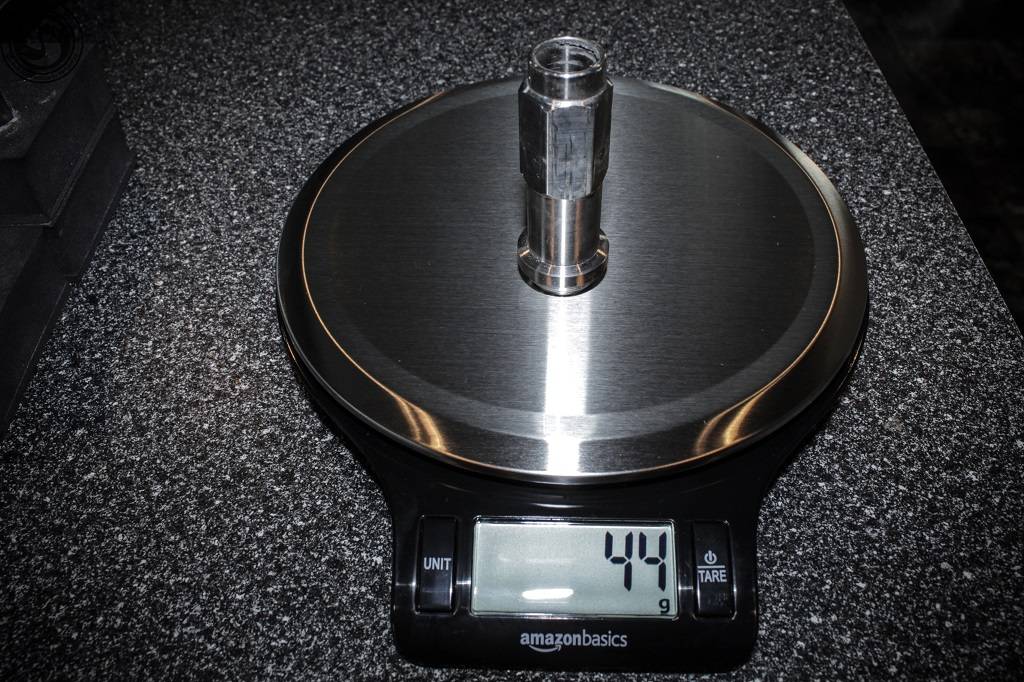

Titanium Lug Nut VS OEM Weight (1 of 9).jpg
Titanium Lug Nut VS OEM Weight (2 of 9).jpg
Titanium Lug Nut VS OEM Weight (6 of 9).jpg

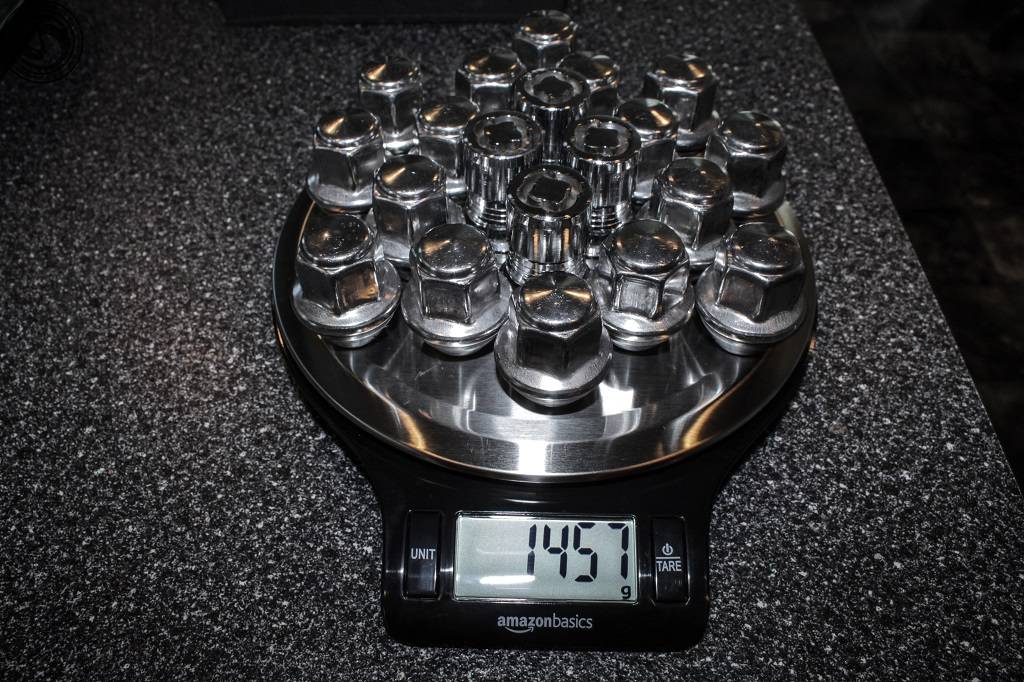

Titanium Lug Nut VS OEM Weight (9 of 9).jpg

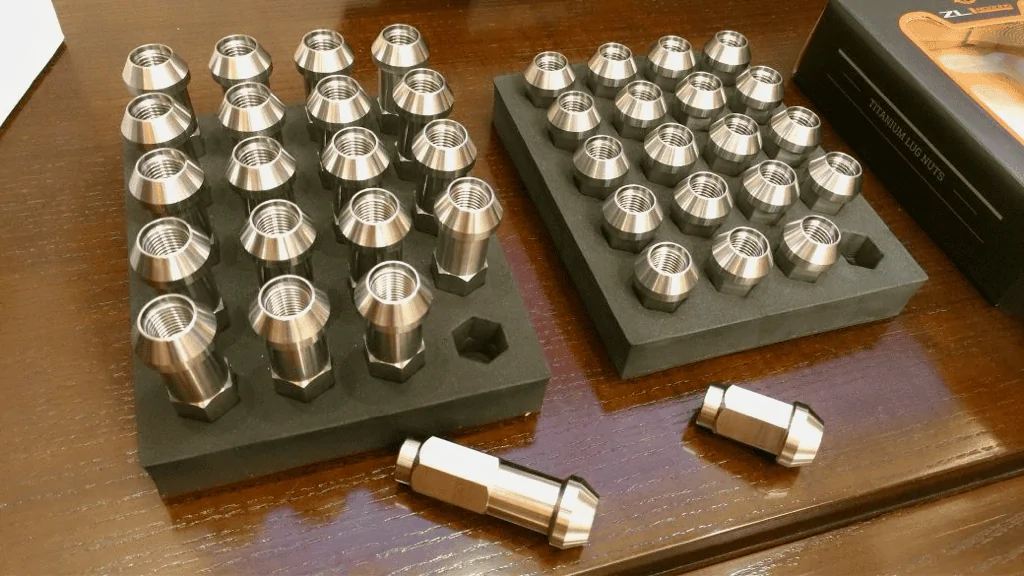

Titanium Lug Nuts.png
Sponsored


OP
OP
50 Deep

50 Deep

Signature Wheel Ford Rep
Gold Sponsor
Joined
Dec 8, 2015
Threads
225
Messages
4,784
Reaction score
6,989
Location
Sacramento, CA
Website
www.signaturewheel.com
Vehicle(s)
2017 GT350R

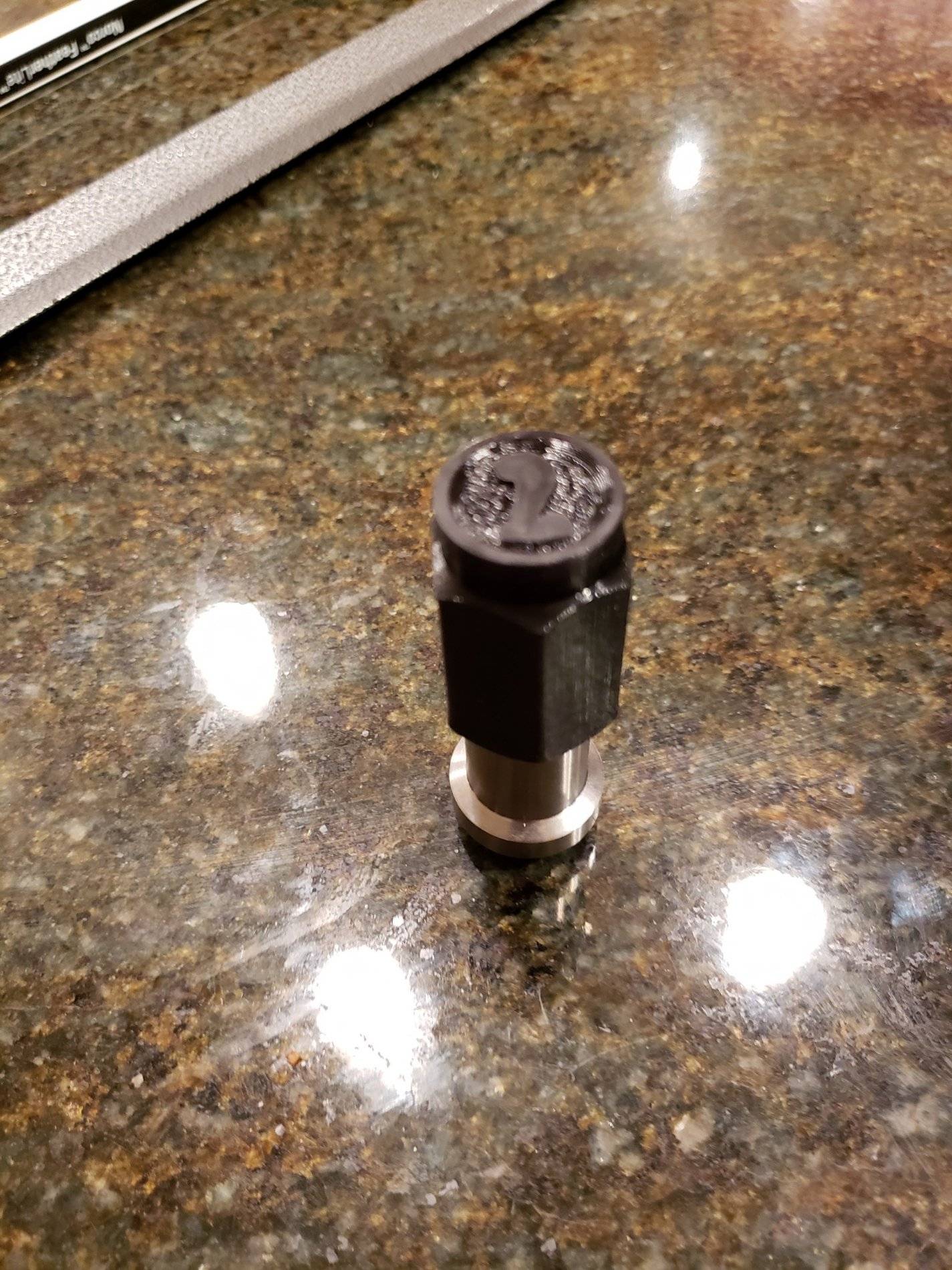

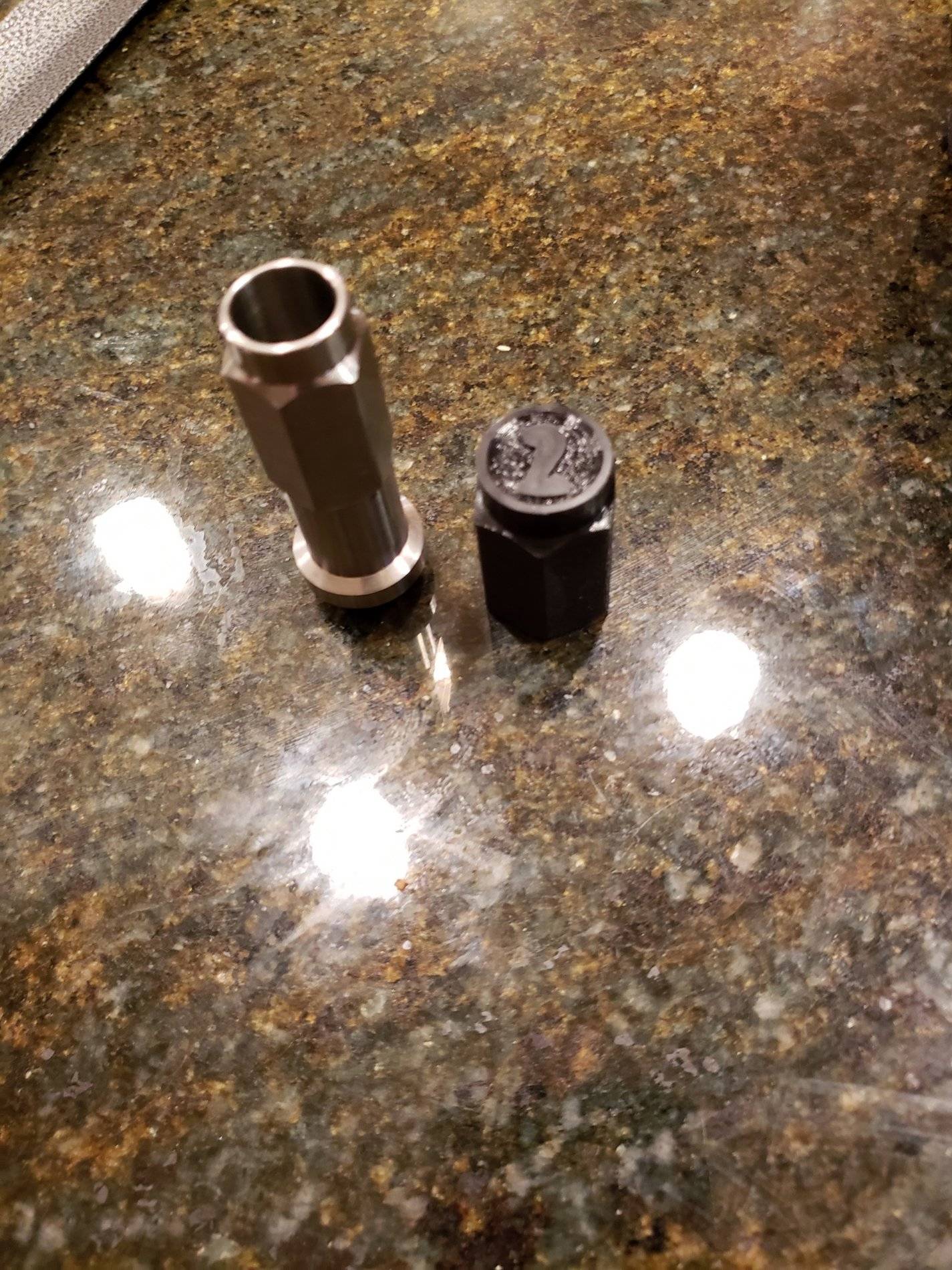

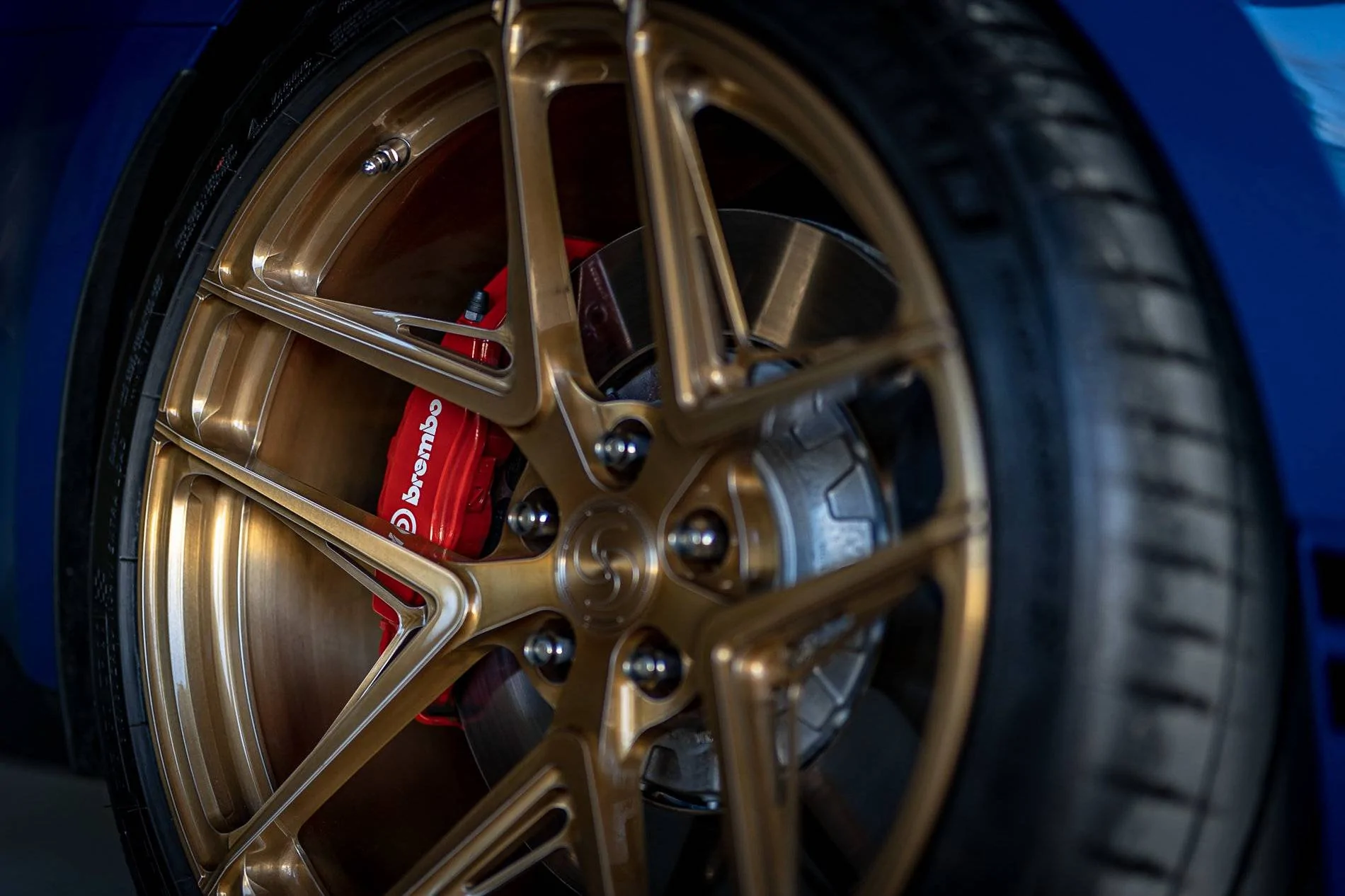

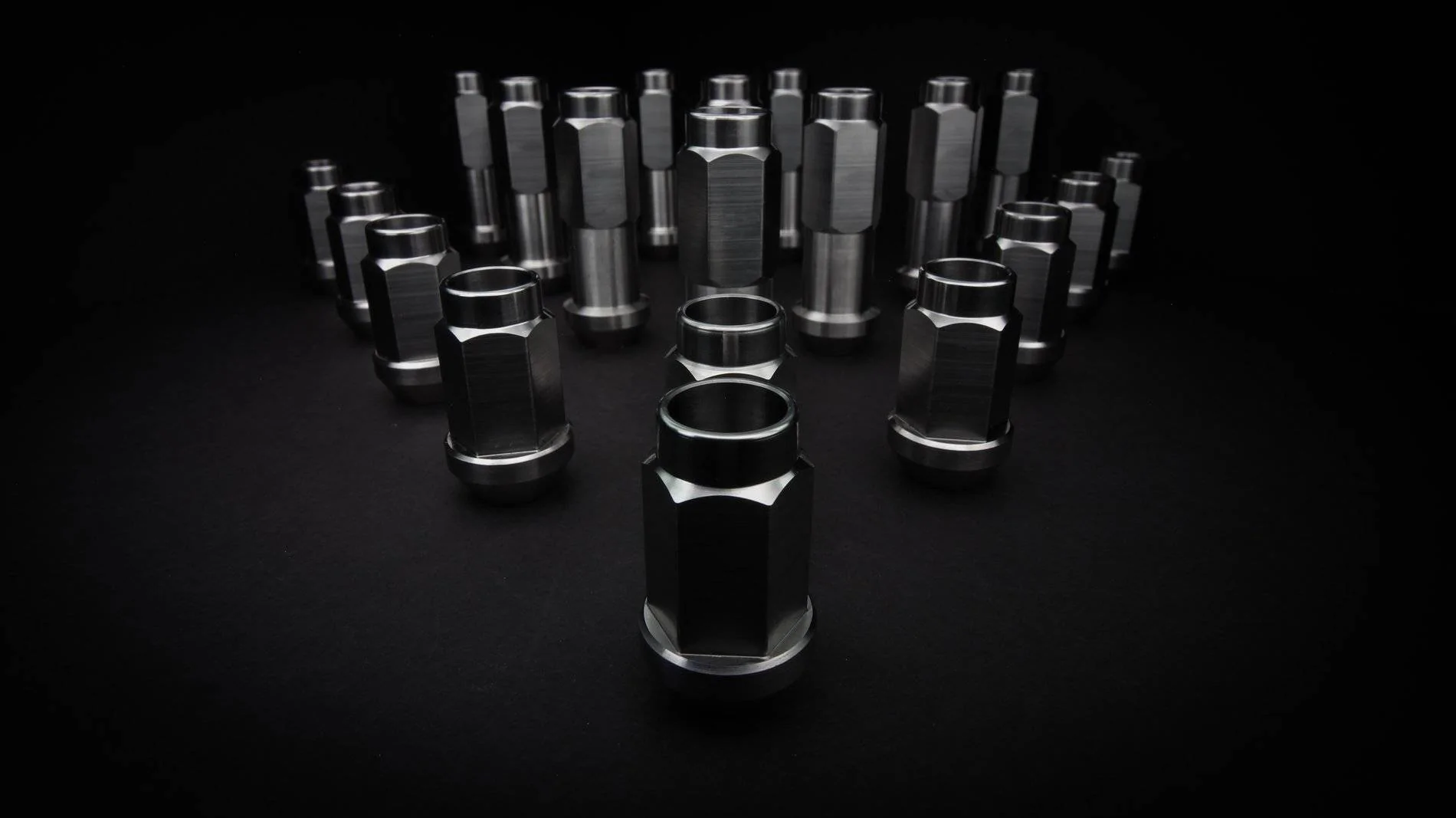

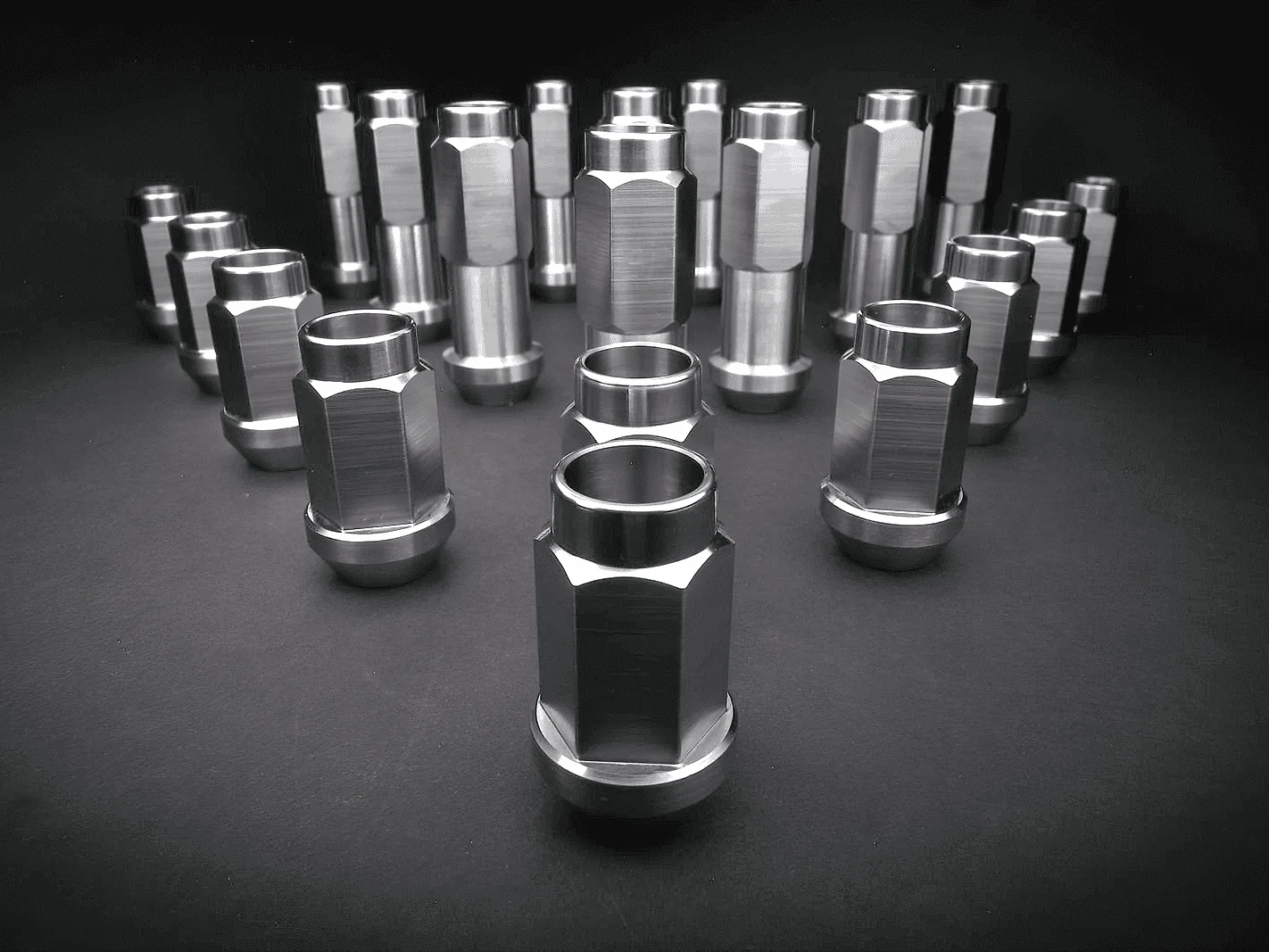

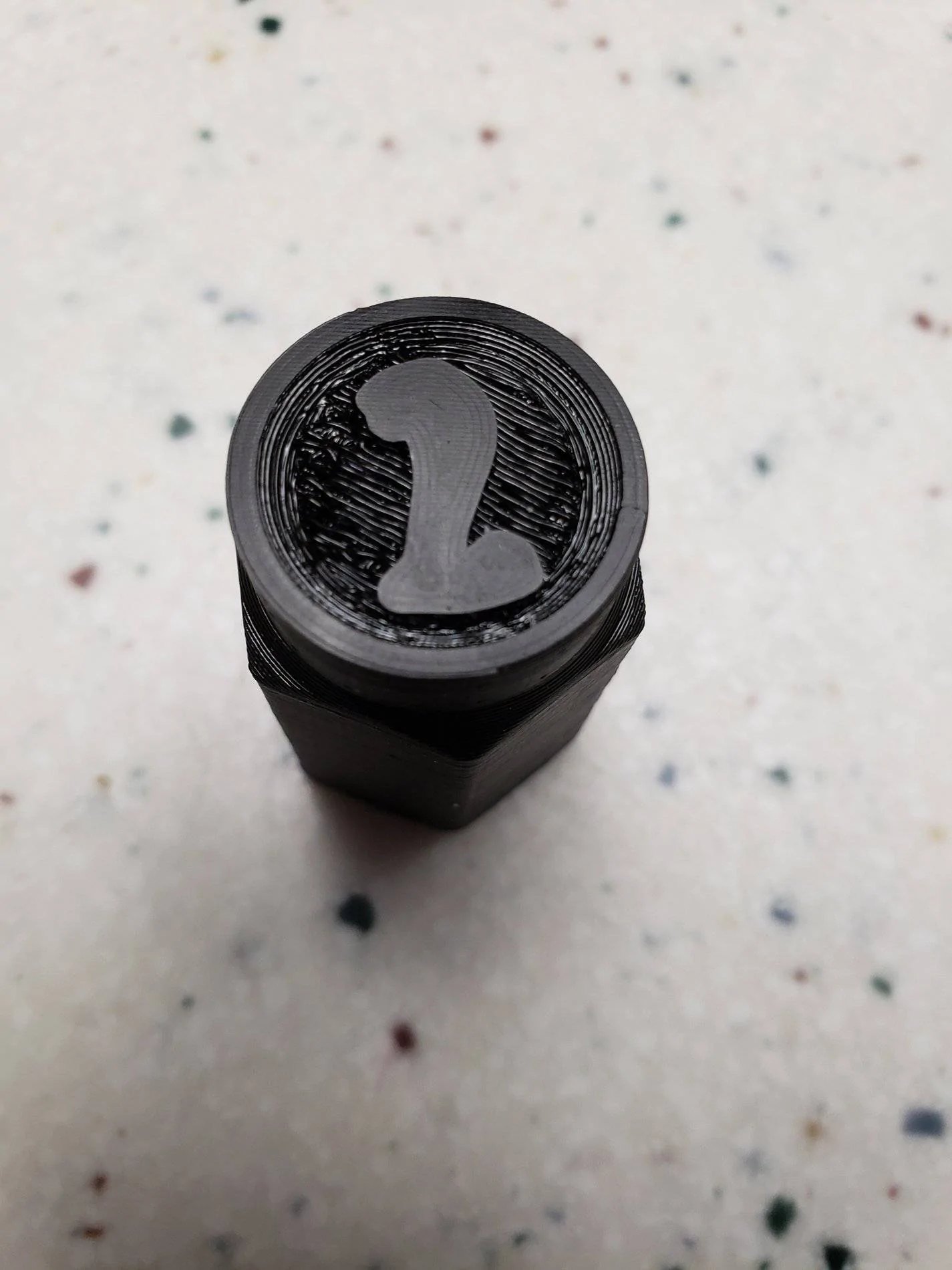

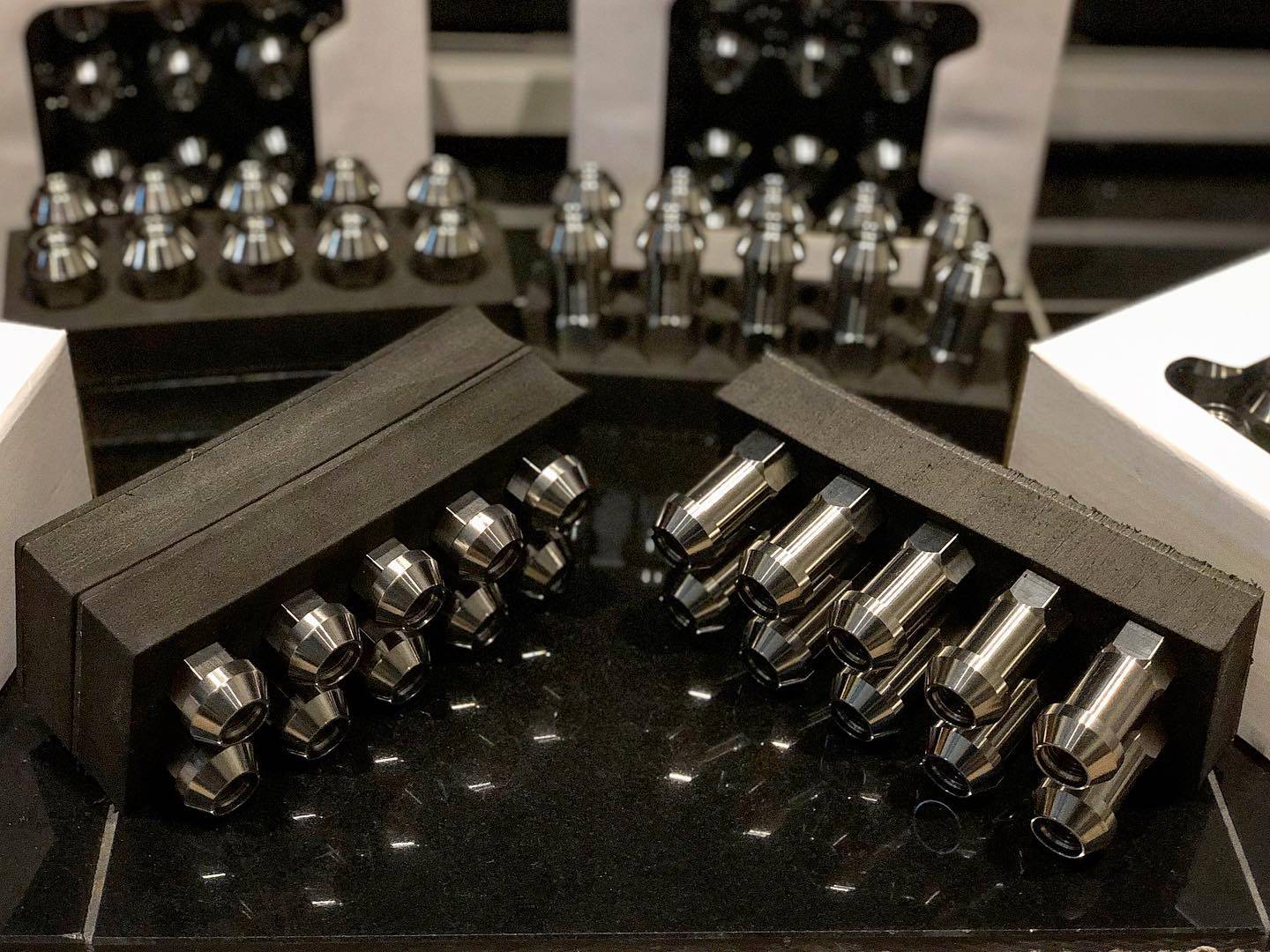

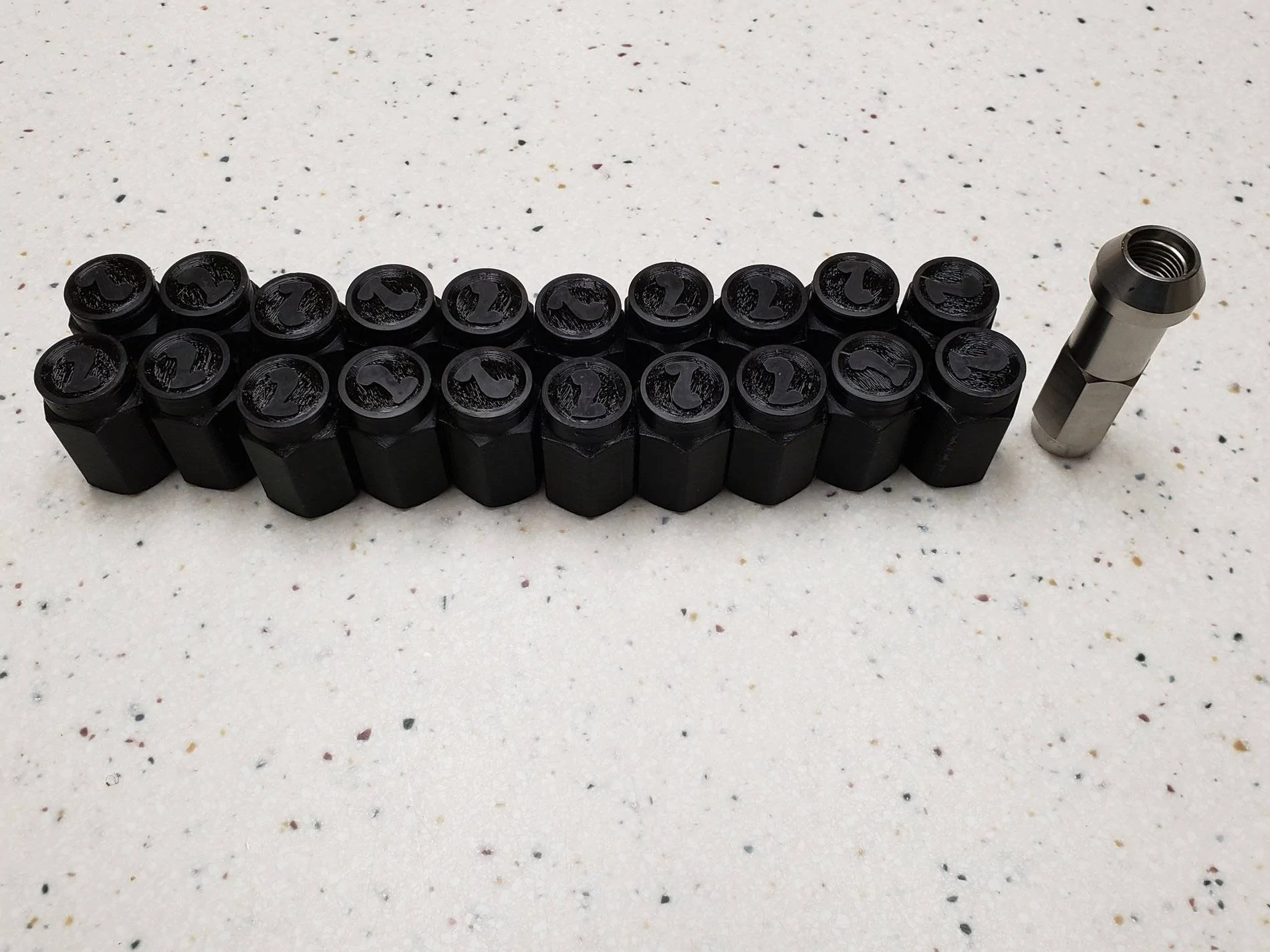

Some stand alone pics of the titanium setup and prototype caps



OP
OP
50 Deep

50 Deep

Signature Wheel Ford Rep
Gold Sponsor
Joined
Dec 8, 2015
Threads
225
Messages
4,784
Reaction score
6,989
Location
Sacramento, CA
Website
www.signaturewheel.com
Vehicle(s)
2017 GT350R

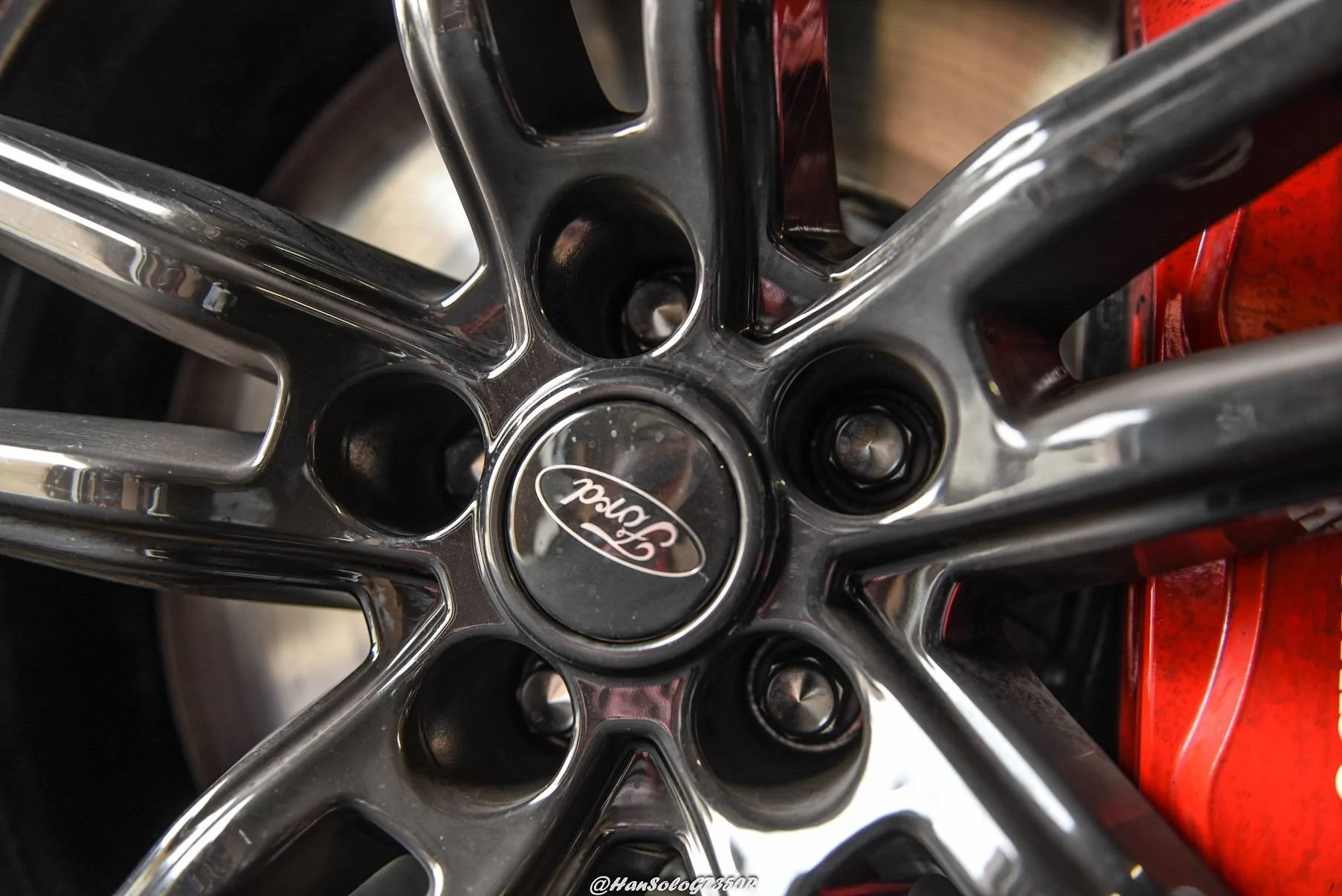

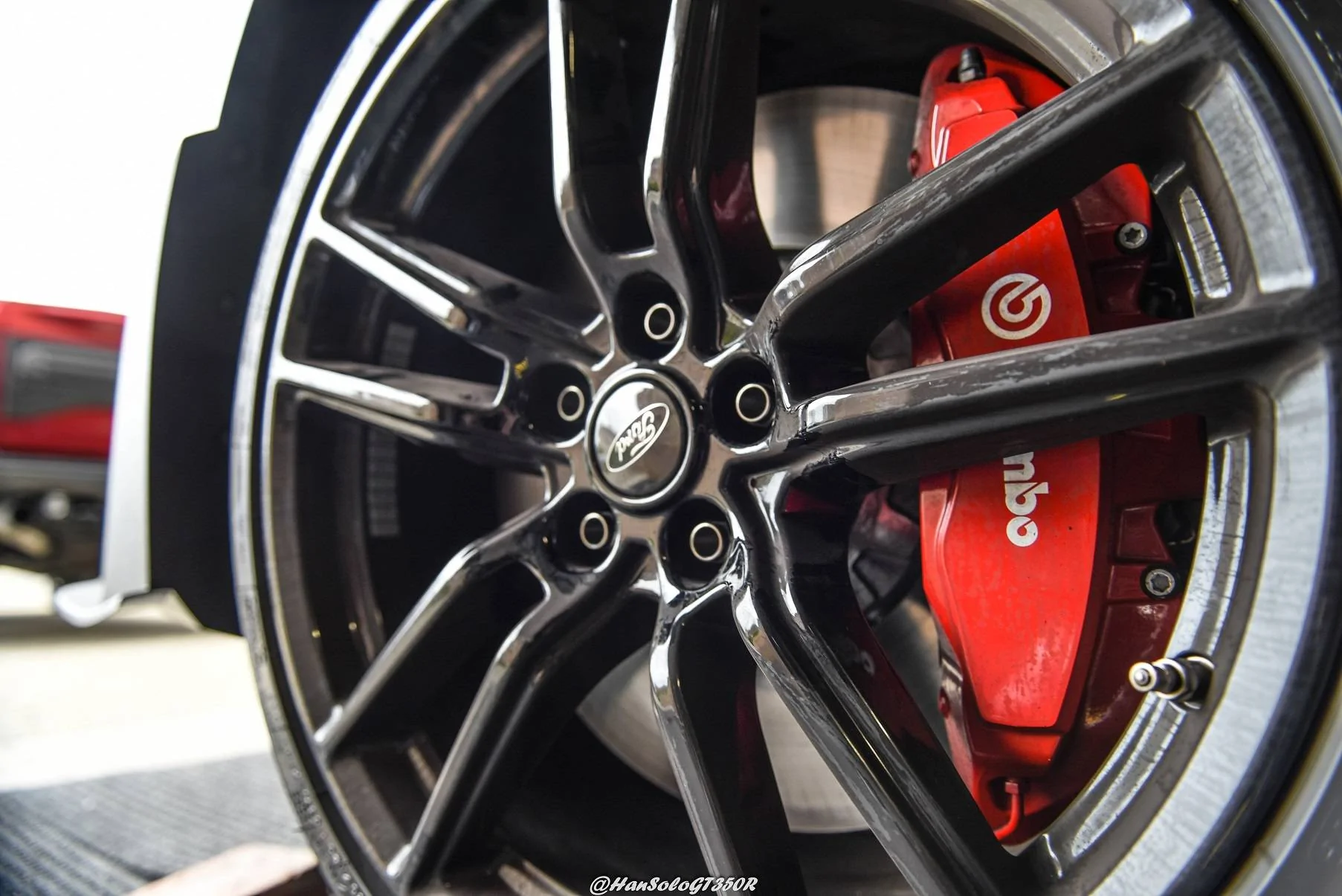

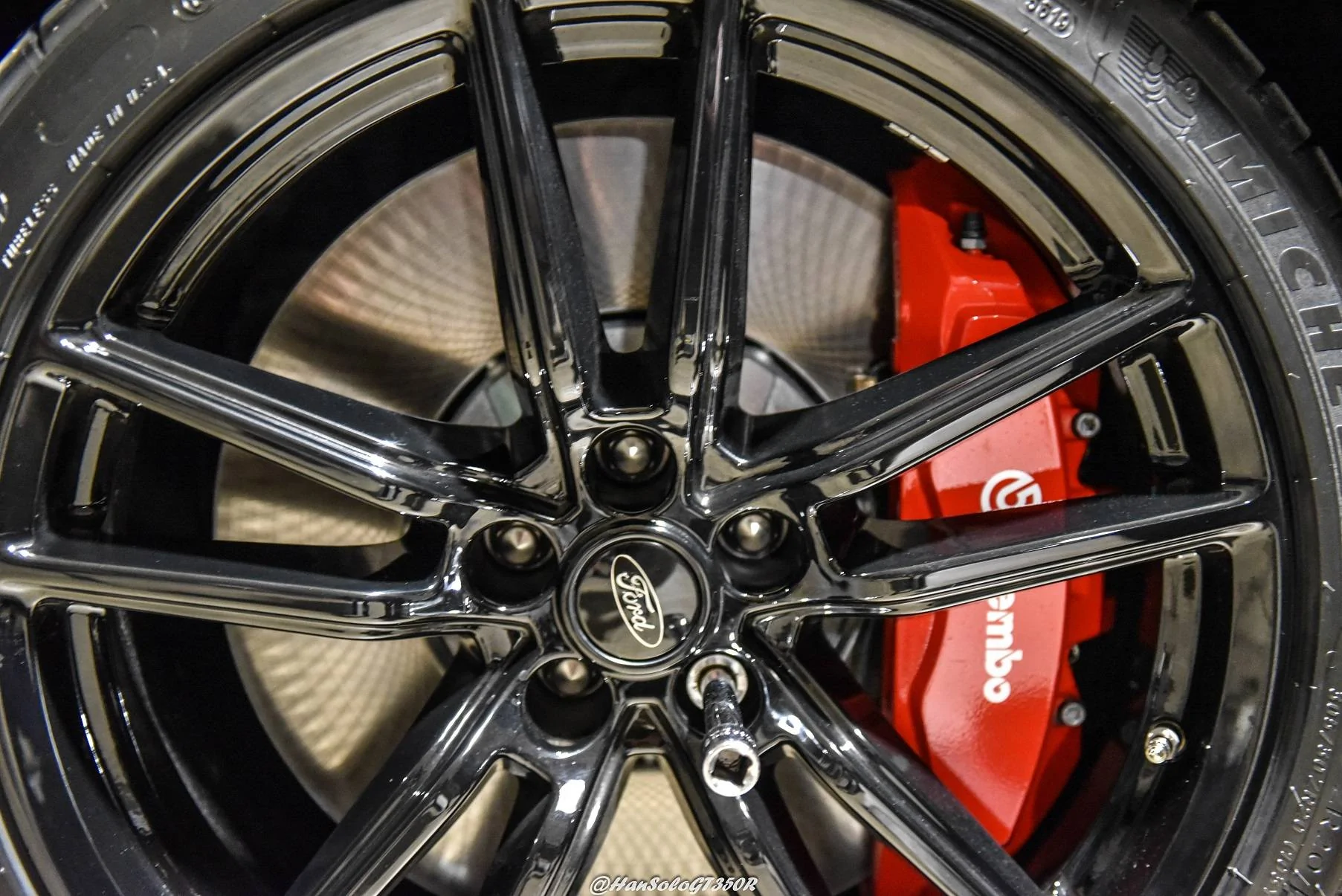

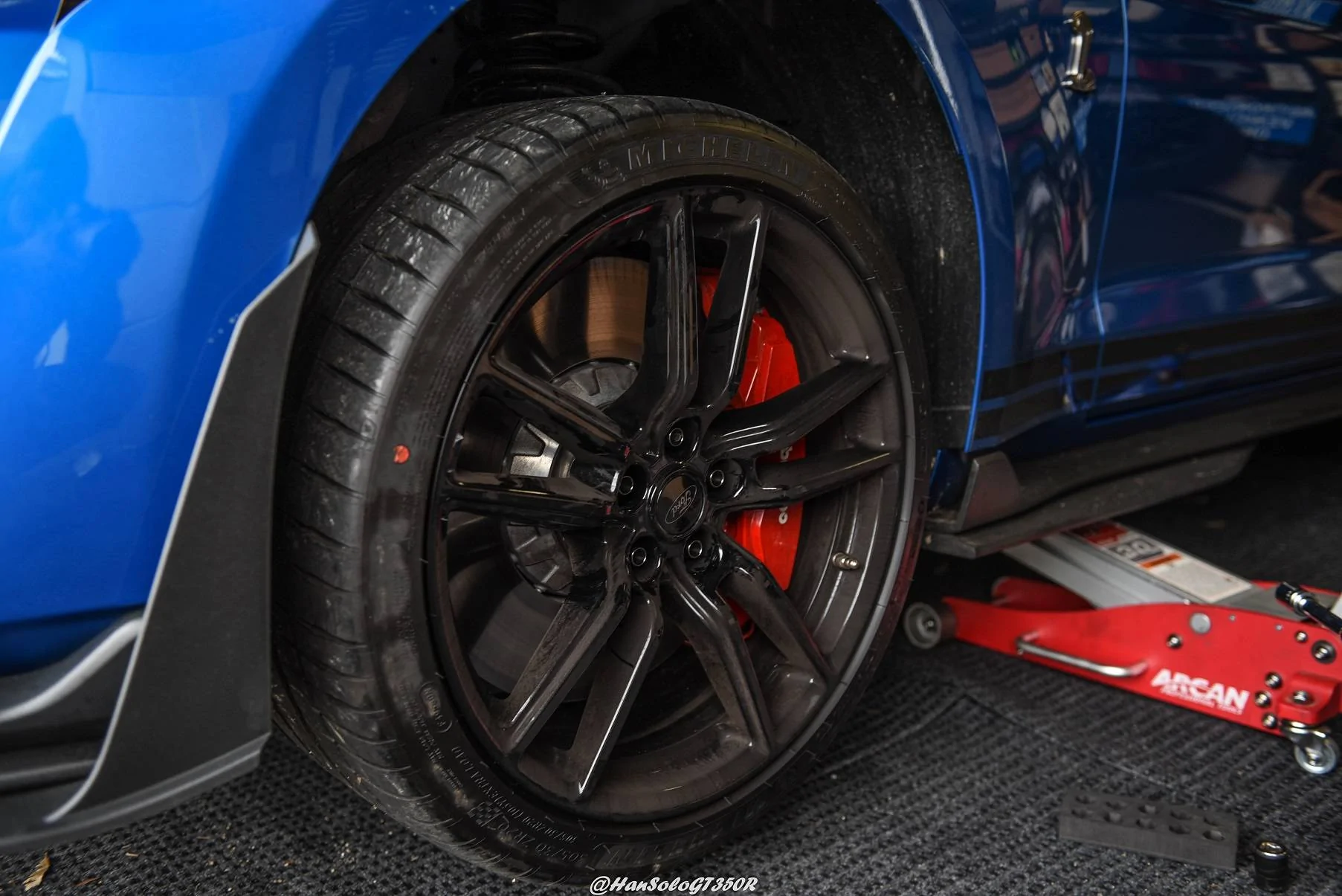

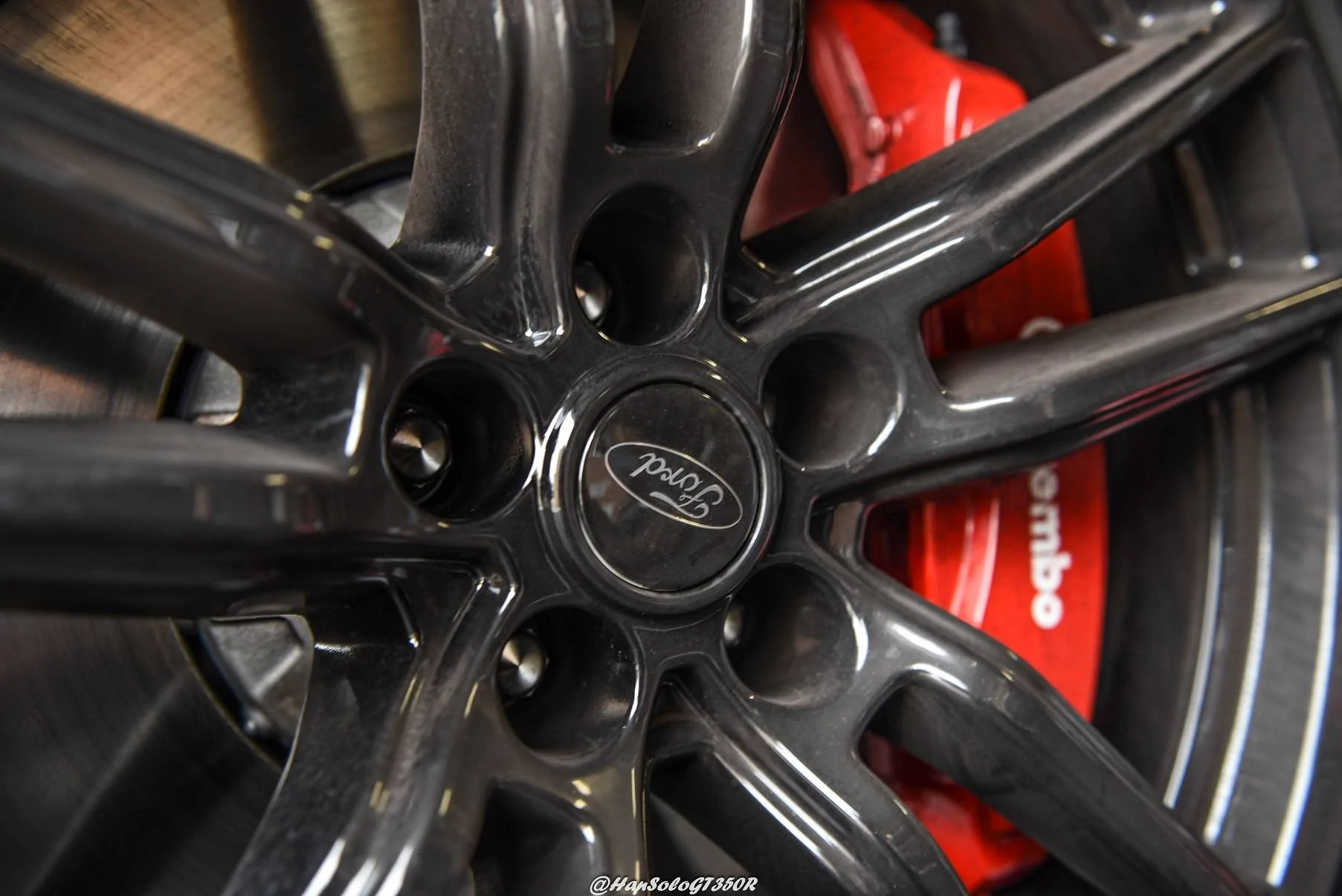

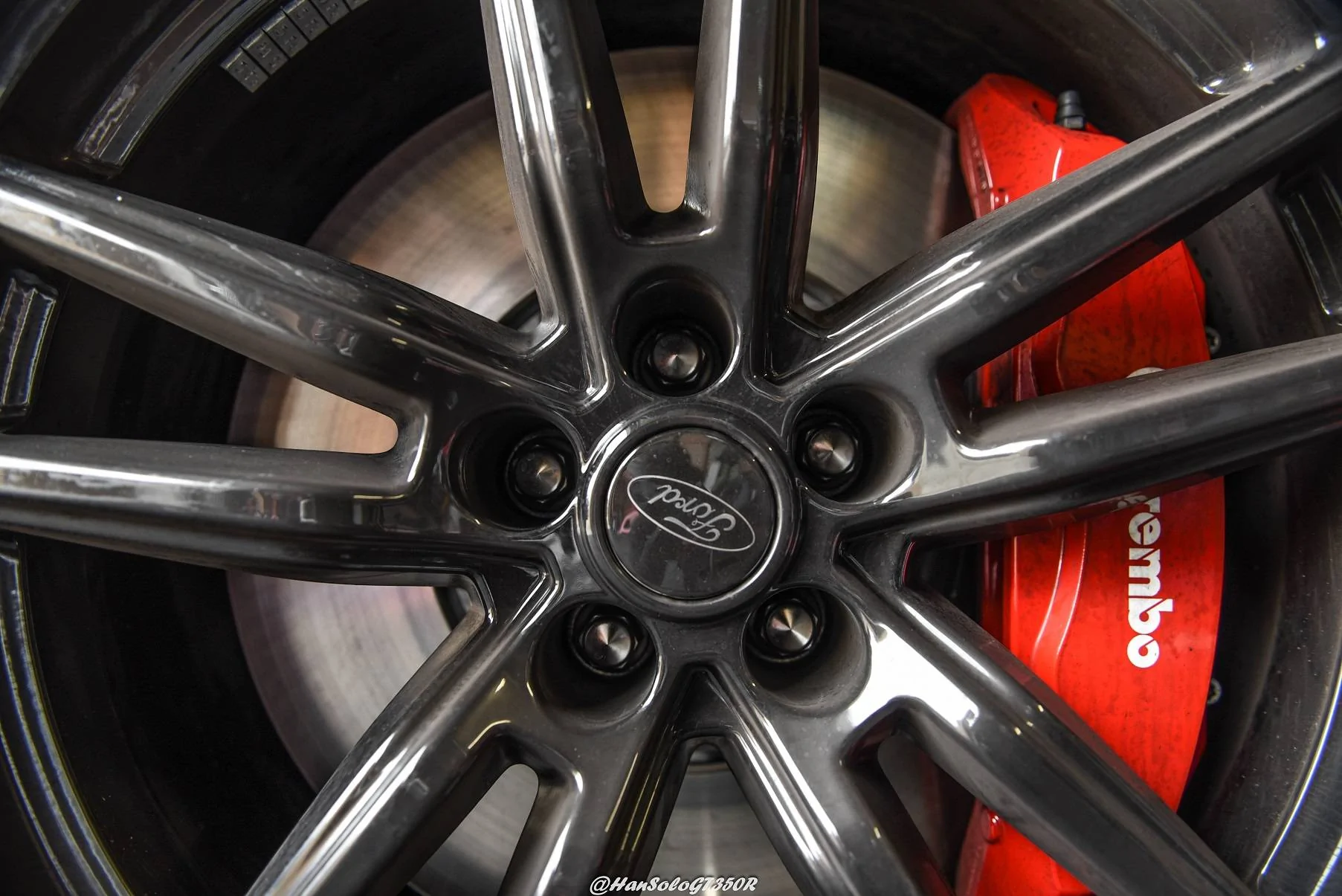

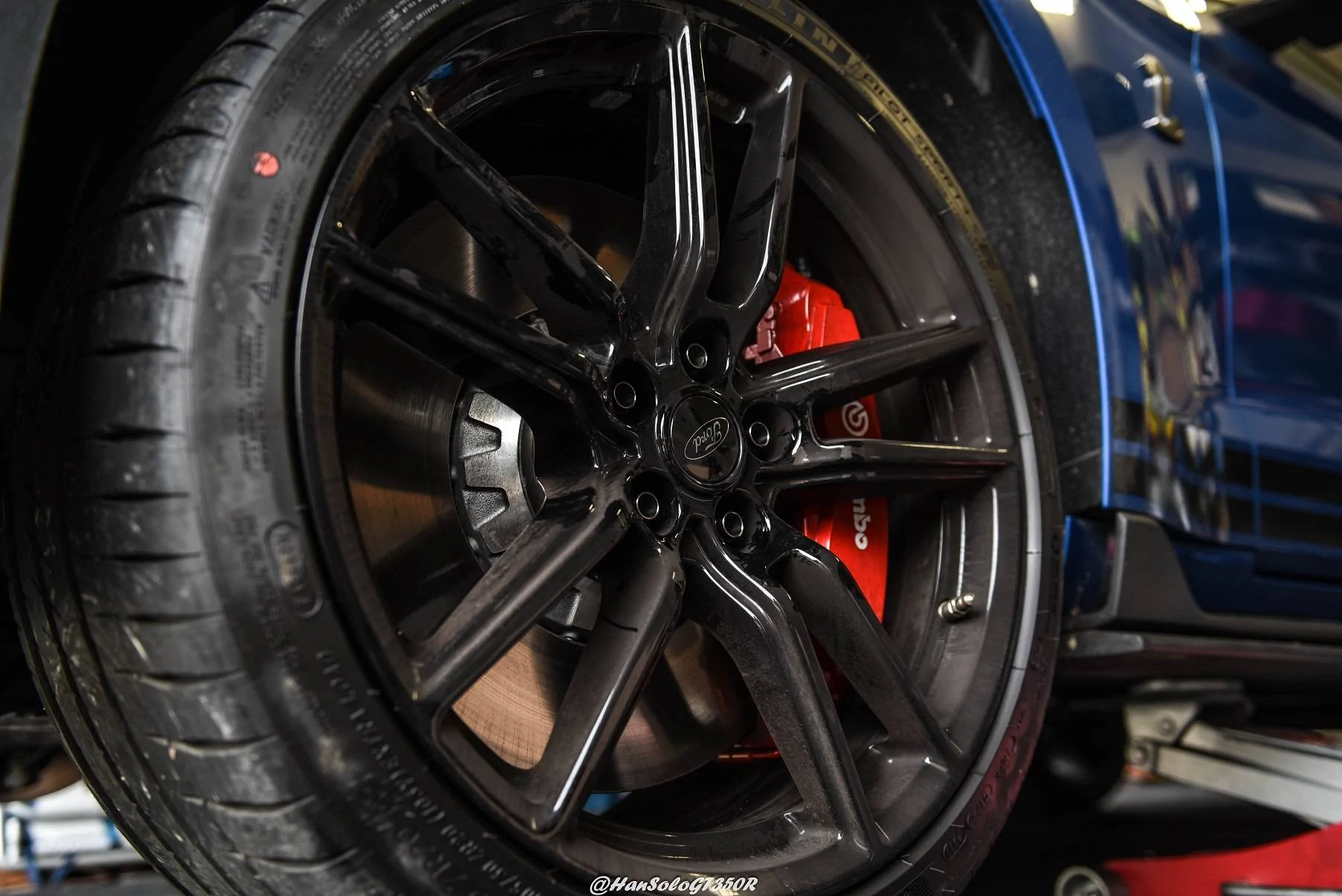

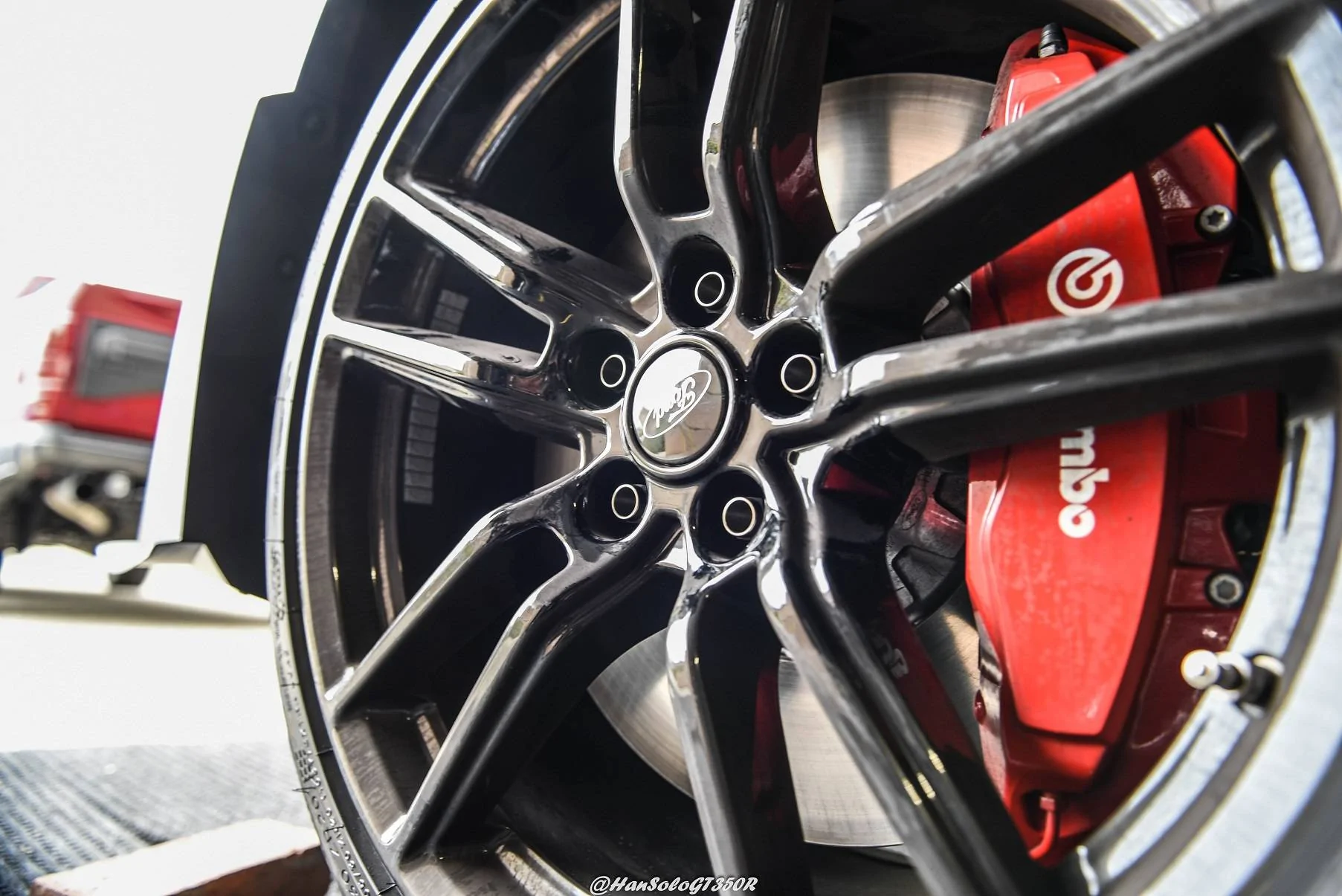

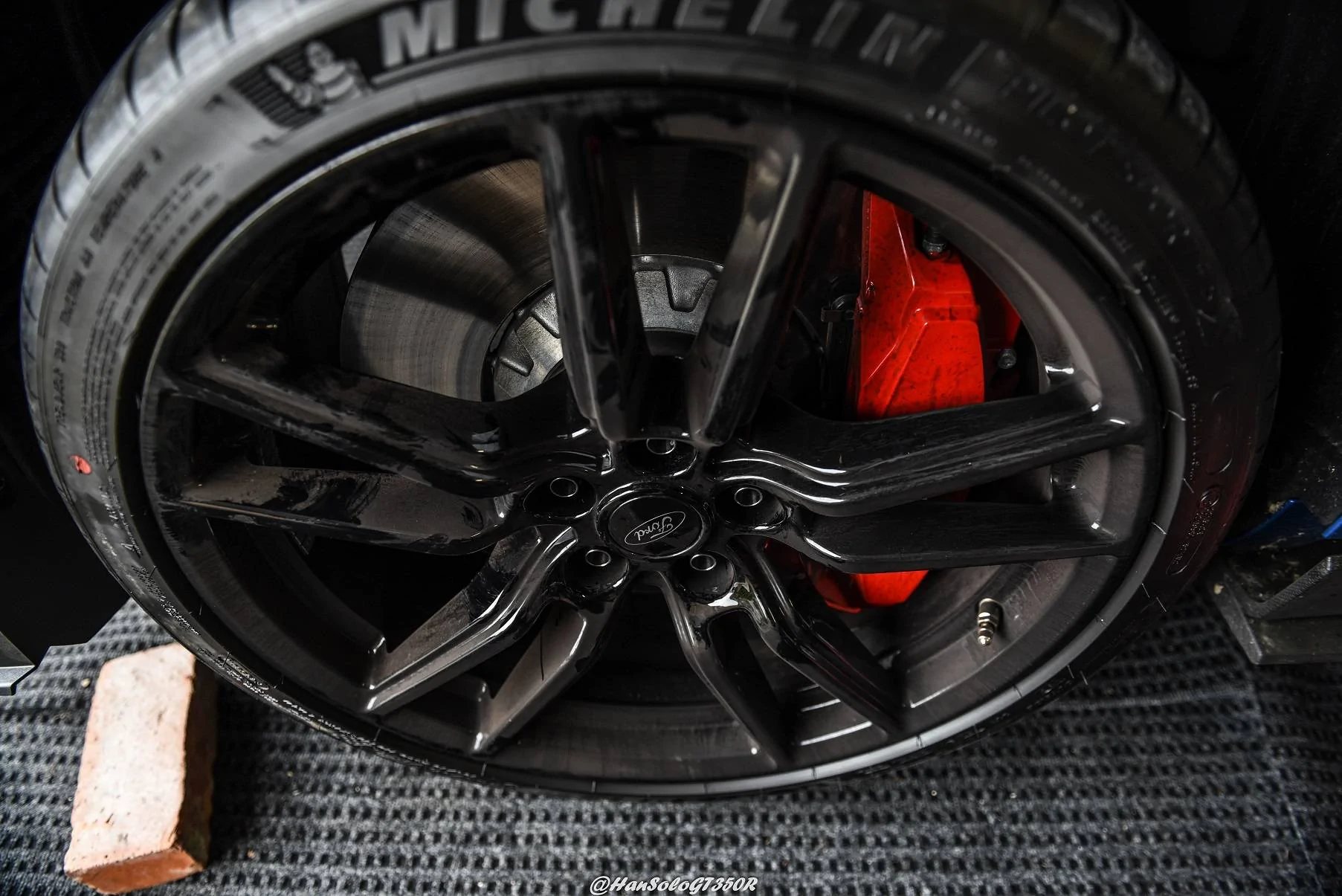

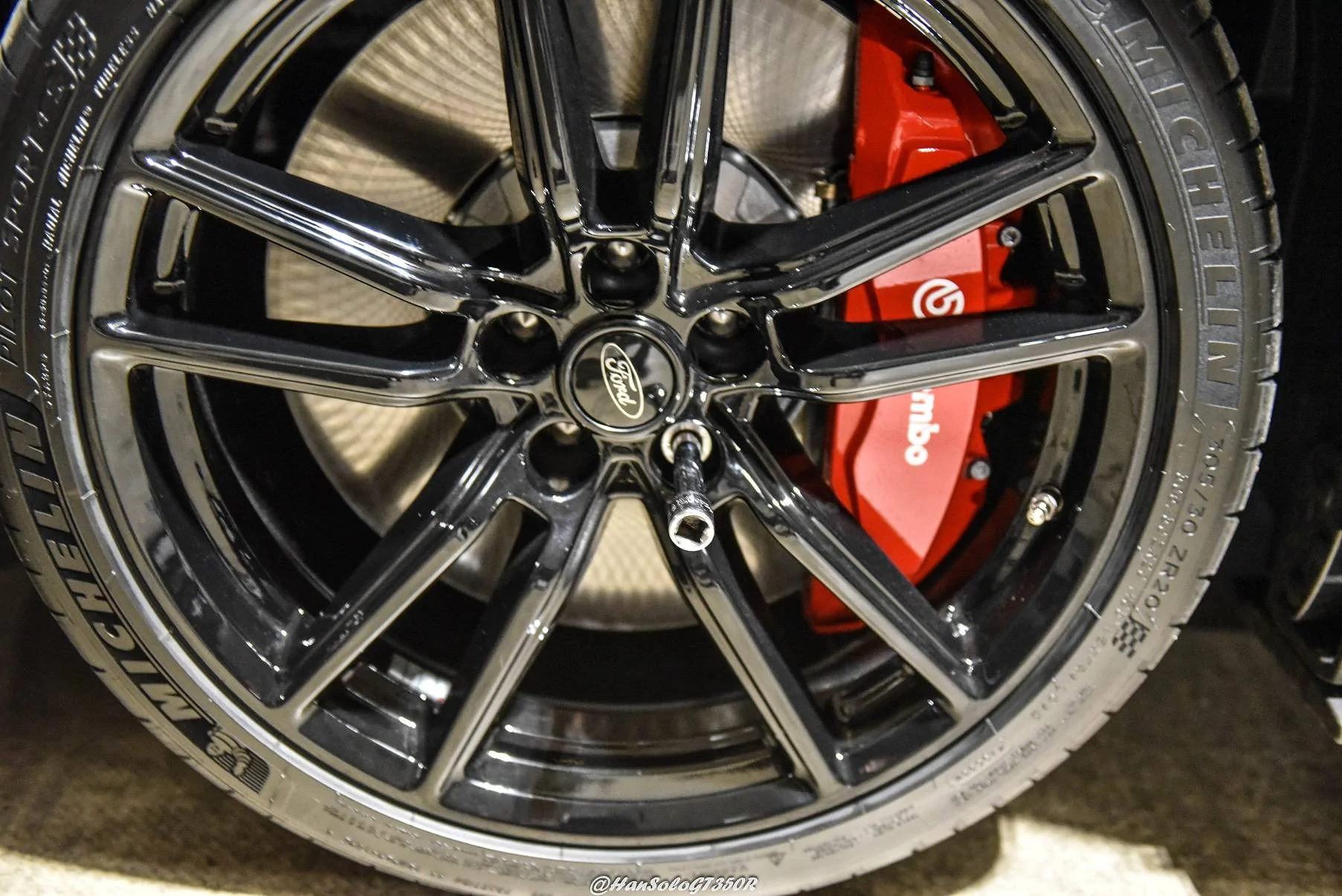

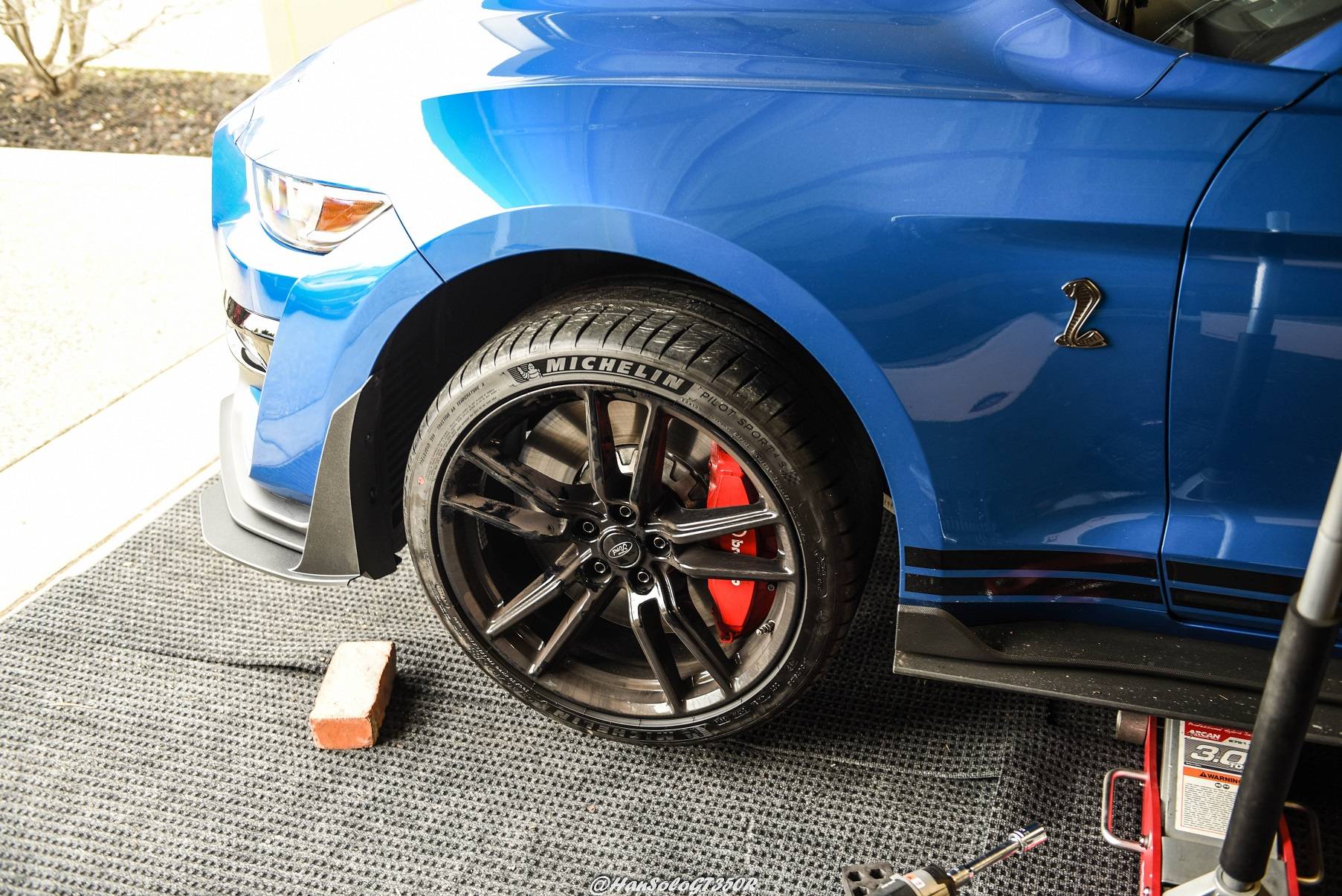

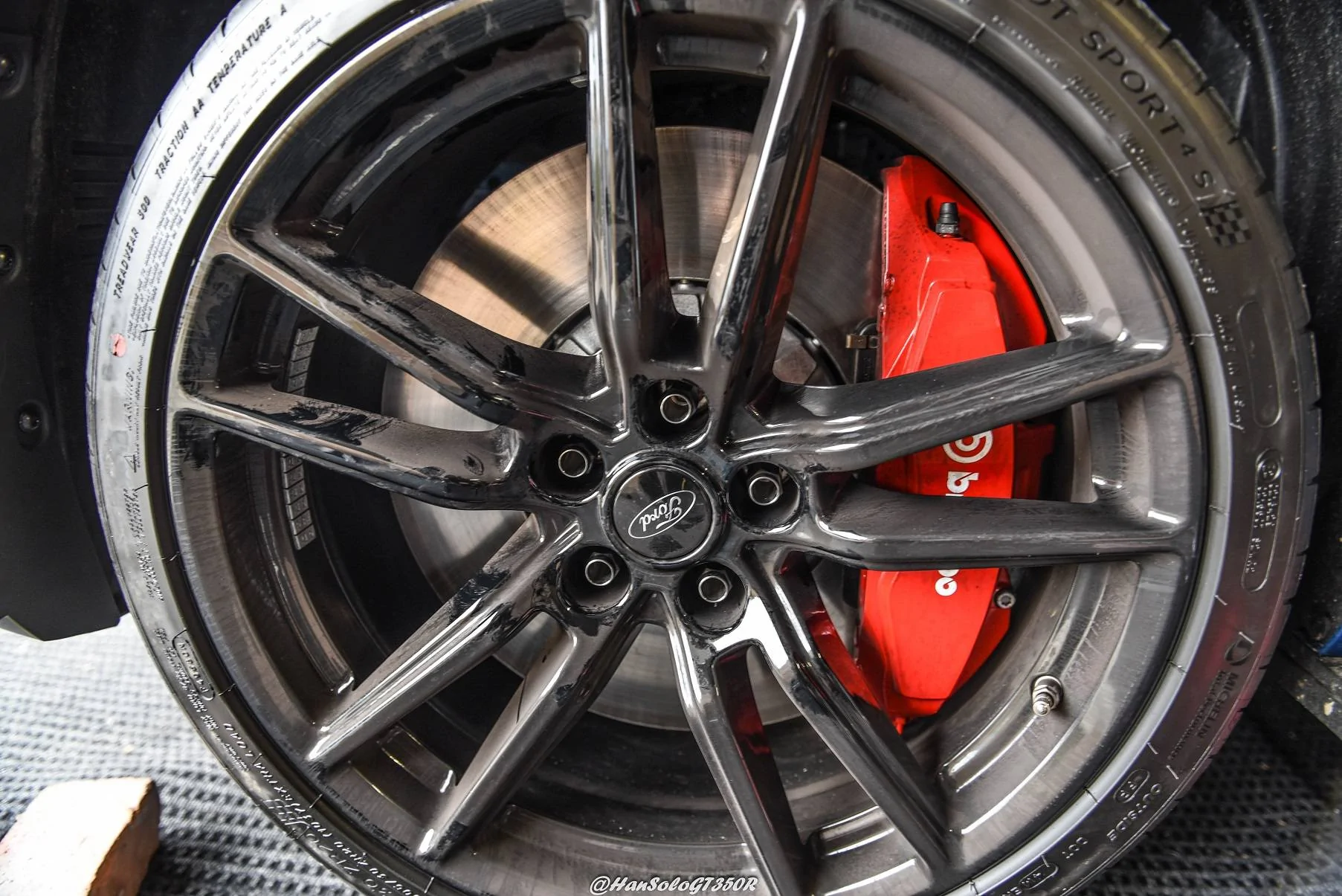

Few pictures of the OEM base GT500 wheel with the factory and Exhibitions Of Speed lug nuts. Great option for OEM wheels too.

Titanium Lug Nut GT500 OEM Wheel (1 of 12).jpg
Titanium Lug Nut GT500 OEM Wheel (2 of 12).jpg
Titanium Lug Nut GT500 OEM Wheel (3 of 12).jpg
Titanium Lug Nut GT500 OEM Wheel (4 of 12).jpg
Titanium Lug Nut GT500 OEM Wheel (5 of 12).jpg
Titanium Lug Nut GT500 OEM Wheel (6 of 12).jpg
Titanium Lug Nut GT500 OEM Wheel (7 of 12).jpg
Titanium Lug Nut GT500 OEM Wheel (8 of 12).jpg
Titanium Lug Nut GT500 OEM Wheel (9 of 12).jpg
Titanium Lug Nut GT500 OEM Wheel (10 of 12).jpg
Titanium Lug Nut GT500 OEM Wheel (11 of 12).jpg
Titanium Lug Nut GT500 OEM Wheel (12 of 12).jpg

Last edited:

protraxduner

Well-Known Member
Joined
Jan 22, 2018
Threads
16
Messages
939
Reaction score
688
Location
OK
Vehicle(s)
2020 Shelby GT500 Race Red
Cost?
Do they accept powdercoat/paint? Have never dealt with titanium.
Are the end cap/inserts plastic? just press fit in?

thanks


Sponsored

OP
OP
50 Deep

50 Deep

Signature Wheel Ford Rep
Gold Sponsor
Joined
Dec 8, 2015
Threads
225
Messages
4,784
Reaction score
6,989
Location
Sacramento, CA
Website
www.signaturewheel.com
Vehicle(s)
2017 GT350R
Ill take em.
You’re in!
Cost?
Do they accept powdercoat/paint? Have never dealt with titanium.
Are the end cap/inserts plastic? just press fit in?

thanks
I haven’t delved into the coating process for the titanium. A chemical process would be better to prevent scratching or chipping though.

End caps are 3D printed, but not sure of the material. Still doing some R&D on those before release.

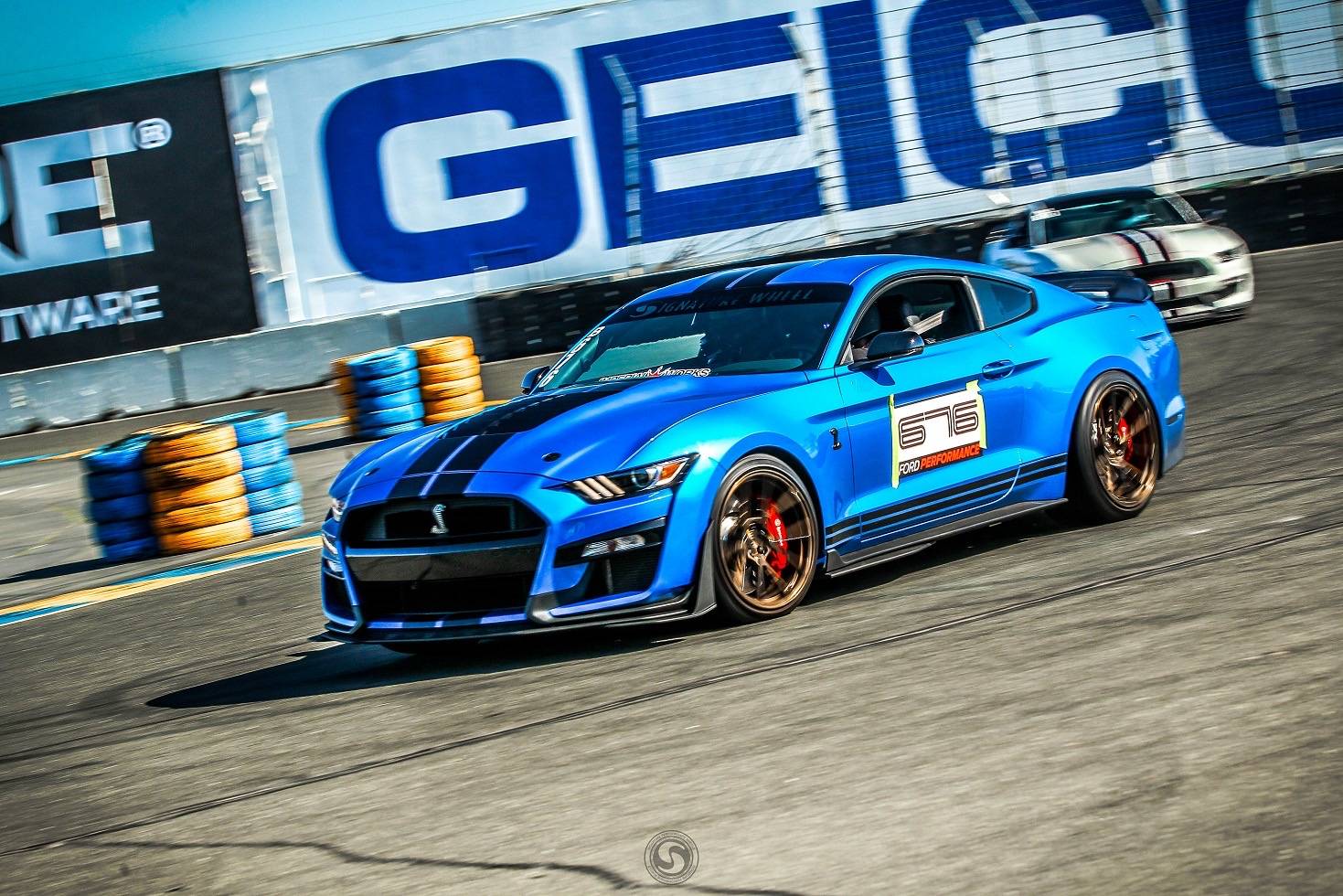

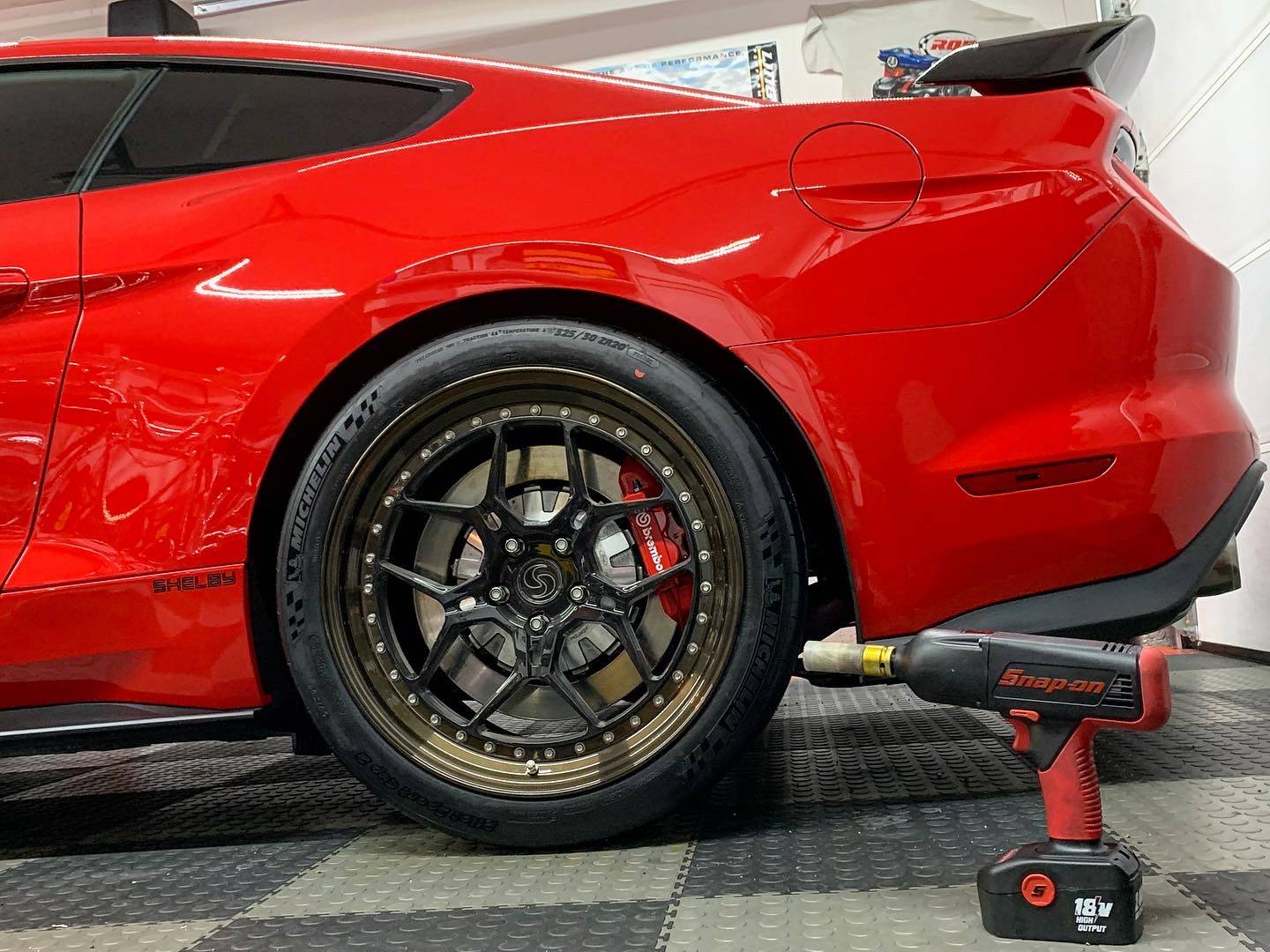

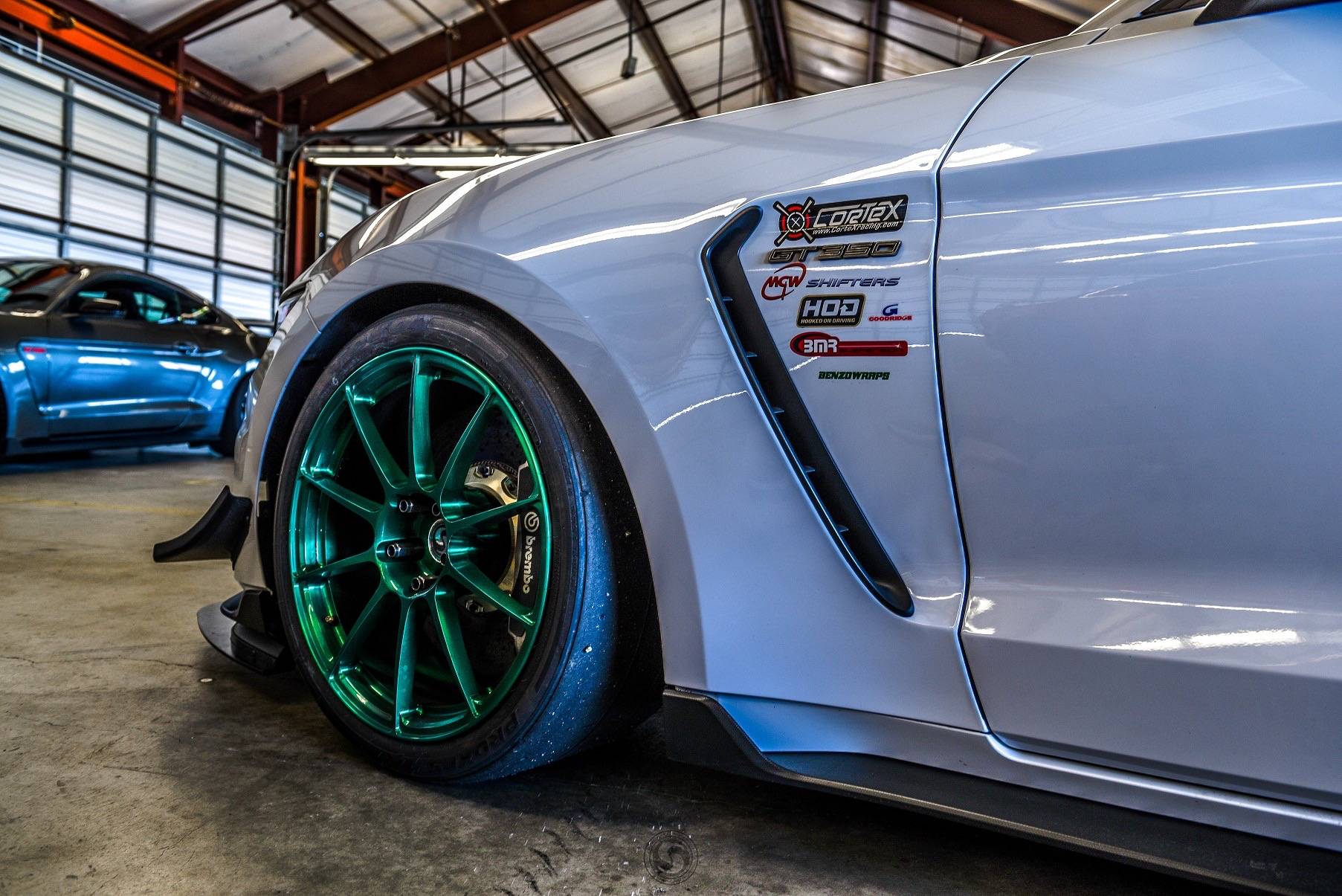

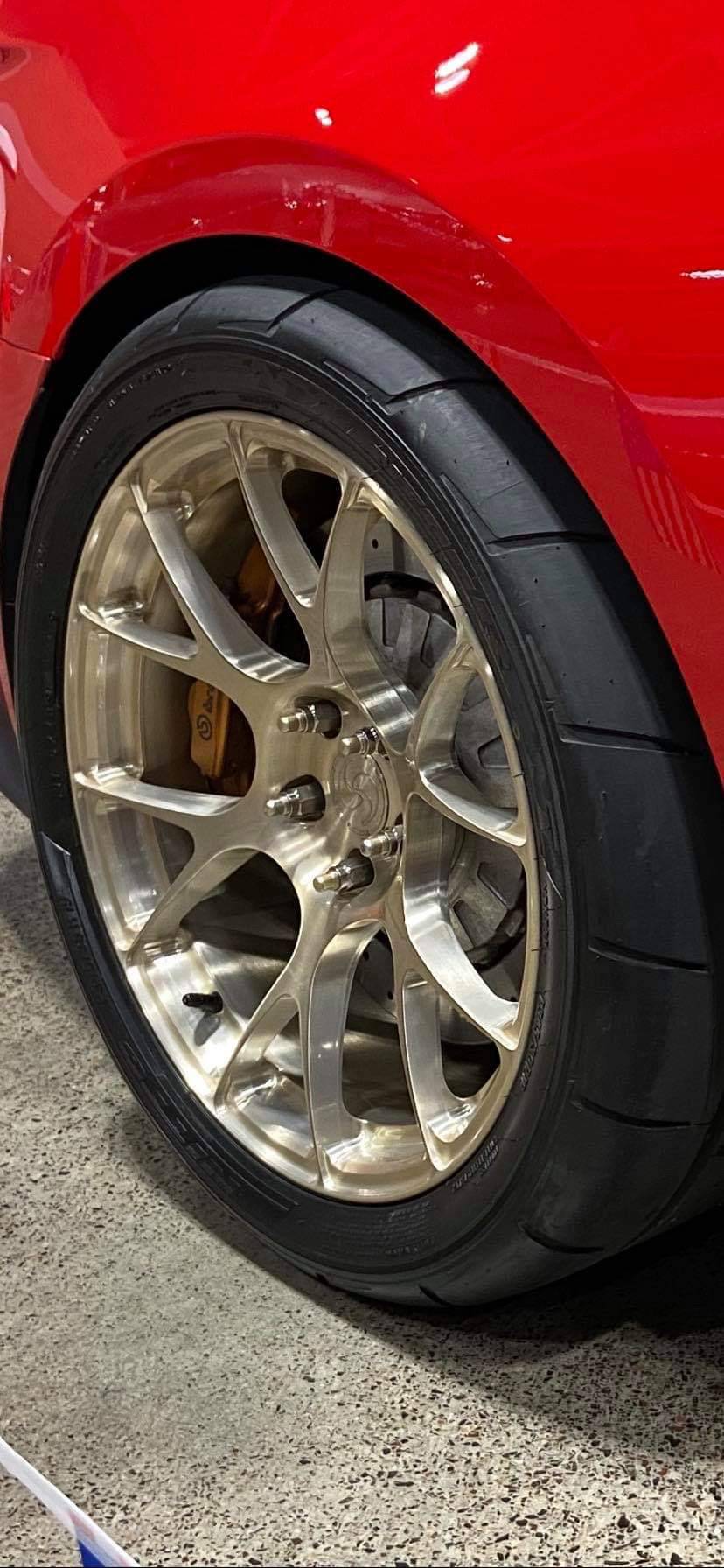

couple more shots of them in action

OP
OP
50 Deep

50 Deep

Signature Wheel Ford Rep
Gold Sponsor
Joined
Dec 8, 2015
Threads
225
Messages
4,784
Reaction score
6,989
Location
Sacramento, CA
Website
www.signaturewheel.com
Vehicle(s)
2017 GT350R
Gents,

The next set of Ti lug nuts is in production now with a 45-60 day lead time. I am doing a run of 30 sets, with 18 sets spoken for already.

Please send me a DM if you want to get in on this batch. The next set will likely be built sometime in the fall.

OP
OP
50 Deep

50 Deep

Signature Wheel Ford Rep
Gold Sponsor
Joined
Dec 8, 2015
Threads
225
Messages
4,784
Reaction score
6,989
Location
Sacramento, CA
Website
www.signaturewheel.com
Vehicle(s)
2017 GT350R
Hey everyone. Quick update.

The May batch is arriving to me today. I will have them packed up and shipped back out to all those waiting Thursday and Friday via USPS.

The next batch is on target for the end of July completion. I have about 15 sets left available. Added in a few all short sets for those with stock carbon wheels, or running square rotatable track setups.

cheers!



Sponsored

Tomster

Beware of idiots
Joined
Feb 20, 2016
Threads
278
Messages
15,506
Reaction score
15,575
Location
FL
First Name
Tom
Vehicle(s)
'20 RR GT500R(CFTP), 18 OW GT350R Base, '17 AG GT350R Electronics Pack, '97 PG Cobra Convertible
They look great!

Normally Ti is anodized.
Yes, I was after him to do that a long time ago. I dont know if he ever got around to it.

So on another note, would you use them for the track? My concern is that an engineered torque specification is not available. Since you need to use lube due to dissimar metals, the OEM torque of 150 +/-15 is no longer valid.

Thoughts?


Twisted O CFTP

Well-Known Member
Joined
Mar 29, 2020
Threads
10
Messages
109
Reaction score
120
Location
Orlando,Fl
First Name
Alan
Vehicle(s)
2020 GT500 CFTP
Hey everyone. Quick update.

The May batch is arriving to me today. I will have them packed up and shipped back out to all those waiting Thursday and Friday via USPS.

The next batch is on target for the end of July completion. I have about 15 sets left available. Added in a few all short sets for those with stock carbon wheels, or running square rotatable track setups.

cheers!

Hey this is an awesome mod can you get these is anodized or pvd coating also were do you put the order in

OP
OP
50 Deep

50 Deep

Signature Wheel Ford Rep
Gold Sponsor
Joined
Dec 8, 2015
Threads
225
Messages
4,784
Reaction score
6,989
Location
Sacramento, CA
Website
www.signaturewheel.com
Vehicle(s)
2017 GT350R
Hey this is an awesome mod can you get these is anodized or pvd coating also were do you put the order in
Just PM me your email address and I will add you in.

You can definitely have them anodized or or coated. I don’t do it on my end as small batch coating gets expensive. Trying to keep the cost on these as low as possible.

OP
OP
50 Deep

50 Deep

Signature Wheel Ford Rep
Gold Sponsor
Joined
Dec 8, 2015
Threads
225
Messages
4,784
Reaction score
6,989
Location
Sacramento, CA
Website
www.signaturewheel.com
Vehicle(s)
2017 GT350R
Feels like I just shipped a bunch of cocaine, considering how dope these all are....
