GT350 axles!

[Voodooo]

Wow. That's pretty impressive.

Would love to see pics of the work you are doing.

I'd love to post them, but this forum doesn't allow tapatalk anymore. I can send or text them as I go if you like.
Scott.
419-389-7673

Sponsored



[Voodooo]

IRS out.

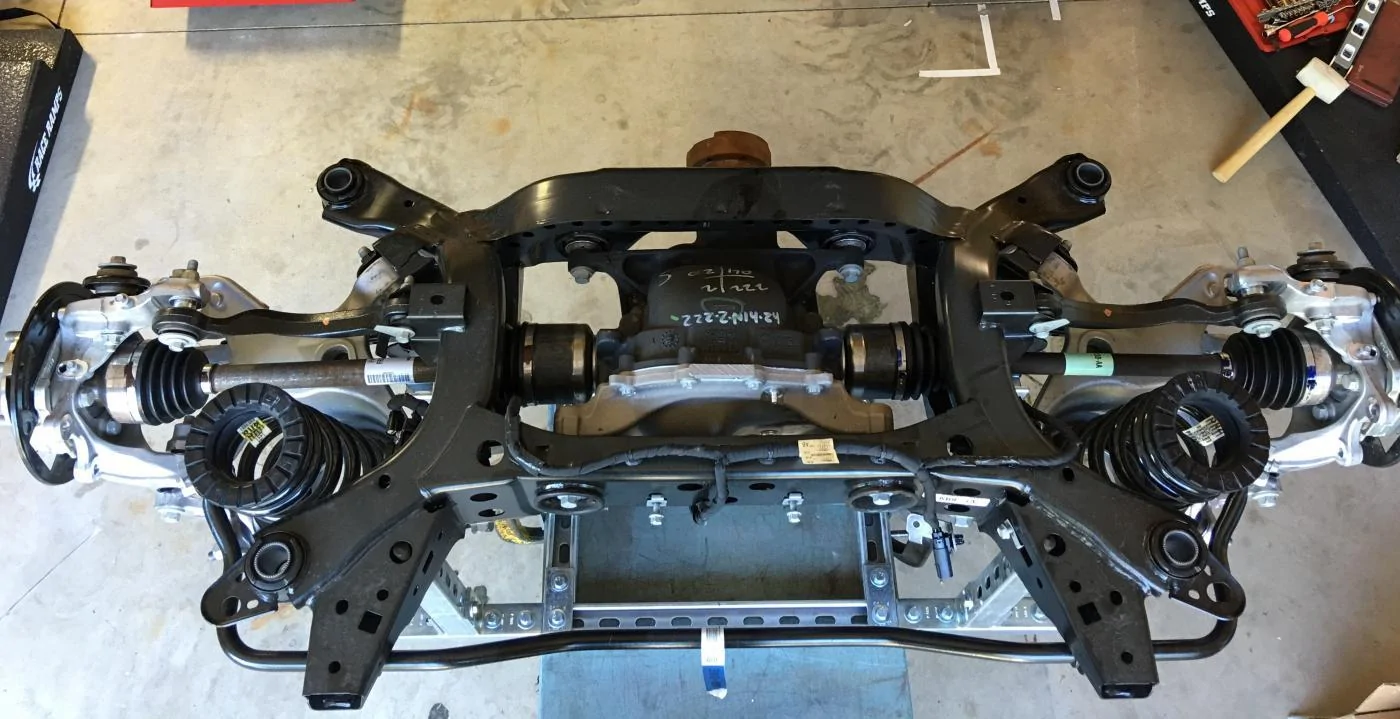

I made a quick IRS cradle jig to allow me to drop the complete assembly by myself without dropping it lol. I just set it ontop my hydraulic scissor lift table. Worked like a charm and also allows me a place to disassemble the rear end. Once I take everything apart and remove all the old bushings I'm going to powder coat everything.



[Voodooo]

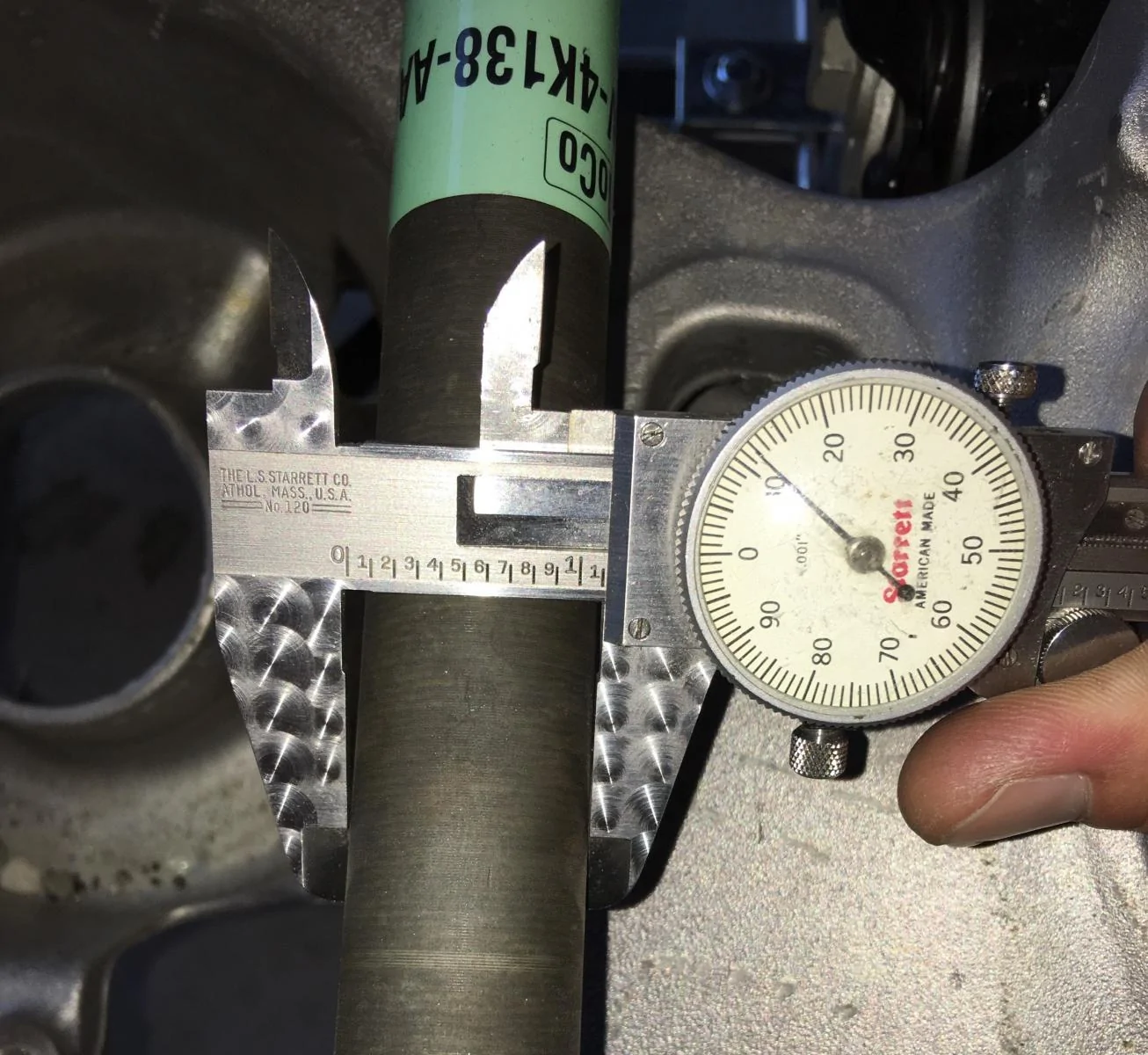

Left axle. 1.300"



[Voodooo]

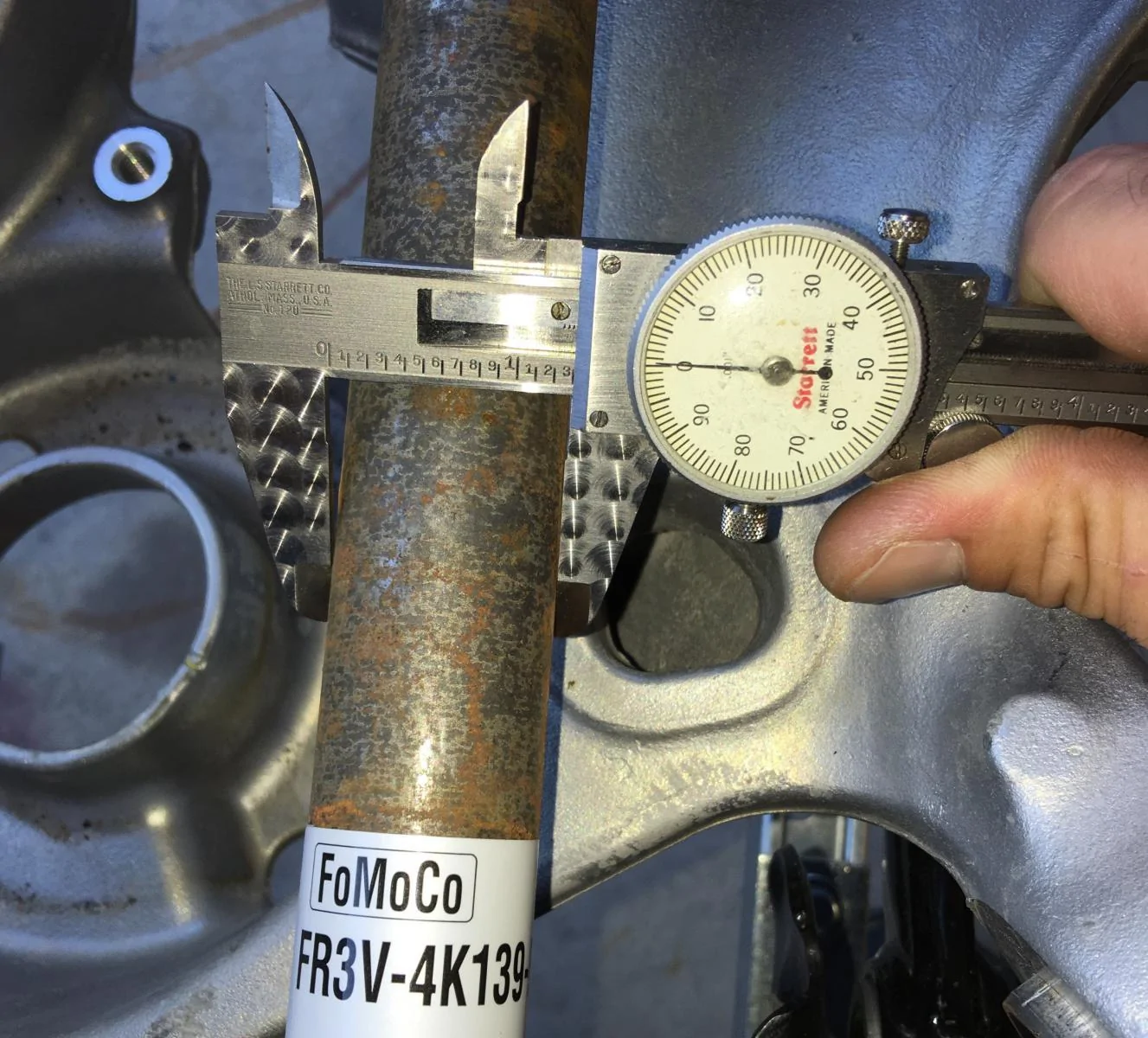

Right axle 1.112"



[Voodooo]

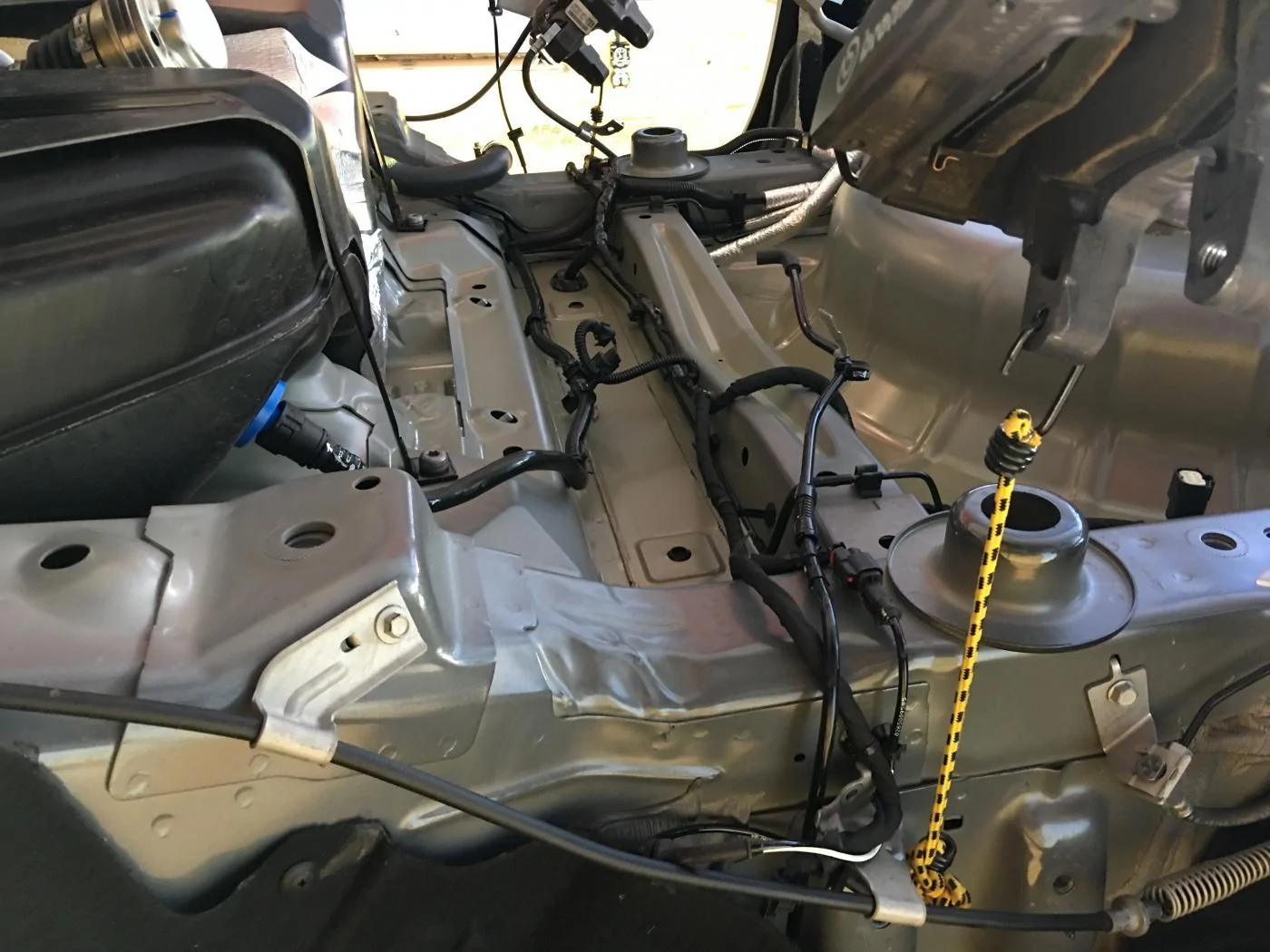

Under car.
To remove the complete IRS it's pretty easy. One electrical harness disconnect, unbolt the shocks and calipers and parking brake cables.



[krt22]

You gotta get those R calipers in man!



[partyelmarty]

Do you think you could take some pictures of the cradle jig?



[Voodooo]

You gotta get those R calipers in man!

Lol. Who do you think started that R caliper thread? I bought the R calipers last winter. I have had all these parts since last winter but haven't had time away from work until now. I also been waiting on the Vorshlag camber plates. I finally got them a month or so ago and didn't want to do bits and pieces here and there. I wanted to do all at once.
I'm removing all the suspension and powder coating everything. I'm also installing everything in my signature now. Finally! lol.



[Voodooo]

Do you think you could take some pictures of the cradle jig?

Sure thing. But I have tools everywhere lol. One sec.



[Voodooo]

Jig



[Voodooo]

Jig again



[Voodooo]

Again



[Voodooo]

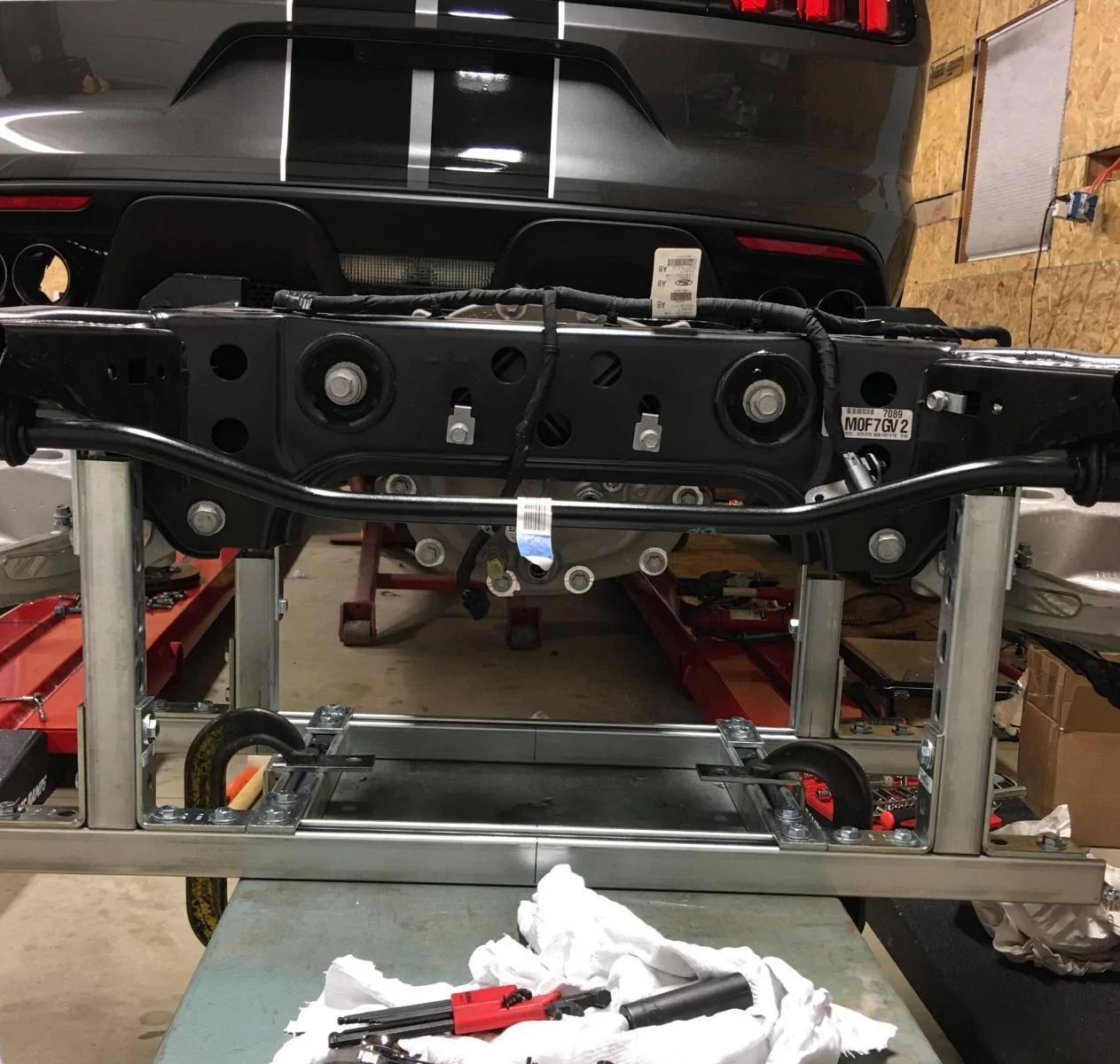

I had some uni-strut laying around from a previous project I did in my garage (central AC install) and I just whipped this up to prevent dropping the rear IRS. It could be easily duplicate with tubing or uni-strut for little money. I wanted it high enough to also use it as a holder to disassemble and re-assembly.

Sorry about the sideways pics.



[Superdog]

Holy cow.

Fwiw, I find this incredibly impressive. And ballsy.



[Voodooo]

Holy cow.

Fwiw, I find this incredibly impressive. And ballsy.

Lol.
Really nothing to it. I have been putting it off for way to long and have been wanting to get it done but my business takes all my time 7 days a week. I'll have the front end apart tomorrow. Hope to finish all the powder coating by Wednesday or Thursday and start reassembling.
