Forgestar f14 fitment

Jacob00714

New Member
Joined
Jun 11, 2021
Threads
1
Messages
3
Reaction score
1
Location
Maryland
First Name
Jacob
Vehicle(s)
2020 mustang gt
I have a 2020 mustang gt base and I wanna run a forgestar f14 set up preferable 20x9.5 deep concave up front with a 275 and a 20x10.5 or 11 super deep concave and run a 305 in the rear I’m on BMR drag suspension and I don’t want any stretch or camber since I do run the car hard and not a fan of it very slight/not very noticeable camber is okay if it’s a must and good fitment is a must. I’m not sure if that could work or what offsets I would need or where to buy. Looking to buy them in the upcoming month or 2



Meraki Autoworks

Well-Known Member
Joined
Mar 15, 2016
Threads
141
Messages
25,941
Reaction score
197
Location
Orange County
Website
www.merakiautoworks.com
First Name
Josh
Vehicle(s)
2018 GT PP
OP
OP
Jacob00714

Jacob00714

New Member
Joined
Jun 11, 2021
Threads
1
Messages
3
Reaction score
1
Location
Maryland
First Name
Jacob
Vehicle(s)
2020 mustang gt
https://www.forgestar.com/ford-mustang-custom-forgestar-flowformed-wheels/

This is a guide that shows you what your options are, in terms of offset, we can get that dialed in for you.

-Josh
I can run a 20x9.5 deep concave in the front and a 20x10.5 super deep concave in the rear I don’t know what offsets to run with my BMR drag suspension and how pricing would be for either gloss black or a bronze color. Is it possible to run the super deep in rear with the deep up front? Im Very new to this sorry


Meraki Autoworks

Well-Known Member
Joined
Mar 15, 2016
Threads
141
Messages
25,941
Reaction score
197
Location
Orange County
Website
www.merakiautoworks.com
First Name
Josh
Vehicle(s)
2018 GT PP
I can run a 20x9.5 deep concave in the front and a 20x10.5 super deep concave in the rear I don’t know what offsets to run with my BMR drag suspension and how pricing would be for either gloss black or a bronze color. Is it possible to run the super deep in rear with the deep up front? Im Very new to this sorry
Feel free to text me!

-Josh



91gt331sc

Well-Known Member
Joined
Dec 21, 2018
Threads
6
Messages
79
Reaction score
46
Location
Bethlehem Pa
First Name
Chris
Vehicle(s)
2019 mustang gt, 2017 mustang gt

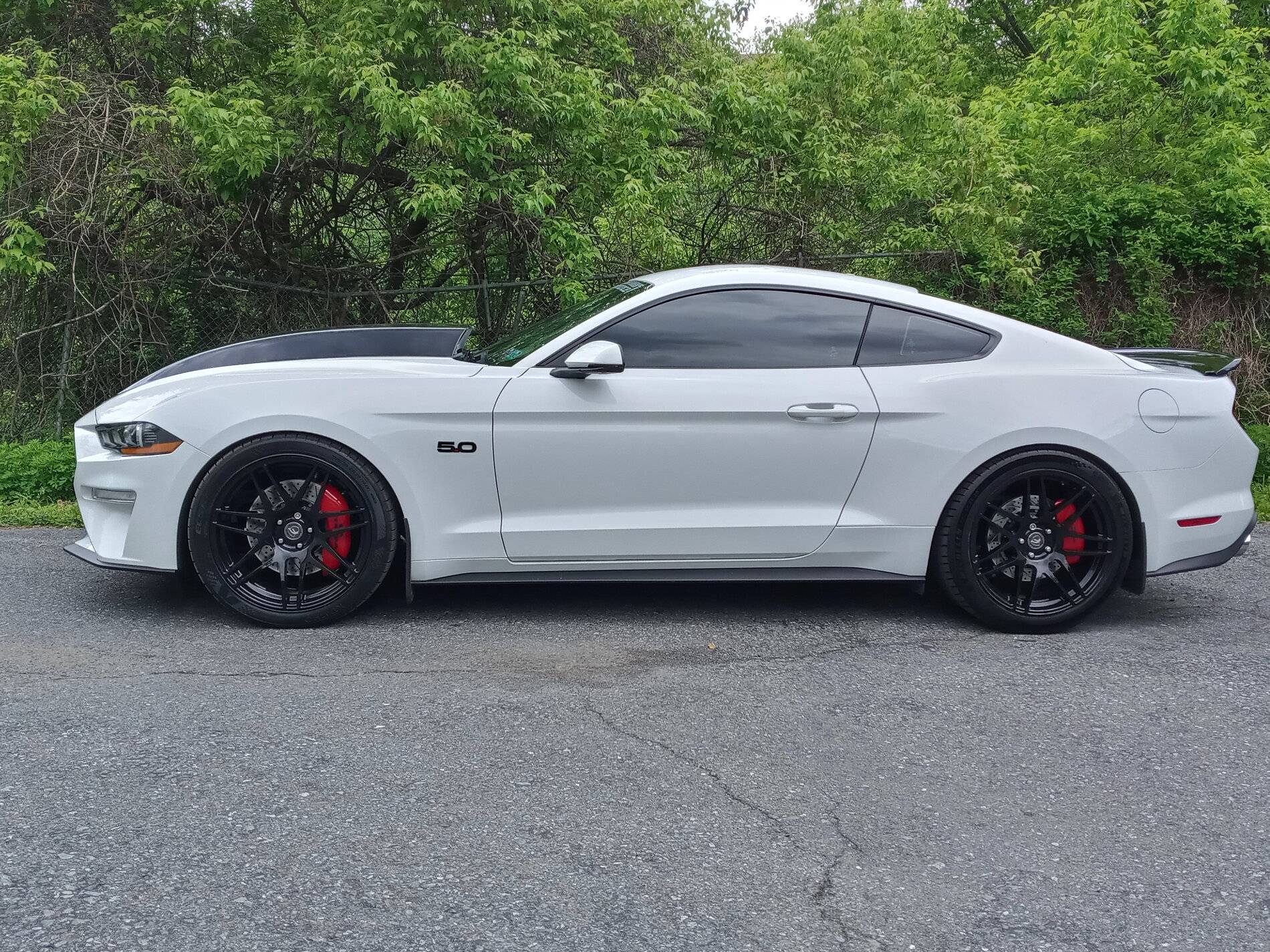

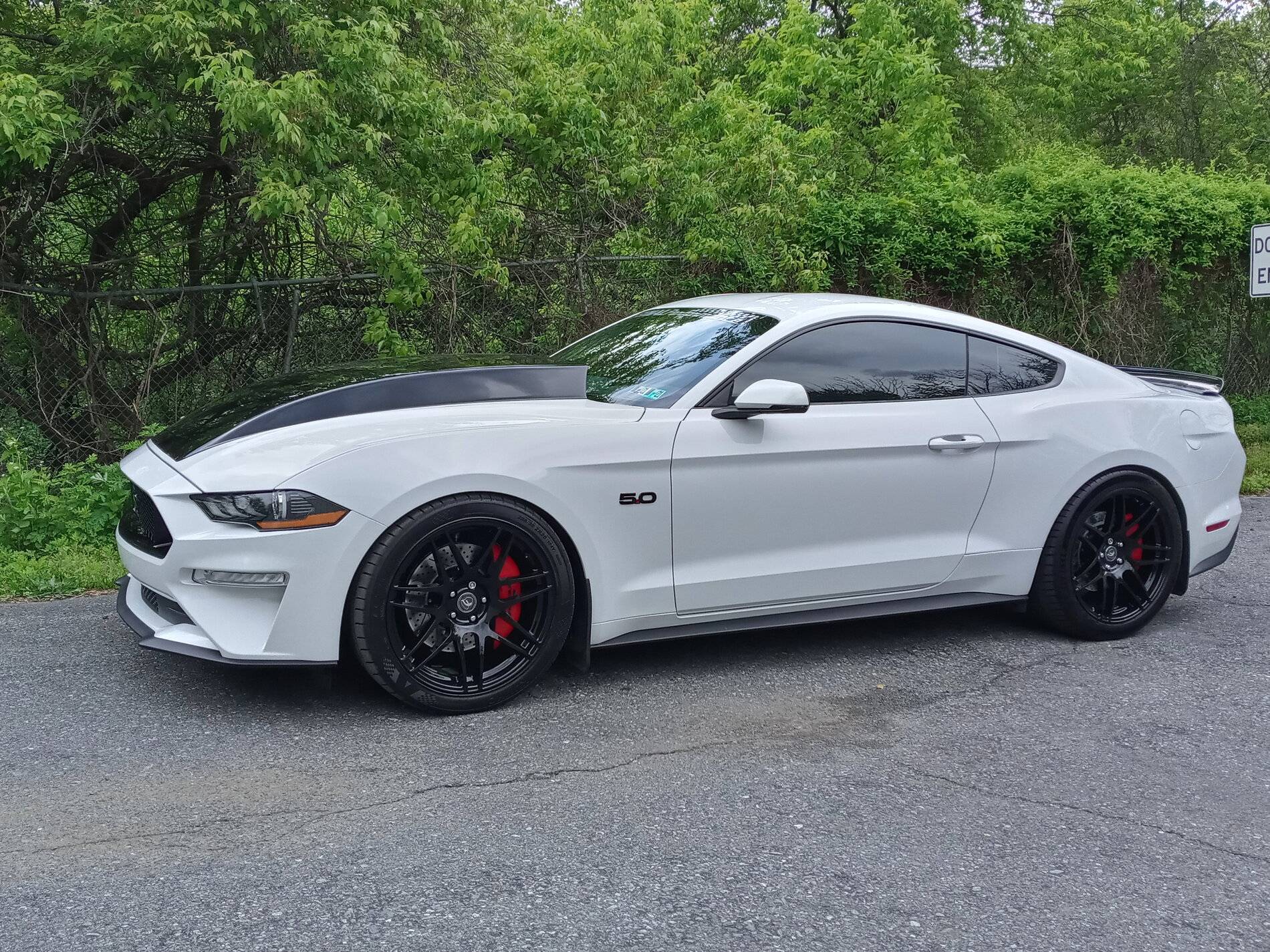

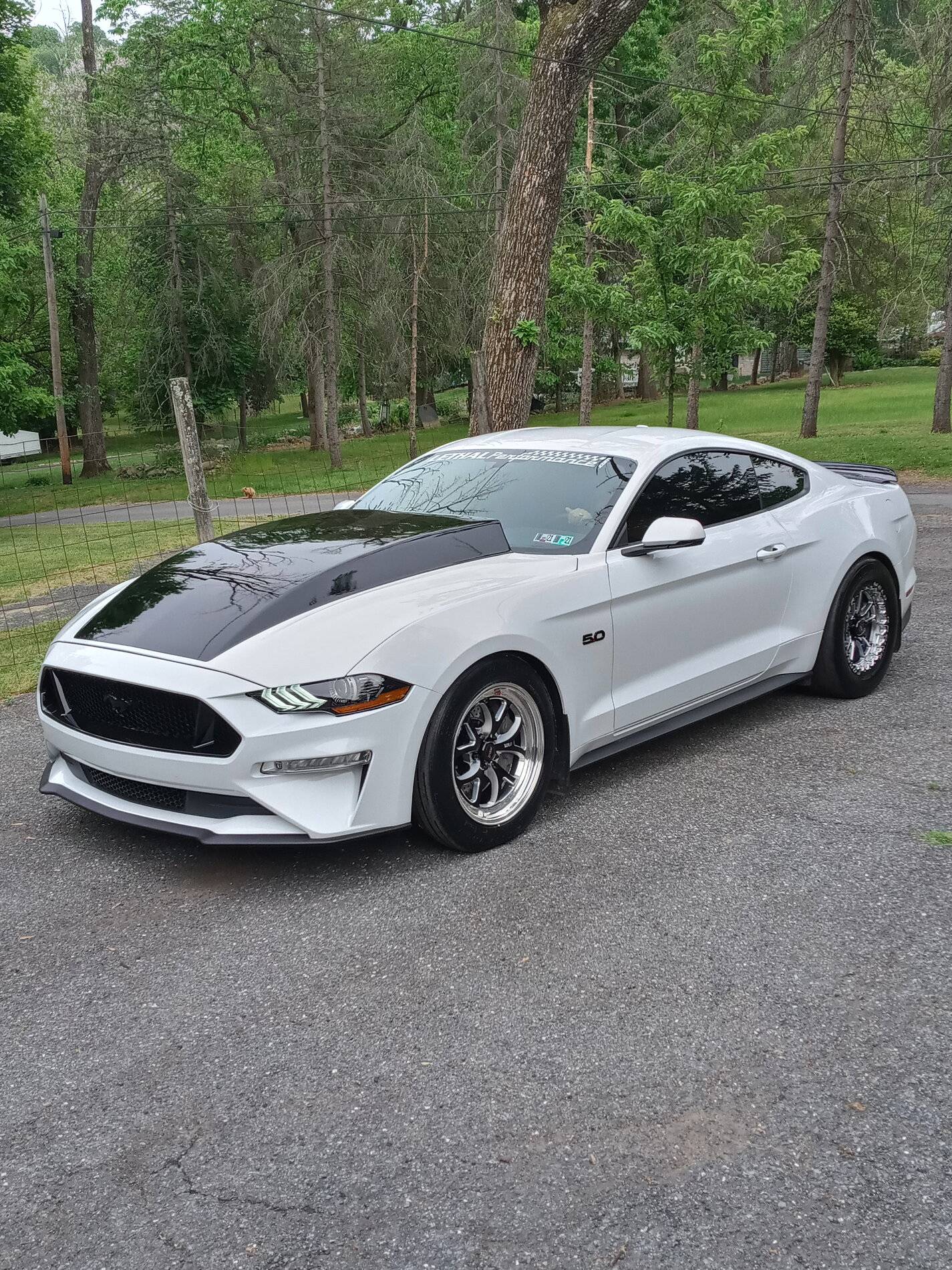

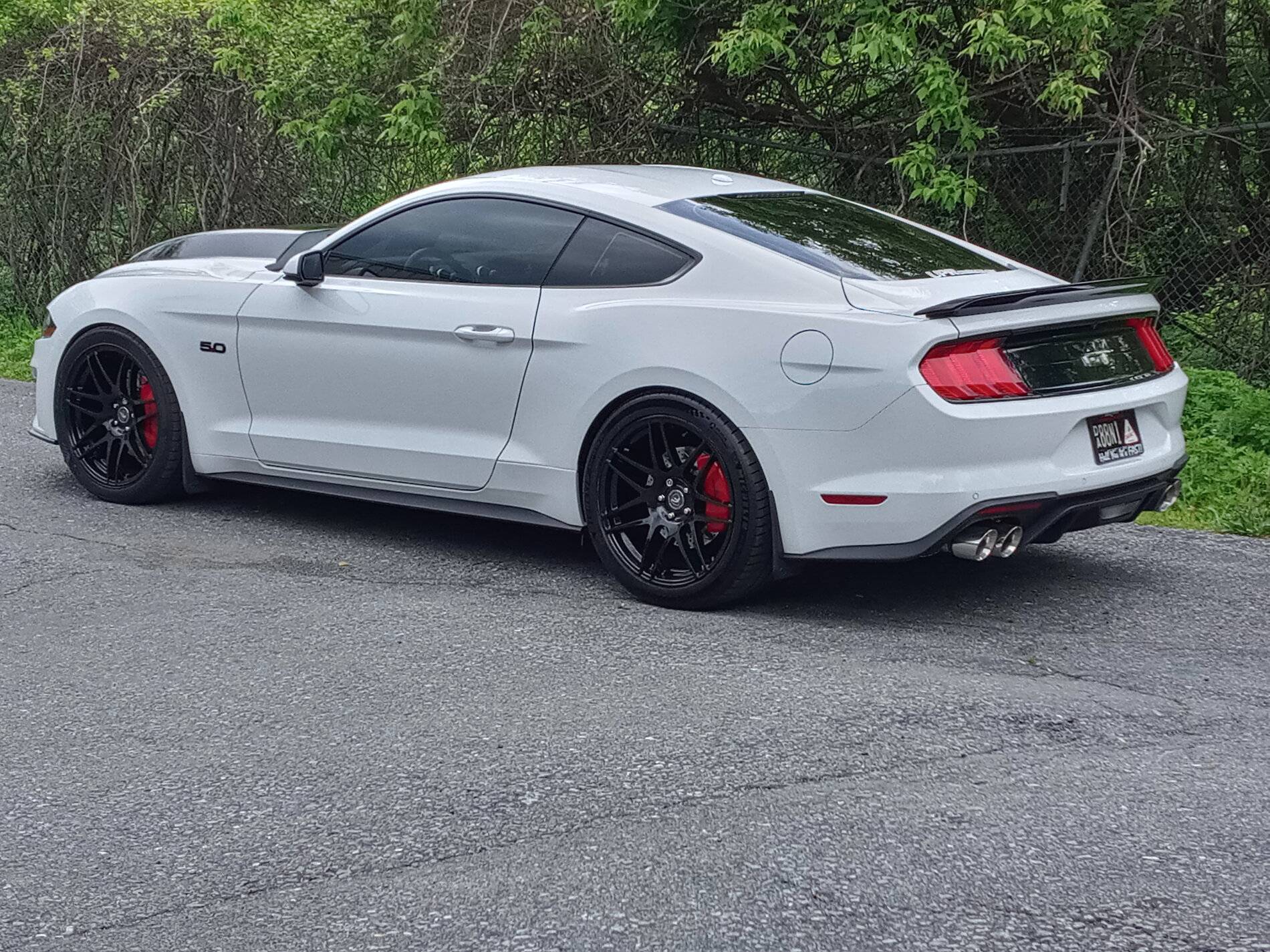

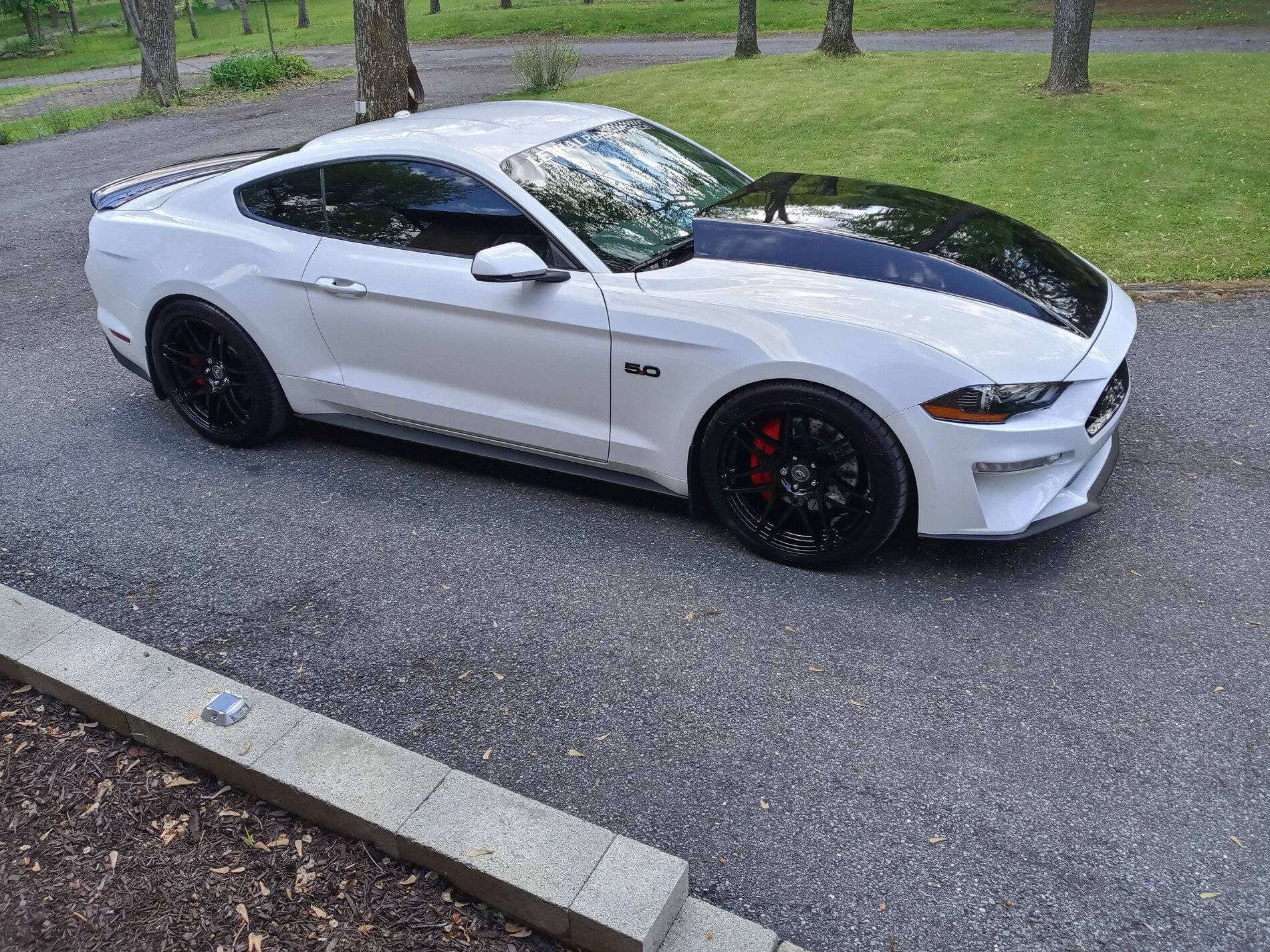

I have 20x9.5 front with a +29 0ffset and 285/35/20's. Rear are 20x11 with a +56 offset and 305/35/20. These are the commonly stocked offsets. I also have bmr drag springs and a drag oriented alignment with very little camber. If i was going to do it again i would order a custom front wheel with at least a +33 offset as these do rub the fenders with a 275 or 285 tire in the front. I also have some weight reduction so if you have more weight on the front end or a supercharger etc it will probably sit even a little lower. Let me know if you have any questions i can help with











[email protected]

The Wheel guy
Diamond Sponsor
Joined
Oct 26, 2016
Threads
241
Messages
14,249
Reaction score
2,223
Location
Los Angeles, California
Website
WWW.PKAutoDesign.com
First Name
Paul A.
Vehicle(s)
2016 Shelby GT350 Tech Pack #G5531 Avalanche Grey
Allow me to jump in here if I may

So if you do not want to stretch tire and or do alignment work the deep concave is the best fitment to run

Front: 20x9.5 ET 29
Rear: 20x11 ET 50
Rear: 20x10.5 ET 45

Then you adjust the tire sizing according so that you do not need to stretch or adjust camber.

However the moment you want to go to a super deep rear which works. You do need to adjust tire sizing either by stretch or camber and lowering the vehicle helps out the fitment a lot.

Paul A.
