Another 2018 Whipple Stage 2 Install

[timewave]

Well had a set back tonight. The drive belt they provided will not go on. I have the adjustable idler set at the lowest point or most slack and the belt will not go on even with the spring tensioner cranked all the way over.

I triple checked the pullies and all are per instructions.

Belt size is 82.5" and measured that. It's within an 1/8", on the high side.

So something is not to the instructions. I know I have a different spring tensioner because when I called Whipple today to go over a couple of things I asked about the arrows referred to in the instructions. Was told they added these to the tensioner. Also other poster on this thread indicated they had interference with the AC compressor. I do not. So it seems to me something has changed in the geometery of the pulley system. Could be the diameter of the water pump pulley but that is a stretch. I am thinking an 83.5" belt should do it. This leave room to adjust the idler pulley for stretch later.

Anyone else seen this?

And it was going so well....

Rob

Same problem I got a 83.5 haven't had a problem since. Glad to see im not the only one who couldn't get the whipple belt. on.

Sponsored



[rtg]

Latest word out of Whipple is that I got a 2011-2017 spring tensioner. They are over-nighting the correct spring tensioner.

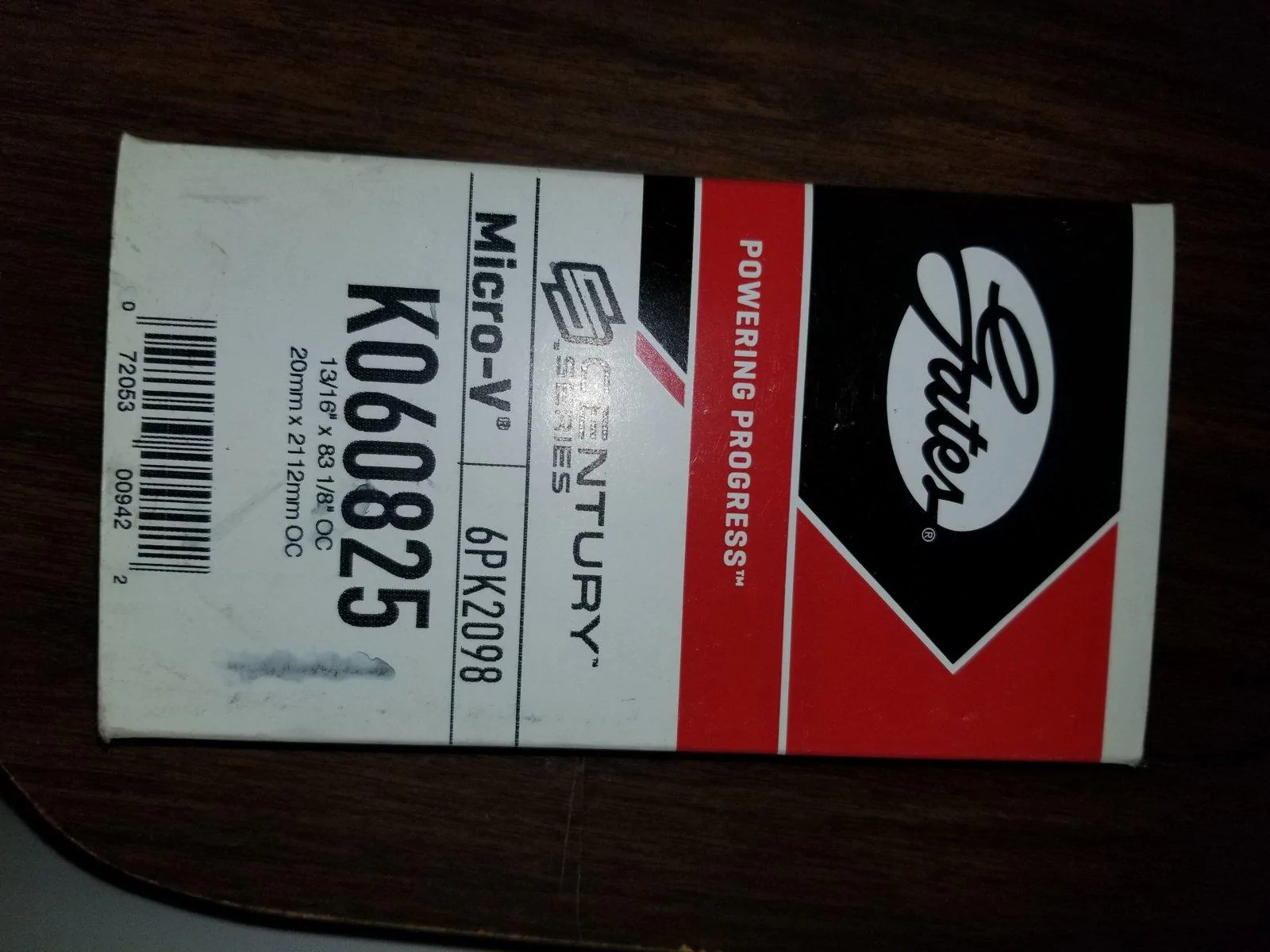

I did get a Gates K060825 83.125" belt as a back up.

Tonight moving to next steps.

Rob



[timewave]

Latest word out of Whipple is that I got a 2011-2017 spring tensioner. They are over-nighting the correct spring tensioner.

I did get a Gates K060825 83.125" belt as a back up.

Tonight moving to next steps.

Rob

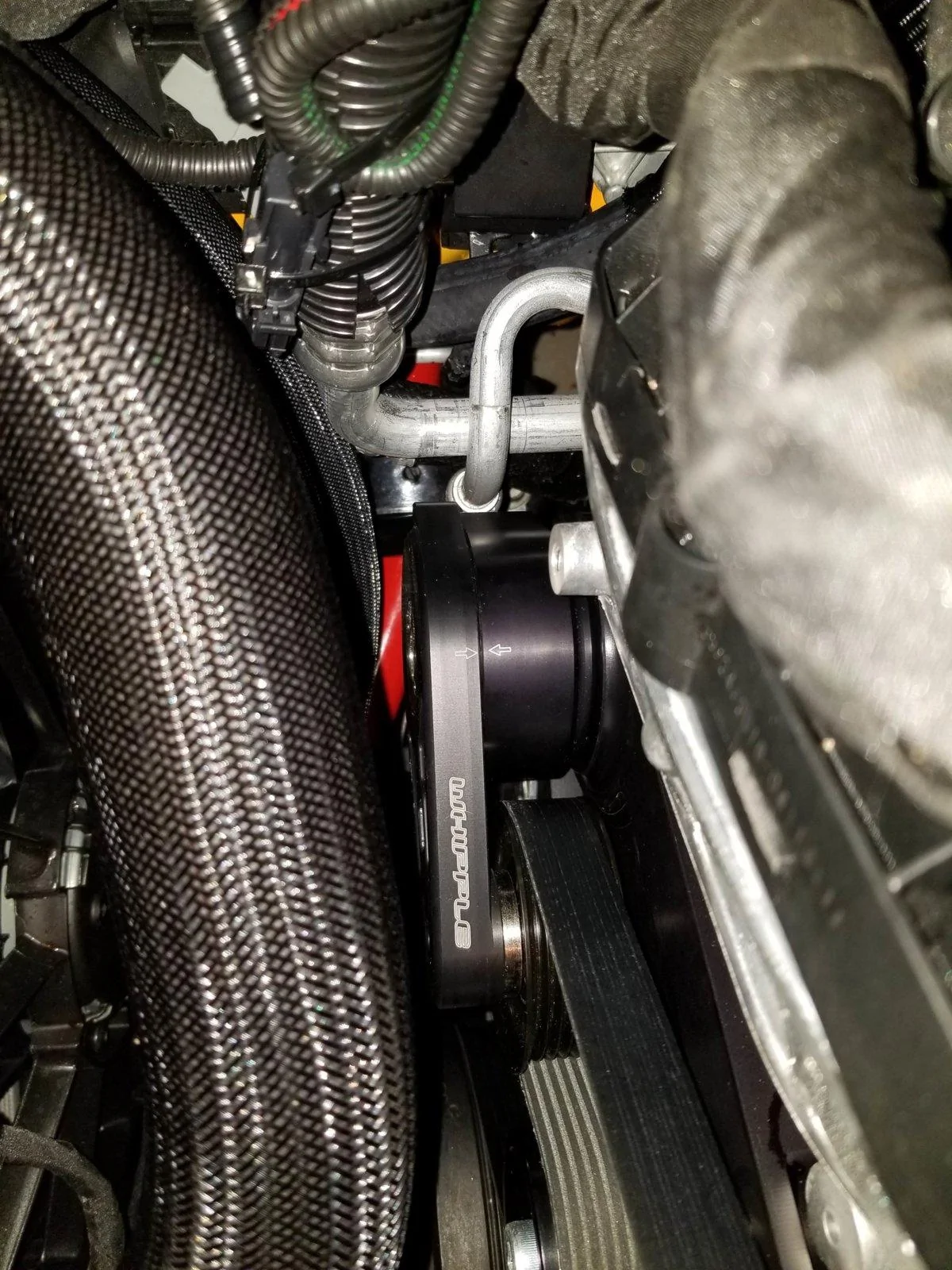

Here is how mine aligned with the larger belt. The idler pulley has a lot more to move too. Good luck with the rest of the install!



[Whipple18GT]

Here is how mine aligned with the larger belt. The idler pulley has a lot more to move too. Good luck with the rest of the install!

I do not have the arrows on mine either, I think I was one of the first ten with a kit. was gonna put on a 3.75 pulley on wonder if I have the 15-17 also?



[rtg]

Made some more progress tonight......

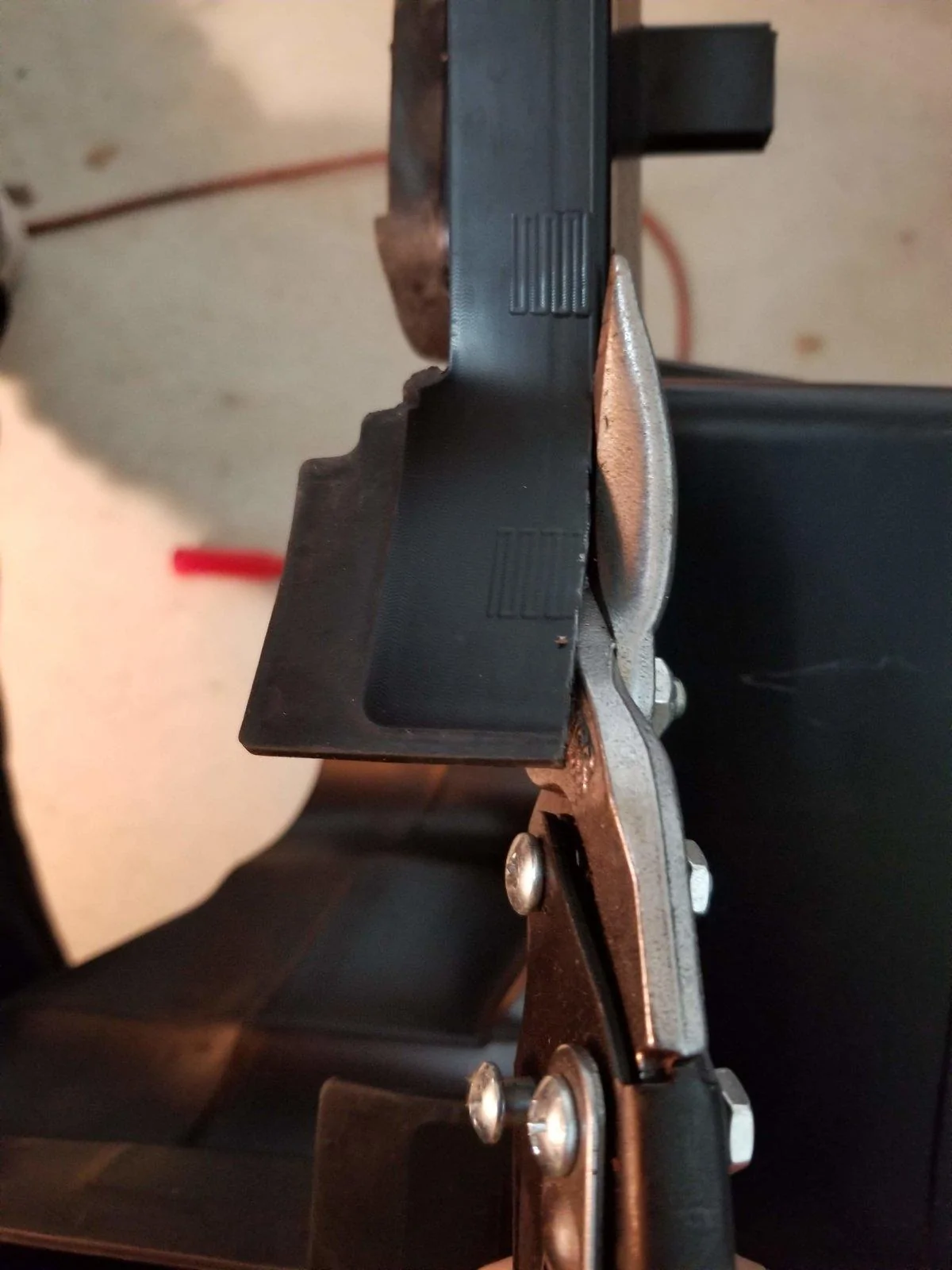

Used some tin snipes to cut the air cowl

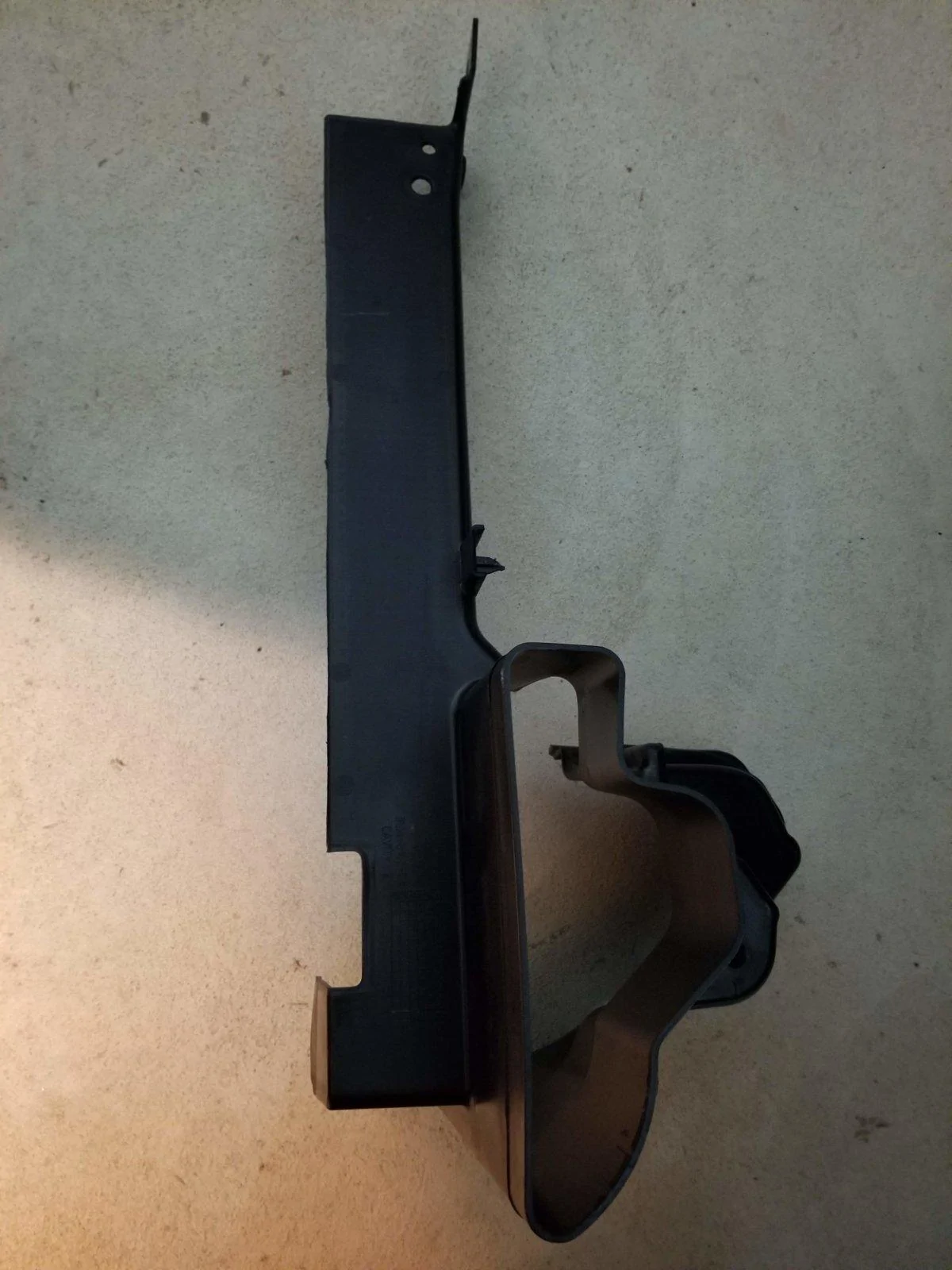

Cut piece

Back on the car

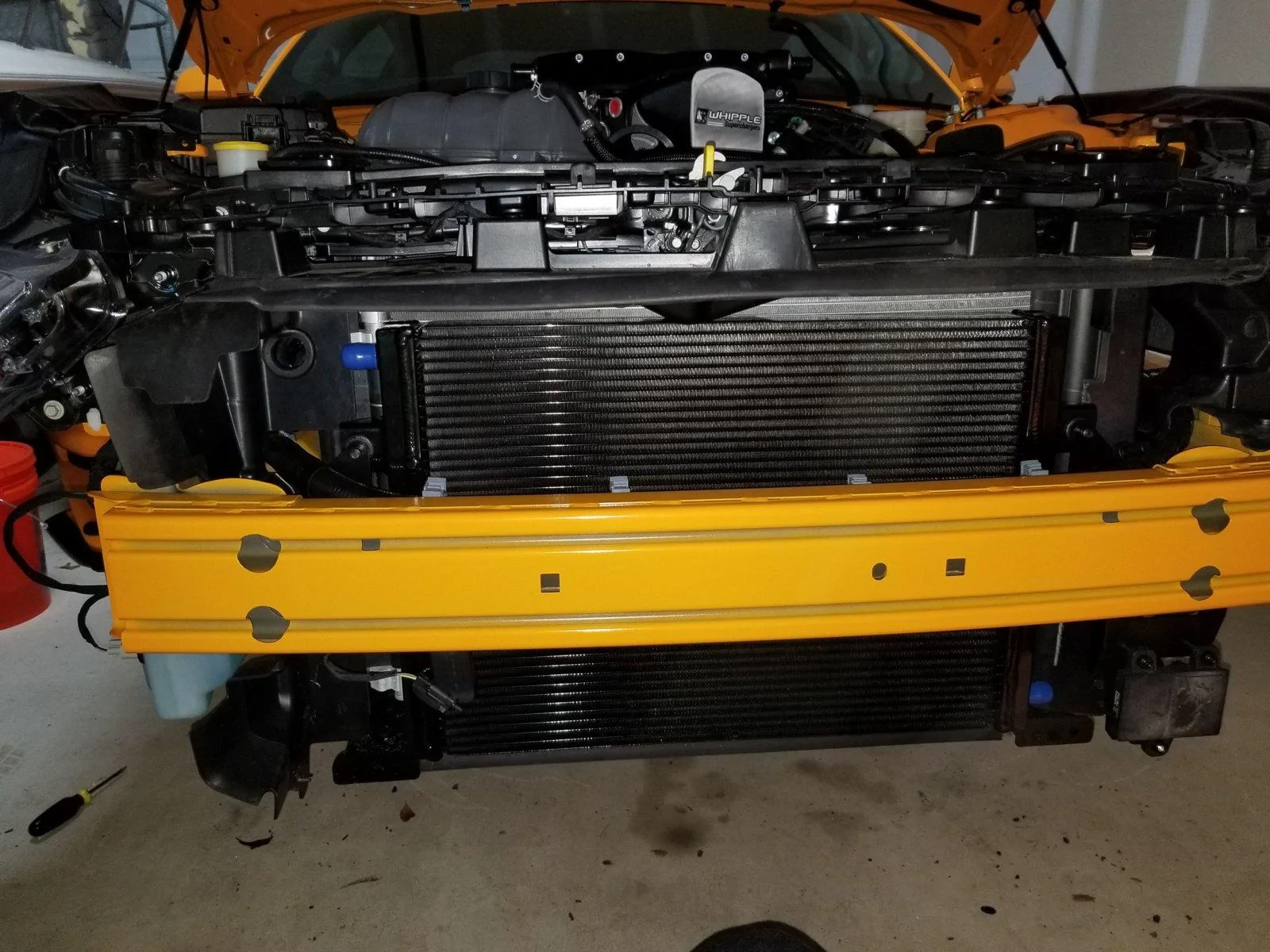

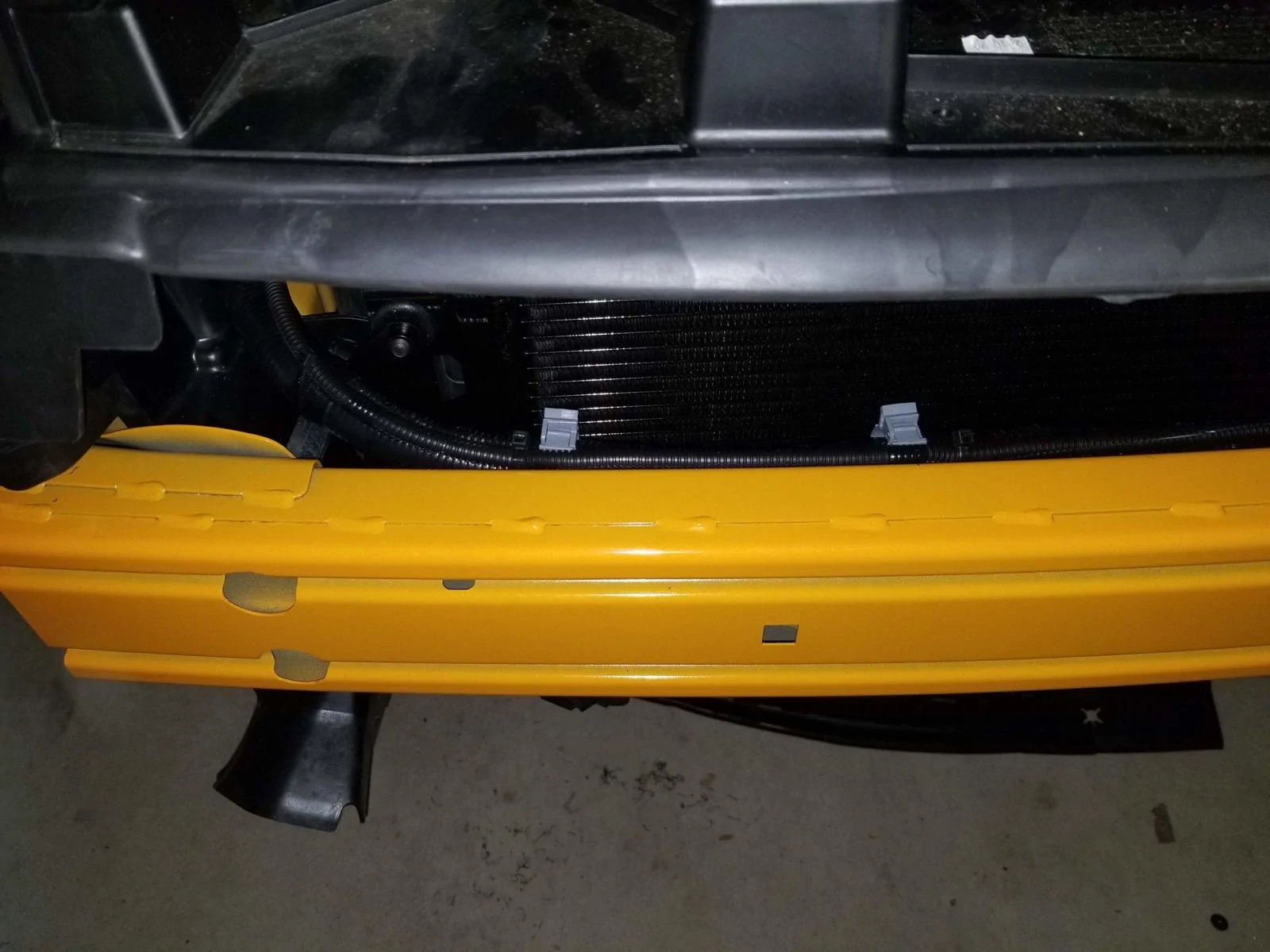

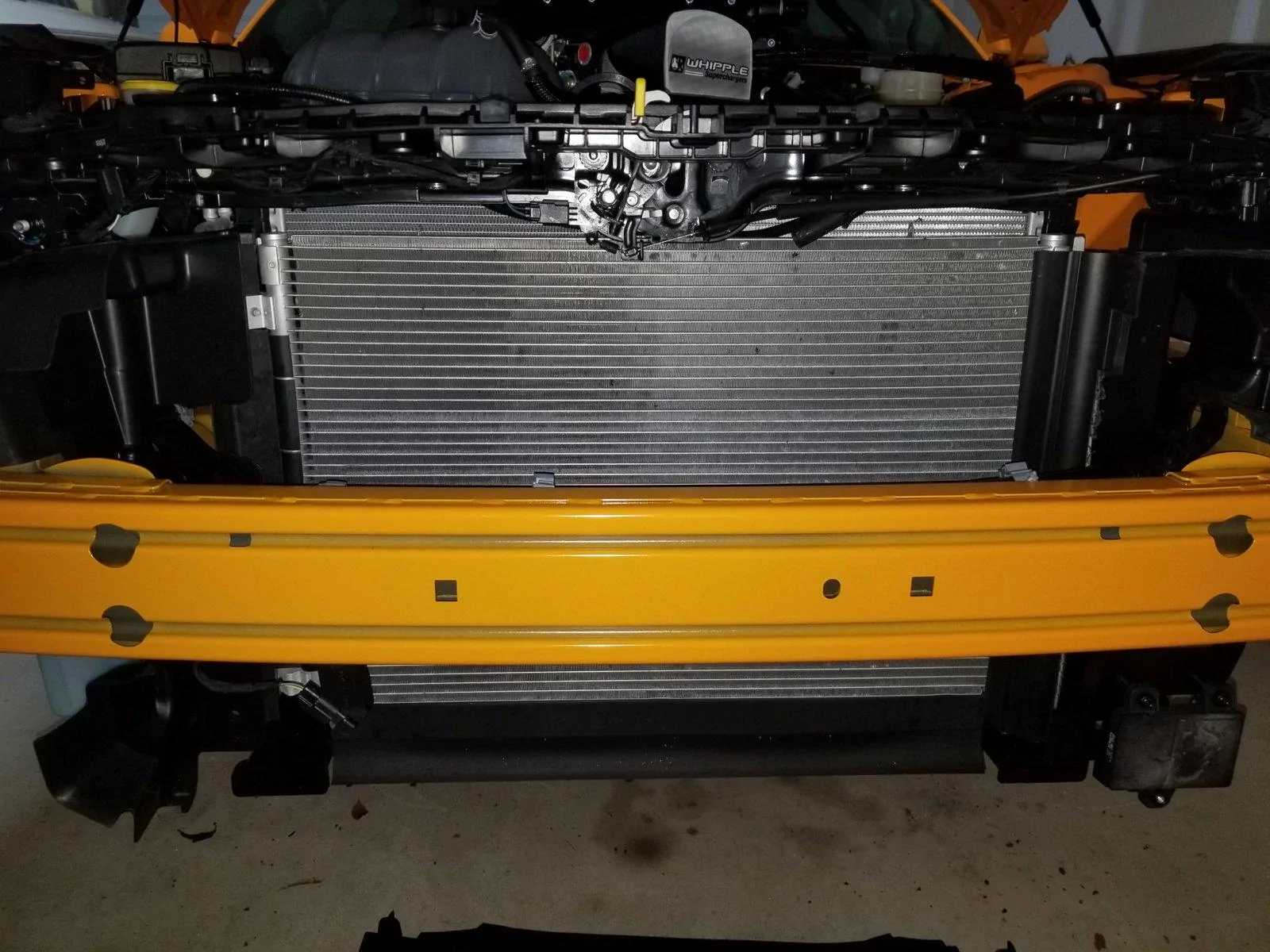

Before SC radiator

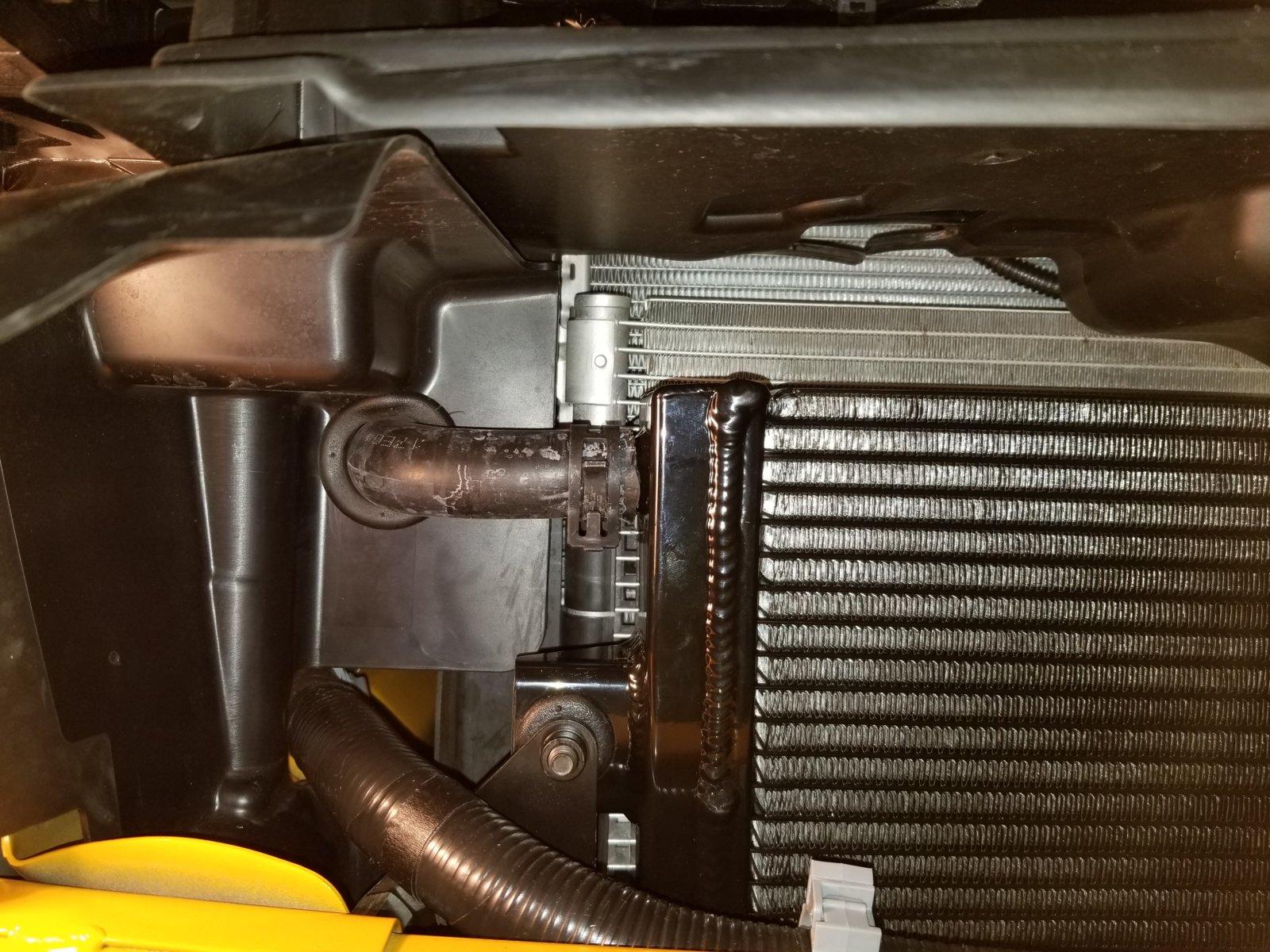

After SC radiator

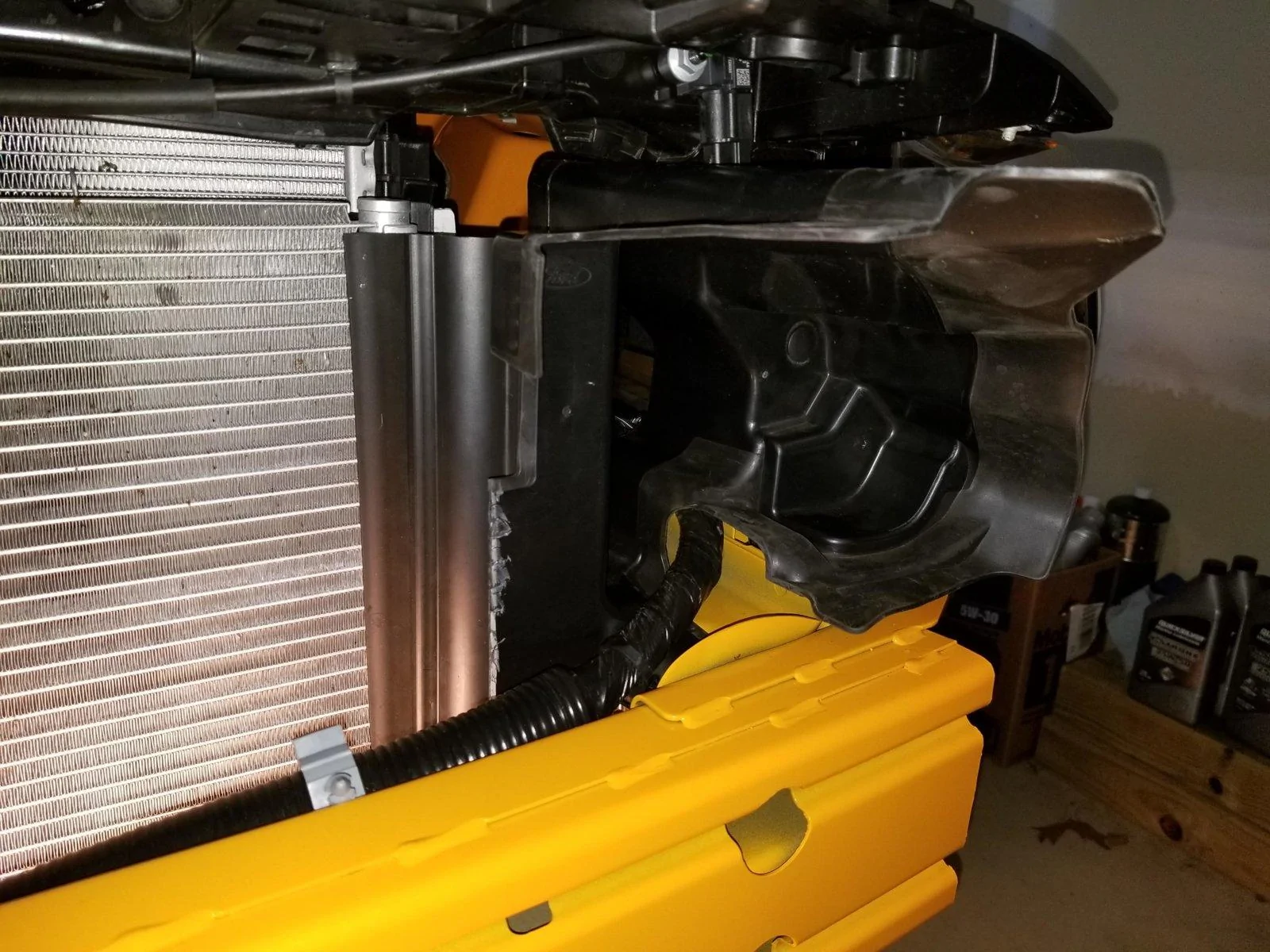

Hole cut for SC radiator hose

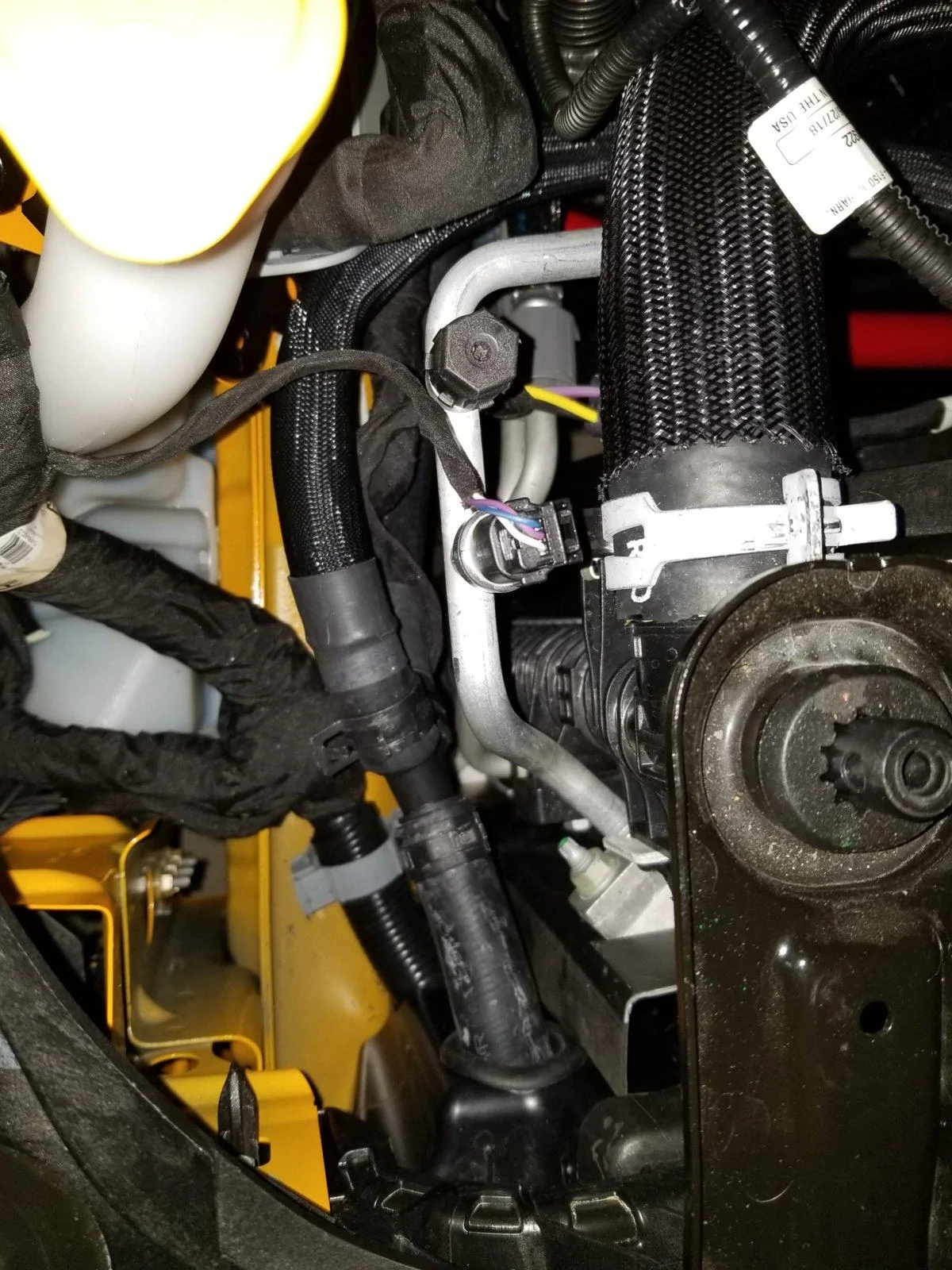

Other side with tee fitting

Bottom of tee hose routed to right side of SC

Tomorrow some more.

Rob



[rtg]

Got a little more done today...

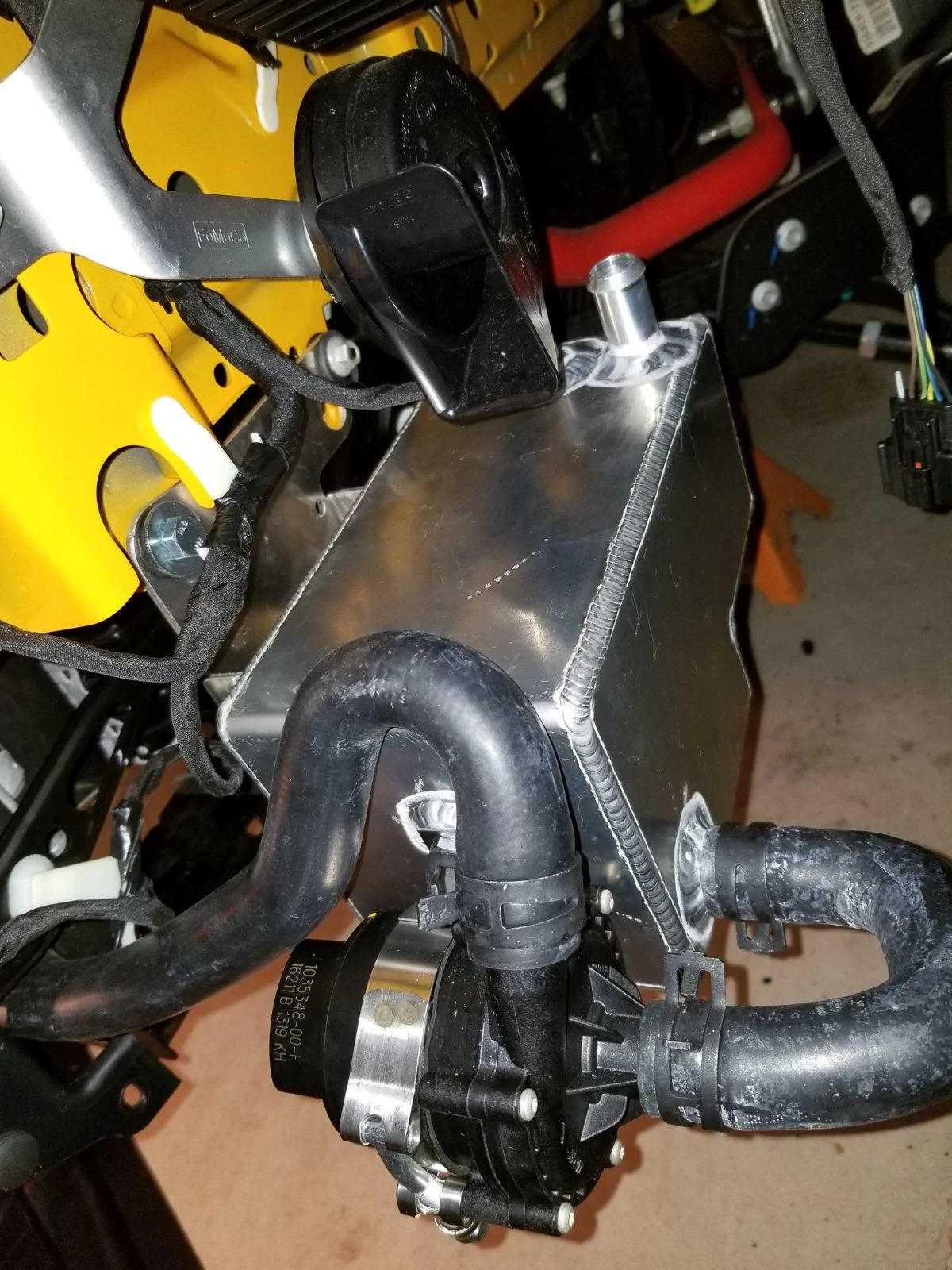

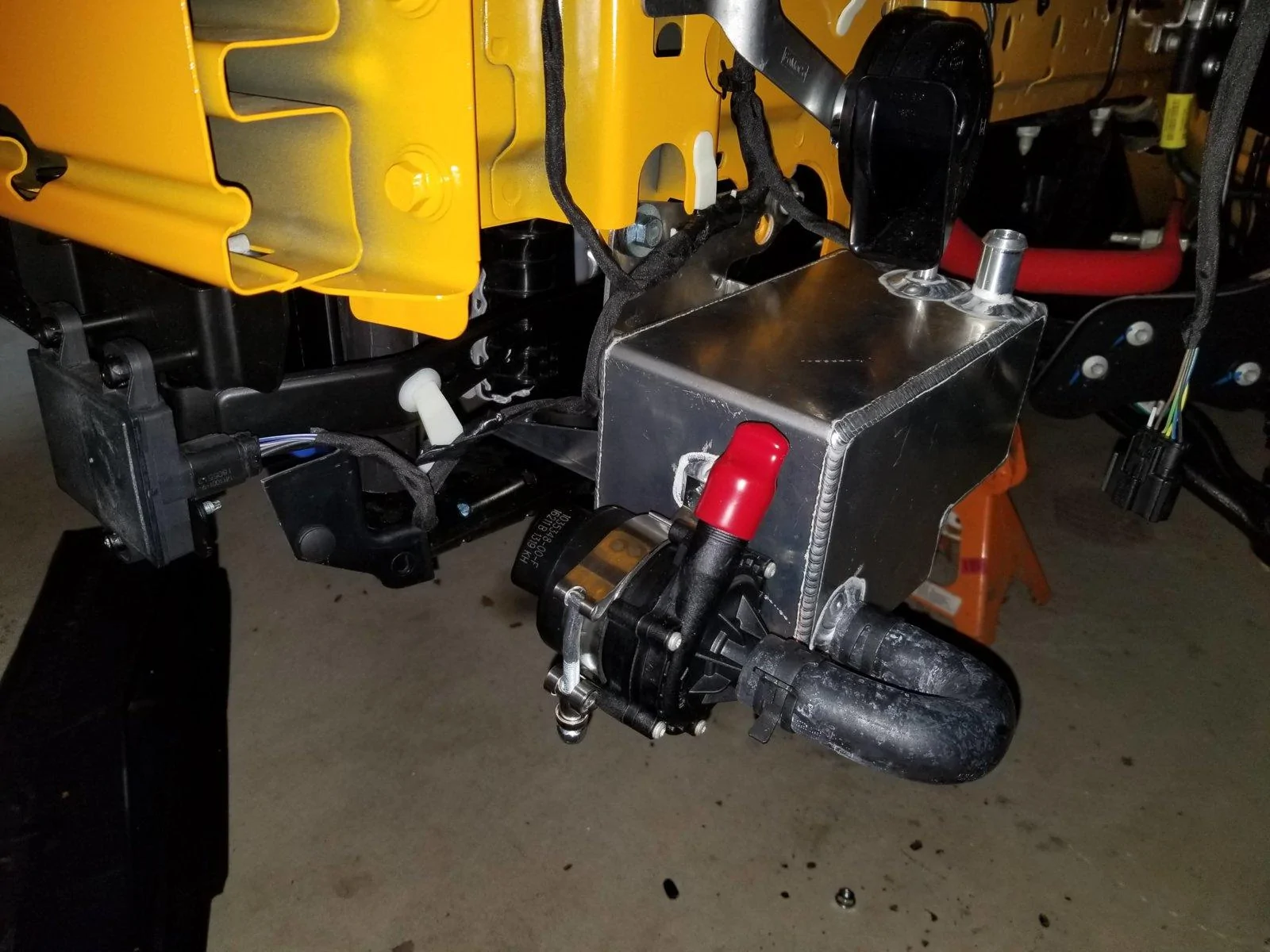

Mounted intercooler reservoir and pump

side view

top view

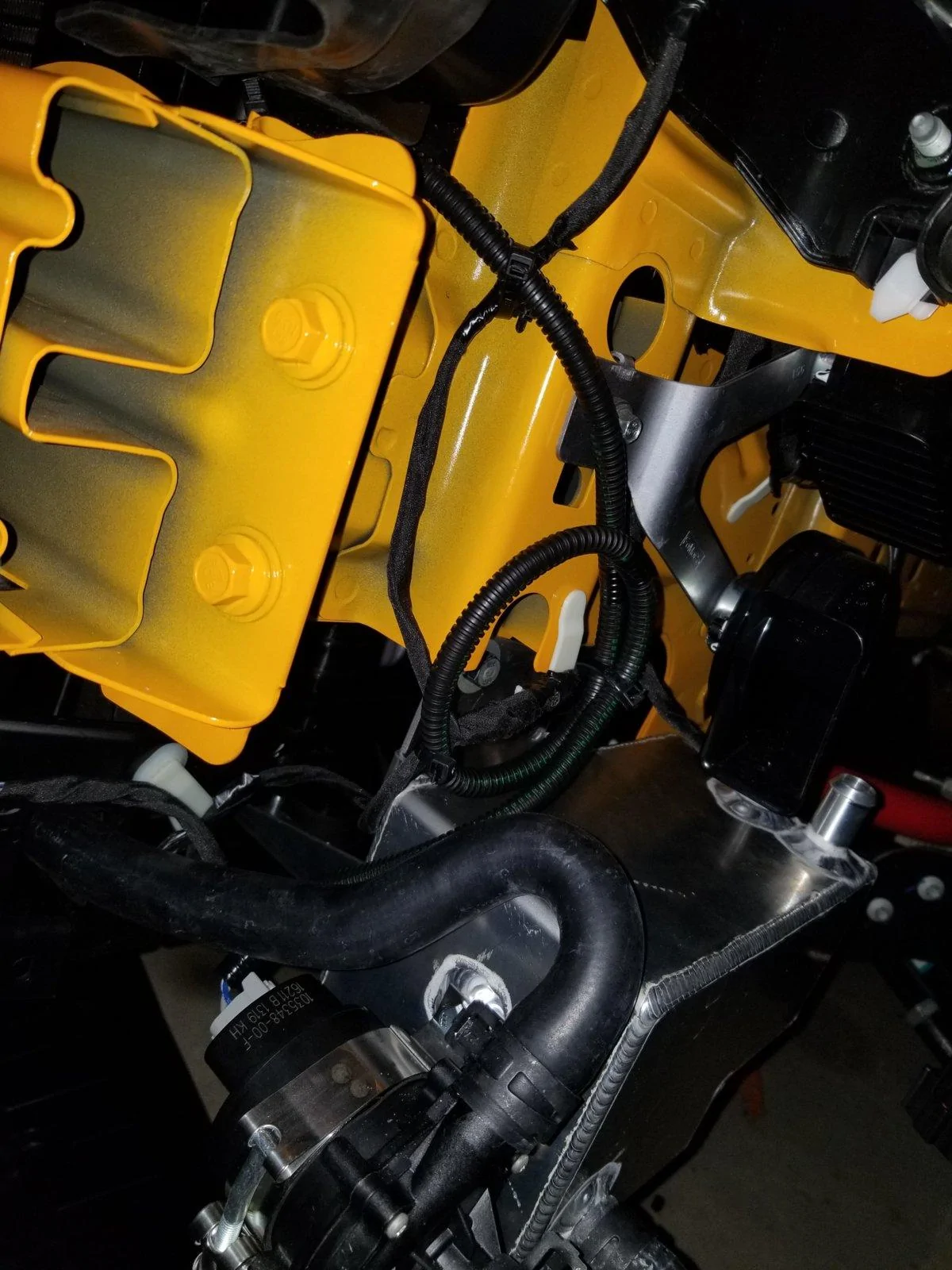

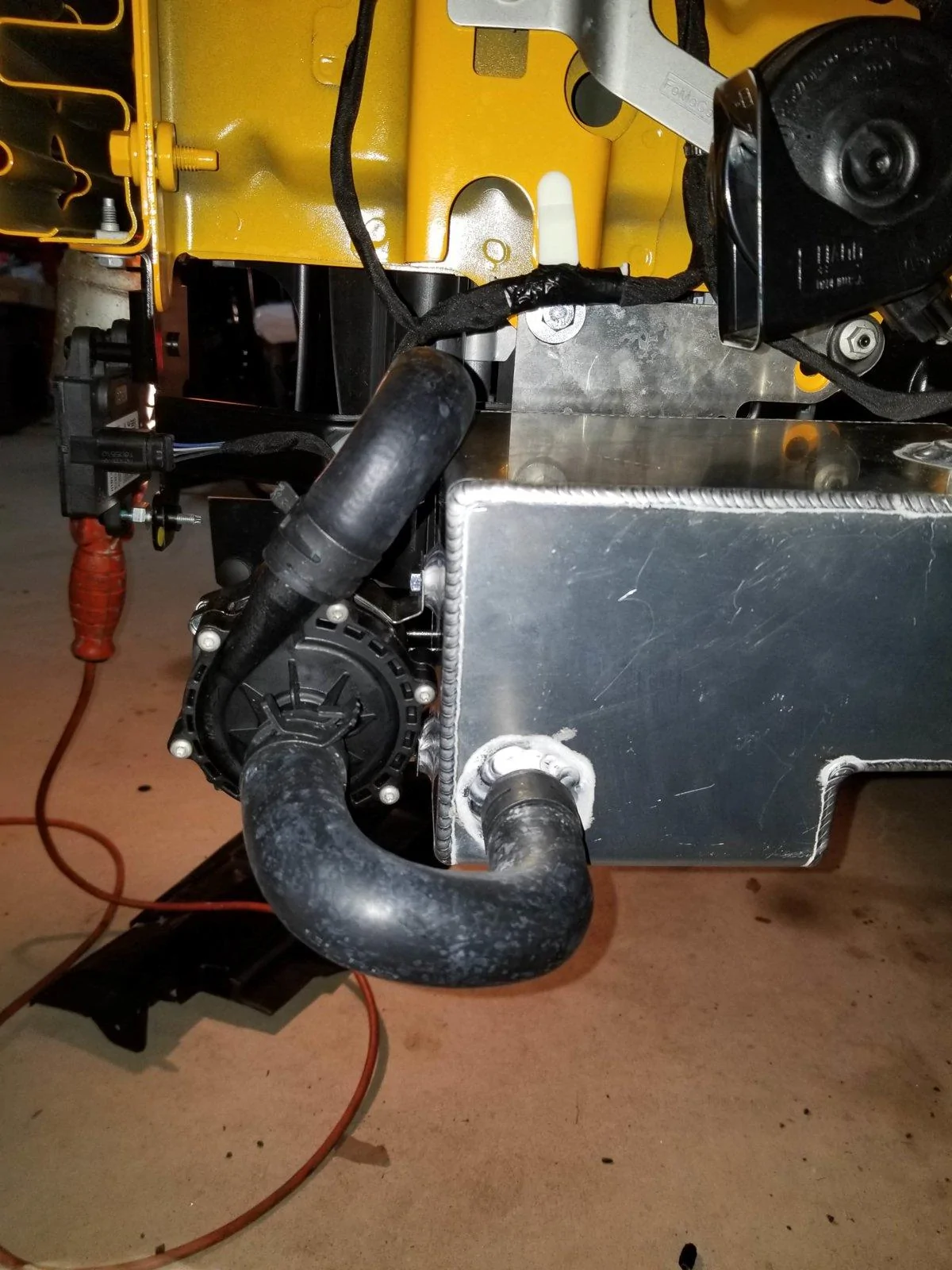

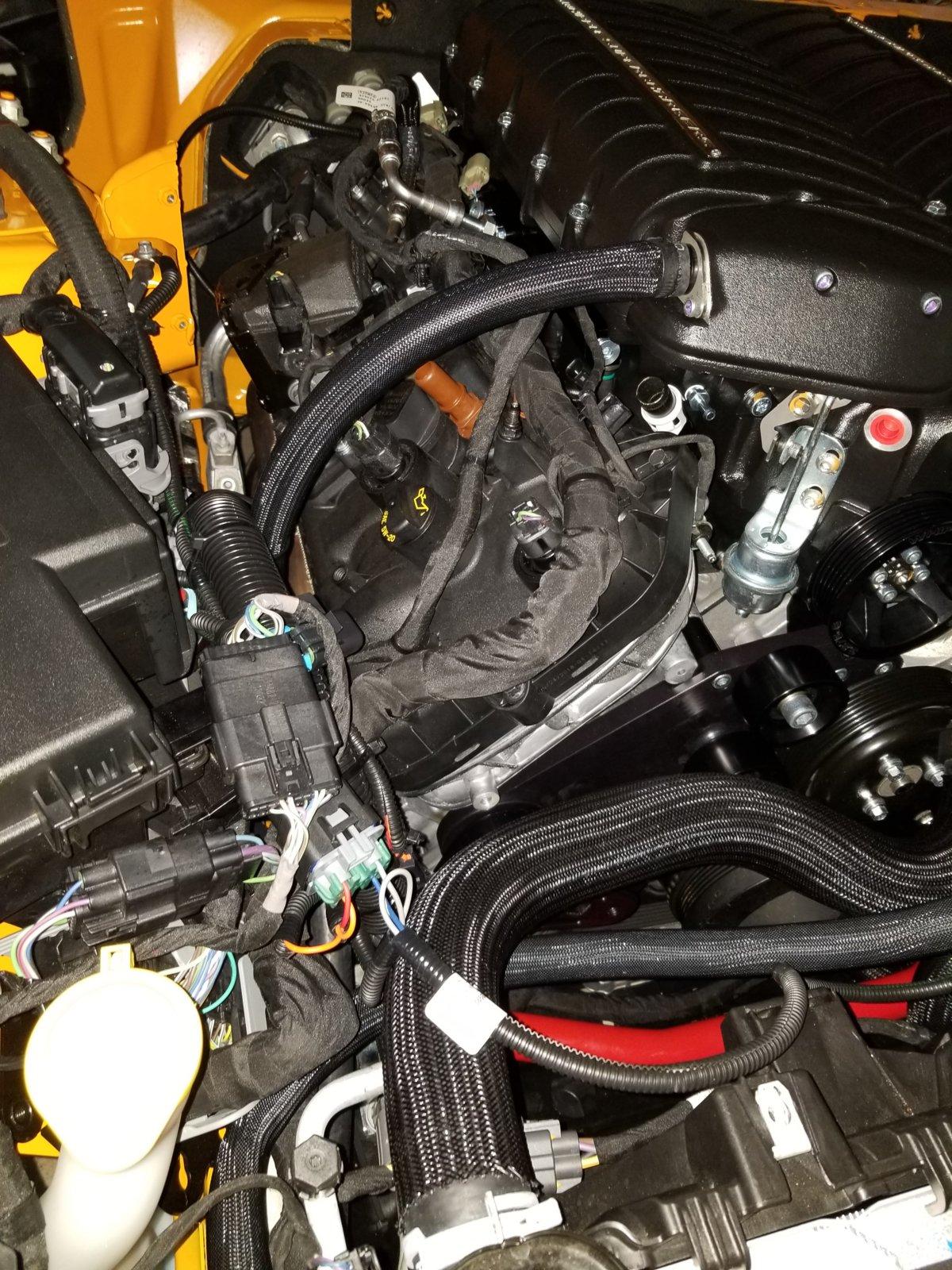

pump power cable routing

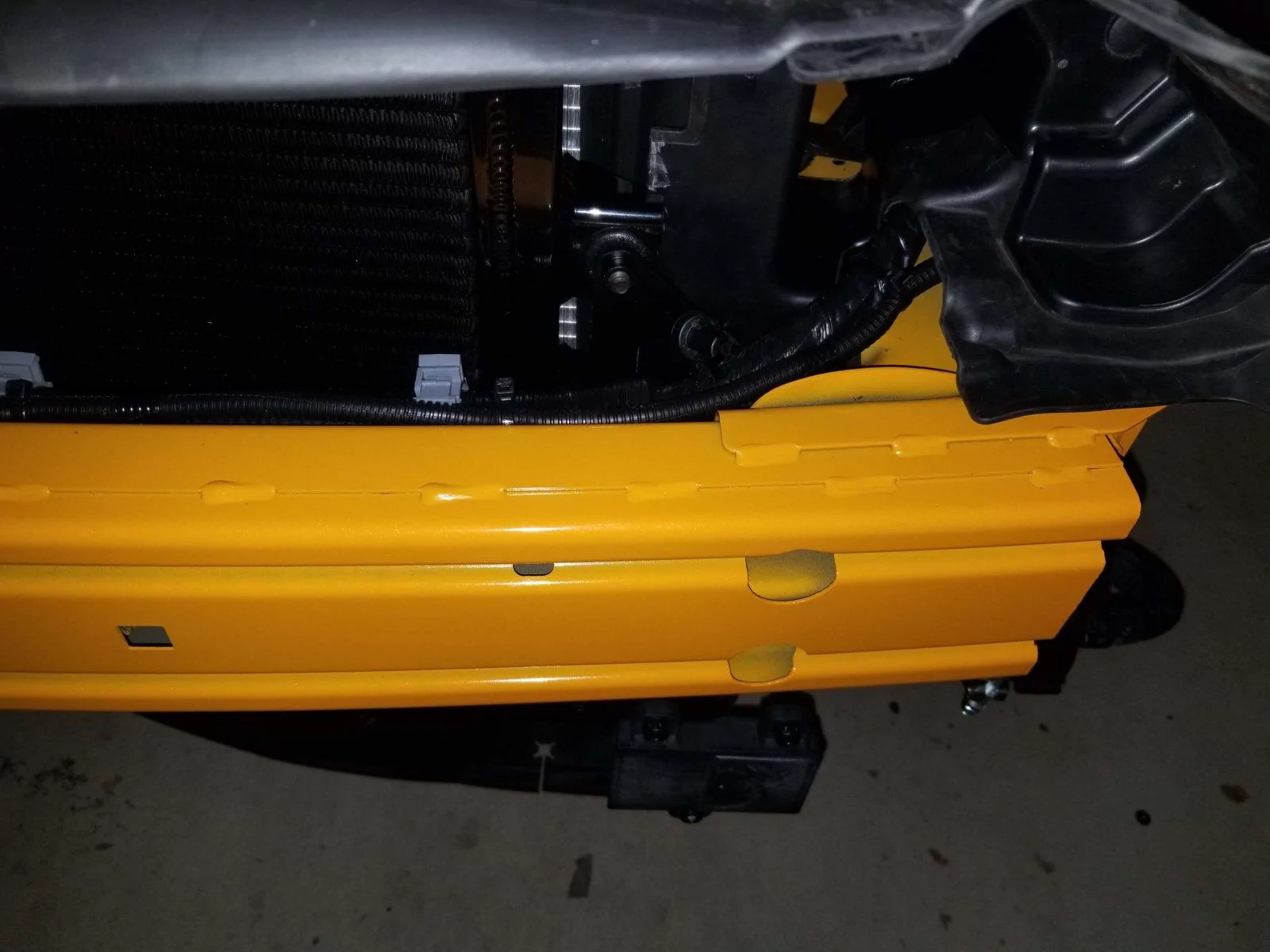

behind front bumper

down the side to pump

Evap solenoid

View attachment 308872

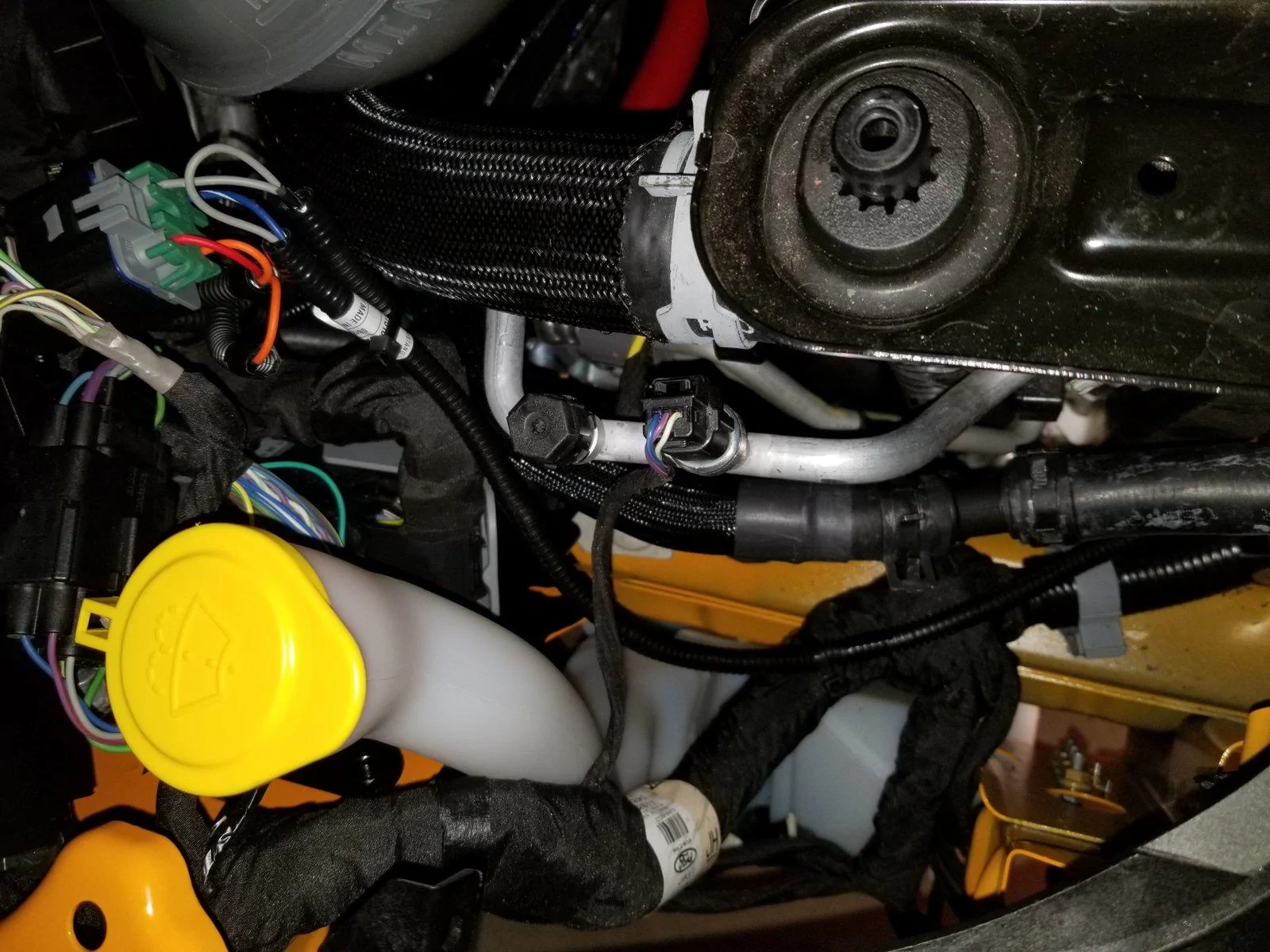

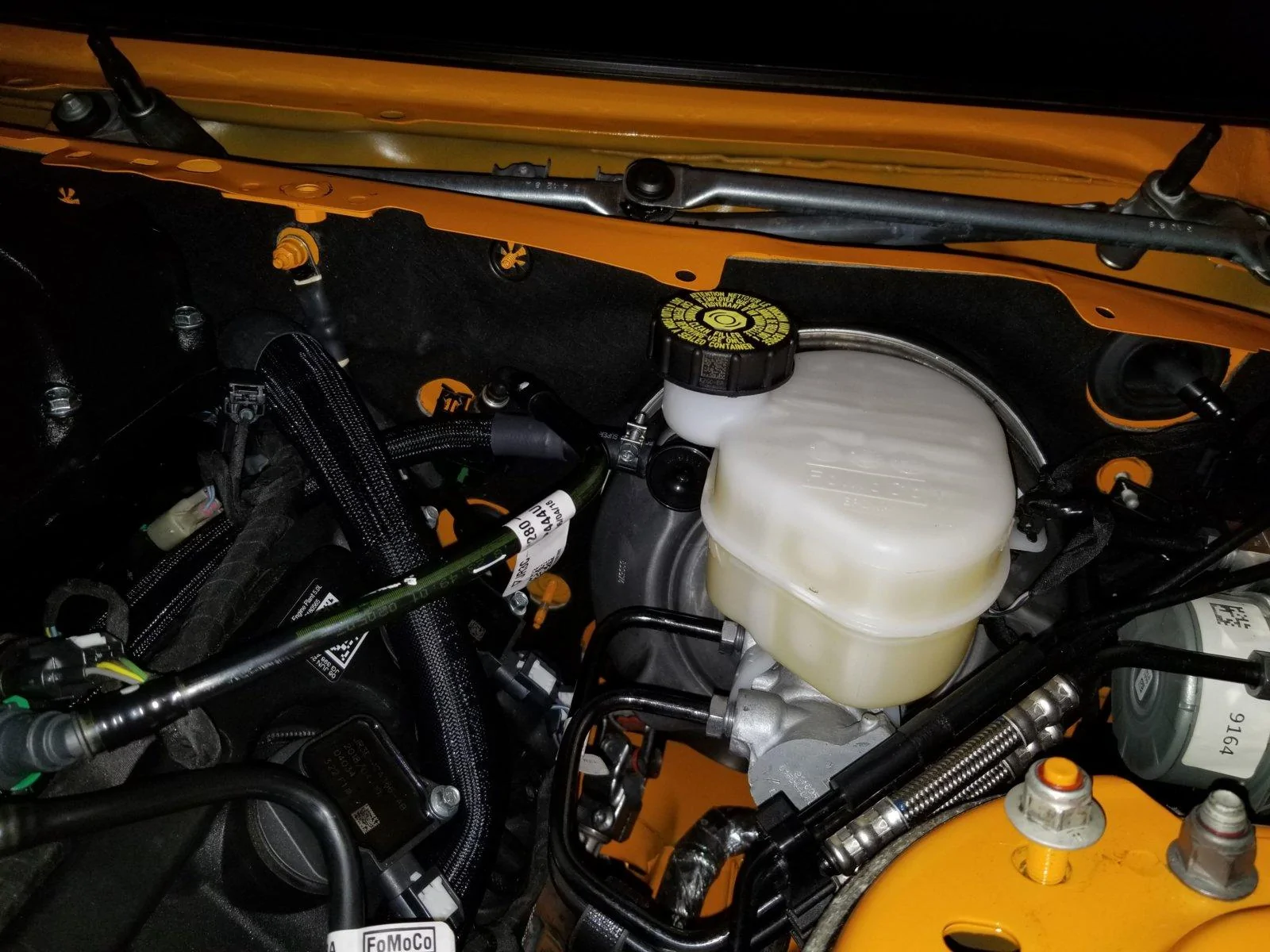

brake booster hose routing

View attachment 308873

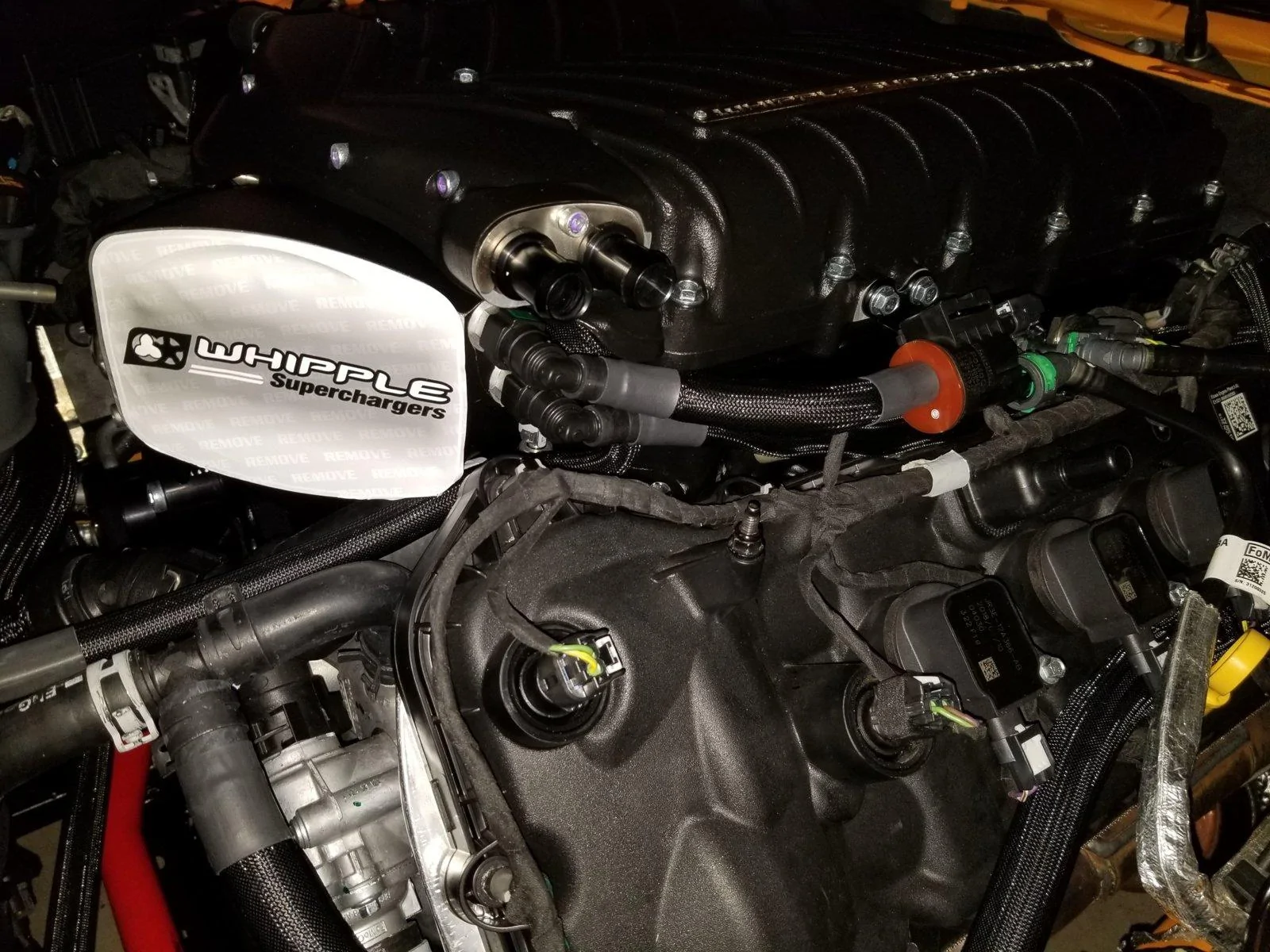

More tomorrow.... The drive belt.

Rob



[rtg]

Drive belt update....

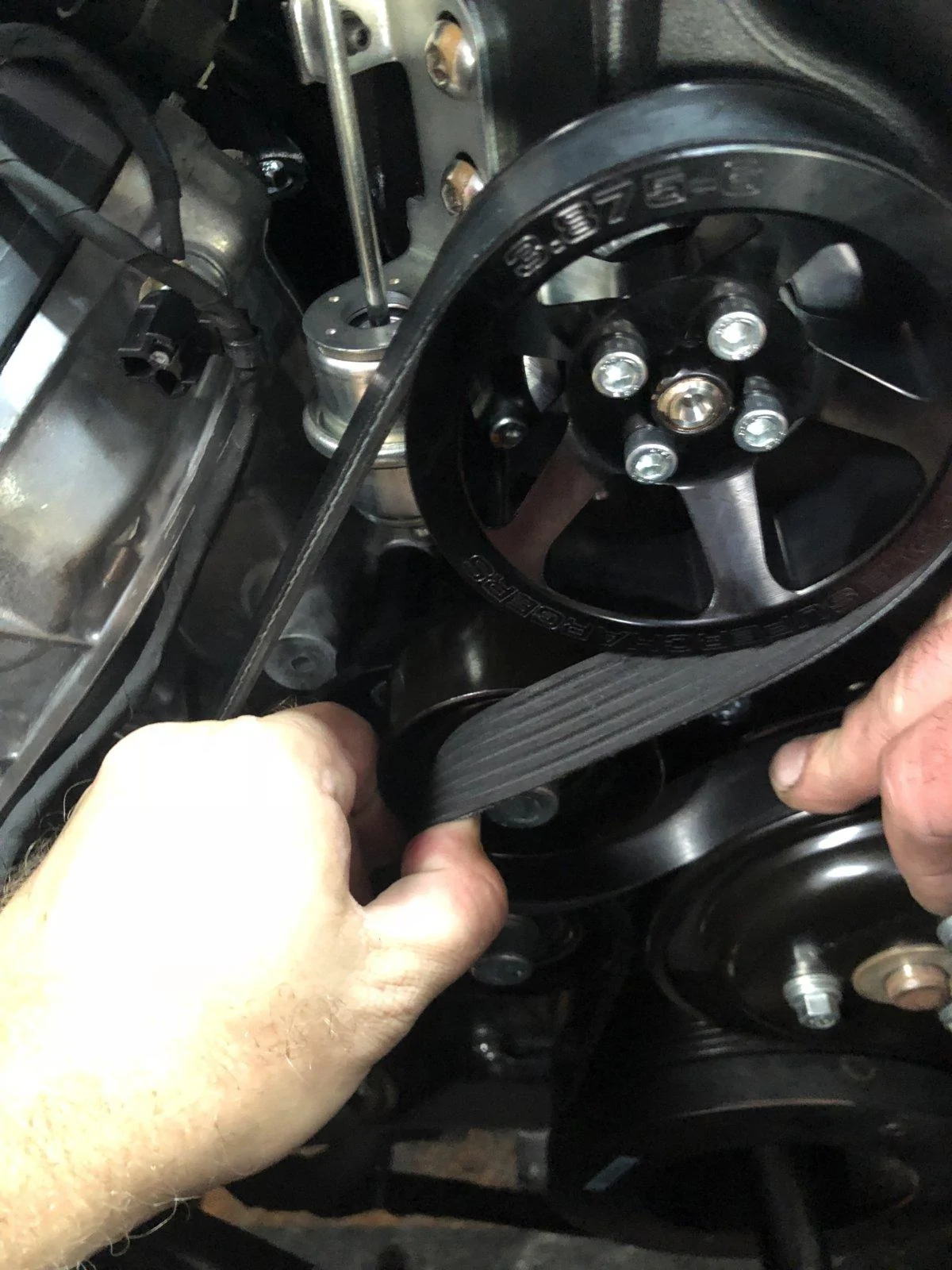

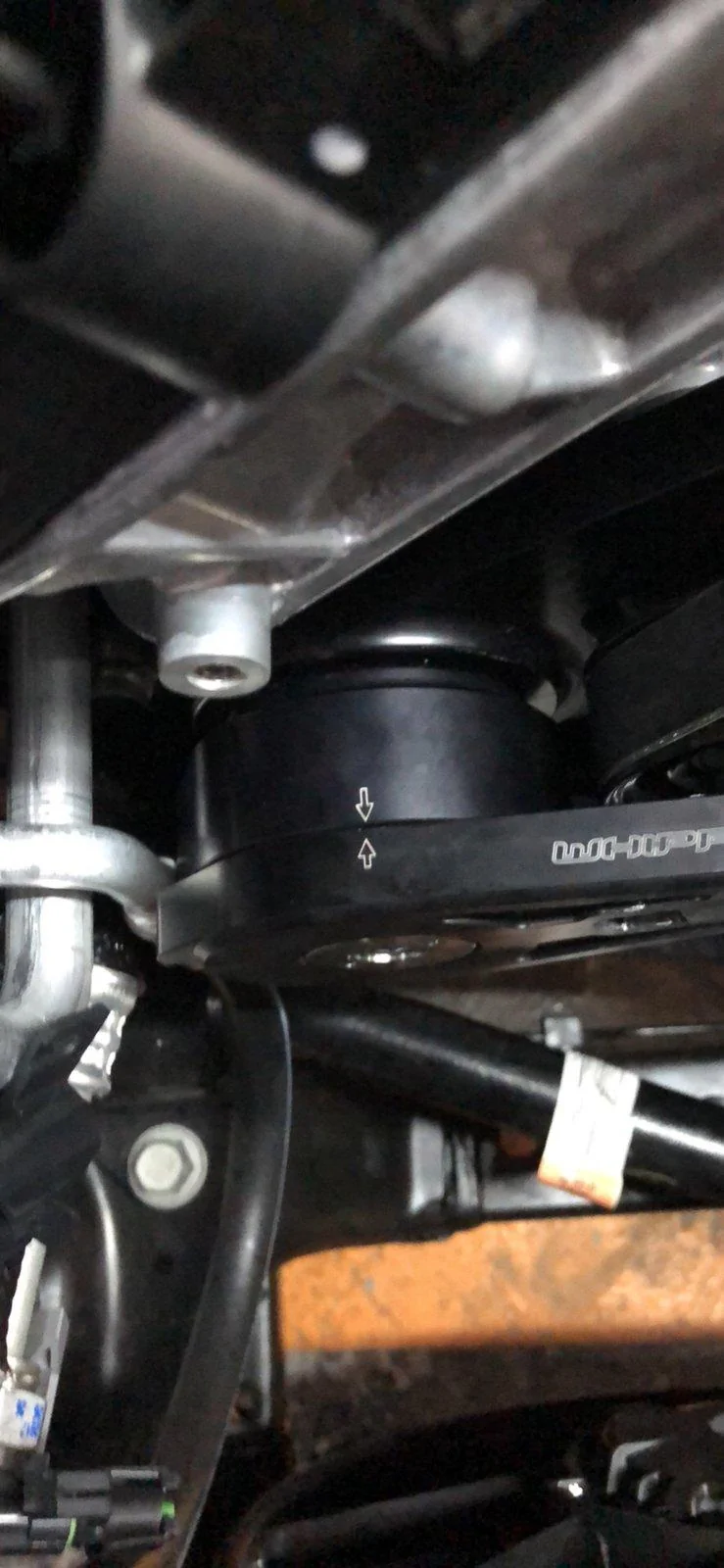

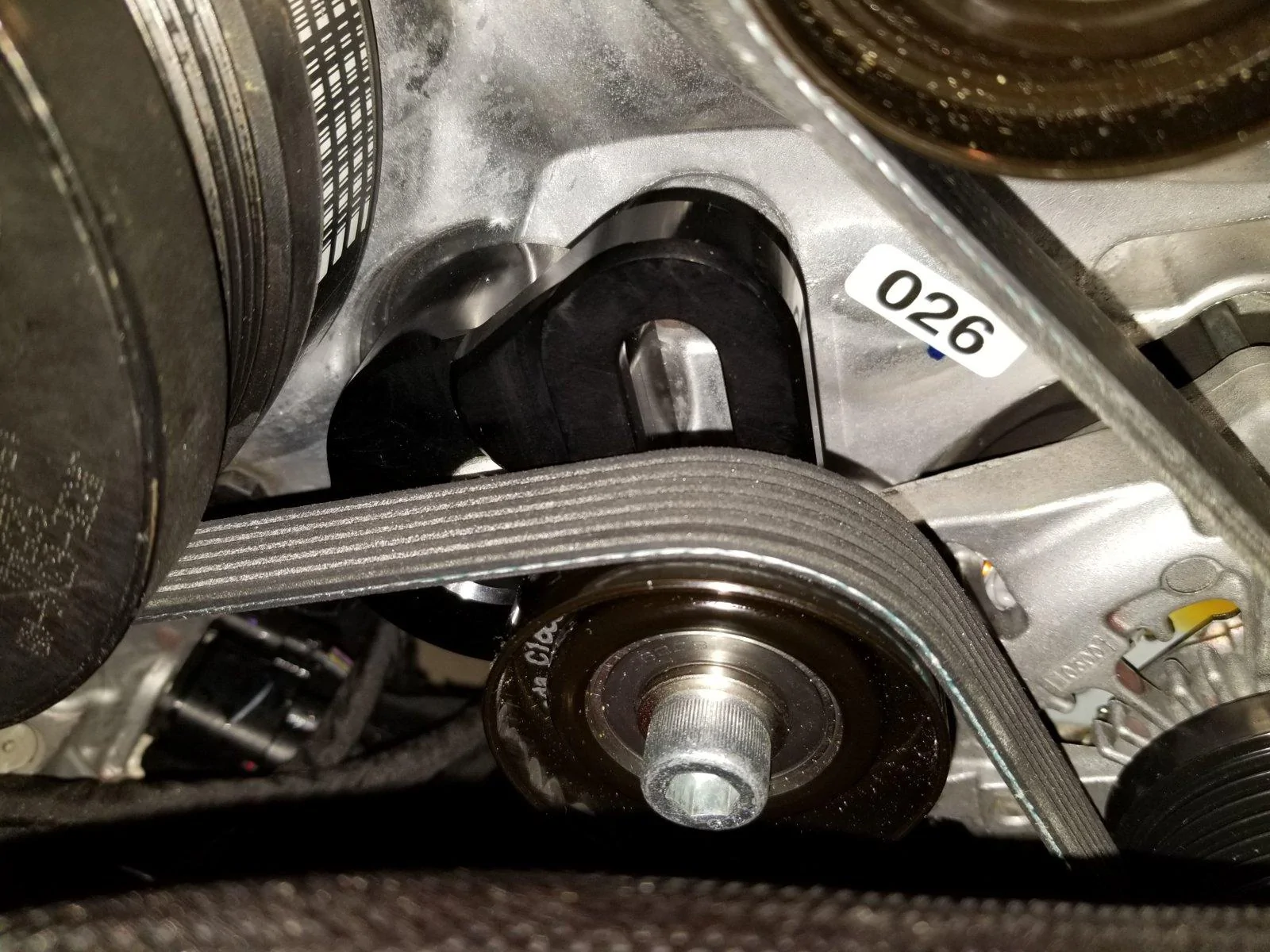

Got the 2018 spring tensioner and as I suspected the 82.5" still would not fit. I went with a 83.125" belt and sure enough went on easily. With the adjustable pulley all the way to the bottom or most slack position the arrows basically line up. I am sure I will have some minor adjustments as the belt stretches.

BTW, O'Reillys had this belt in stock.

Rob



[rtg]

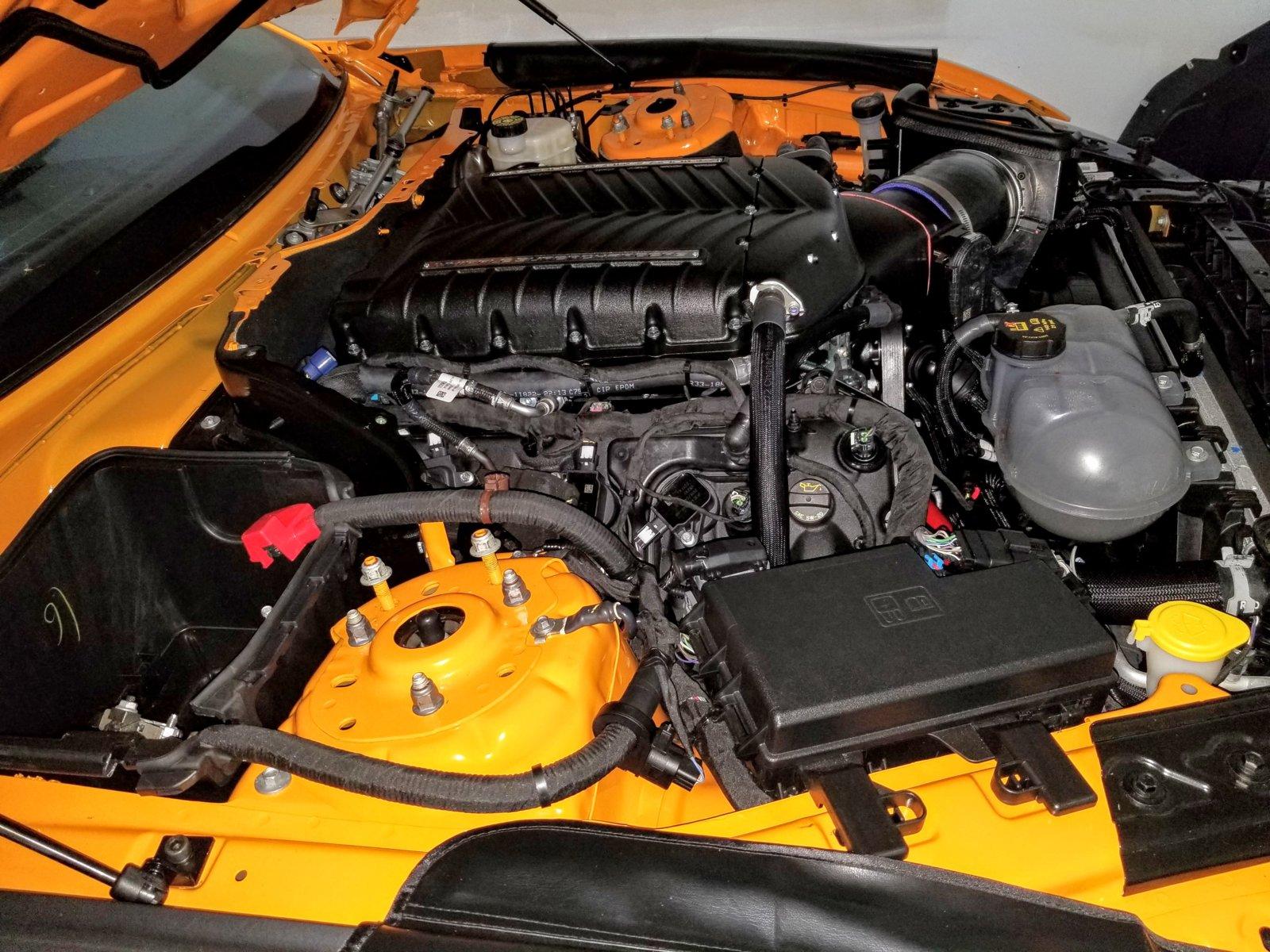

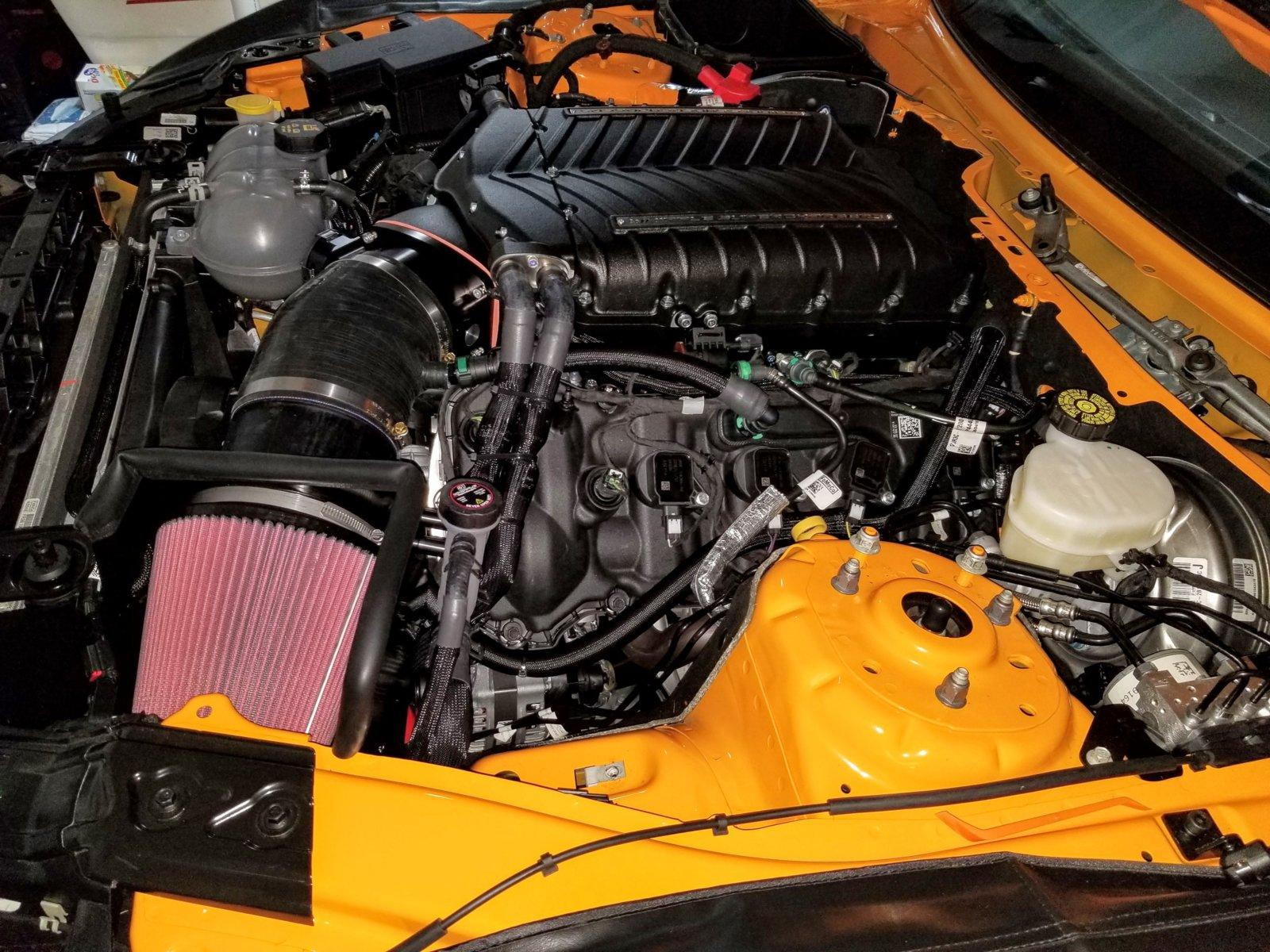

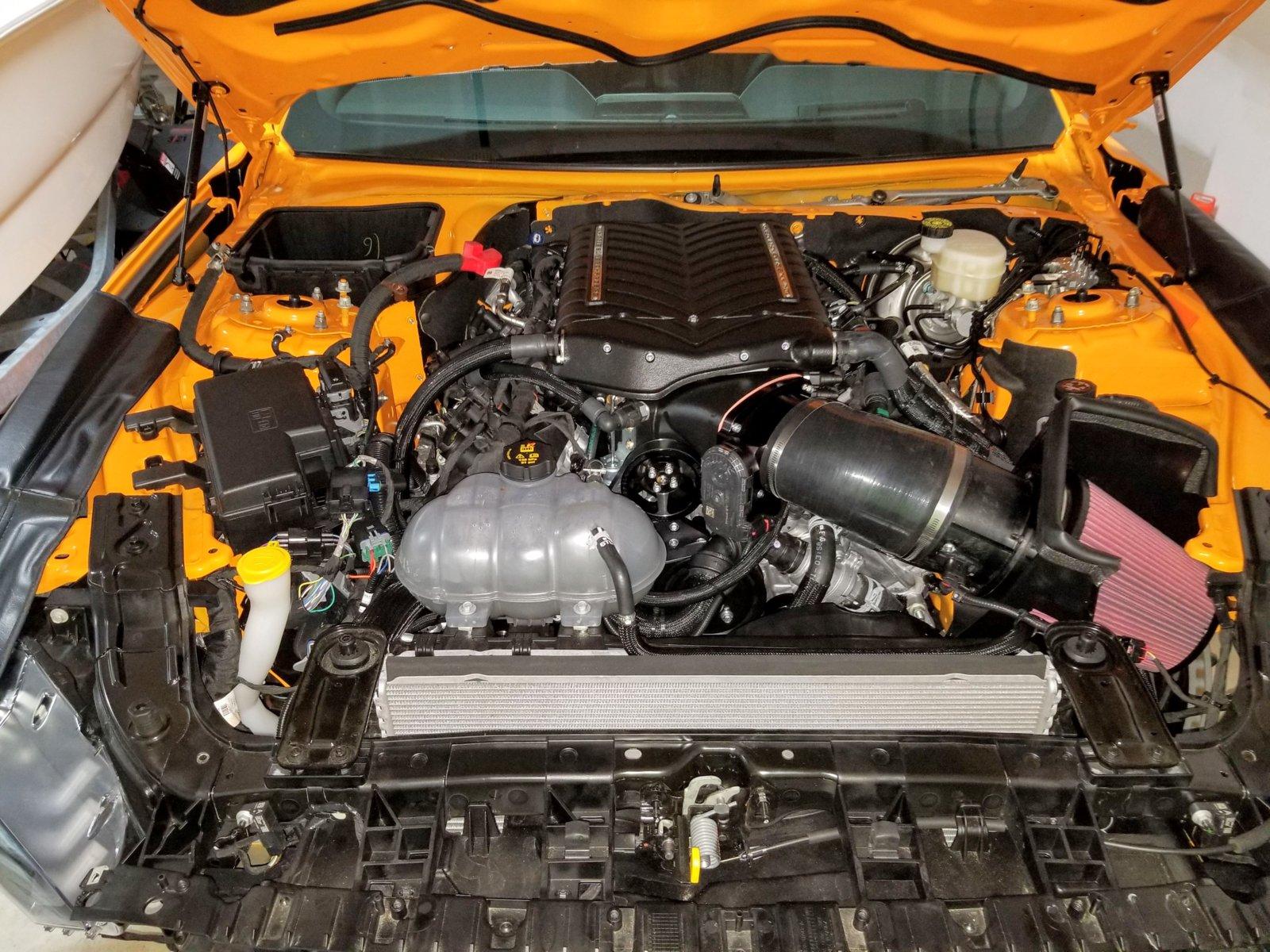

The engine is complete. Next is fuel pump.....

Rob



[rtg]

Some delay this weekend. Boating season ending soon here in the northeast. So trying to get in a couple last weekends away.

Completed the fuel pump install though. Being focused on minimizing gas mess limited pictures.

The Whipple instructions could use some updating. I recommend this video for the DW400 install:

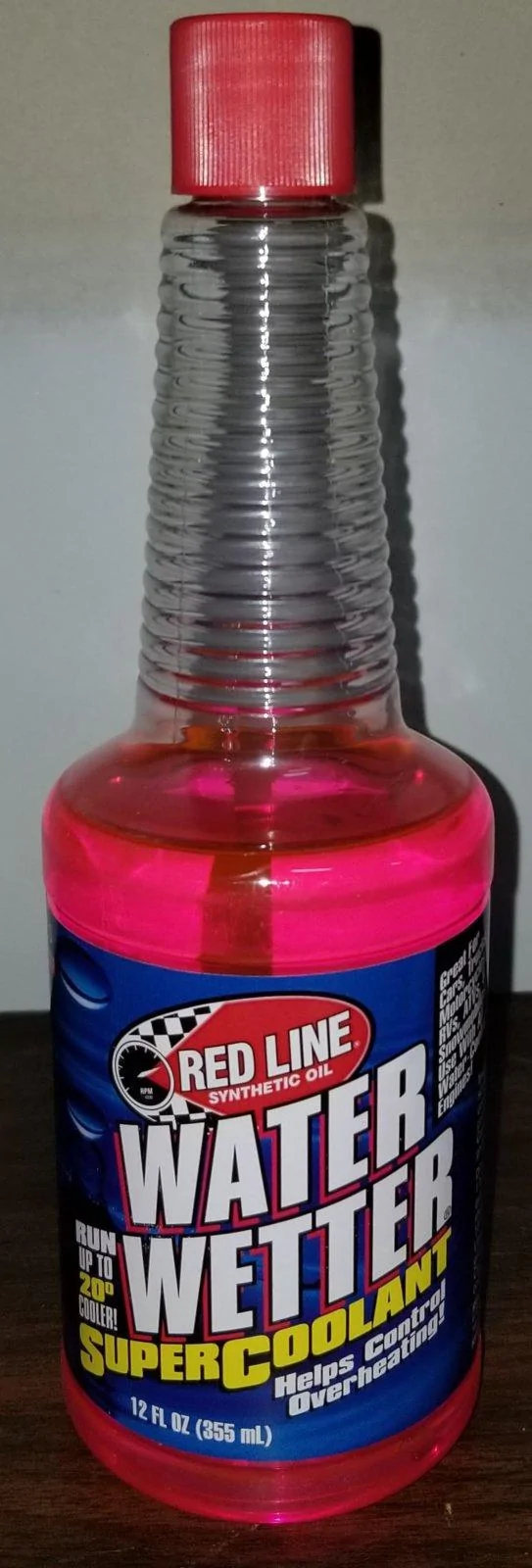

Tonight refill anti-freeze in the engine and fill the inter-cooler. Adding 2 bottles of Water Wetter to the engine and 1 bottle to the inter-cooler.

Install tune and hit the start button.... fingers crossed.

Rob



[rtg]

It's alive!!!!!



Changed oil and went with Mobile1 5w50. I am amazed how much the value train quieted down. Truly night and day difference.

Now time to reassemble.

Rob



[ICEFURY]

Your write up has been great, please keep it up. I am in final stages of figuring out what to order. Thanks!



[808muscle]

Really good thorough write up here OP. Very nice. Your journey reminds me of mine last November. We did my install over 3 Saturdays. Its so many fricken steps and yes the instructions dont always jive with whats going on. Labeling all the parts and hardware would save a ton of time too IMO.



[wcharon]

Started the Stage 2 Whipple install. I will post some pictures as the install progresses.

Rob

Up on stands

Battery out

Fascia off

Will update progress over the next few days.

Can you please tell me what Mud Flaps you have installed?

Great Project by the way... Congratulations.



[rtg]

Funny you should ask....

That was one of tonights projects while reassembling. I have the ZL1 addons deluxe rock guards. The project was reattaching them as the double sided type was letting go. I used Gorilla tape all around. Lets see how that holds up. Rears are done. Fronts are off.

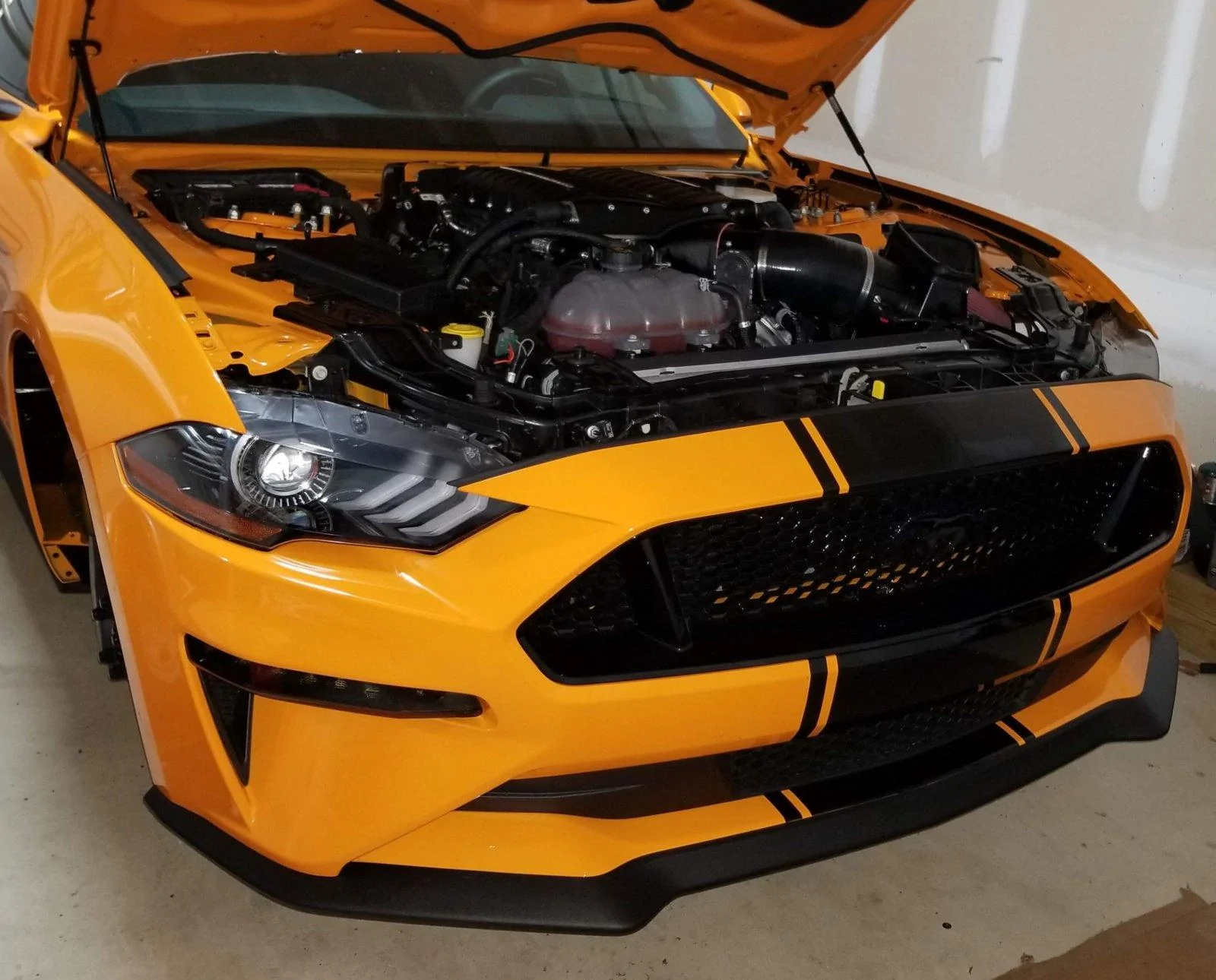

Got the facia back on tonight also. Note the chrome pony is gone.

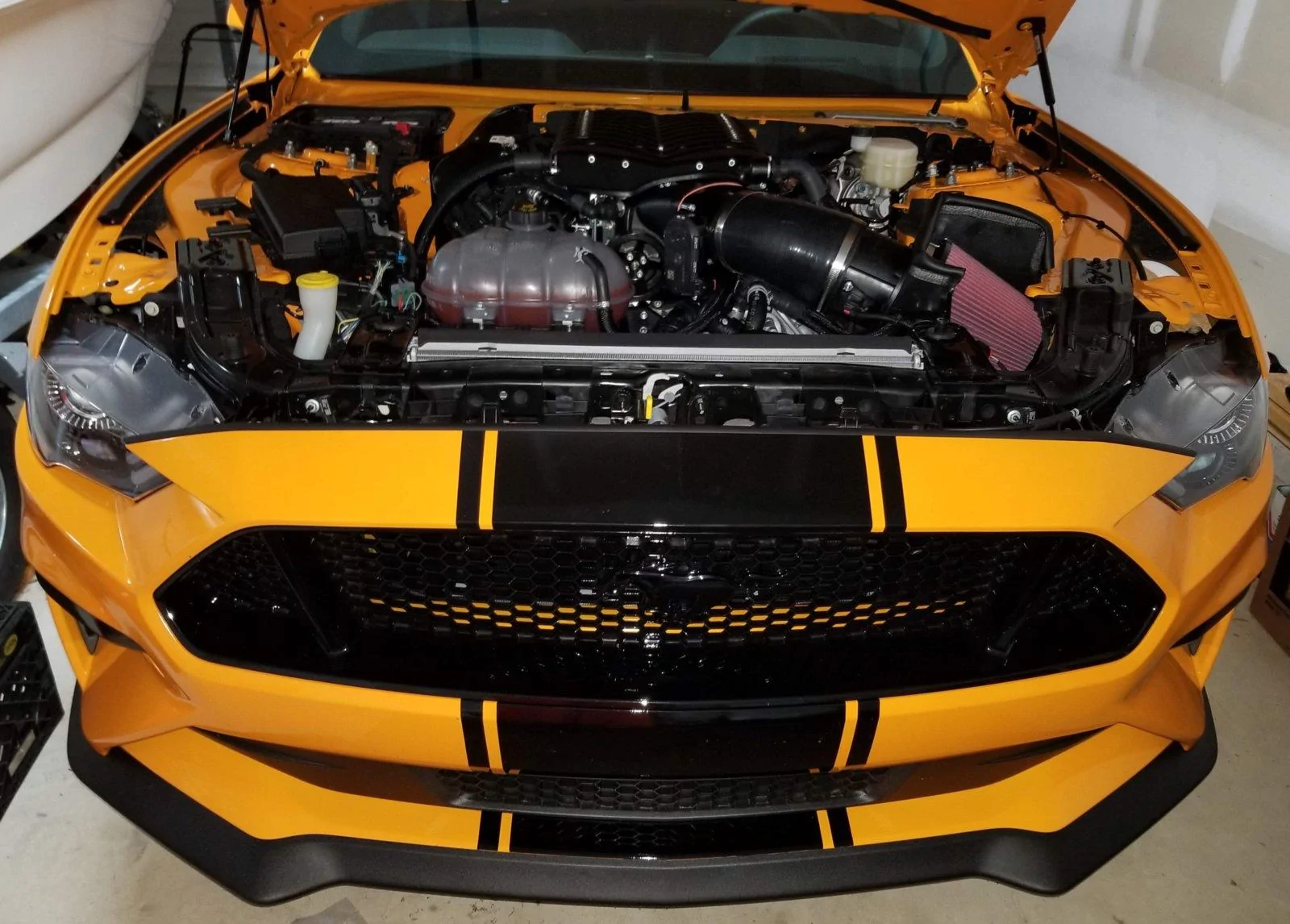

Couple of views....

Rob



[rtg]

Thanks to every one for the kind words on the write up. I hope it helps someone.

Continuing on......

Rob
