My Dad and I are doing the install and so far it has gone pretty well. Unfortunately, while some steps have multiple pictures, others have none while using unique acronyms.
Right now, I am stuck on step 121.

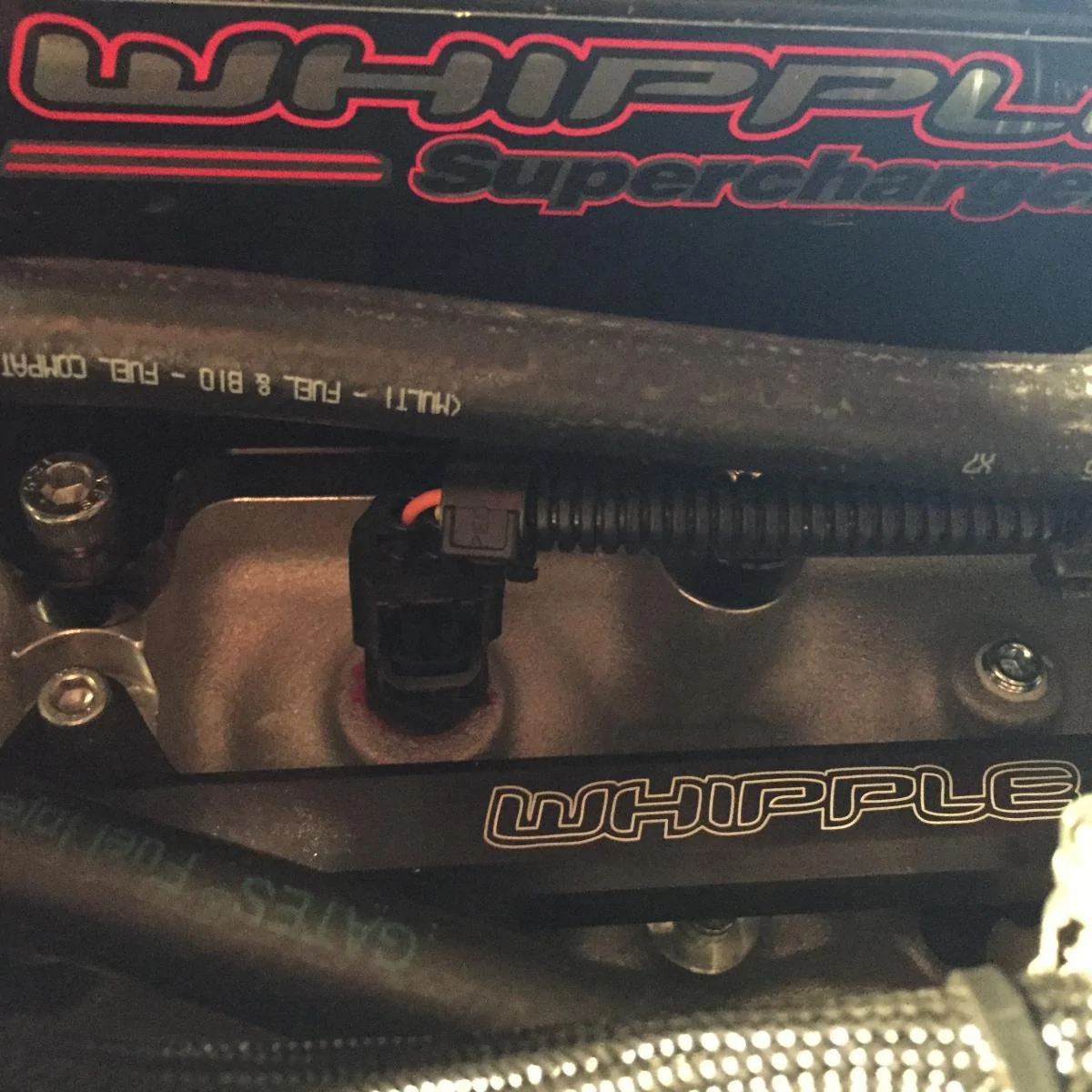

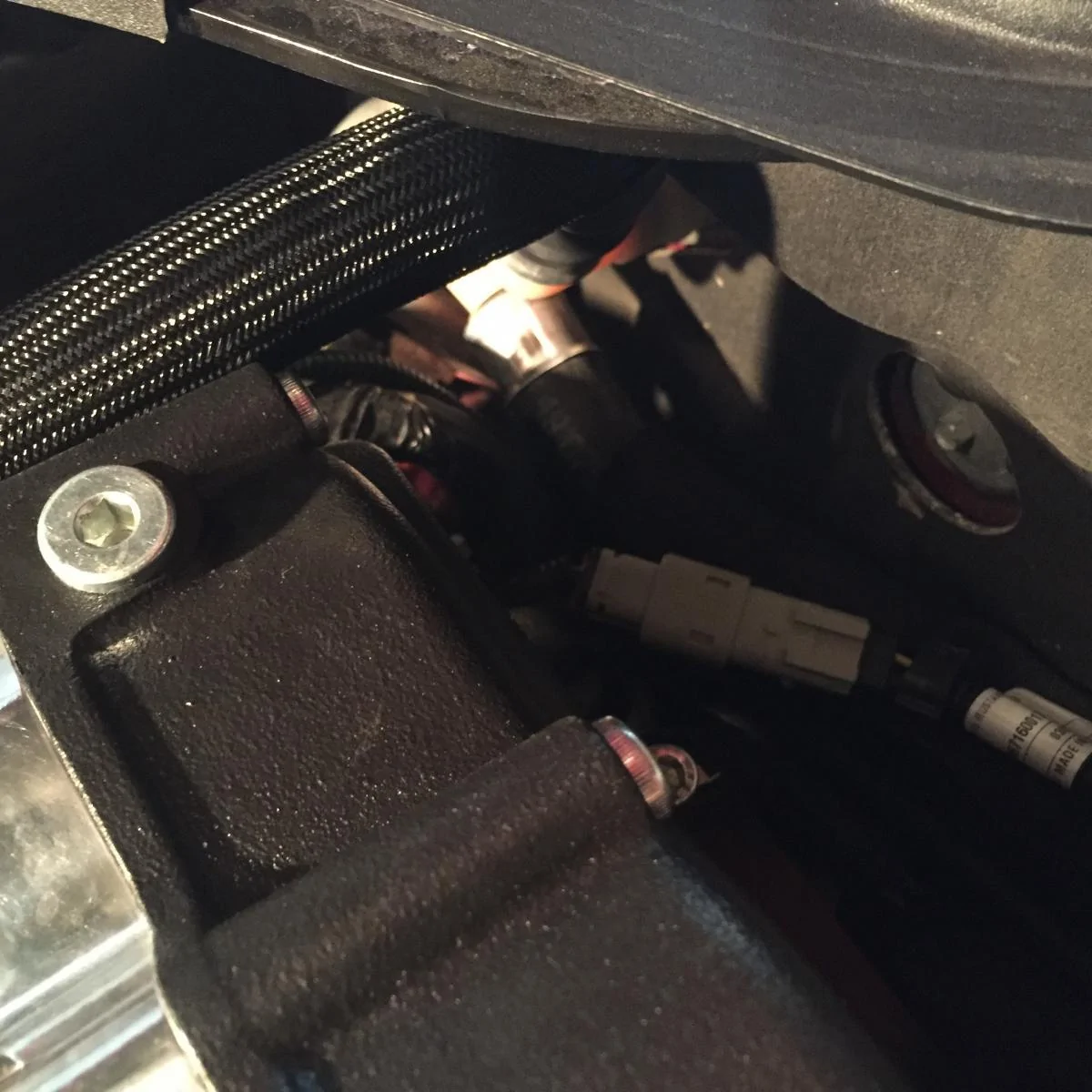

"Connect the previously installed ACT pigtail to the ACT sensor located on the drivers side of the intake manifold."
No pictures... Grrr....
Now I have wasted 2 hours trying to figure it out with no success.
I think the plug I am plugging into is the grey connector on the new intake manifold. But where is this "ACT Pigatail"? When did I install it? It makes no other mention in the manual. I then purchased a 5800 page digital service manual. Searched everything but came back with nothing.
What am I plugging in?

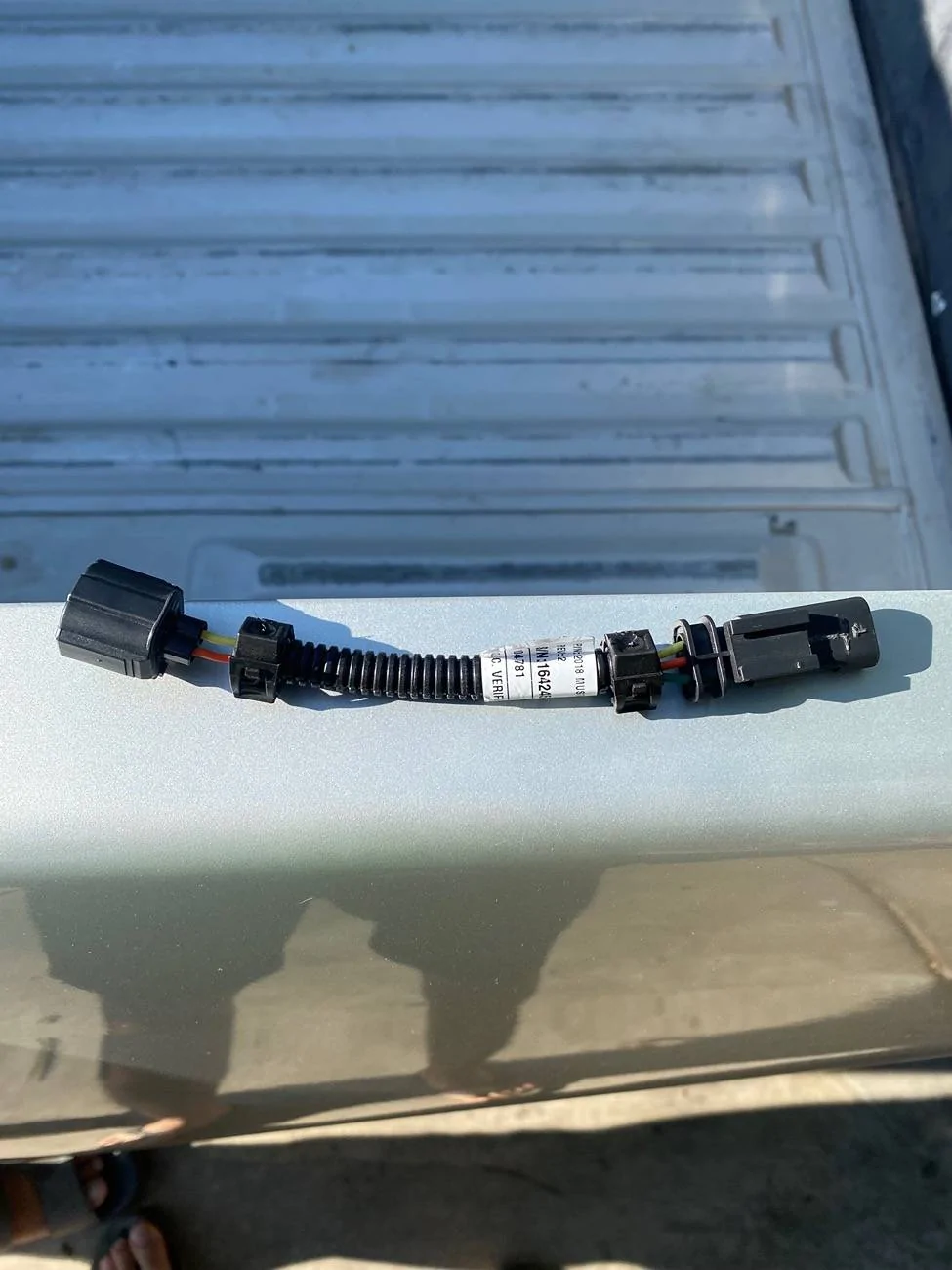

Where is the pigtail?
What does it look like?
Where is it installed?
What do I plug it into?
Sincerely,
Stuck in San Diego
Right now, I am stuck on step 121.
"Connect the previously installed ACT pigtail to the ACT sensor located on the drivers side of the intake manifold."
No pictures... Grrr....
Now I have wasted 2 hours trying to figure it out with no success.
I think the plug I am plugging into is the grey connector on the new intake manifold. But where is this "ACT Pigatail"? When did I install it? It makes no other mention in the manual. I then purchased a 5800 page digital service manual. Searched everything but came back with nothing.
What am I plugging in?
Where is the pigtail?
What does it look like?
Where is it installed?
What do I plug it into?
Sincerely,
Stuck in San Diego
