Alignment issue?

Coyote 2121

Well-Known Member
Joined
Jan 14, 2022
Threads
11
Messages
226
Reaction score
305
Location
TEXAS
First Name
Kyle
Vehicle(s)
2020 Mustang Gt
Hey guys,
I just noticed that my passenger side rear tire sits more forward in the wheel well, while the driver's side is perfectly centered?
Not the best photo, but I actually noticed it from this picture on the showroom floor.
I haven't had a chance to measure it yet, but I can see that it's off.
Anyone else have this issue?
If so what fixed it?
Sponsored


Last edited:

crzystang

Well-Known Member
Joined
Dec 1, 2021
Threads
7
Messages
162
Reaction score
251
Location
TEXAS
First Name
MATT
Vehicle(s)
2002 GT, 2021 MACH 1
I would imagine it is the “tolerance” in the bushings of the irs. I could be wrong but seems this as the likely culprit.

OP
OP
Coyote 2121

Coyote 2121

Well-Known Member
Joined
Jan 14, 2022
Threads
11
Messages
226
Reaction score
305
Location
TEXAS
First Name
Kyle
Vehicle(s)
2020 Mustang Gt
I would imagine it is the “tolerance” in the bushings of the irs. I could be wrong but seems this as the likely culprit.
Hey, thanks for your reply.
I'm wondering if the BMR cradle lockout kit would address this? I know it centers the IRS left to right, does it center it front to back as well?
I had planned to add it later down the road anyway.


quikcolin

Well-Known Member
Joined
Nov 13, 2020
Threads
18
Messages
143
Reaction score
272
Location
Canada
First Name
Colin
Vehicle(s)
2020 Mustang GT PP2
My front passenger front wheel is closer to the rear of the wheel well than the driver side by about 1/2” - 3/4”. I’ve always been curious about why that is

OP
OP
Coyote 2121

Coyote 2121

Well-Known Member
Joined
Jan 14, 2022
Threads
11
Messages
226
Reaction score
305
Location
TEXAS
First Name
Kyle
Vehicle(s)
2020 Mustang Gt
My front passenger front wheel is closer to the rear of the wheel well than the driver side by about 1/2” - 3/4”. I’ve always been curious about why that is
Yeah, that's weird too. Have you had it aligned since you've had it?
Does it track straight or pull to one side or the other?
Mine appears to be going straight down the road.
Never had it aligned as it's new to me with only 3400 miles on it.
Are your tires wearing evenly?


Sponsored

crzystang

Well-Known Member
Joined
Dec 1, 2021
Threads
7
Messages
162
Reaction score
251
Location
TEXAS
First Name
MATT
Vehicle(s)
2002 GT, 2021 MACH 1
Hey, thanks for your reply.
I'm wondering if the BMR cradle lockout kit would address this? I know it centers the IRS left to right, does it center it front to back as well?
I had planned to add it later down the road anyway.
I am no Sure on the BMR products. But a quick read on the description from their sight says:

“(fore/aft, lateral, and vertical) is nearly eliminated.”

On my Mach1 (it has the stiffer irs bushings) I put the Steeda IRS alignment sleeves and metal bushing reinforcements as well as the IRS subframe connectors.

all in all I believe the BMR kit you are referring to is based on the same concept as what I did.

Also FWIW my car had 300 miles on it when I aligned it and it was off from the factory, within the broad range that the factory states is good but off for my liking.


quikcolin

Well-Known Member
Joined
Nov 13, 2020
Threads
18
Messages
143
Reaction score
272
Location
Canada
First Name
Colin
Vehicle(s)
2020 Mustang GT PP2
Yeah, that's weird too. Have you had it aligned since you've had it?
Does it track straight or pull to one side or the other?
Mine appears to be going straight down the road.
Never had it aligned as it's new to me with only 3400 miles on it.
Are your tires wearing evenly?
I only have 4700km on my 2020 PP2... it tracks well, can't comment on the tire wear, as it's just broken in. I'm planning to lower the car 3/4". At that time it will get an alignment and camber adjustments... perhaps that will fit it?

OP
OP
Coyote 2121

Coyote 2121

Well-Known Member
Joined
Jan 14, 2022
Threads
11
Messages
226
Reaction score
305
Location
TEXAS
First Name
Kyle
Vehicle(s)
2020 Mustang Gt
I only have 4700km on my 2020 PP2... it tracks well, can't comment on the tire wear, as it's just broken in. I'm planning to lower the car 3/4". At that time it will get an alignment and camber adjustments... perhaps that will fit it?
I bet so.
If it does please check back and let me know how it went.
Thanks for your response.

OP
OP
Coyote 2121

Coyote 2121

Well-Known Member
Joined
Jan 14, 2022
Threads
11
Messages
226
Reaction score
305
Location
TEXAS
First Name
Kyle
Vehicle(s)
2020 Mustang Gt
I am no Sure on the BMR products. But a quick read on the description from their sight says:

“(fore/aft, lateral, and vertical) is nearly eliminated.”

On my Mach1 (it has the stiffer irs bushings) I put the Steeda IRS alignment sleeves and metal bushing reinforcements as well as the IRS subframe connectors.

all in all I believe the BMR kit you are referring to is based on the same concept as what I did.

Also FWIW my car had 300 miles on it when I aligned it and it was off from the factory, within the broad range that the factory states is good but off for my liking.
Interesting.
Can you tell any improvement from the Steeda parts and/or your alignment over how it felt before?
Also, I'm assuming they do a 4 wheel alignment?
Did you use the dealer or another alignment shop?
Good to hear on the BMR part. Sounds like it centers/controls all movement in every direction.
But this is my first IRS car, so quite a learning curve.


crzystang

Well-Known Member
Joined
Dec 1, 2021
Threads
7
Messages
162
Reaction score
251
Location
TEXAS
First Name
MATT
Vehicle(s)
2002 GT, 2021 MACH 1
Interesting.
Can you tell any improvement from the Steeda parts and/or your alignment over how it felt before?
Also, I'm assuming they do a 4 wheel alignment?
Did you use the dealer or another alignment shop?
Good to hear on the BMR part. Sounds like it centers/controls all movement in every direction.
But this is my first IRS car, so quite a learning curve.
Big difference! I aligned it at work to Steeda “street car” specifications


Sponsored

mustangpegasus51

Well-Known Member
Joined
Jun 16, 2020
Threads
19
Messages
223
Reaction score
75
Location
Lakewood, CA
First Name
Ed
Vehicle(s)
2020 Mustang GT PP1

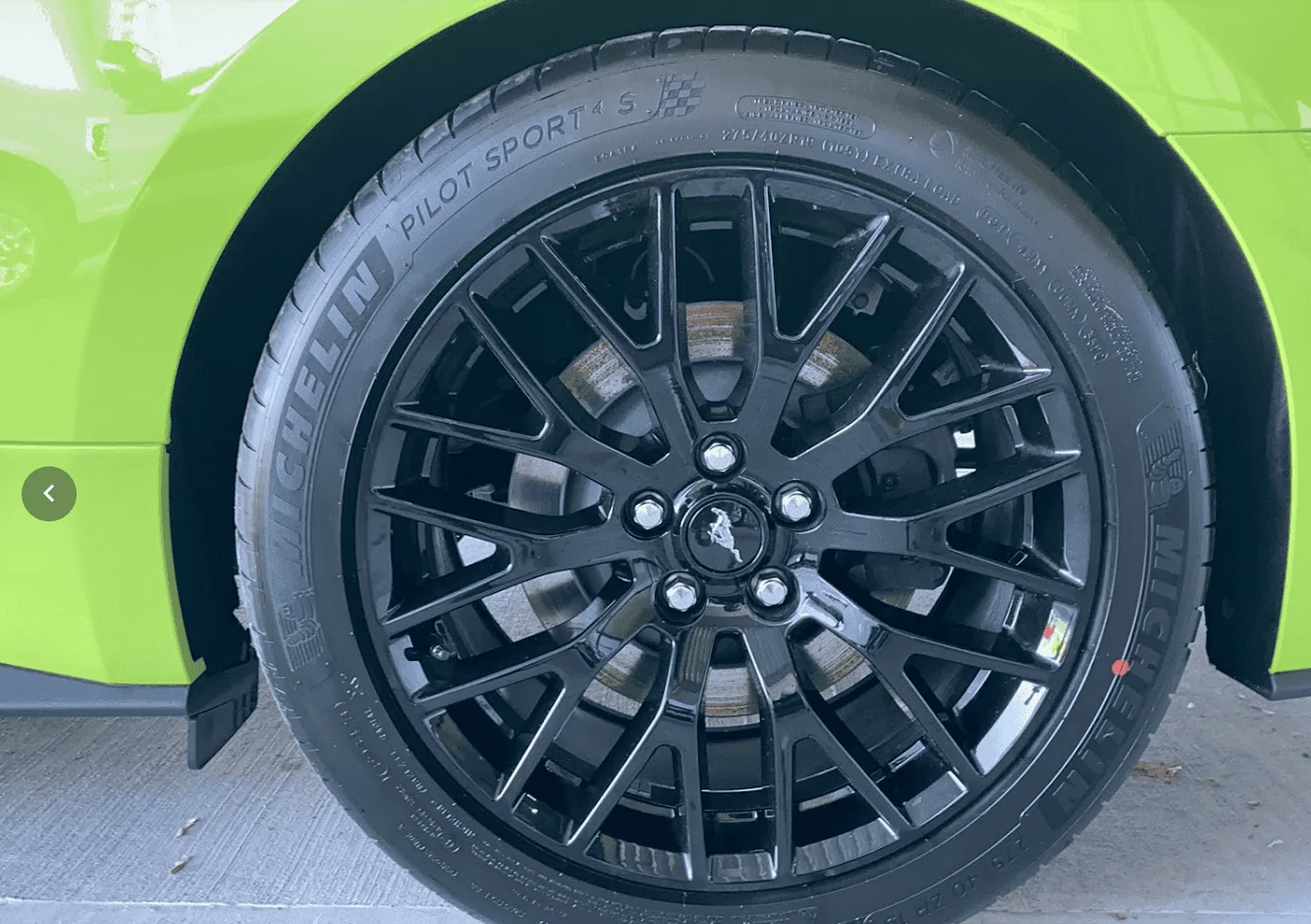

^Driver's side

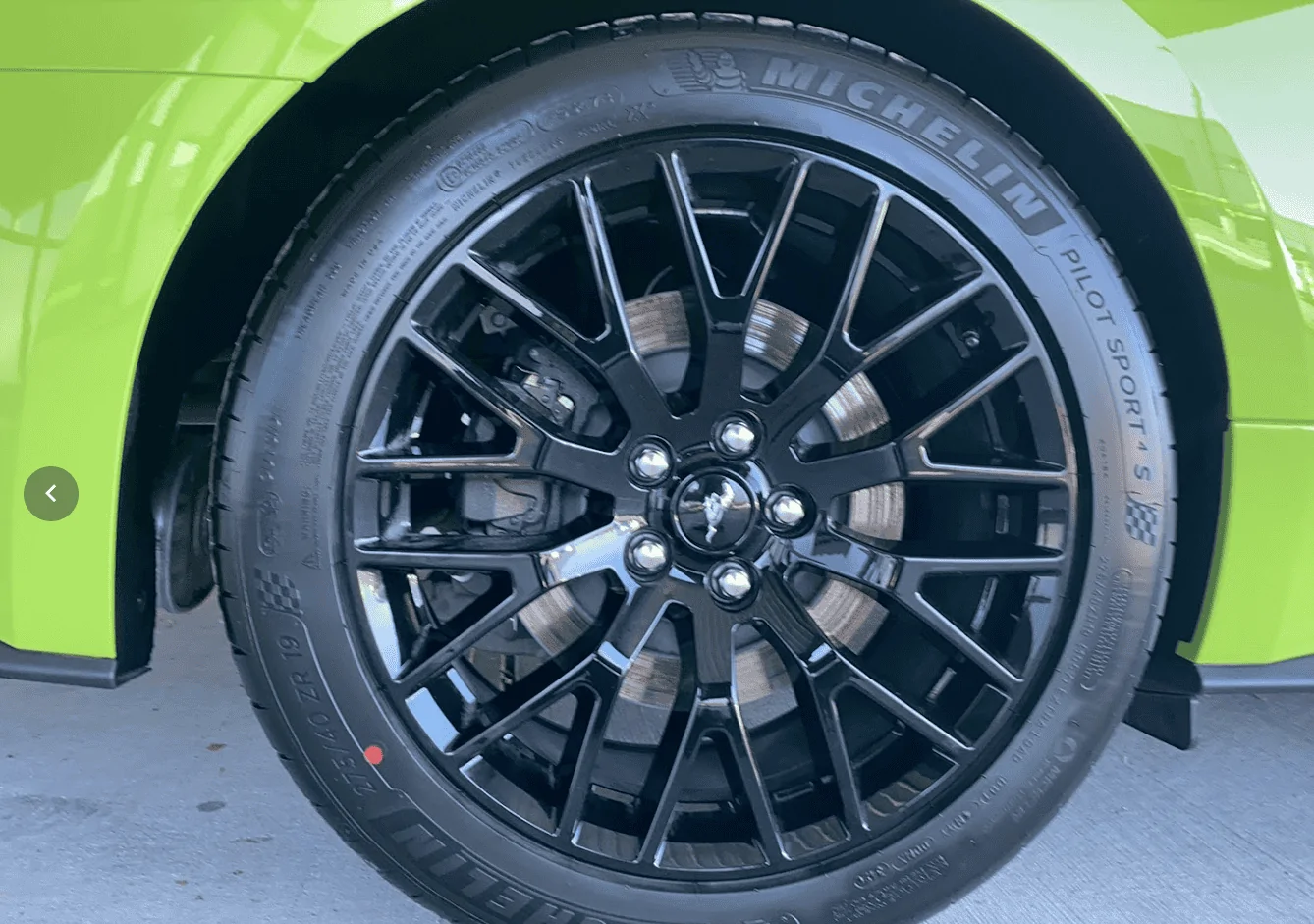

^Passenger's side

My 2020 Grabber Lime is the same way. I got the Steeda dowels and I think they helped? Maybe? But it's still .25-.5" difference in how each sits.

What does your front look like? I'm convinced something might not be aligned up front from the factory, making these measurements appear off even when the IRS is centered.


GTP

Deutsche Pony
Joined
May 27, 2015
Threads
201
Messages
4,476
Reaction score
2,317
Location
Indy
Website
www.BambergAudio.com
First Name
Philip
Vehicle(s)
2019 GT PP1 A10 Outrageous Orange HPDE mods
You can jack up your car and then remove one at a time the four blue cradle bolts. Then position yourself dead on to the hole and see if the thread insert is offset. Start with the two passenger side bolts.

I recommend the cradle alignment sleeves from Steeda or BMR. Combine with a lockout system to do both in the same session.

I also run aluminum sleeves to take up the large gap in the rear pair of diff bushings.

OP
OP
Coyote 2121

Coyote 2121

Well-Known Member
Joined
Jan 14, 2022
Threads
11
Messages
226
Reaction score
305
Location
TEXAS
First Name
Kyle
Vehicle(s)
2020 Mustang Gt

^Driver's side


^Passenger's side

My 2020 Grabber Lime is the same way. I got the Steeda dowels and I think they helped? Maybe? But it's still .25-.5" difference in how each sits.

What does your front look like? I'm convinced something might not be aligned up front from the factory, making these measurements appear off even when the IRS is centered.
DAYUM!
Somehow I missed your response and pics.
Yours is way worse than mine!
Mine is about half that bad, but still needs fixing.
Did you ever get yours resolved?
I just ordered the BMR cradle lock out and the Steeda inserts.
Then alignment.
I'll check back and report my results.

OP
OP
Coyote 2121

Coyote 2121

Well-Known Member
Joined
Jan 14, 2022
Threads
11
Messages
226
Reaction score
305
Location
TEXAS
First Name
Kyle
Vehicle(s)
2020 Mustang Gt
Big difference! I aligned it at work to Steeda “street car” specifications
Where do I find the Steeda street car specs?
I looked all over Steeda website and didn't see anything about it?
Thanks


mustangpegasus51

Well-Known Member
Joined
Jun 16, 2020
Threads
19
Messages
223
Reaction score
75
Location
Lakewood, CA
First Name
Ed
Vehicle(s)
2020 Mustang GT PP1
DAYUM!
Somehow I missed your response and pics.
Yours is way worse than mine!
Mine is about half that bad, but still needs fixing.
Did you ever get yours resolved?
I just ordered the BMR cradle lock out and the Steeda inserts.
Then alignment.
I'll check back and report my results.
Yeah it's pretty bad. I think it might be a mix of the front and rear being misaligned. Last time I looked under the car it looked like my front subframe is fully shifted to the passenger's side, with the outermost points touching the frame rail: https://www.mustang6g.com/forums/threads/front-drivers-side-tire-too-far-forward.153871/post-3552260

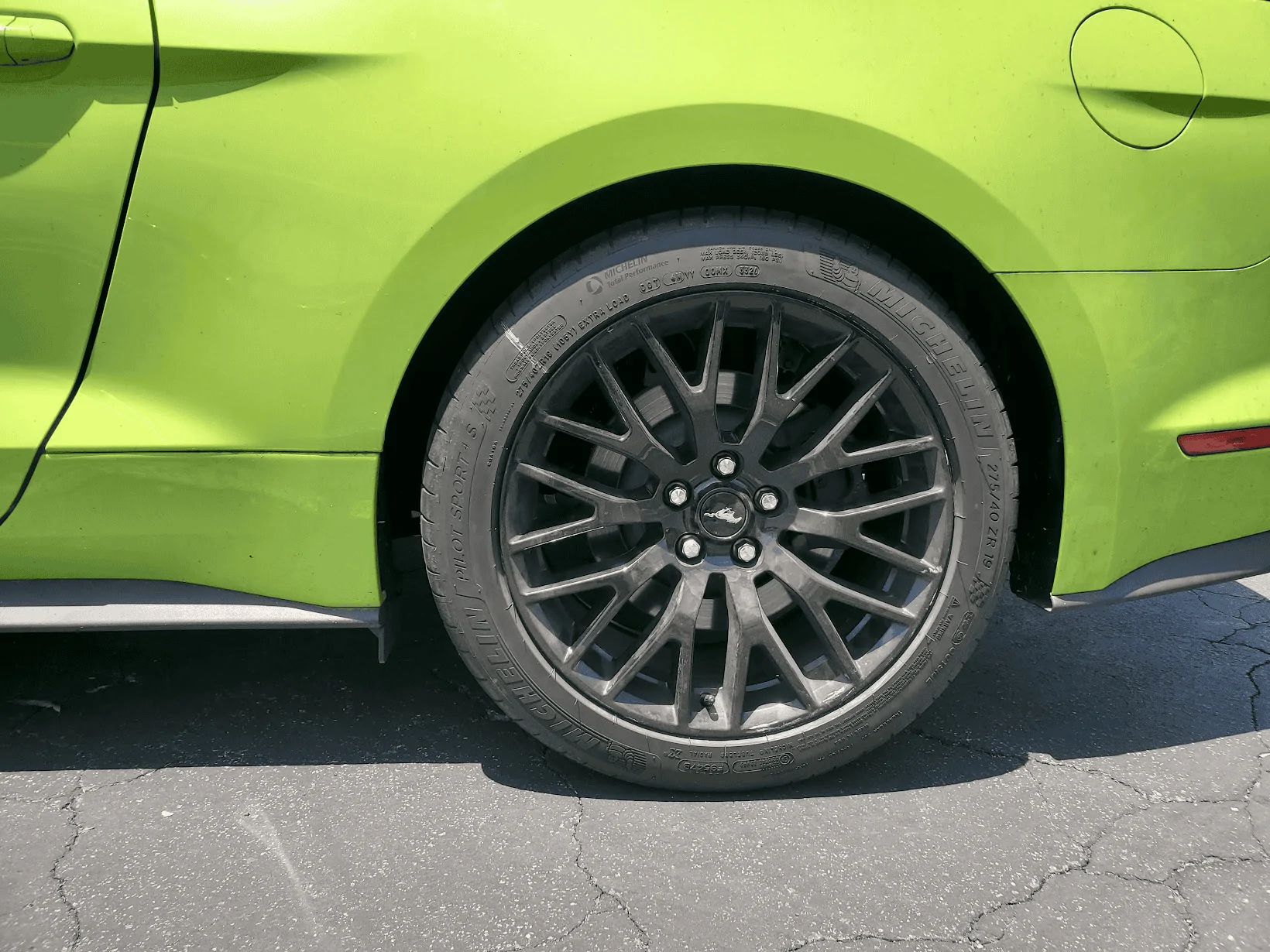

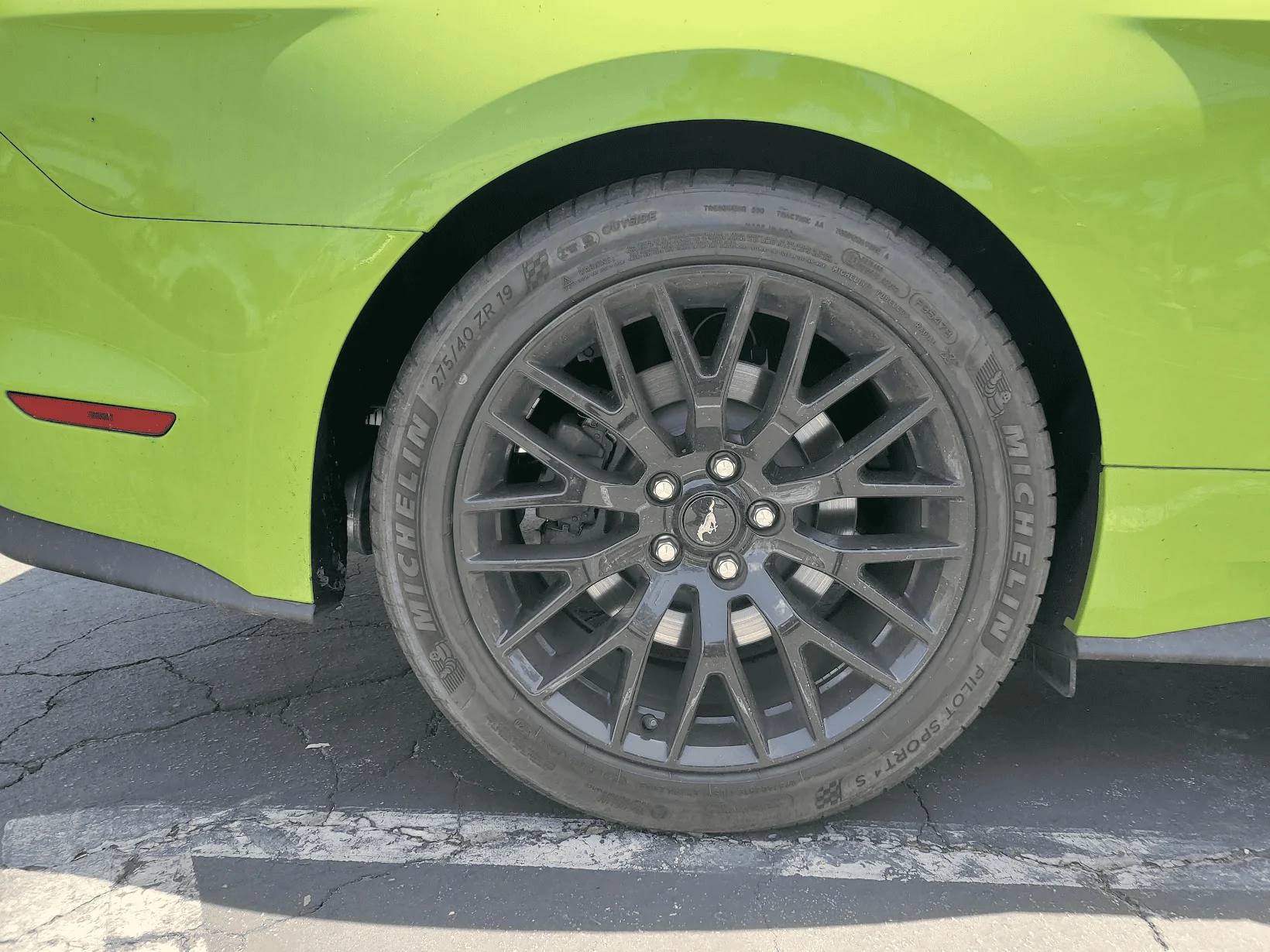

I only have the Steeda sleeves installed. Here is what my rear wheels look like now:
