Aggressive Fitment Thread

Discussion in 'Wheels & Tires' started by phrenetiK, Apr 14, 2015.

  1. Brian@Vossen

    [email protected] Well-Known Member

    First Name:
    Brian
    Vehicle(s):
    A Mustang with a V8
    Joined:
    Sep 8, 2014
    Location:
    Miami, FL
    Posts:
    1,557
    Likes Received:
    551
    Rating:
    100%
    1   0   0
    #31 [email protected], Apr 17, 2015
    Last edited: Apr 17, 2015

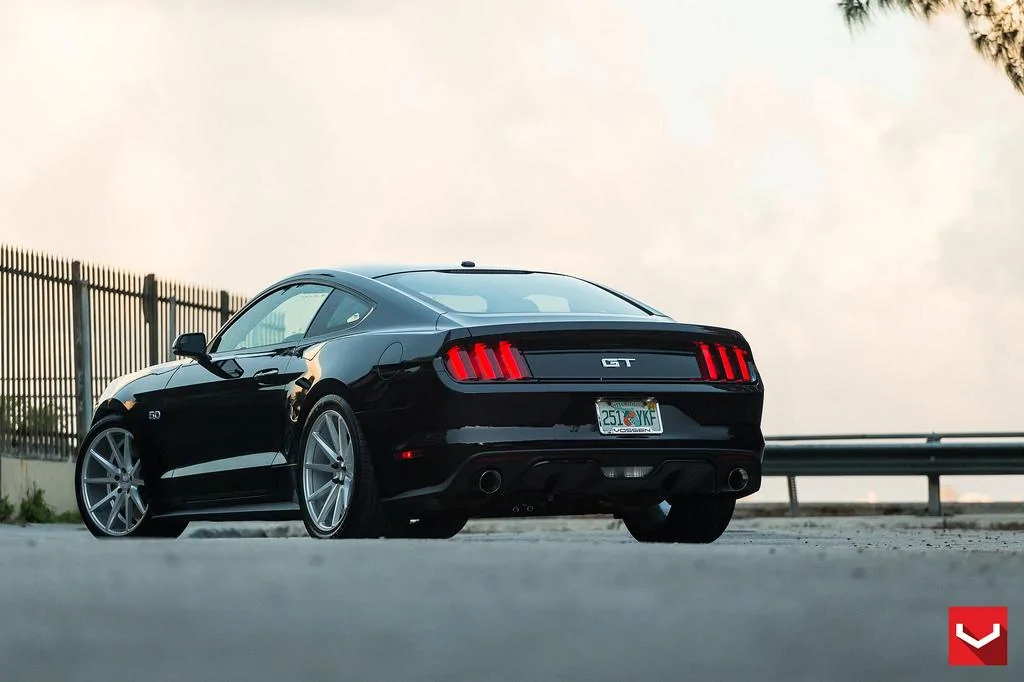

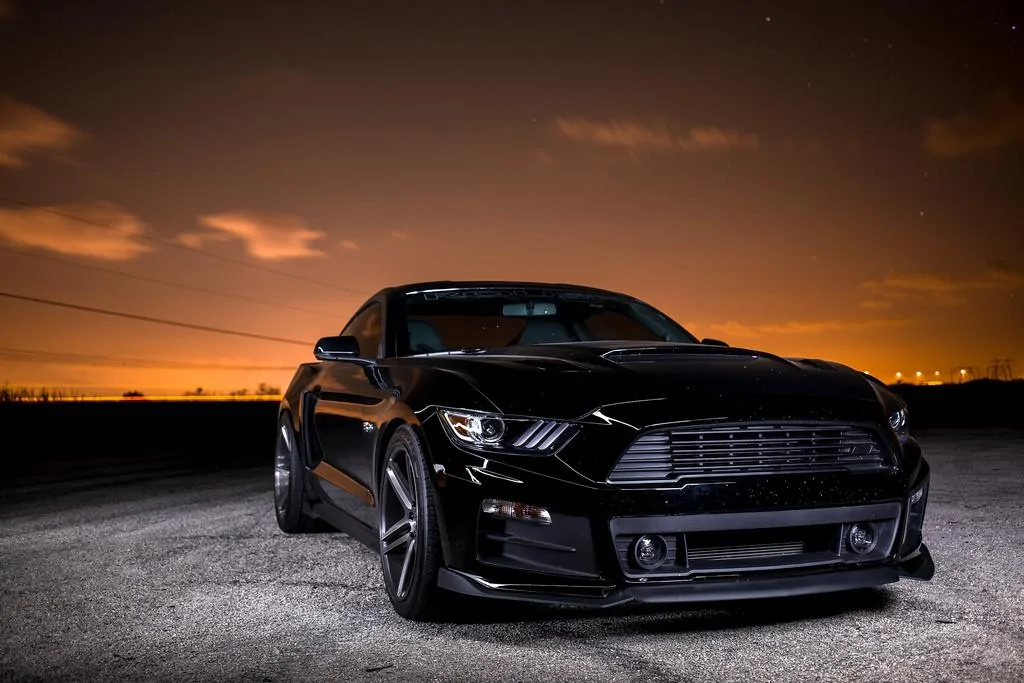

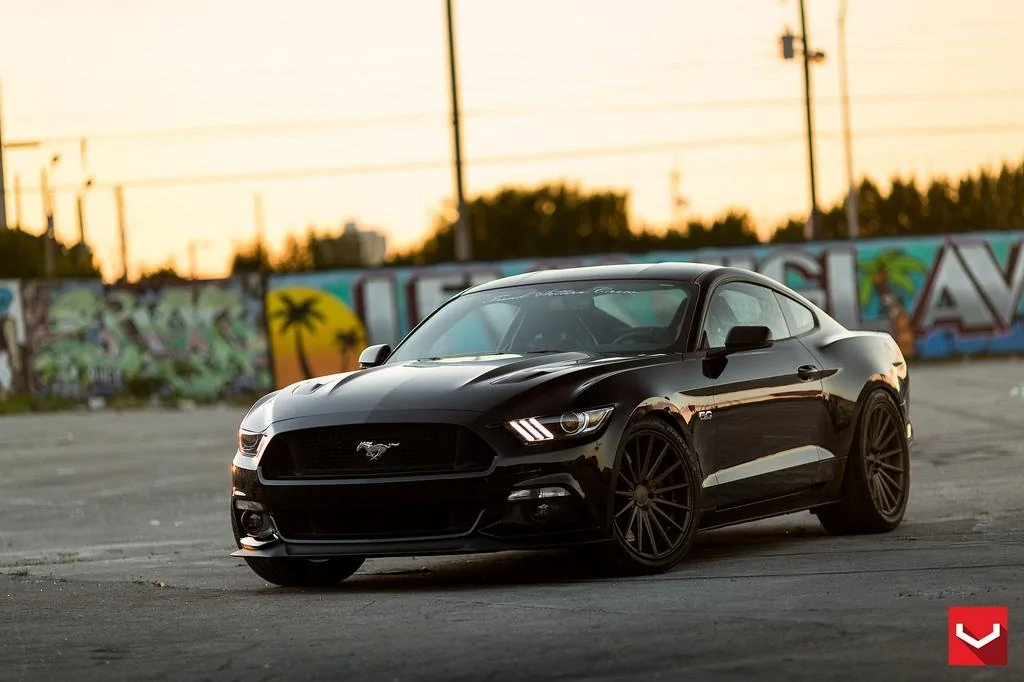

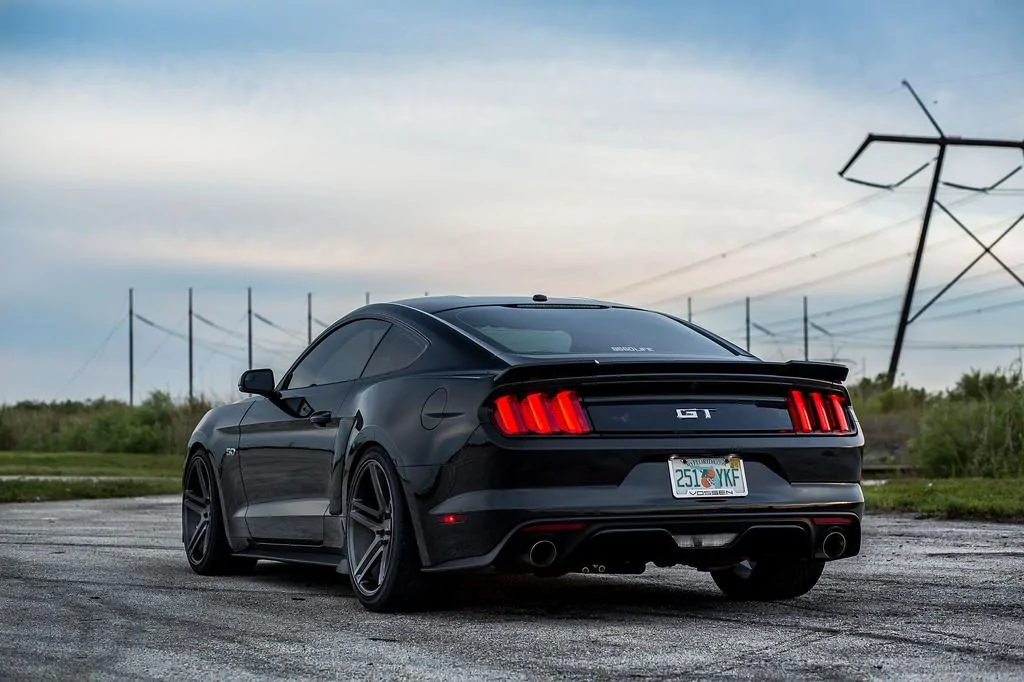

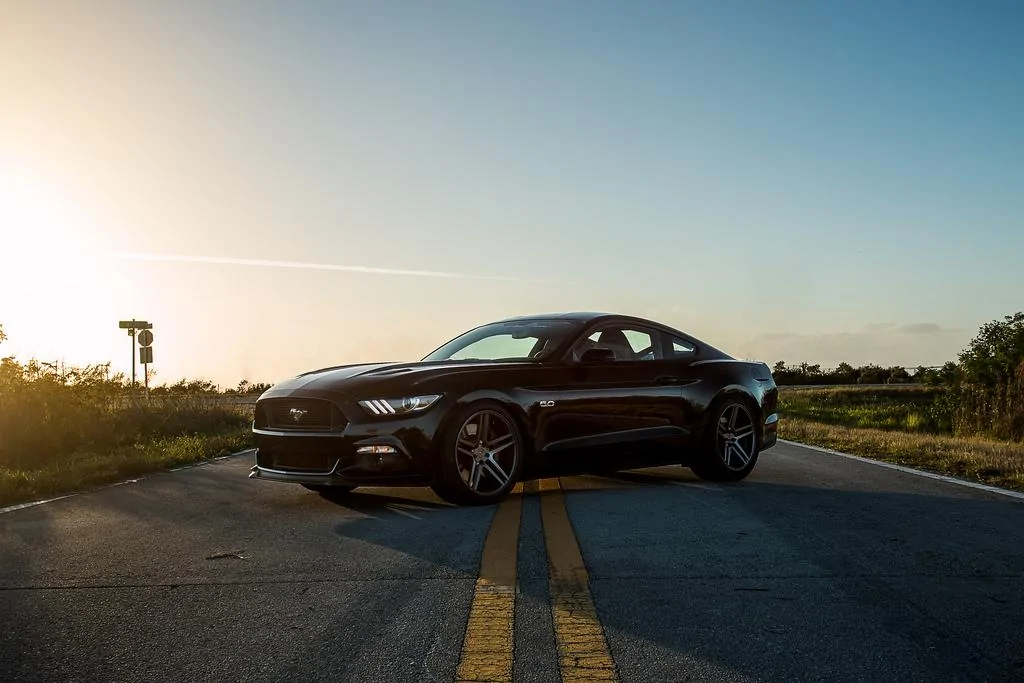

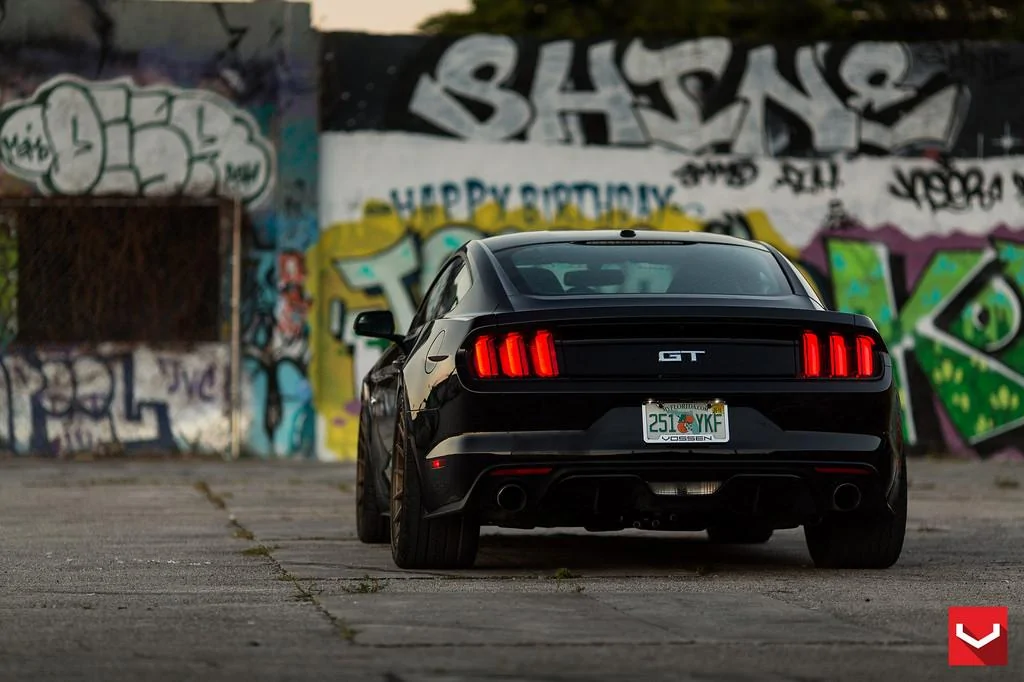

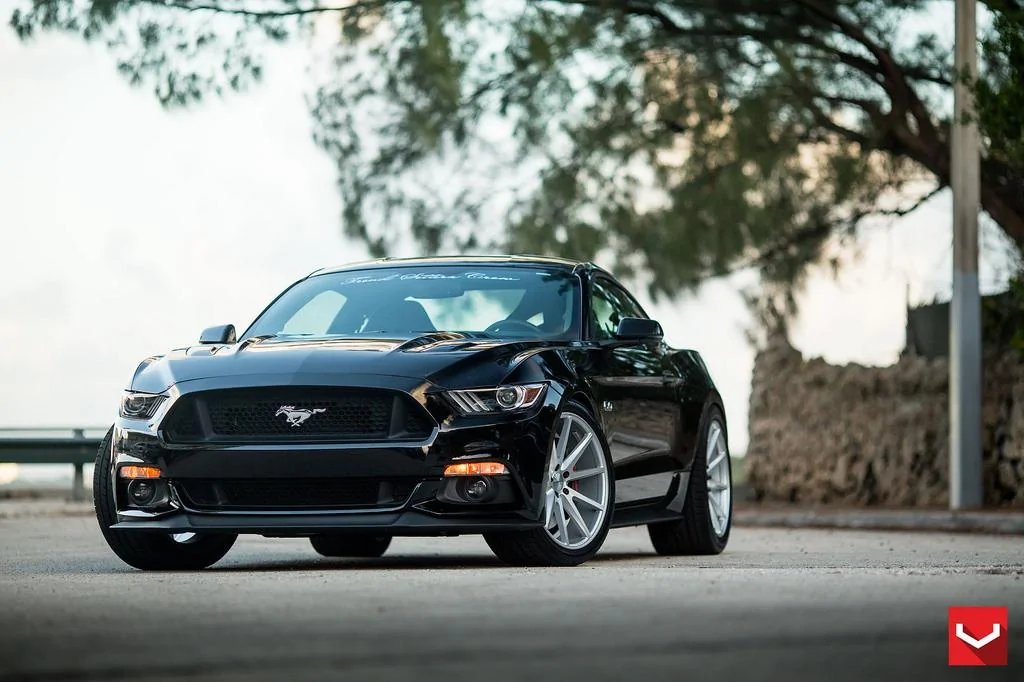

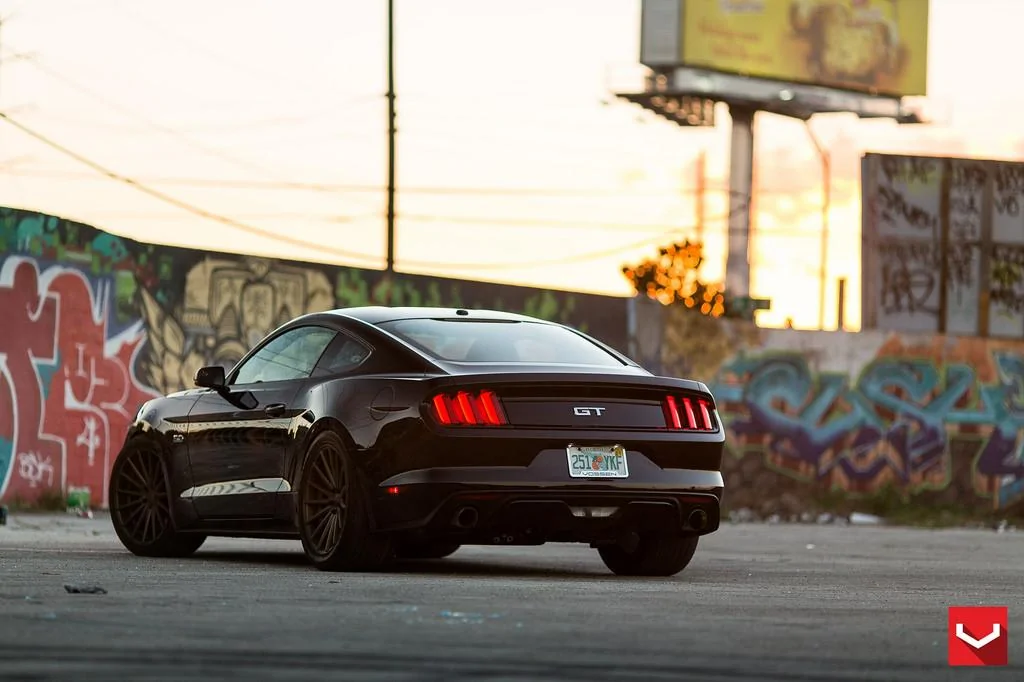

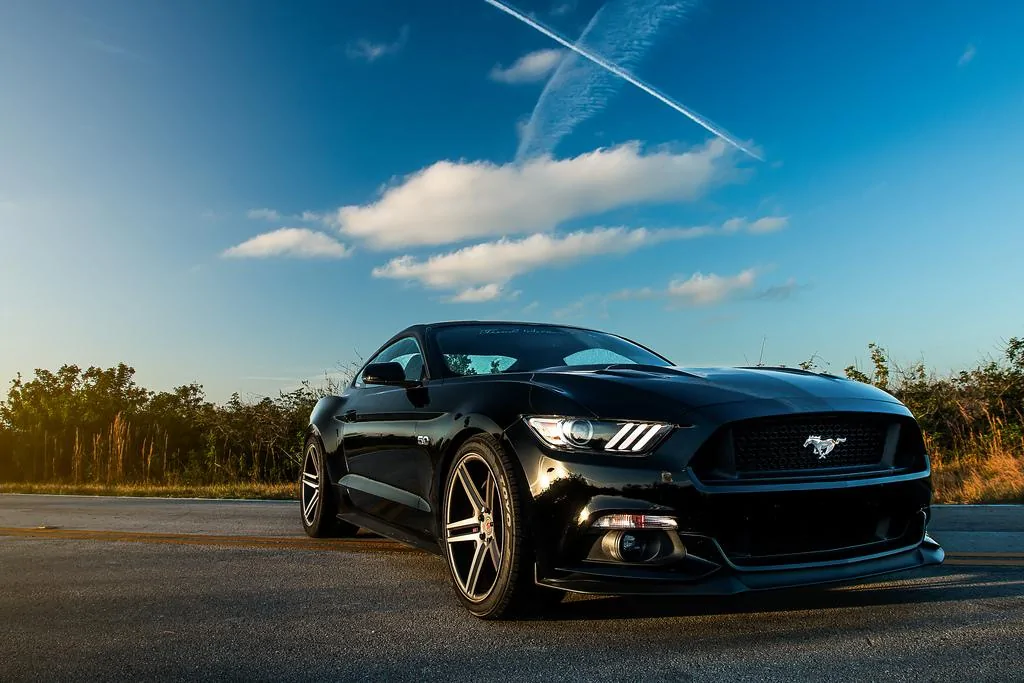

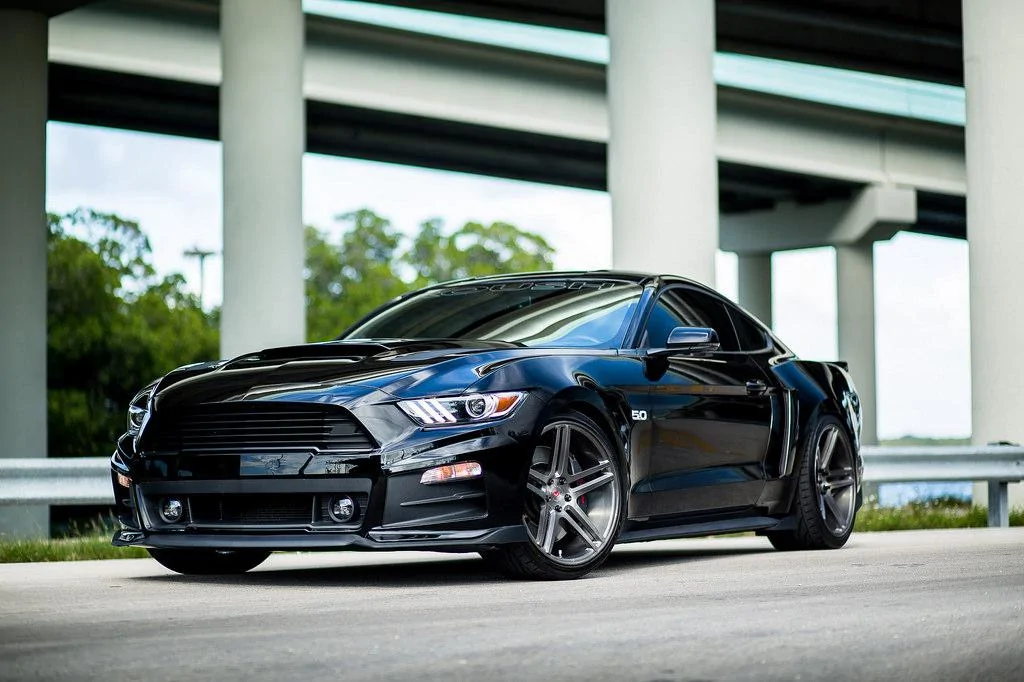

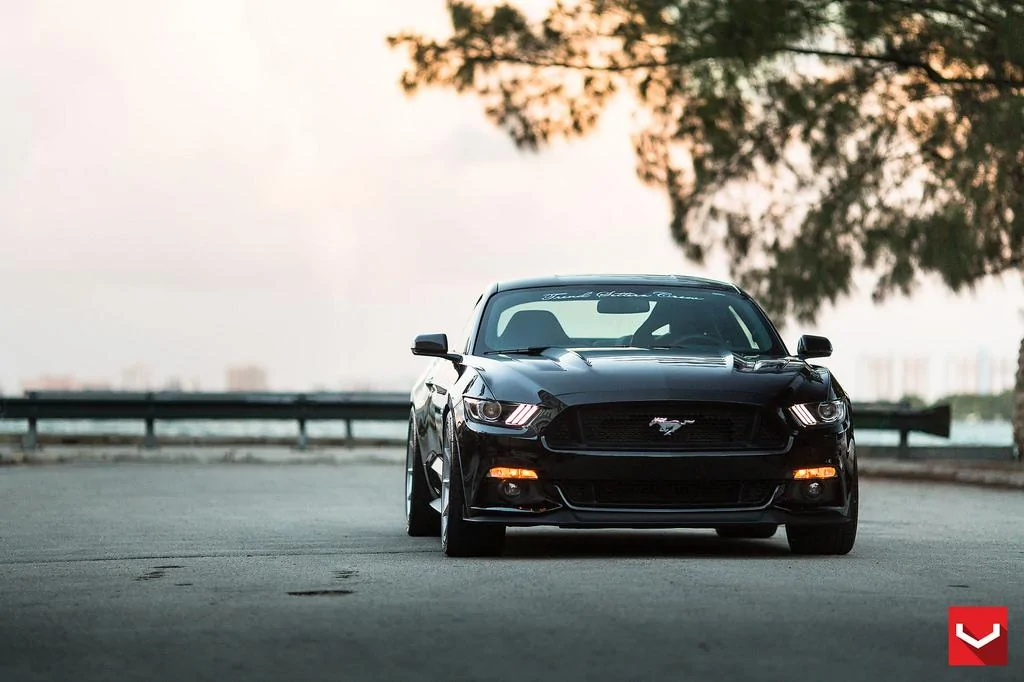

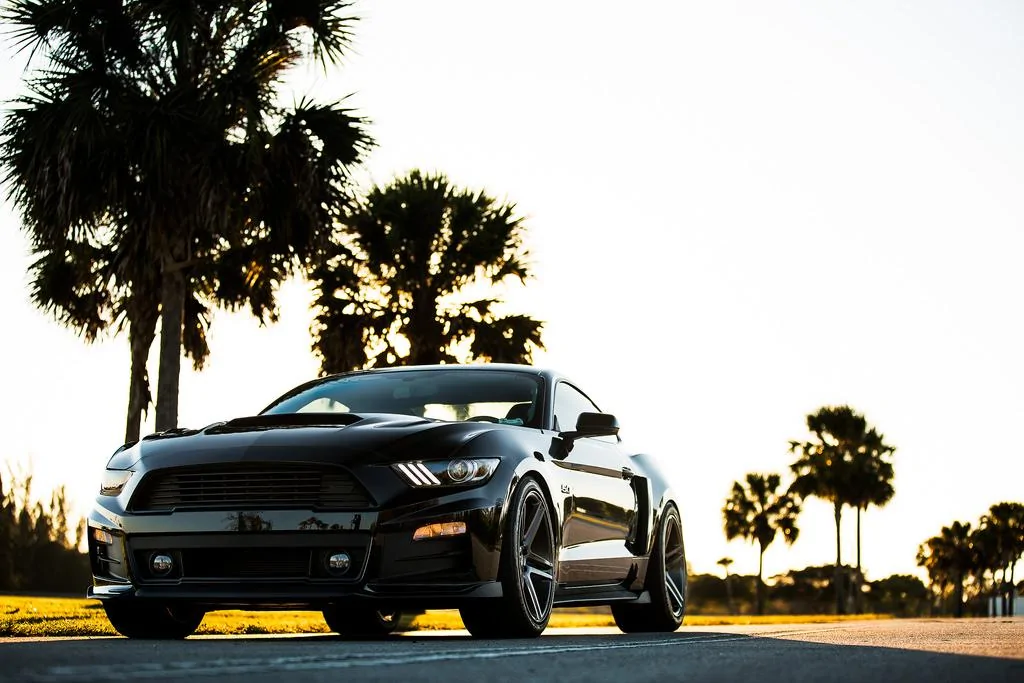

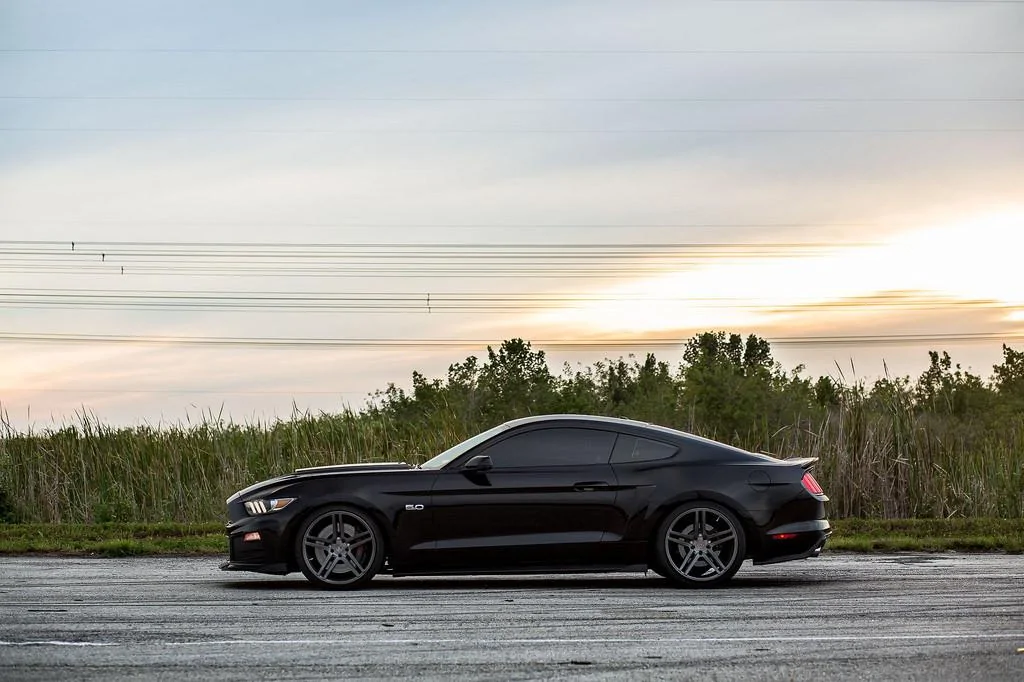

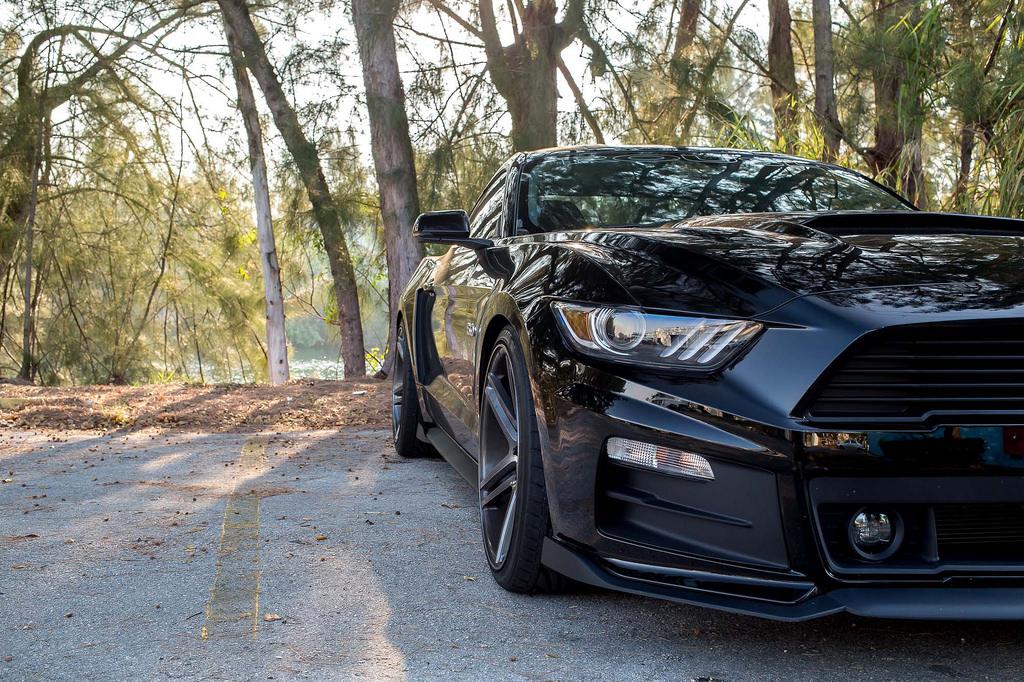

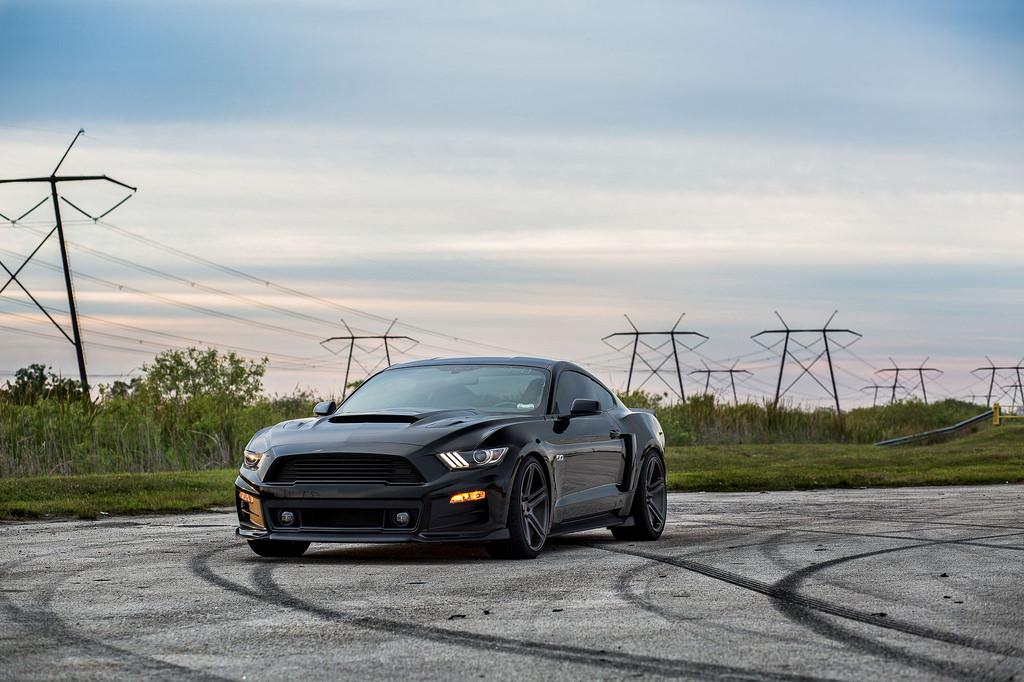

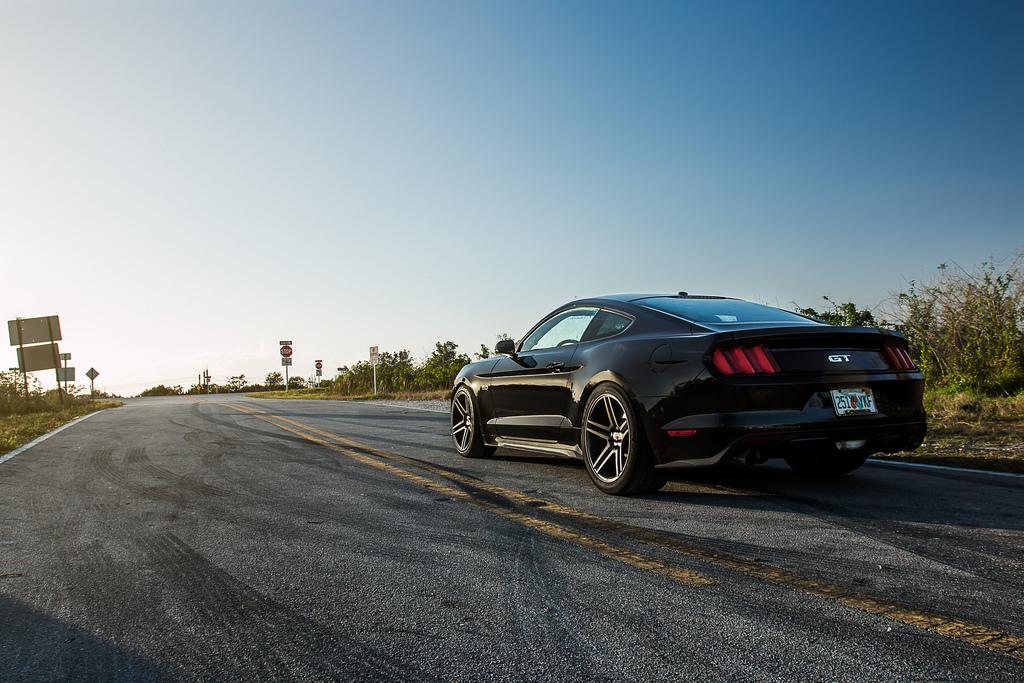

    Here are a couple of different fitment options that we have ran on the S550. My first setup was the VFS1 with a 20x9.5 +25 up front and a 20x10.5 +45 in the rear with a 275/35/20 and 315/35/20 Toyo Proxes 4 Plus tires dropped on Eibach Pro-Kit springs. 2nd setup was the VFS2 with the same wheel/tire specs as the VFS1 and dropped on the Eibach Pro-Kit as well. The 3rd setup is the Vossen Forged VPS-302 and it is a 20x10 +30 up front and a 20x11 +48 in the rear. The first set of pictures of this setup was with my 275/35 & 315/35 tire setup dropped on Eibach Pro-Kit Springs and the 2nd set of pictures is when I lowered it even more with the Sportline Springs and changed the tires to a 275/30 & a 305/30. We are going to pushing the limits with the S550 by testing a 20x12 +50 on it on my next set so hoping for the best! Here are the different fitment options we have ran on my 2015.

    Vossen VFS1 - Eibach Pro-Kit Springs
    F: 20x9.5 +25 275/35/20
    R: 20x10.5 +45 315/35/20





    Vossen VFS2 - Eibach Pro-Kit Springs
    F: 20x9.5 +25 275/35/20
    R: 20x10.5 +45 315/35/20





    Vossen Forged VPS-302 - Eibach Pro-Kit Springs
    F: 20x10 +30 275/35/20
    R: 20x11 +48 315/35/20







    Vossen Forged VPS-302 - Eibach Sportline Springs
    F: 20x10 +30 275/30/20
    R: 20x11 +48 305/30/20







    10SpeedDemon, Lensync, Sharad and 2 others like this.
  2. Chevpwr

    Chevpwr Well-Known Member

    First Name:
    Lee
    Vehicle(s):
    2015 GT A6 Vert
    Joined:
    Feb 22, 2015
    Location:
    Oklahoma
    Posts:
    278
    Likes Received:
    80
    0   0   0
    Pro kit, Foose Outcast 20x8.5/10 with 275/35 and 305/35

    [​IMG]

    [​IMG]

    [​IMG]

  3. Todd15Fastback

    Todd15Fastback Well-Known Member

    First Name:
    Todd
    Vehicle(s):
    2015 Mustang GT PP Fastback
    Joined:
    Dec 10, 2013
    Location:
    Atlanta, GA
    Posts:
    10,527
    Likes Received:
    3,838
    Rating:
    100%
    1   0   0

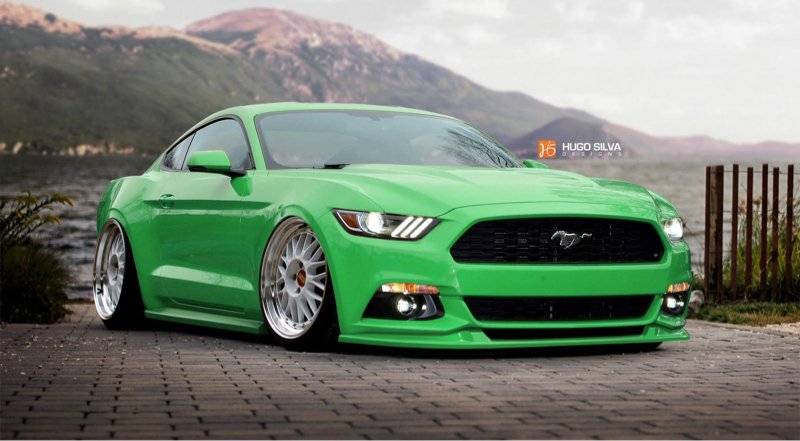

    Picture I found while Googling to see if there are that many "stanced" Mustangs....Not my style at all but enjoy the picture.

    [​IMG]

  4. OP
    OP
    phrenetiK

    phrenetiK IF YOU QUOTE PICS I H8 U

    Vehicle(s):
    2015 GT Premium PP Recaros Race Red
    Joined:
    Mar 6, 2015
    Location:
    houston
    Posts:
    1,100
    Likes Received:
    445
    0   0   0
    [​IMG]

    he's on bags tho

  5. 101charley

    101charley Well-Known Member

    First Name:
    Charley
    Vehicle(s):
    2015 GT Magnetic, 400A, 6AT, 3.55, MBRP Street
    Joined:
    Dec 24, 2014
    Location:
    Franklin TN
    Posts:
    424
    Likes Received:
    82
    0   0   0
    Very nice! Does it rub? Looks like it might. What happens when you go over a speed bump?

  6. jimmypop13

    jimmypop13 Well-Known Member

    Vehicle(s):
    2009 HHR SS
    Joined:
    Mar 26, 2014
    Location:
    TEXAS
    Posts:
    83
    Likes Received:
    8
    0   0   0
    Oh god, I hate this look on cars. I mostly see it on Nissans and foreign cars. The wheels are turned in so far, they barely make contact with the ground and the tire is stretched so damn far it looks like it will lose its seal and deflate at any moment causing a huge accident. When I see these cars driving I can't help but think the drivers are assholes for putting everyone at risk on the road. But I'm guessing I'm probably wrong and the tires won't come unsealed that easily

  7. Supa LA

    Supa LA Drop a gear and disappear

    Vehicle(s):
    2015 Guard Metallic Mustang GT PP
    Joined:
    Nov 10, 2014
    Location:
    So. Indiana
    Posts:
    1,382
    Likes Received:
    206
    0   0   0
    From what I understand, that's just a rendering. Not someone's actual setup.

    NOW, "stance" as everyone keeps calling it, can be done to an extent where the car can still handle and perform adequately. Would I hit a road course with one? Probably not, but depends on the car and setup. You can still get more than enough contact with, let's say, -3 to -4* of camber. There will be some tucking wheel at that point for sure tho. My previous car was awd, on -3.5* and handled fine. It wasn't ideal, I could've pulled some camber out and easily had around -2.5*. Which is plentiful contact with the road to be sufficient. I do agree, that those cars you see rolling around with maxed camber and tiny rubber bands as tires is stupid AND dangerous.

  8. DB83

    DB83 Granny Shifter

    Vehicle(s):
    2017 Mustang GT
    Joined:
    May 4, 2014
    Location:
    Spain
    Posts:
    573
    Likes Received:
    99
    0   0   0
    Oh dear lord! Finally someone with black CF10's in 20's on a magnetic! YES, YES, YES! Please post more pics......LOTS!

    SVT-DADDY and Farmundeh like this.
  9. Chevpwr

    Chevpwr Well-Known Member

    First Name:
    Lee
    Vehicle(s):
    2015 GT A6 Vert
    Joined:
    Feb 22, 2015
    Location:
    Oklahoma
    Posts:
    278
    Likes Received:
    80
    0   0   0
    Hasn't rubbed yet, and I have driven on some very rough Oklahoma back roads.

  10. stormtrooper

    stormtrooper Well-Known Member

    First Name:
    Chance
    Vehicle(s):
    2015 Ecoboost
    Joined:
    Nov 29, 2014
    Location:
    Saginaw, TX
    Posts:
    482
    Likes Received:
    57
    0   0   0
    Anyone with a squared setup?? Preferably 285s all the way around?

  11. Twenty15

    Twenty15 Well-Known Member

    First Name:
    Paul
    Vehicle(s):
    2015 GT Premium | DIB
    Joined:
    Jul 3, 2014
    Location:
    Fort Collins, CO
    Posts:
    495
    Likes Received:
    83
    0   0   0
    What wheels are these please. Sorry if I missed it.

  12. VIN666

    VIN666 Well-Known Member

    Vehicle(s):
    many
    Joined:
    Dec 9, 2013
    Location:
    MI
    Posts:
    409
    Likes Received:
    29
    0   0   0
    According to the "rules" I can't post my setup, as it's on stock springs.

    See sig for details. most aggressive setup posted yet... Just saying.

    RubyRed15 likes this.
  13. TorkN8R

    TorkN8R Well-Known Member

    Vehicle(s):
    2016 Mustang GT Premium Ingot Silver Auto W/3.55's
    Joined:
    Jun 14, 2014
    Location:
    Northern California Bay Area
    Posts:
    752
    Likes Received:
    125
    0   0   0
    Lol! I'm confused. I thought the Steeda was 1" all around and the Eibach was 1" rear and 1.1 front.

    Anyway...maybe someone could do a thread similar to this thread and list all of the lowering set ups and their drops.

  14. Supa LA

    Supa LA Drop a gear and disappear

    Vehicle(s):
    2015 Guard Metallic Mustang GT PP
    Joined:
    Nov 10, 2014
    Location:
    So. Indiana
    Posts:
    1,382
    Likes Received:
    206
    0   0   0
    Does it REALLY matter if they're 1" or 1.1"? Lol. You will notice a difference of course, with the Sports tho.

  15. smdandb2

    smdandb2 ManBearPig

    Vehicle(s):
    2017 Toyota Corolla SE
    Joined:
    Oct 14, 2014
    Location:
    Uranus
    Posts:
    726
    Likes Received:
    389
    0   0   0
    Rays Gram Lights - 57Getter

    RubyRed15 likes this.
